Model 3000 Series
ABC Multi-Purpose Dry Chemical Portable Fire Extinguisher

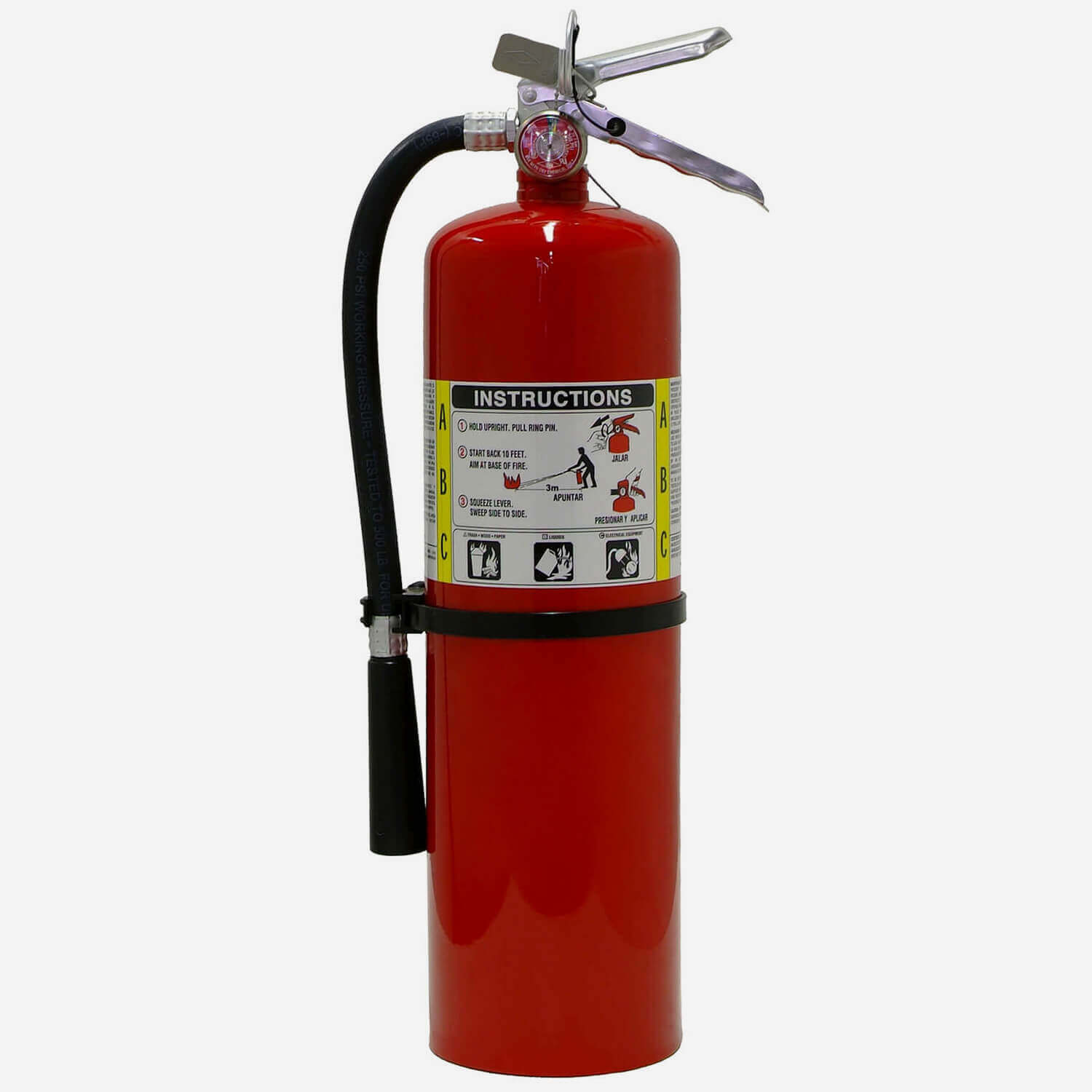

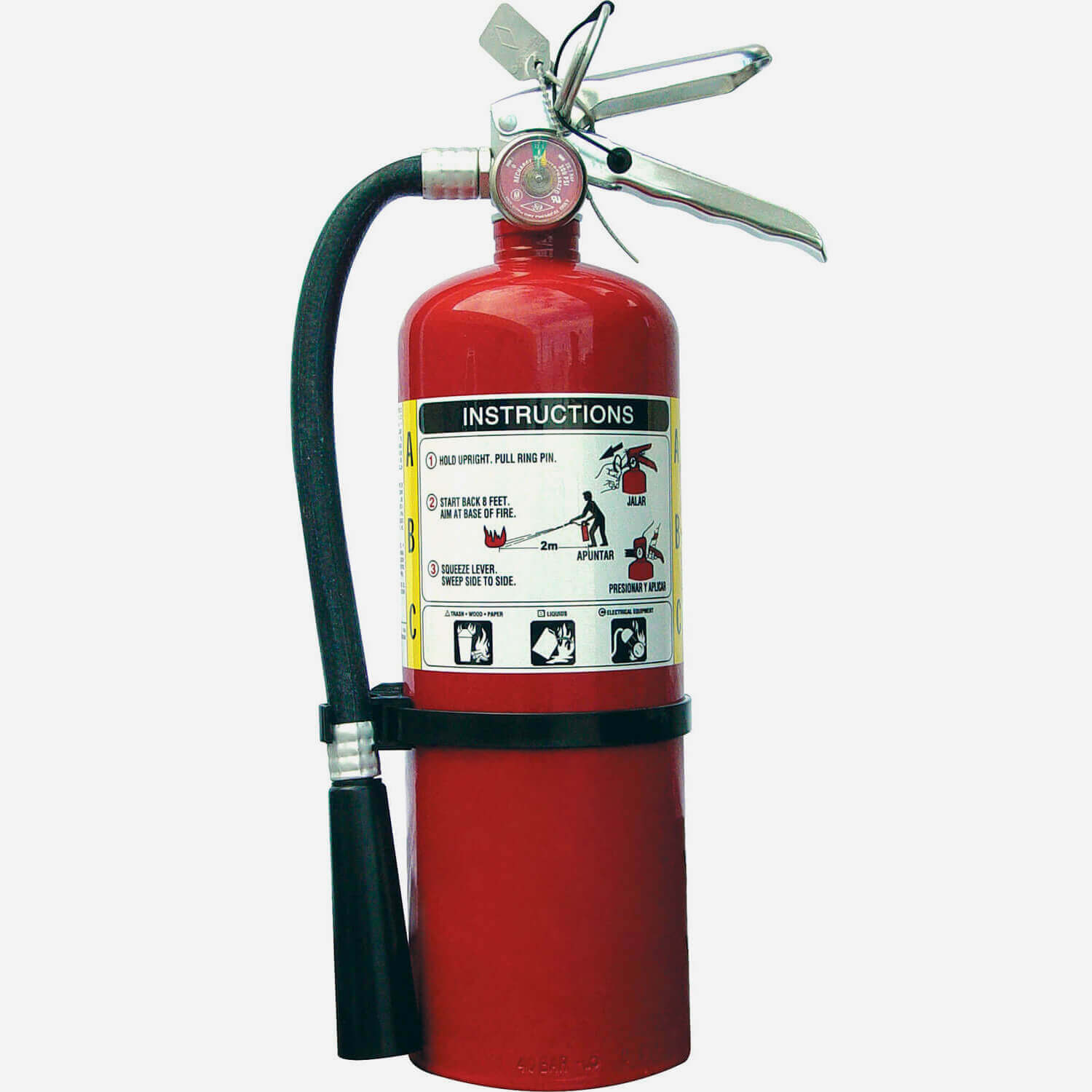

This fire extinguisher is used to provide protection against Class A B and C fires. It has a red glossy polyester-coated steel cylinder with a pressure gauge wall mounting bracket and hose or nozzle as indicated. The contents are non-conductive siliconized mono ammonium phosphate dry chemical. Contents are stored under pressure at approximately 195 PSI (13.4 bars).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ABC Multi-Purpose Dry Chemical Extinguishers [3002, 3005, 3005-3, 3006, 3010, 3020]; BC Purple K Dry Chemical Extinguishers [3302-PK, 3305-PK, 3310-PK, 3320-PK] | 0 | 1 MB | ||
| | MasterSpec: 104416, Fire Extinguishers (pdf) | 0 | 180 KB | ||
 | | MasterSpec: 104416, Fire Extinguishers (doc) | 0 | 151 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Range of Stream | 9 thru 15', 12 thru 18', 15 thru 21' |
| Type of Discharge | Nozzle, Hose & Nozzle, Hose |
| Height | 23.625", 15.5", 16", 20", 24" |
| Diameter | 3", 4.25", 5", 7" |
| Capacity | 2.5 Lbs, 5 Lbs, 6 Lbs, 10 Lbs, 20 Lbs |
| Application | A Class Fire, B Class Fire, C Class Fire |
