Model 3510/3520/3525

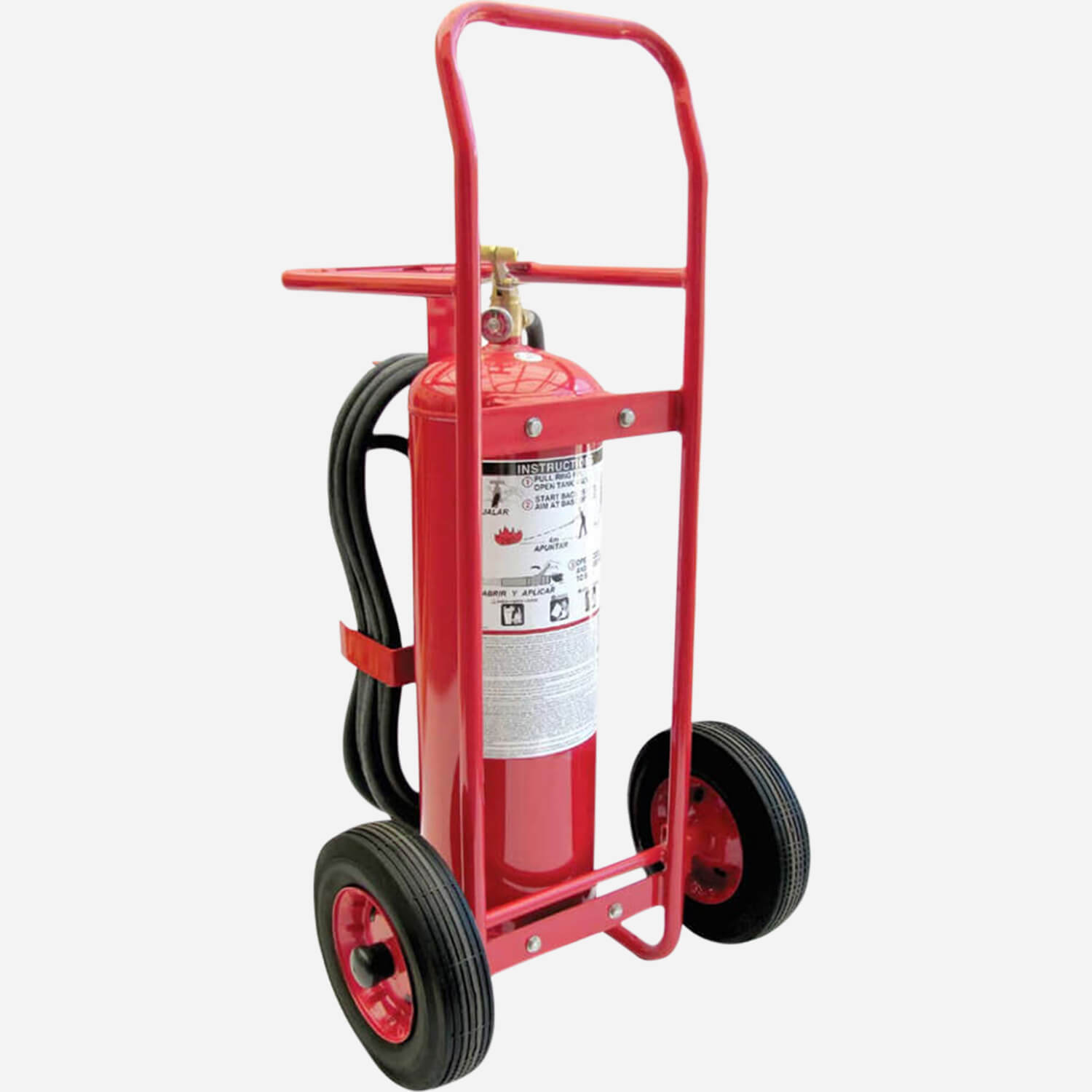

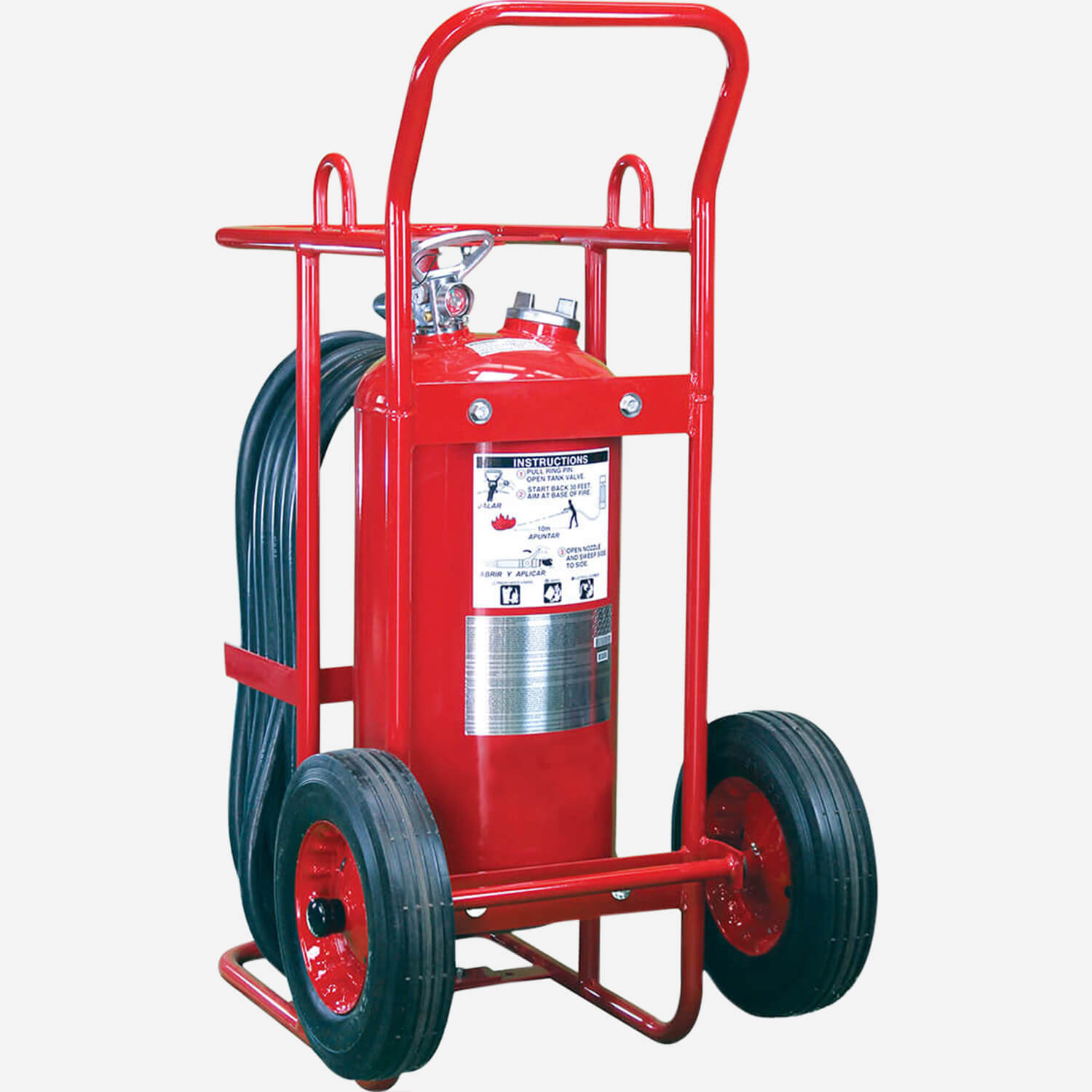

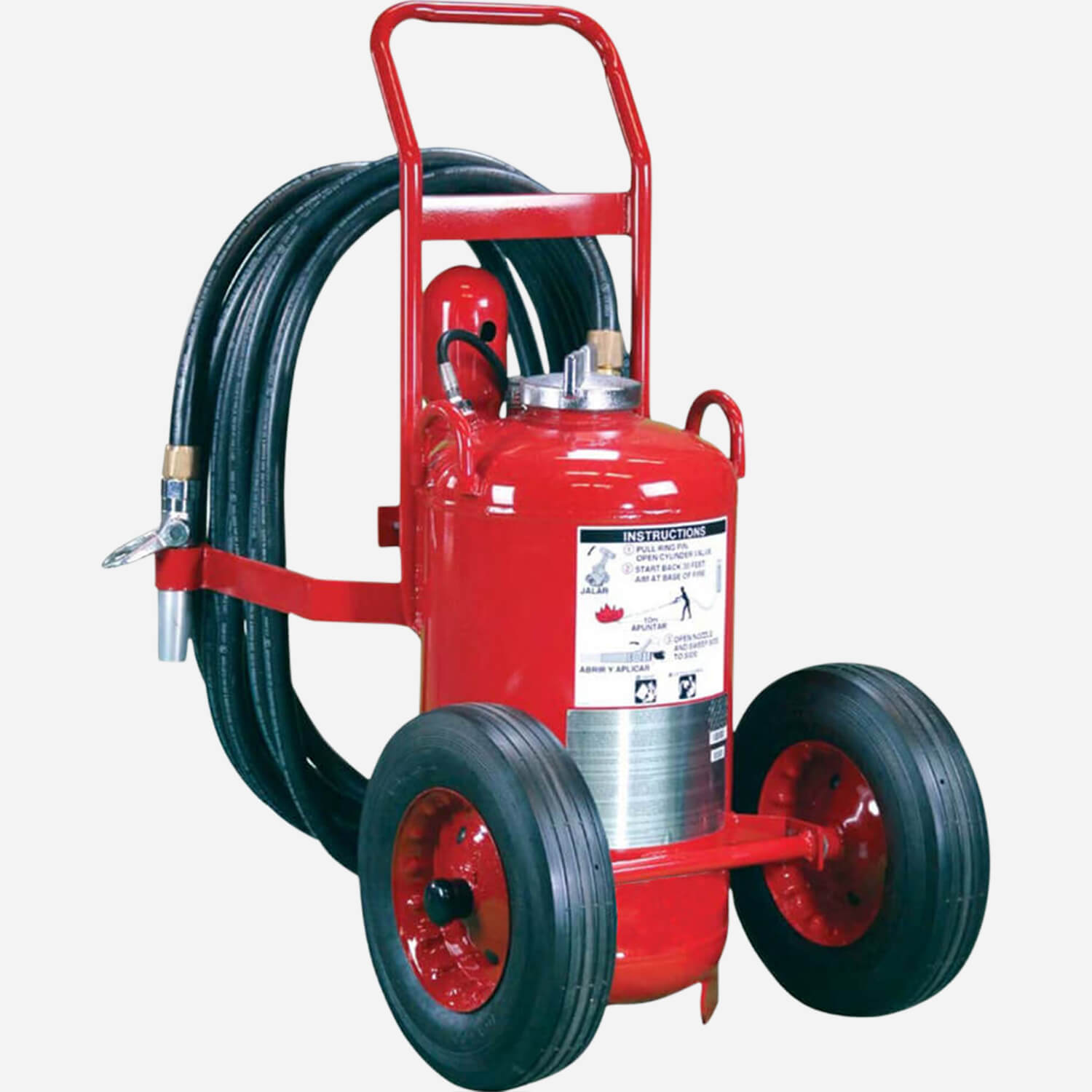

ABC Multi-Purpose Dry Chemical Wheeled Fire Extinguisher
This multi-Purpose Dry Chemical Wheeled Fire Extinguisher is UL rated for multipurpose firefighting capacities of Class A B and C fires and is wheeled for mobility. It has a red glossy polyester coated steel cylinder carriage and hose hanger assembly; A quick release non-kink hose with positive grip nozzle and semi-pneumatic tires. The dry chemical agent is Ammonium Phosphate. Model 3510 has a 50 lb. capacity and operates with stored pressure. Model 3520 has a 125 lb. capacity and is direct pressure nitrogen cylinder operated. Model 3525 has a 125 lb. capacity and operates with stores pressure.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wheeled Fire Extinguishers ABC Multi-Purpose Dry Chemical [3510, 3520, 3525]; Purple K Dry Chemical [3530 and 3540]; Haltron 1 [3660 and 3365;] Sodium Bicarbonate [3545 and 3550]; Carbon Dioxide Self-Expellent [3610 and 3620] | 0 | 798 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Application | A Class Fire, B Class Fire, C Class Fire |
| Capacity | 50 Lbs, 125 Lbs |
| UL | 30A:240B:C, 20A:160B:C |
| Type of Discharge | 25' Length Hose, 50' Length Hose |
| Height | 46", 45", 53.5" |
| Width | 21.5", 24", 28", 30" |
| Depth | 24", 36", 40" |
| Agent | Ammonium Phosphate |
| Method of Operation | Stored Pressure, Direct Pressure Nitrogen Cylinder Operated |
