Halotron Portable Fire Extinguisher

Contact a Representative
Model 3100 Series
Submittal
Submittal 3100, 3400 Series Fire Extinguisher (pdf)
Model 3100 Series

Halotron Portable Fire Extinguisher

ONCE EXCLUSIVE TO THE AEROSPACE INDUSTRY, THE HIGH PERFORMING HT-SERIES for commercial settings can safely put out fires without damaging electronic equipment, specialized machinery, or other delicate materials. That also means that there is no clean-up or down time for your operations. Industries such as health care, clean manufacturing, data processing centers, and museums would all benefit from the HT Series. This fire extinguisher is also sensitive to the environment, meeting strict environmental regulations for Global Warming Potential and Ozone Depletion Potential. With knock-down power and firefighting efficiency, the HT-Series using Halotron BrX agent features a steel cylinder, durable high-gloss polyester powder paint, and all-metal valve construction. Maximum visibility during discharge, a large stainless steel pull pin, and no electronic conductivity back to the user make this extinguisher extremely easy to use.

HALOTRON 1

Red glossy polyester-coated steel cylinder with bracket. The stored pressure environment- friendly HCFC-123 "Clean Agent" is non-conductive, noncorrosive and rapidly evaporates. leaving no residue. Recommended for electrical equipment fires.

HALOTRON BrX

White polyester-coated steel cylinder with bracket. Stored pressure BrX os a premium, sustainable clean agent with a low Global Warming Potential and very low Ozone Depletion Potential. ABS rated; it leaves no residue. Easy to use with no thermal or static shock.

KEY FEATURES AND BENEFITS
  • Stored-pressure design for simple inspection
  • A low-GWP and very low-ODP product
  • No thermal or static shock
  • 12 year service life; non-rechargeable
  • Six-year manufacturer warranty
  • All-metal valve construction
  • Durable, high-gloss polyester powder-coat finish
  • Steel cylinder design
  • Flexible hose, all-metal hose for easy use
  • Leaves no residue
  • 7-day atmospheric lifespan
  • ABC Rating

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 3100, 3400 Series Fire Extinguisher (pdf)
Halotron1 [3101, 3102, 3105, 3111, 3115] and Carbon Dioxide [3405, 3405NM, 3410, 3410, 3415, 3420] Fire Extinguishisher04 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 104416, Fire Extinguishers (pdf)
MasterSpec: 104416, Fire Extinguishers (pdf)0180 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 104416, Fire Extinguishers (doc)
MasterSpec: 104416, Fire Extinguishers (doc)0151 KB
PDF icon
Brochures/Flyers
PDF icon
Halotron Fire Extinguisher Flyer (pdf)
Halotron Fire Extinguisher Flyer (pdf)05 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today09 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)0718 KB

Specifications

ApplicationB Class Fire, C Class Fire
Capacity1.4 Lbs, 2.5 Lbs, 5 Lbs, 11 Lbs, 15.5 Lbs
UL1B:C, 2B:C, 5B:C, 1A:10B:C, 2A:10B:C
Range of Stream6 thru 10', 6 thru 8', 9 thru 15', 12 thru 18'
Type of DischargeNozzle, Hose & Nozzle
Height10", 15.5", 15.25", 21.875"
Diameter2.625", 3", 4.25", 6"
Width3.5", 5.75", 9.25", 6.375", 11", 30", 12.25"
AgentHalotron 1™

Models

Typical models are shown below

3101

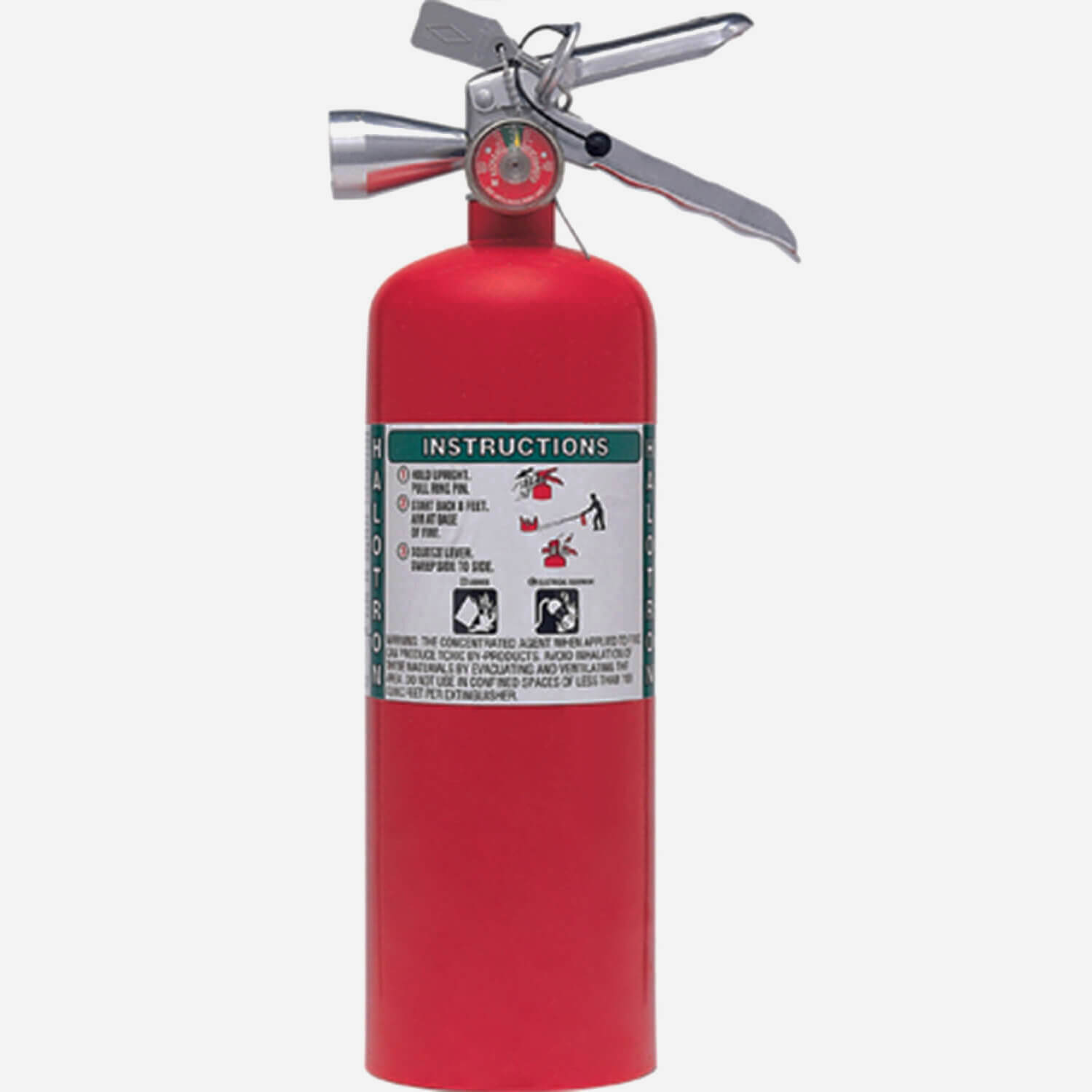

Halotron 1BC UL RatingWith Nozzle 3101 (shown)1.4 lbs (0.63 kg),Rating 1B:C 31022.5 lbs (1.1 kg),Rating 2B:C 31055 lbs (2.2 kg),Rating 5B:C

3115

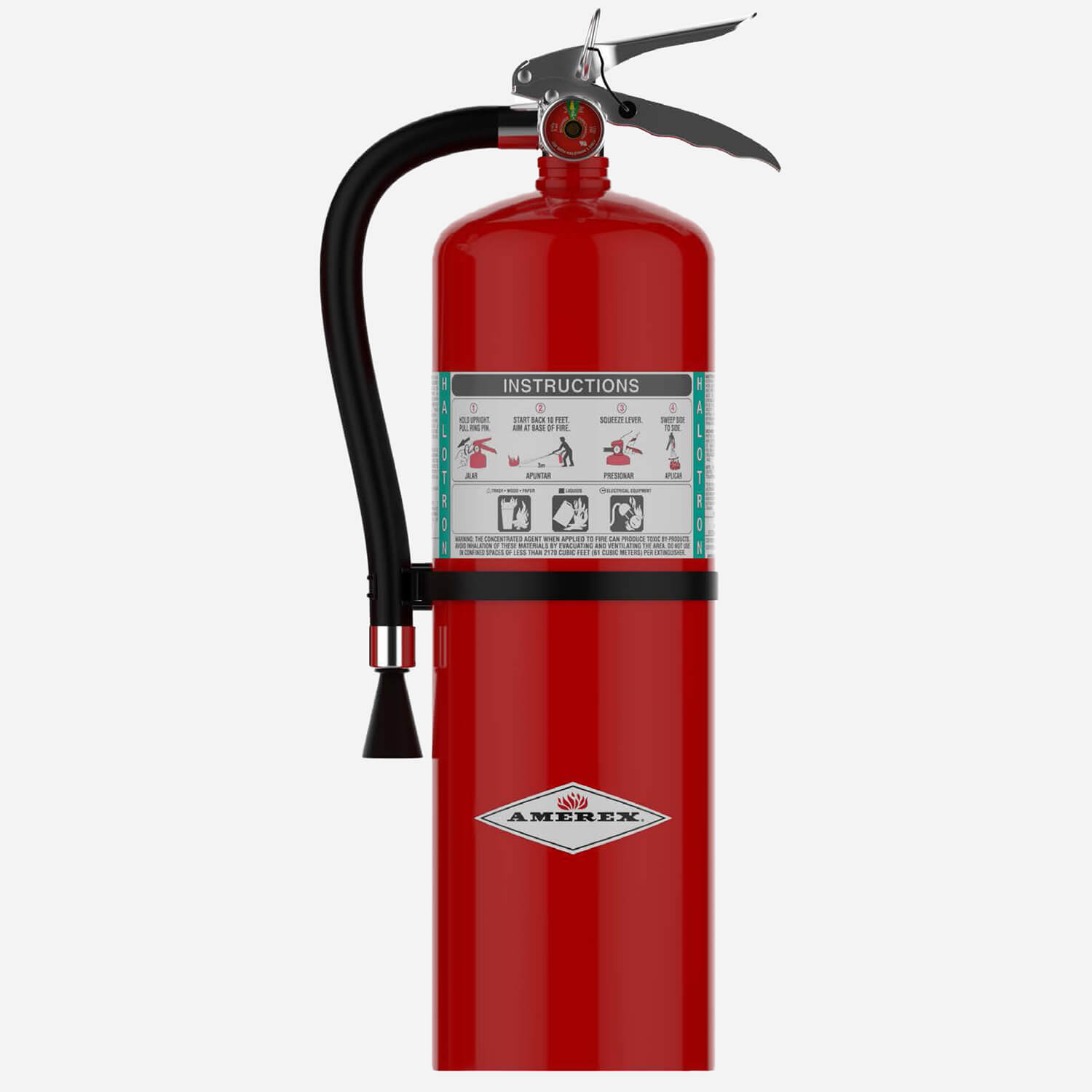

Halotron 1ABC URL RatingWith Hose & Nozzle311111 lbs (5 kg),Rating 1A:10B:C3115 (shown)15.5 lbs (7 kg),Rating 2A:10B:C

alt=

Halotron BrxABC URL RatingWith Hose & Nozzle311212.5 lbs (5.7 kg),Rating 2A:10B:C
