Model 3560 and 3565
Halotron 1™ Wheeled Fire Extinguisher - Stored Pressure

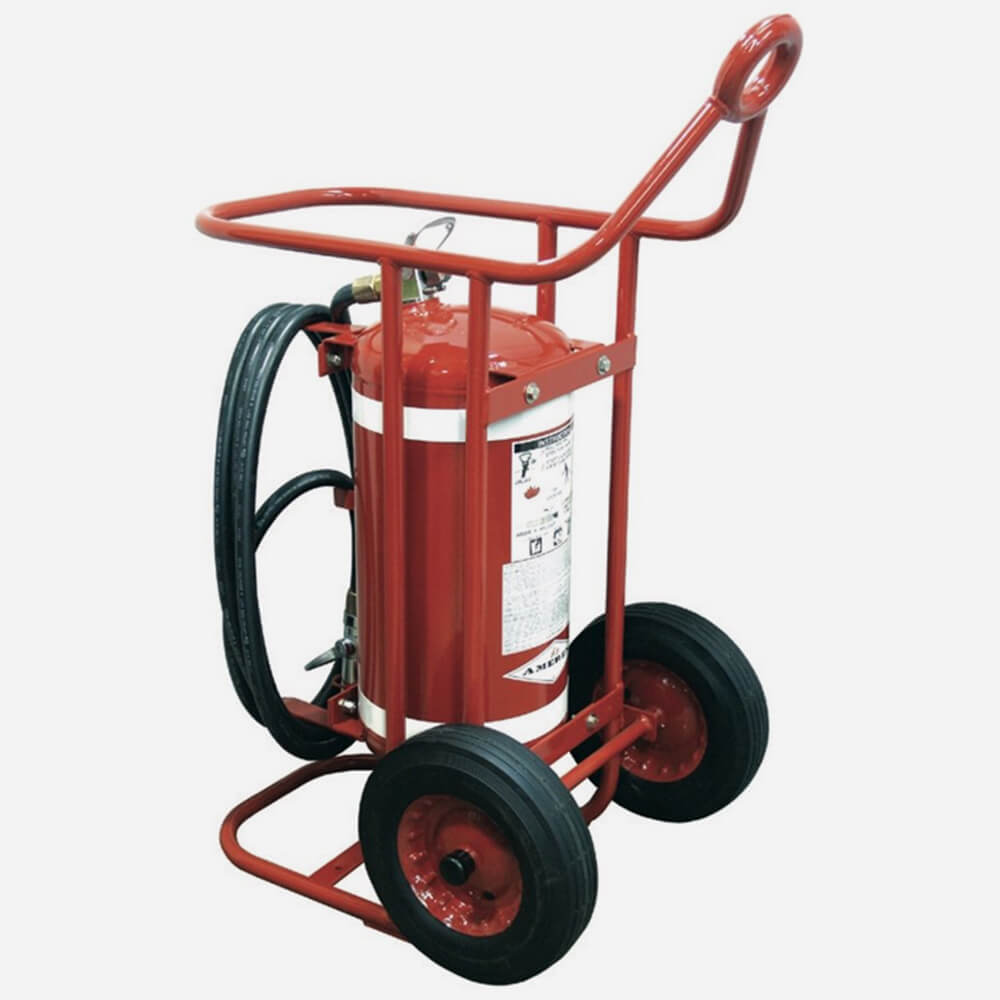

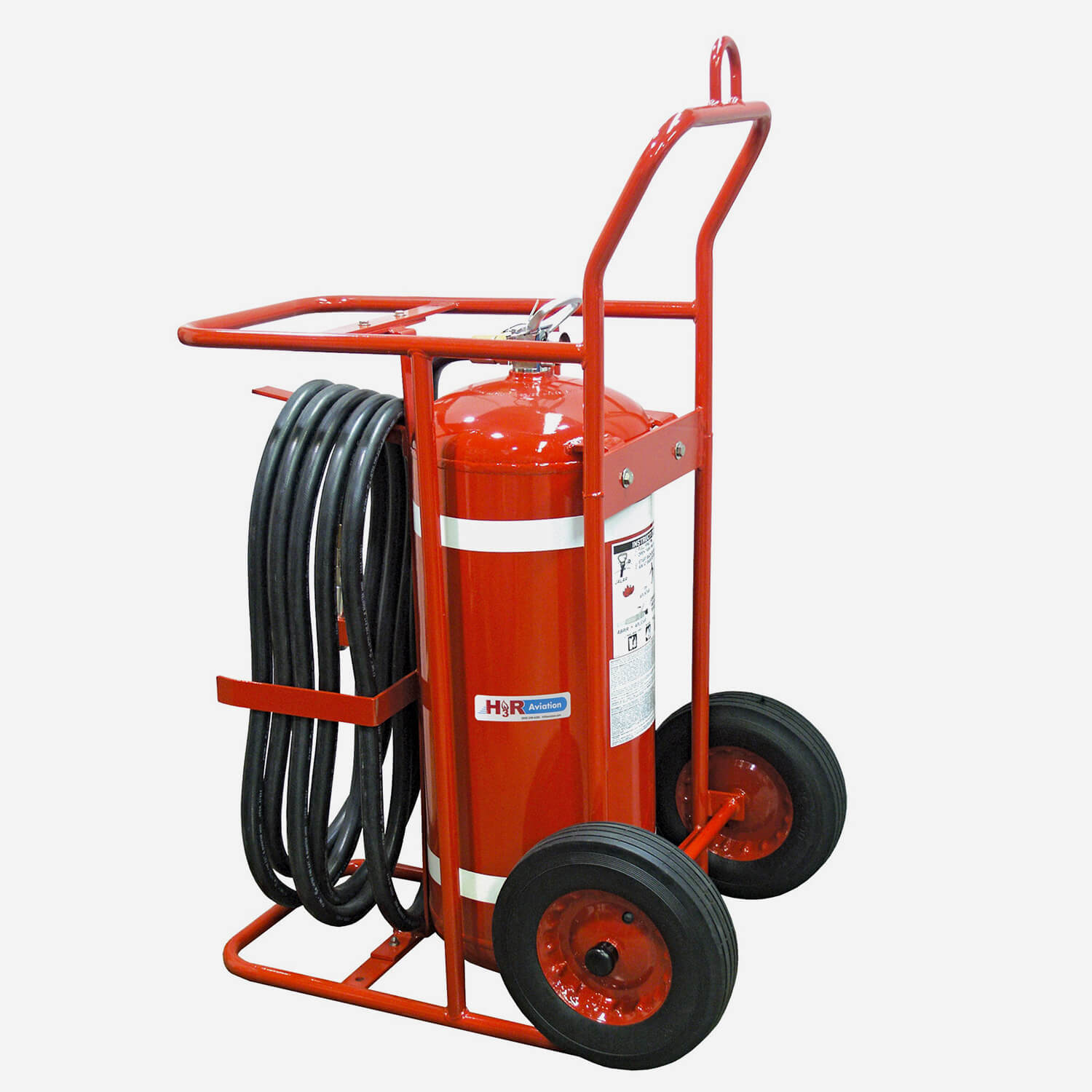

Halotron 1™ Stored Pressure Wheeled Fire Extinguisher features a red glossy polyester coated steel DOT cylinder, carriage, and rack with 50 ft (15.2 m) of a 3/4" (19 mm) diameter hose. The quick-opening chrome-plated brass valve operates with stored pressure. FAA approved as clean agent, Halotron 1, for both ramp-use and on-board aircraft.
Model 3560 has a capacity of 65 lbs (28 kg) rated 4A:80BC; Model 3565 has a capacity of 150 lbs (68 kg) rated at 10A:120BC.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wheeled Fire Extinguishers ABC Multi-Purpose Dry Chemical [3510, 3520, 3525]; Purple K Dry Chemical [3530 and 3540]; Haltron 1 [3660 and 3365;] Sodium Bicarbonate [3545 and 3550]; Carbon Dioxide Self-Expellent [3610 and 3620] | 0 | 798 KB |
Specifications
| Agent | Halotron 1™ |
| Capacity | 150 Lbs, 65 lbs, 50' of 3/4" Hose |
| Method of Operation | Stored Pressure |
| Height | 58", 64" |
| Width | 37", 28" |
| Depth | 39", 43" |
| Weight (Lbs.) | 286 lbs, 512 lbs |
| UL | 4A:80B:C, 10A:120B:C |
| UL Models | All models in this series |
Models
3560 65 lbs (29.5 kg); 4A:80BC UL rating
3565 150 lbs (68 kg); 10A:120BC UL rating
