Model 3530 and 3540

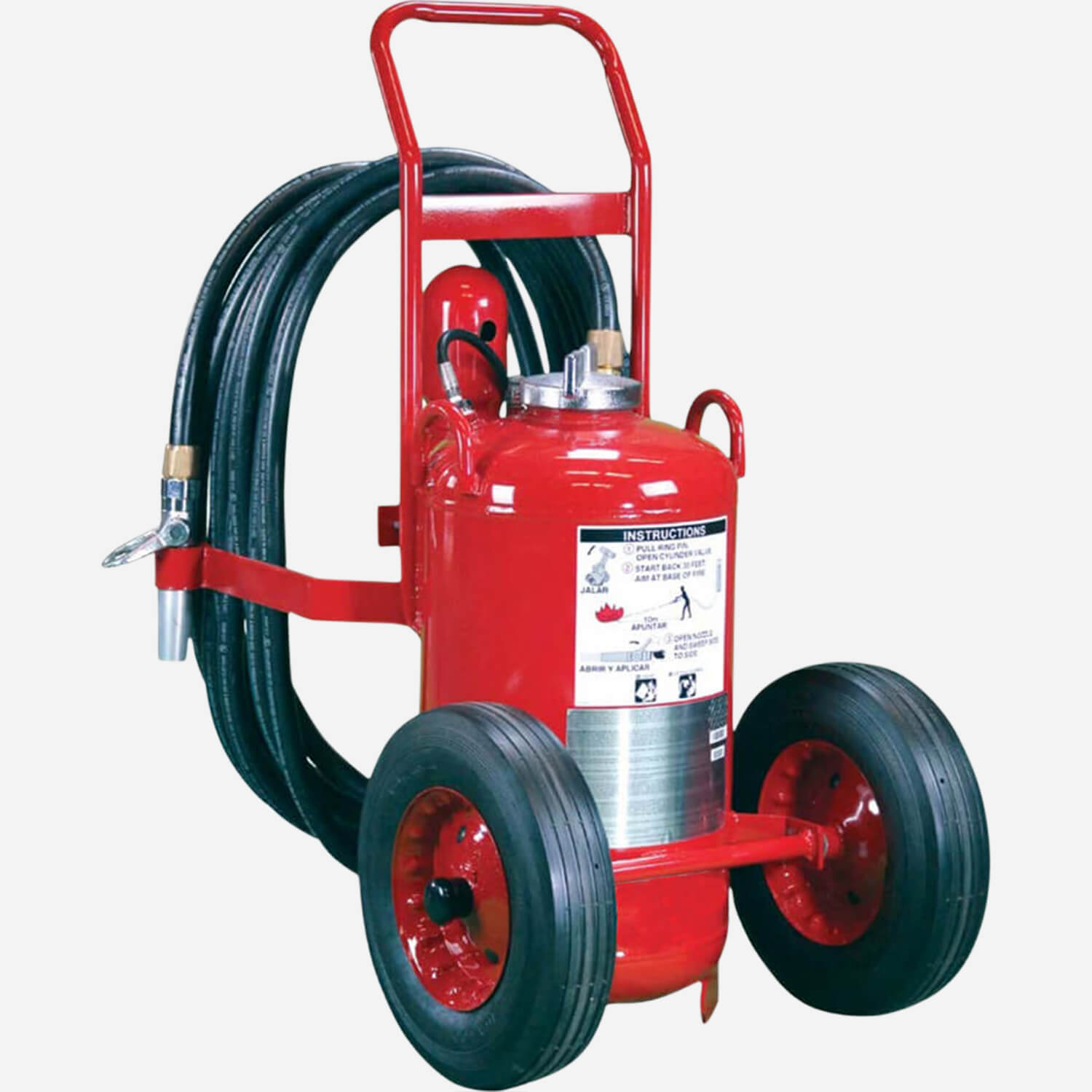

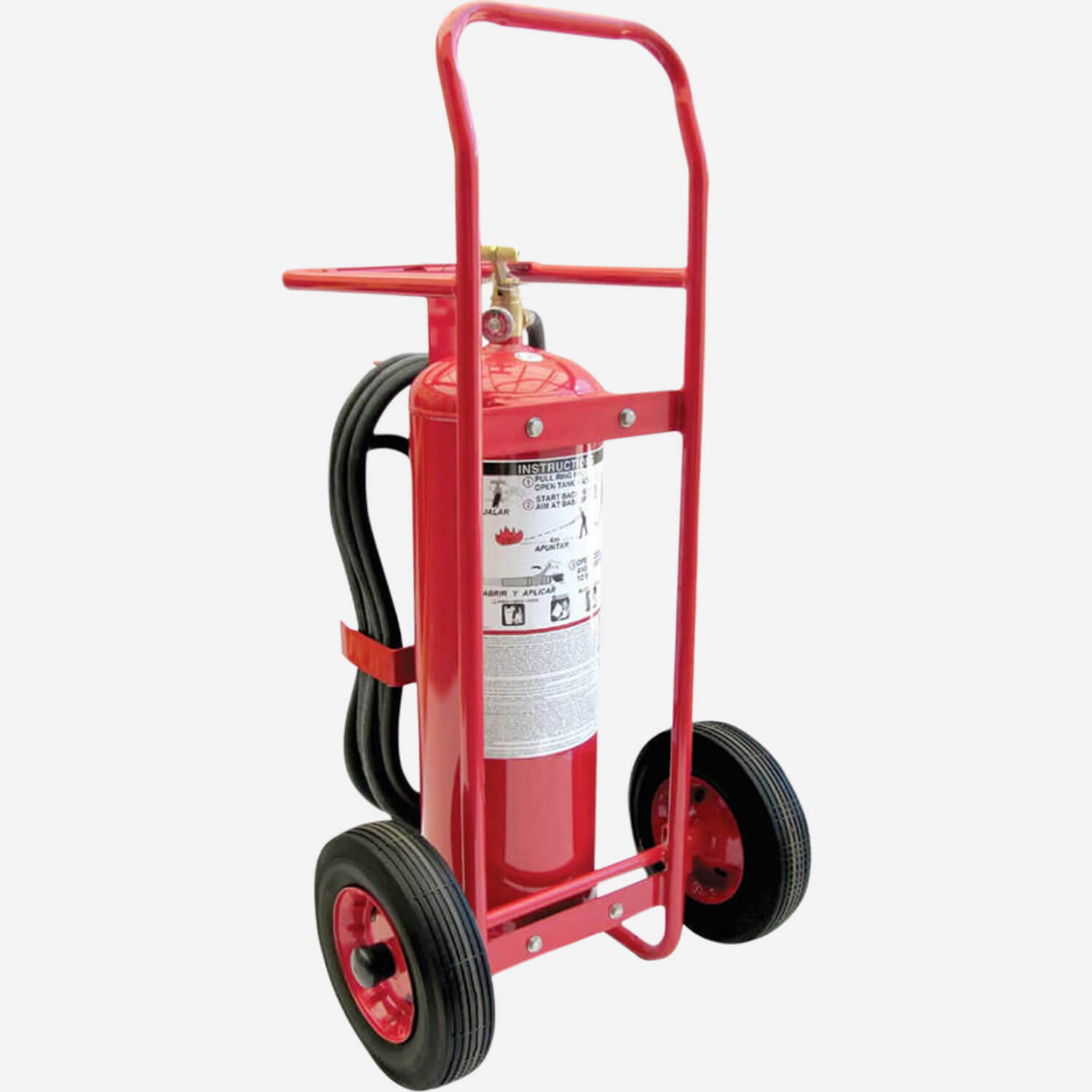

Purple-K Dry Chemical Wheeled Fire Extinguisher
This Purple-K Dry Chemical Wheeled Fire Extinguisher is UL rated for multipurpose firefighting capacities of Class B and C fires and is wheeled for mobility. It has a red glossy polyester coated steel cylinder carriage and hose hanger assembly; a quick release non-kink hose with positive grip nozzle; and semi-pneumatic tires.
The dry chemical agent is Potassium Bicarbonate. Model 3530 has a 50 lb. capacity and operates with stored pressure. Model 3540 has a 125 lb. capacity and is direct pressure nitrogen cylinder operated.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wheeled Fire Extinguishers ABC Multi-Purpose Dry Chemical [3510, 3520, 3525]; Purple K Dry Chemical [3530 and 3540]; Haltron 1 [3660 and 3365;] Sodium Bicarbonate [3545 and 3550]; Carbon Dioxide Self-Expellent [3610 and 3620] | 0 | 798 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Application | B Class Fire, C Class Fire |
| Capacity | 50 Lbs, 125 Lbs |
| UL | 160B:C, 320B:C |
| Type of Discharge | 25' Length Hose, 50' Length Hose |
| Height | 46", 45" |
| Width | 21.5", 24", 30" |
| Depth | 24", 36" |
| Agent | Potassium Bicarbonate |
| Method of Operation | Stored Pressure, Direct Pressure Nitrogen Cylinder Operated |
