Model 2505 thru 2510
1.5 Inch Fire Hose Rack Assembly

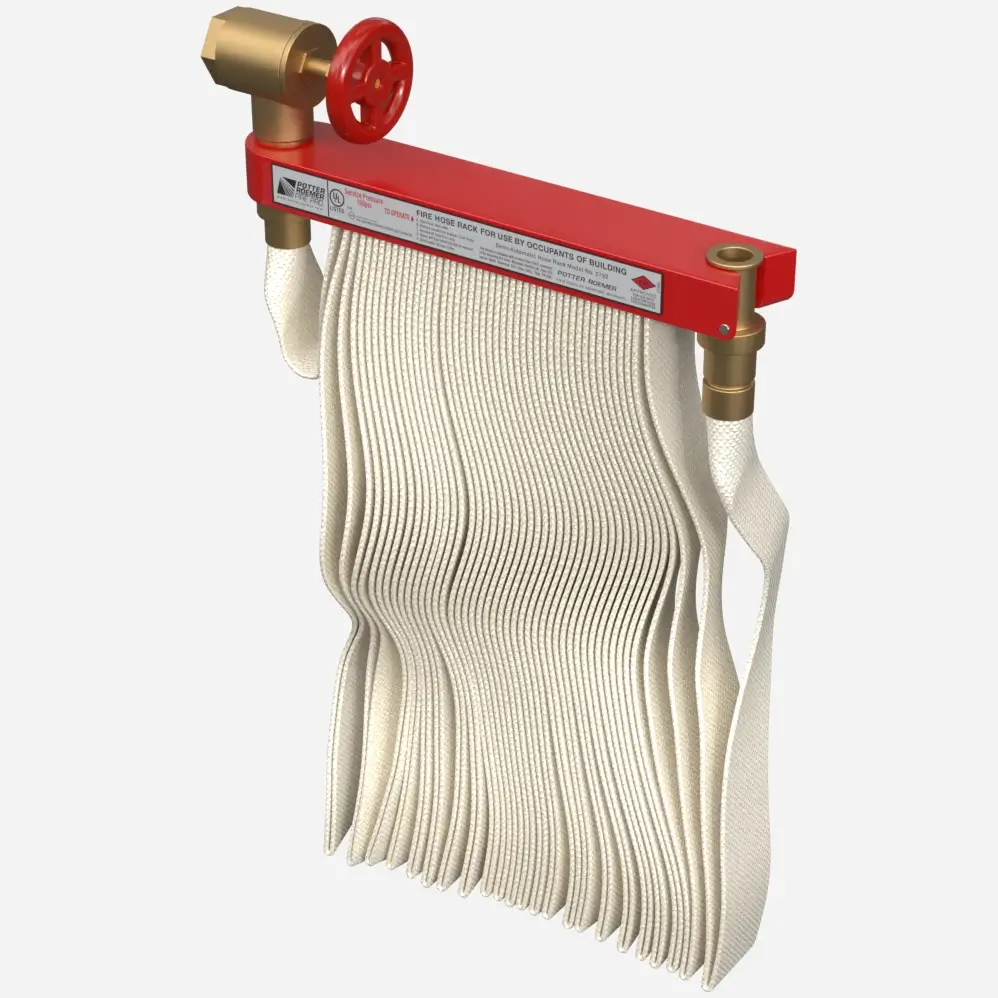

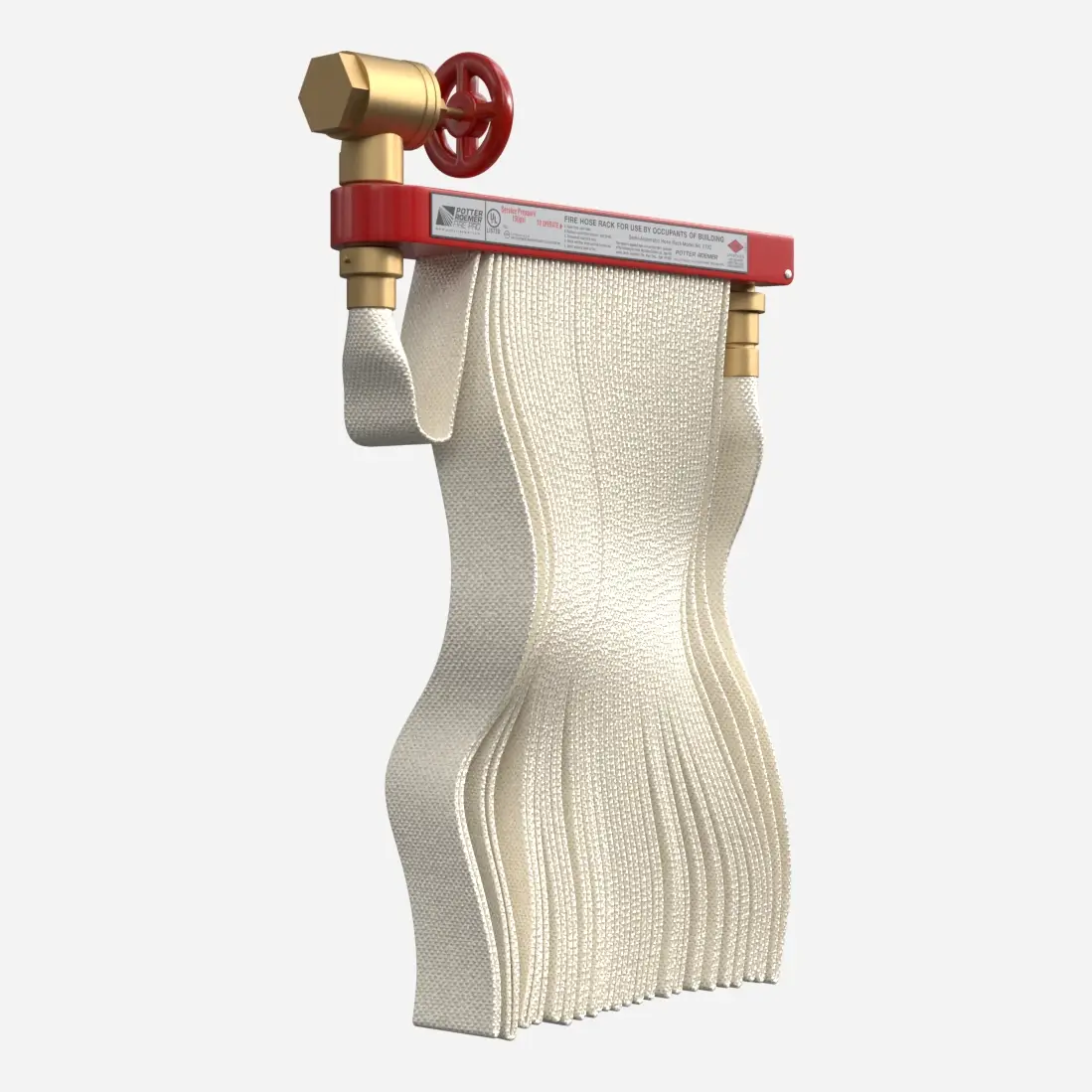

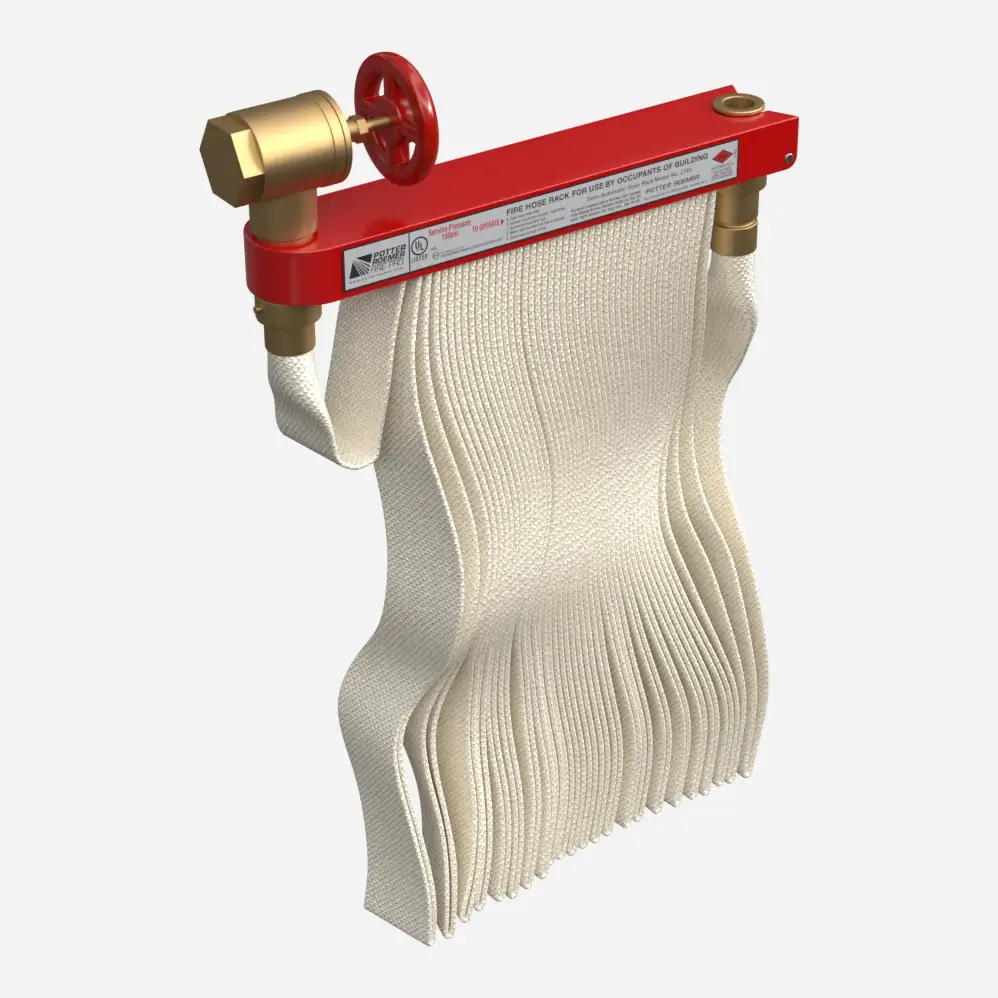

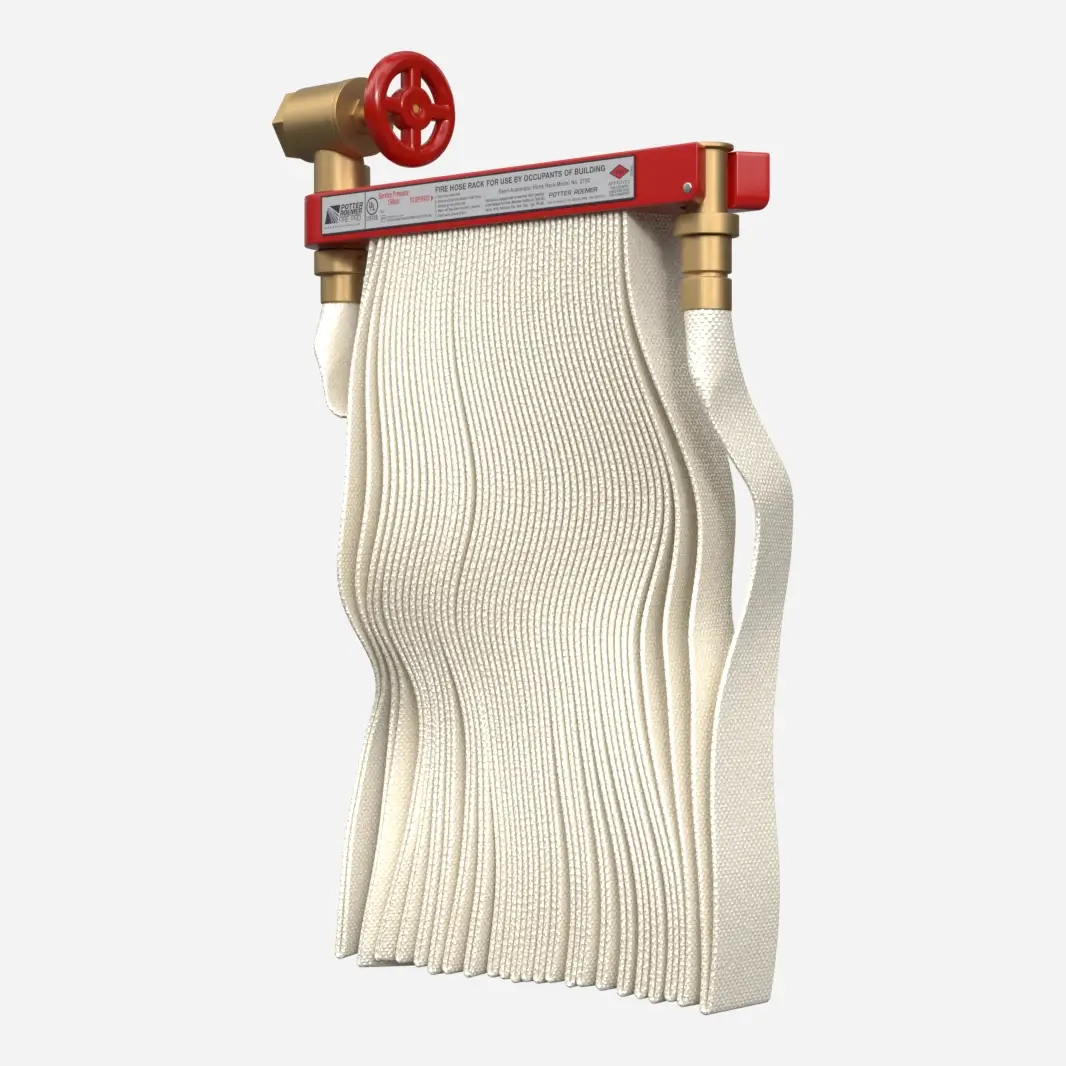

This 1.5” fire hose rack assembly is intended for class II service. It is used to provide an immediate and more efficient means of fire control. The assembly is capable of one-person operation and meets the nationally recognized standard 100 GPM (378.5 LPM) at 65 psi (4.5 bars) at the outlet of the valve. Includes 1.5” escutcheon set and brass pin lug coupling line 500 LB. Polyflex hose for interior standpipe U/L satin brass fog nozzle and red polyester coated steel U/L and hose rack with instructional decal.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Hose Rack Assembly featuring 1-1/2" Angle Valve [2505 | Accommodates 50-Foot 1-1/2" Polyflex Hose; 2507 | Accommodates 75-Foot Hose; 2510 | Accommodates 100-Foot Hose] | 0 | 980 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Hoja de datos de Soporte de Manguera Serie 2500 - Ensambles para Soporte de Manguera de 1.5 Pulgadas | 0 | 736 KB |
Specifications
| Optional Finish | -A | Red Enamel Rack with Rough Brass Valve & Polished Brass Trim, -B | Red Enamel Rack with Polished Brass Valve & Polished Brass Trim, -C | Polished Chrome Rack with Rough Chrome Valve & Rough Chrome Trim, -D | Polished Chrome Rack |
| Pressure | 65 PSI |
| UL Models | All models in this series |
| GPM | 100 |
| UL | UL Listed |
| Meets Other Specifications | NFPA/FEMA Class (of Service) II - Occupant Use |
