Model 2866 thru 2868

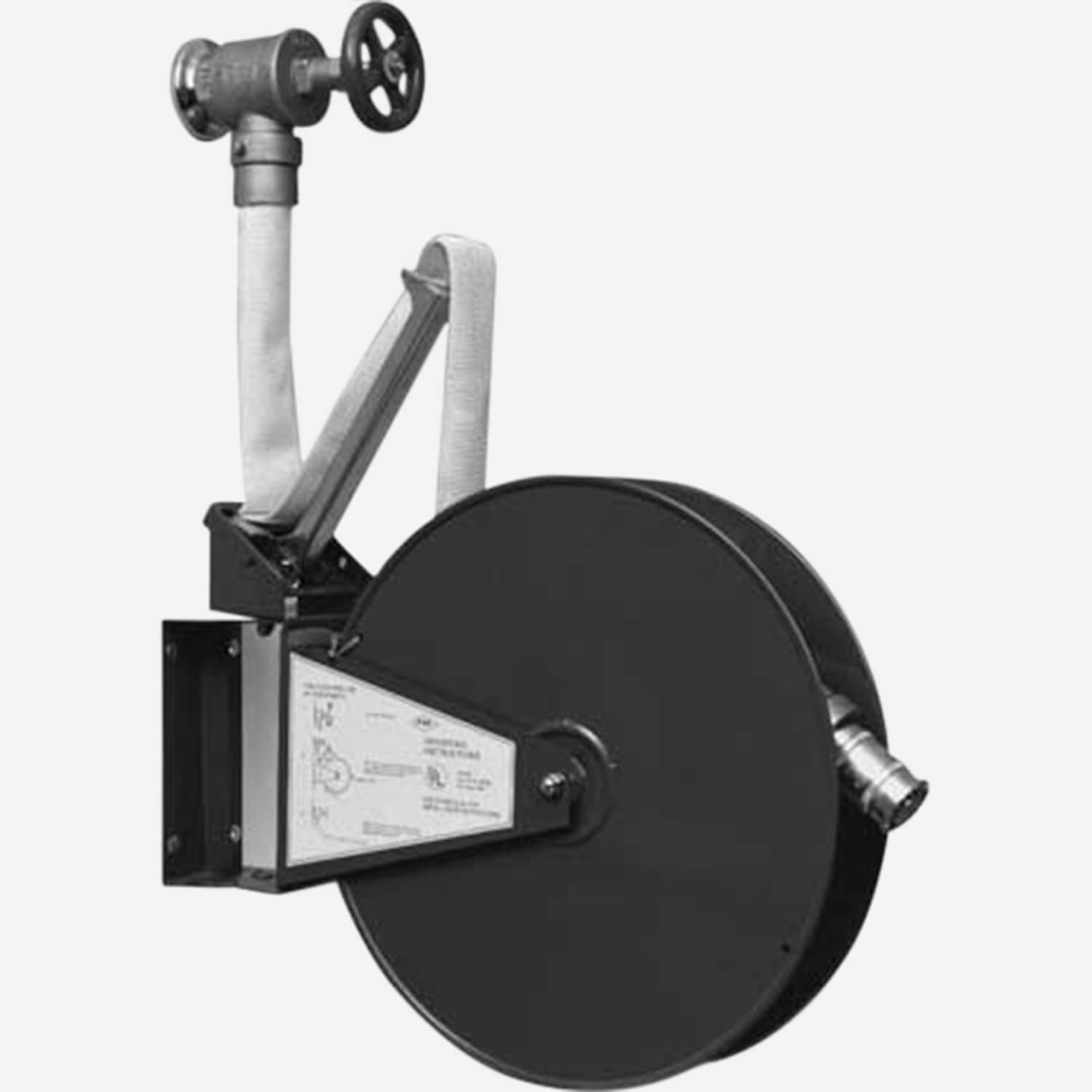

1.5" Hose Reel Assemblies with Water Retention Device
This hose reel assembly is used to provide an immediate and more efficient means of fire control. It enables single person operation and meets the nationally recognized standard of 100 GPM (378.5 lpm) at 65 PSI (4.5 bars) at the outlet of the valve. Includes a reel manufactured of 20 gauge galvannealed steel with 12 gauge galvannealed steel wall bracket and a red powder coated electrostatically applied finish.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | UL Listed Hose Reel Assembly with Water Retention Device [2866 | Accommodates 50-Foot 1-1/2" Single Lined 500 lbs Test Polyflex Hose; 2867 | Accommodates 75-Foot Hose; 2868 | Accommodates 100-Foot Hose] | 0 | 789 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Powder Coated Steel Reel |
| Pressure | 65 PSI |
| UL Models | All models in this series |
| GPM | 100 |
| UL | UL Listed |
| Meets Other Specifications | NFPA/FEMA Class (of Service) II - Occupant Use |
| Capacity | 50' of Poly Flex Hose, 75' of Poly Flex Hose, 100' of Poly Flex Hose |
| Options | -G | Pipe Clamp (Specify pipe size) |
