Model 2915 2916 2926
Rack and Reel Poly Flex Hose
This poly flex hose is used with hose rack and reel assemblies and is the most compact line hose available replacing unlined linen hose. This hose is intended for use in interior standpipes only. Brass pin lug couplings are provided. POLY FLEX HOSES500 lb. ACCEPTANCE TEST & 250 lb. SERVICE TEST - 100% synthetic jacket with extended polyuretane inner lining. It has a 100% synthetic jacket and extruded 100% synthetic lining. Model 2915 is a 1-1/2" size. Model 2916 is a 2-1/2" size.SUPER POLY FLEX HOSE500 lb. ACCEPTANCE TEST & 250 lb. SERVICE TEST - 100% polyester jacket with EPDM synthetic rubber lining. 1-1/2” diameter only. Model 2926 is available in 1-1/2" size.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Rack and Reel Fire Hose with Brass Pin Lug Coupling [Polyflex 500 Lb Test 2915 | 1-1/2" Hose; 2916 | 2-1/2" Hose; Superflex 500 Lb Test 2926 | 1-1/2" Hose] available in 50', 75' 100' Lengths | 0 | 628 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Polyurethane Inner Lining [2915, 2926], 100% Polyester Jacket [2926], Synthetic Jacket [2915, 2916], EPDM Synthetic Rubber Lining [2926] |
| Pressure | 500 PSI Acceptance Test, 250 PSI Service Test (imprinted on hose) |
| Coupling | 2930, 2936, 2934 |
| UL Models | All models in this series |
| Thread | Must be specified by customer |
| UL | UL Listed |
| Length | 50', 75', 100' |
| Options | UL Label 500 PSI Acceptance Test, UL Label 300 PSI Acceptance Test [2915, 2916], -41 | Aluminum Coupling |
Models
Typical models are shown below

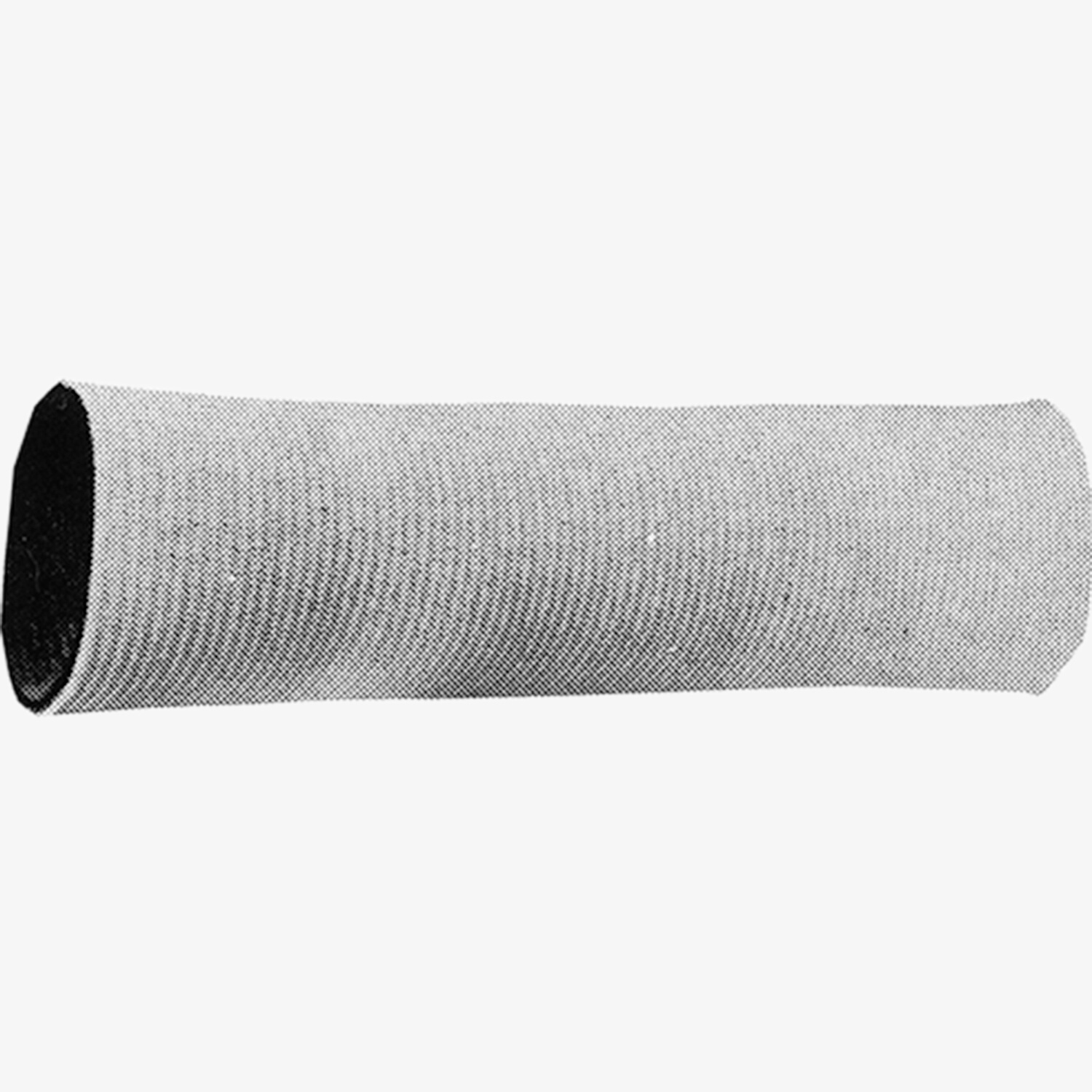

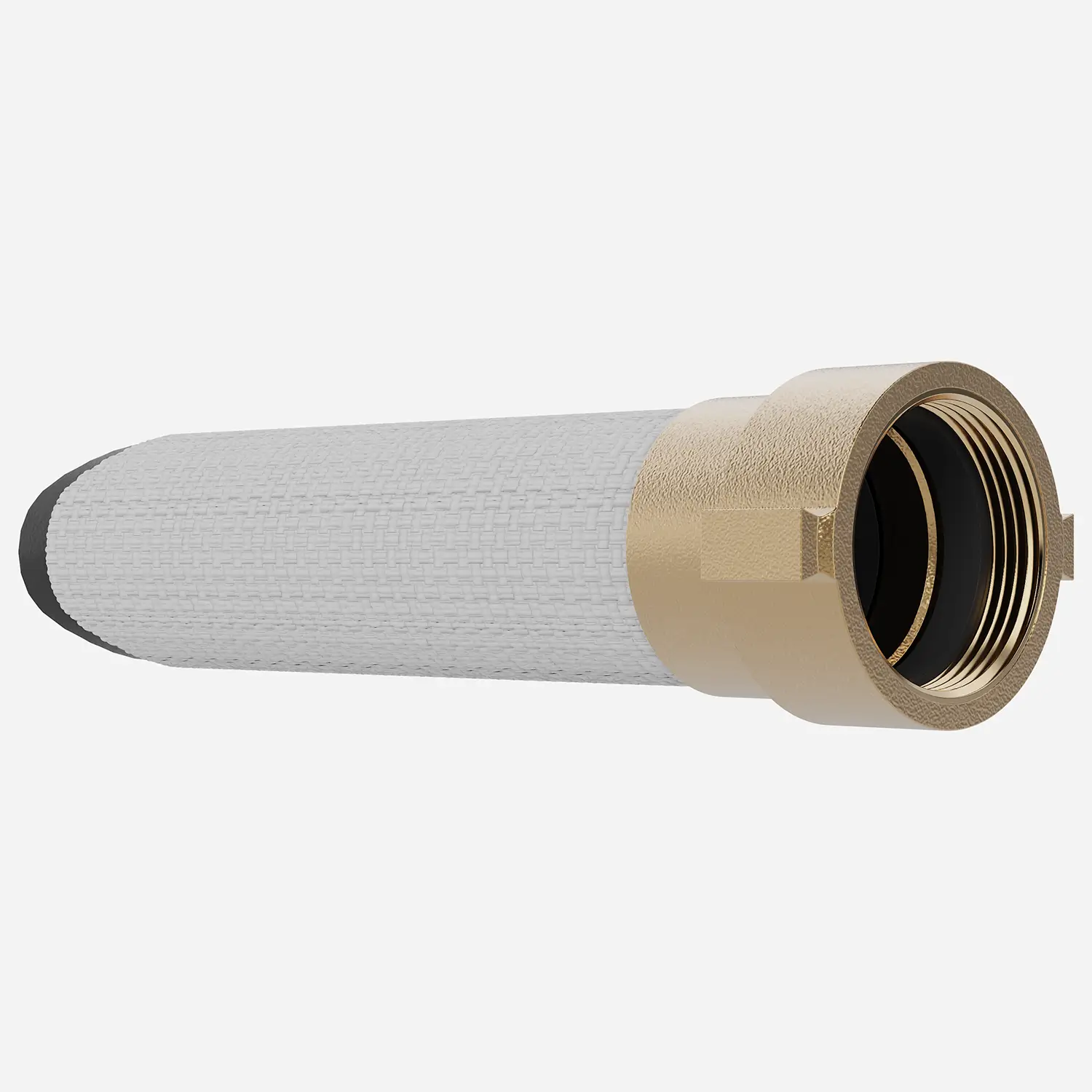

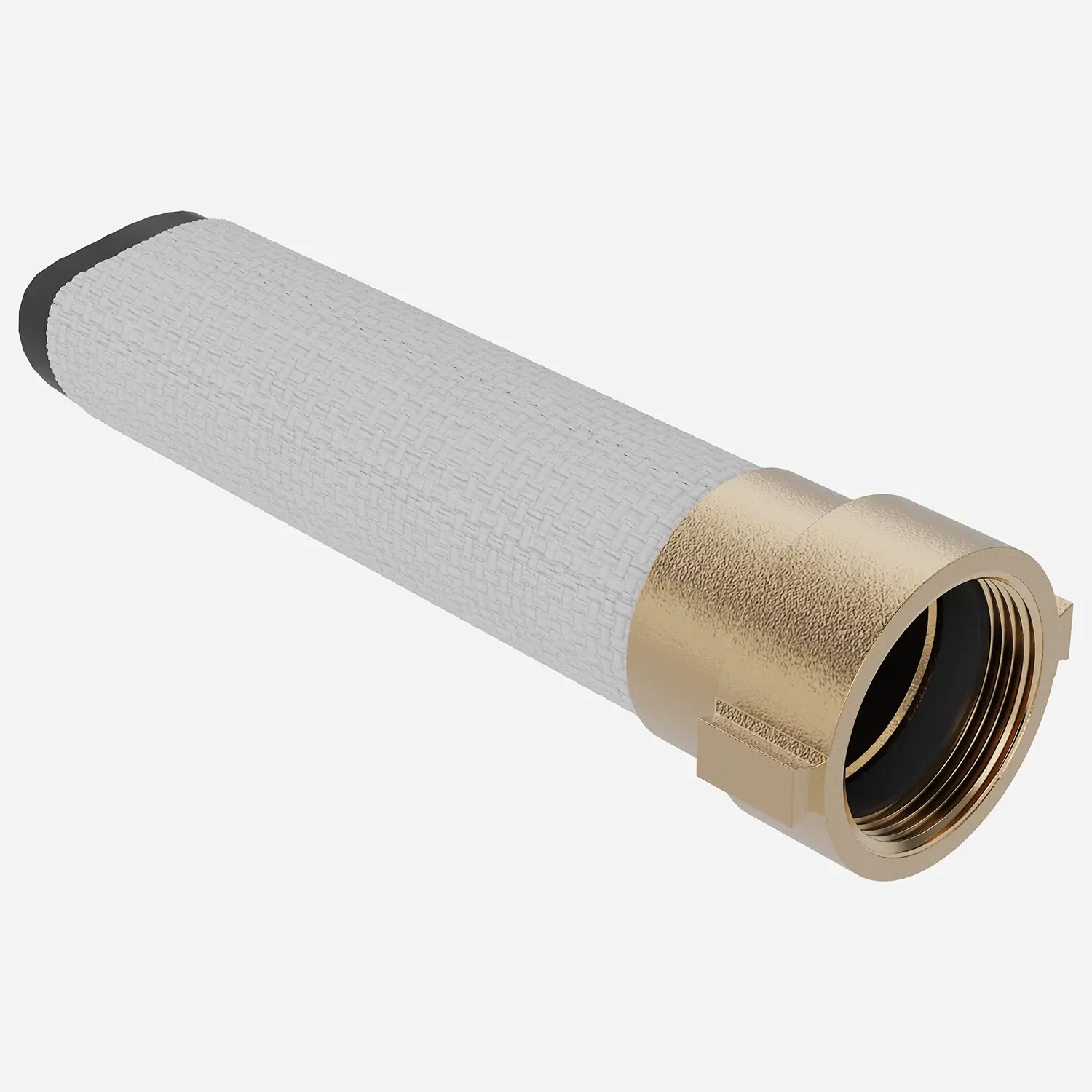

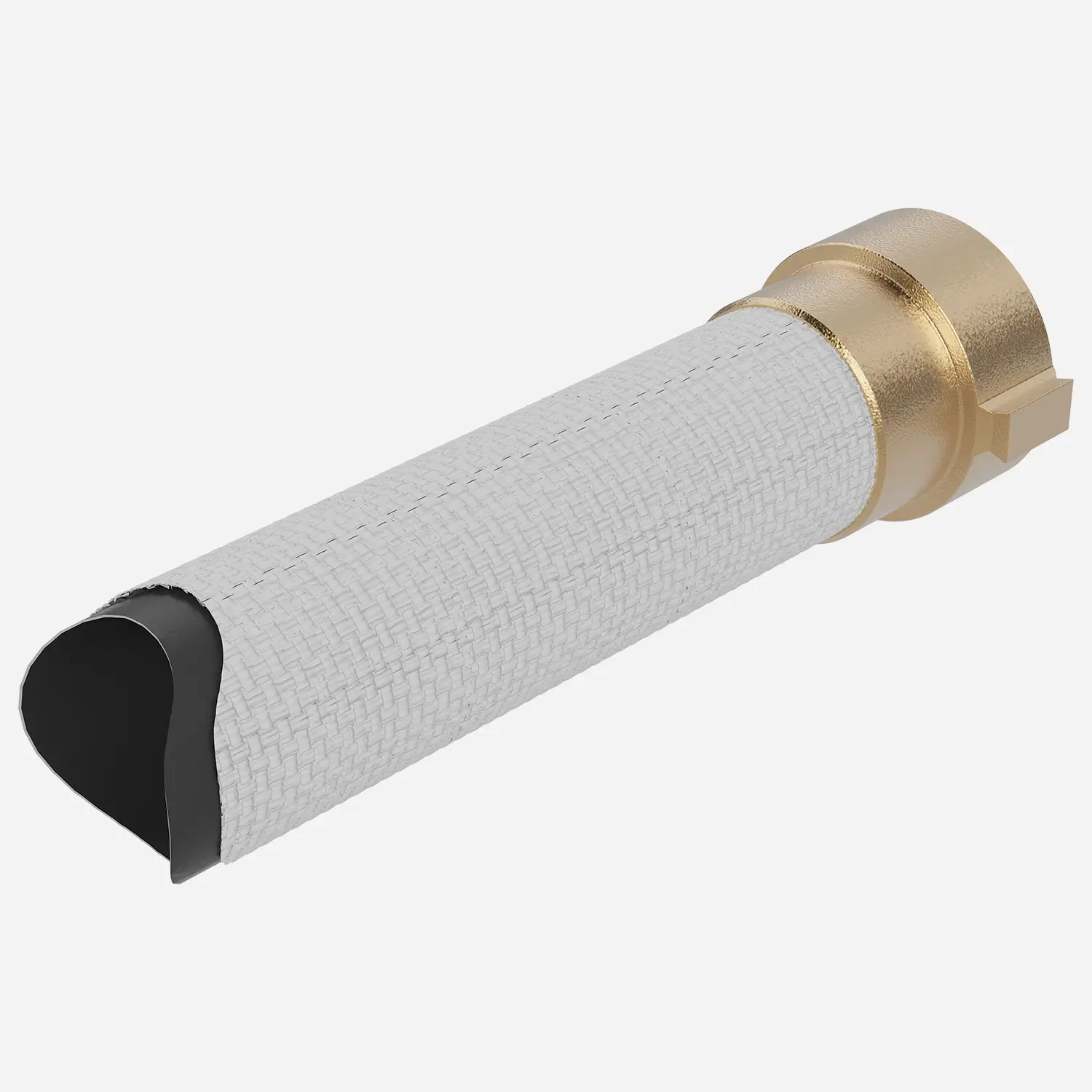

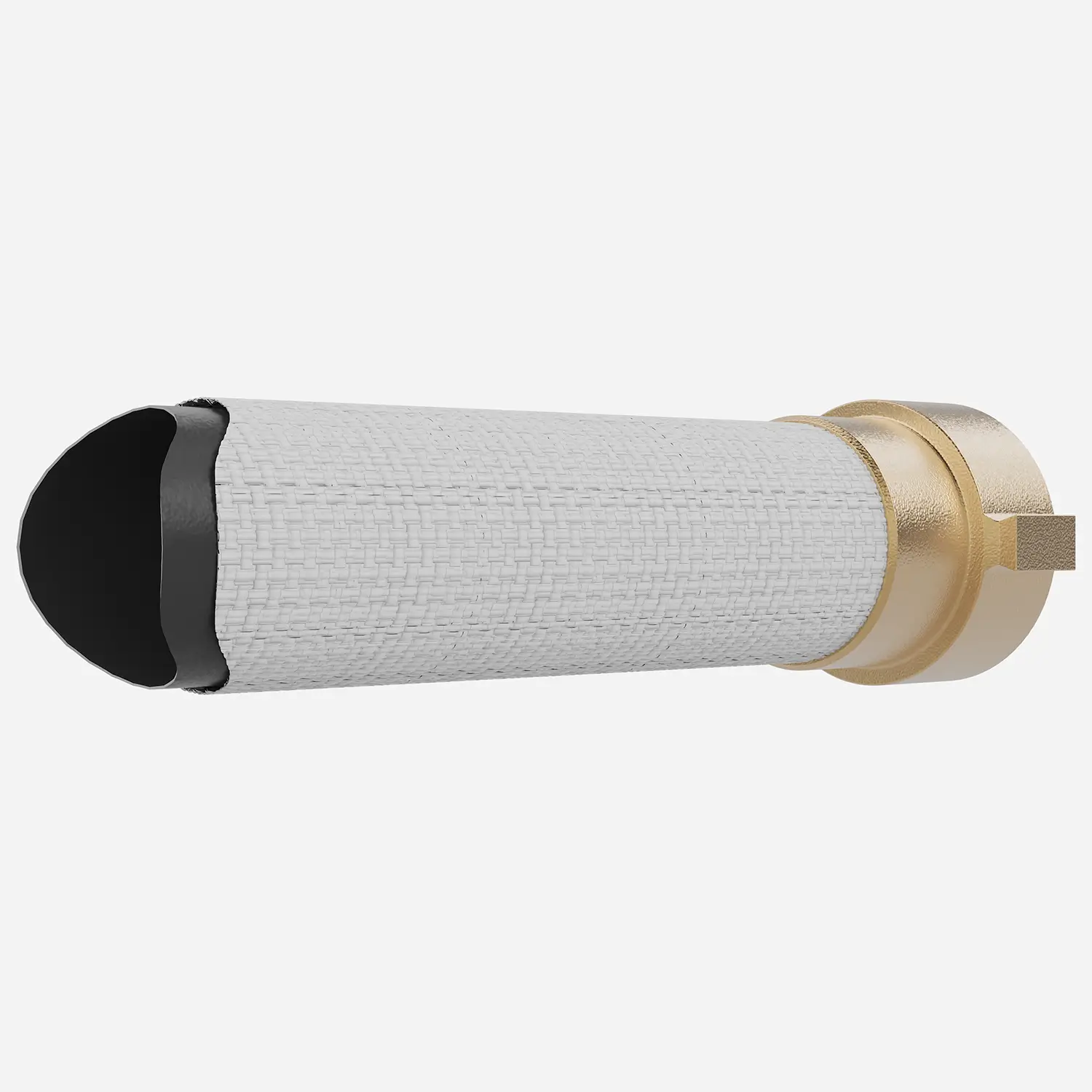

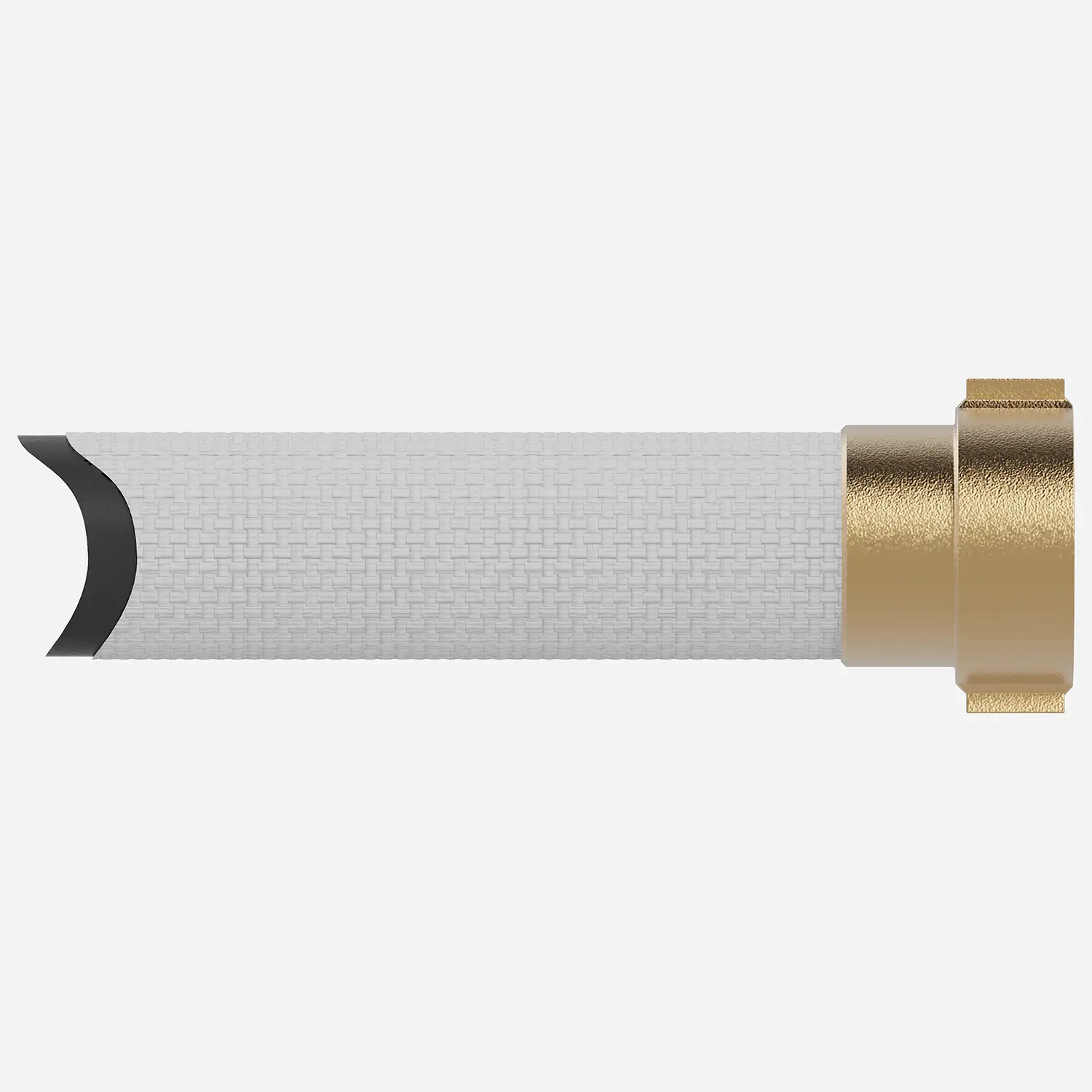

2915 Potter Roemer Coupling 2930 Coupling Size: 1-1/2" Hose ID: 1-1/2" Hose OD: 1-11/16" Jacket: 100% synthetic Lining: Polyurethane
2916 Potter Roemer Couplings 2936 Coupling Size: 2-1/2" Hose ID: 2-1/2" Hose OD: 2-13/16" Jacket: 100% synthetic Lining: Polyurethane

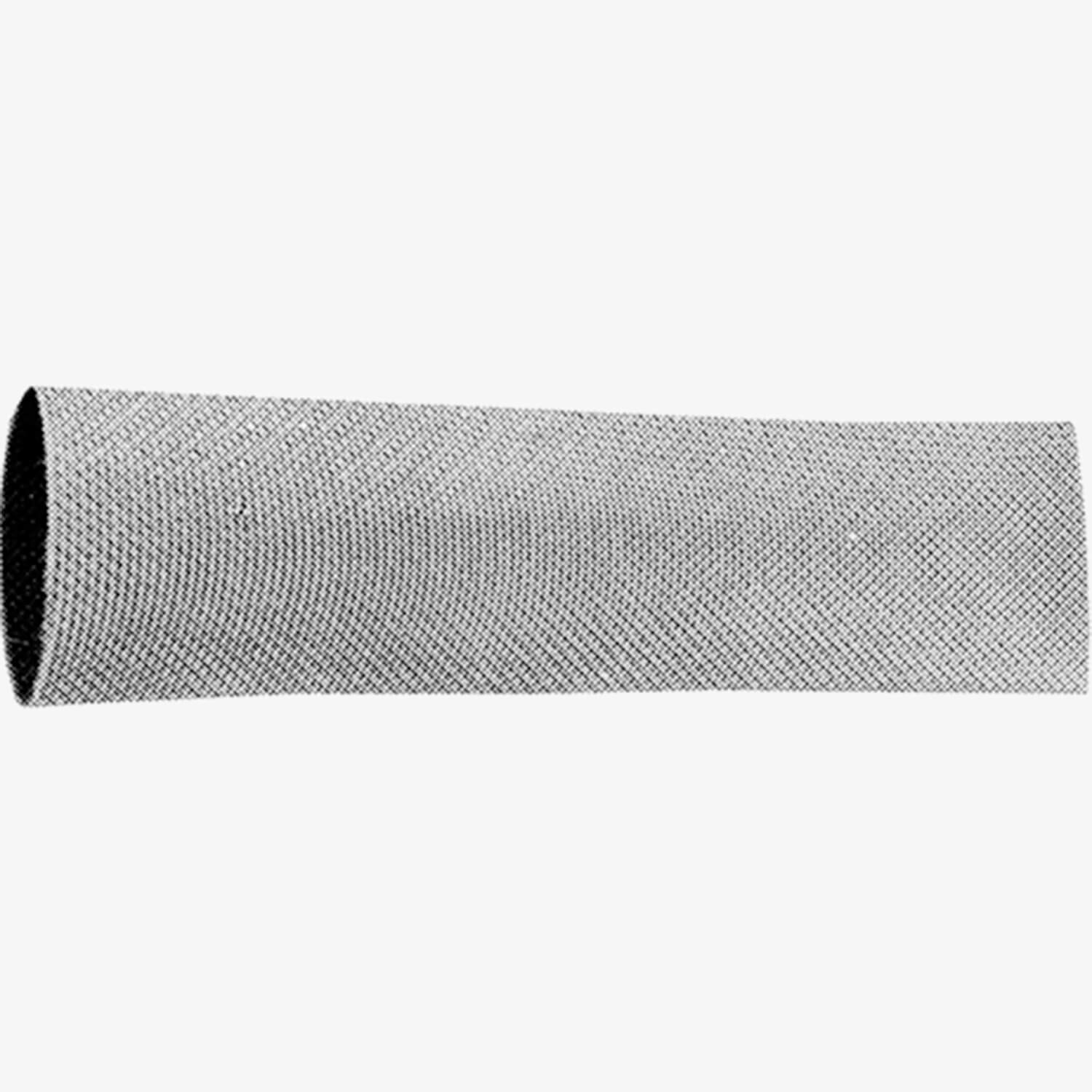

2926 Potter Roemer Coupling 2934 Coupling Size: 1-1/2" Hose ID: 1-1/2" Hose OD: 1-3/4" Jacket: 100% polyester Lining: EPDM synthetic rubber
