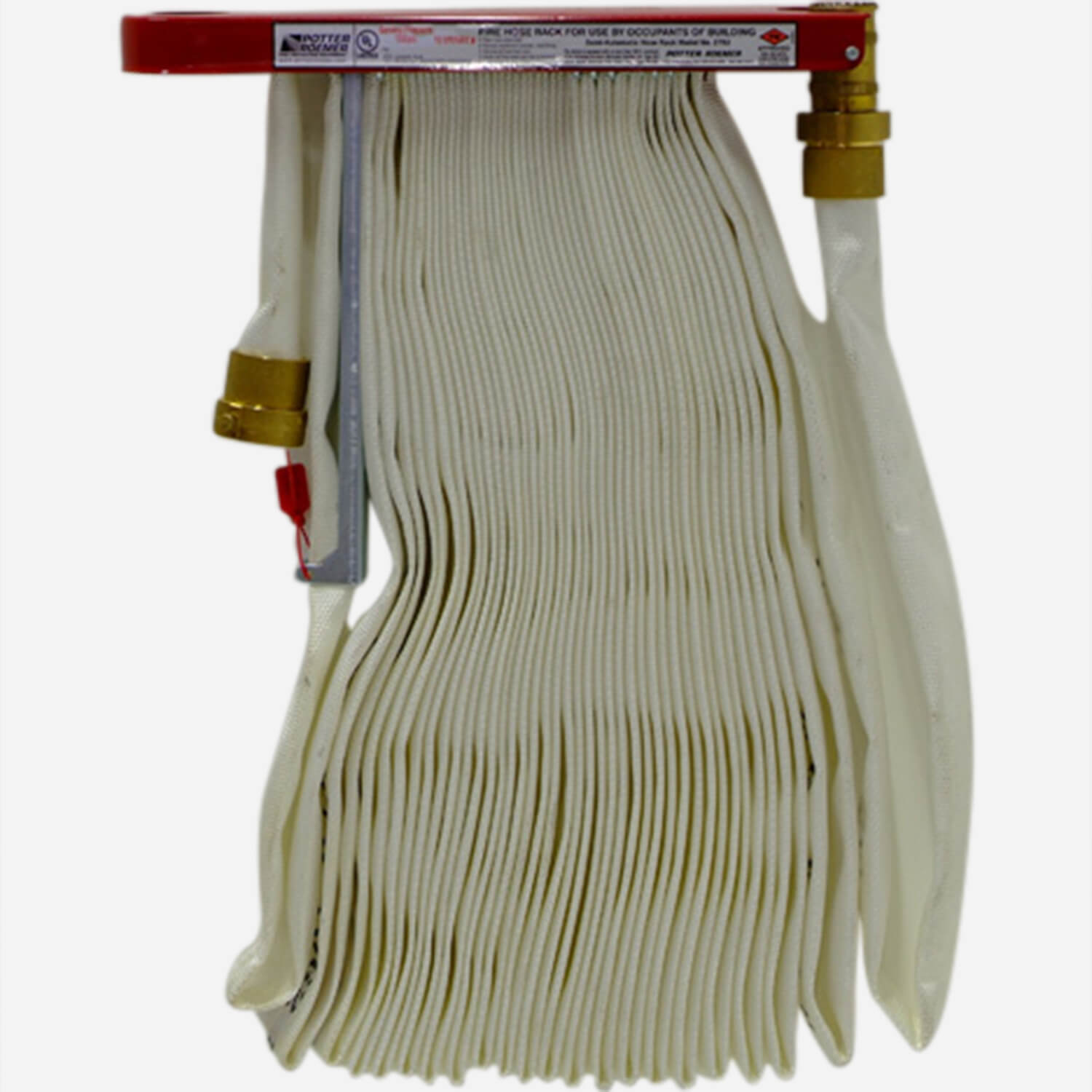

Model 2792 and 2794
Semi-Automatic Hose Rack

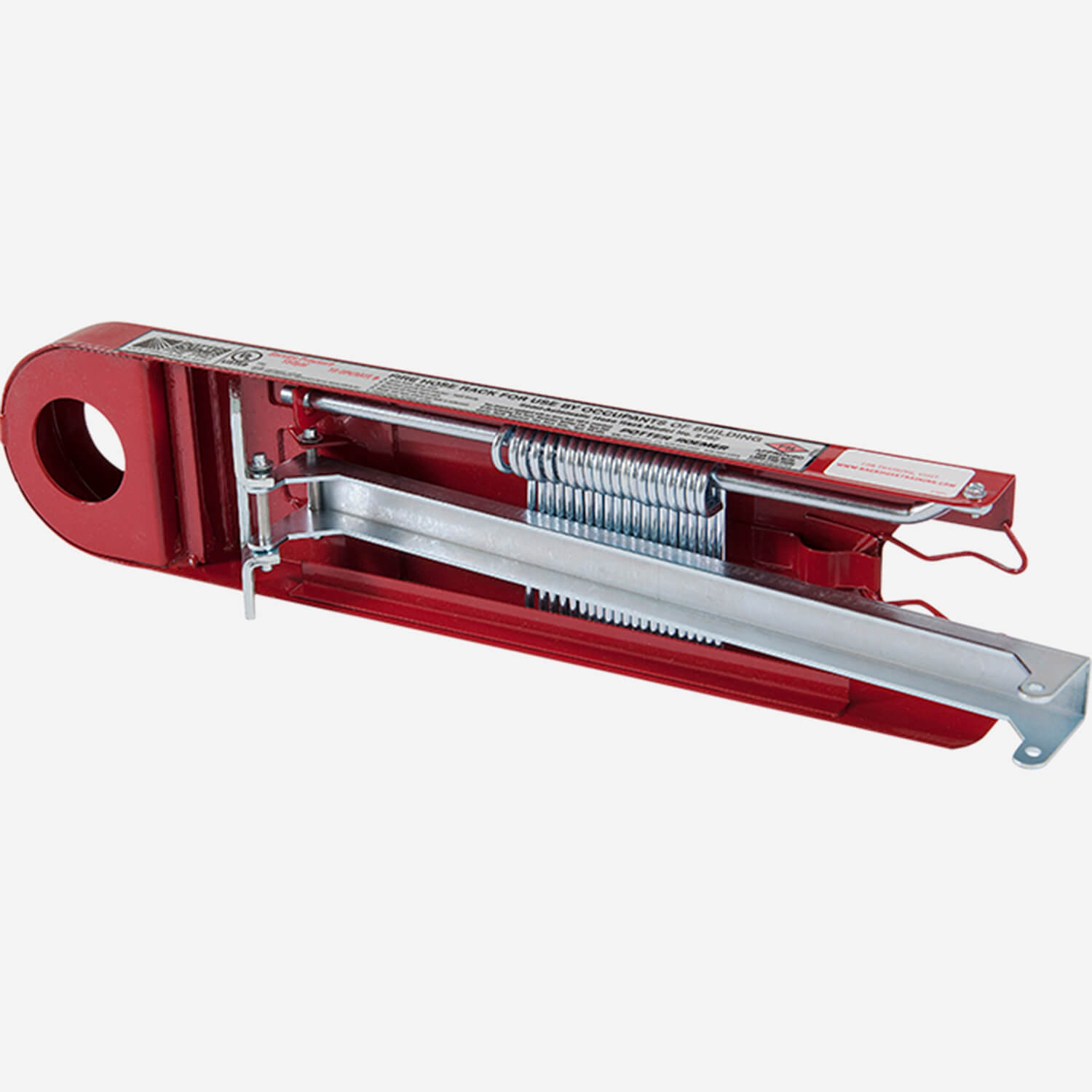

This semi-automatic hose rack is used to store hose ready for one-man operation of assembly. Water retention device stops water at first fold after valve is open until preceding folds are free of the rack. The rack is powder-coated with an electrostatically-applied thermally-fused red polyester finish. Also included is a welded all-steel cover with water retention device and combination nozzle clip. Pins are provided to accommodate only the maximum length hose allowable. The products are U/L listed and FM approved. Model 2792 is for use with a 1.5” rack assembly and Model 2794 is for a 2.5” x 1.5” rack assembly.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Cabinet Escutcheons Models 2750 and 2751; Rack Nipple Models 2755 and 2756; Automatic Drain Valve Model 2760; Pressure Restricting Device Models 2765 and 2766; Hose Rack Models 2792 and 2794 | 0 | 585 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB |
Specifications
| Optional Finish | -D | Polished Chrome |
| Size | 1.5", 2.5" |
| FM | FM Compliant, Contact Potter Roemer for details |
| UL | UL Listed |
