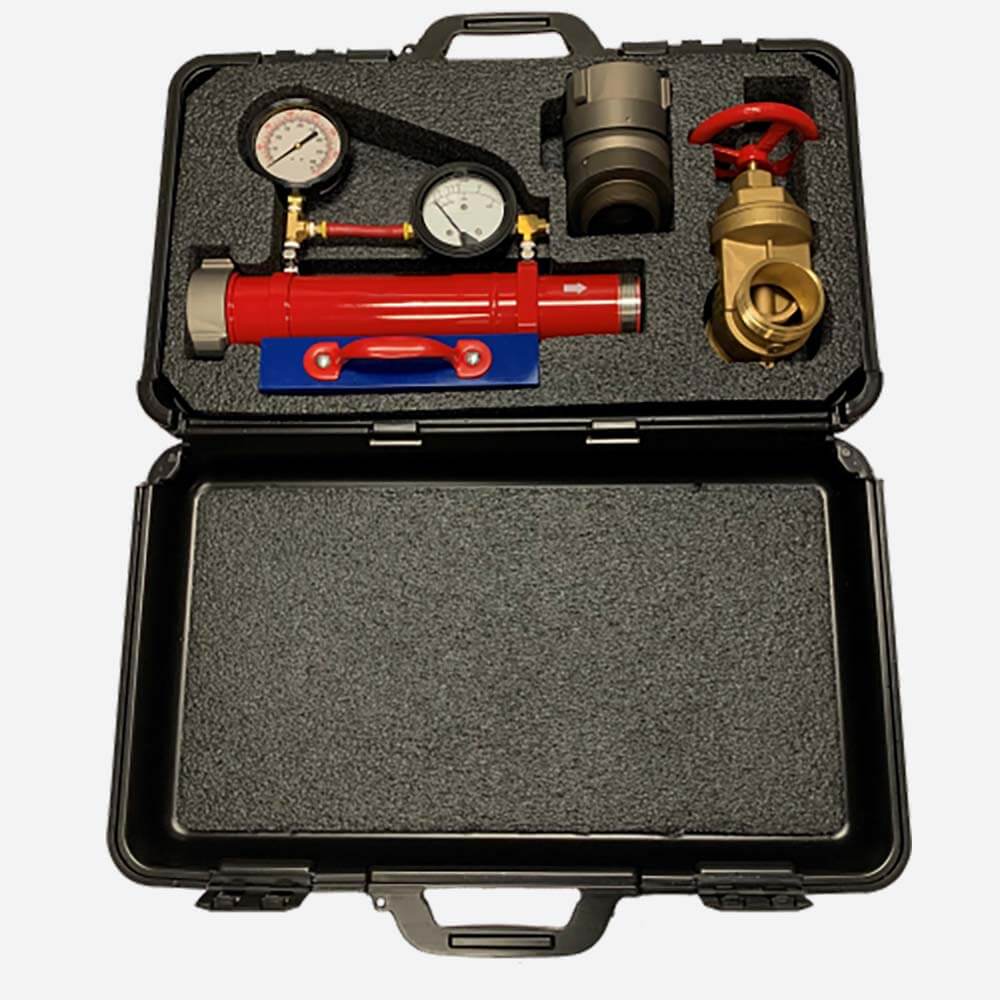

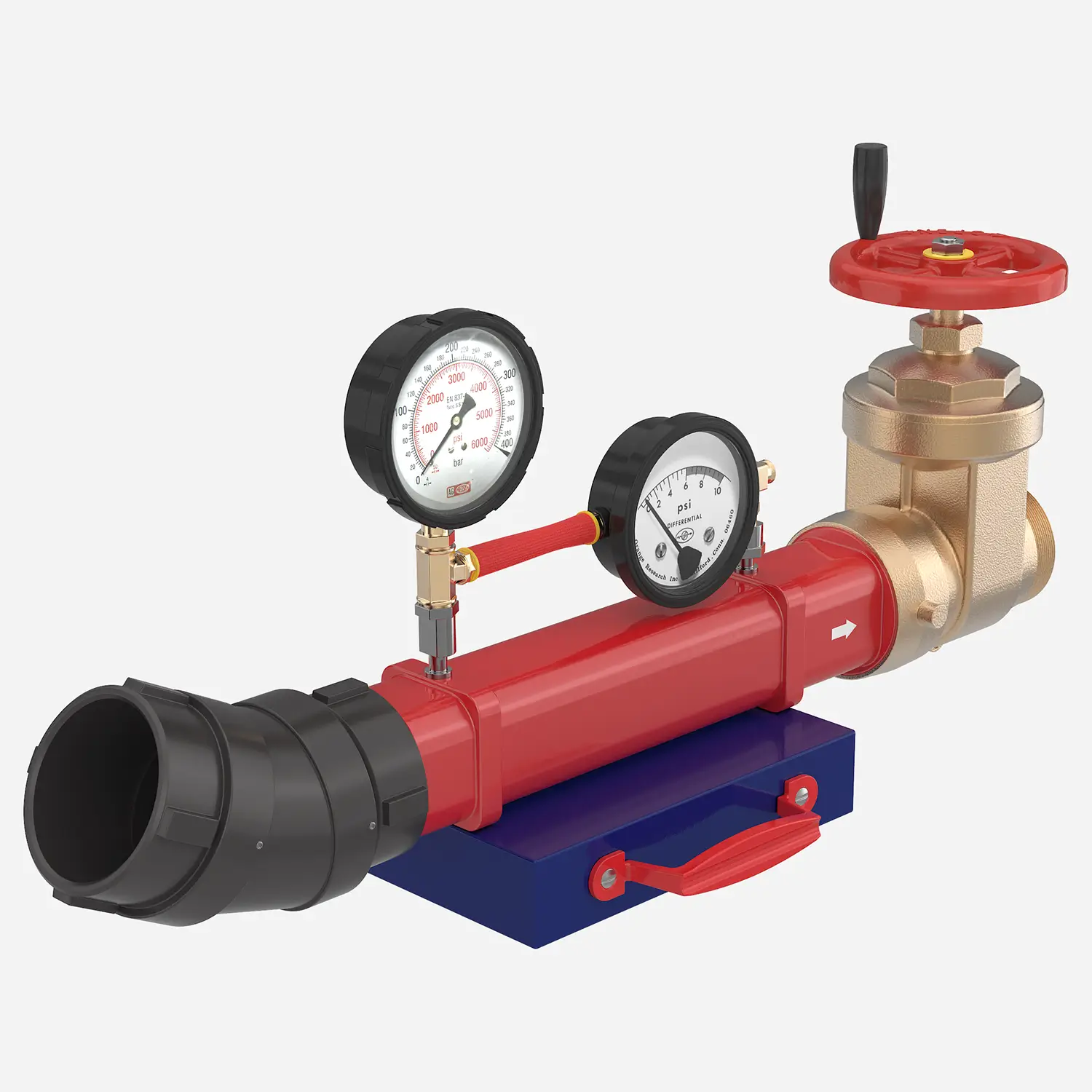

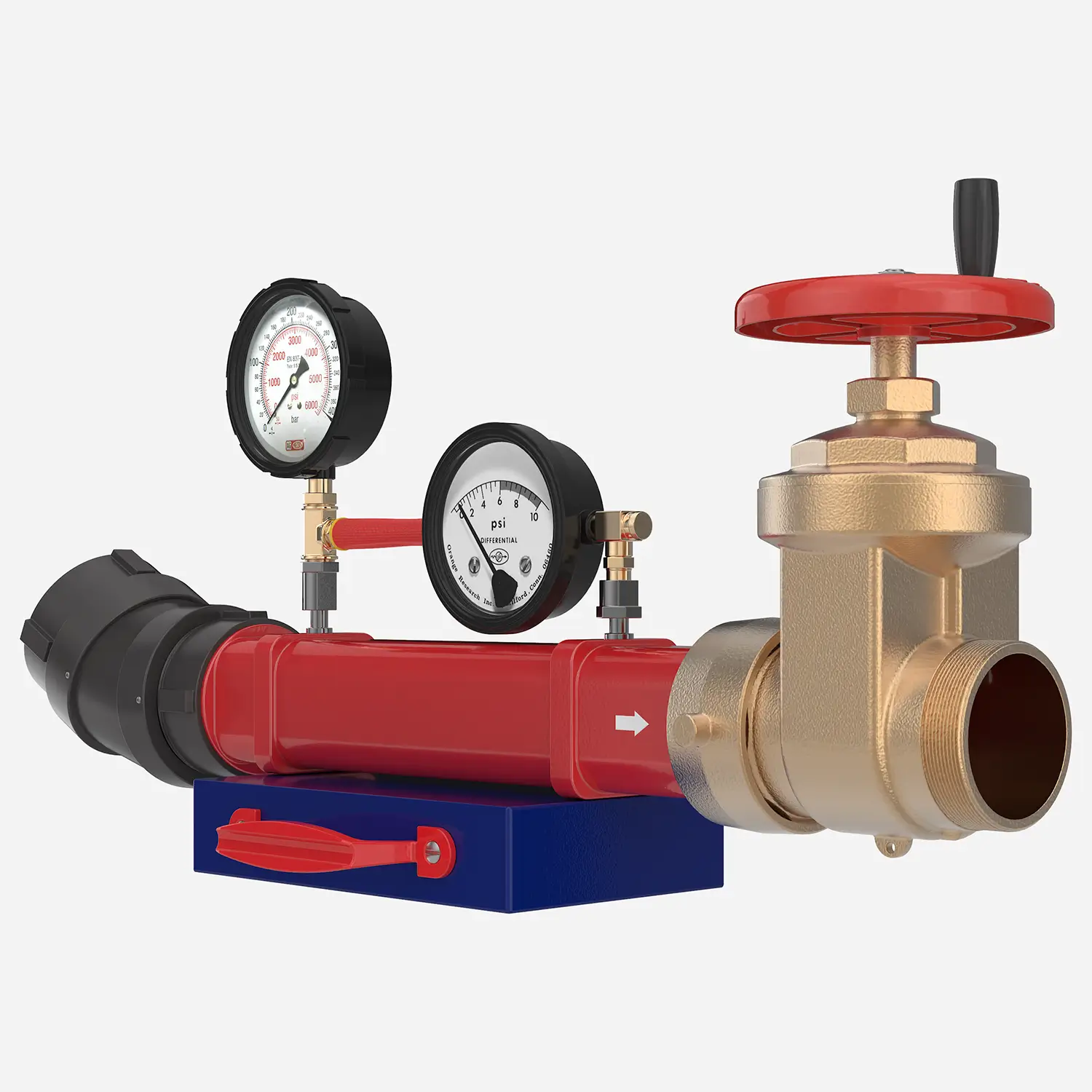

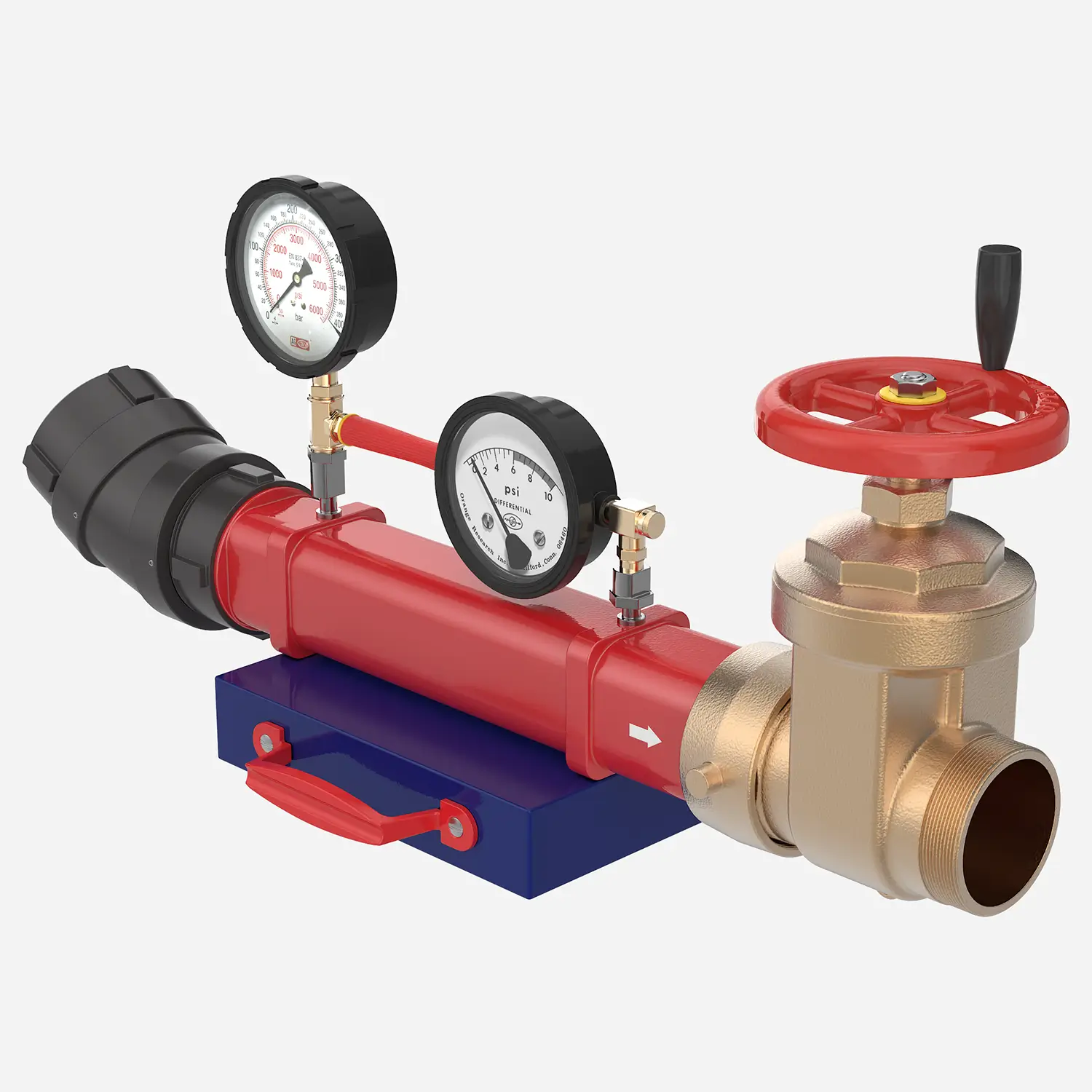

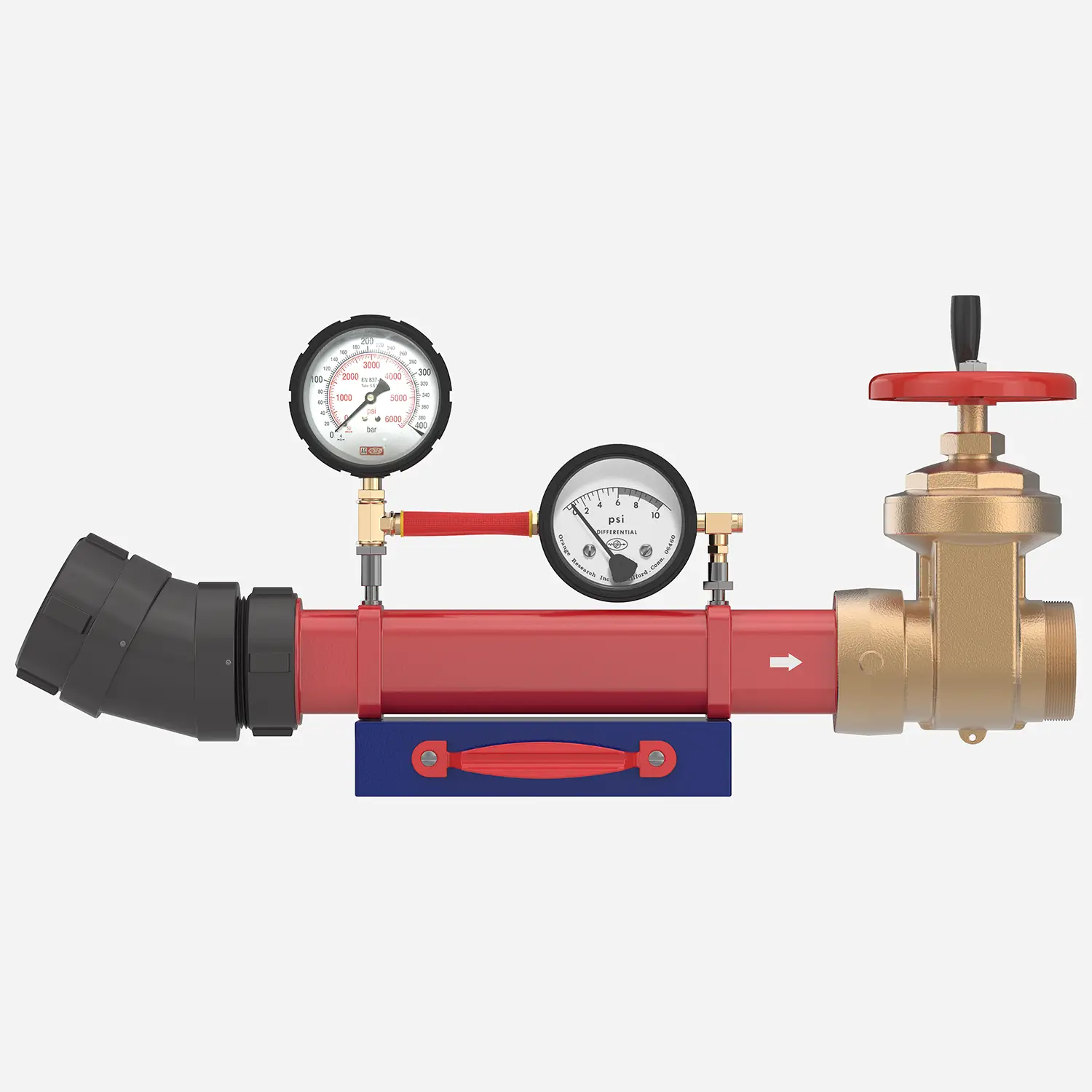

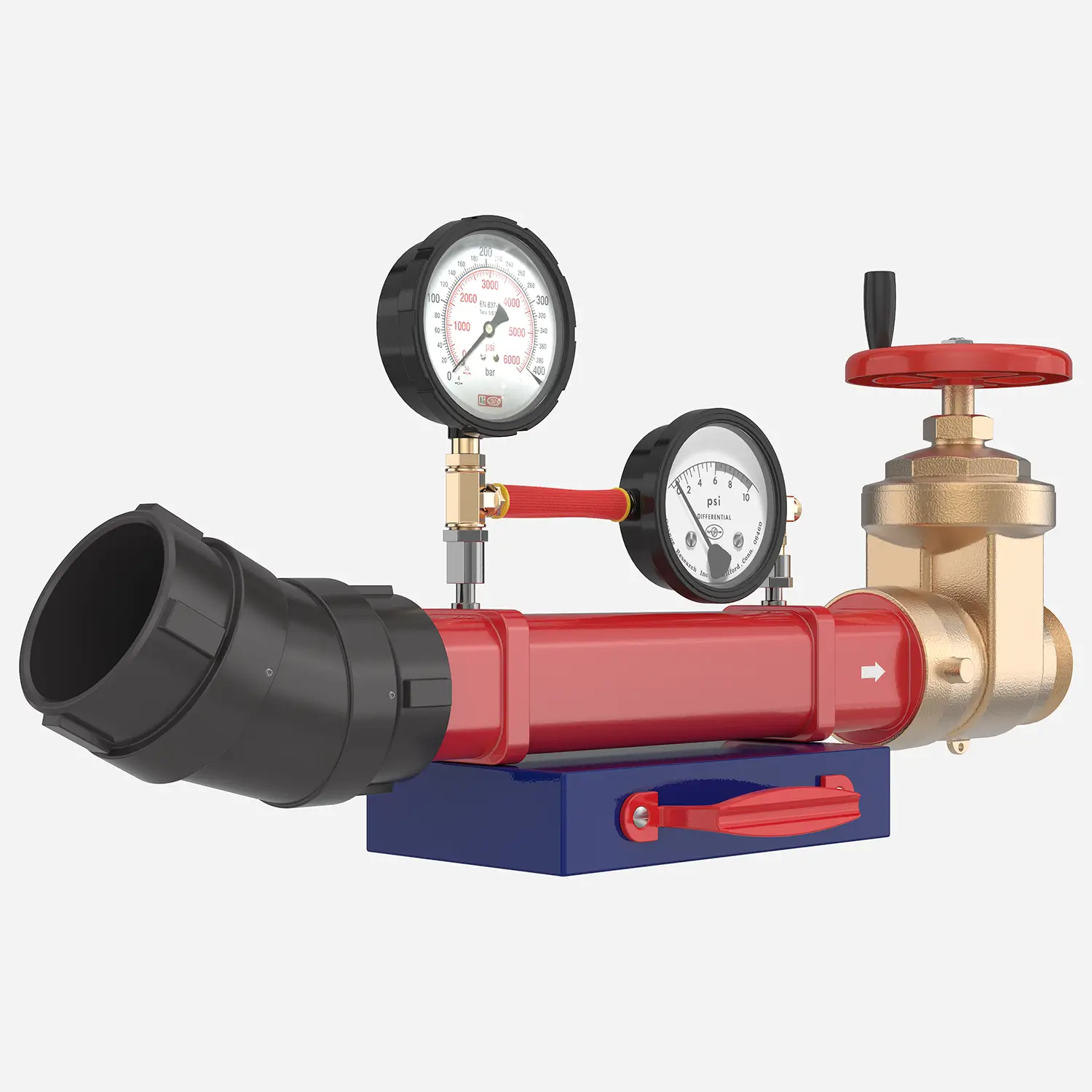

Flow Meter & Totalizer II for Fire Sprinkler System

Accurately measures outlet static and residual water pressures and flow from 2-1/2" hose connections. The "Totalizer II" facilitates the initial and periodic testing of pressure regulating valves in sprinkler and standpipe systems per NFPA 13, NFPA 14, and NFPA 25 requirements. This versatile device can also be used for standpipe, fire pump, and hydrant flow testing.

Standard Features

• Accuracy range from 100-500 GPMs and up to 250 PSI.
• Lightweight design (24 lbs) for easy handling.
• Durable powder-coated inline aluminum venturi flowmeter body with internal stream shapers (2.5” female NST swivel inlet x 2.5” male NST outlet).
• Directional arrow indicates the proper flow of water through the unit.
• Stability base with handle for easy carrying and storage.
• Detachable 2.5” female NST swivel inlet x 2.5” male NST outlet aluminum 30° elbow provides easy connection to PRVs. Set field-adjustable PRVs accurately on site.
• 300 PSI rated (UL/FM) brass swivel gate valve with hand crank (4365-WL-V) for smooth opening, closing, and throttling of water flow.

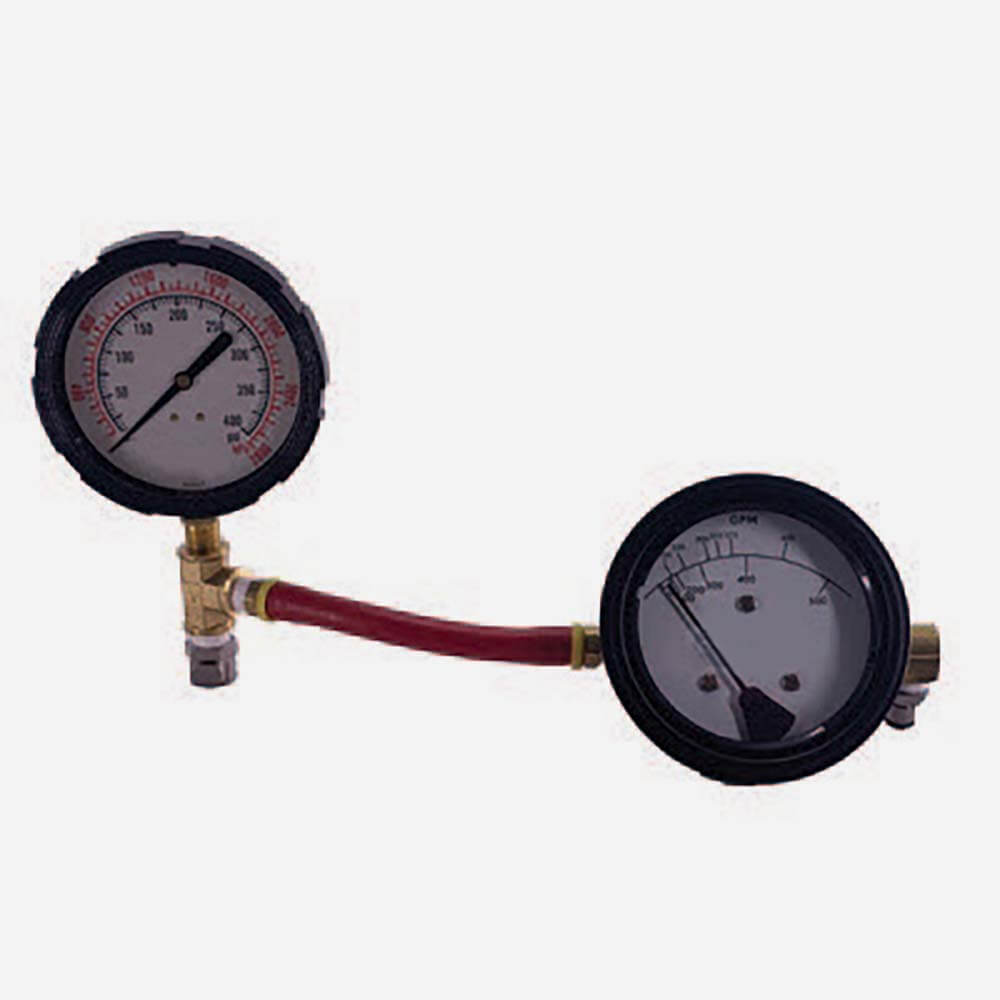

• Quick-Disconnect Gauge Assembly (6125-FT-GA) provides direct readings of the pressure gauge (0-400 PSI) and flow gauge (0-500 GPM).
• Easily removable for protection and replacement. Both gauges are tested and calibrated to N.I.S.T standards. Each shipment includes a calibration certificate.
