Model 6175
Line Tester for Fire Sprinkler System

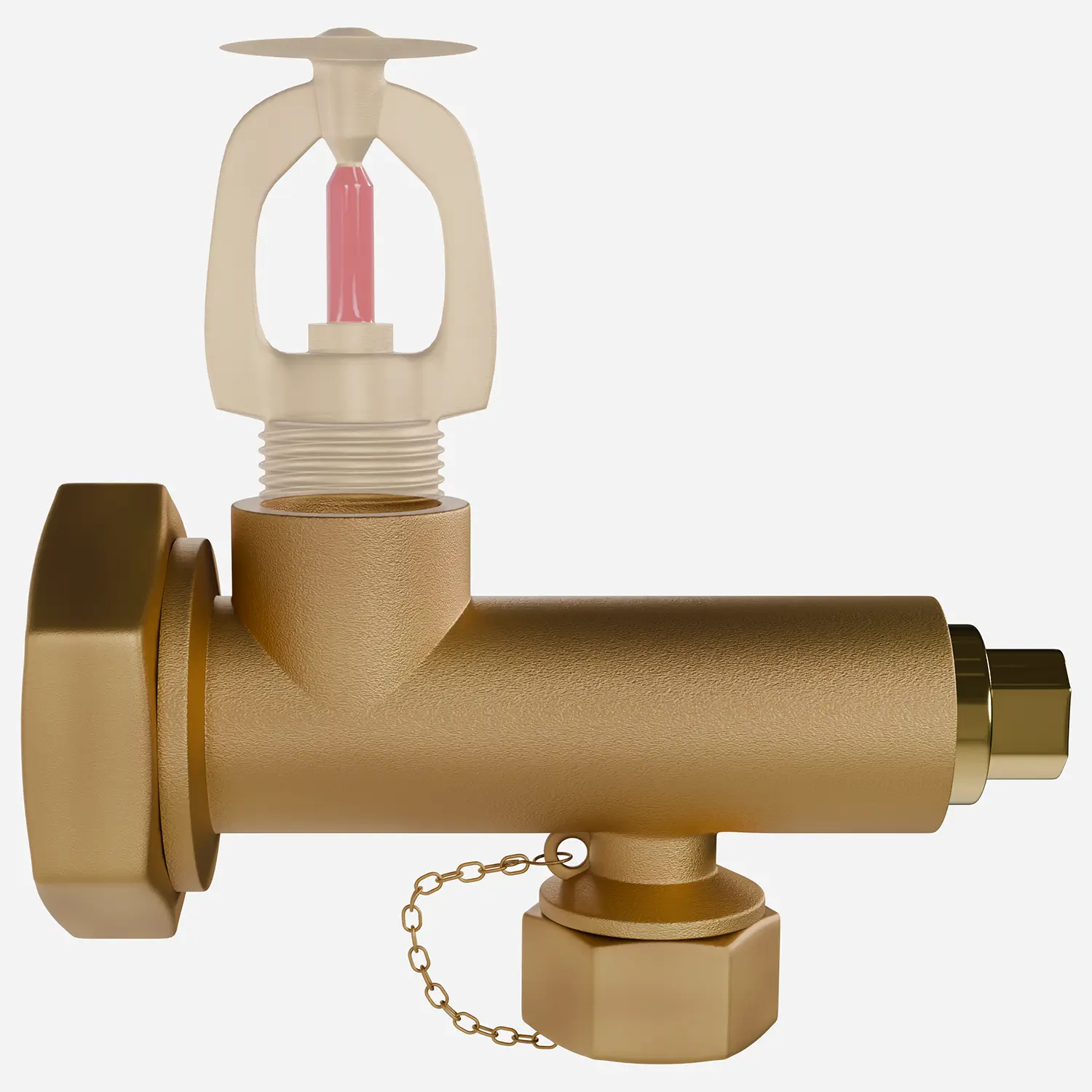

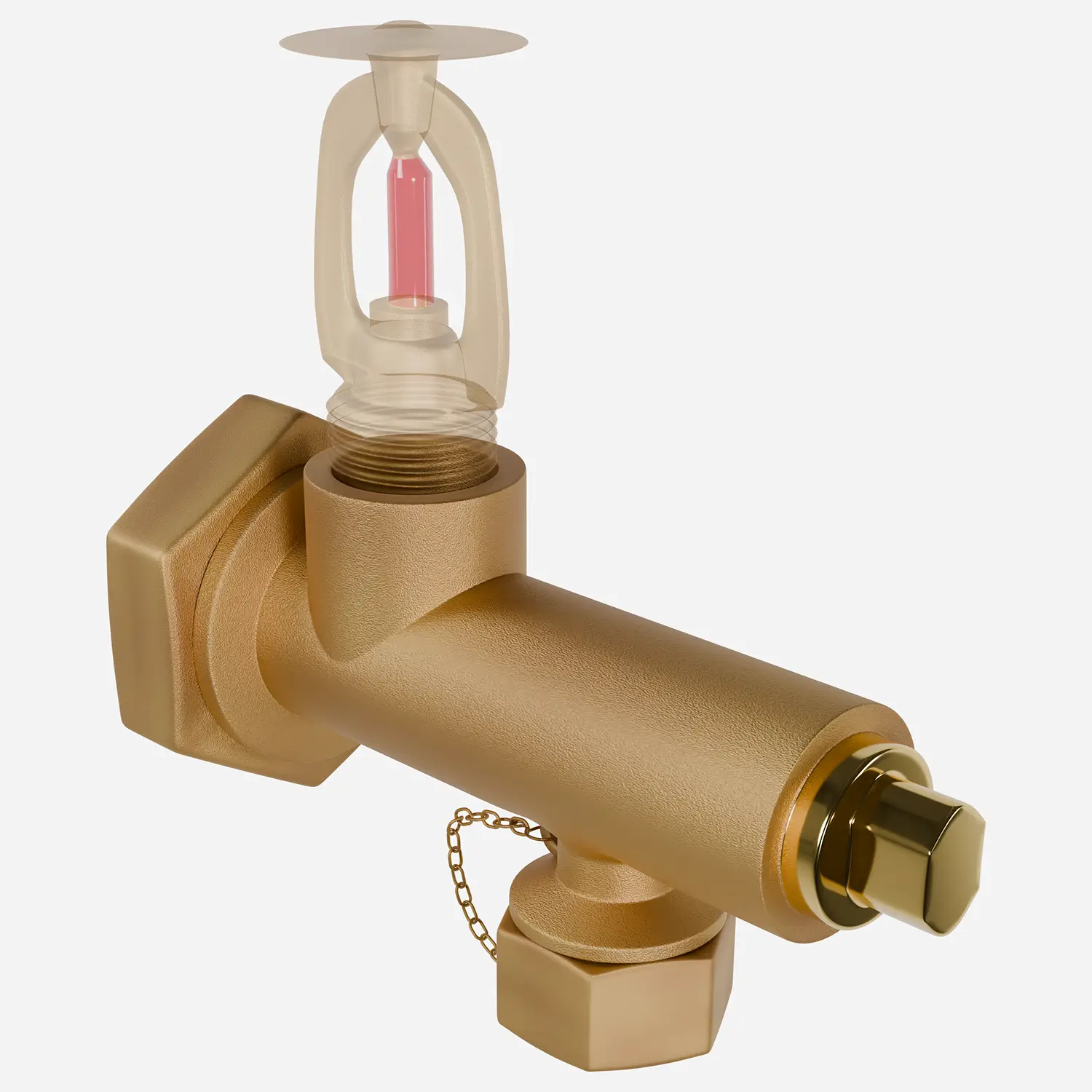

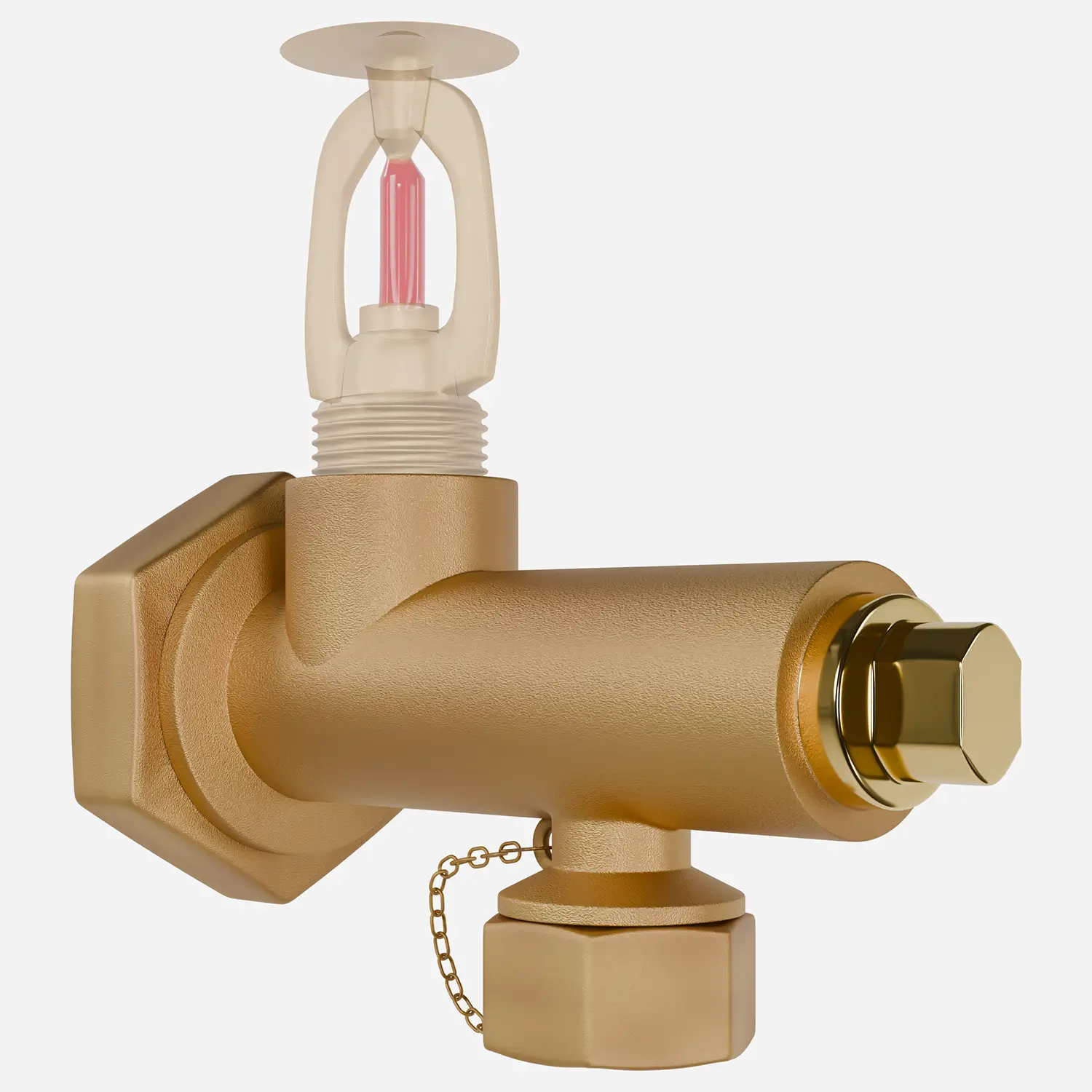

This line tester is sed to install the last sprinkler head on system branch lines controls water flow for flushing or testing of the system. The tester has a forged brass body 1” female N.P.T. inlet x 1/2” female outlet (sprinkler head) x 1” N.P.S.H. drain outlet with cap and chain and wrench operated shutoff.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automatic Sprinker System Accessories [6162 | Spare Head Box; 6165 | Baffle; 6166 thru 6170 | Test & Drain; 6175 | Line Tester; 6177 | Pitot Tube] | 0 | 949 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Forged Brass Body |
| Inlet | 1" Female NPT |
| Outlet | 0.5" Female (Sprinkler Head), 1" NPSH Drain |
| UL | UL Listed |
