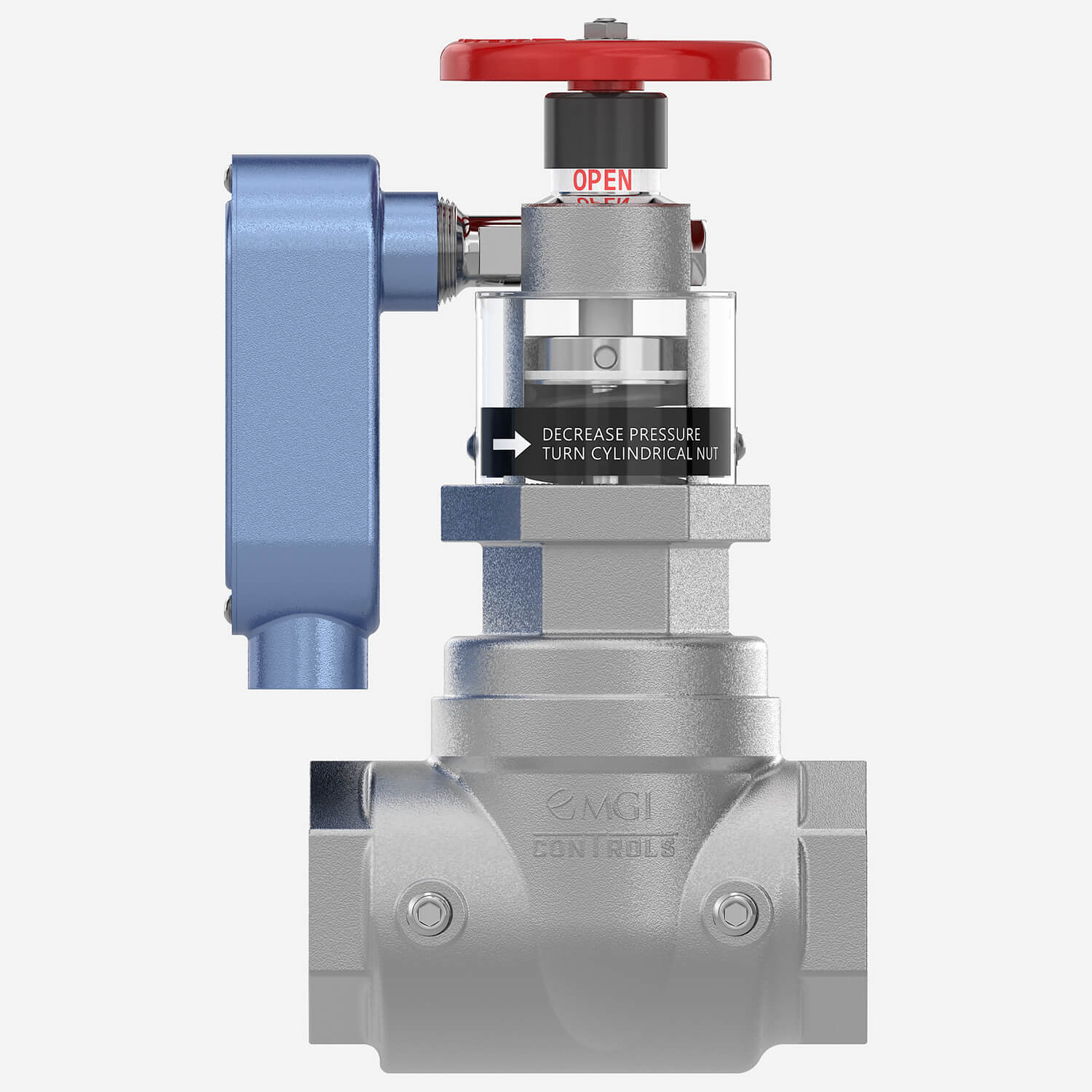

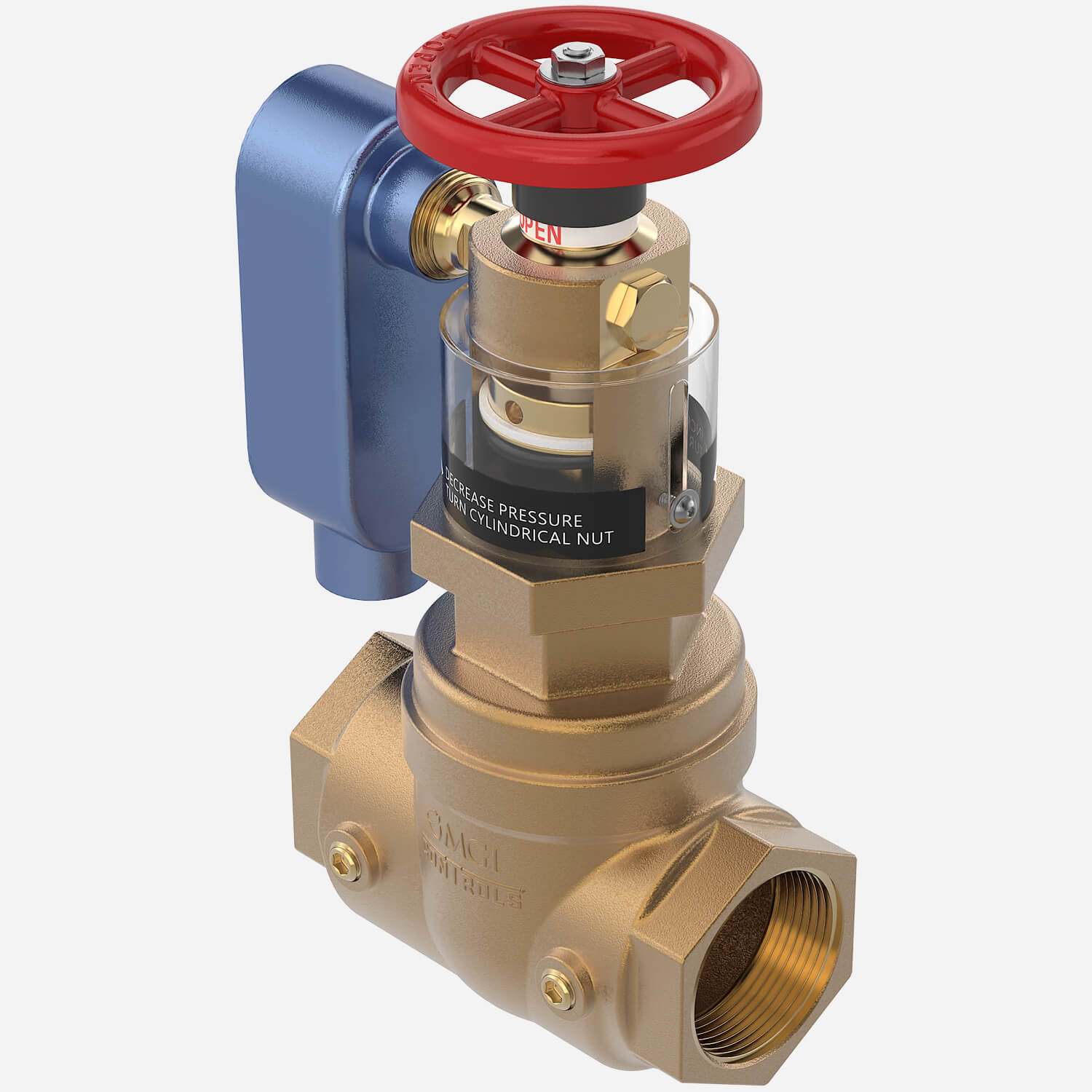

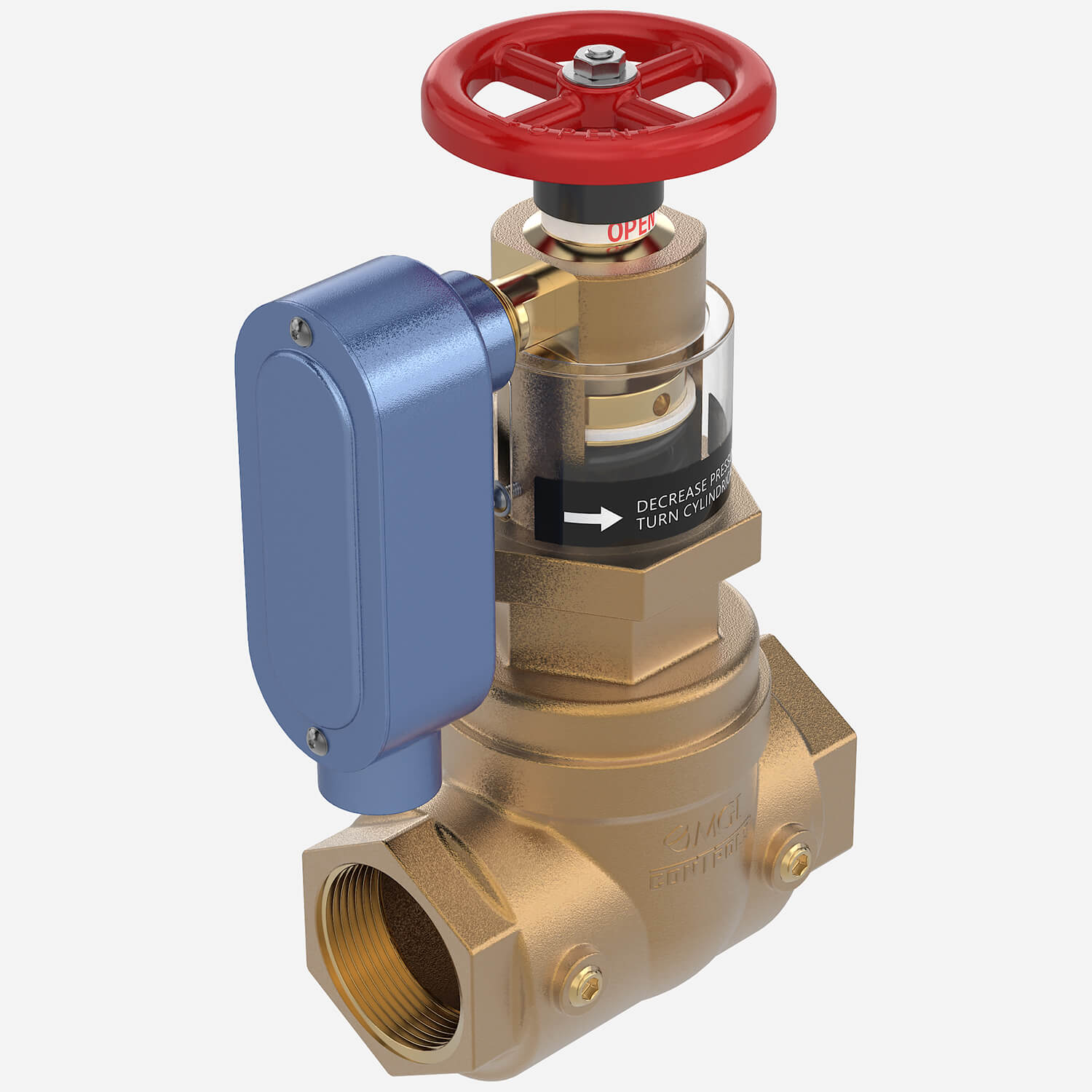

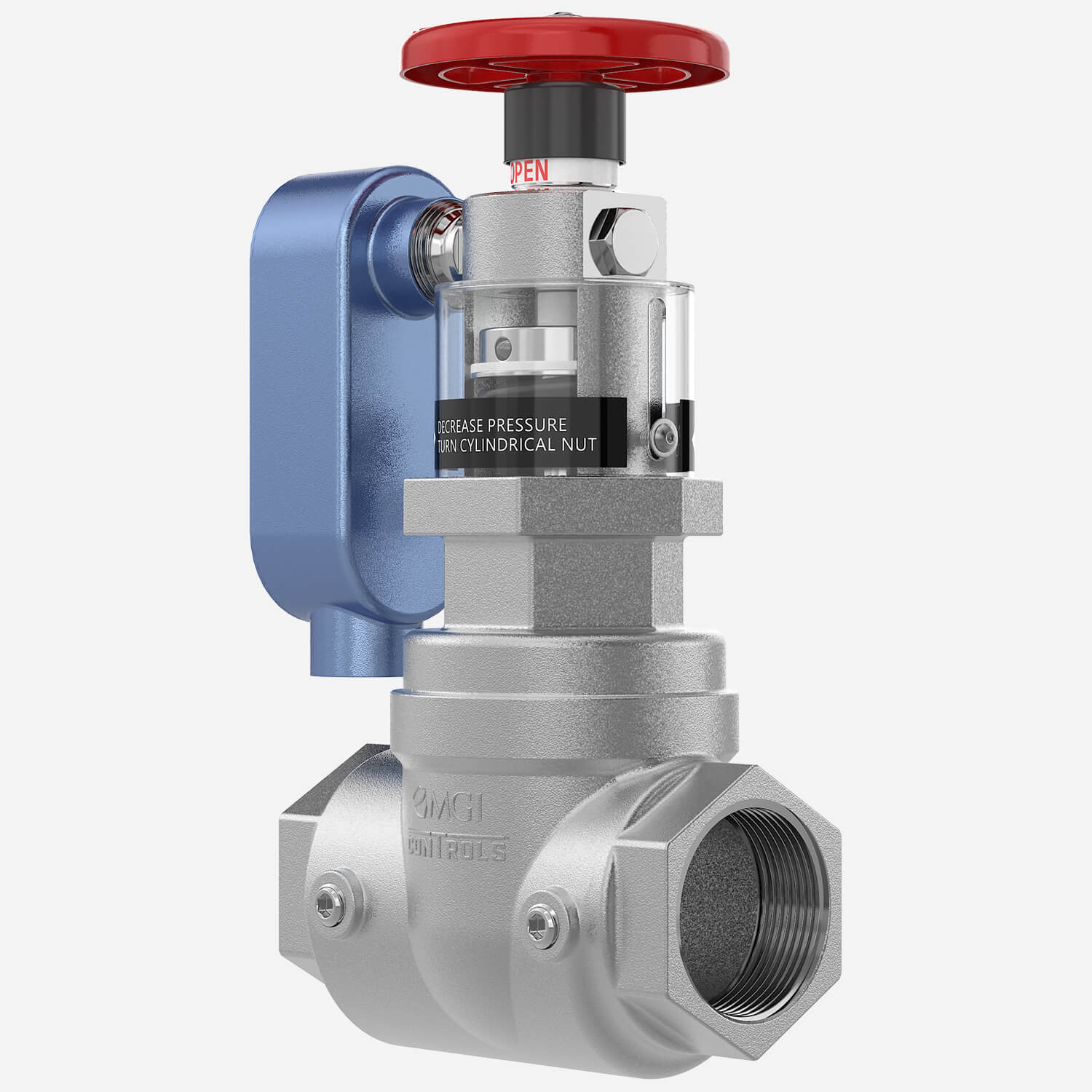

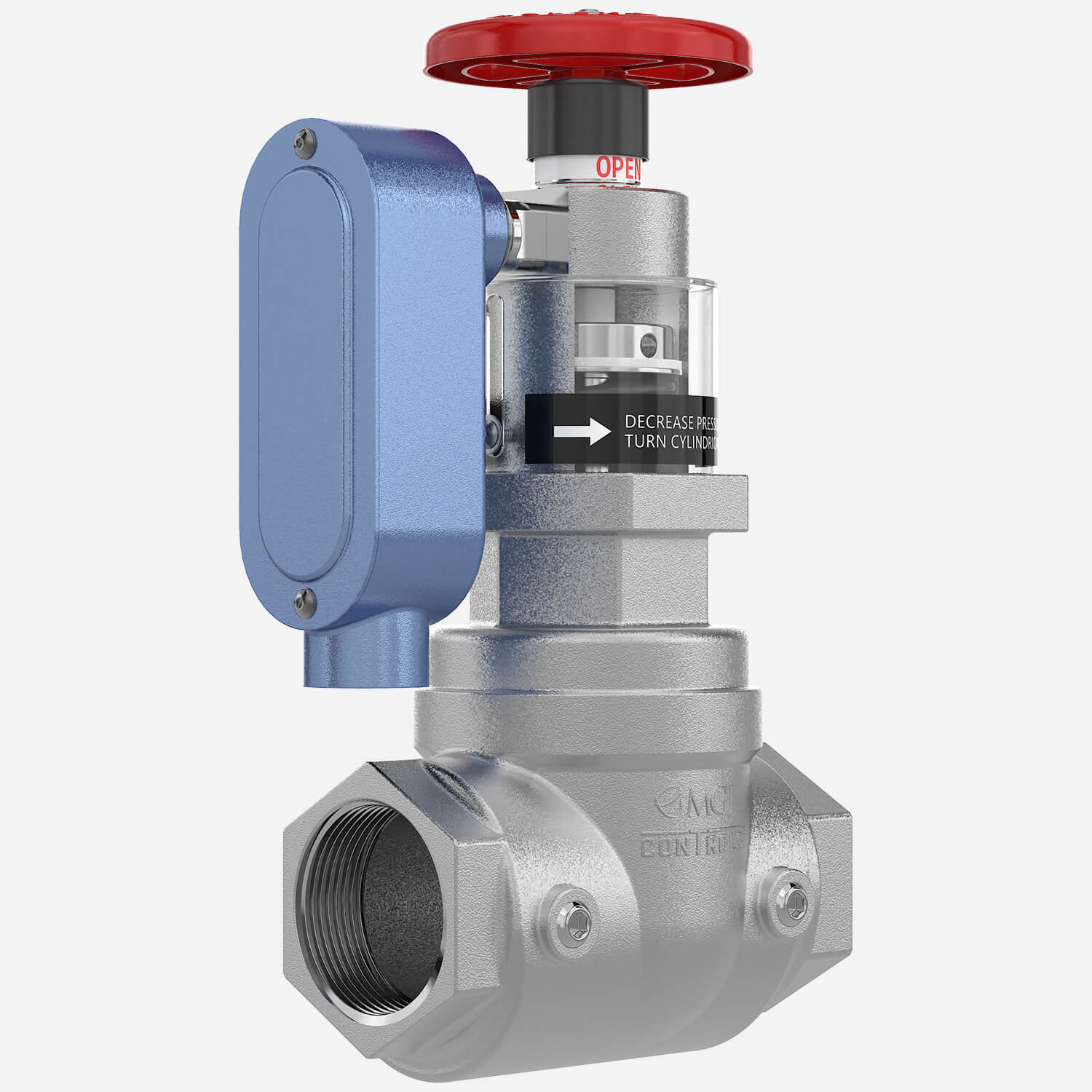

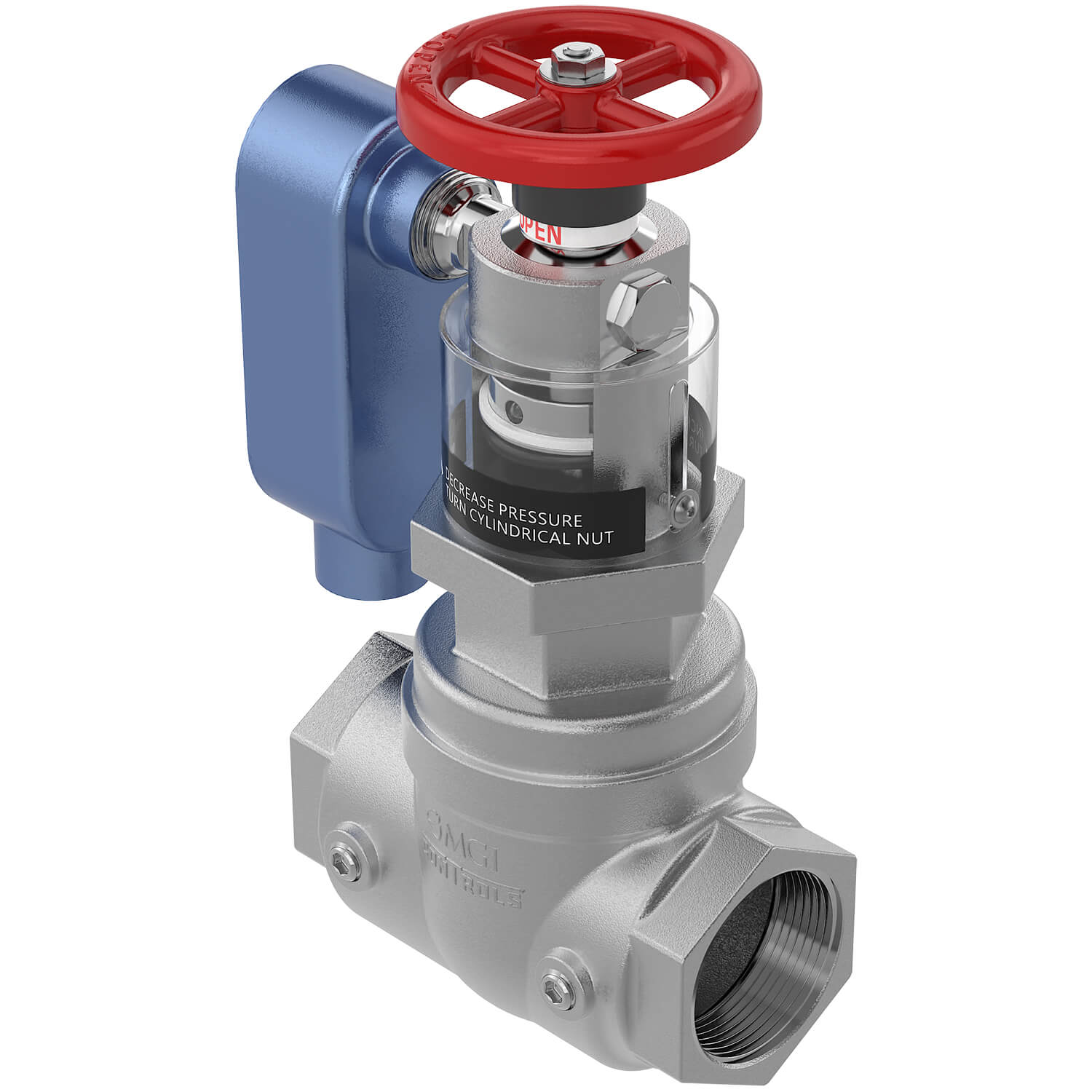

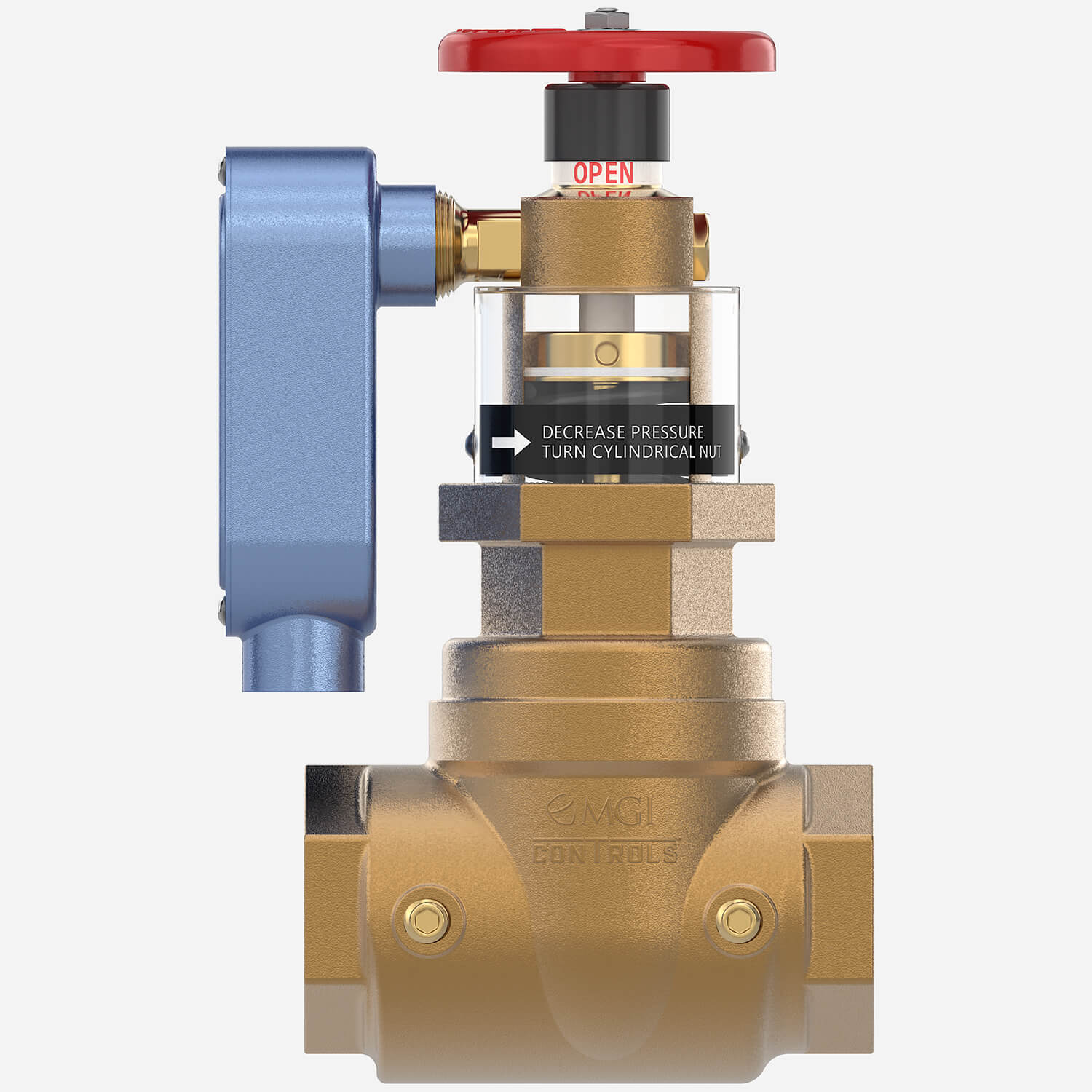

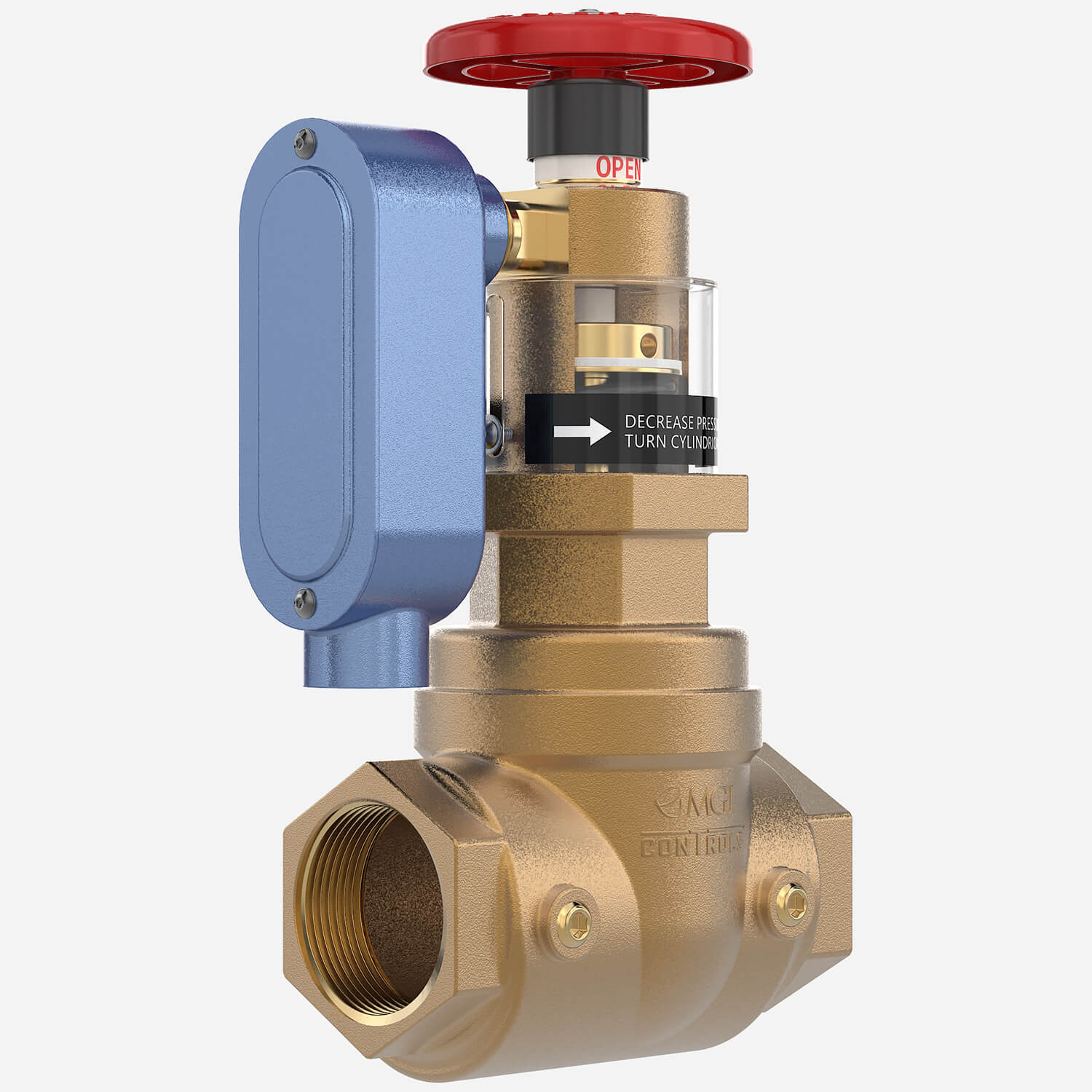

Adjustable Pressure Reducing Reg-U-Matic® Control Valve - Straight Body, 2-1/2" NPT Inlet and Outlet

MODEL 4005-FA2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum hand wheel. Regulates pressure under both flow and no-flow conditions. Female 2-1/2" NPT inlet and outlet.

MODEL 4005-FA2-GV Cast bronze valve with rising stem, brass, and chrome silicon internal parts. Red aluminum hand wheel. Regulates pressure under both flow and no-flow conditions. The valve features a 2-1/2" grooved inlet and outlet.

The in-line installation of a REG-U-MATIC® sets up a closed system. A relief valve should be installed to limit excessive pressure build-up due to line surges.

Supervisory switch rated 3 amps @ 125 volts. Normal open contacts are standard.

Valves can be factory-set and factory-adjusted or set in the field as required.

Tapped and plugged the inlet and outlet for the pressure gauge (both sides).

FEATURES

• Application: Control Valve
• Reduces pressure under flow and no flow conditions
• Static pressure rated up to 400 PSI (26.7 BAR)
• Flow rated up to 500 gallons (1893 liters) per minute
• Low torque manual open/close requires less than 15 ft/lbs.
• Built-in supervisory switch
• 4 Pressure gauge taps on both inlet and outlet sides
• Color-coded pressure adjustment indicator
• Built-in automatic check valve
• UL listed, complies with NFPA-13
