Adjustable Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, Female 1-1/2” NPT Inlet and Outlet

Name: Adjustable Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, Female 1-1/2” NPT Inlet and Outlet
Brand: Potter Roemer
SKU: 4010-FA3

In StockThis product is available for quick shipment nationwide.

Contact a Representative

Model 4010-FA3

Submittal

Submittal 4010-FA3 and 4015-FA3 Valve (pdf)

Model 4010-FA3

Adjustable Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, Female 1-1/2” NPT Inlet and Outlet

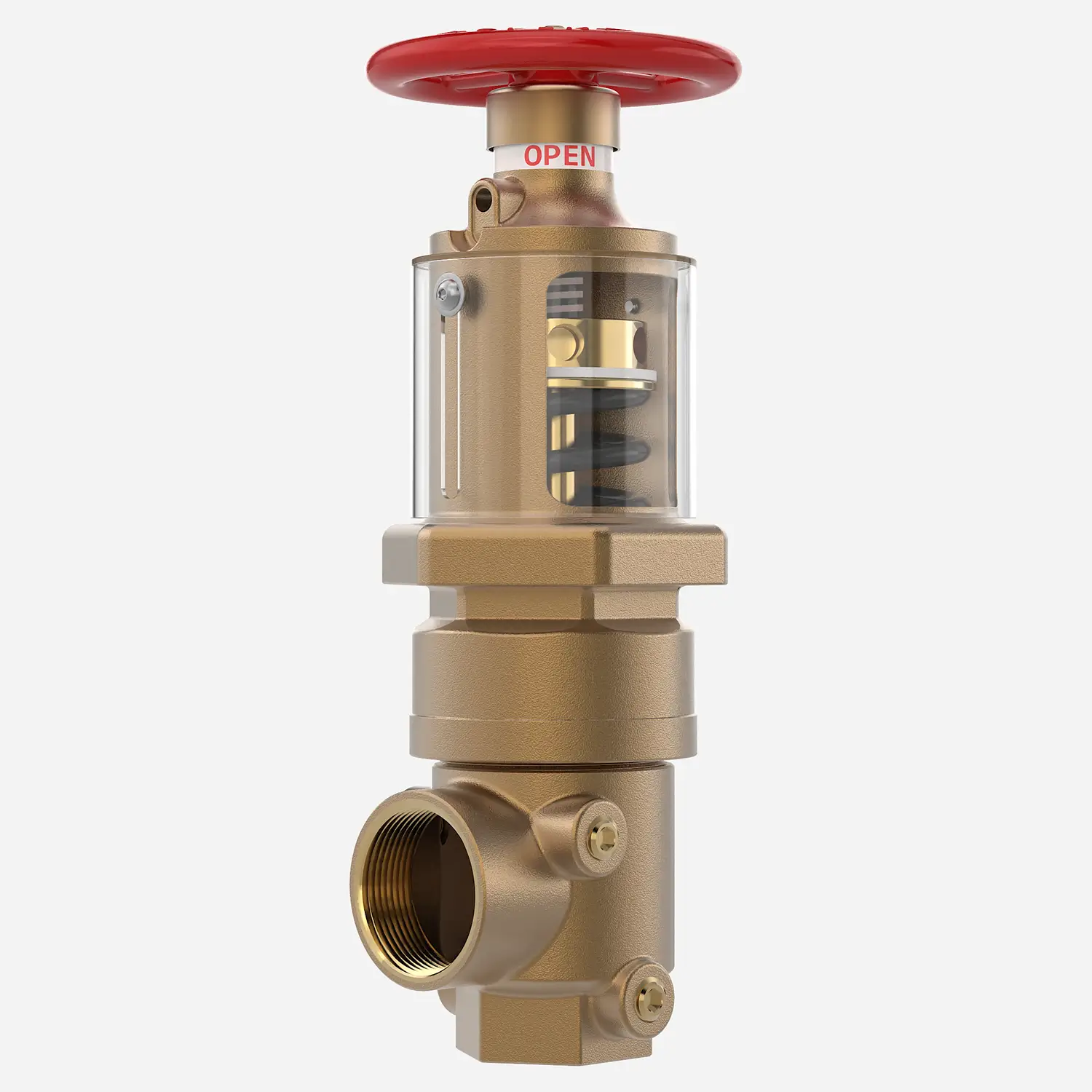

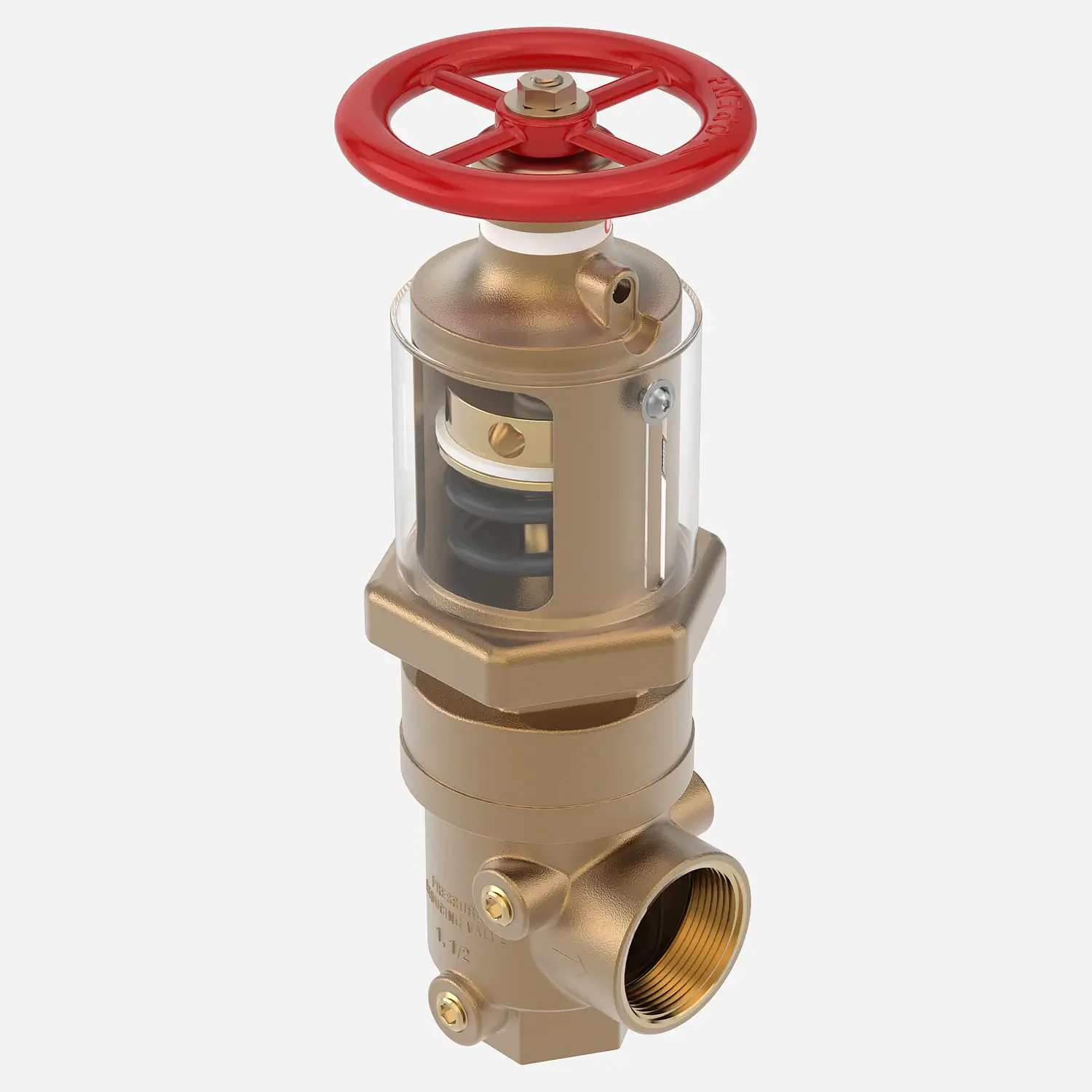

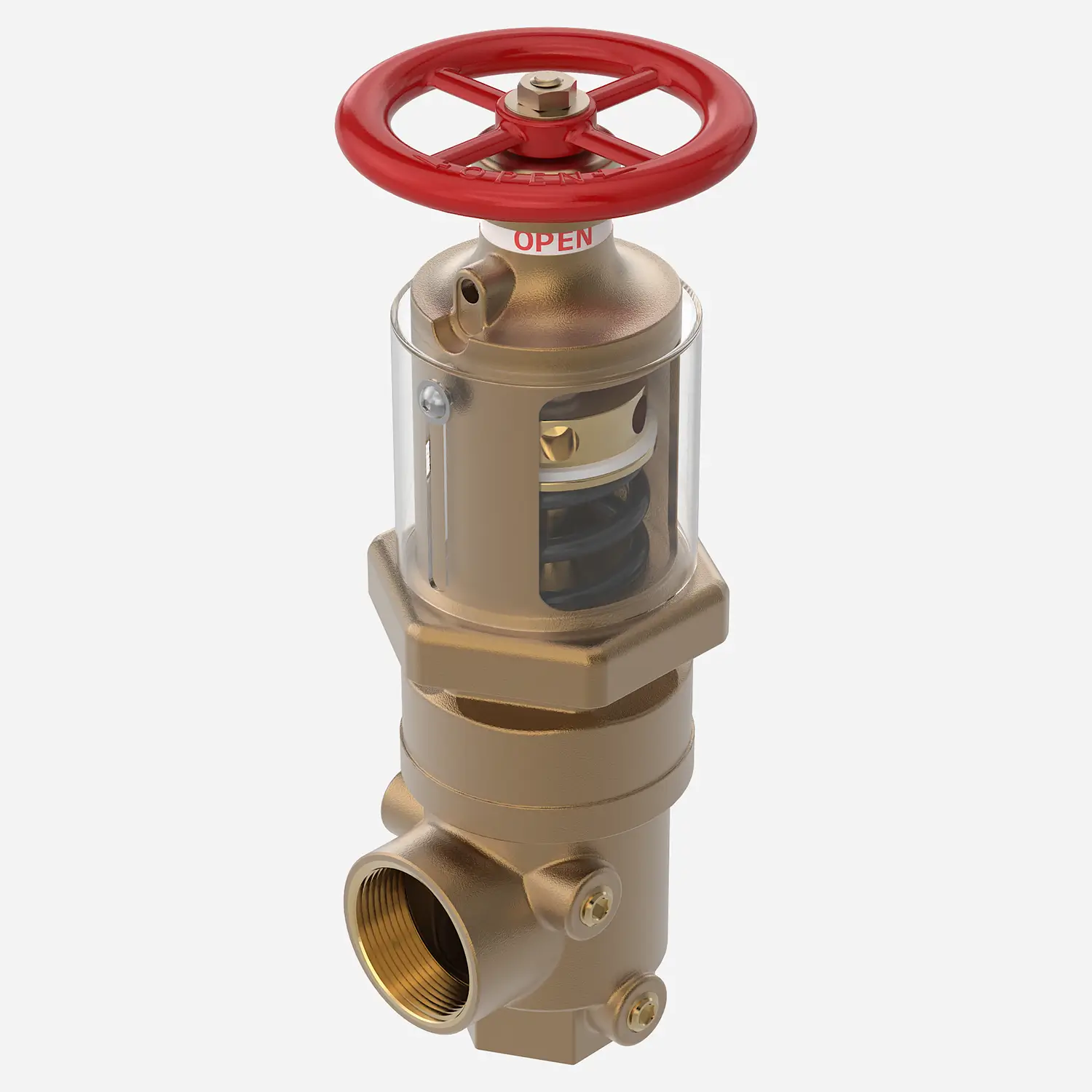

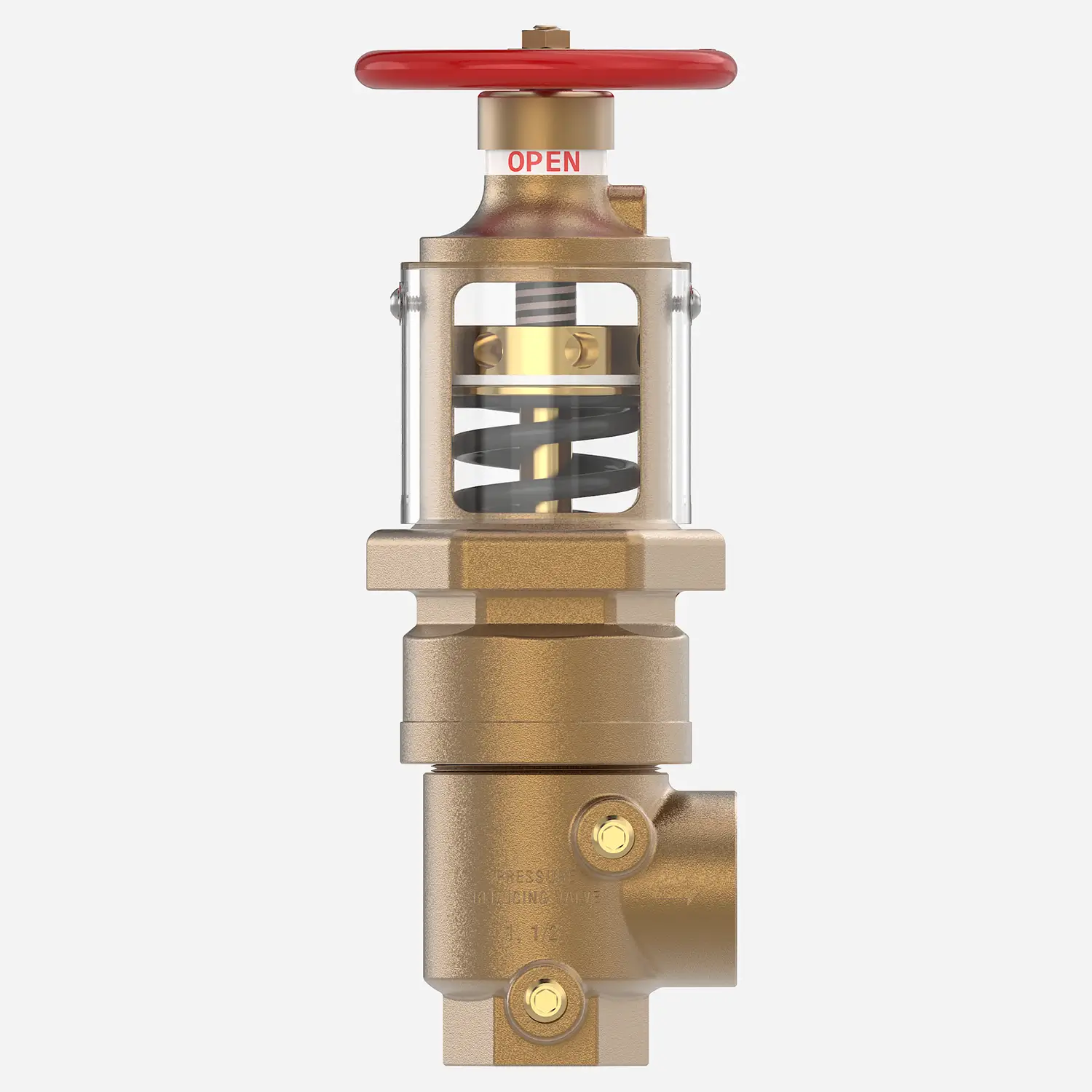

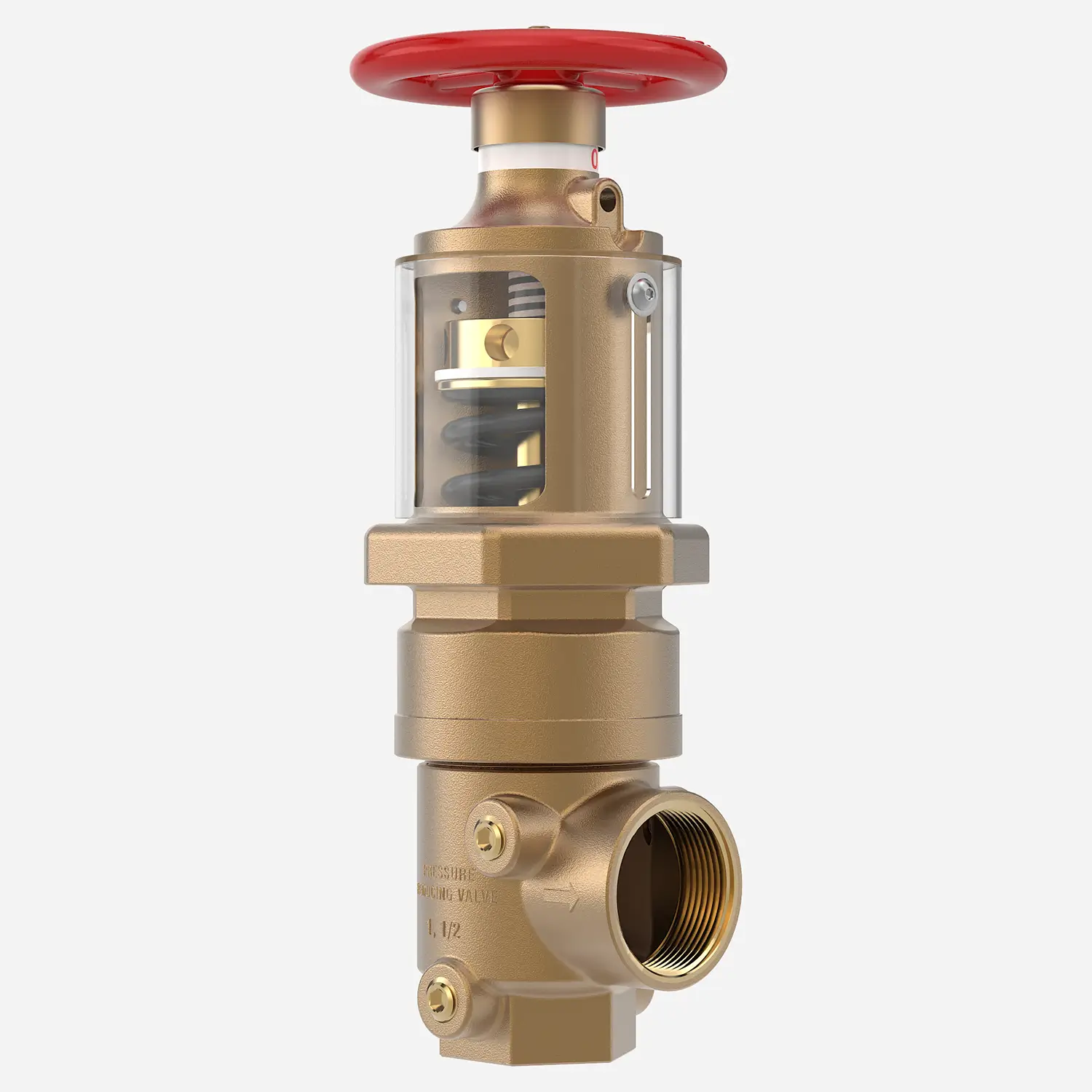

MODEL 4010-FA3 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. 1-1/2" Female N.P.T. inlet and outlet.

FEATURES

Application: Hose Valve
Reduces pressure under flow and no-flow conditions
Static pressure rated up to 240 PSI (16.5 BAR)
Flow rated up to 250 Gallons (946 Liters) per minute
Low torque manual open/close requires less than 15 ft/lbs
Color-coded pressure adjustment indicator
UL listed, complies with NFPA-14

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	File Size	Action
	Submittals	Submittal 4010-FA3 and 4015-FA3 Valve (pdf)	Adjustable Reg-U-Matic® Pressure Reducing Hose Valve [4010-FA3 \| 1-1/2" Female NPT Inlet, Female NPT Outlet; 4015-FA3 \| 1-1/2" Female NPT Inlet; Male Hose Thread Outlet]	465 KB
	Brochures/Flyers	Potter Roemer Mechanical Brochure (pdf)	Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026]	2 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel
Optional Finish	-C \| Rough Chrome
Inlet	1.5" Female NPT
Outlet	1.5" Female NPT
Handle Type	Wheel Handle
UL	UL Listed
Body Type	Angle
Adjustable	Yes
