Adjustable Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, 2-1/2" Male Hose Thread Outlet

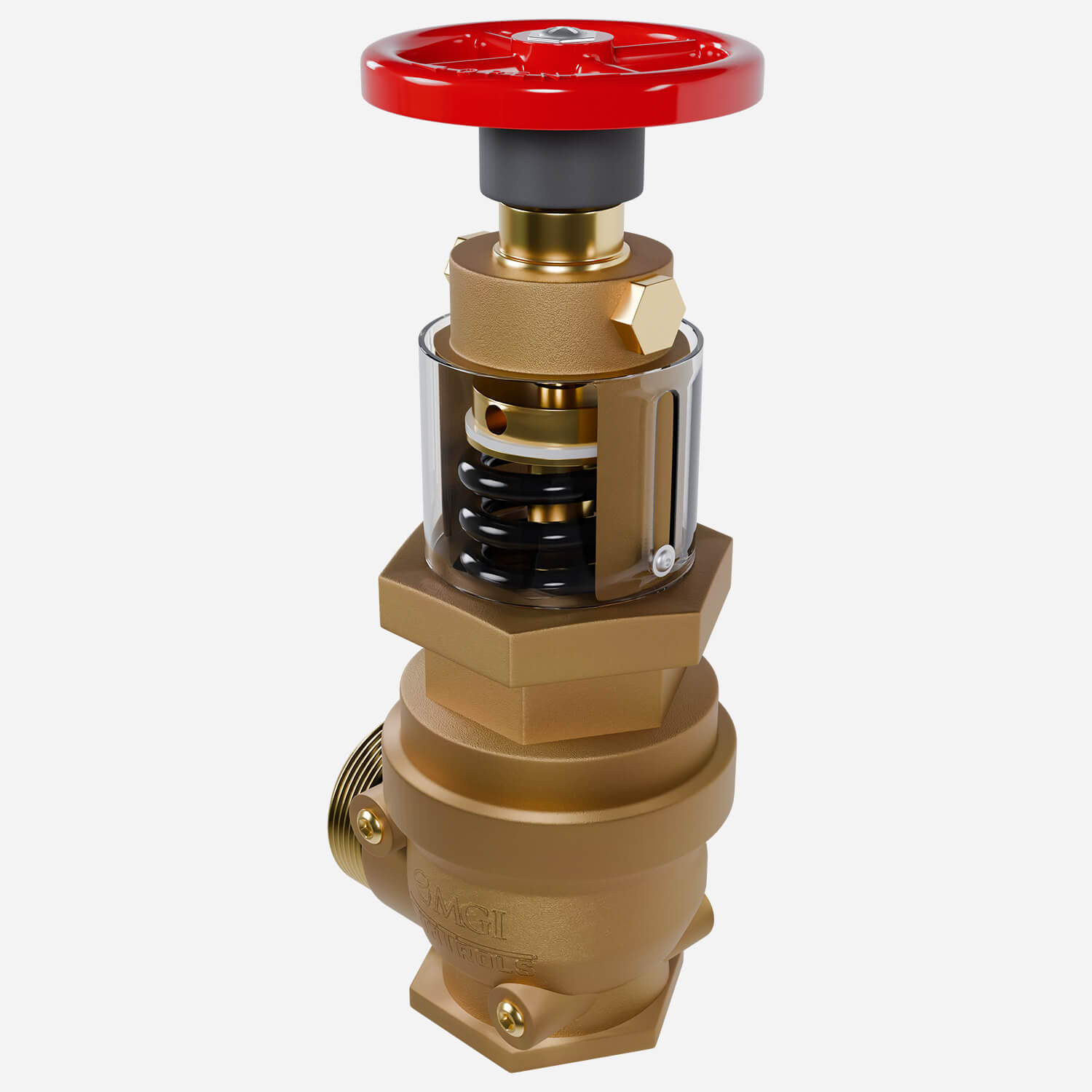

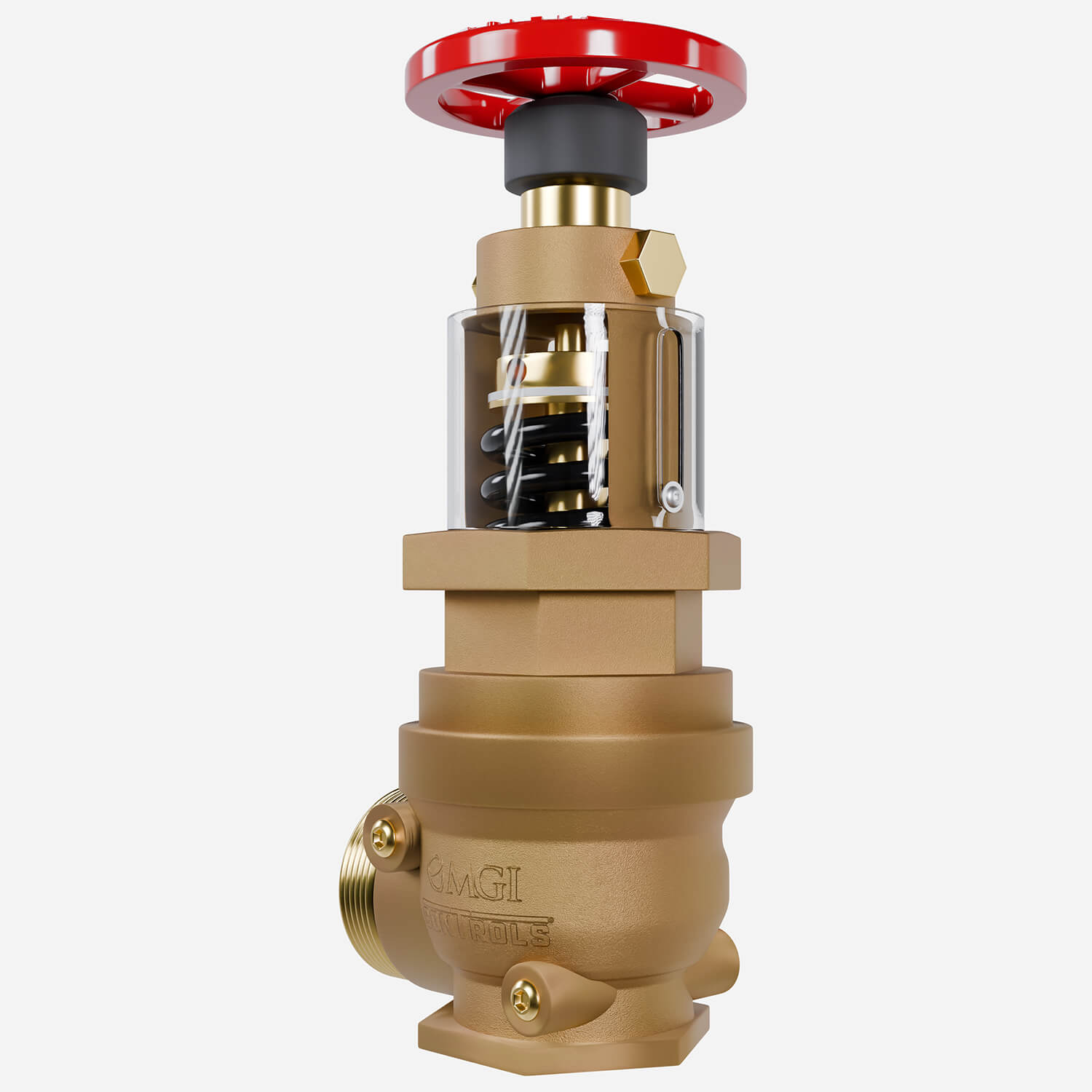

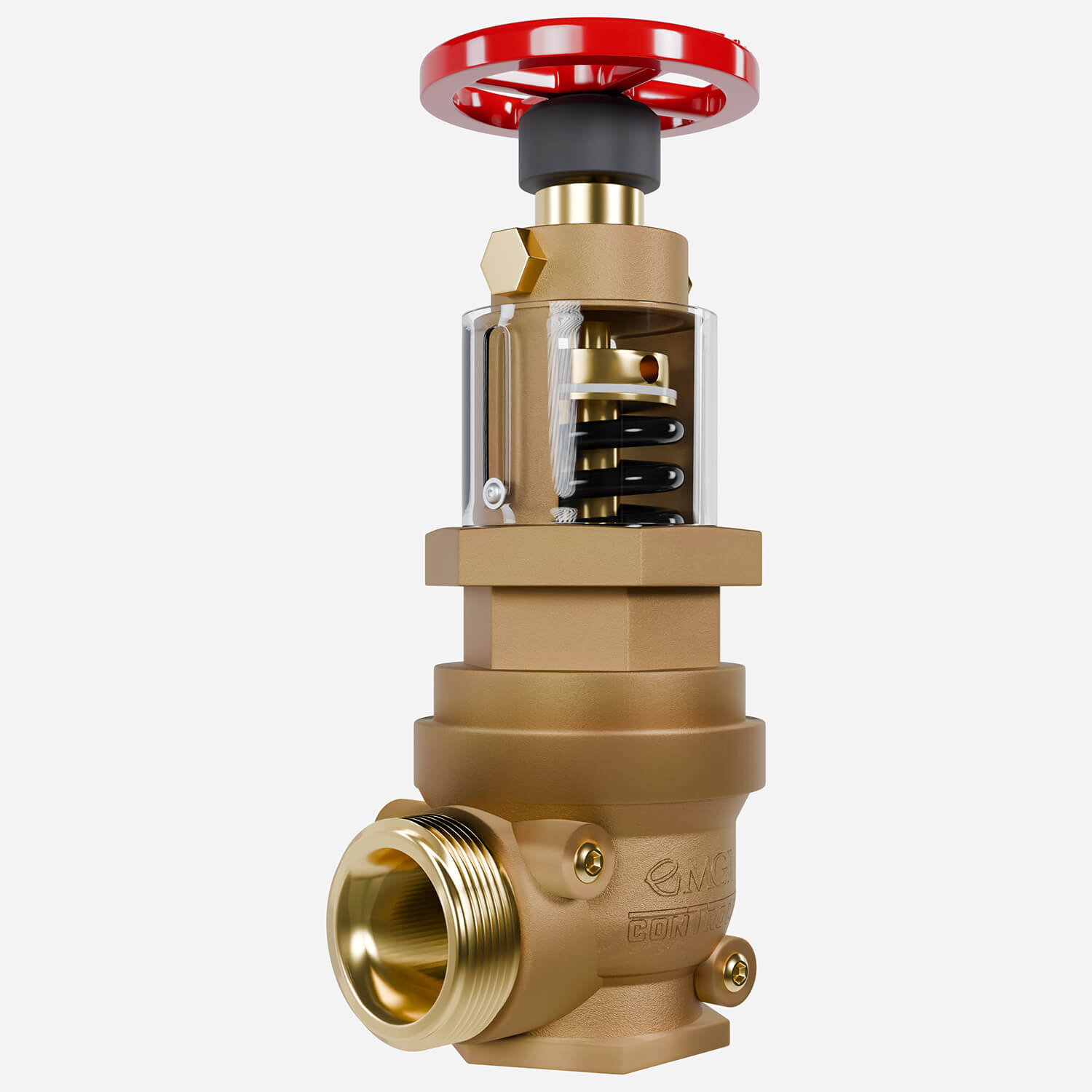

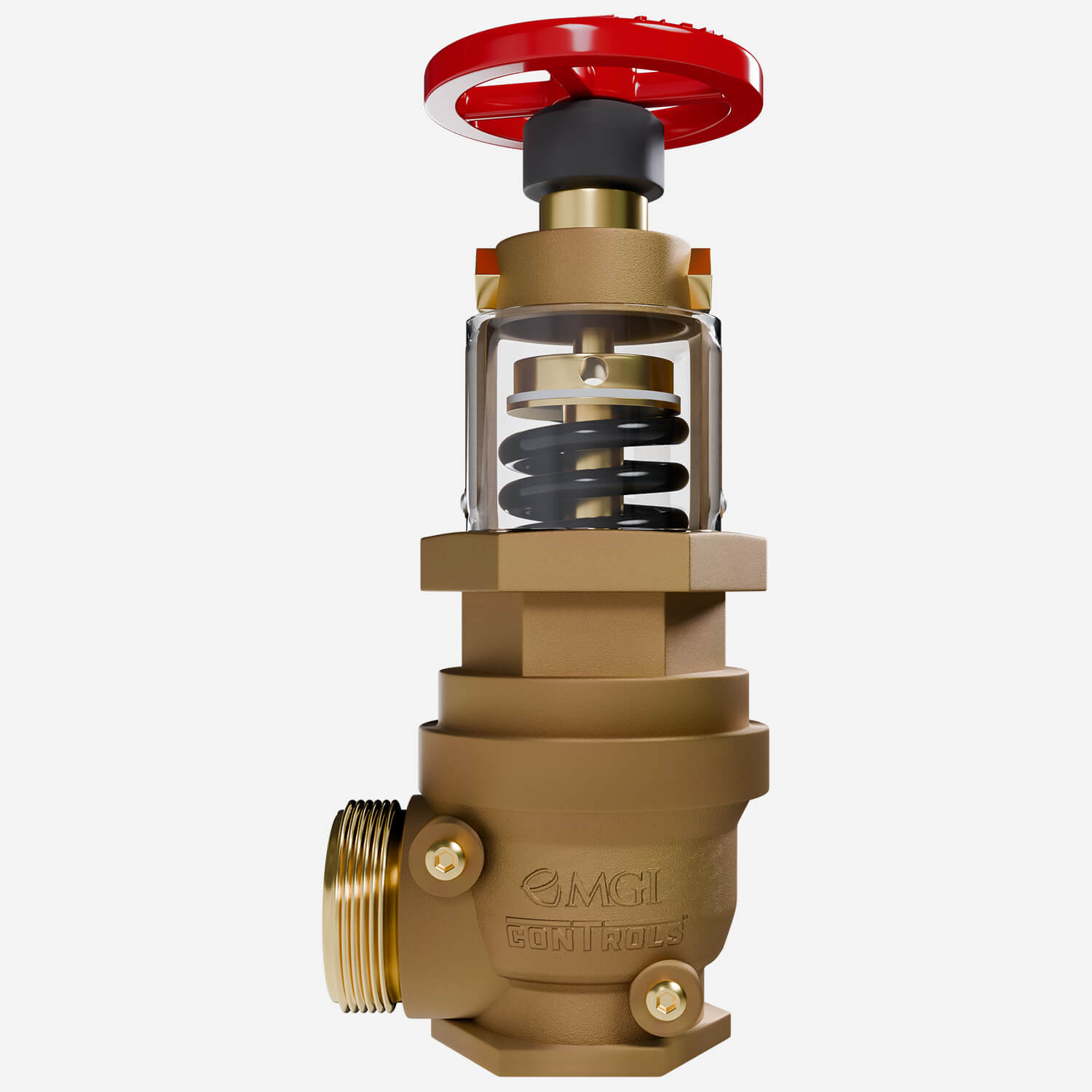

MODEL 4023-FA2 Cast bronze angle valve with inside screw rising stem, internal parts of brass, and chrome silicon. Red aluminum hand wheel. Inlet is 2-1/2" NPT female; Outlet is 2-1/2" male hose thread.

MODEL 4023-FA2-GV Cast bronze angle valve with inside screw rising stem, internal parts of brass, and chrome silicon. Red aluminum hand wheel. Inlet is 2-1/2" Grooved; the Outlet is 2-1/2" male hose thread

MODEL 4023-FA2-SF Cast bronze angle valve with inside screw rising stem, internal parts of brass, and chrome silicon. Red aluminum hand wheel. The inlet is 2-1/2" NPT female; the Outlet is 3" NST male hose thread

MODEL 4023-FA2-GV-SF Cast bronze angle valve with inside screw rising stem, internal parts of brass, and chrome silicon. Red aluminum hand wheel. The inlet is 2-1/2" Grooved; the Outlet is 3" NST male hose thread

FEATURES

• Reduces pressure under flow and no flow conditions
• Static pressure rated up to 400 PSI (26.7 BAR)
• Flow rate up to 500 GPM (1893 LPM)
• Low torque manual open/close requires less than 15ft/lbs.
• Four [ressure gauge taps on both inlet and outlet sides
• Color-coded pressure adjustment indicator
• UL listed complies with NFPA-14
