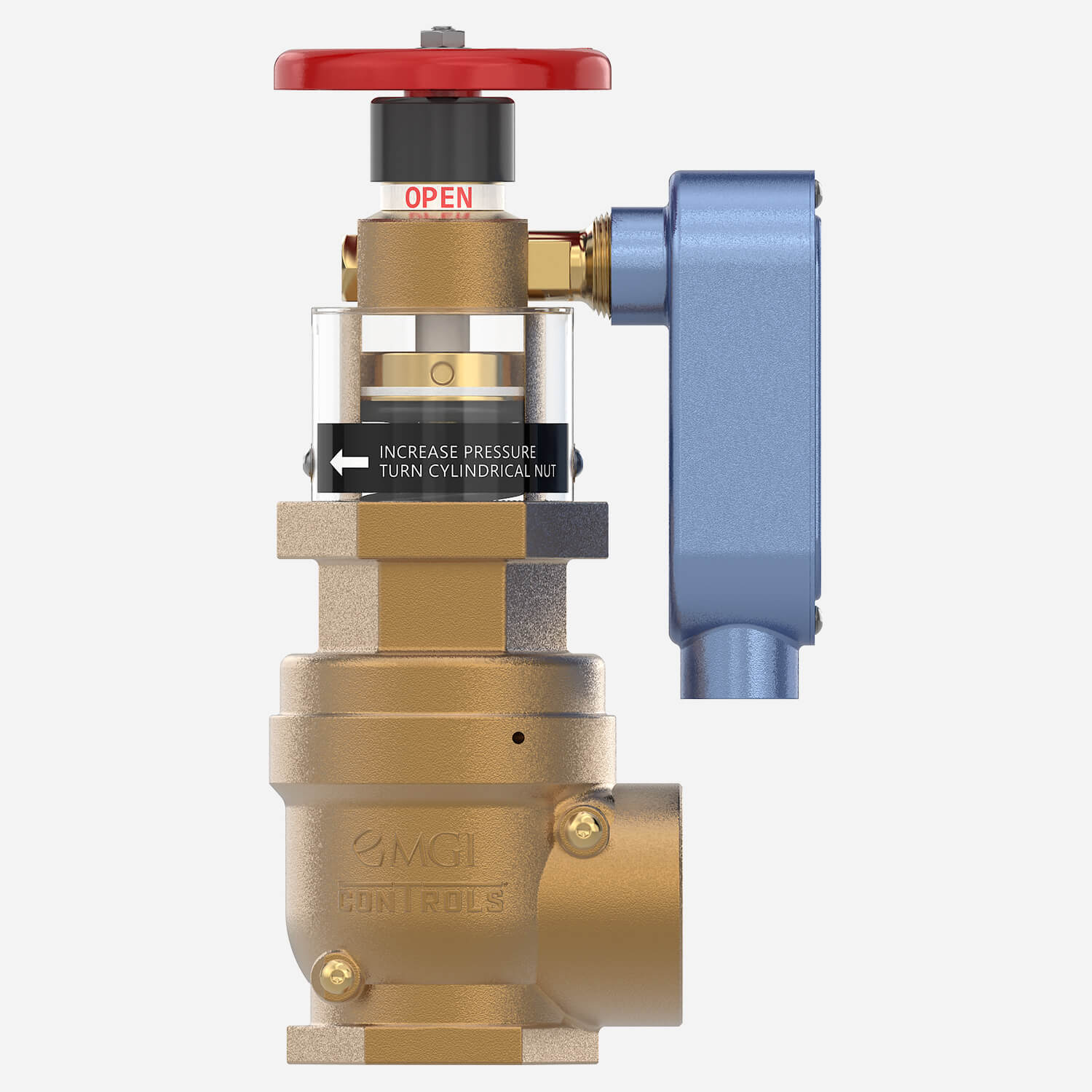

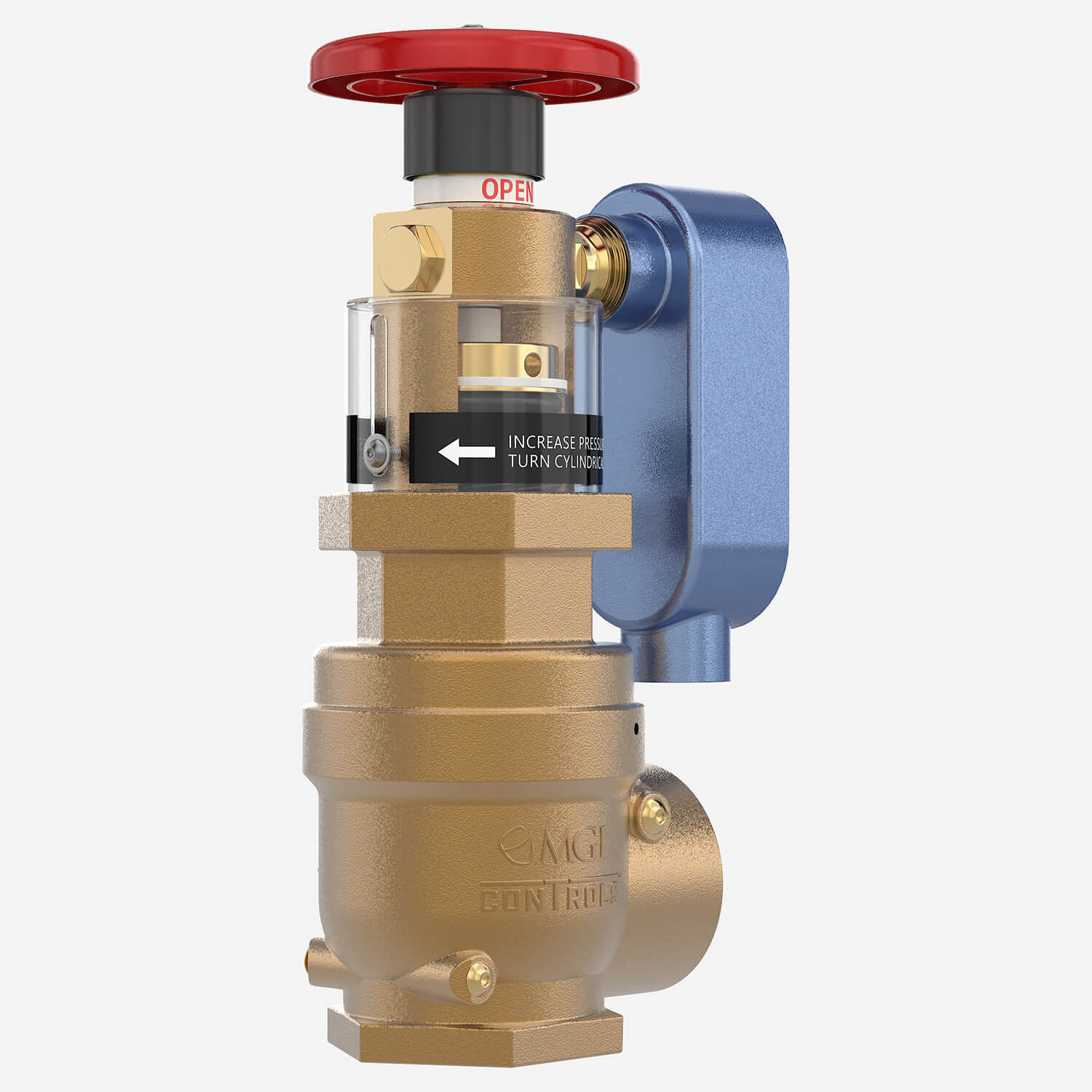

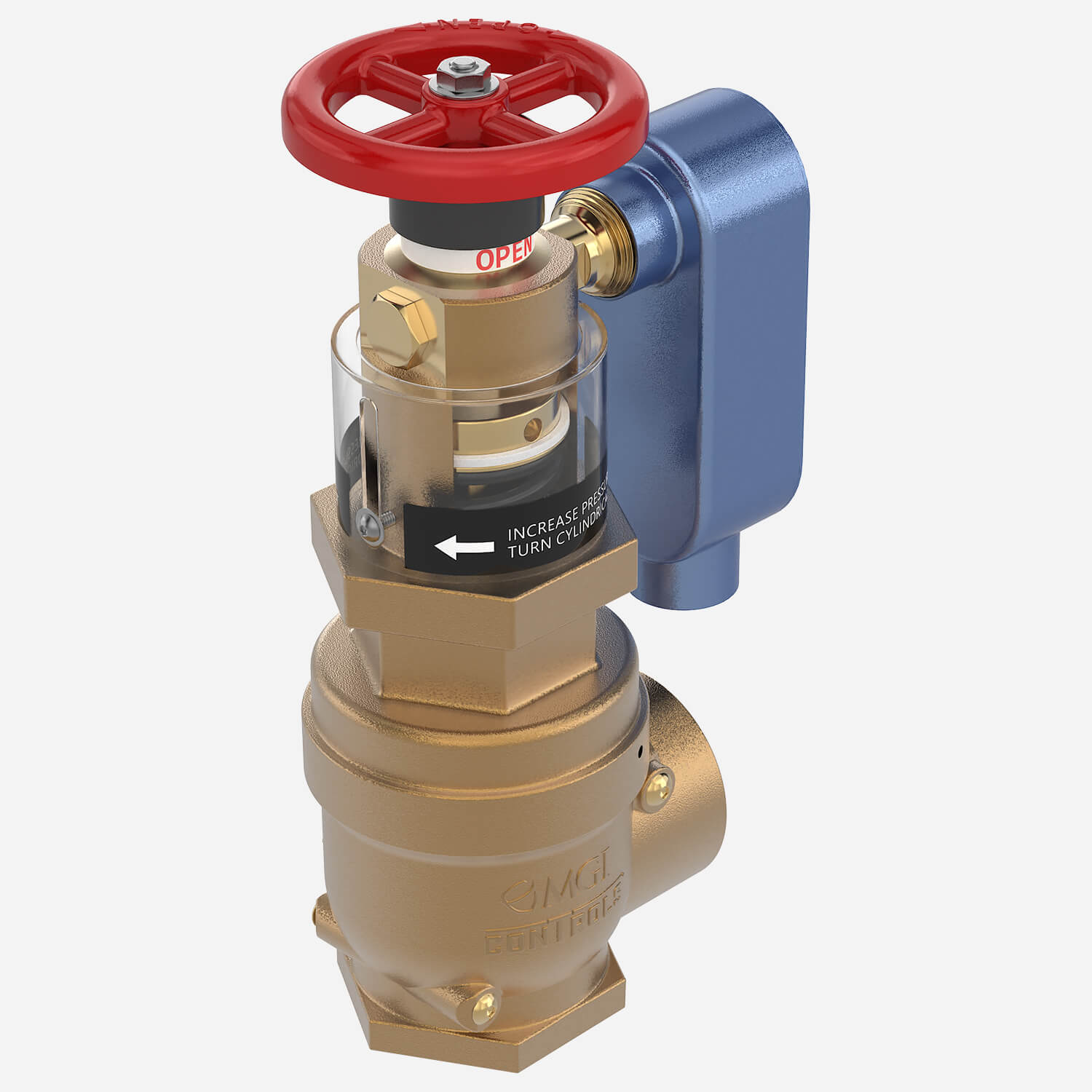

Adjustable Pressure Reducing Reg-U-Matic® Control Valve - Angled Body, 2-1/2" NPT Inlet and Outlet

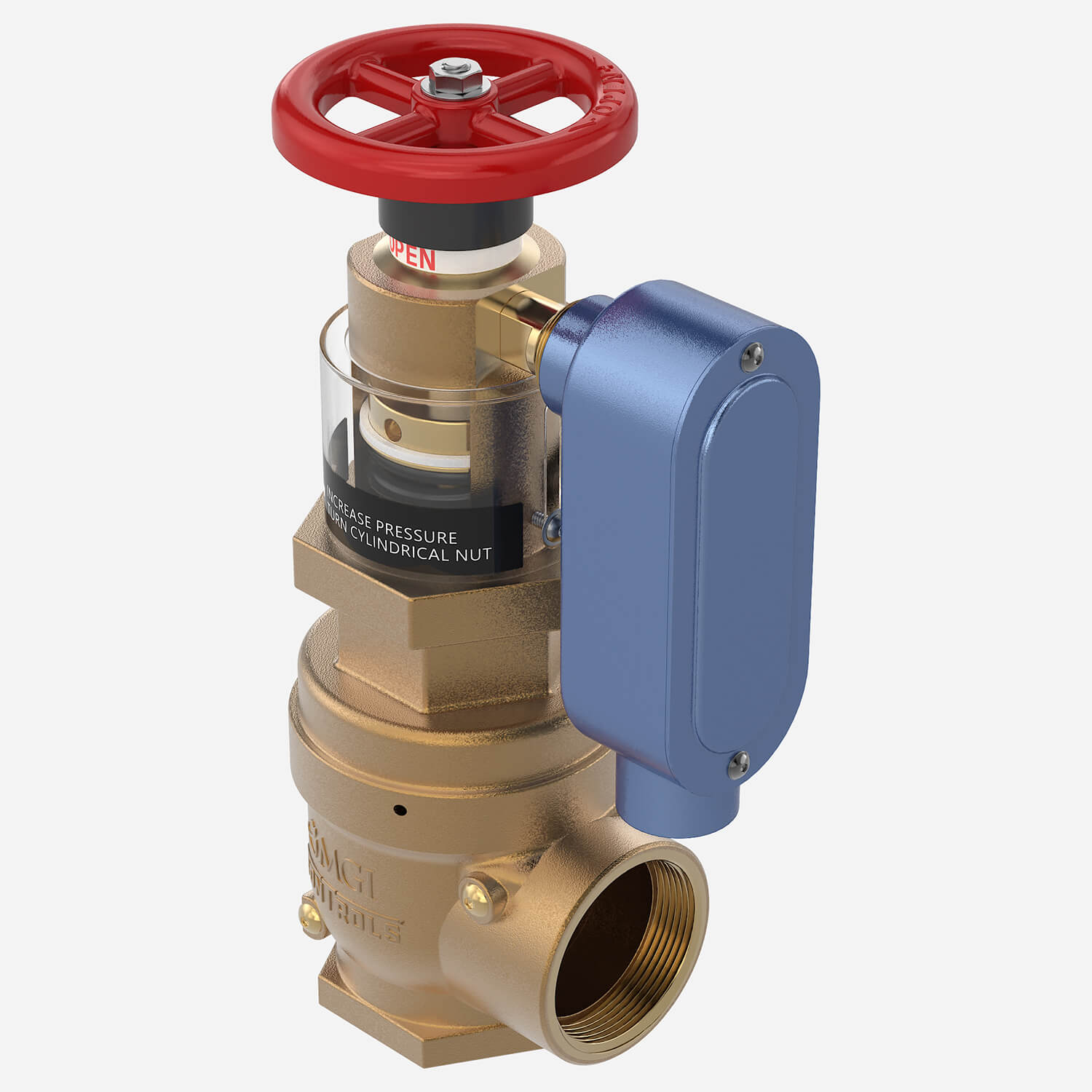

MODEL 4032-FA2 Cast bronze valve with rising stem, brass, and chrome silicon internal parts. Red aluminum hand wheel. Regulates pressure under both flow and no-flow conditions. Female 2-1/2" N.P.T. inlet and outlet.

MODEL 4032-FA2-GV Cast bronze valve with rising stem, brass, and chrome silicon internal parts. Red aluminum hand wheel. Regulates pressure under both flow and no-flow conditions. The valve features a grooved inlet and outlet.

Supervisory switch rated 3 amps @ 125 volts. Normal open contacts are standard.

Valves can be factory set and adjusted or set in the field as required.

Tapped and plugged inlet and outlet for pressure gauge (both sides).

FEATURES

• Application - Control Valve
• Reduces pressure under flow and no flow conditions
• Static pressure rated up to 400 PSI (26.7 BAR)
• Flow rated up to 500 gallons (1893 liters) per minute
• Low torque manual open/close requires less than 15 ft/lbs.
• Built-in supervisory switch
• 4 Pressure gauge taps on both inlet and outlet sides
• Color-coded pressure adjustment indicator
• Built-in automatic check valve
• UL listed, complies with NFPA-13
