Model 4042-FS2
Factory Set Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, 1-1/2" Female NPT Inlet and Outlet

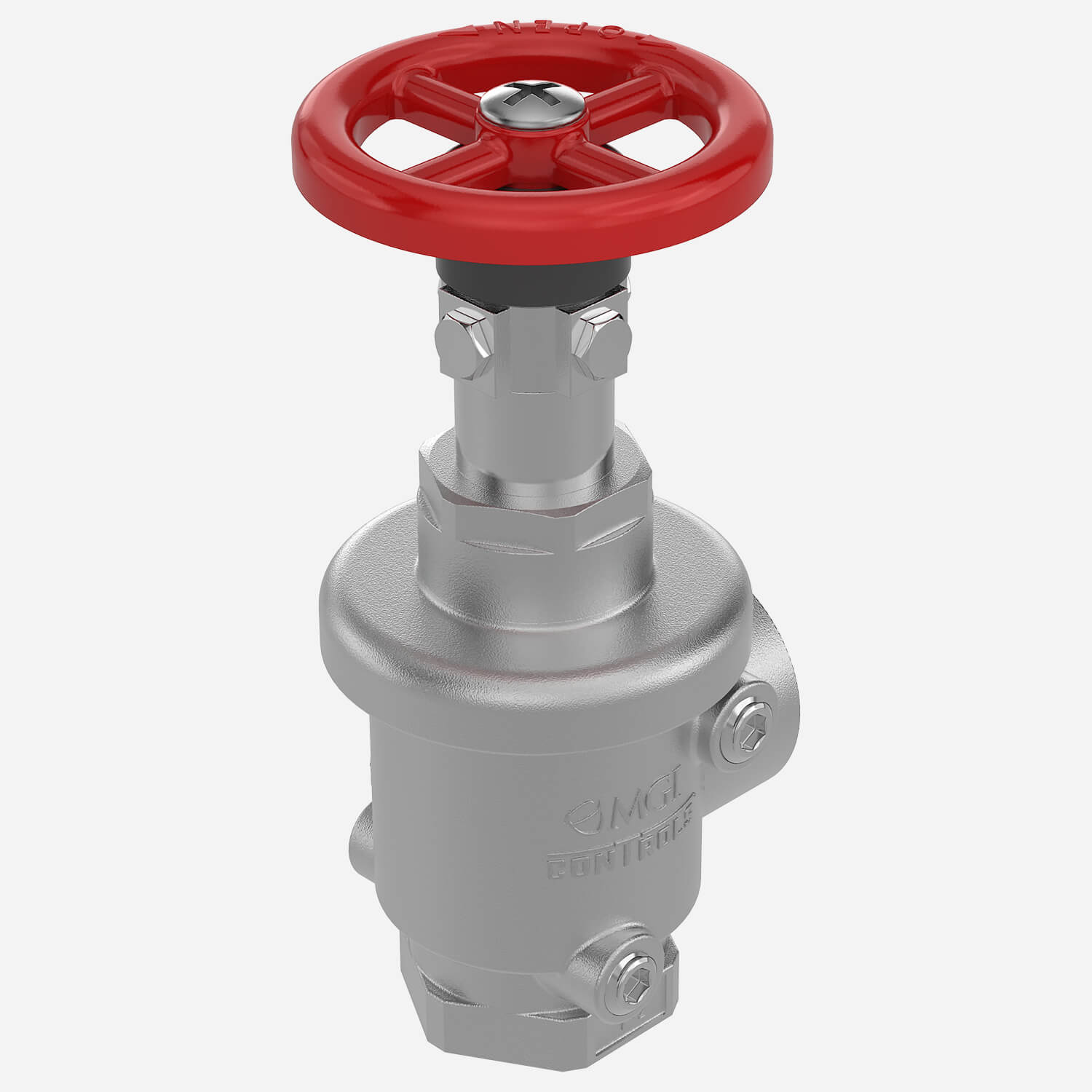

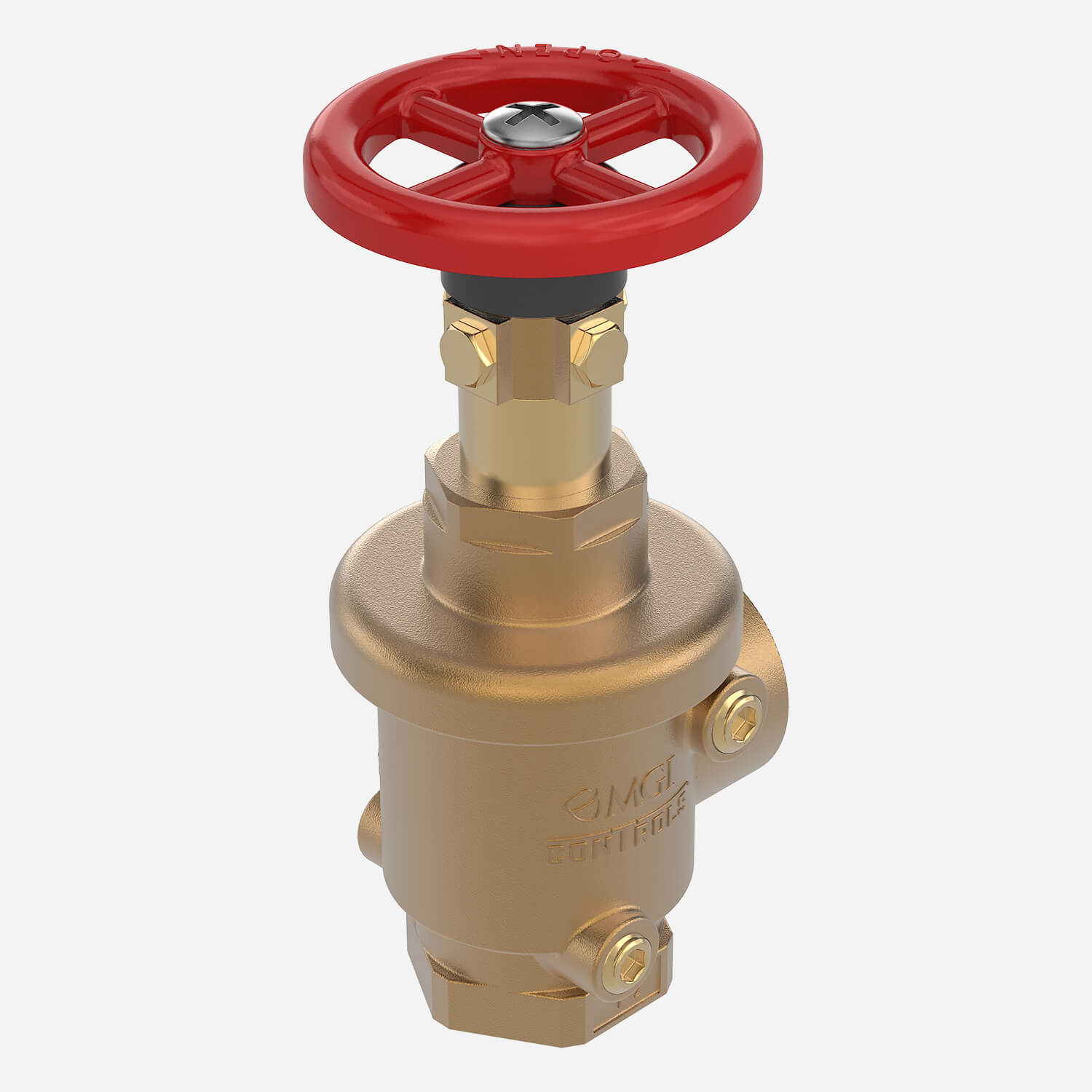

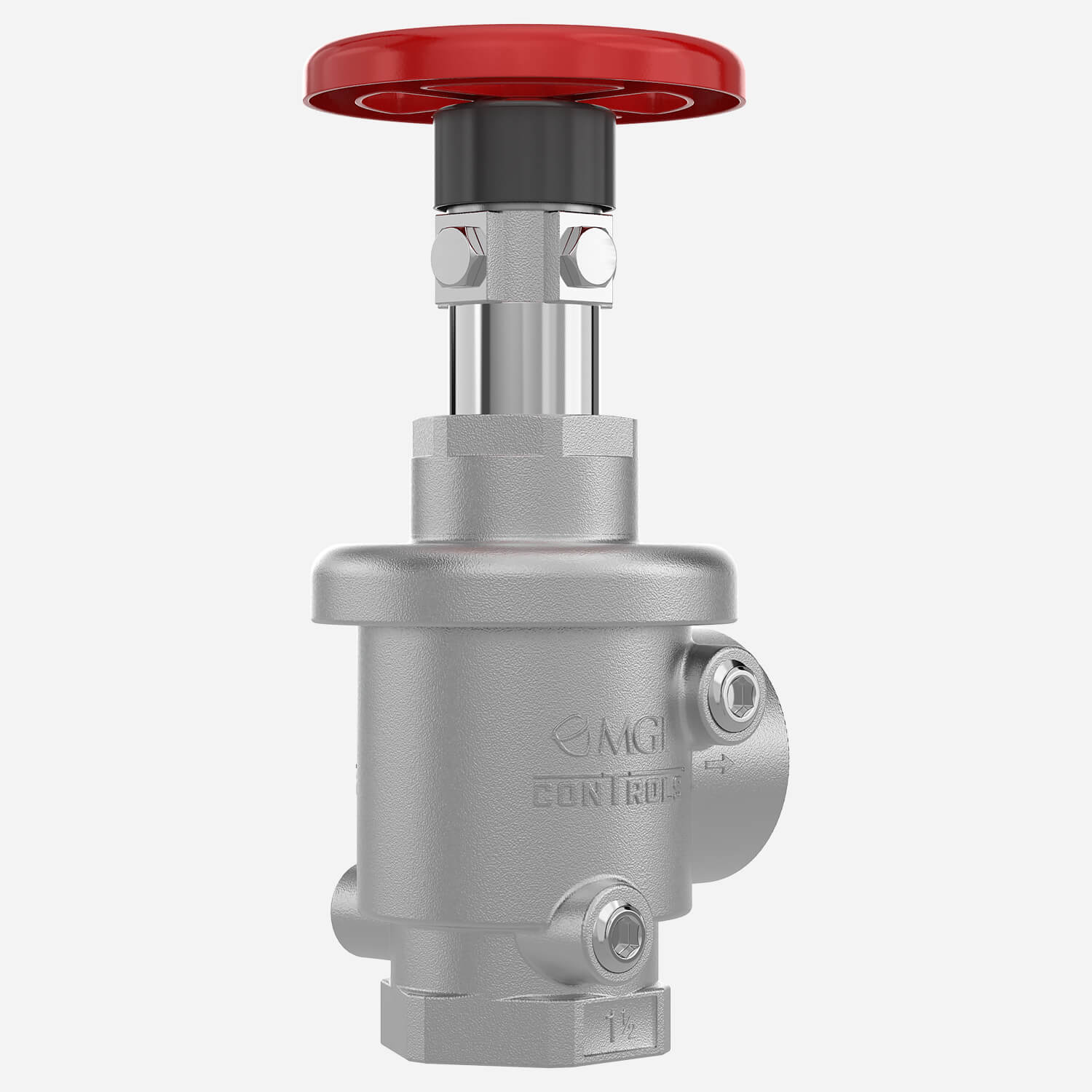

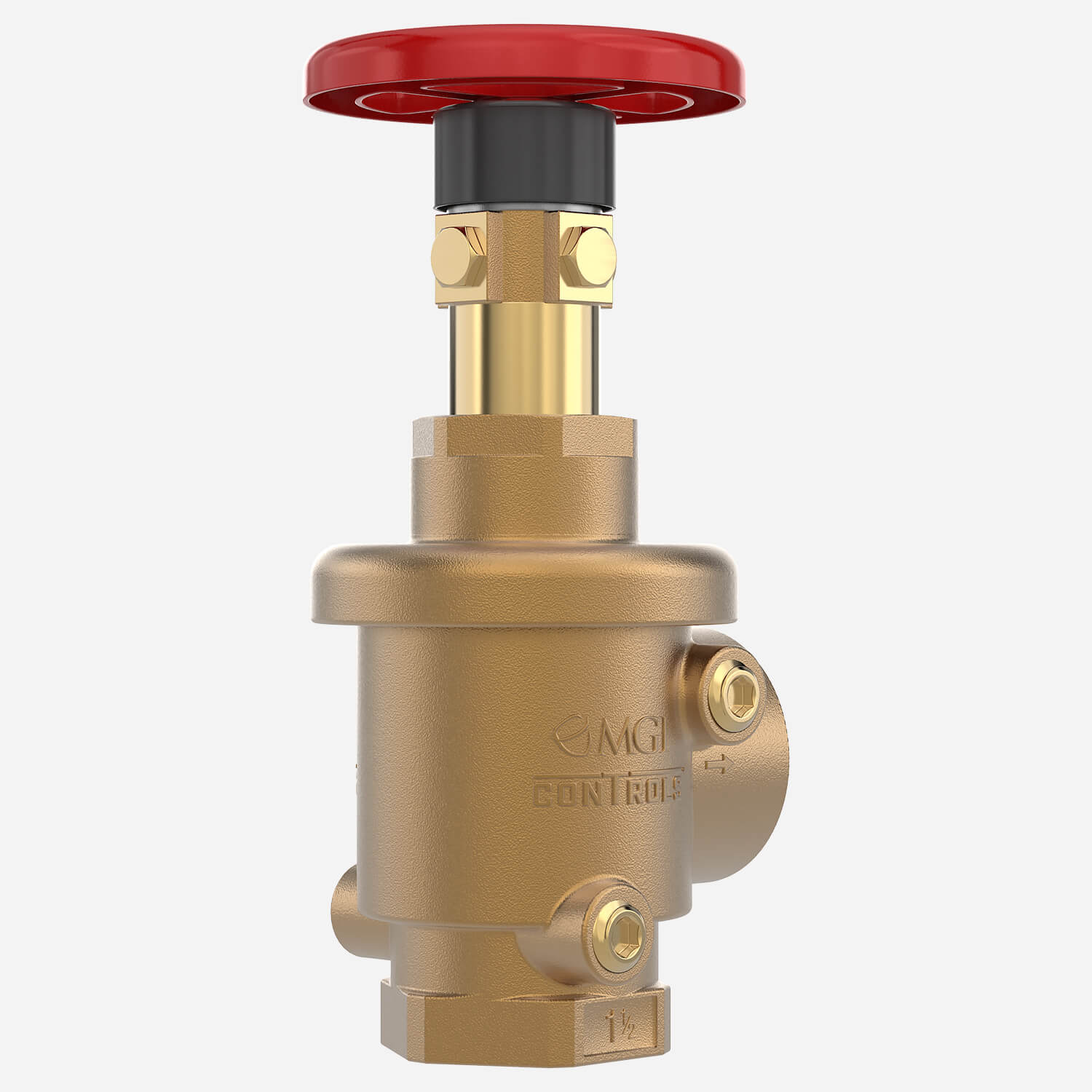

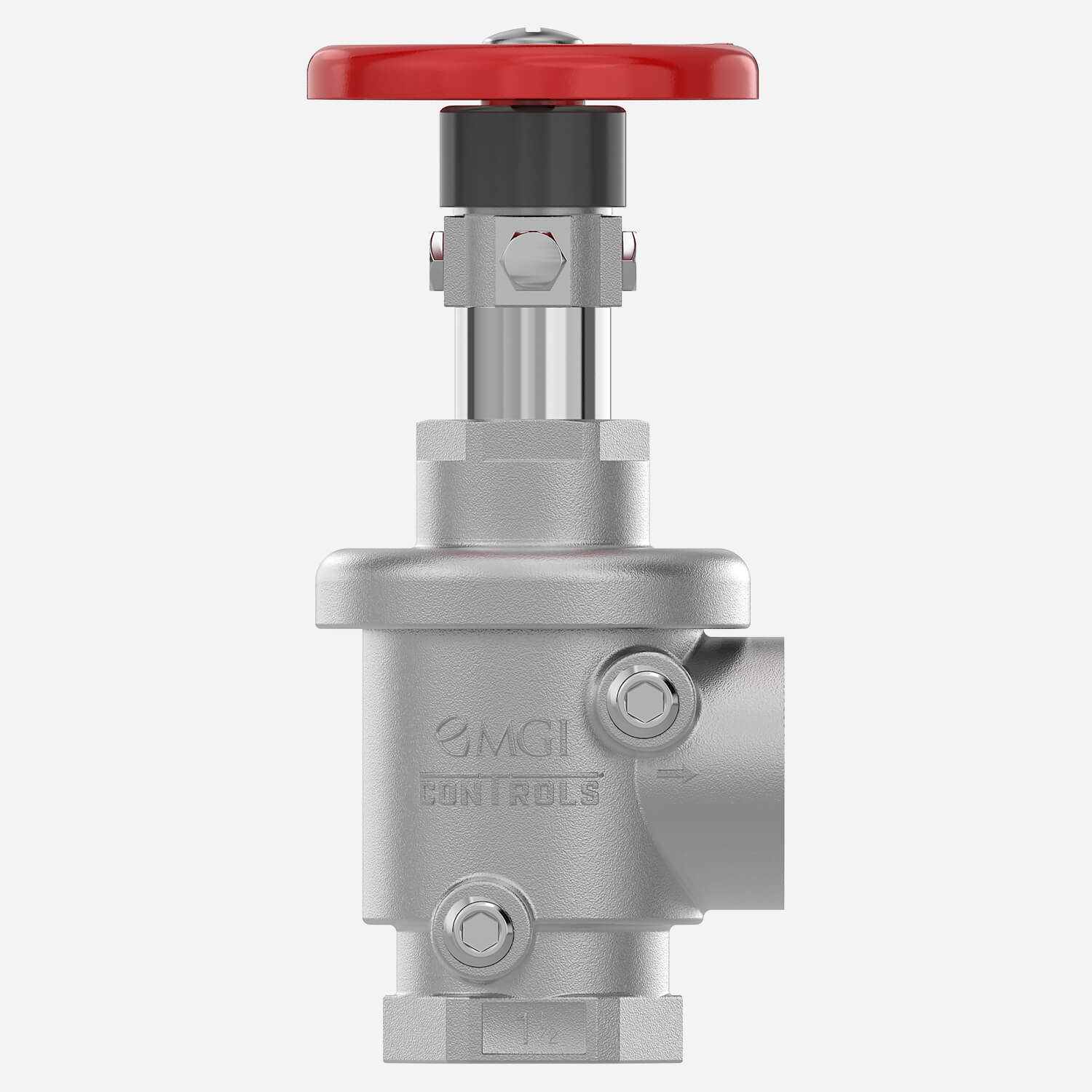

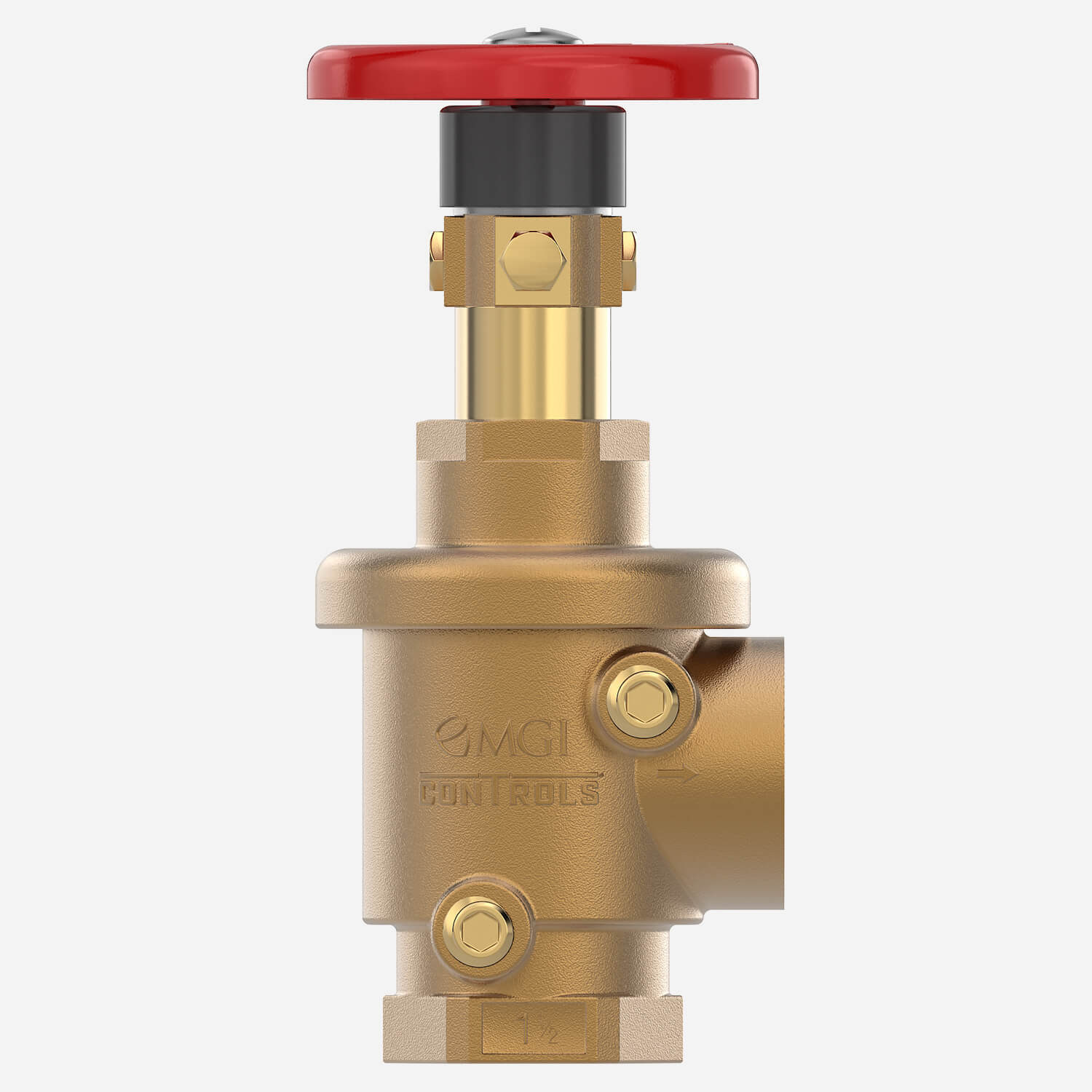

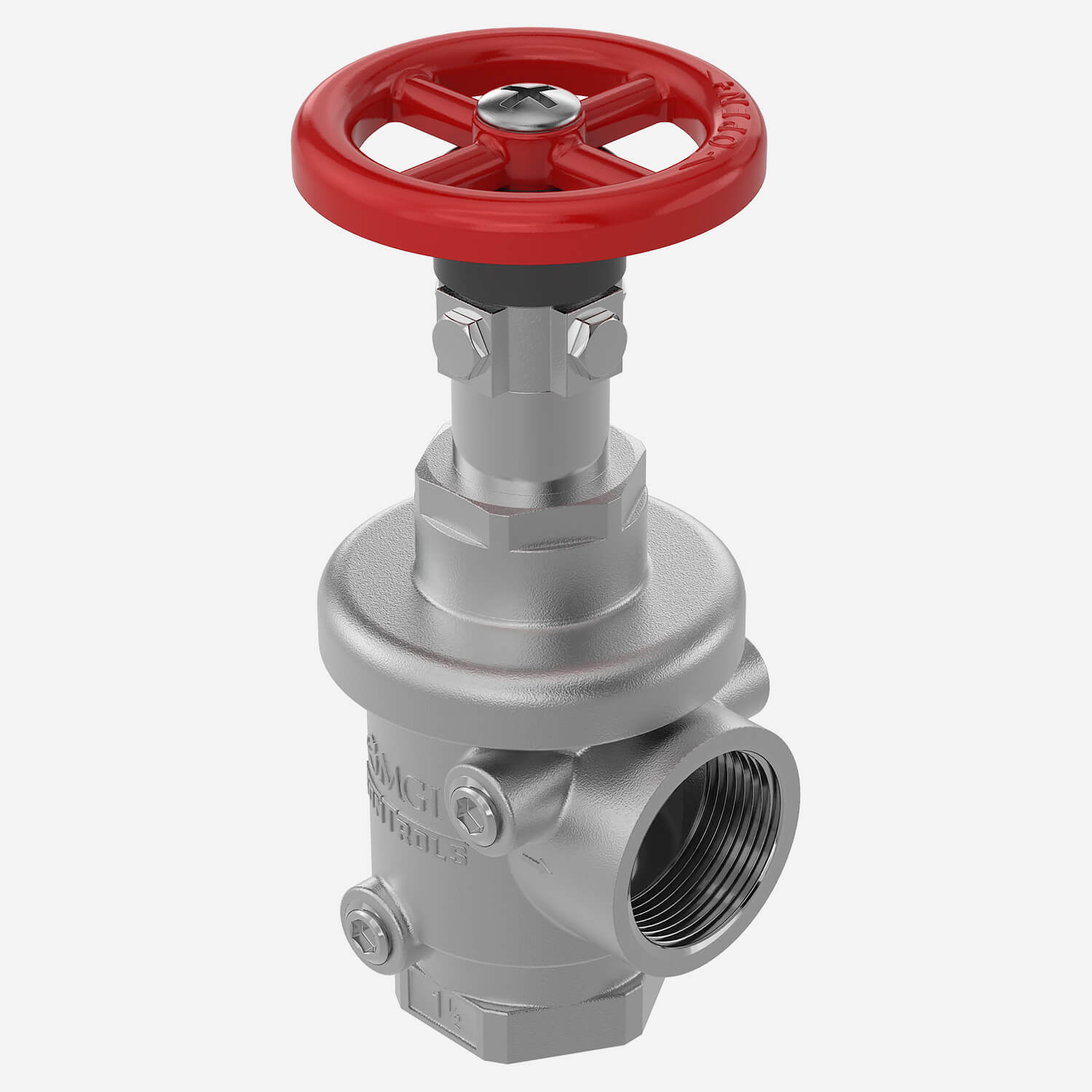

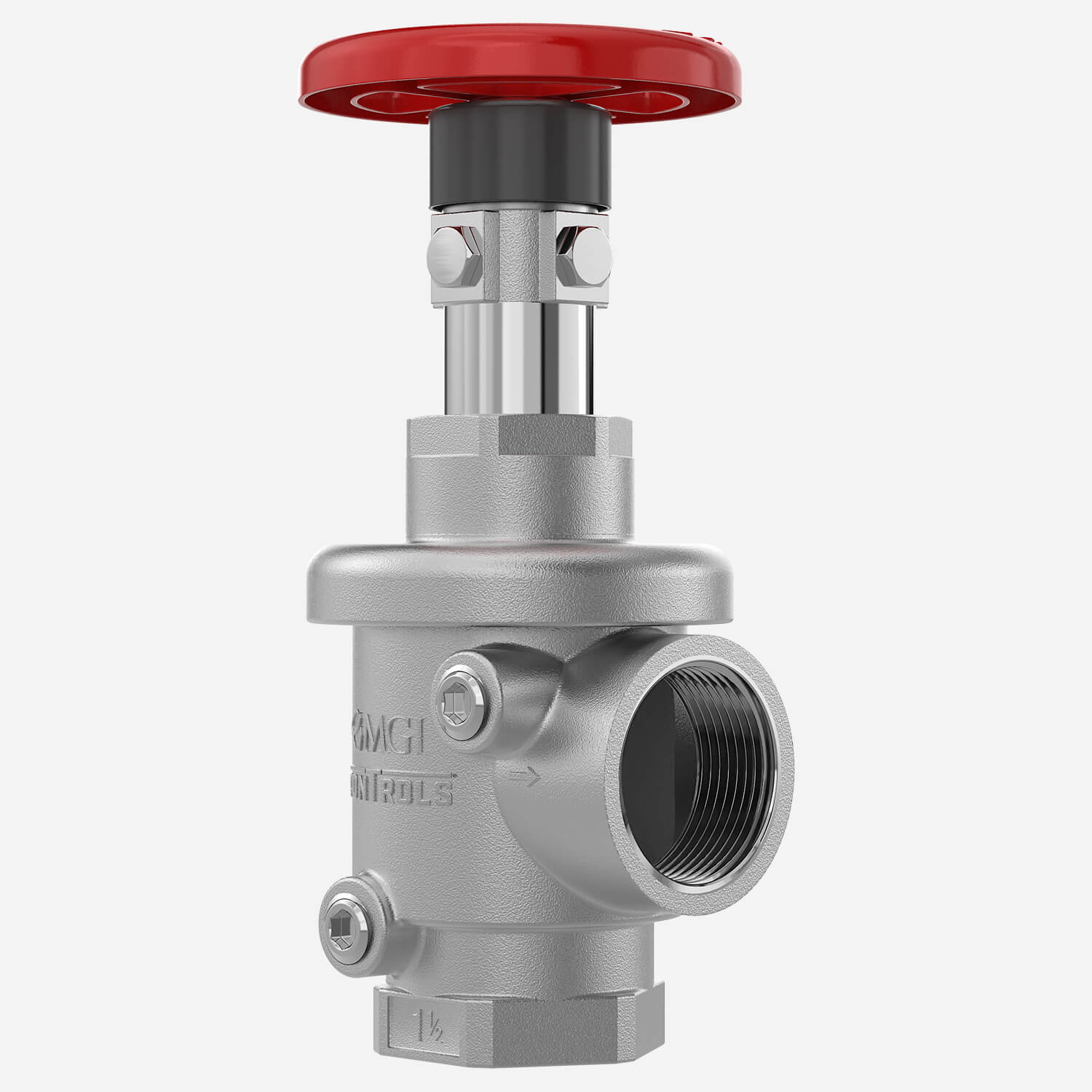

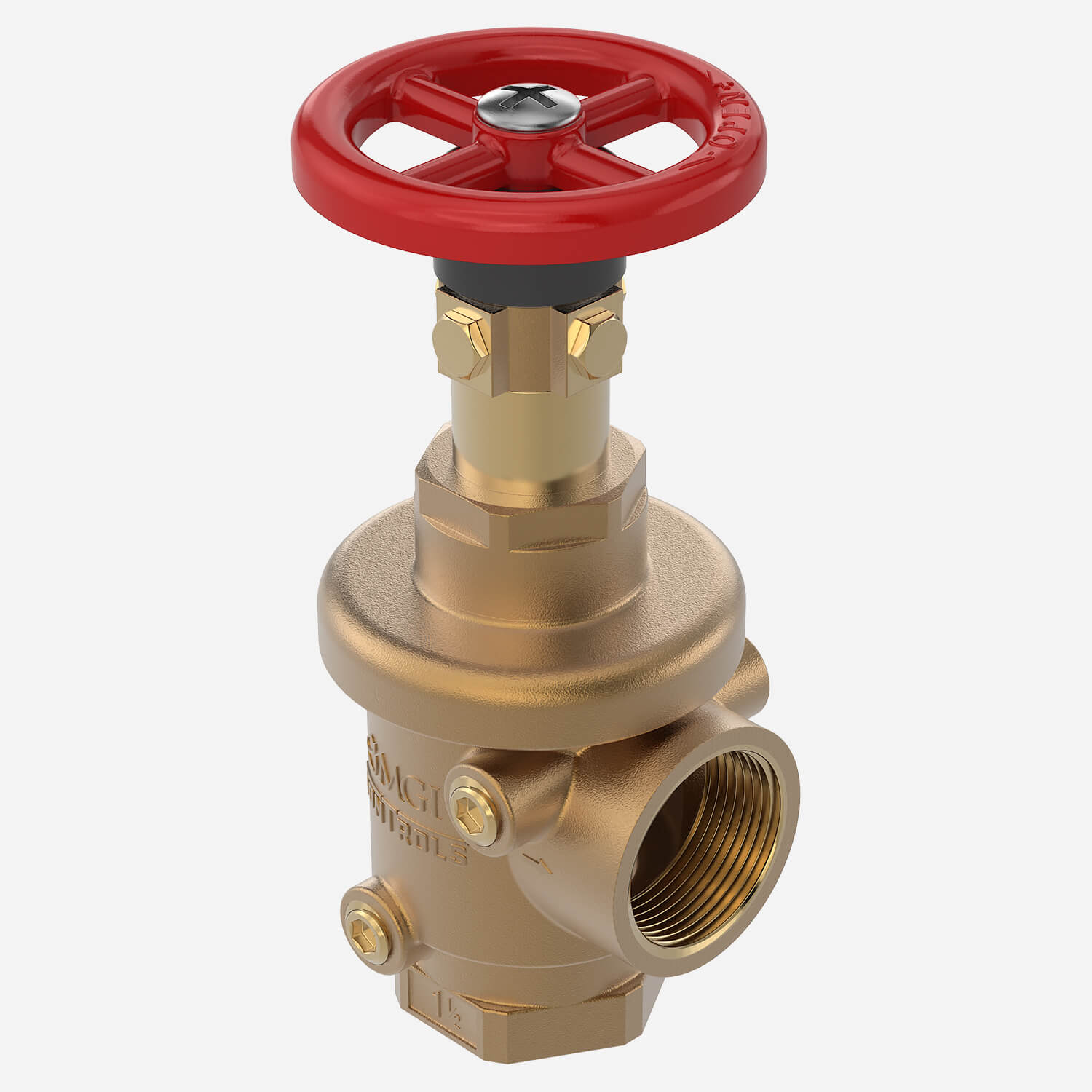

MODEL 4042-FS2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. Female 1-1/2" N.P.T. inlet and outlet.
FEATURES
- Application: Hose Valve
- Reduces pressure under flow and no-flow conditions.
- Static pressure rated up to 300 PSI (20.7 BAR).
- Flow rated up to 200 gallons (757 liters) per minute
- Low torque manual open/close requires less than 15 ft/lbs.
- 4 Pressure gauge taps on both inlet and outlet sides.
- UL listed, and complies with NFPA-14.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 1-1/2" Factory-Set Pressure Reducing Hose Valve [4042-FS2 | Female NPT Inlet/Outlet; 4045-FS2 | Female NPT Inlet/Male Outlet] | 0 | 6 MB | ||
| | Advertisement - Pressure Solutions Covered from All Angles [includes 4042-FS2, 4053-FS2, 4005-FA2, 4023-FA2] | 0 | 311 KB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -C | Rough Chrome |
| Inlet | 1.5" Female NPT |
| Outlet | 1.5" Female NPT |
| Handle Type | Wheel Handle |
| UL | UL Listed |
| Body Type | Angle |
| Adjustable | No |
| Brand | MGI ConTrols™ |
