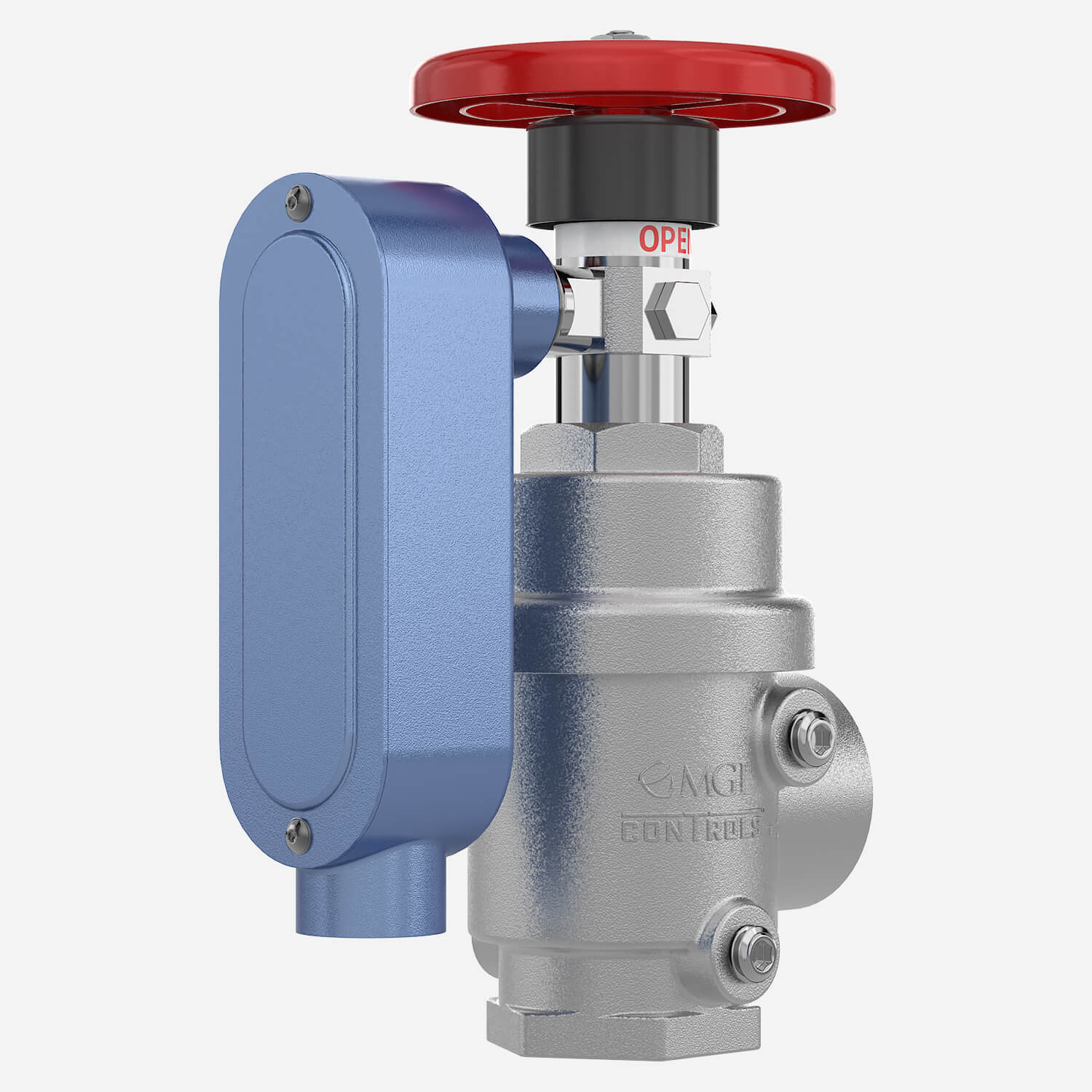

Model 4043-FS2
Factory Set Pressure Reducing Reg-U-Matic® Control Valve - Angle Body, 1-1/2" NPT Female Inlet and Outlet

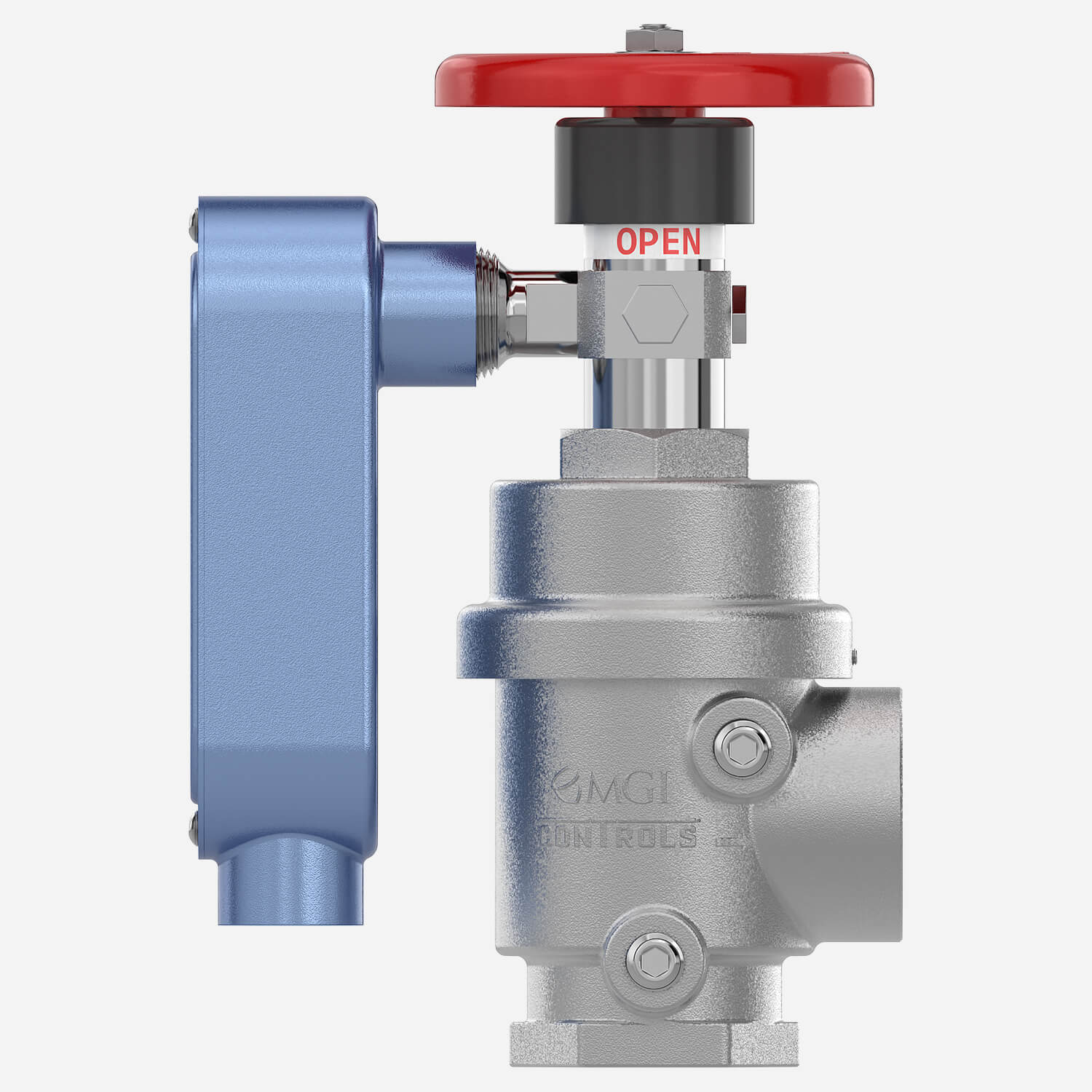

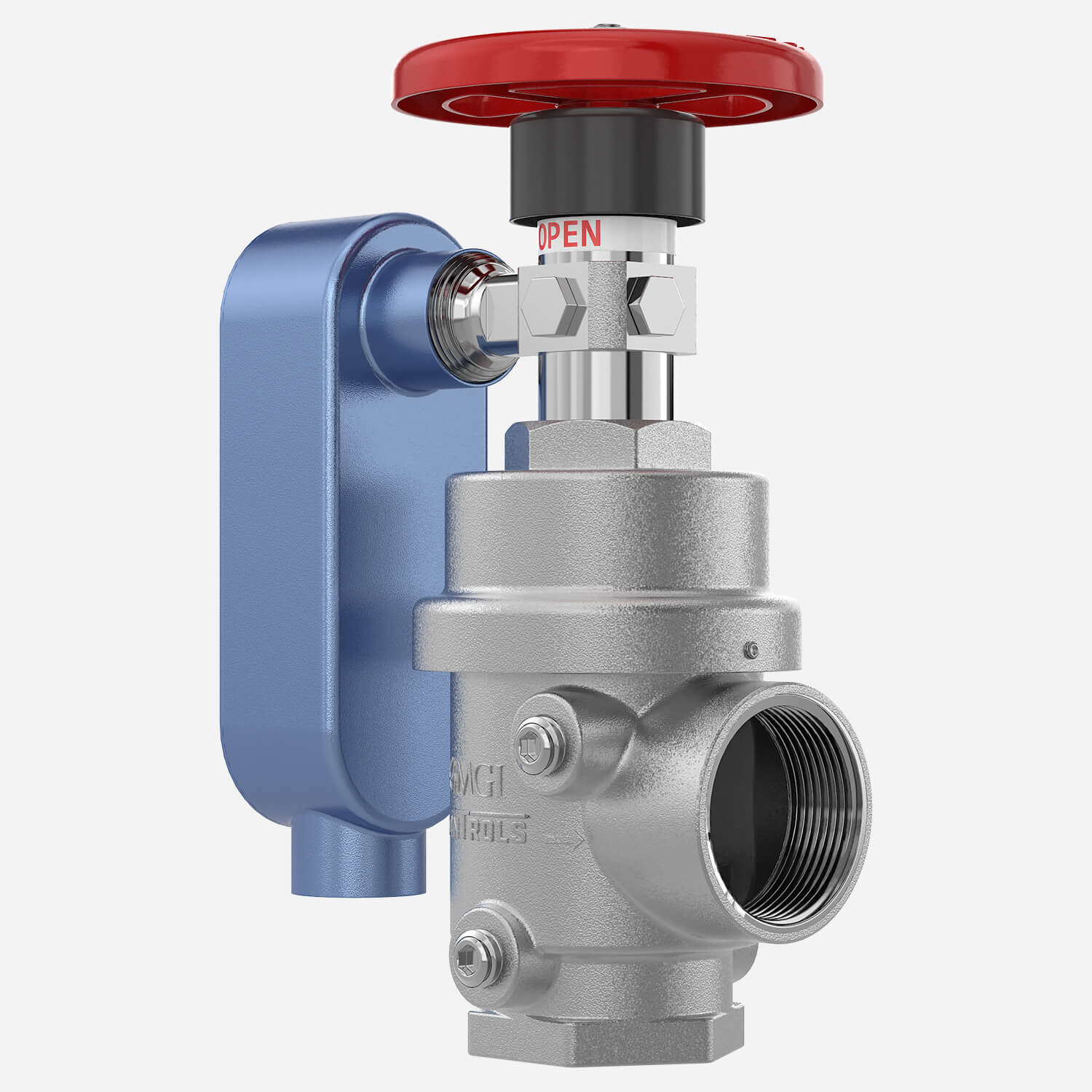

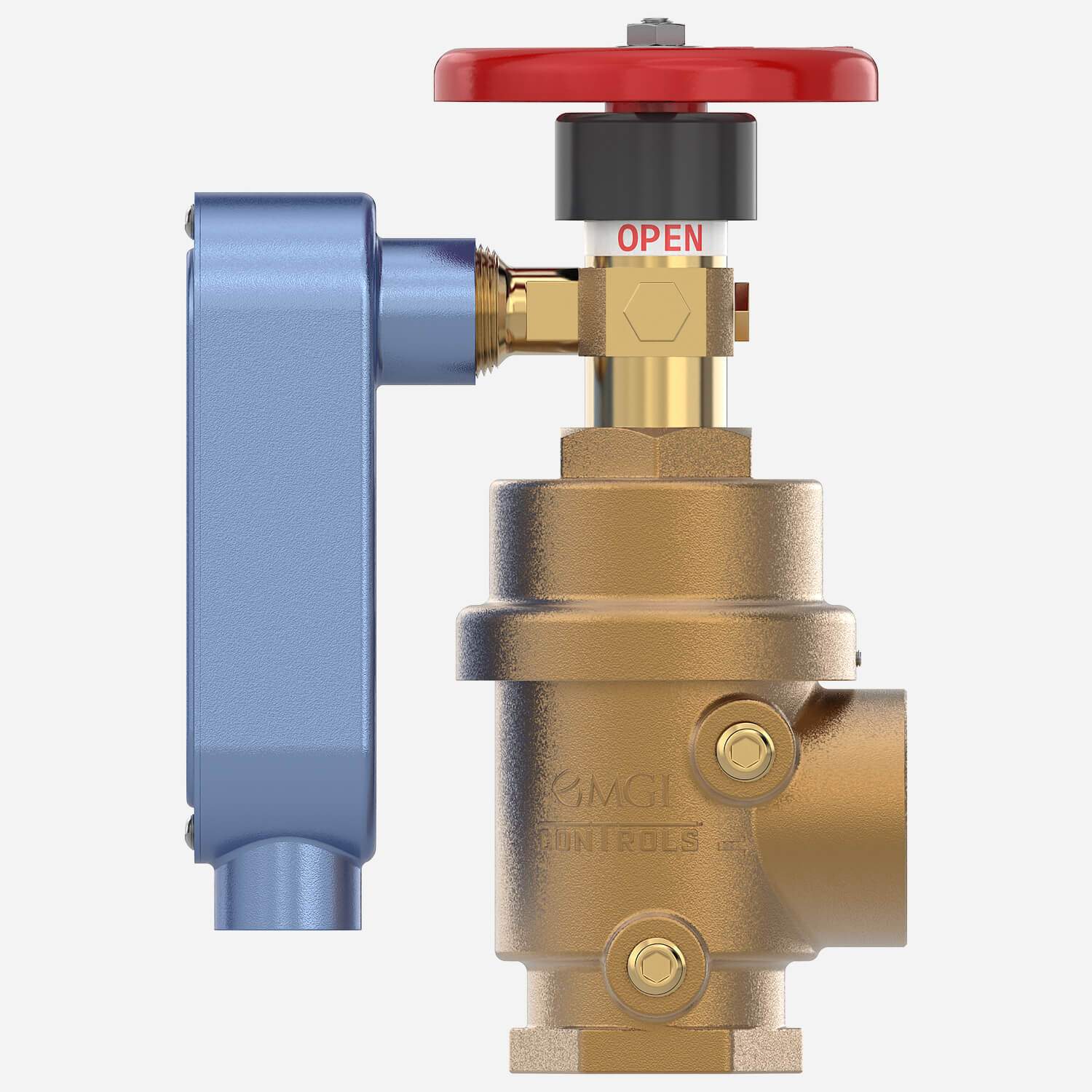

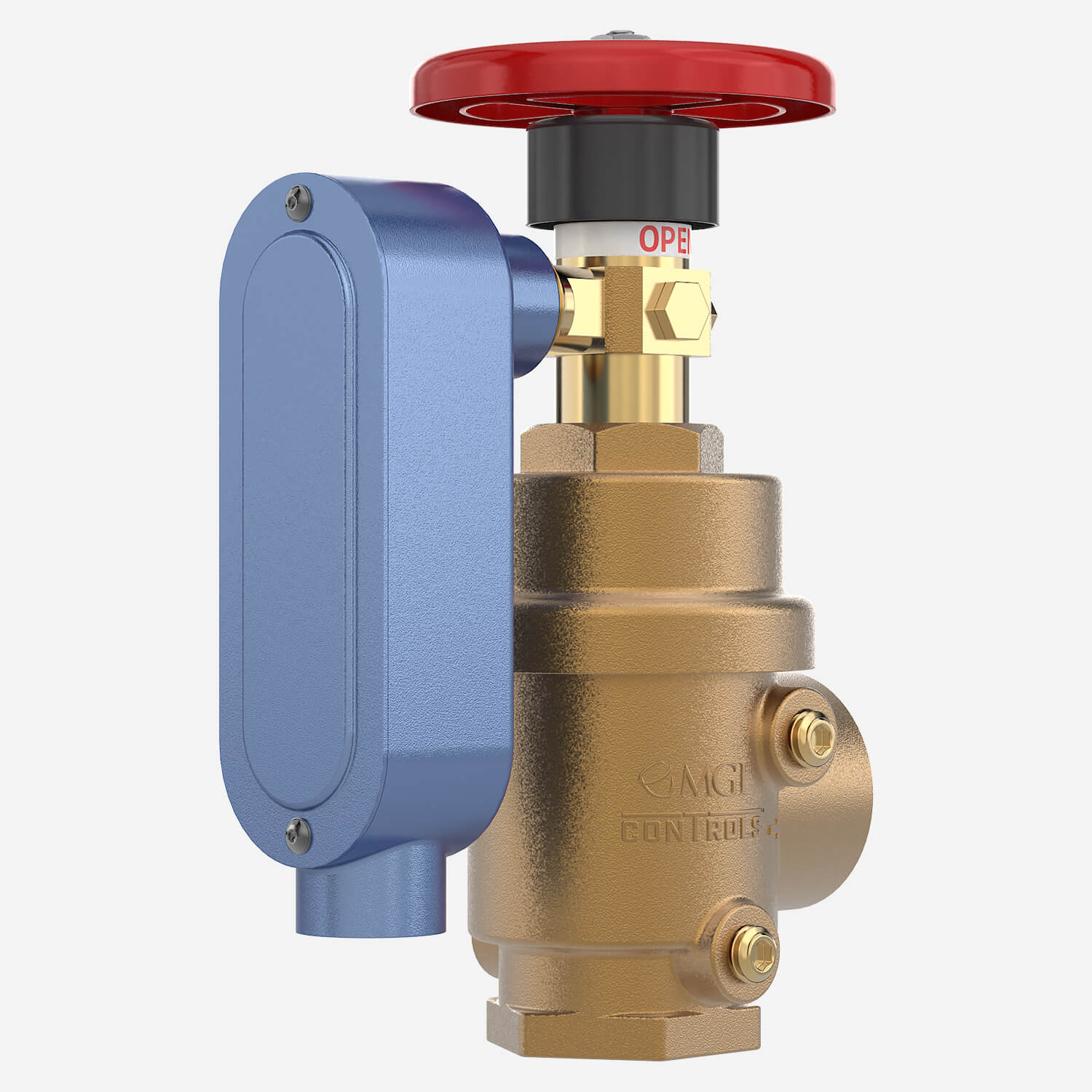

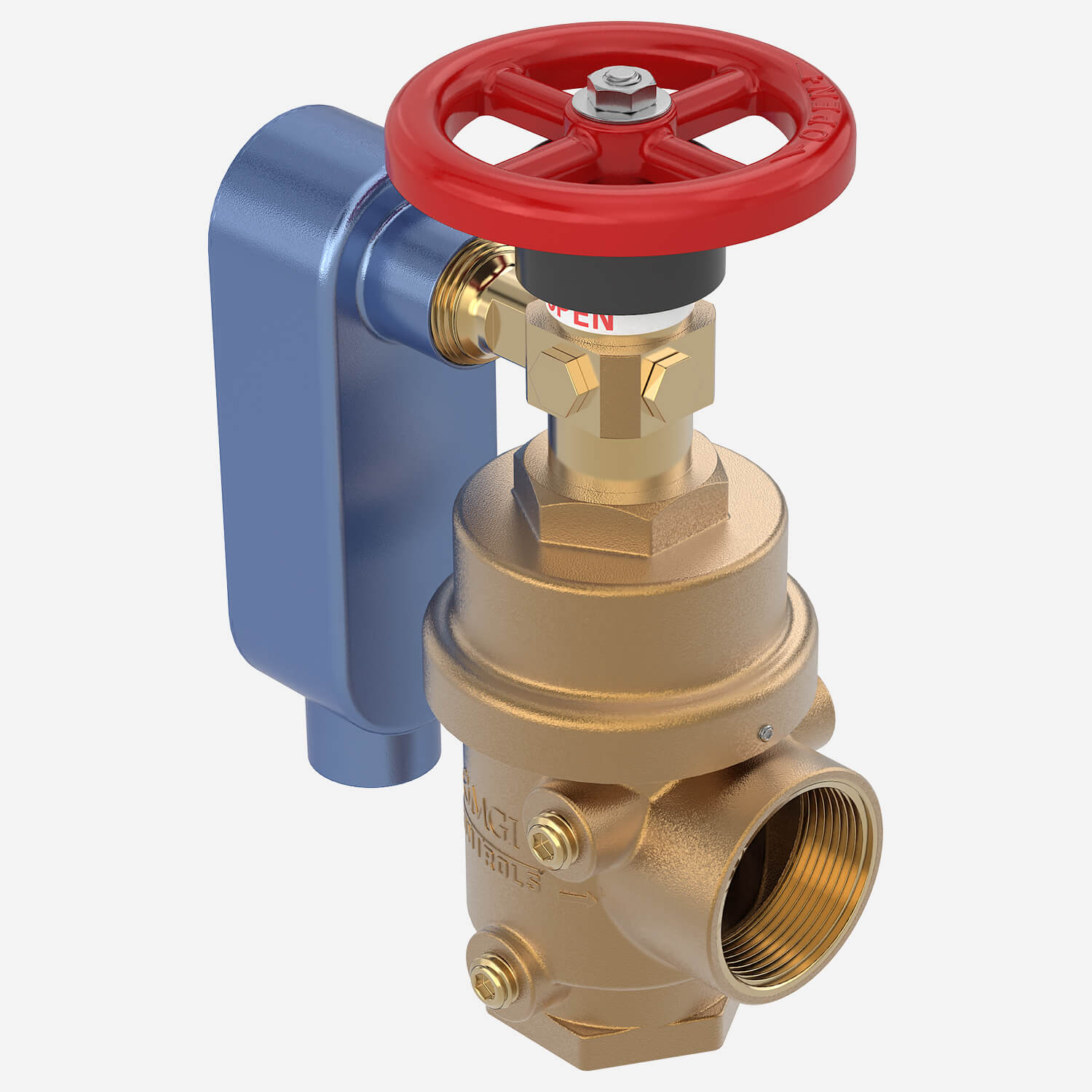

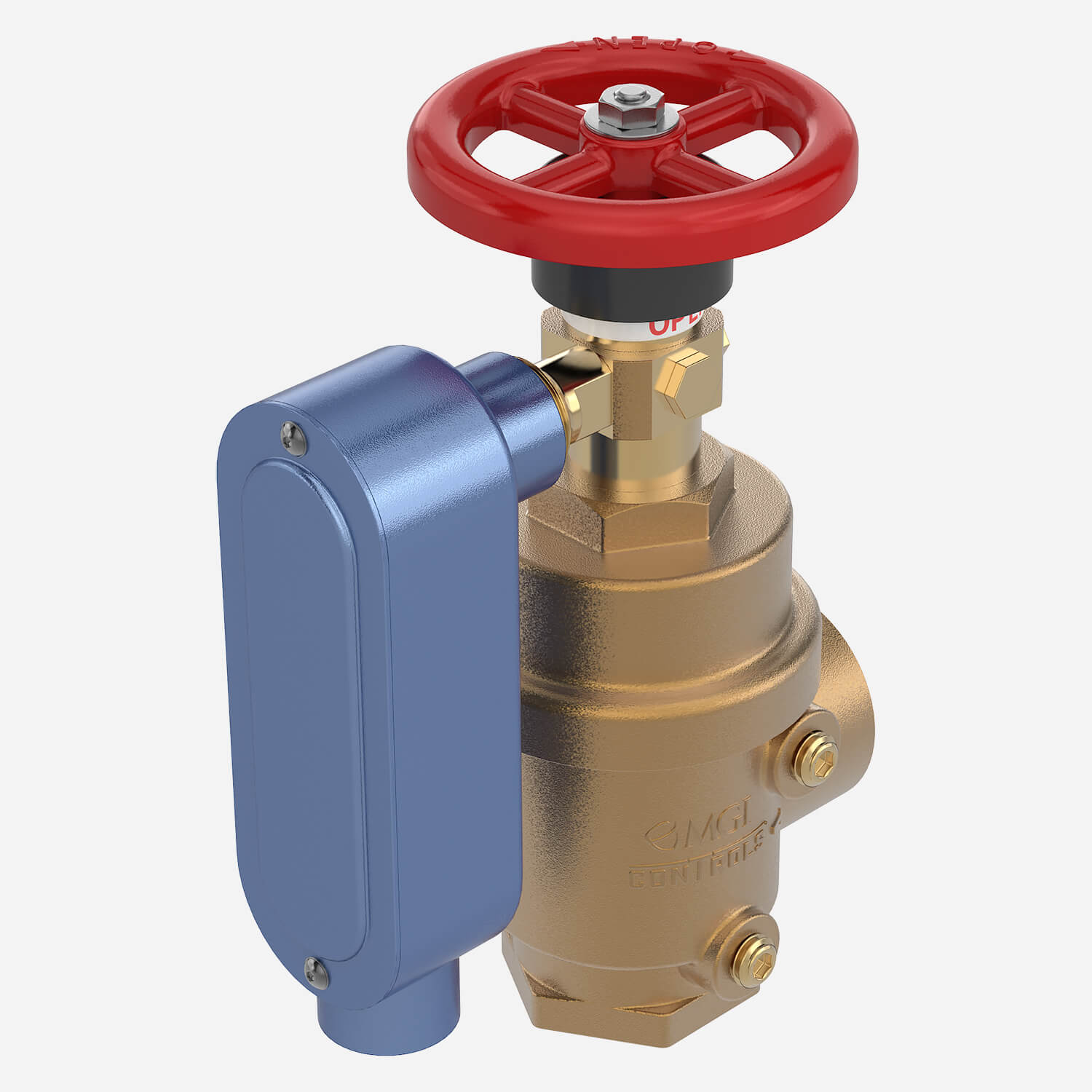

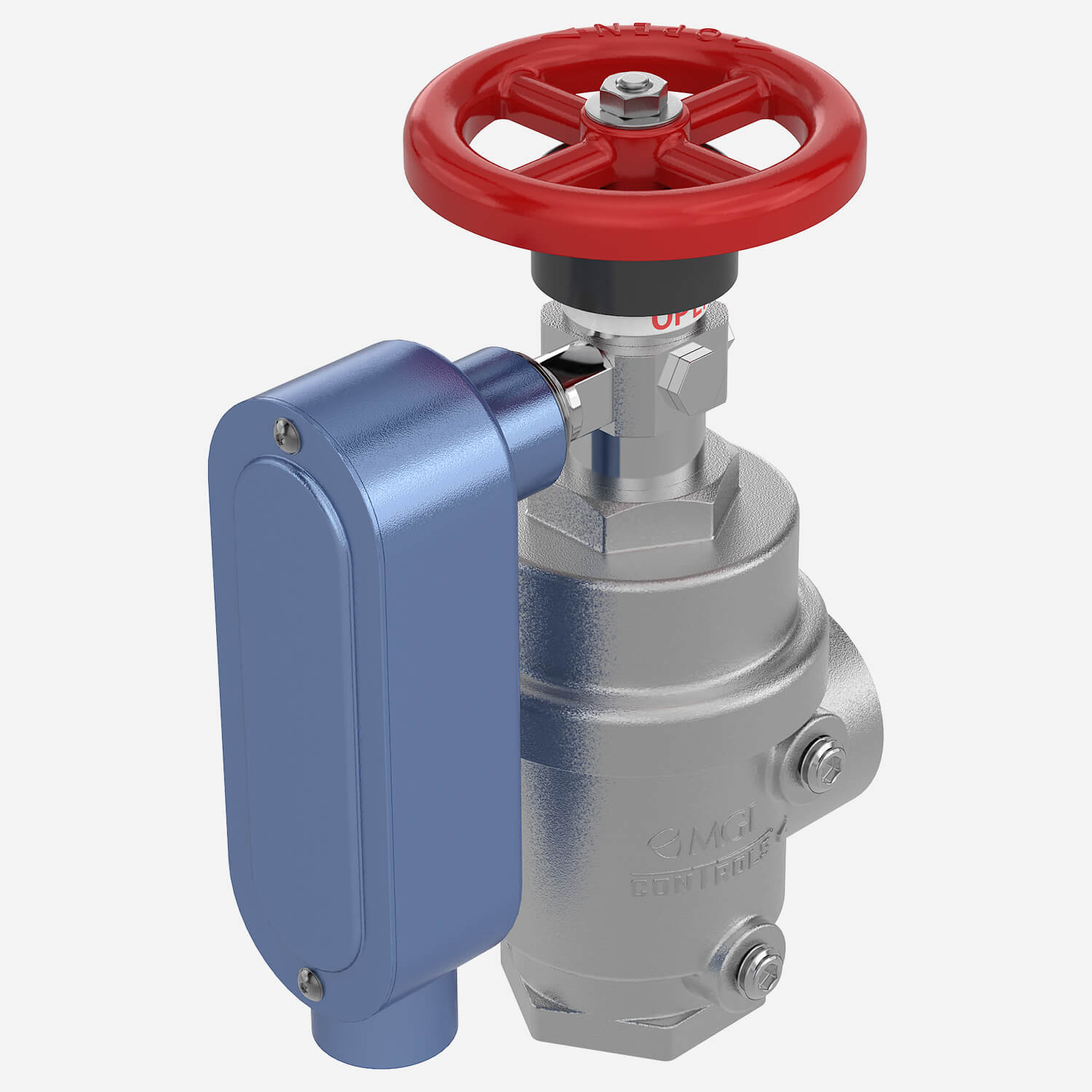

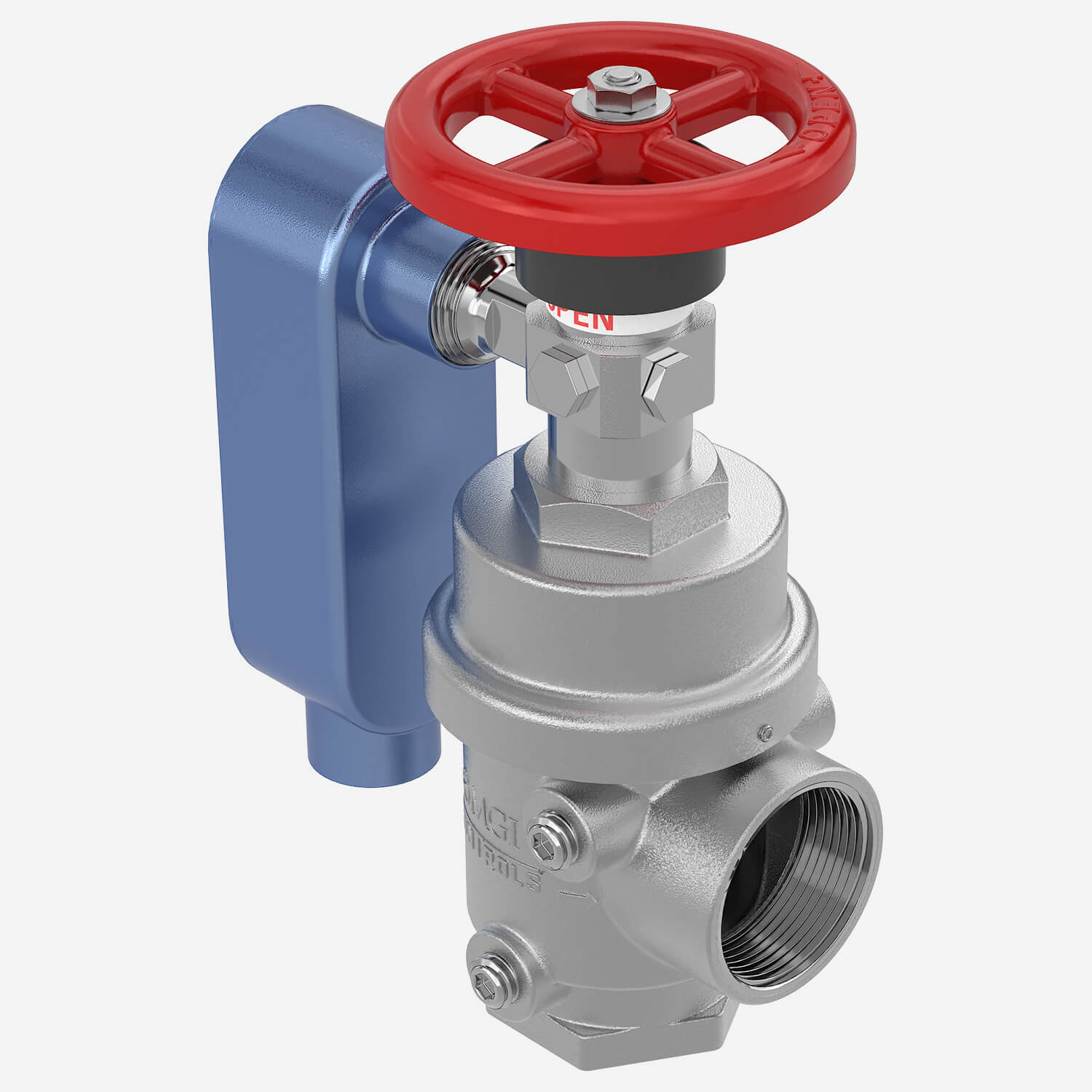

MODEL 4043-FS2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. Female 1-1/2" N.P.T. inlet and outlet.
MODEL 4043-FS2-GV Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. The valve features a 1-1/2" grooved inlet and outlet.
FEATURES
- Application: Control Valve
- Reduces pressure under flow and no-flow conditions.
- Static pressure rated up to 300 PSI (20.7 BAR).
- Flow rated up to 200 GPM (757 LPM).
- Low torque manual open/close requires less than 15 ft/lbs.
- Built-In Supervisory Switch
- 4 Pressure gauge taps on both inlet and outlet sides
- Built-in automatic check valve.
- UL listed, complies with NFPA-13.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Factory Set Pressure Reducing Control Valve - Angle Body [4043-FS2 | Standard (1-1/2" NPT Female Inlet and Outlet) ; 4043-FS2-GRV | 1-1/2" Grooved Inlet] | 0 | 3 MB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -C | Rough Chrome |
| Inlet | 1.5" Female NPT, 1.5" Grooved |
| Outlet | 1.5" Female NPT, 1.5" Grooved |
| Handle Type | Wheel Handle |
| Body Type | Angle |
| UL | UL Listed |
| Adjustable | No |
| Brand | MGI ConTrols™ |
