Model 4045-FS2
Factory Set Pressure Reducing Reg-U-Matic® Hose Valve - Angle Body, 1-1/2" NPT Female Inlet and Male Hose Thread Outlet

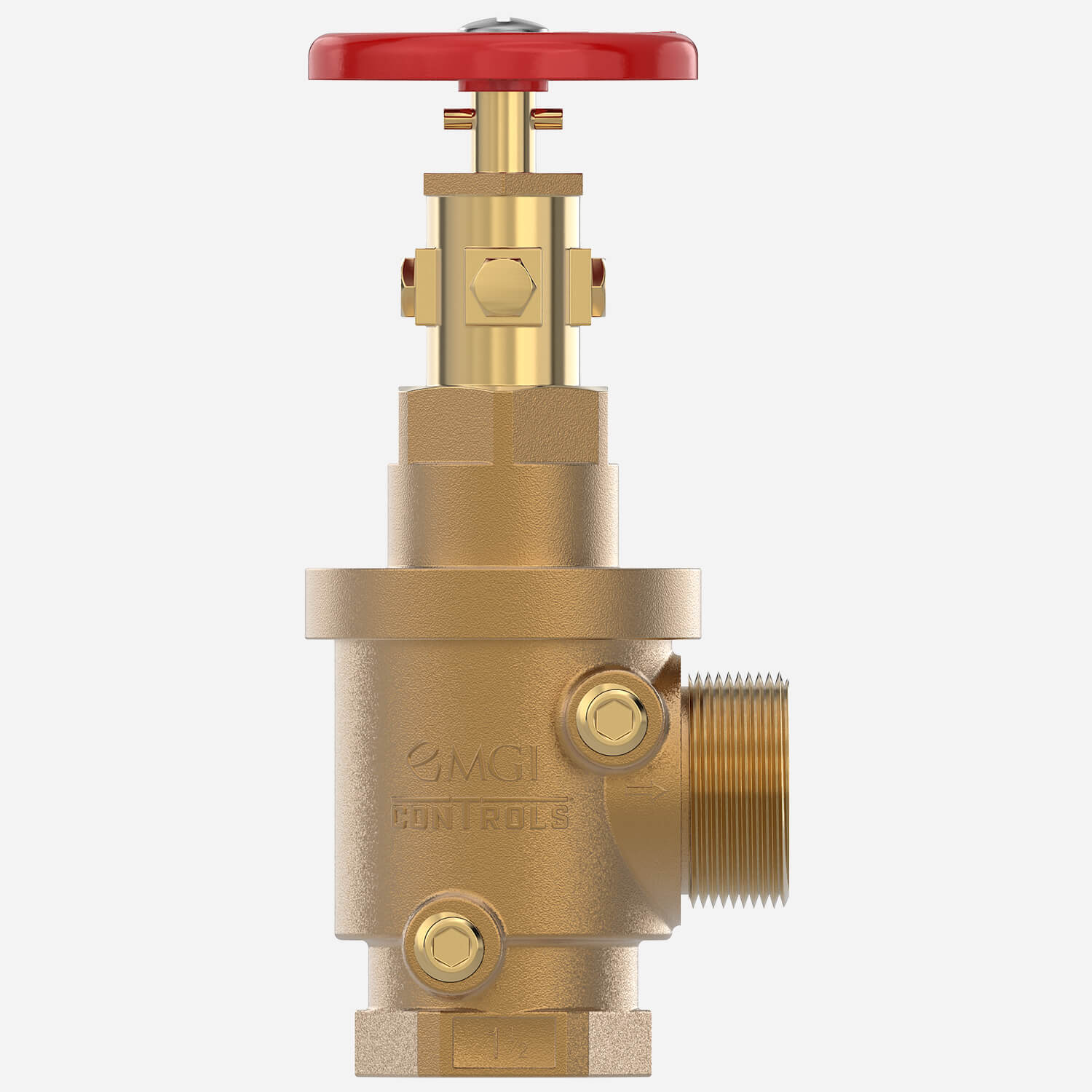

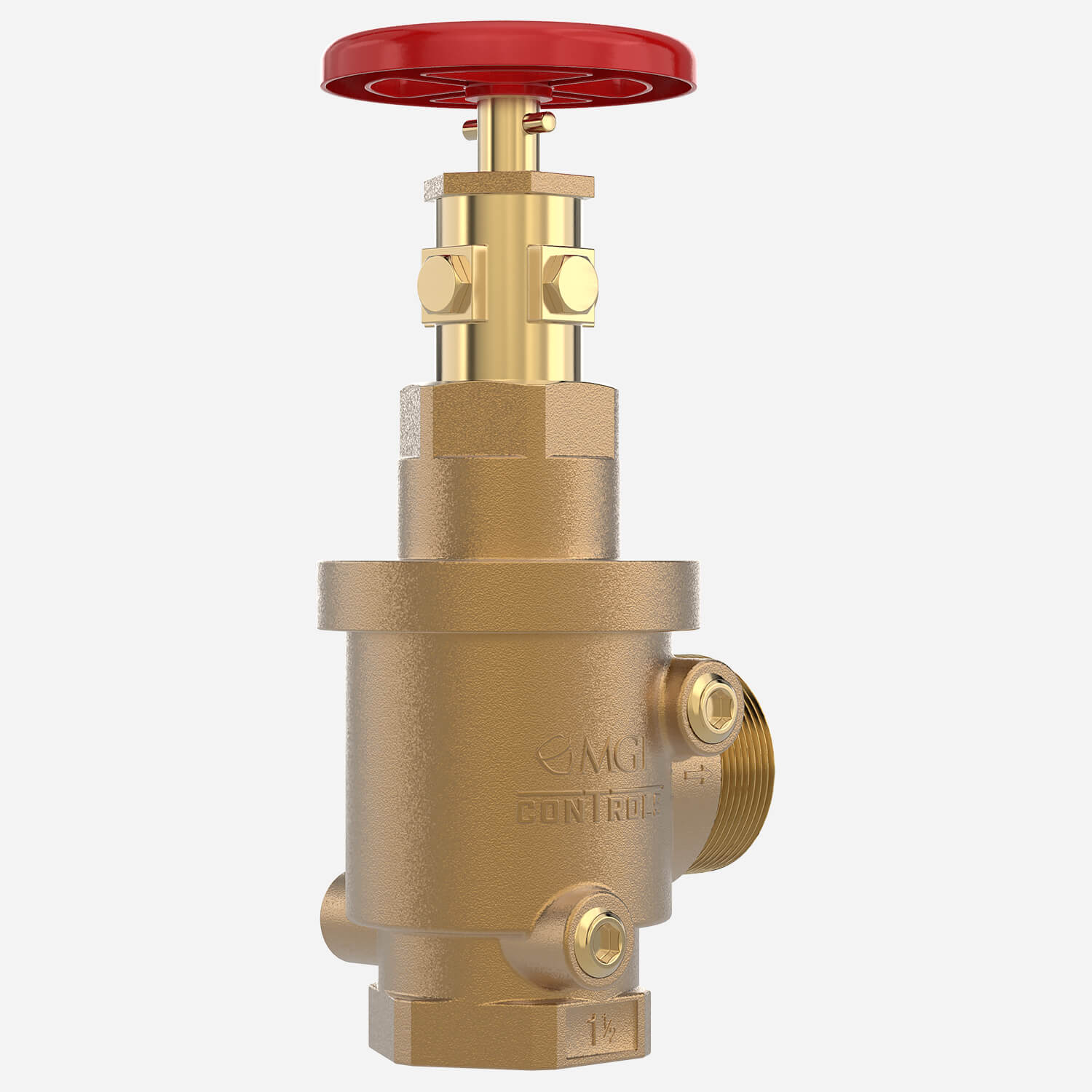

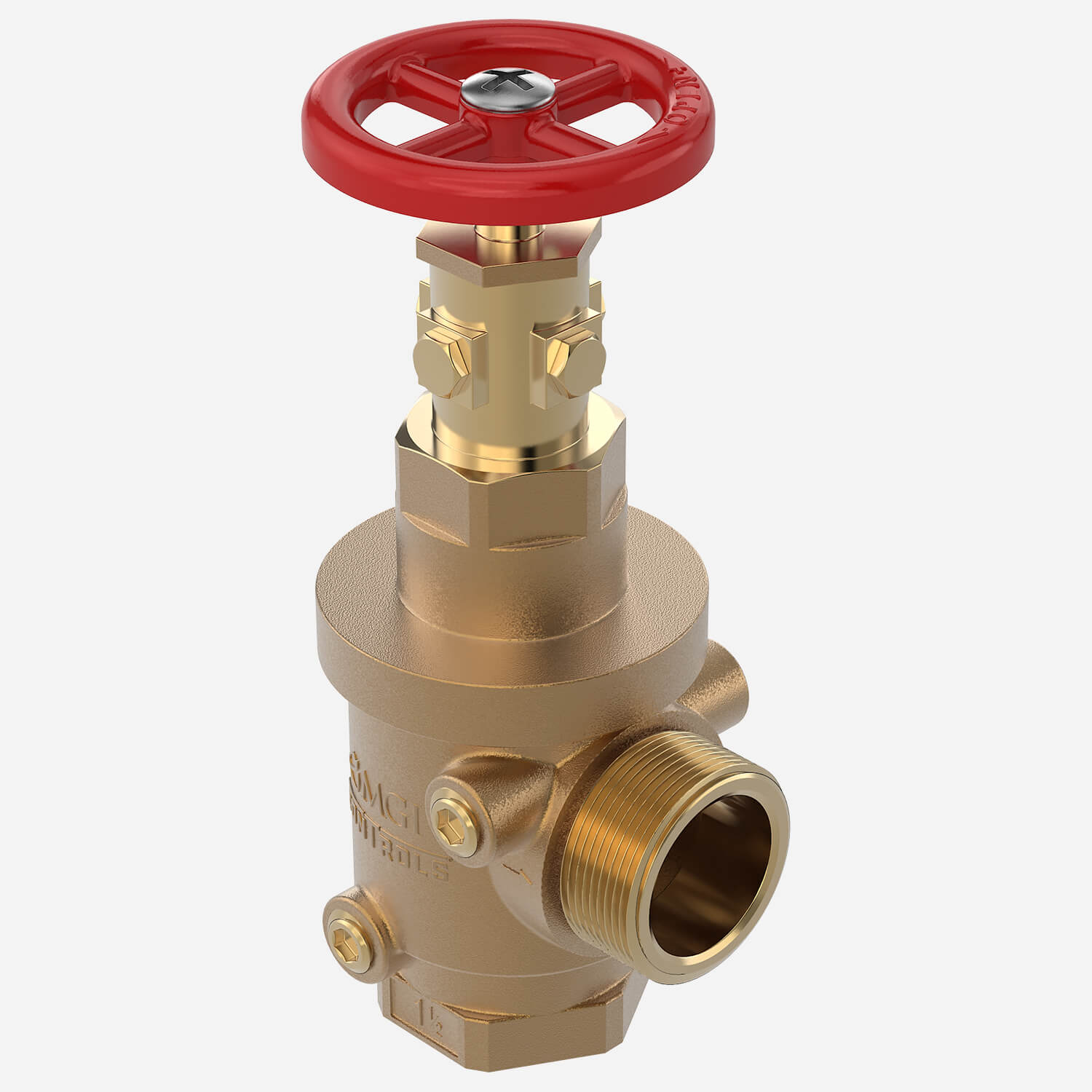

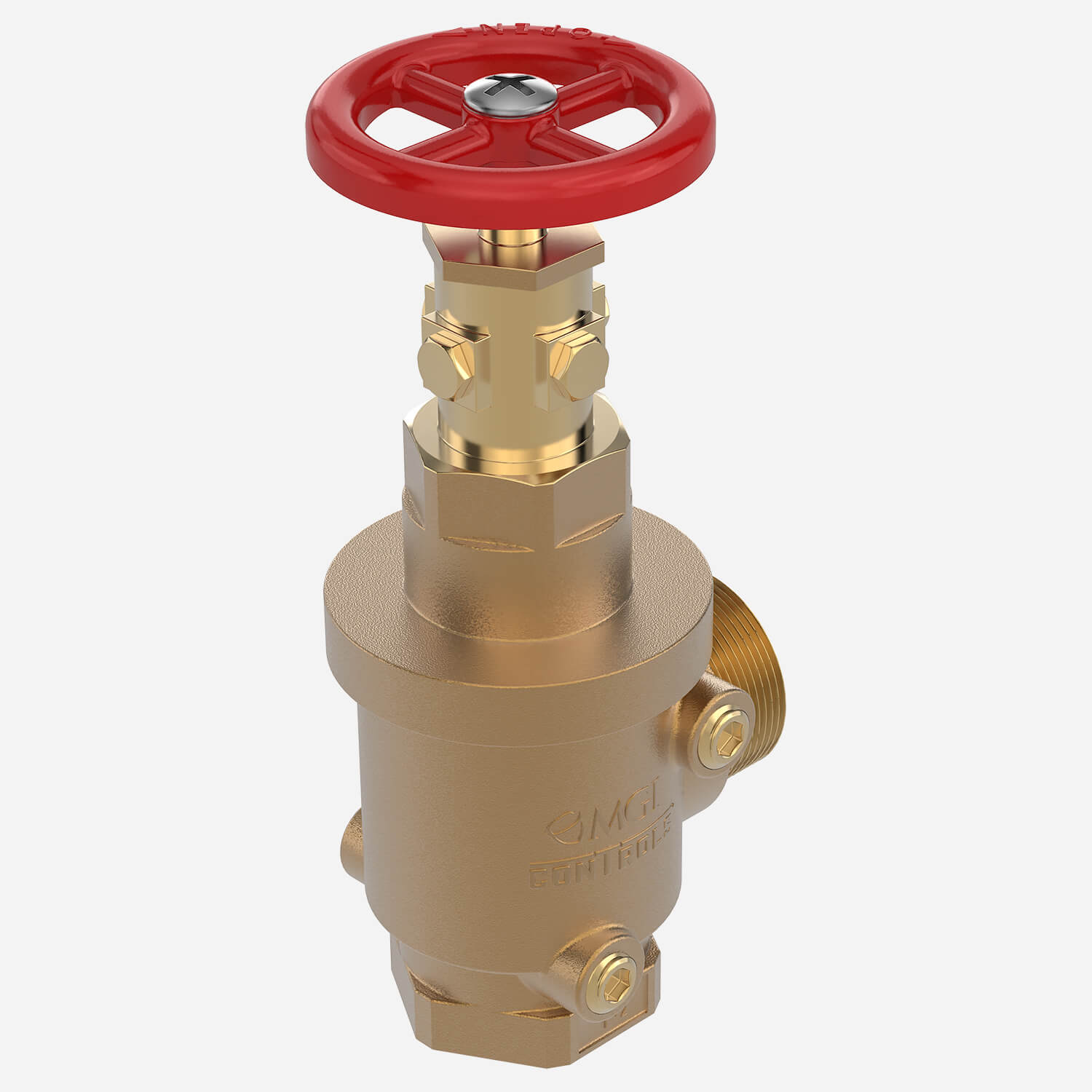

MODEL 4045-FS2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. Female 1-1/2" N.P.T. inlet and male hose thread outlet.
FEATURES
- Application: Hose Valve
- Reduces pressure under flow and no-flow conditions
- Static pressure rated up to 300 PSI (20.7 BAR)
- Flow rated up to 200 GPM (757 LPM)
- Low torque manual open/close requires less than 15 ft/lbs
- Four Pressure gauge taps on both the inlet and outlet sides
- UL listed, complies with NFPA-14.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 1-1/2" Factory-Set Pressure Reducing Hose Valve [4042-FS2 | Female NPT Inlet/Outlet; 4045-FS2 | Female NPT Inlet/Male Outlet] | 0 | 6 MB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |

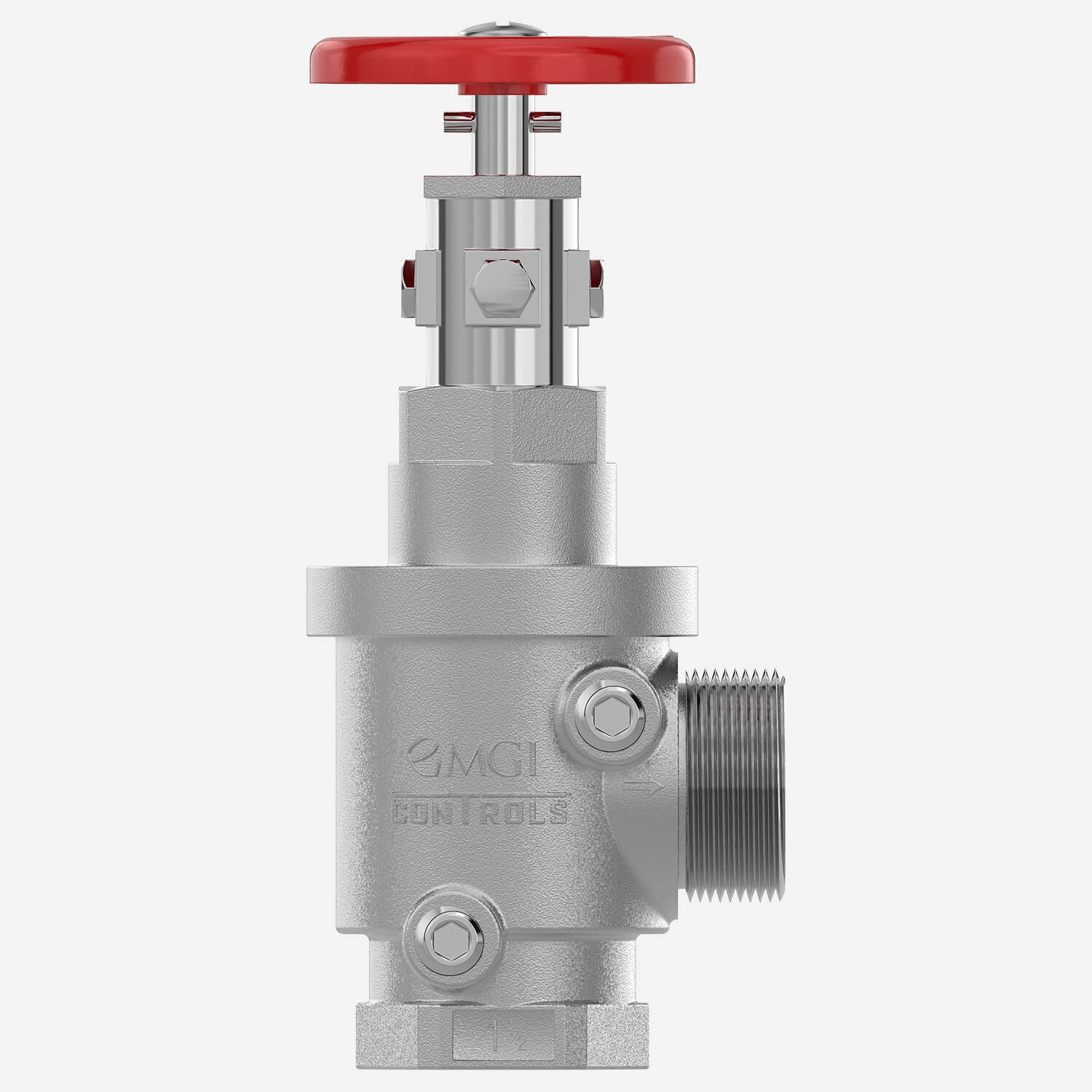

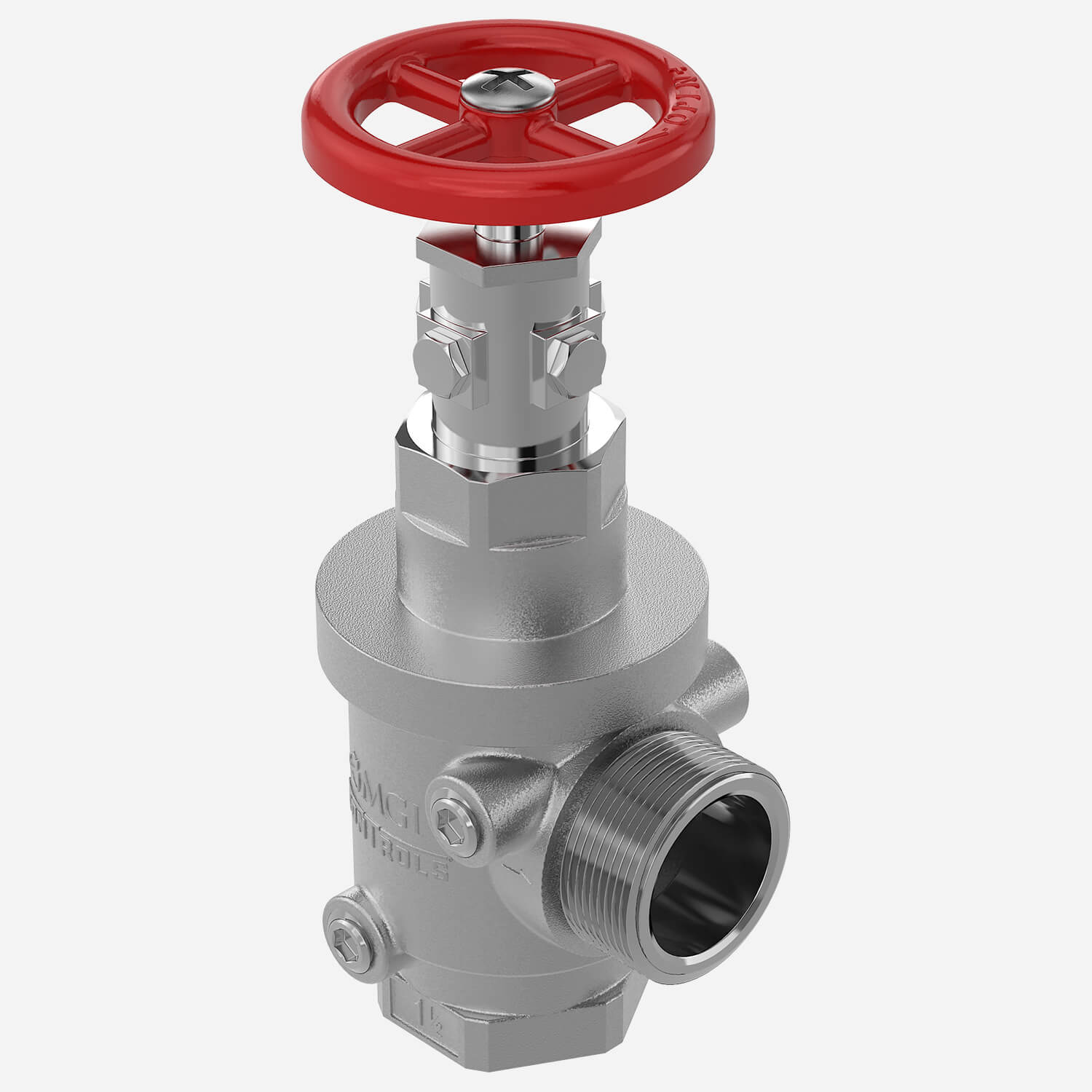

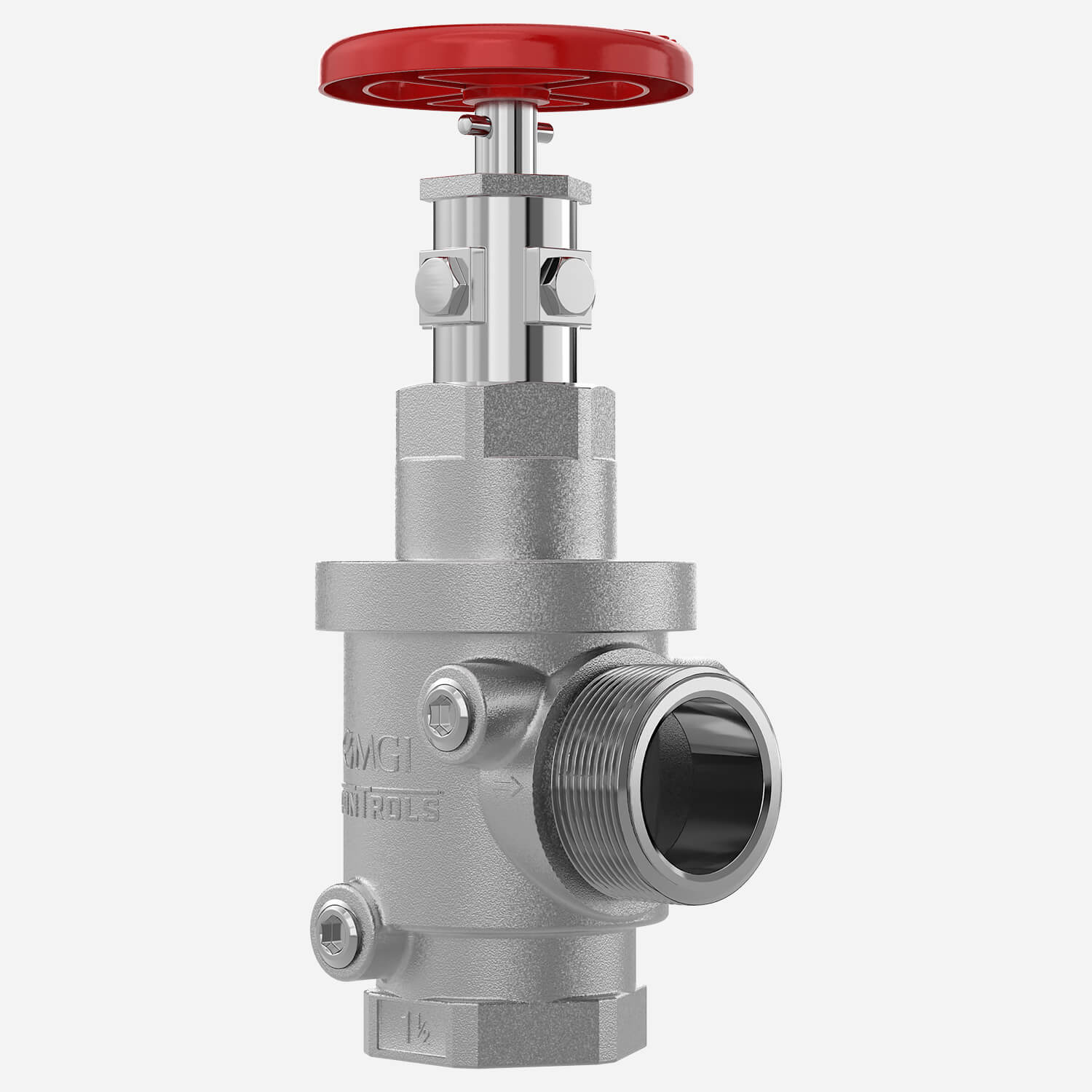

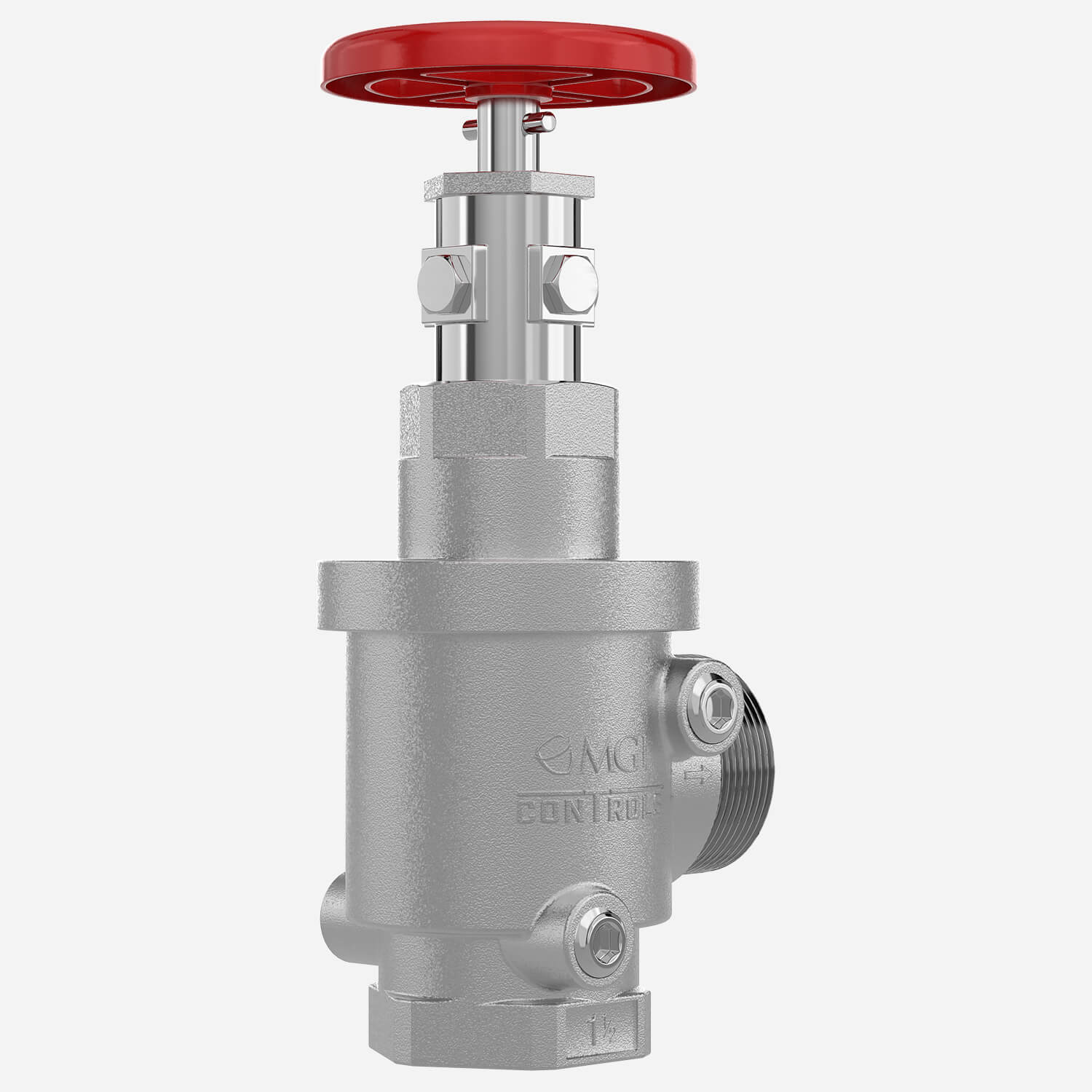

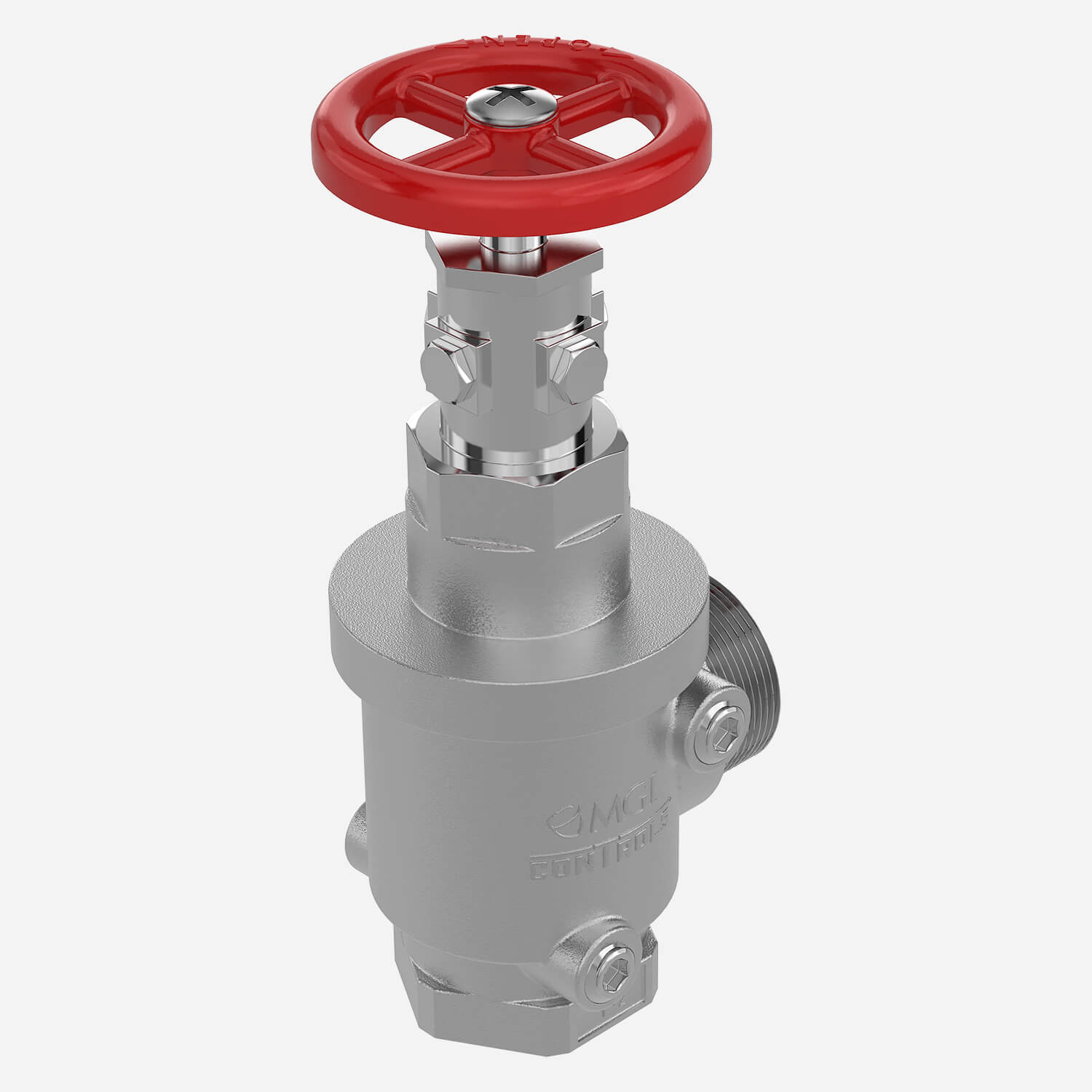

| Optional Finish | -C | Rough Chrome Finish |
| Inlet | 1.5" Female NPT |
| Outlet | 1.5" Male Hose Thread |
| Handle Type | Wheel Handle |
| UL | UL Listed |
| Body Type | Angle |
| Adjustable | No |
| Brand | MGI ConTrols™ |
