Model 4050-FS2
Factory Set Pressure Reducing Reg-U-Matic® Hose Valve - Angled Body, 2-1/2" NPT Inlet and Outlet

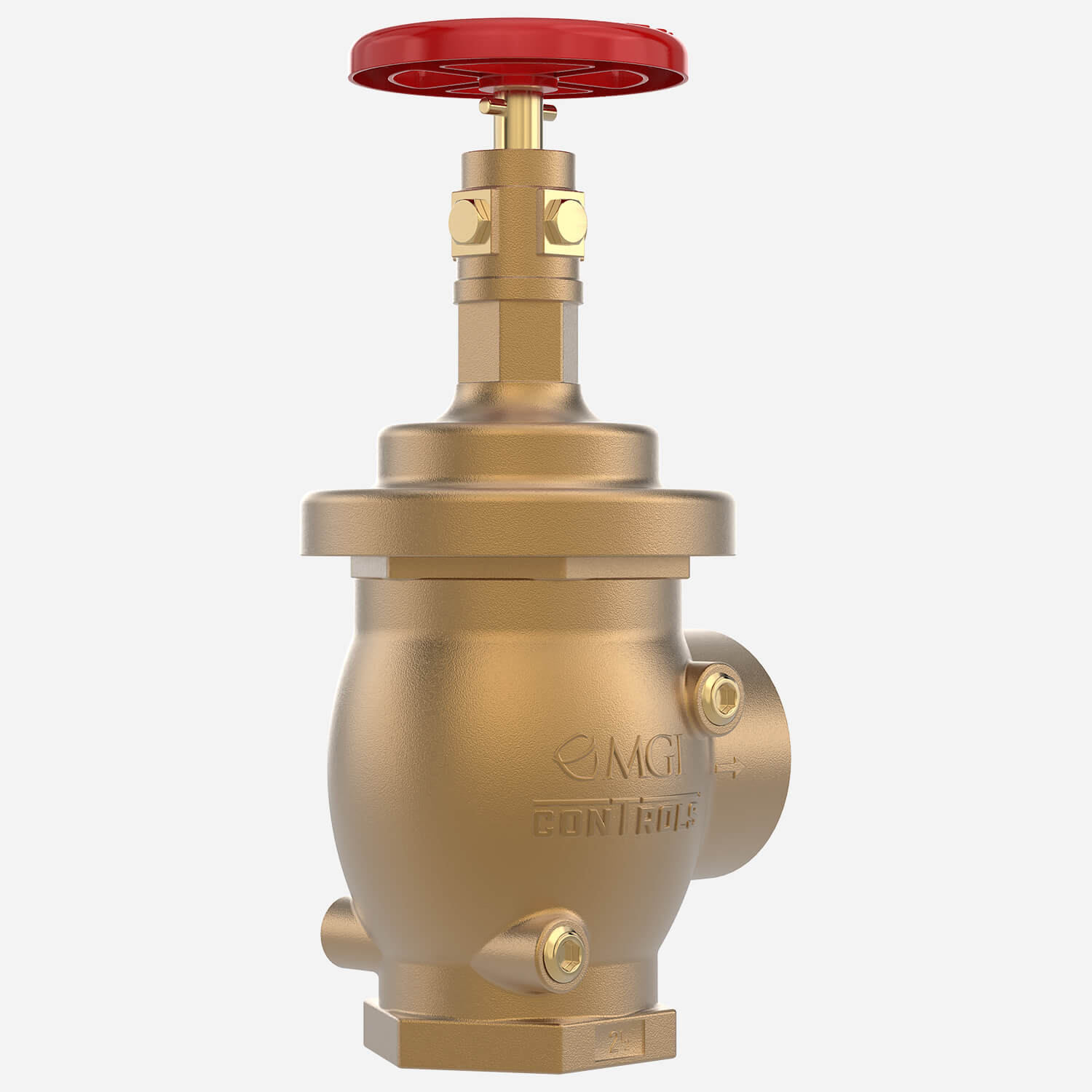

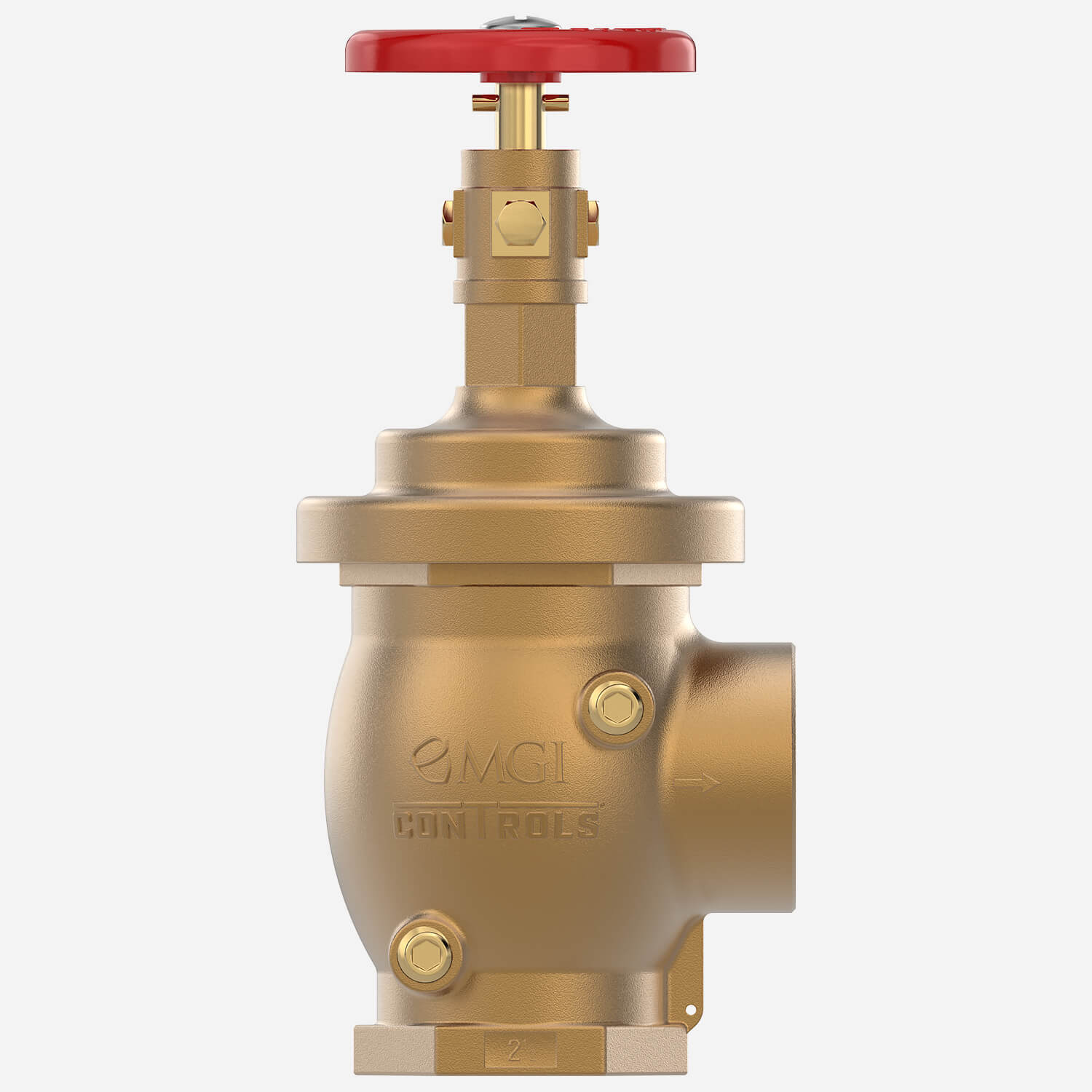

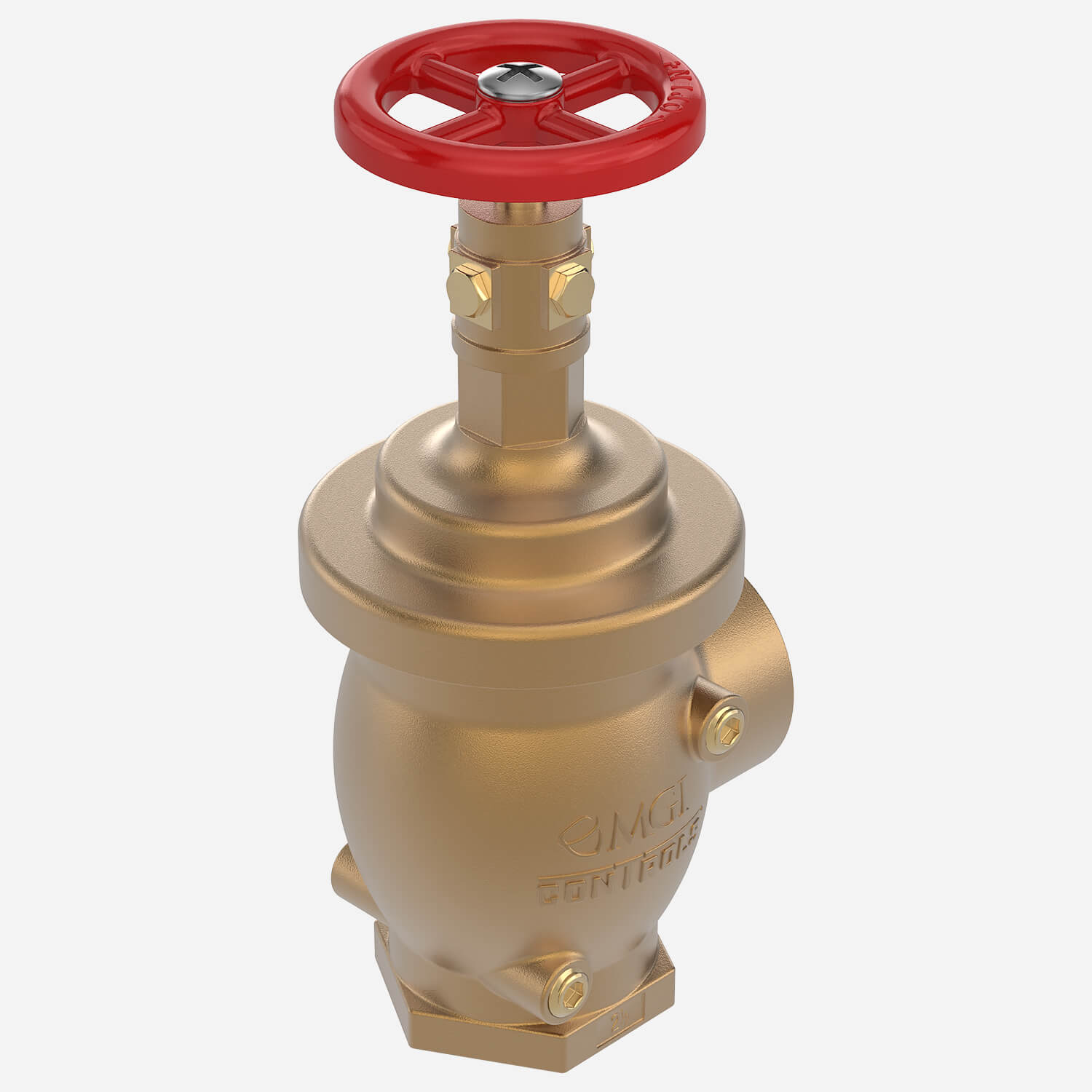

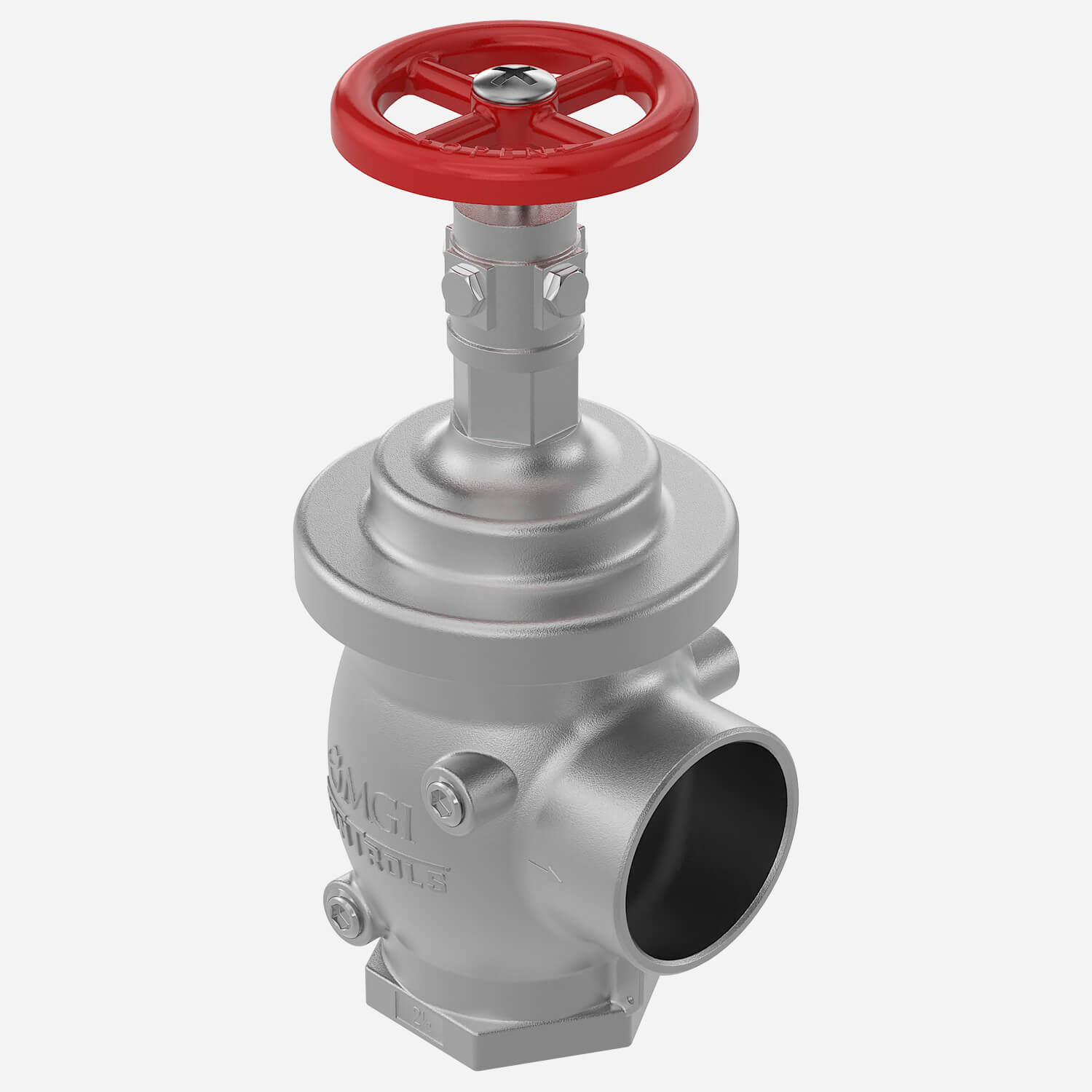

MODEL 4050-FS2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. 2-1/2" Female N.P.T. inlet and outlet.

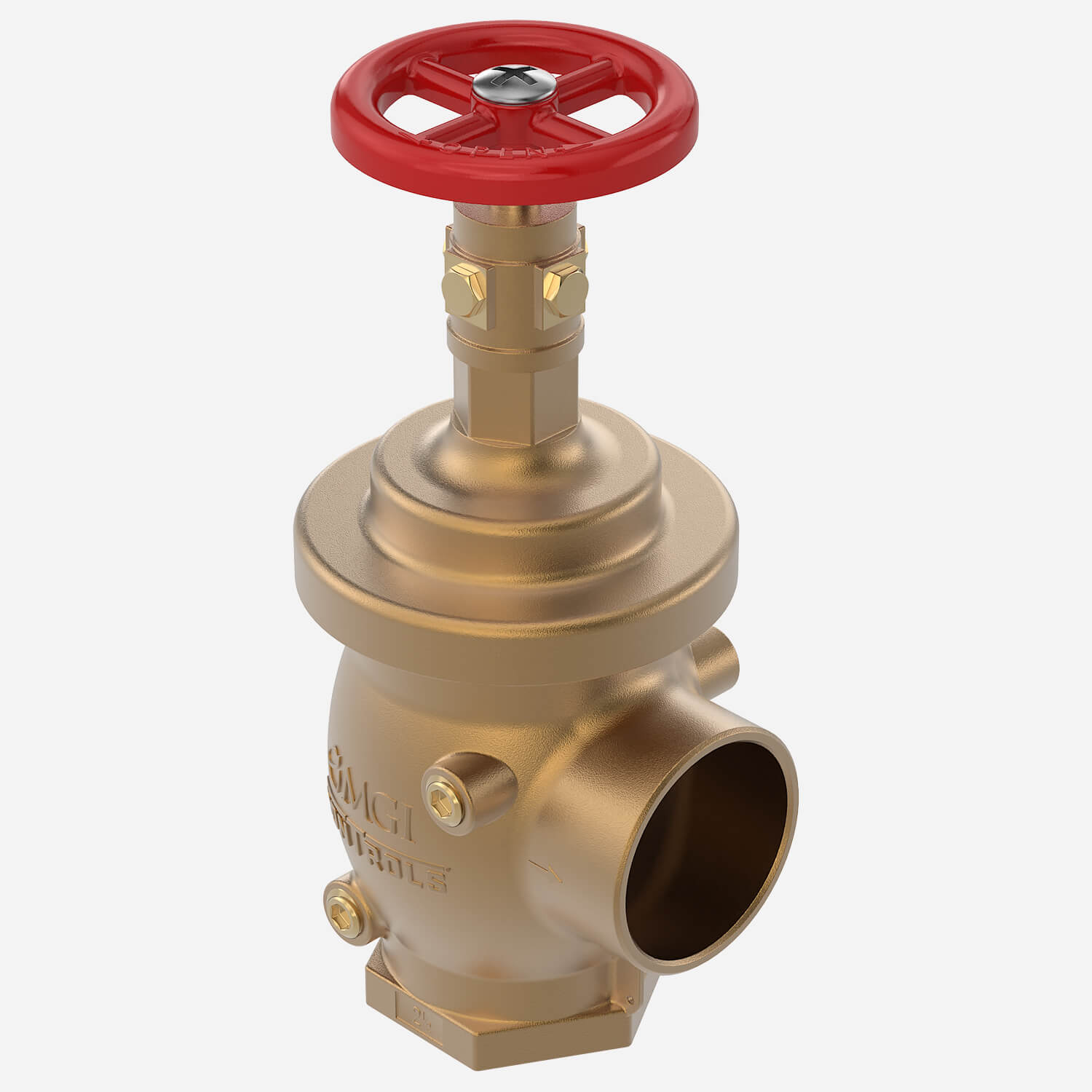

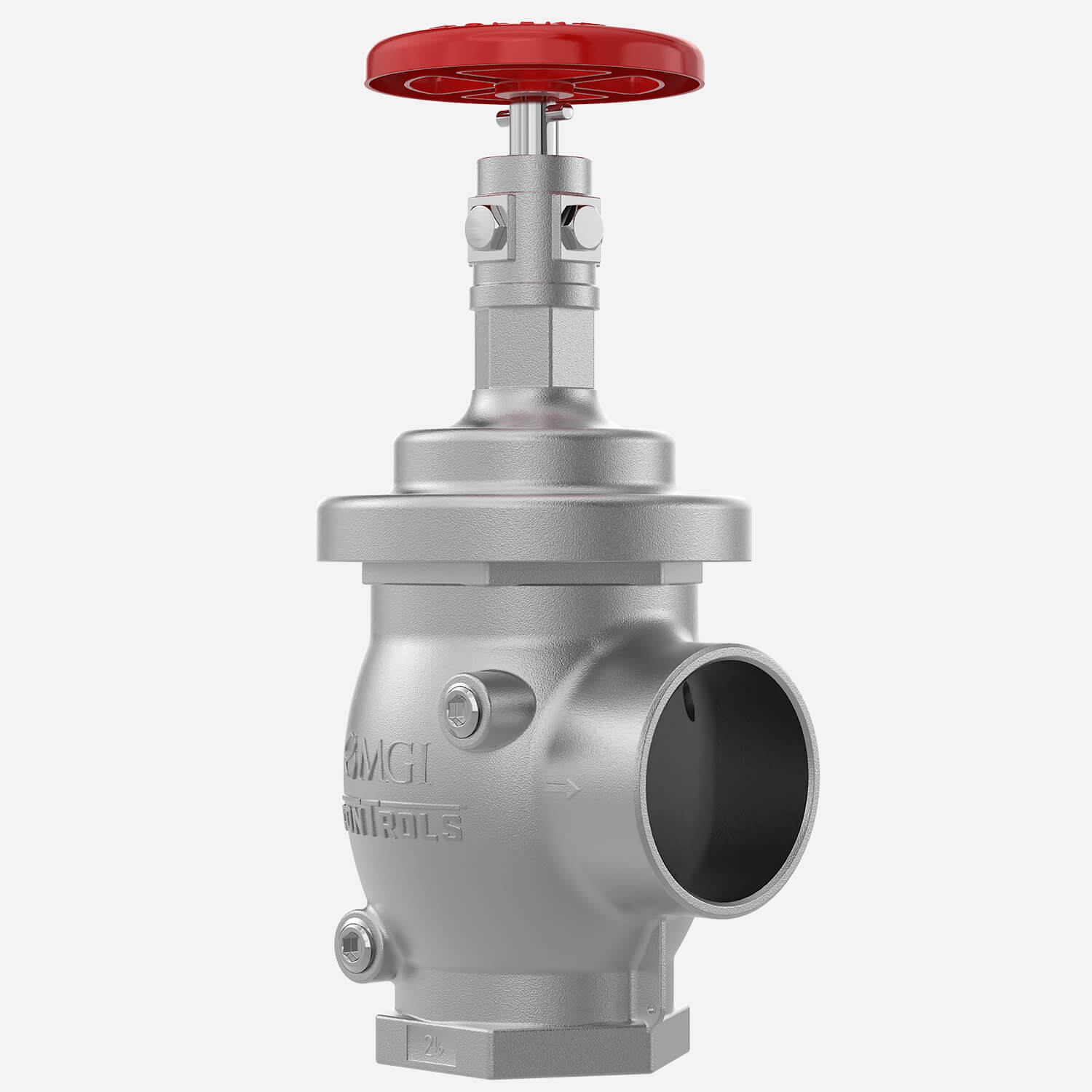

MODEL 4050-FS2-GV Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. The valve features a 2-1/2" grooved inlet and outlet.
FEATURES
- Application: Hose Valve
- Reduces pressure under flow and no-flow conditions.
- Static pressure rated up to 400 PSI (20.7 BAR).
- Flow rated up to 500 GPM (1892.7 LPM).
- Low torque manual open/close requires less than 15 ft/lbs.
- UL listed, complies with NFPA-14.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Factory Set Pressure Reducing Hose Valve Angled Body, 2-1/2" Inlet [2-1/2" Outlet 4050-FS2, 4050-FS2-GV; Male Thread Outlet 4053-FS2, 4053-FS2-SF, 4053-FS2-GV, 4053-FS2-GV-SF] | 0 | 2 MB |
Specifications
| Material | Brass Valve |

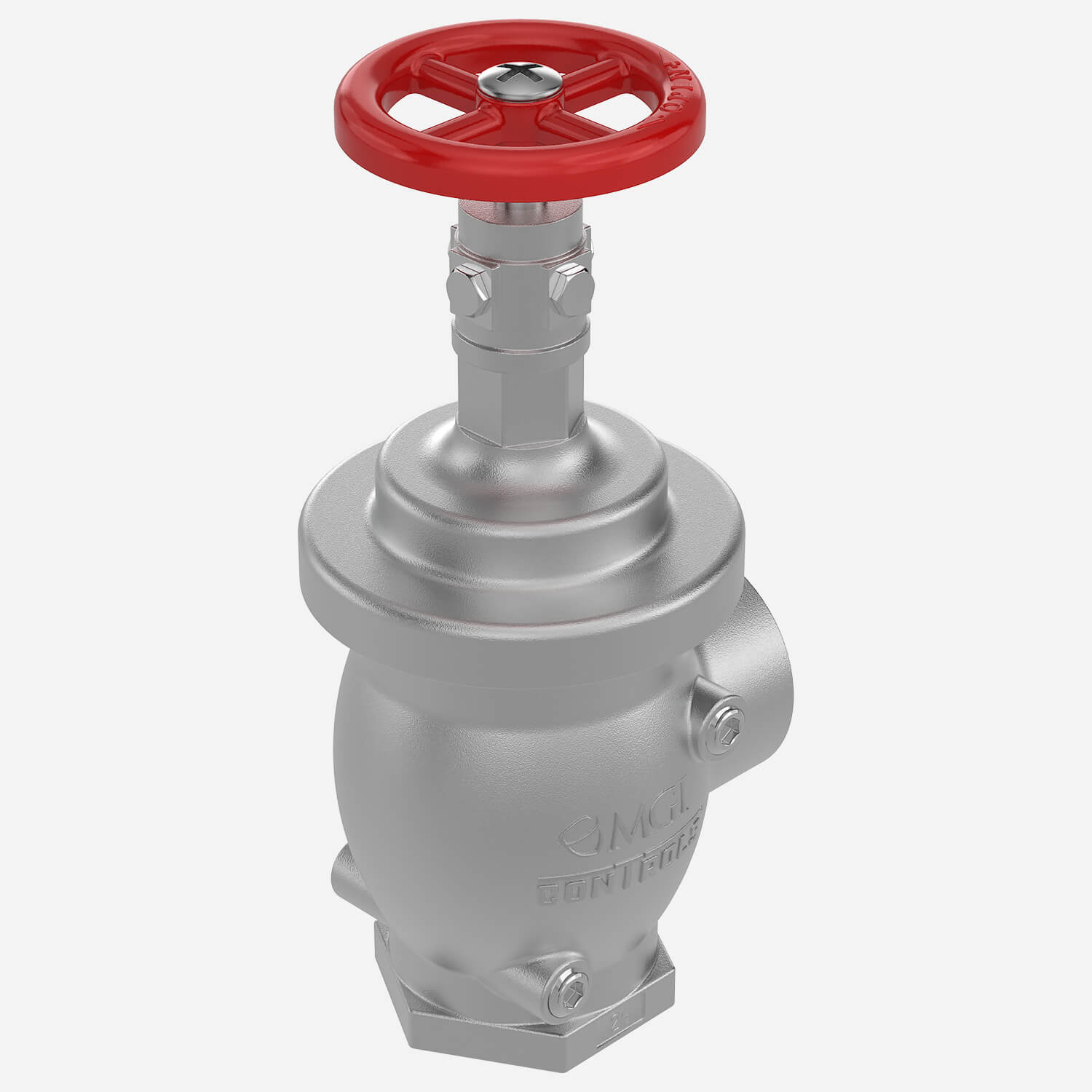

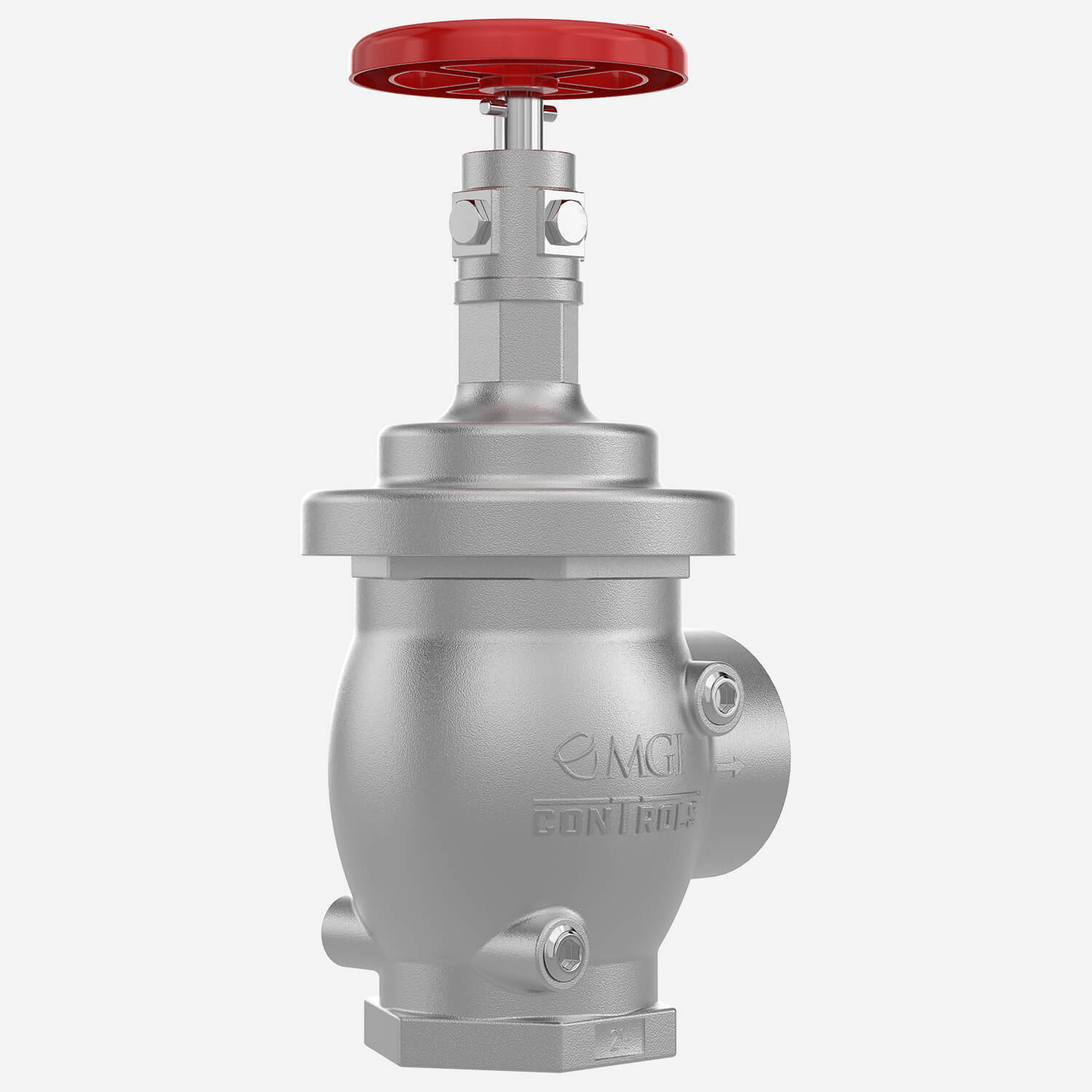

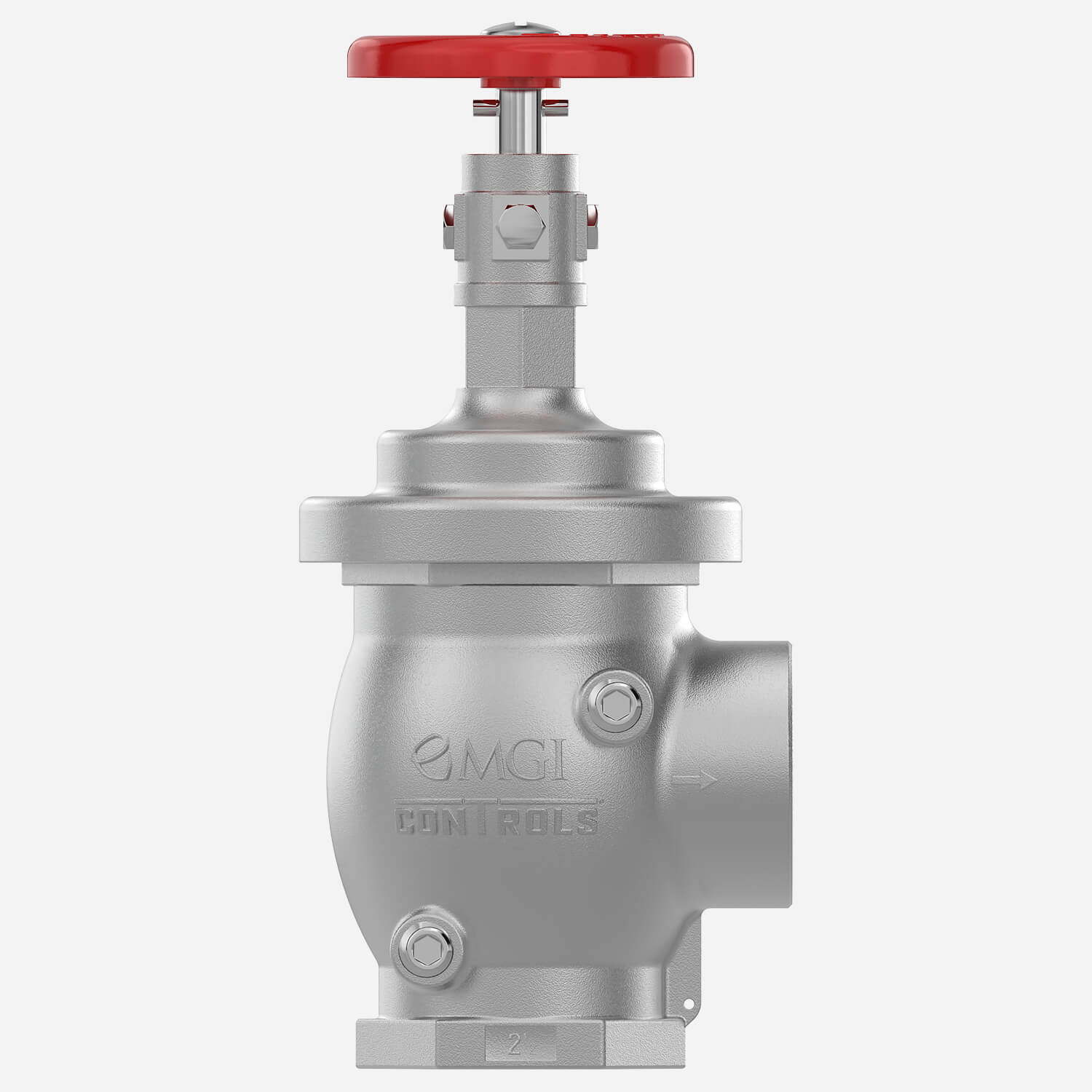

| Optional Finish | -C | Rough Chrome |
| Inlet | 2.5" Female NPT, 2.5" Grooved |
| Outlet | 2.5" Female NPT, 2.5" Grooved |
| Handle Type | Wheel Handle |
| UL | UL Listed |
| Body Type | Angle |
| Adjustable | No |
| Brand | MGI ConTrols™ |
