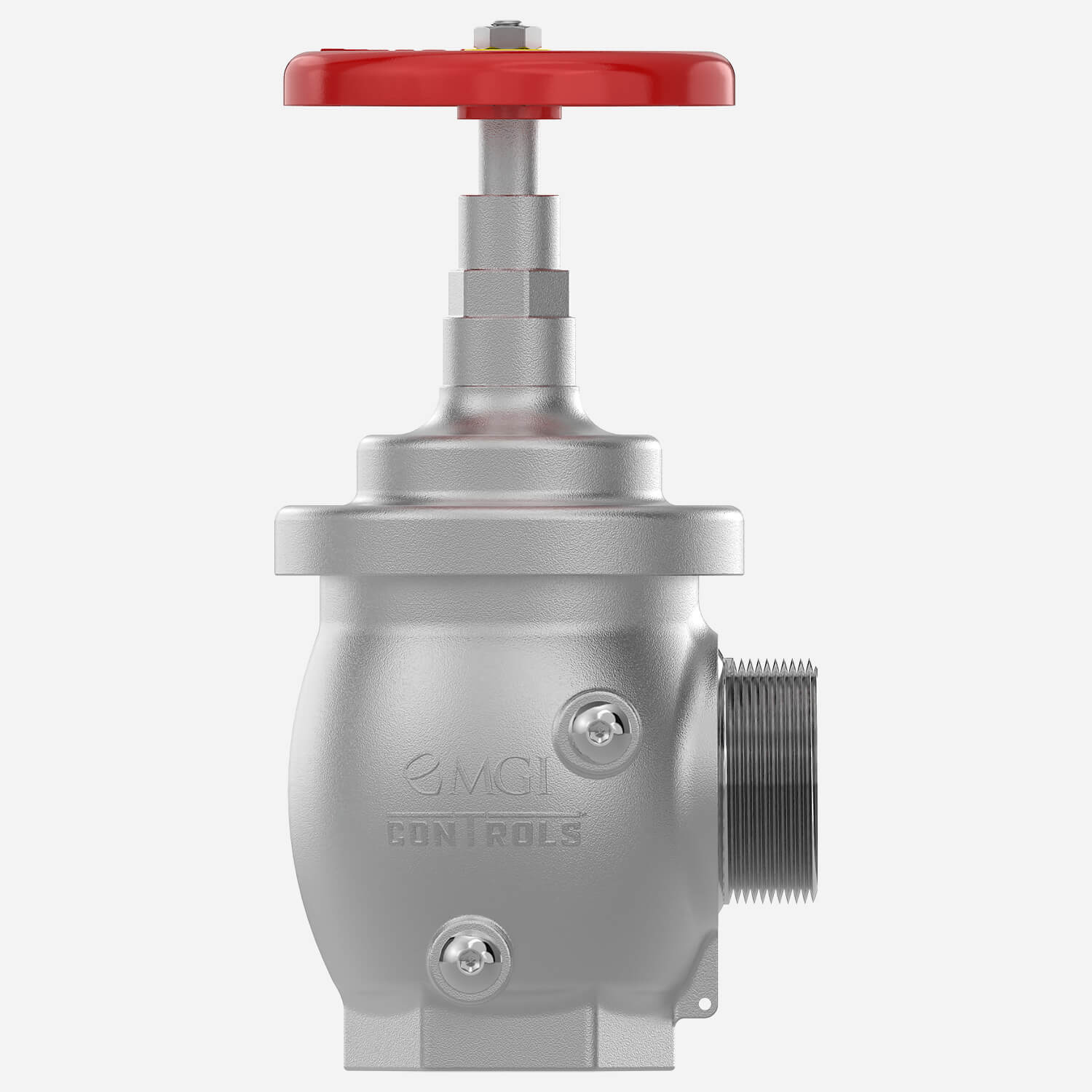

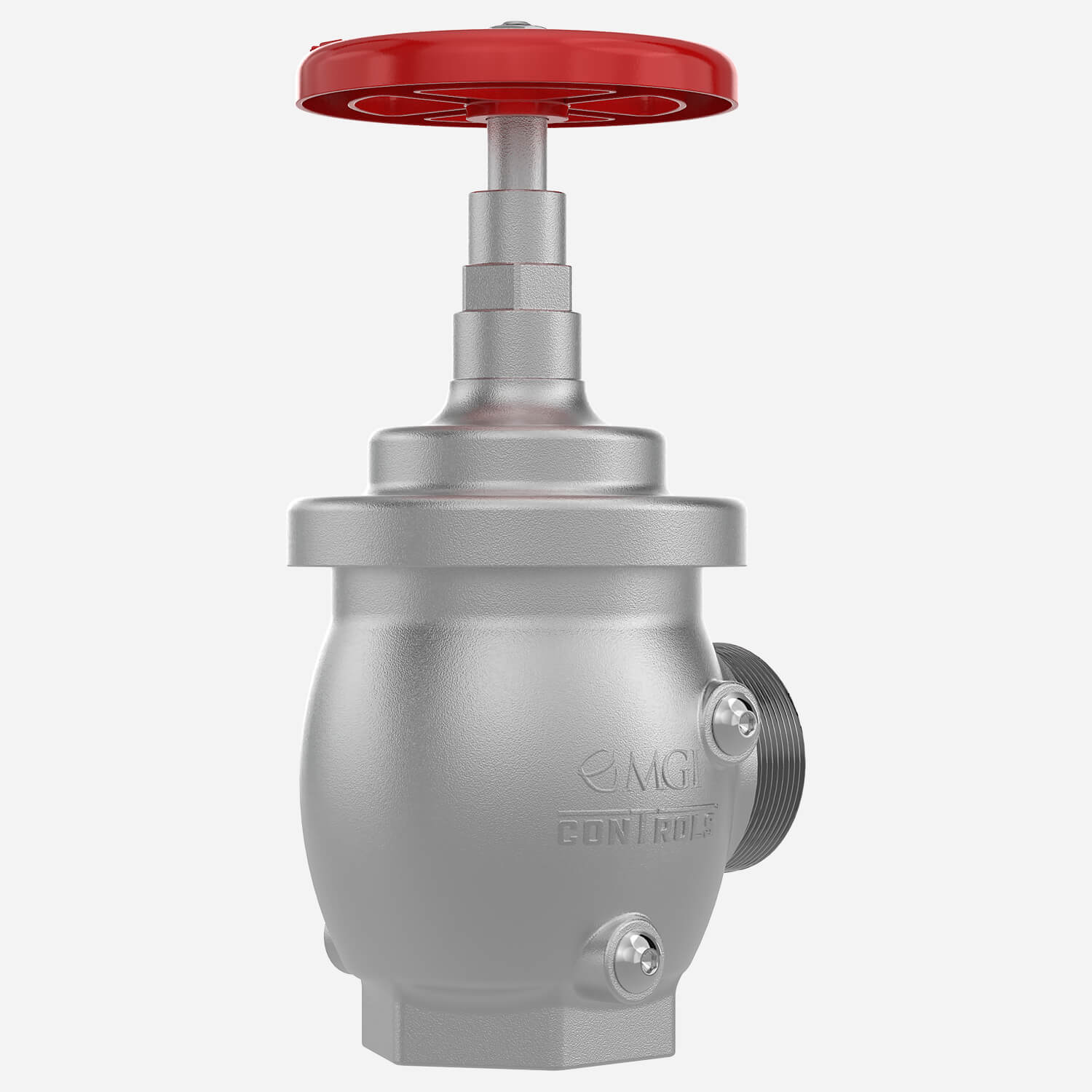

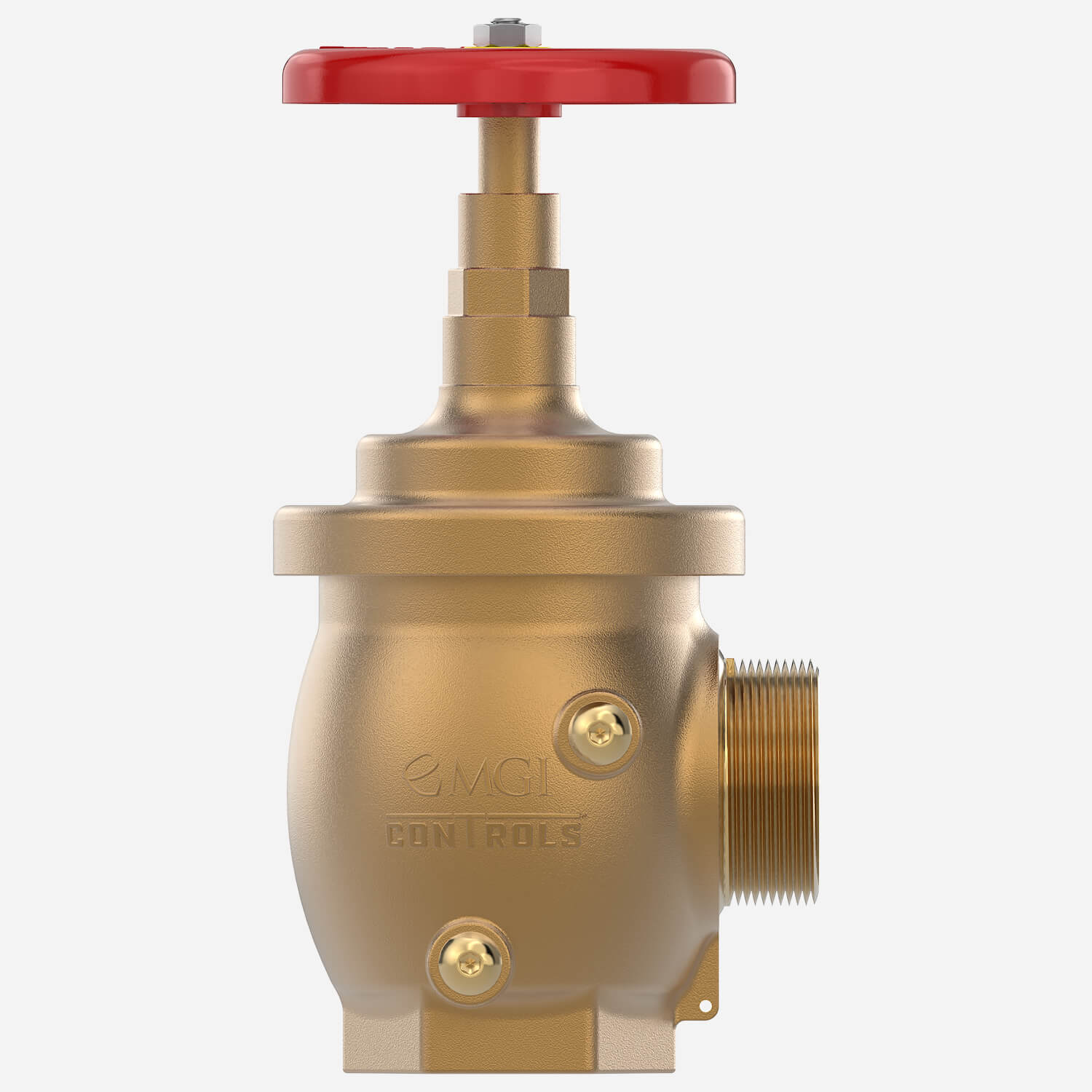

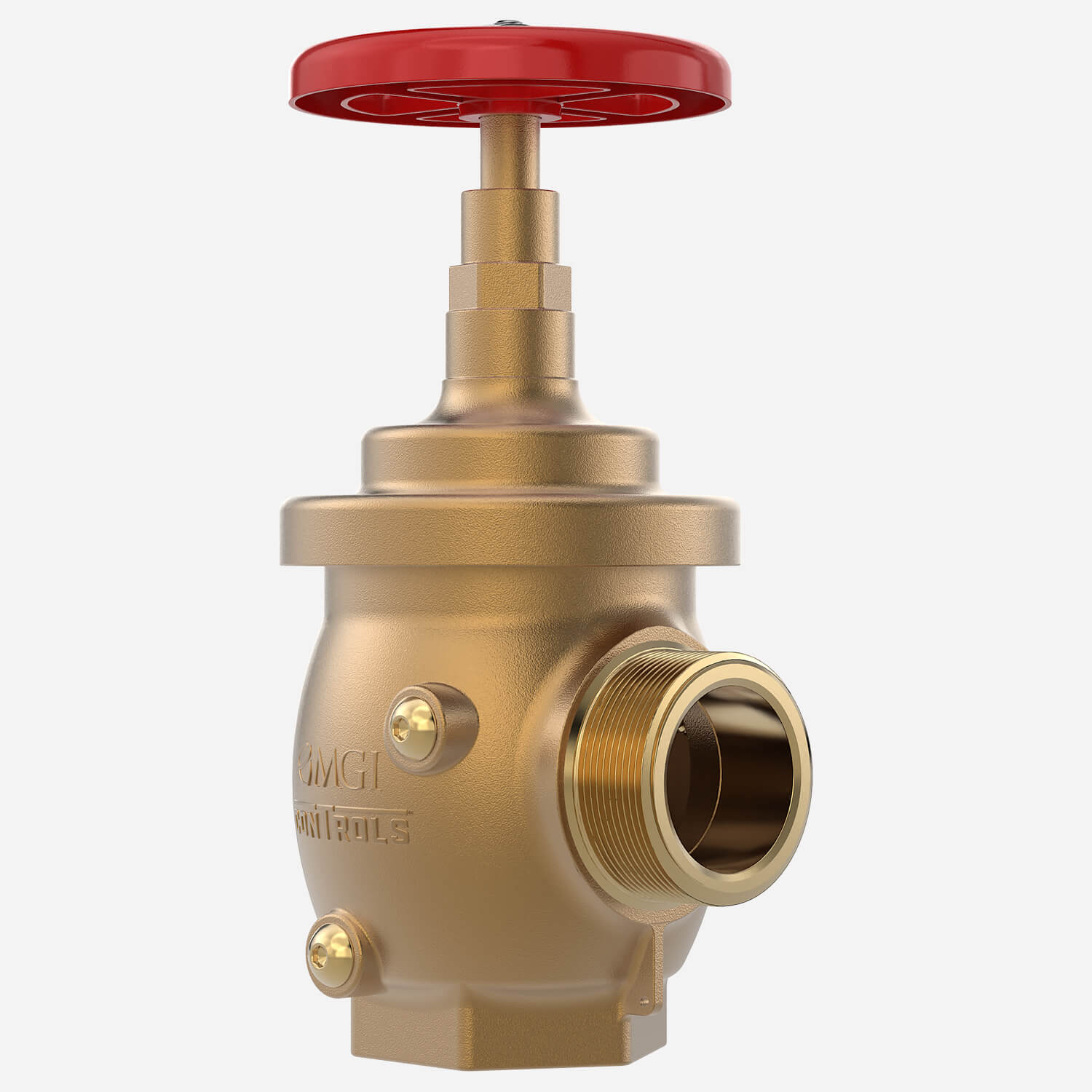

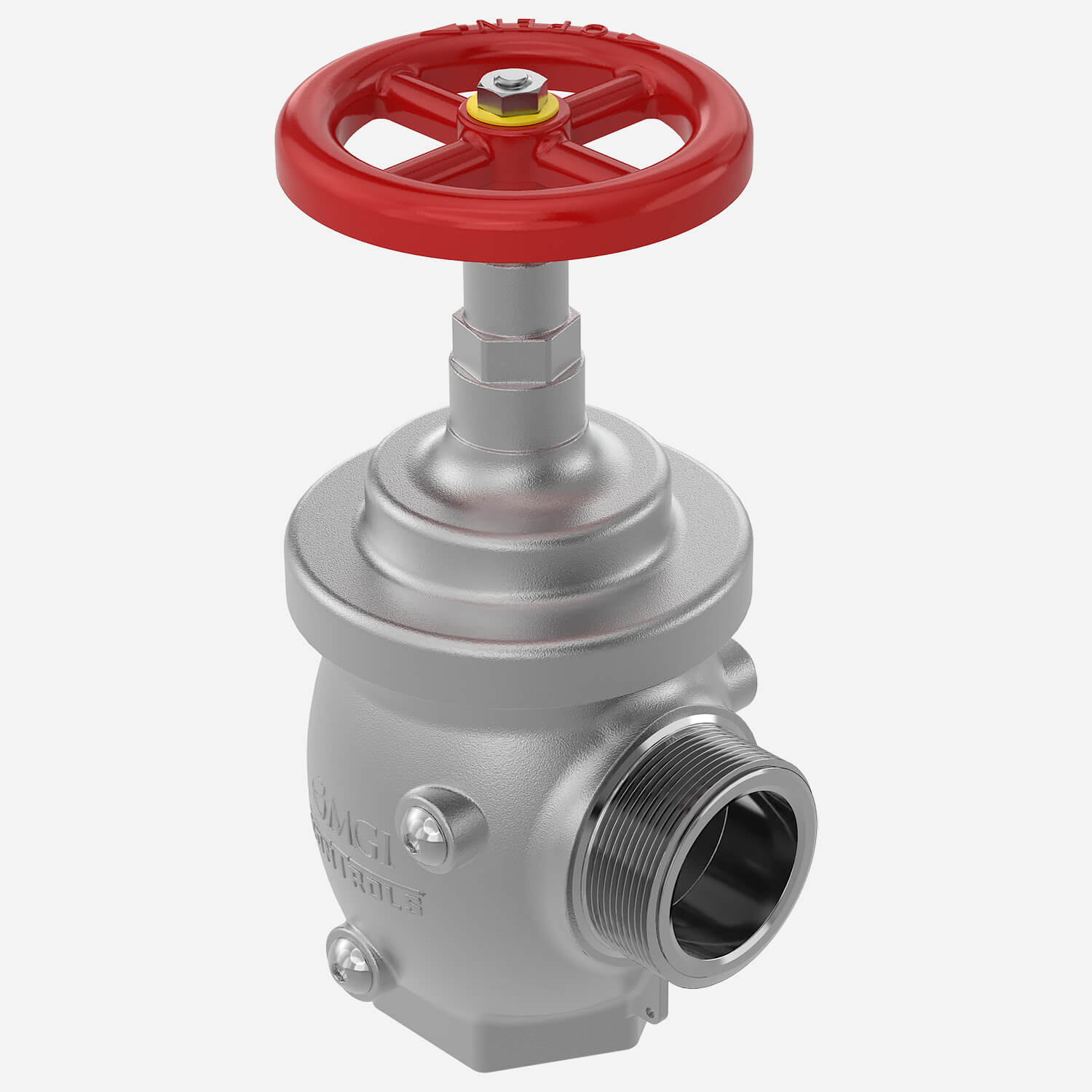

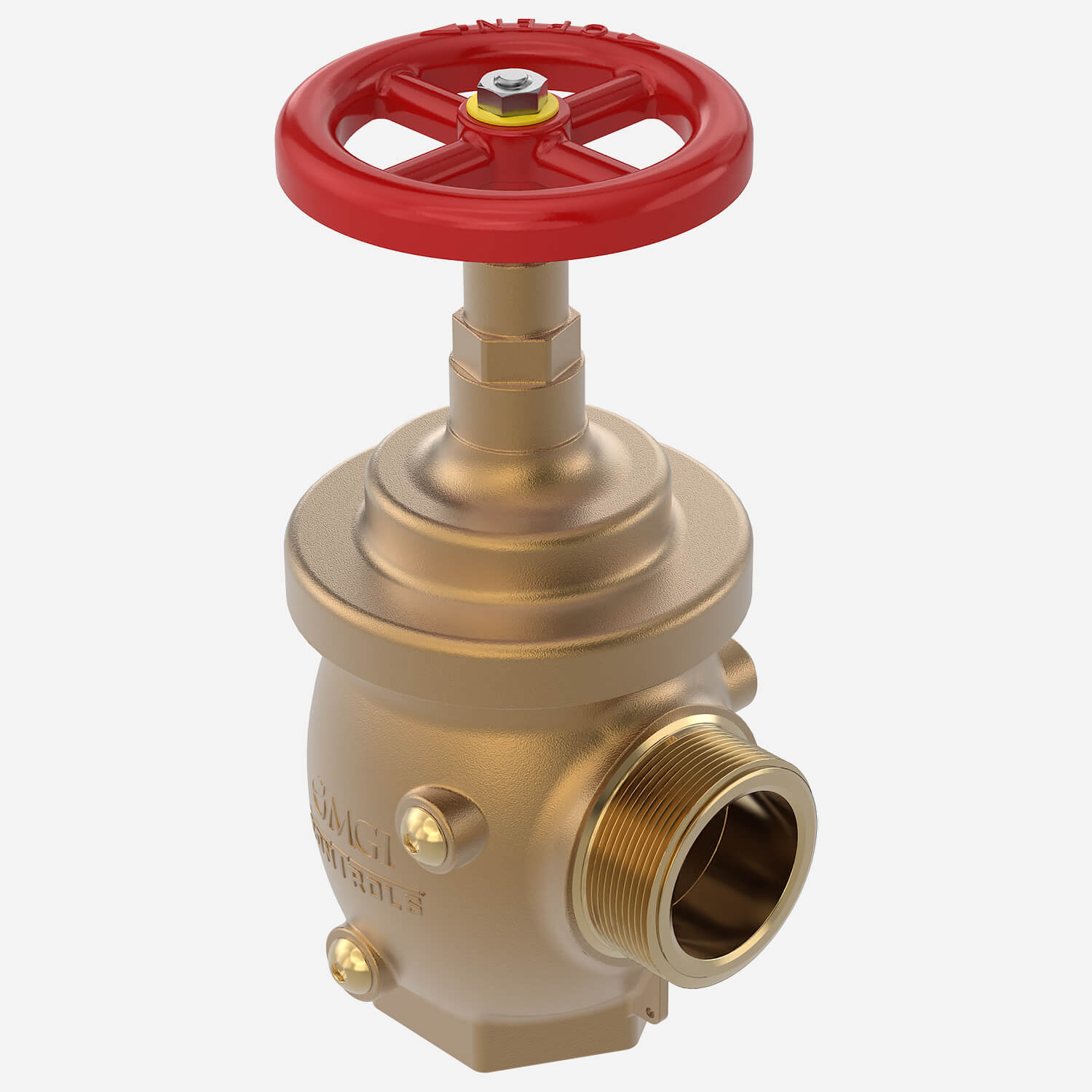

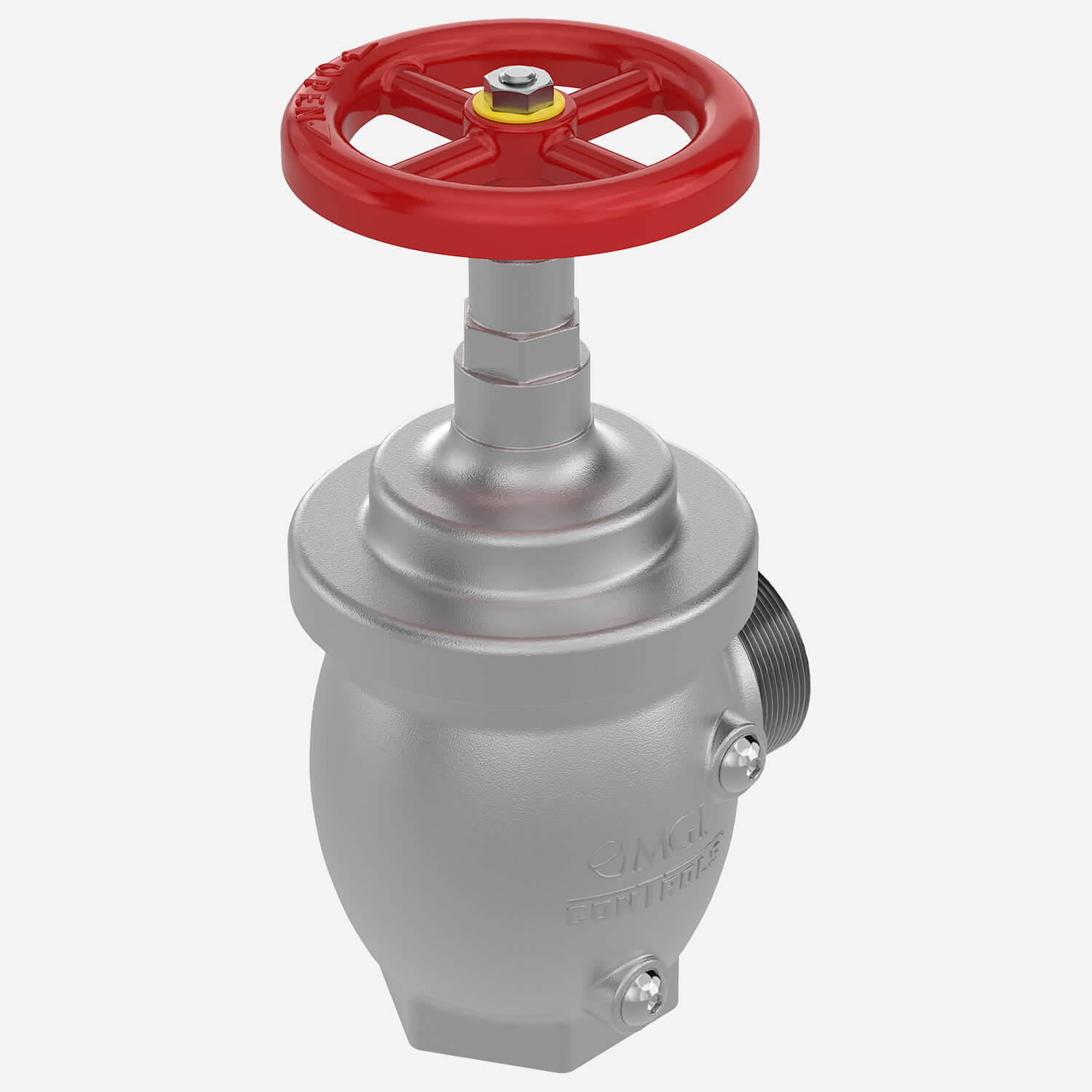

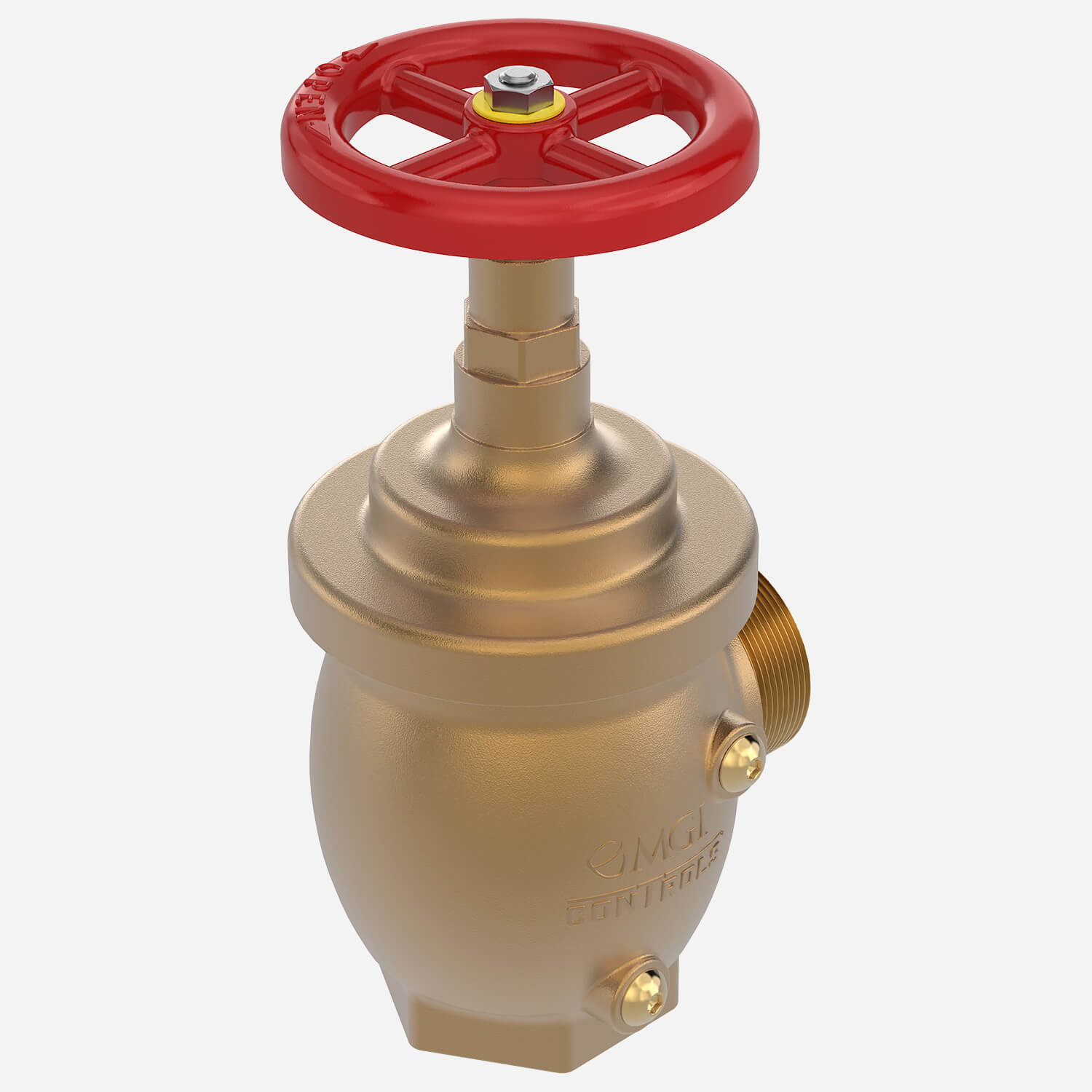

Factory Set Pressure Reducing Reg-U-Matic® Hose Valve - Angled Body, Female 2-1/2" NPT Inlet and Male Hose Thread Outlet

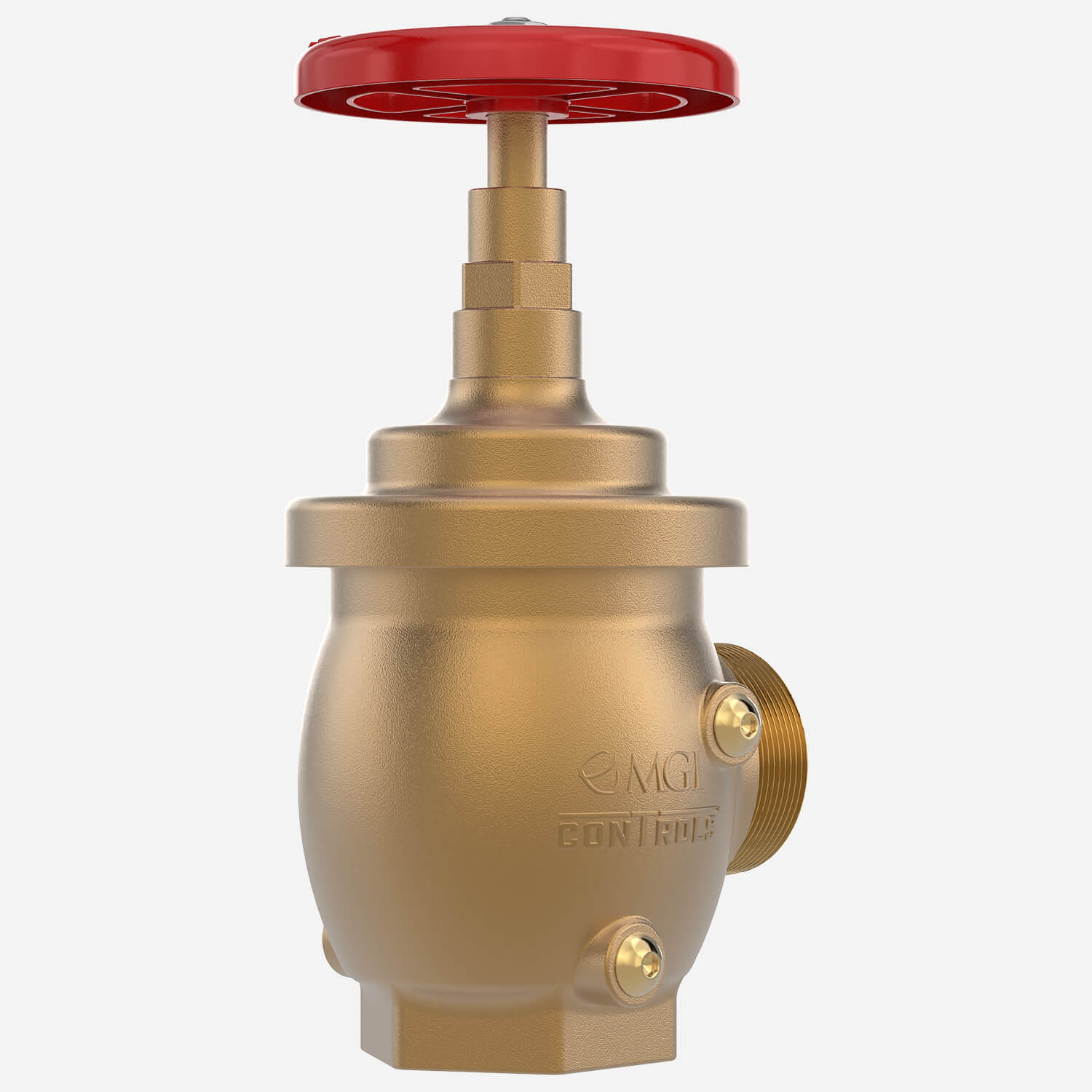

MODEL 4053-FS2 Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. Female 2-1/2" N.P.T. inlet and male hose thread outlet

MODEL 4053-FS2-GV Cast bronze valve with rising stem, internal parts of brass, and chrome silicon. Red aluminum handwheel. Regulates pressure under both flow and no-flow conditions. The valve features 2-1/2" grooved inlet and male hose thread outlet.

MODEL 4053-FS2-SF Cast brass valve with rising stem, internal parts of brass and stainless steel. Red aluminum handwheel. 2-1/2" Female NPT inlet and 3" male San Francisco thread outlet. Four drilled and tapped ports. Can be used on Class I and Class III standpipes in accordance with NFPA 14.

MODEL 4053-FS2-GV-SF Cast brass valve with rising stem, internal parts of brass and stainless steel. Red aluminum handwheel. 2-1/2" grooved inlet and 3" male San Francisco thread outlet. Four drilled and tapped ports. Can be used on Class I and Class III standpipes in accordance with NFPA 14.

FEATURES

• Application: Hose Valve
• Reduces pressure under flow and no-flow conditions.
• Static pressure rated up to 400 PSI (20.7 BAR).
• Flow rated up to 500 GPM (1892.7 LPM).
• Low torque manual open/close requires less than 15 ft/lbs.
• UL listed, complies with NFPA-14.
