Model 4036-FA5 and 4038-FA5
Reg-U-Matic® Adjustable Pressure Reducing Controls Valves
FEATURES
- Reduces pressure under flow and no flow conditions
- Static pressure rated up to 340 PSI (23.4 BARS)
- Flow rated up to 500 GPM (1893 LPM)
- 4 pressure gauge taps on both inlet and outlet Built in automatic check valve
- Downstream pressure rating 65-175 PSI (4.5 BARS to 12 BARS)
- UL listed, complies with NFPA-13
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Reg-U-Matic® Adjustable Pressure Reducing Control Valves [4036-FA5 | 2-1/2" Female NPT x Male Hose Thread Inline Valve; 4038-FA5 | 2-1/2" Female NPT x Male Hose Thread Angle Valve] | 571 KB |
Specifications
| Material | Brass Body, Red Powder Coat Aluminum Hand Wheel |
| Body Type | Angle, Straight |
| Inlet | 2-1/2" Female NPT |
| Outlet | 2-1/2" NPT |
| Pressure | Static pressure rated up to 340 PSI, Downstream pressure rating 65 to 175 PSI |
| GPM | Up to 500 GPM |
| Optional Finish | -C | Rough Chrome |
| Options | -MSA | Monitor Switch Adapter, -GRV | Grooved Connection |
Models
Brass valve with non-rising stem and indicator bonnet. internal parts of brass and stainless steel, red alloy handwheel, 2-1/2" Female NPT x Male hose threads. Listed by Underwriters Laboratories as a checking device.

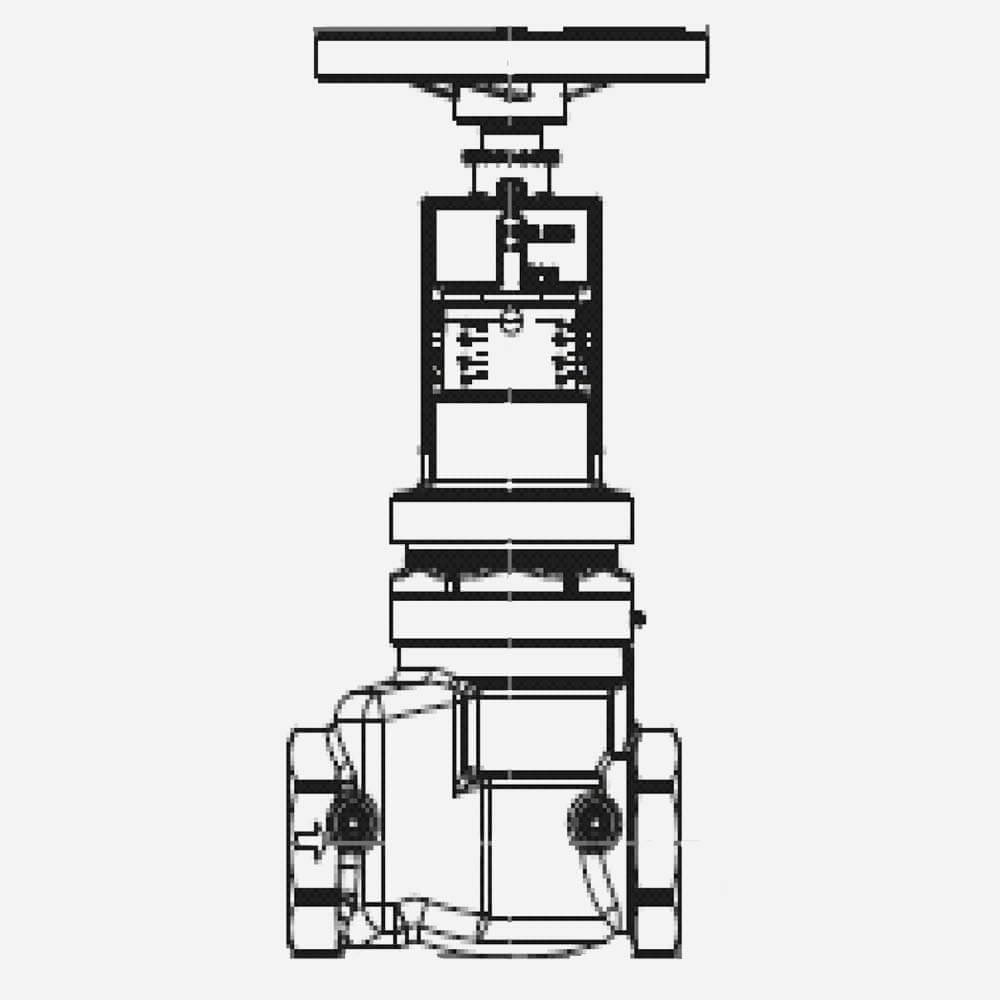

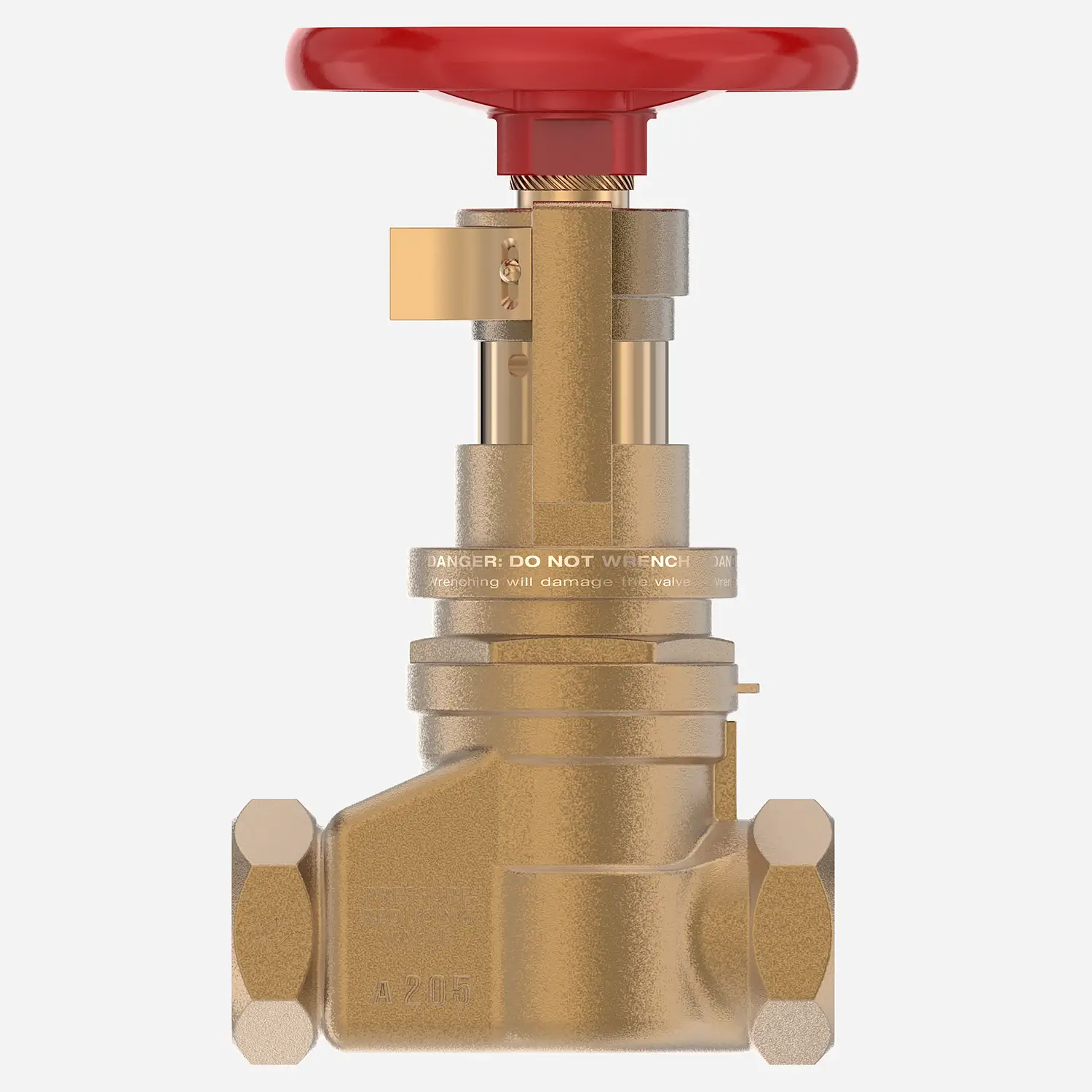

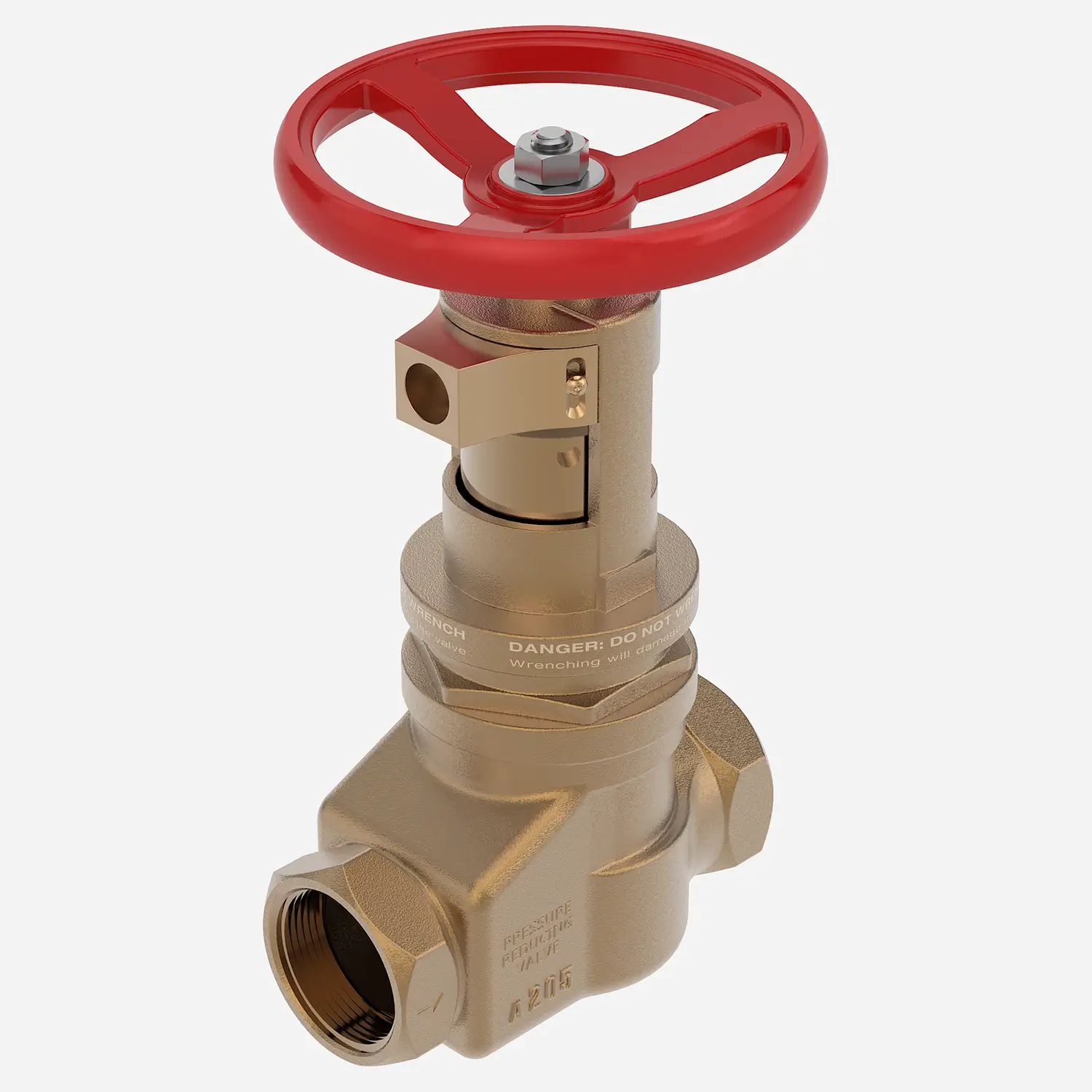

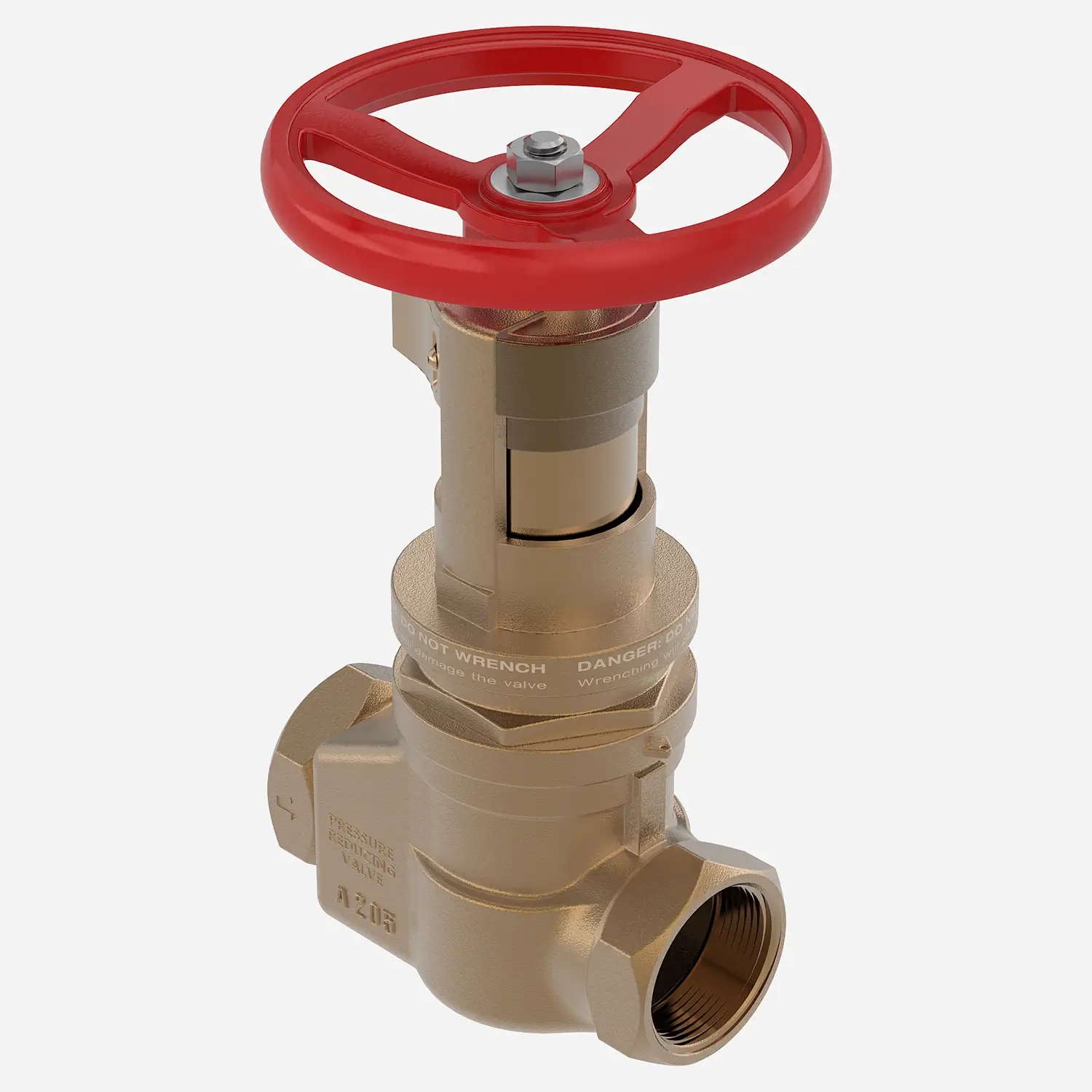

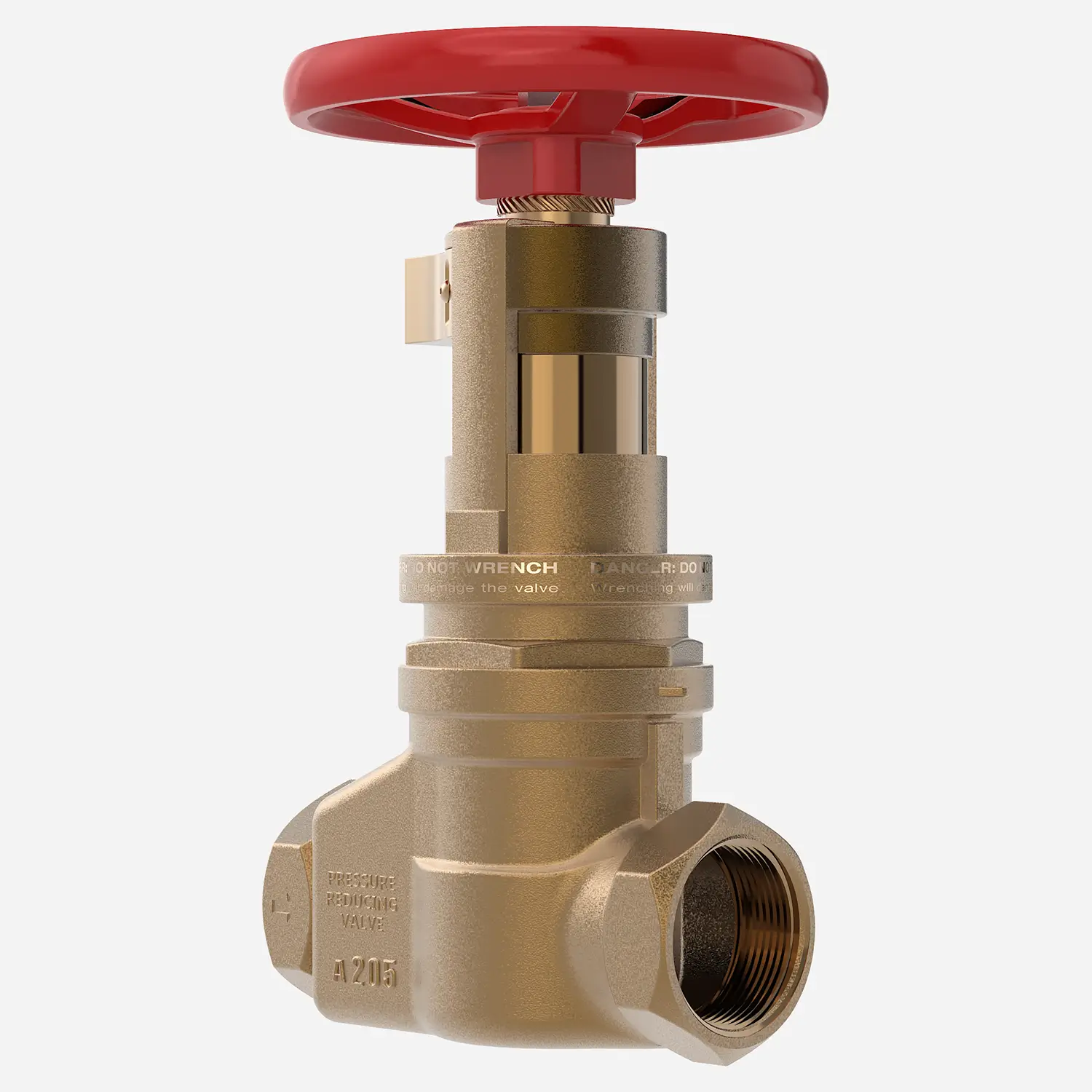

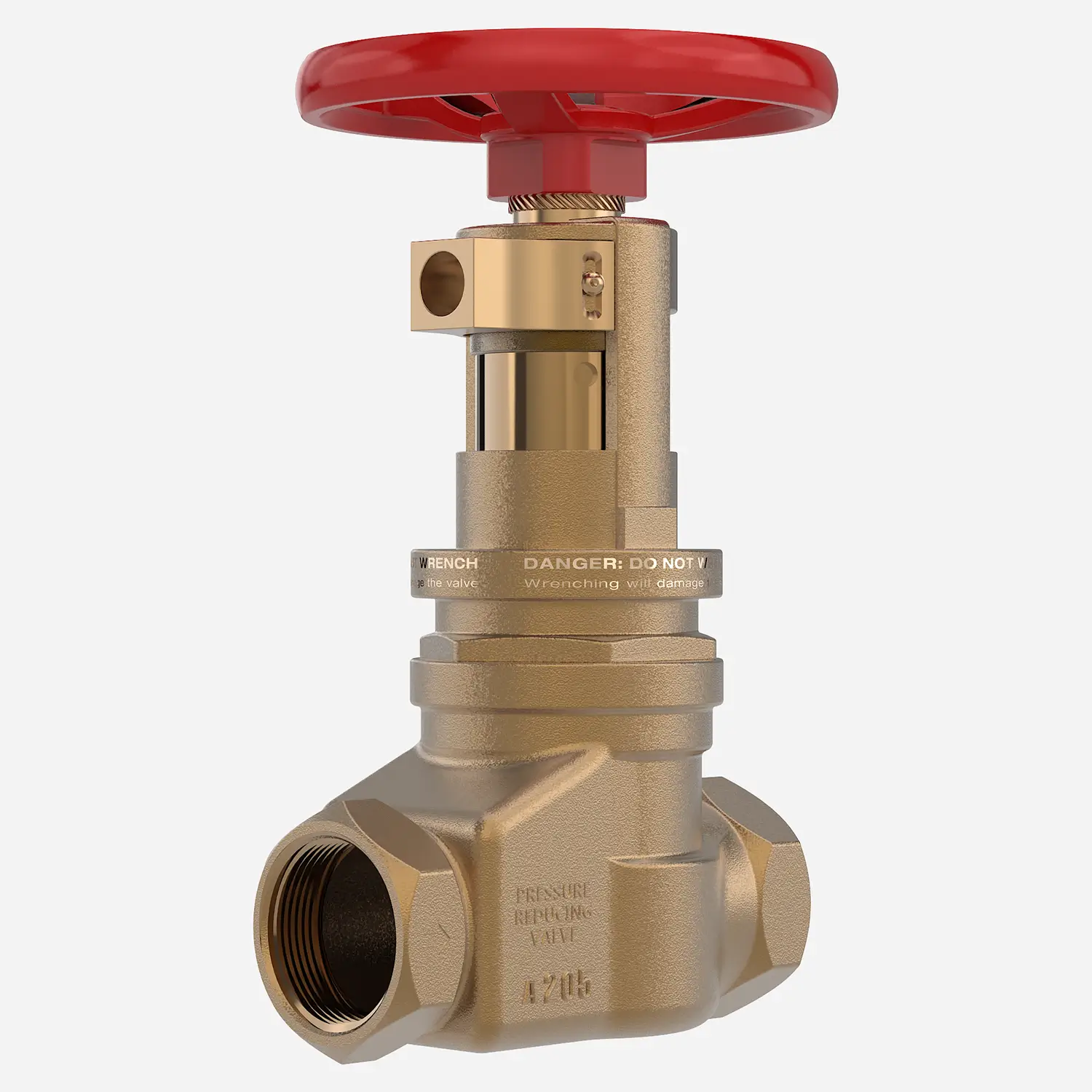

4036-FA5 Inline Valve, 2-1/2" Female NPT Inlet and Outlet

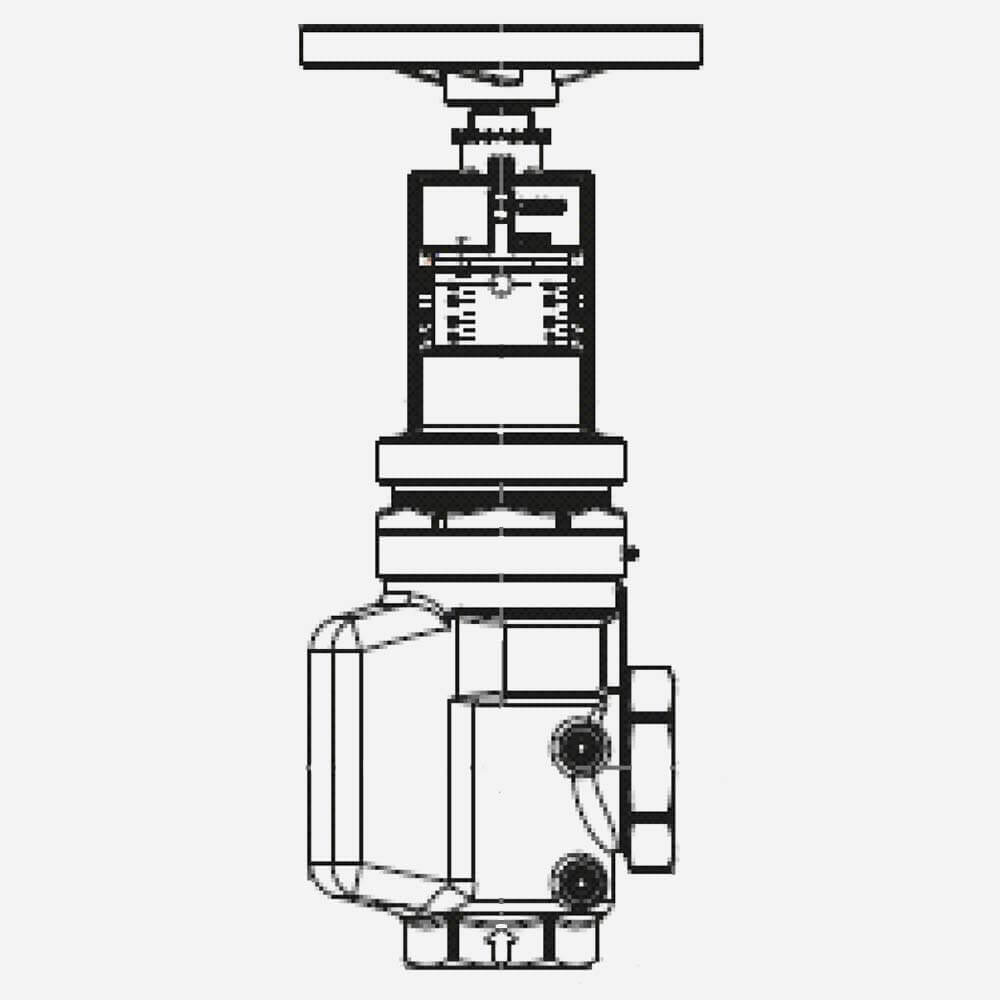

4038-FA5 Angle Valve, 2-1/2" Female NPT Inlet and Outlet
NOTE: The in-line installation of a REG-U-MATIC sets up a closed system. A relief valve should be installed to eliminate excessive pressure buildup due to line surges.
