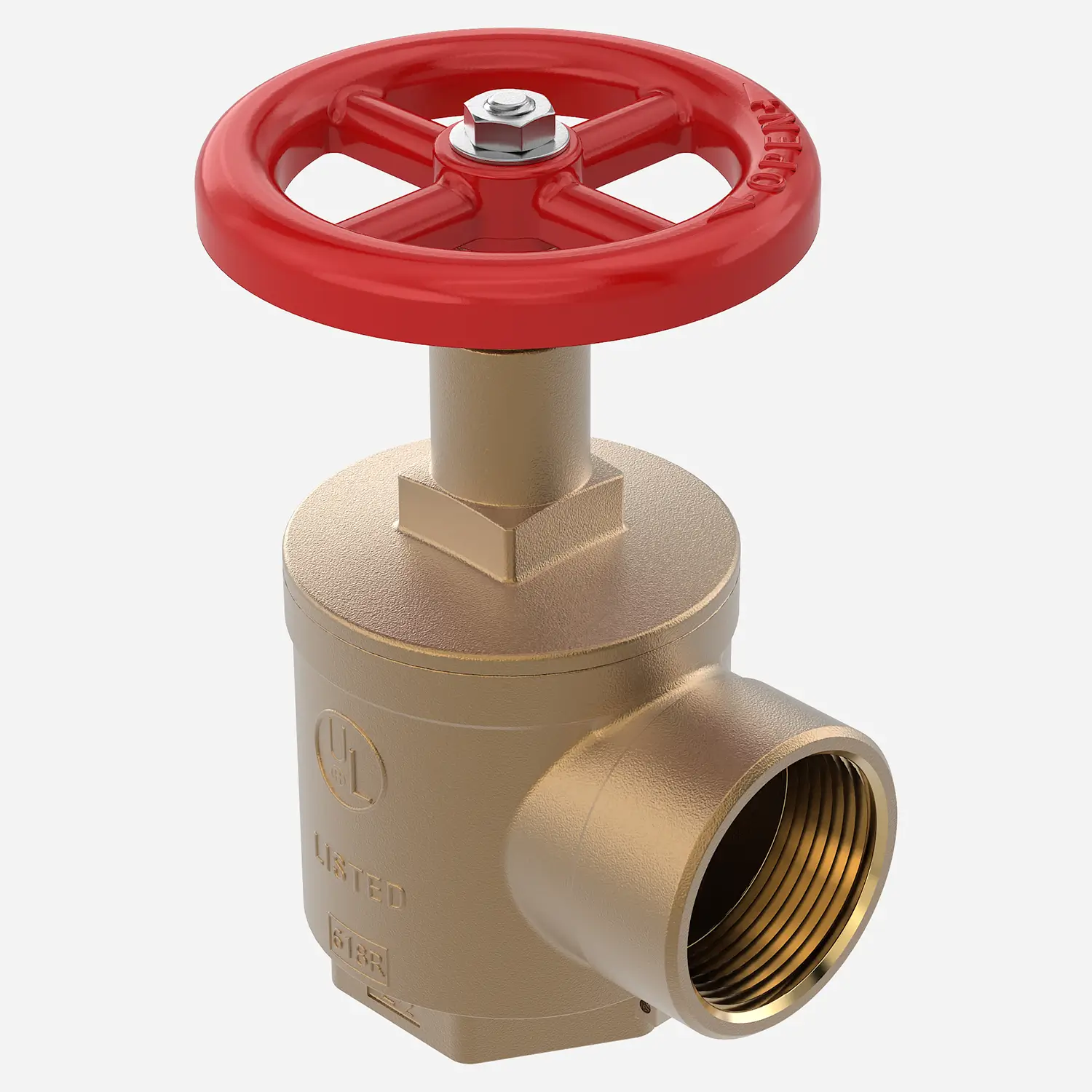

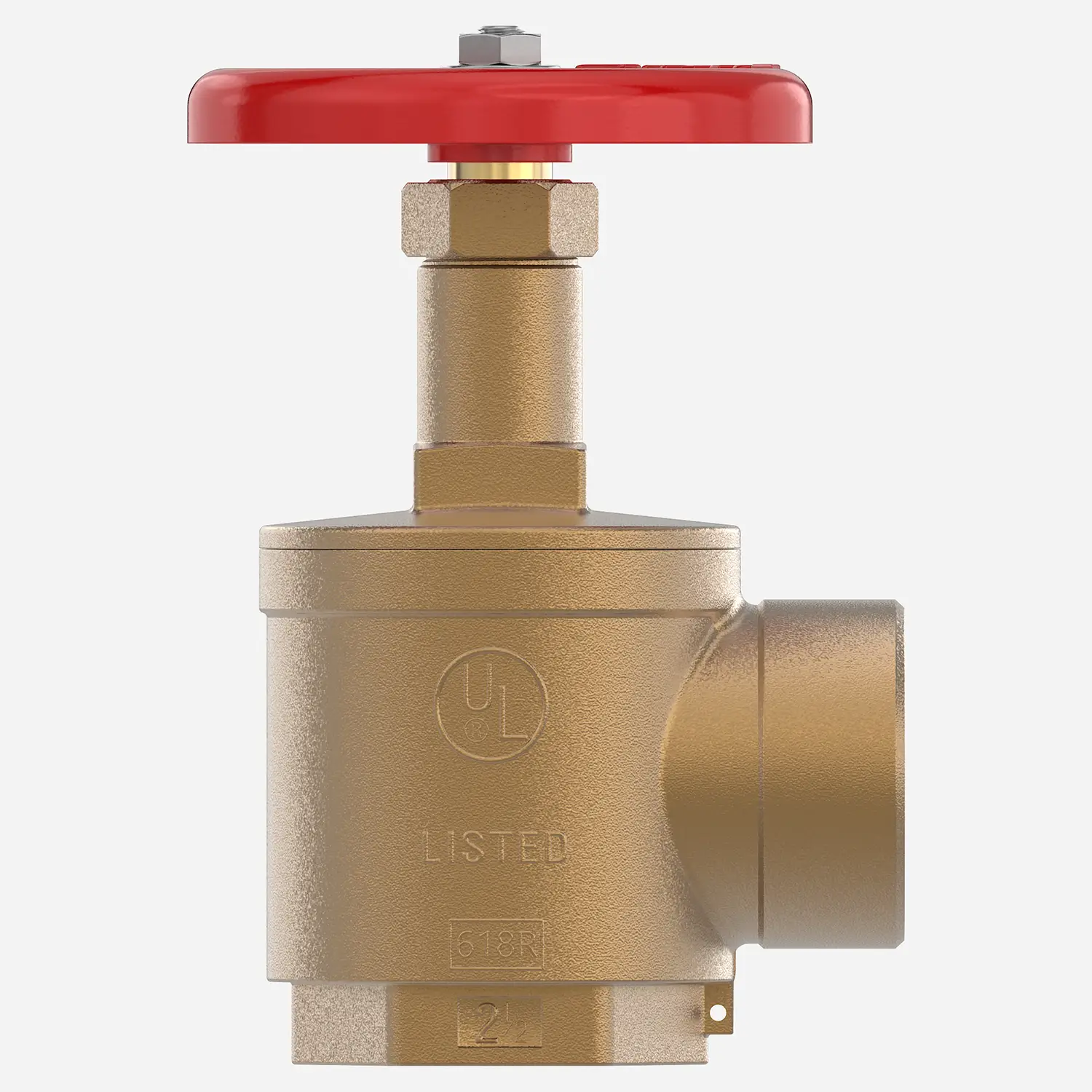

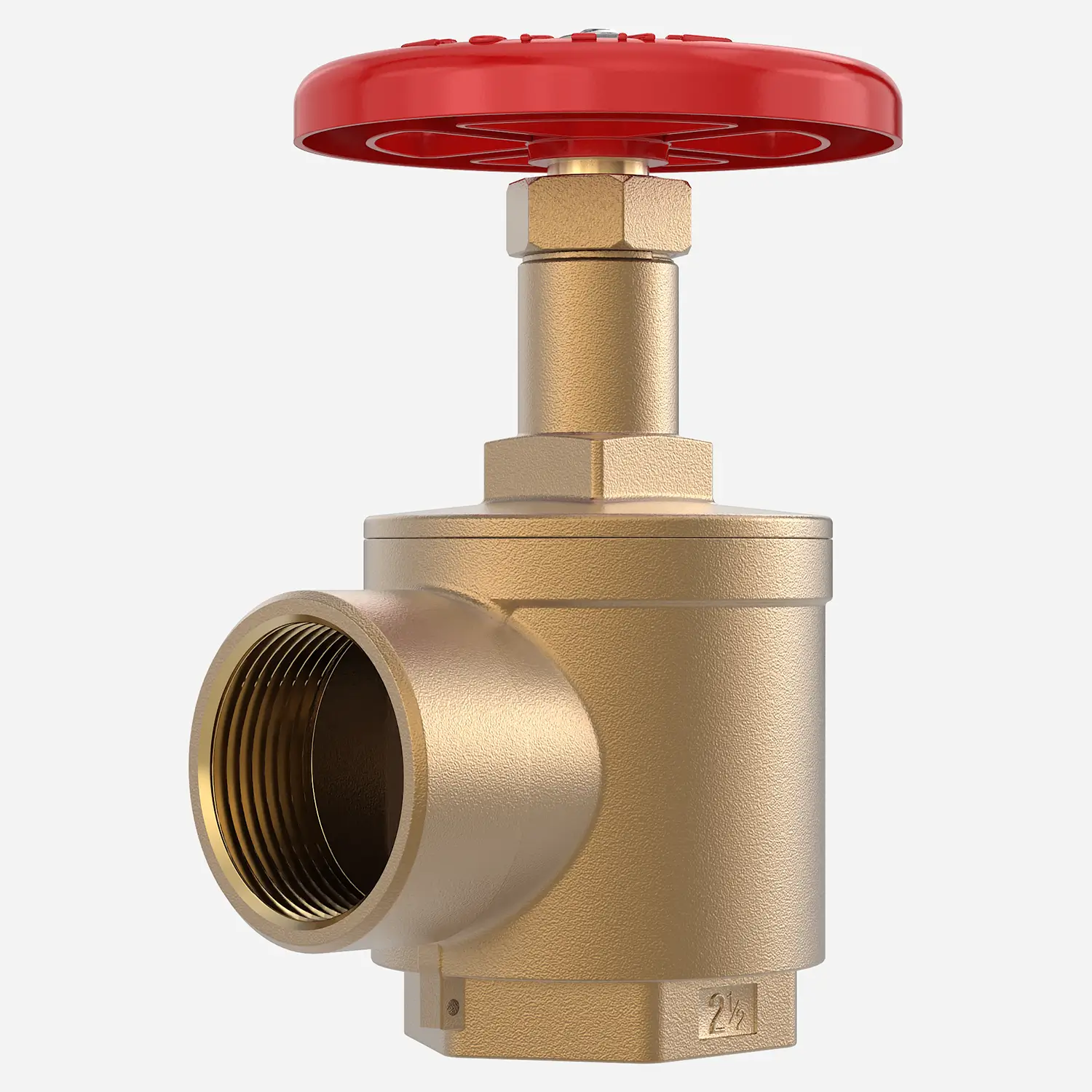

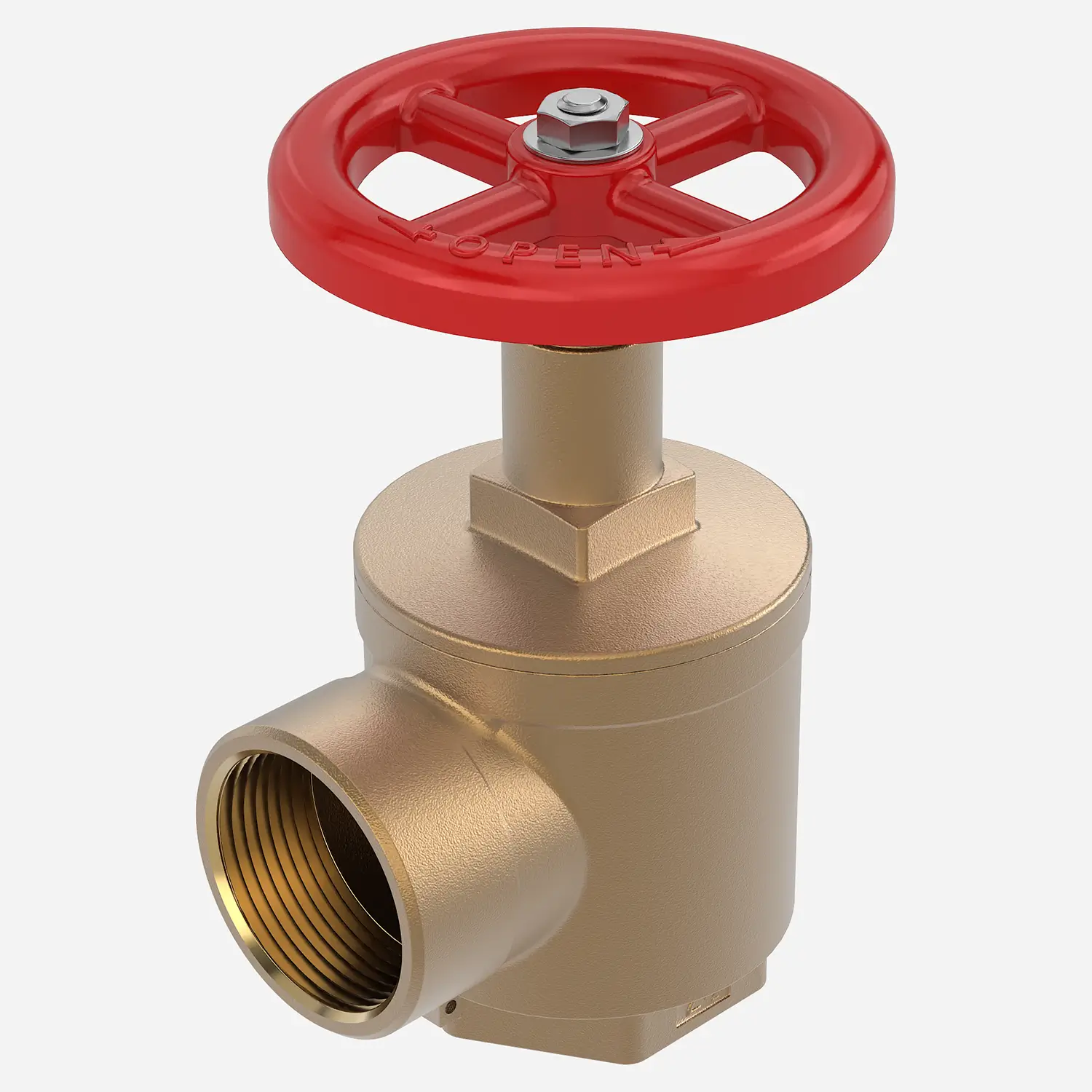

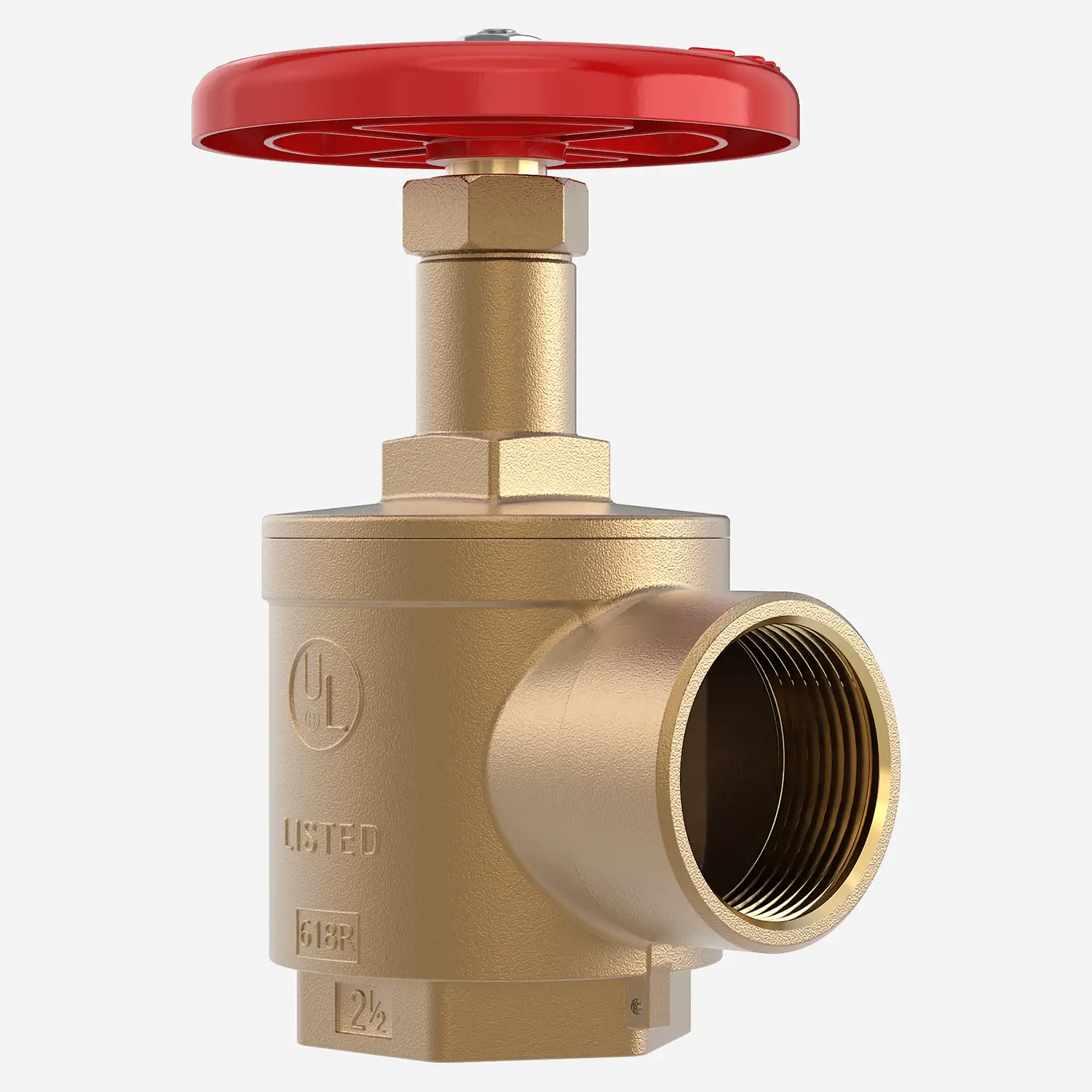

Model 4070 and 4075
Angle Hose Valve - Female x Female
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Angle Hose Valve - Female x Female [1-1/2" Valves 4070, 4070-EV, 4070-P; 2-1/2" Valves 4075, 4075-EV, 4075-P, 4075-500; Optional Flanges 4711, 4712] | 704 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026] | 2 MB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Body Type | Angle |
| Pressure | 300 PSI, 500 PSI |
| Outlet | 1.5" Female NPT, 2.5" Female NPT |
| Inlet | 1.5" Female NPT, 2.5" Female NPT |
| Handle Type | Wheel Handle |
| UL | UL Listed |
| UL Models | All models in this series |
| FM | FM Compliant, Contact Potter Roemer for details |
| Thread | Must be specified by customer |
| Options | -RL | Rocker Lug |
