Model 4400 Series
Ball Valves

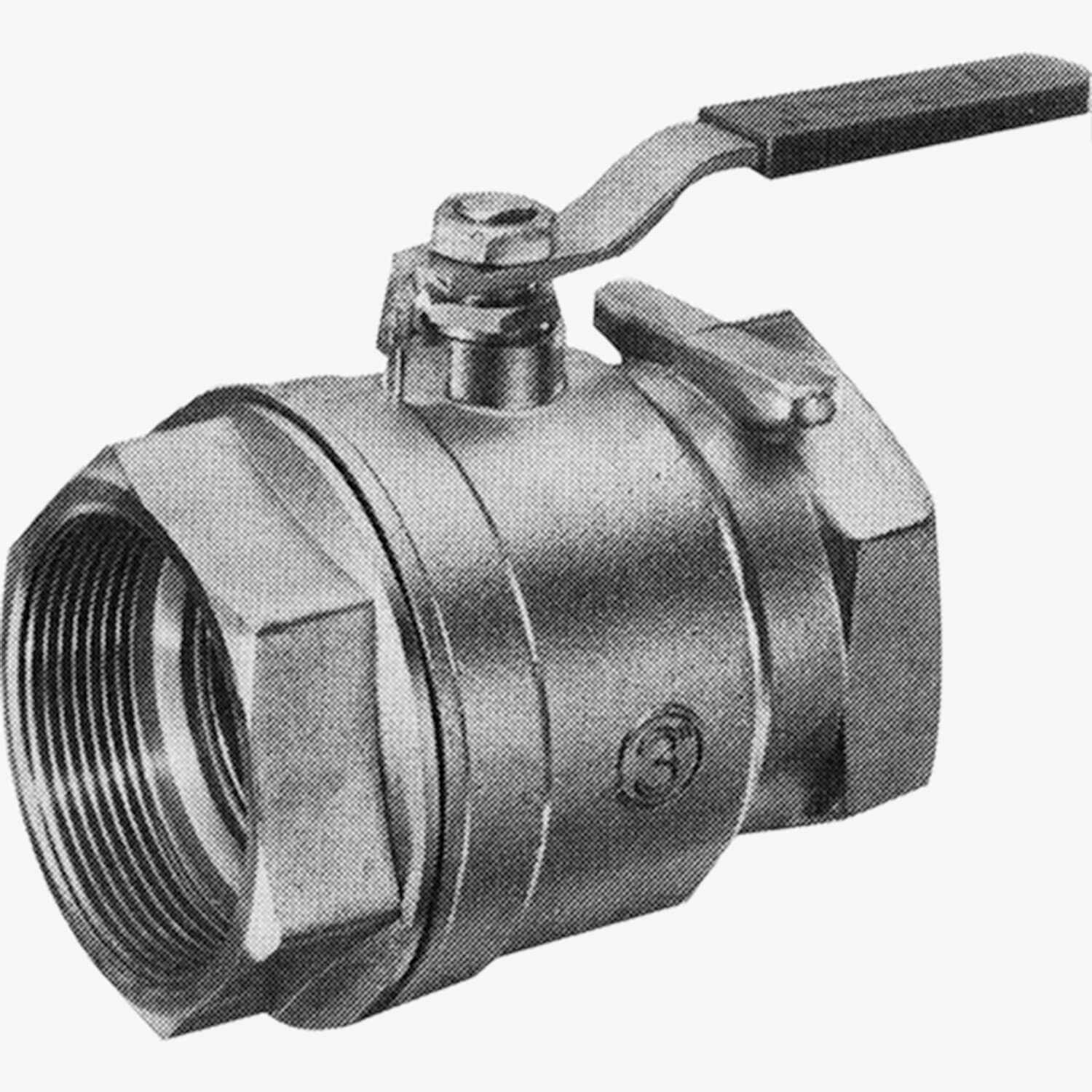

4400 Series Ball Valves are used in the trim assembly of alarm check dry pipe and automatic water control valves to manually control the flow of water to small open-head extinguishing systems. They can also be used as a zone control valve. The valves have a forged brass body cadmium plated vinyl insulated handle and a chrome plated brass ball with nylon seat. Female NPT inlet and outlet. Size as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 4400 Series Valve | 0 | 566 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Forged Brass Body |
| Pressure | 600 PSI, 500 PSI, 400 PSI |
| Inlet | 0.5" Female NPT, 0.75" Female NPT, 1" Female NPT, 1.25" Female NPT, 1.5" Female NPT, 2" Female NPT, 2, 5" Female NPT, 3" Female NPT |
| Outlet | 0.5" Female NPT, 0.75" Female NPT, 1" Female NPT, 1.25" Female NPT, 1.5" Female NPT, 2" Female NPT, 2", 5" Female NPT, 3" Female NPT |
| UL | UL Listed |
| UL Models | 4405, 4407, 4410, 4412, 4415, 4420 |
| FM | Contact Potter Roemer for details, FM Compliant |
