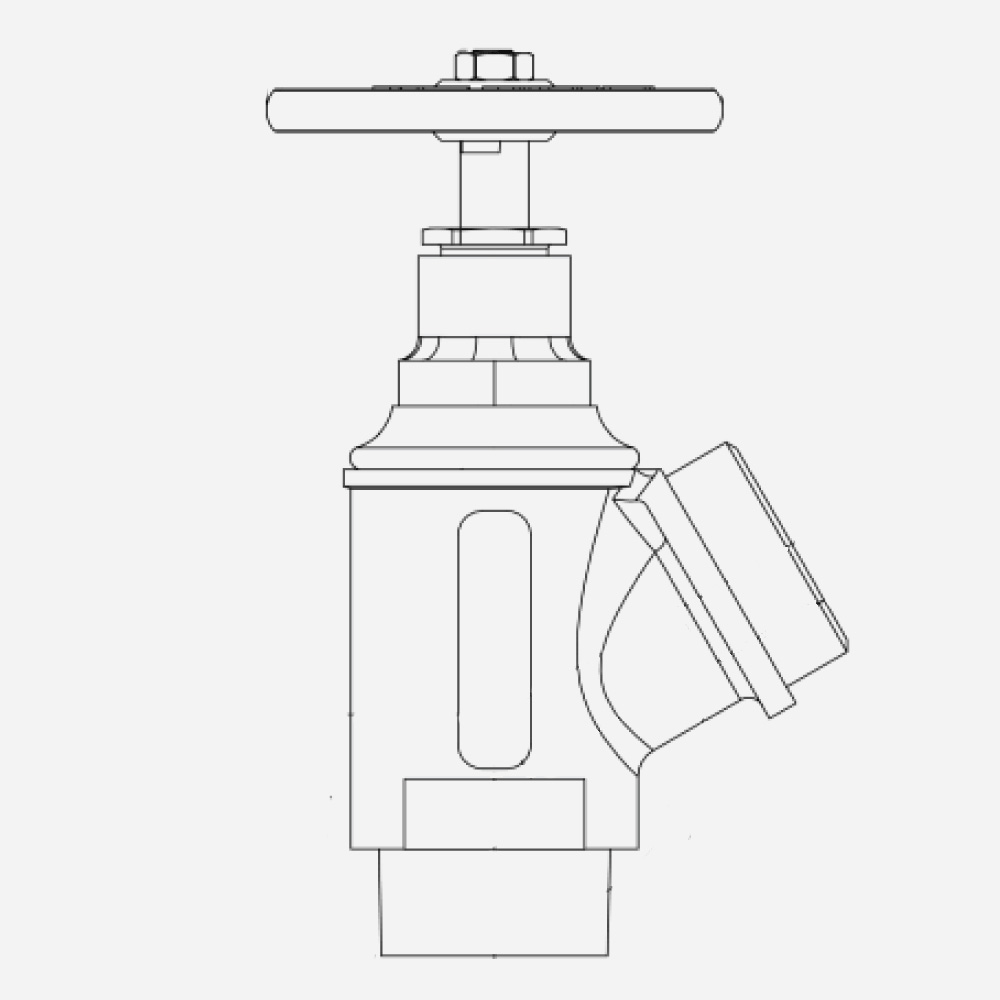

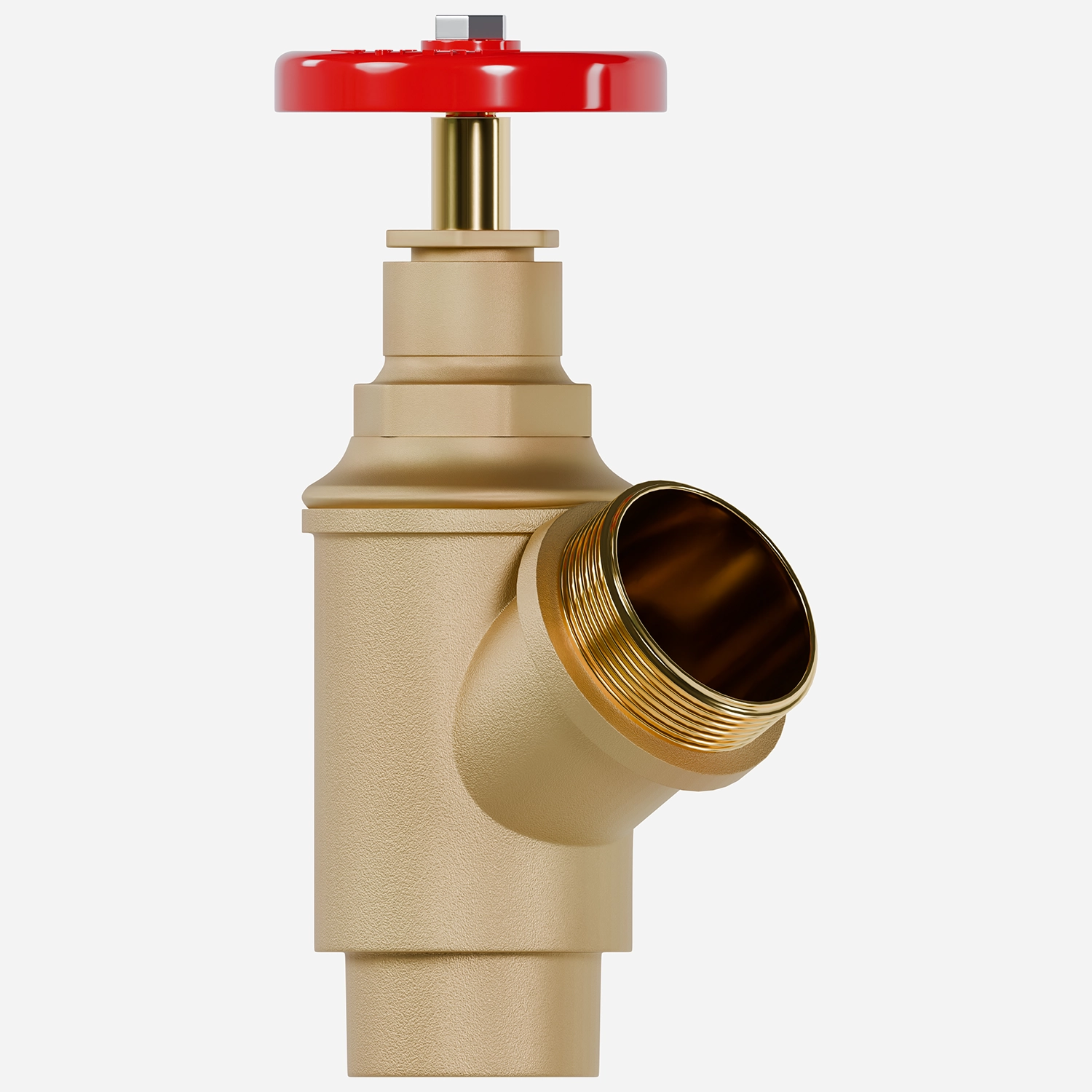

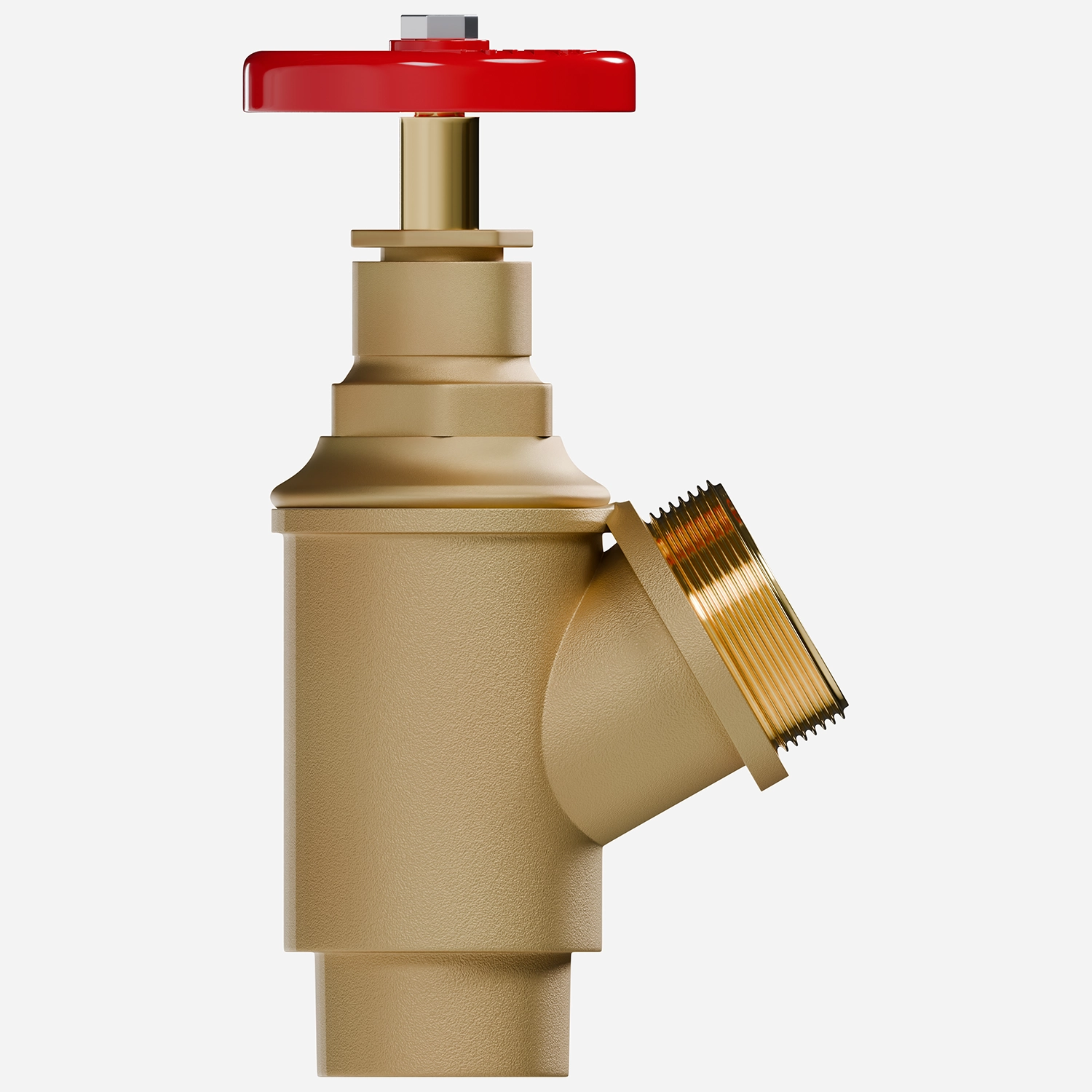

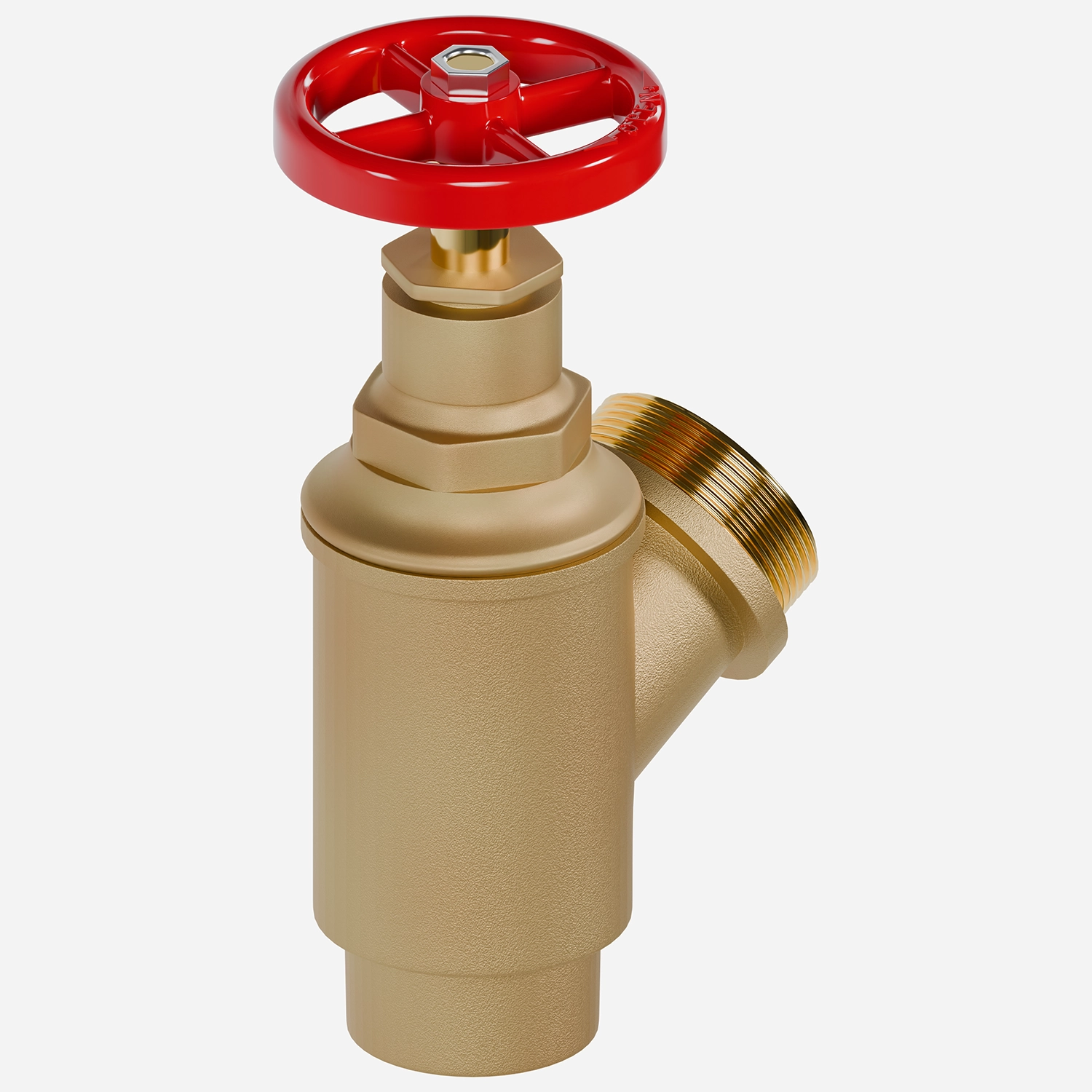

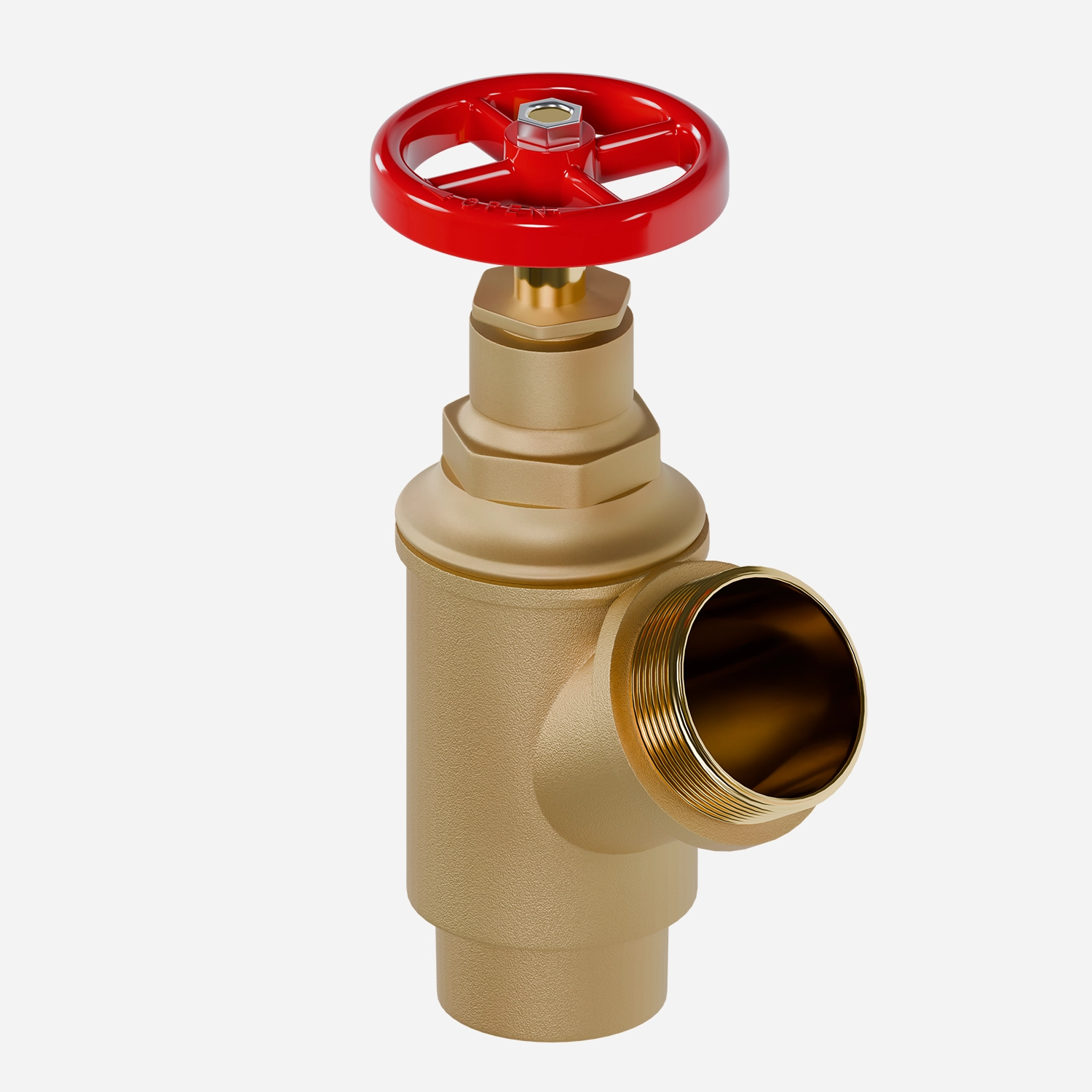

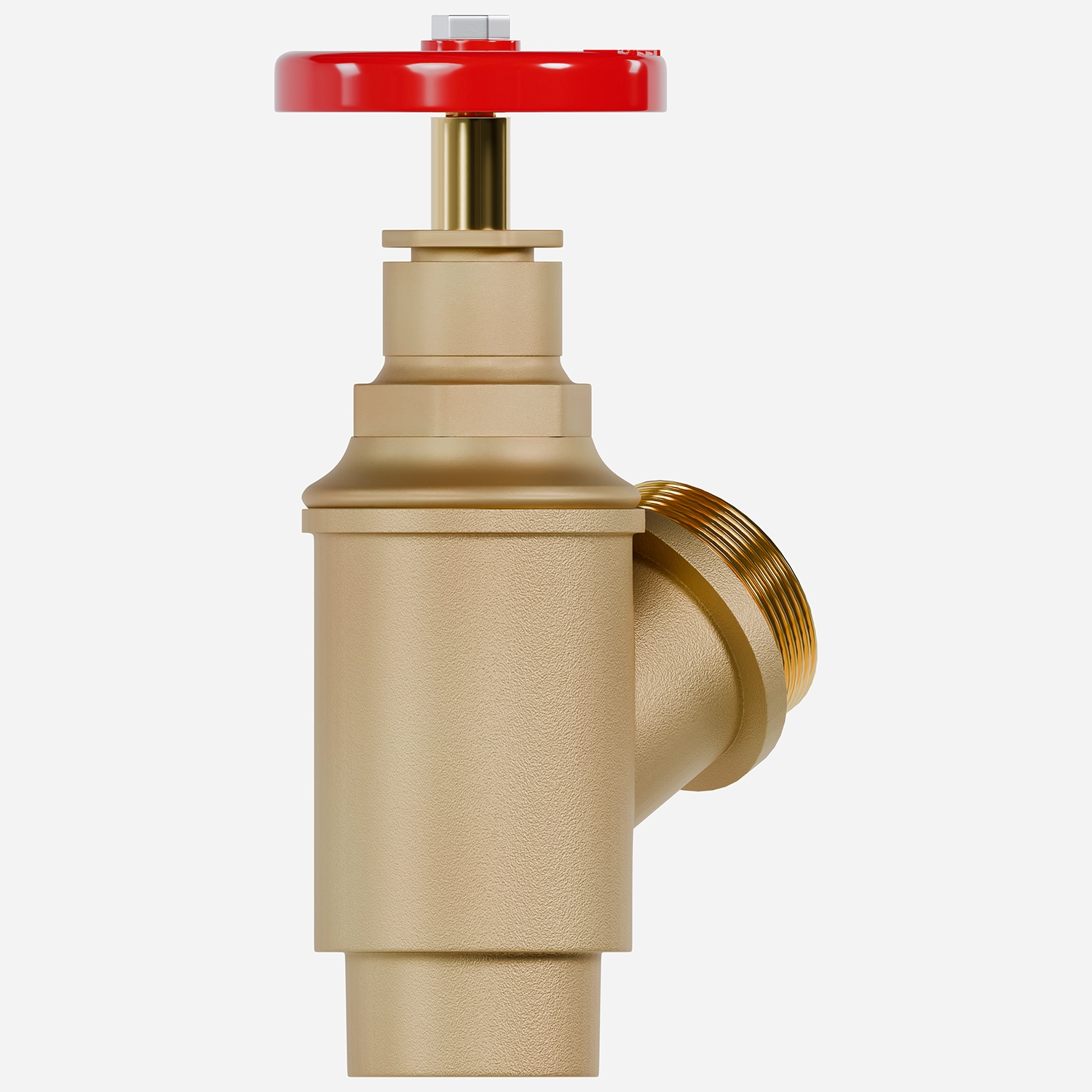

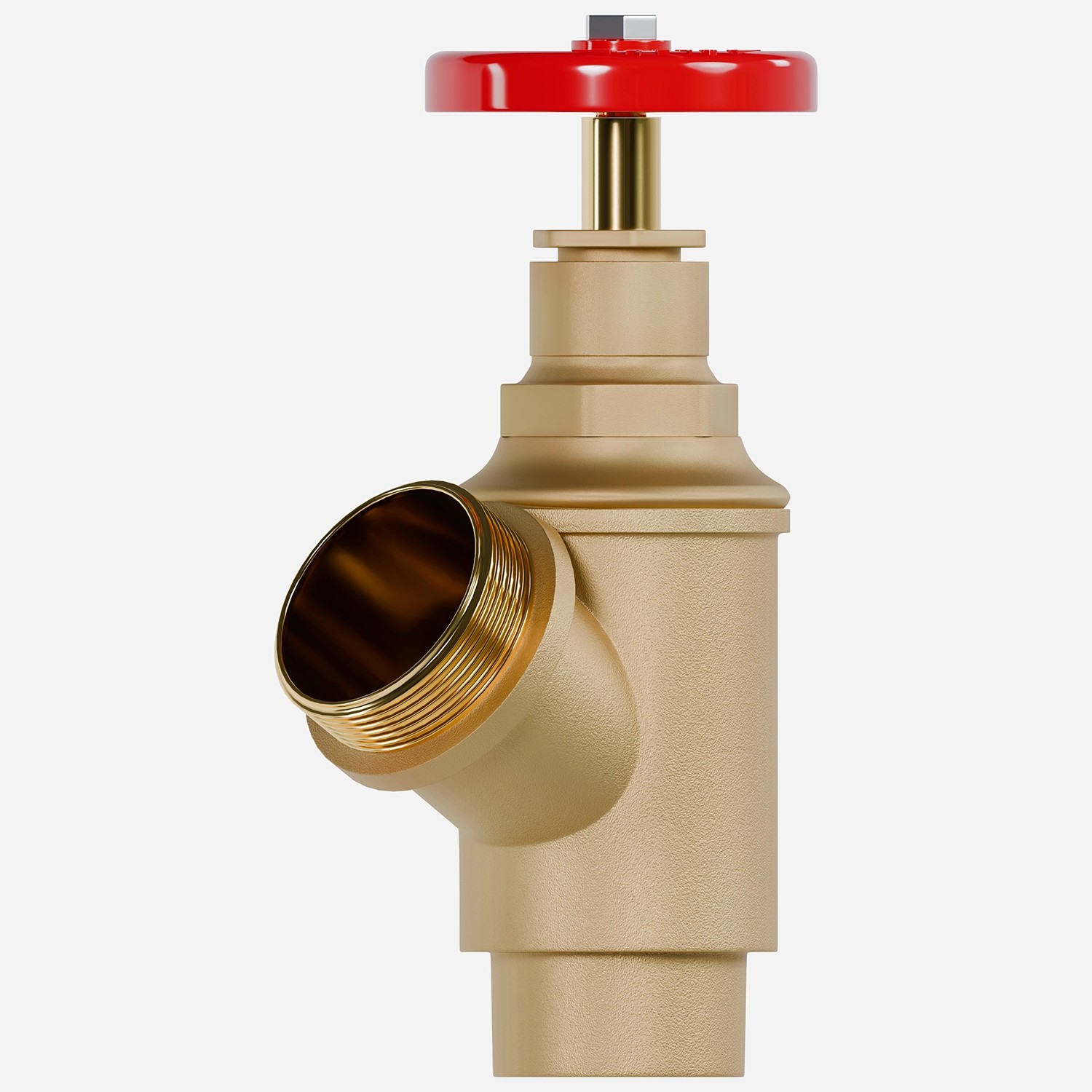

Model 4130
Chicago Pattern Hose Valve
For Use as Fire Department Outlet Connection, with a Fire Hose Rack Assembly, or a Drain Valve
CHICAGO PATTERN VALVES, cast brass valve with rubber seat and aluminum handwheel. 1-1/2" Male N.P.T. inlet x 1-1/2" Male N.S.T. outlet. 175 psi rated
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Globe Type Valve [Female x Male 4110, 4115; Female x Female 4119, 4120, 4125; 1-1/2" Male NPTx Male NST Chicago Pattern 4130] | 828 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026] | 13 MB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Body Type | Angle, 30° |
| Inlet | 1.5" Male NPT |
| Outlet | 1.5" NST Male |
| Handle Type | Wheel Handle |
