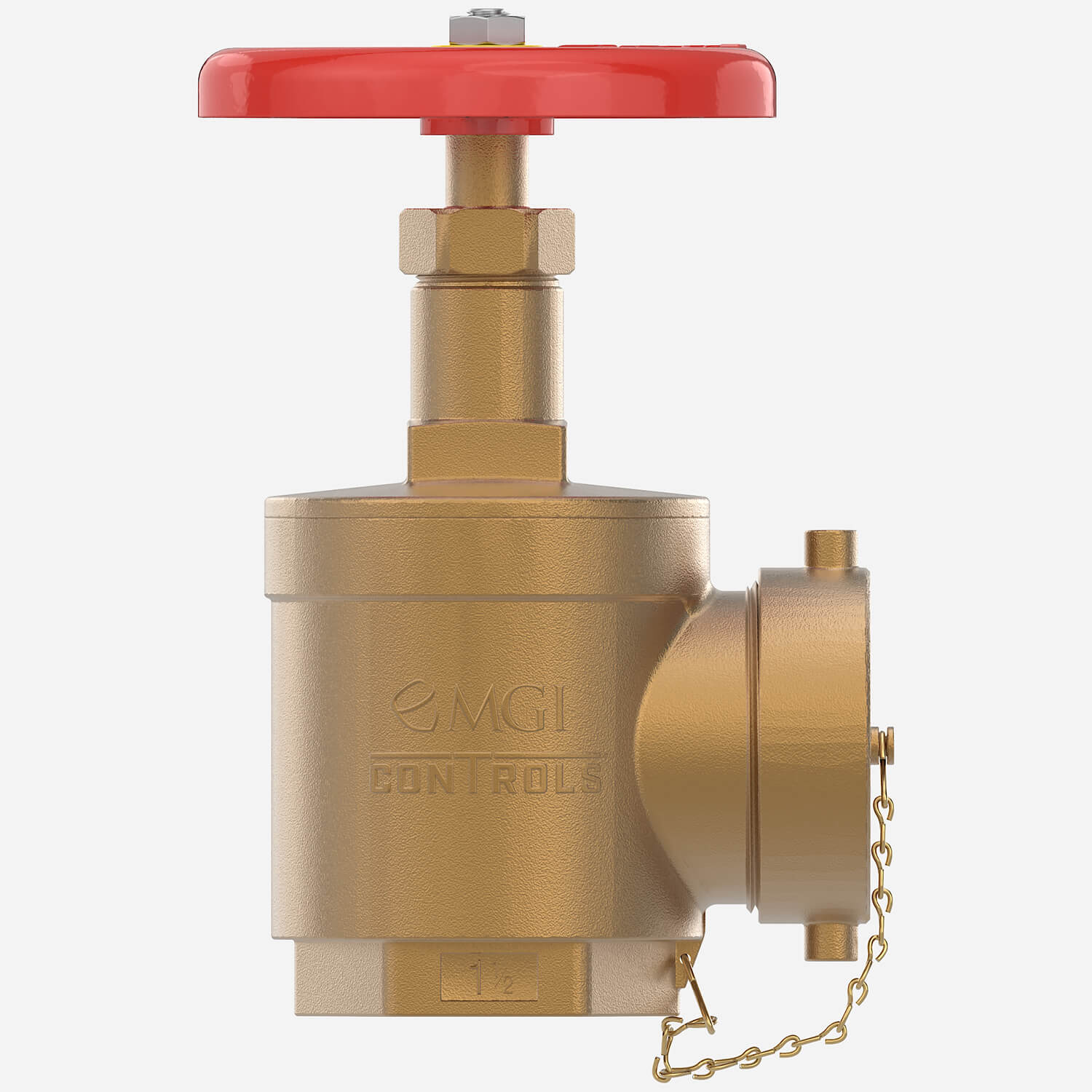

Model 4060 and 4065
Angle Hose Valve - Female x Male
For Use as a Fire Department Valve or Fire Pump Test Valve - Female x Male
Cast brass valve with red hand wheel, Female NPT inlet x male hose thread outlet. 300 psi
Available Models
4060, 4065
Refer to the catalog page and/or "Product Models" Section below for more information.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Angle Hose Valve - Female x Male [1-1/2" Valves 4060, 4060-EV, 4060-P; 2-1/2" Valves 4065, 4065-EV, 4065-EV-GRV, 4065-P, 4065-P-GRV, 4065-500. Caps & Flanges 4615, 4625, 4711, 4712] | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026] | 2 MB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Outlet | 1.5" Male Hose Thread, 2.5" Male Hose Thread |
| Inlet | 1.5" Female NPT, 2.5" Female NPT |
| Body Type | Angle |
| Pressure | 300 PSI, 500 PSI |
| Handle Type | Wheel Handle |
| UL | UL Listed |
| UL Models | All models in this series |
| FM | FM Compliant, Contact Potter Roemer for details |
| Thread | Must be specified by customer |
| Options | -RL | Rocker Lug |
| Brand | MGI ConTrols™ |
Models

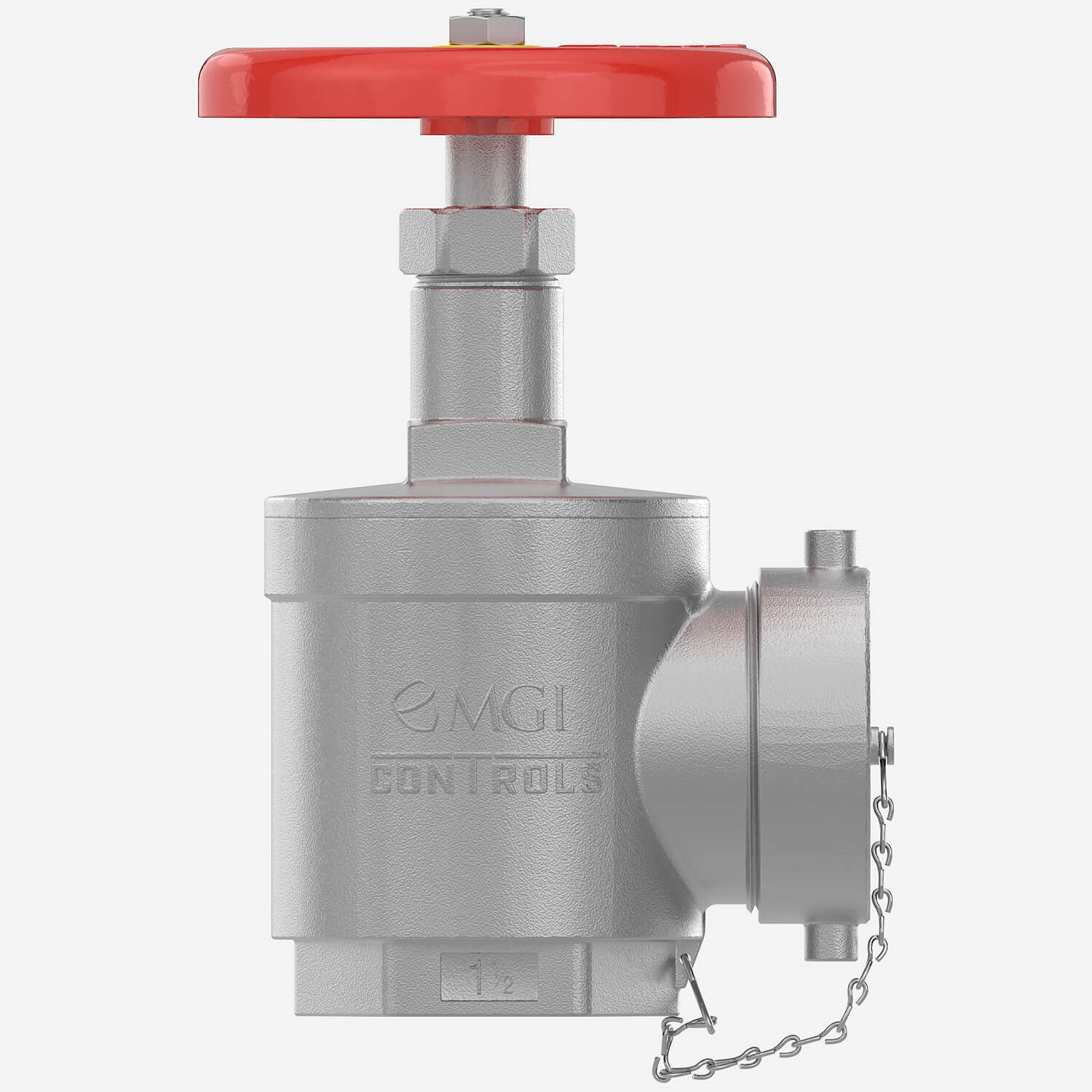

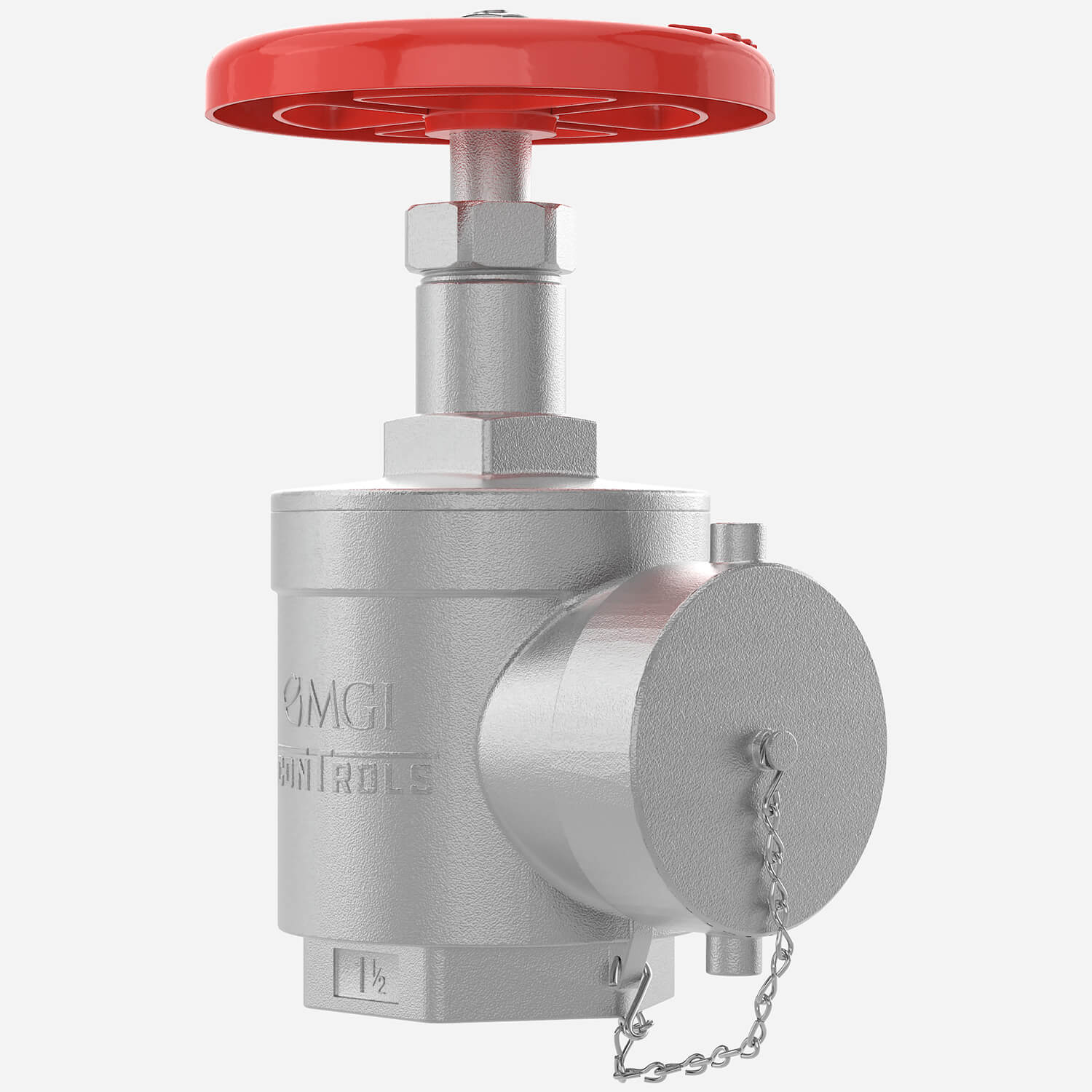

4060 Series | 1-1/2" Valves
- 4060 | 1-1/2" NPT Female x Male Angle Valve <FM>

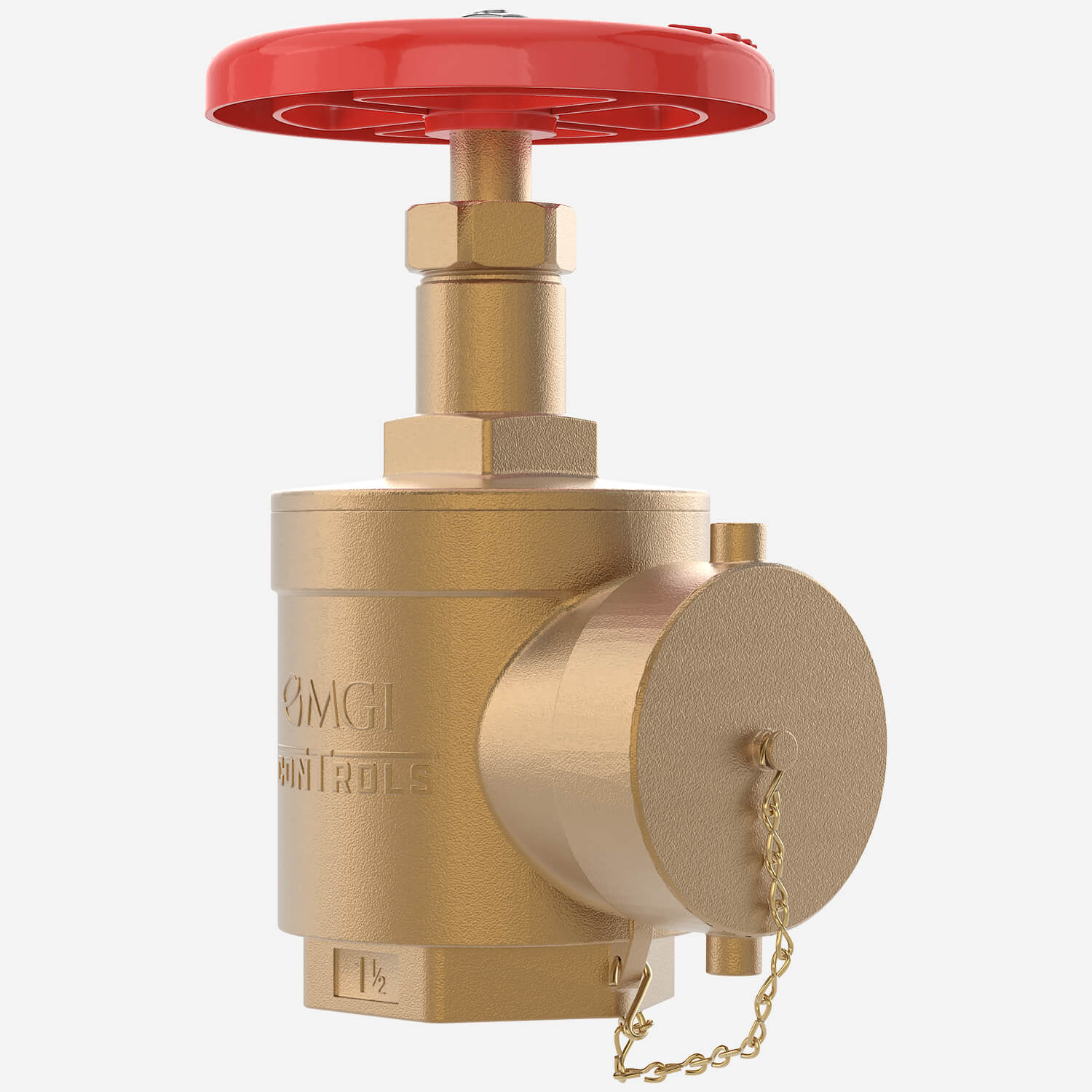

- 4060-EV | 1-1/2" NPT Female x Male Angle Valve <FM> Buy American
- 4060-P | 1-1/2" NPT Female x Male Angle Valve <FM> Domestic Manufactured, silver handwheel

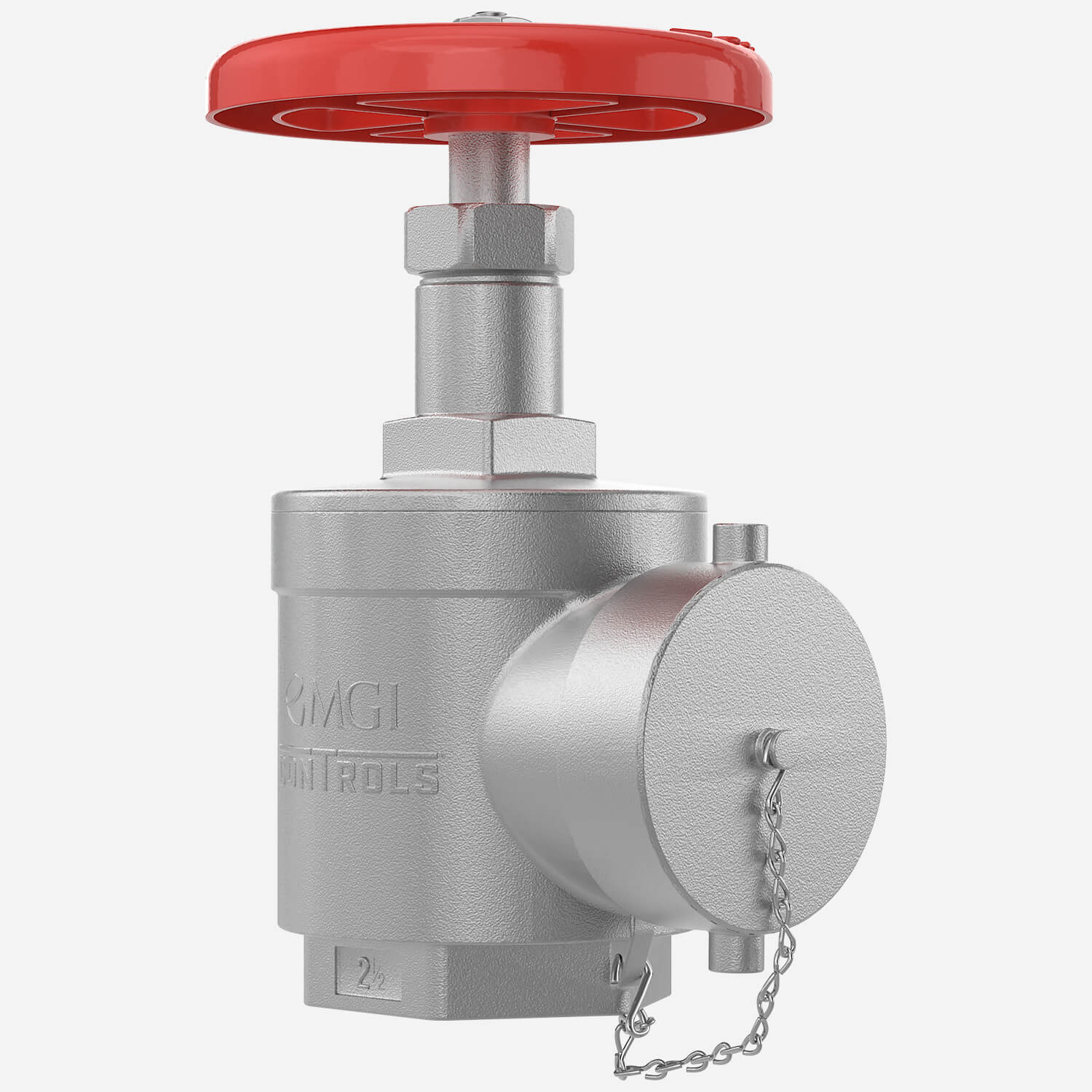

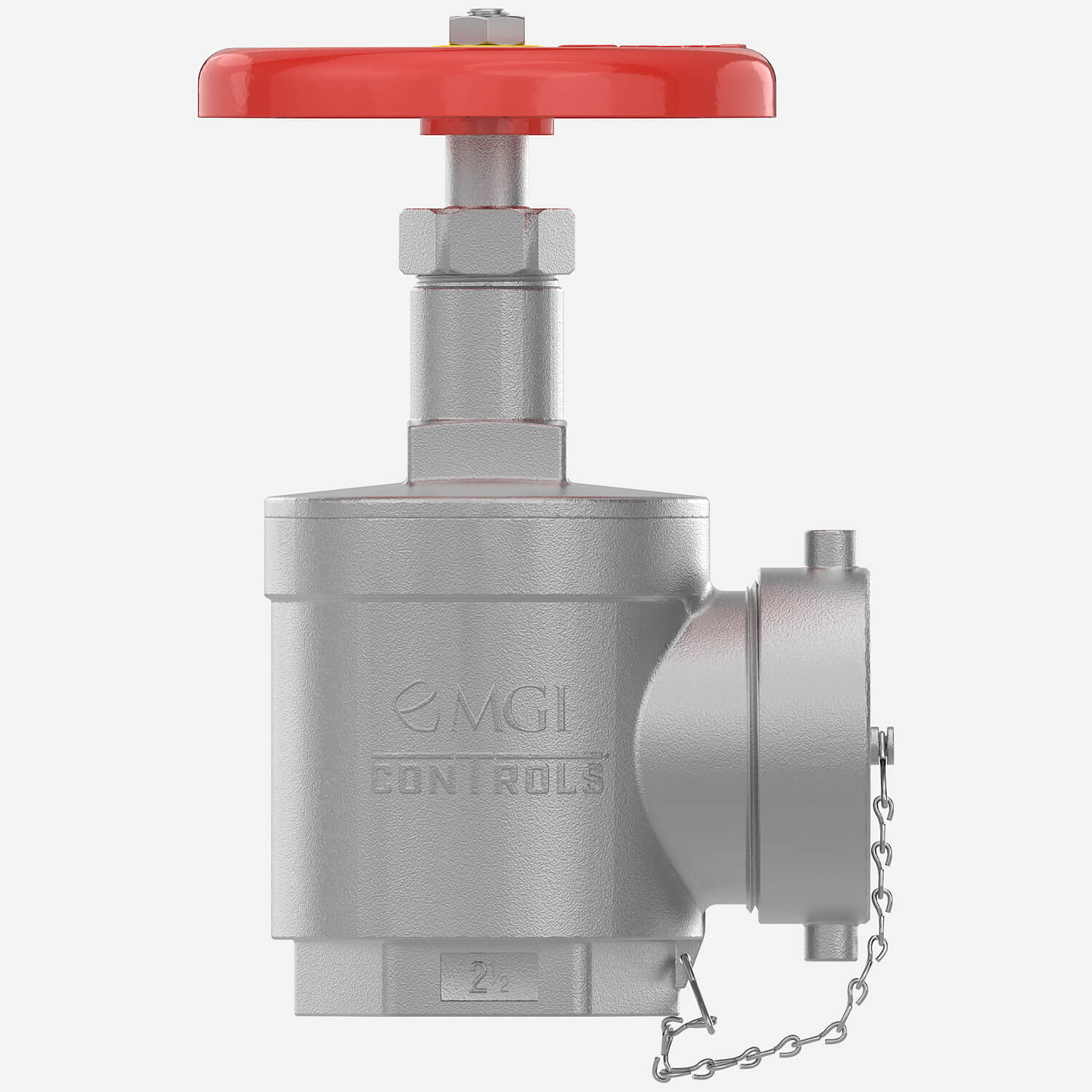

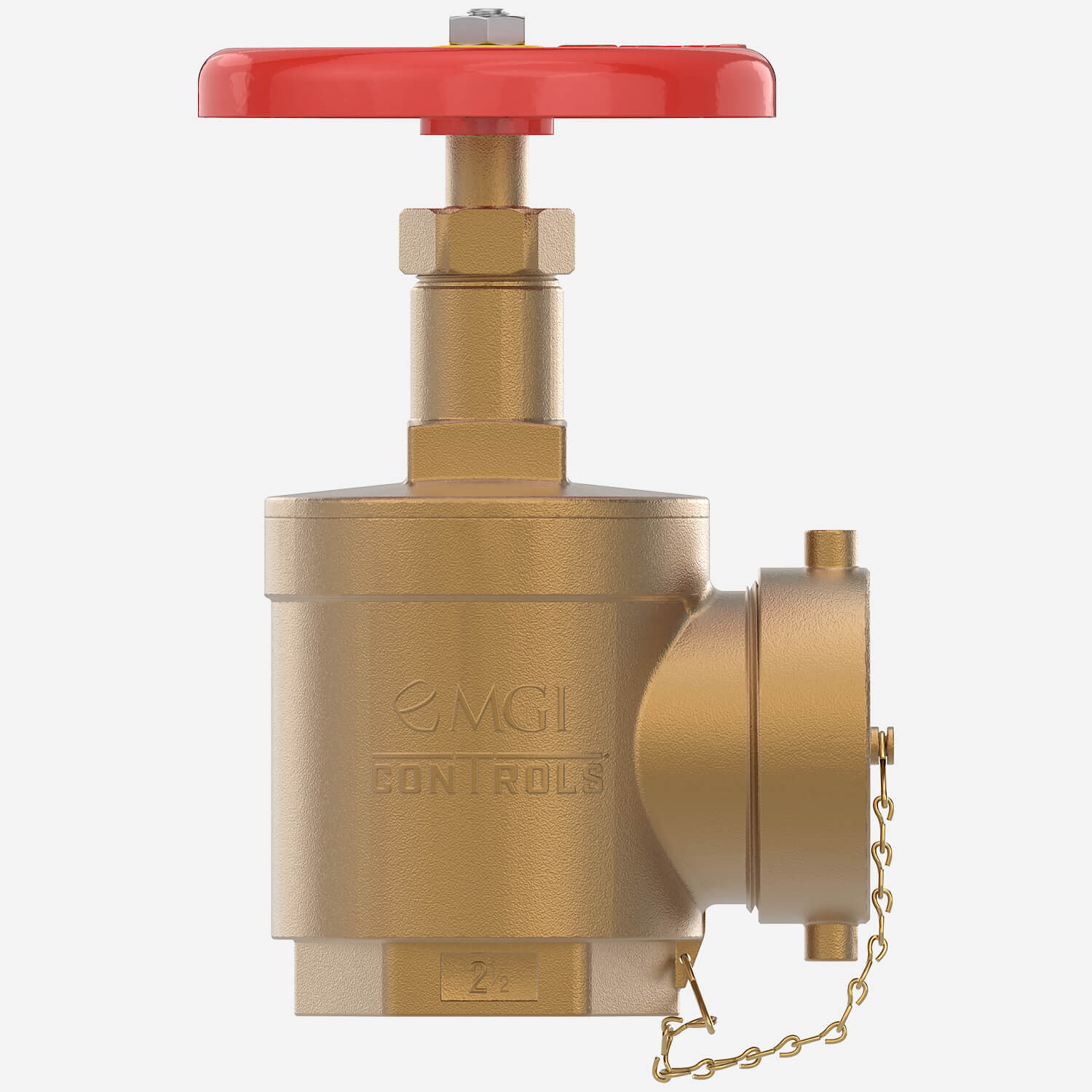

4065 Series | 2-1/2" Valves
- 4065 | 2-1/2" NPT Female x Male Angle Valve <FM>
- 4065-GRV | 2-1/2" Grooved x Male Angle Valve <FM>

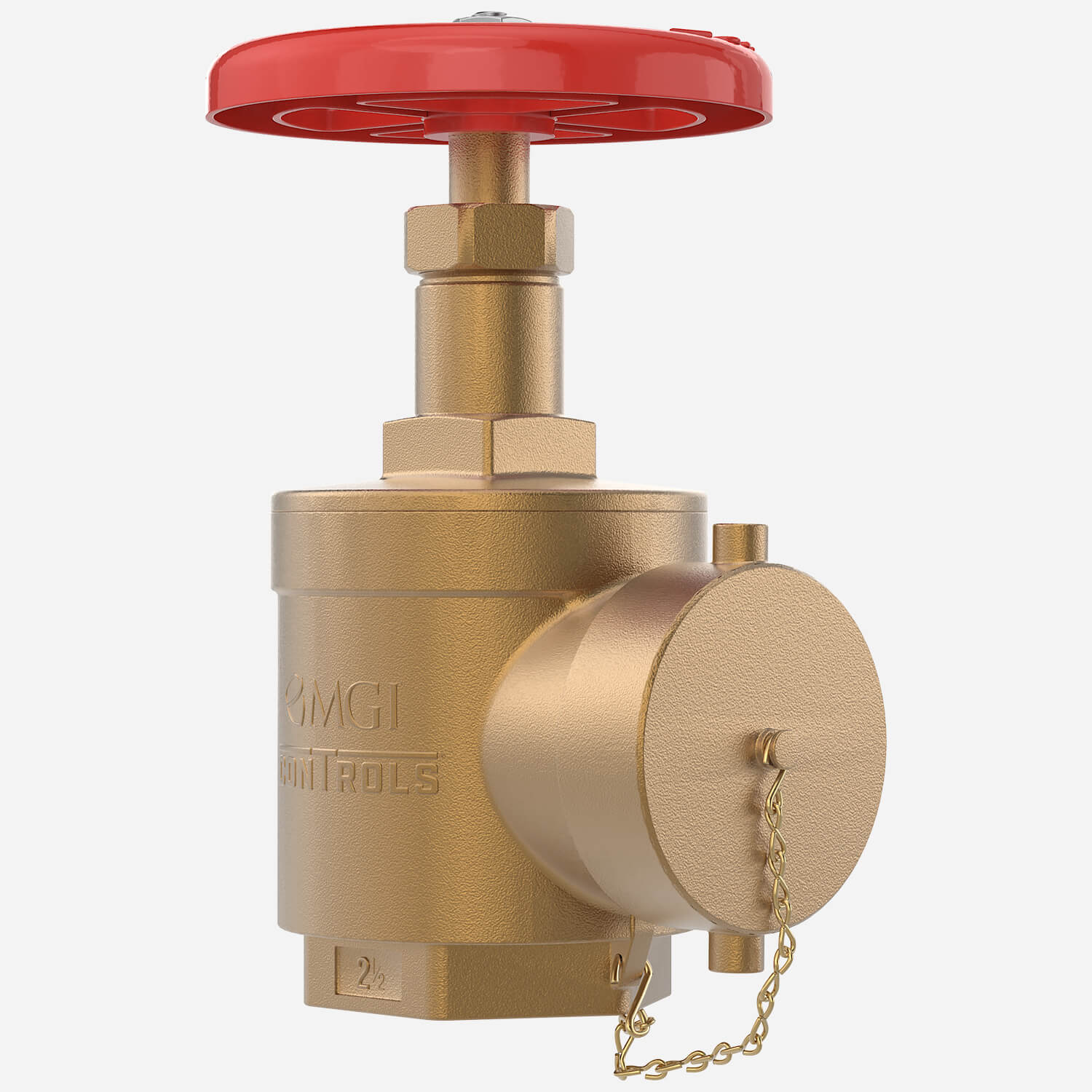

- 4065-EV | 2-1/2" NPT Female x Male Angle Valve <FM> Buy American
- 4065-EV-GRV | 2-1/2" Grooved x Male Angle Valve <FM> Buy American
- 4065-P | 2-1/2" NPT Female x Male Angle Valve <FM> Domestic Manufactured, silver handwheel
- 4065-P-GRV | 2-1/2" Grooved x Male Angle Valve <FM> Domestic Manufactured, silver handwheel
500 psi
- 4065-500 | 2-1/2" NPT Female x Male Angle Valve 500 psi rated Buy American
- 4065-500-GRV | 2-1/2" Grooved x Male Angle Valve 500 psi rated Buy American
Optional Caps

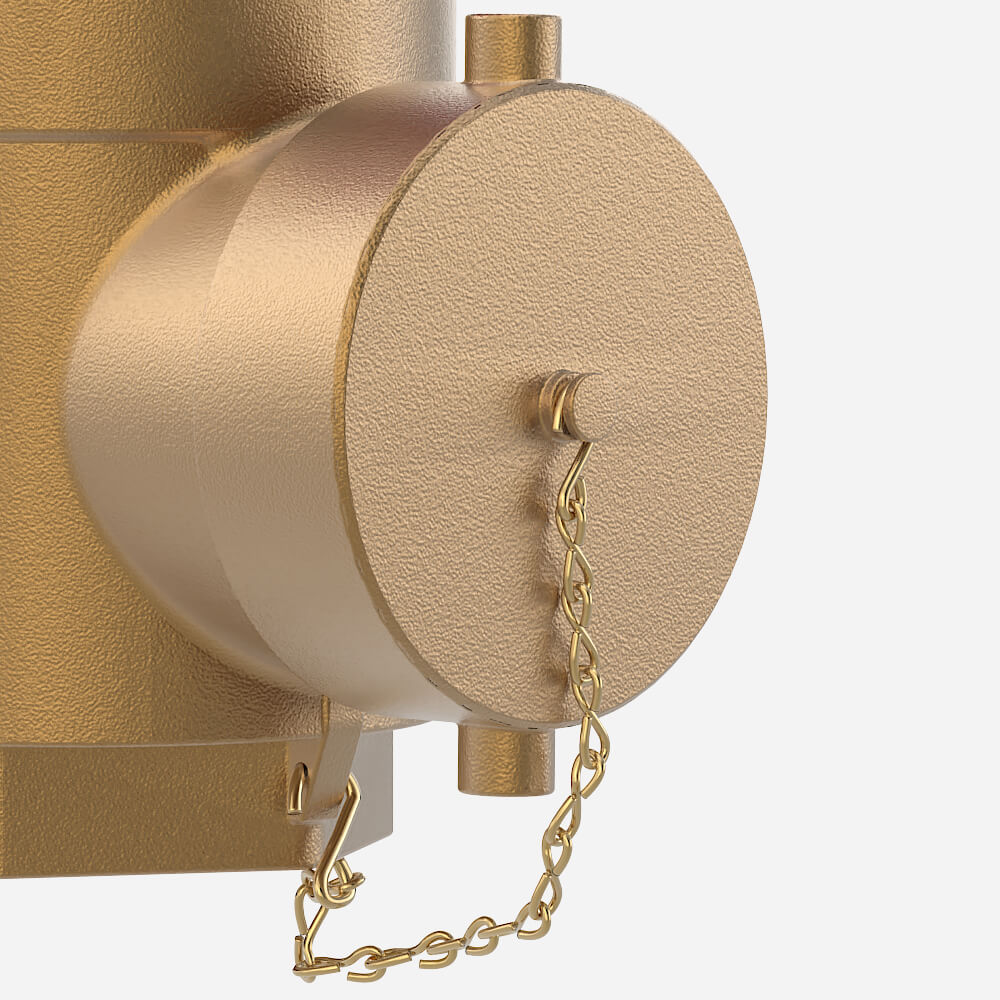

- 4615 | 1-1/2" Cap with Chain
- 4625 | 2-1/2" Cap with Chain
Optional Flange

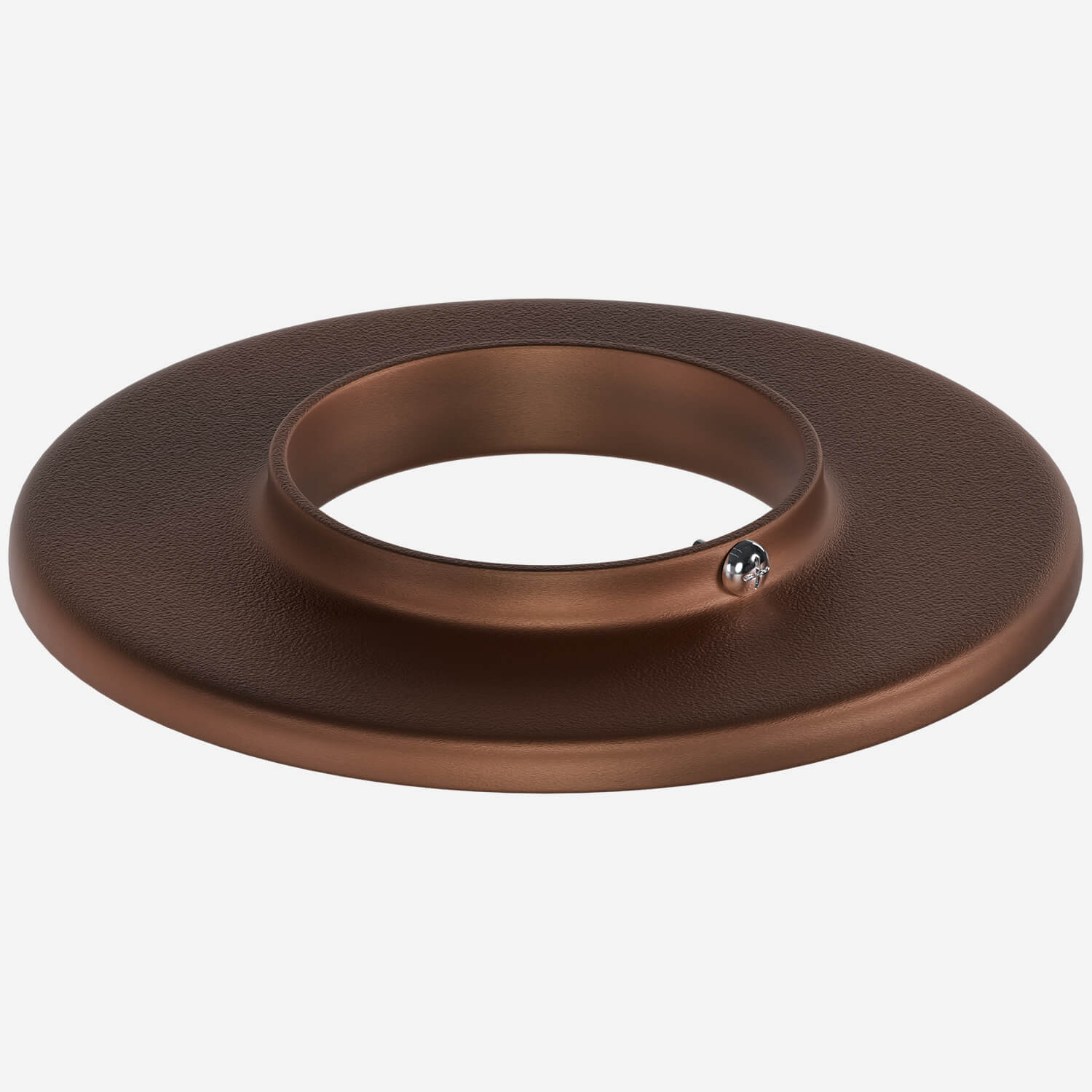

- 4711 | 1-1/2" Flange
- 4712 | 2-1/2" Flange
