Member of Morris Group International

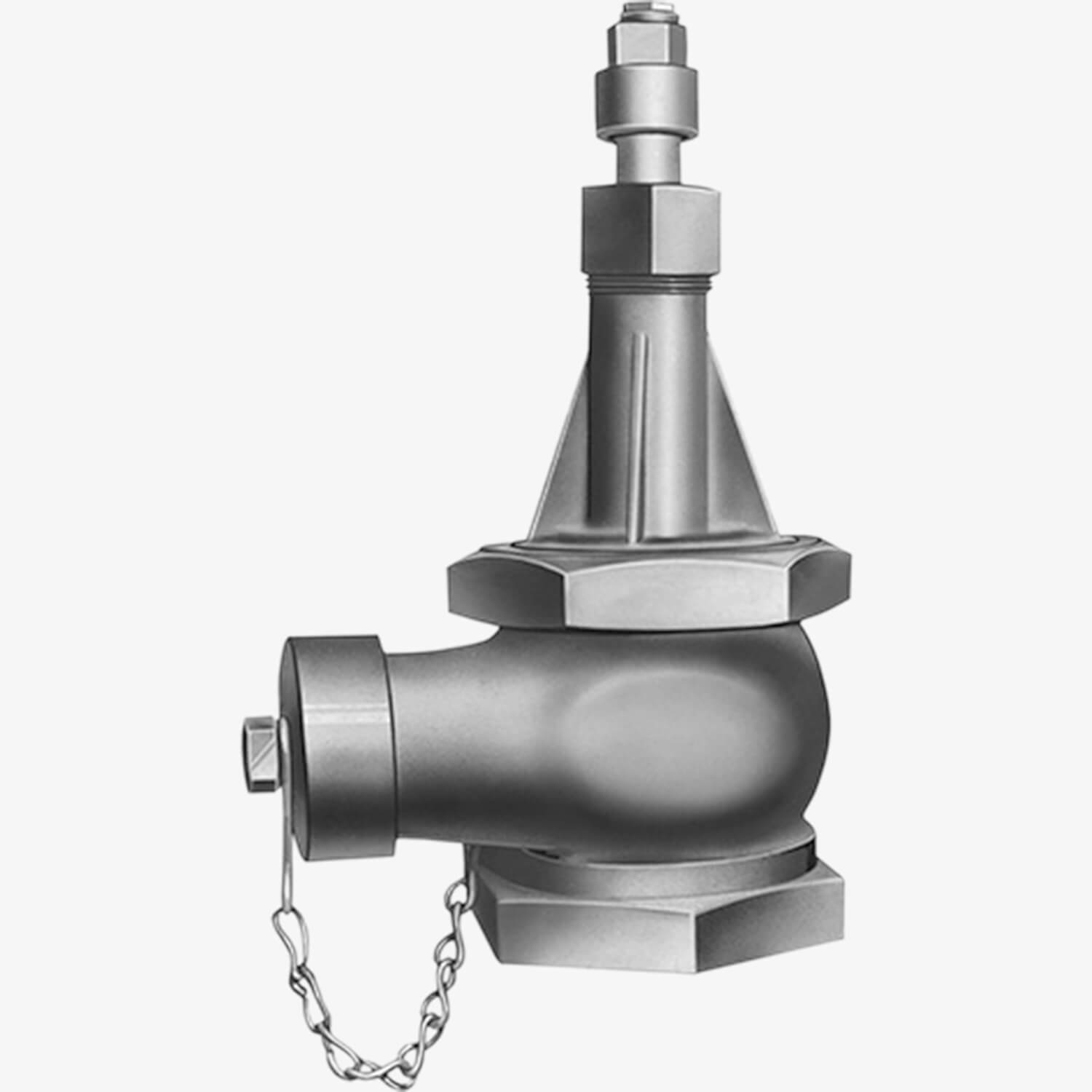

Model 4141 thru 4143
Hydrant Hose Valves
For use as a fire department outlet connection
These hydrant valves are used as a fire dept outlet connection and are designed to prevent unauthorized use. The valve is made of cast brass with a brass pentagonal operating nut cap and chain. Sizes include 1.5" (Model 4141) 2.5" (Model 4142) and 4" x 2.5" (Model 4143) Female NPT inlet x male hose thread outlet and each model is rated for 300 PSI (20.6 bars).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Hydrant Hose Valve [Model 4141 1-1/2 Inch Size; Model 4142 2-1/2 Inch Size; Model 4143 4 x 2-1/2 Inch Size] | 0 | 592 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Valve |
| Body Type | Angle |
| Pressure | 300 PSI |
| Inlet | 1.5" Female NPT, 2.5" Female NPT, 4" Female NPT |
| Outlet | 1.5" Male Hose Thread, 2.5" Male Hose Thread |
| UL | UL Listed |
| UL Models | 4141, 4142 |
Models
4141 | 1-1/2" Female NPT inlet x 1-1/2" Male hose thread, U/L Listed 4142 | 2-1/2" Female NPT inlet x 2-1/2" Male hose thread, U/L Listed 4143 | 4" Female NPT Inlet x 2-1/2" Male hose thread
