Model 4305 thru 4335
Hose Gate Valves with Non-Rising Stem

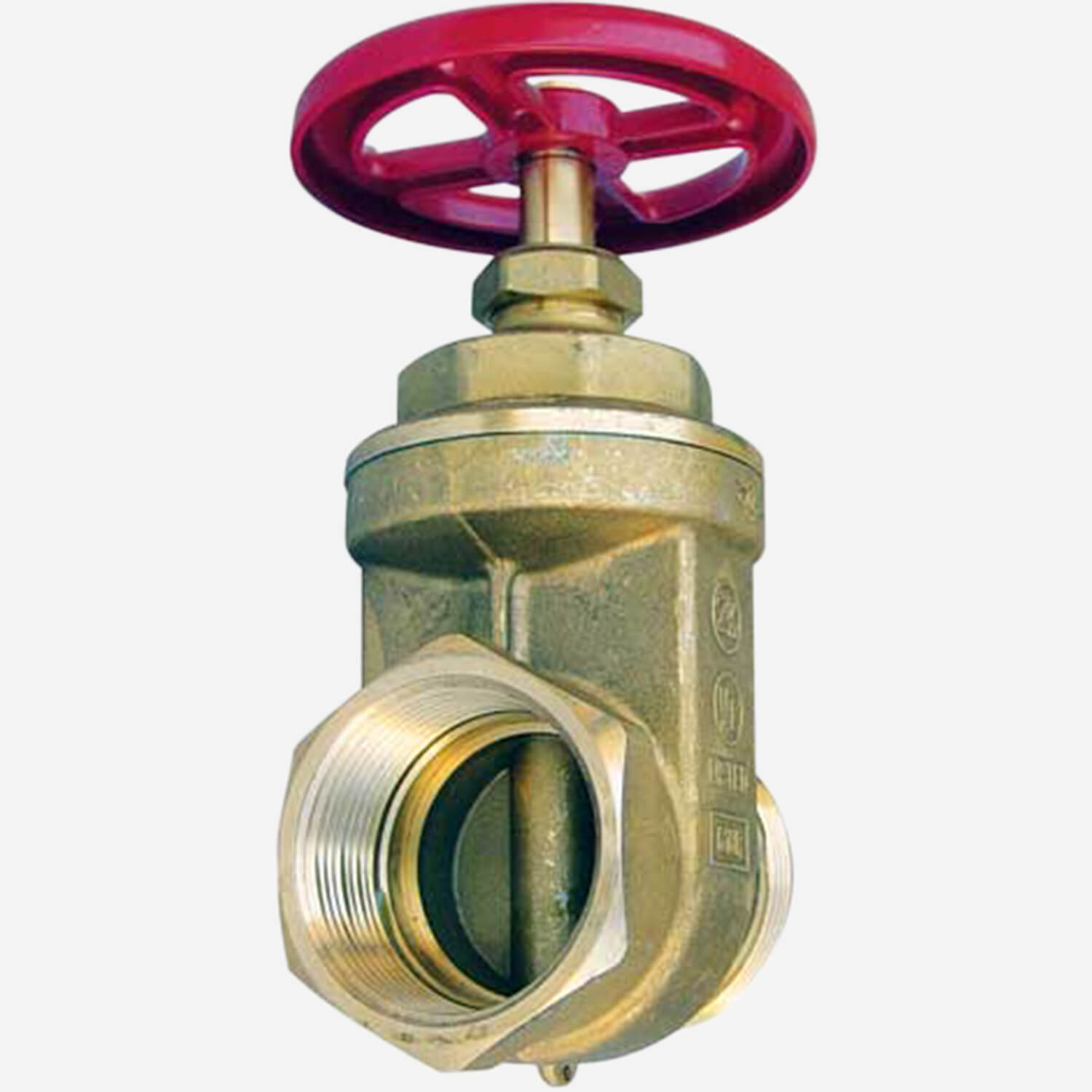

This Hose Gate Valve is intended for use as a fire dept outlet connection designed for dry systems only and is suitable for use as a pump test valve. The valve is cast brass with a non-rising stem feature which requires less installation space and a red handwheel. The valve comes in three sizes; 1.5”(Model 4335) 2.5” (Model 4315) or 3”x 2.5” (Model 4335) and has a Female NPT inlet and male hose thread outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Hose Gate Valves designed for Dry Systems [Rising Stem Models 4215 and 4235; Non-Rising Stem Models 4305, 4315, 4335; No-Rising Stem Model with Swivel Inlet 4365] | 0 | 801 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Handle Type | Wheel Handle |
| Pressure | 200PSI, 300PSI |
| Inlet | 1.5" Female NPT, 2.5" Female NPT, 3" Female NPT |
| Outlet | 1.5" Male Hose Thread, 2.5" Male Hose Thread |
| UL | UL Listed |
| UL Models | 4315 and 4335 only |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
