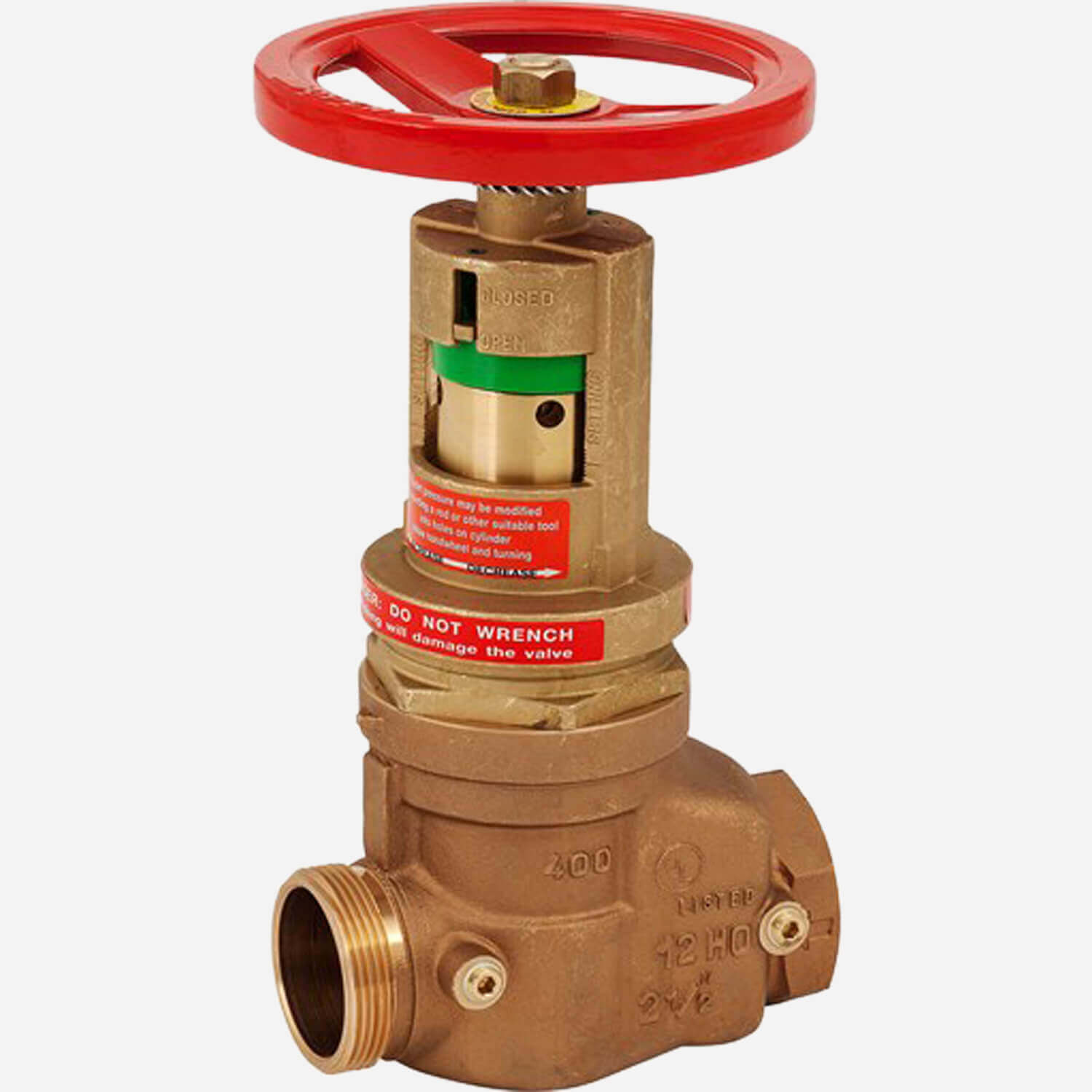

Model 4033-FA5
Reg-U-Matic® Pressure Reducing Hose Valves
FEATURES
- Reduces pressure underflow and no-flow conditions
- Static pressure rated up to 400 PSI (26.7 BARS)
- Flow rated up to 500 gallons (1893 liters) per minute
- 4 pressure gauge taps on both inlet and outlet
- Built in automatic check valve
- Outlet pressure range 65-175 PSI (4.5 BARS to 12 BARS)
- UL listed, complies with NFPA-14
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Reg-U-Matic® Pressure Reducing Hose Valves [4033-FA5 | angle valve 2-1/2" Female NPT x Male hose threads; 4035-FA5 | inline valve 2-1/2" Female NPT x Male hose threads; 4038-FA5 | angle valve 2 1/2" Female NPT x Female NPT] | 0 | 1 MB |
Specifications
| Material | Brass Body, Red Powder Coat Aluminum Hand Wheel |
| Body Type | Angle, Straight |
| Inlet | 2.5" Female NPT |
| Outlet | 2.5" Male Hose Thread, 2" Female NPT |
| Pressure | Status pressure up to 400 PSI, Outlet pressure 65 to 175 PSI |
| GPM | up to 500 GPM |
| Optional Finish | -C | Rough Chrome |
| Thread | NST, Other (specify) |
| UL | UL Listed, NFPA-14 |
| Adjustable | No |
Models
Brass valve with non-rising stem and indicator bonnet. Internal parts of brass and stainless steel, red alloy handwheel

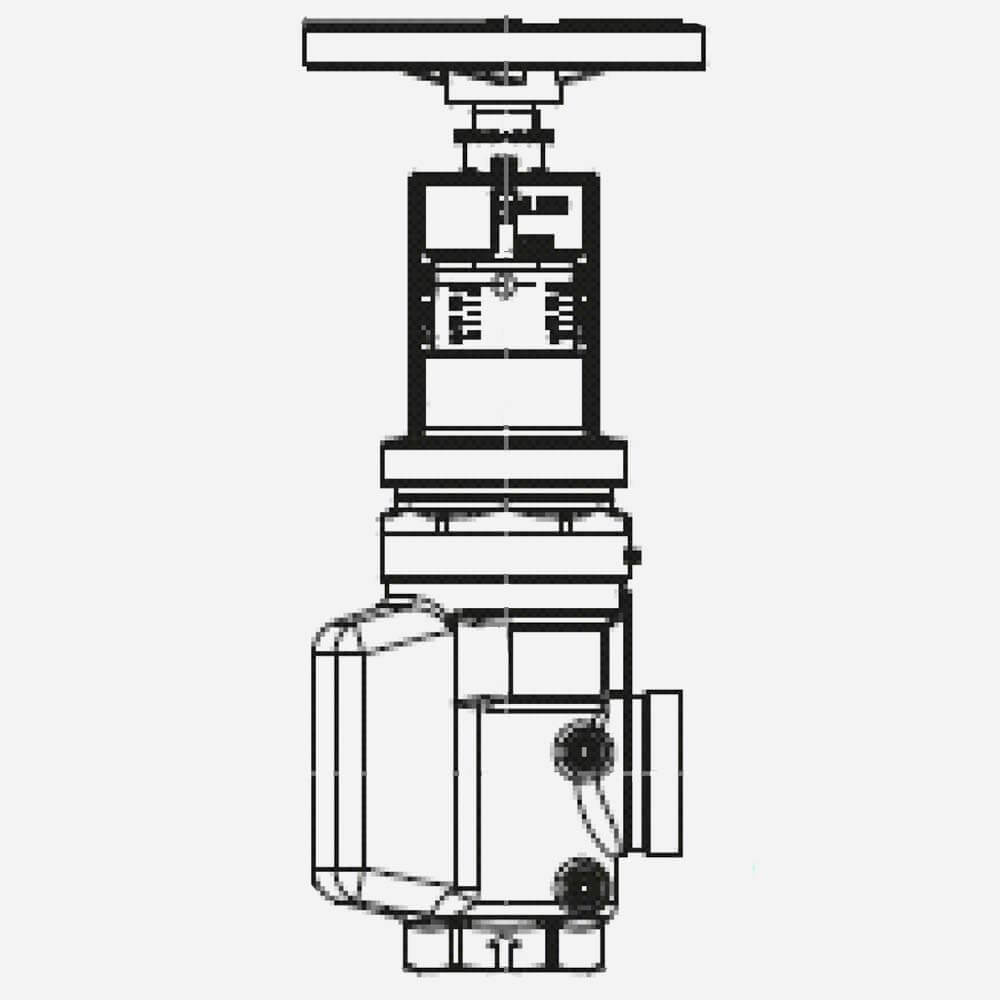

4033-FA5 Angle Valve, 2-1/2" Female NPT x Male Hose Thread

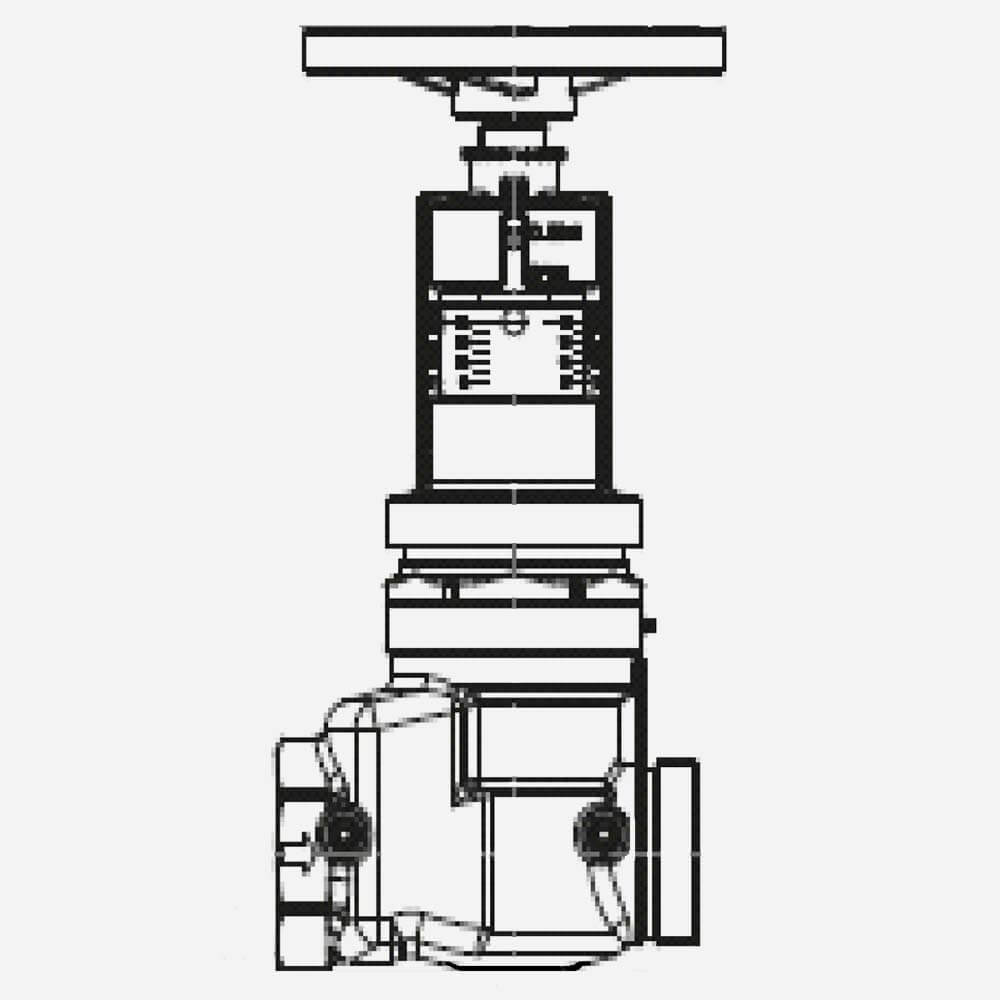

4035-FA5 Inline Valve, 2-1/2" Female NPT x Male Hose Thread

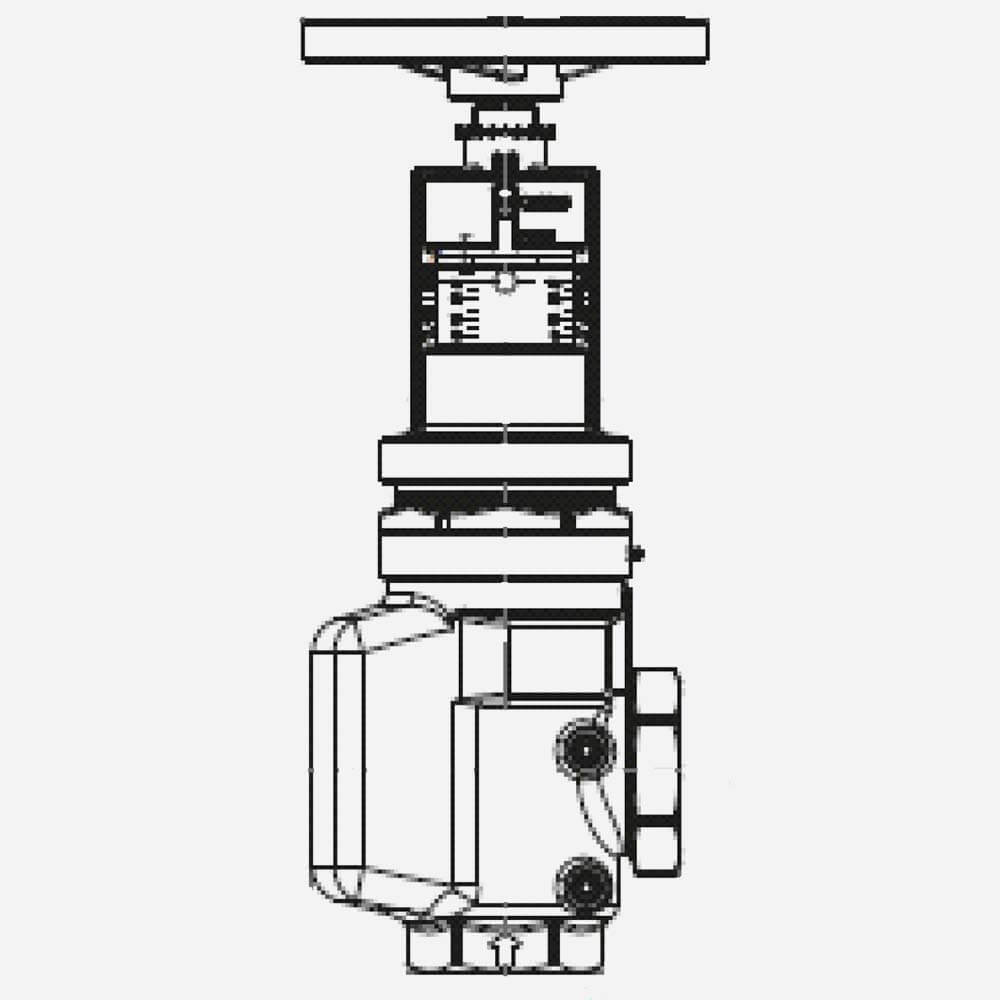

4038-FA5 Angle Valve, 2-1/2" Female NPT x Female NPT
