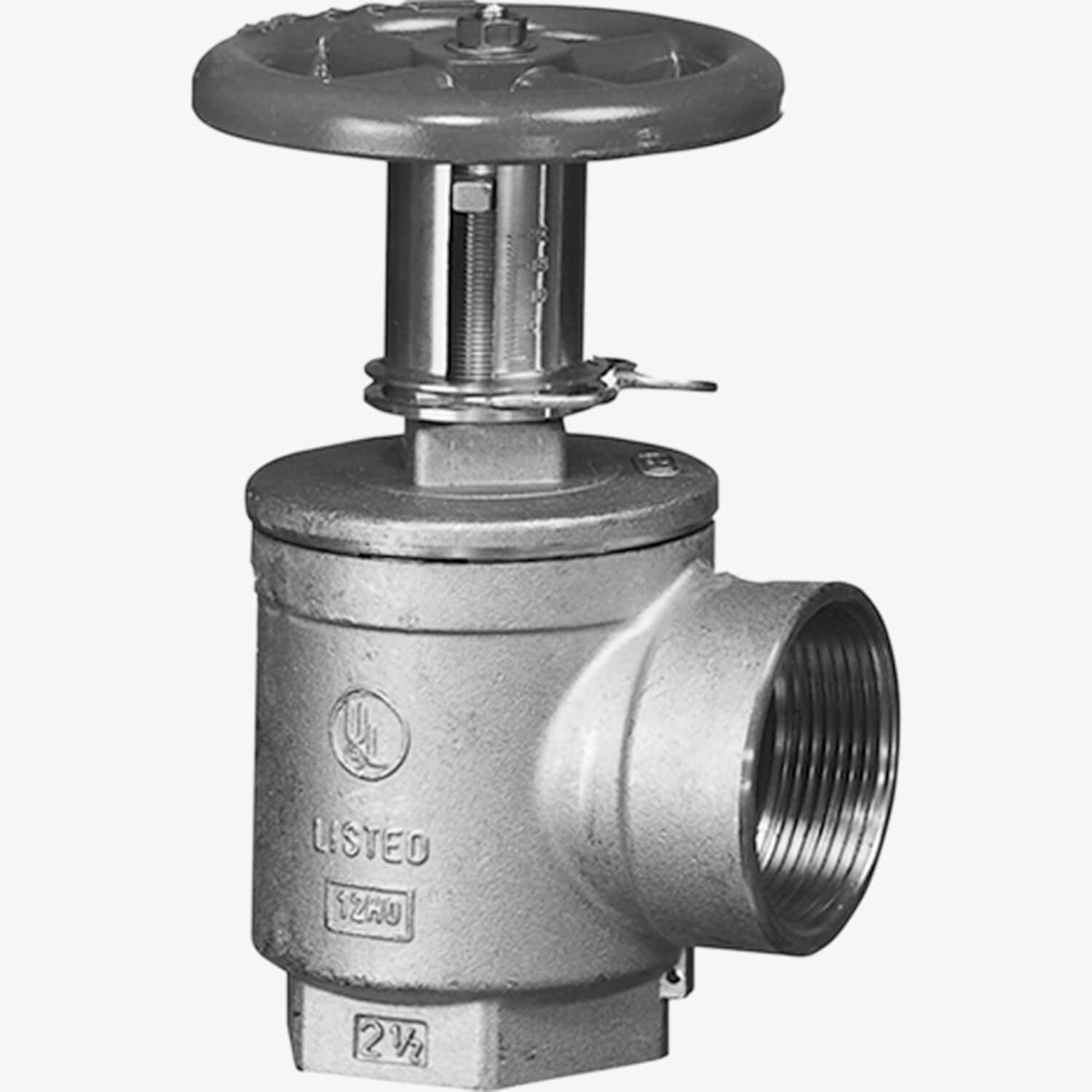

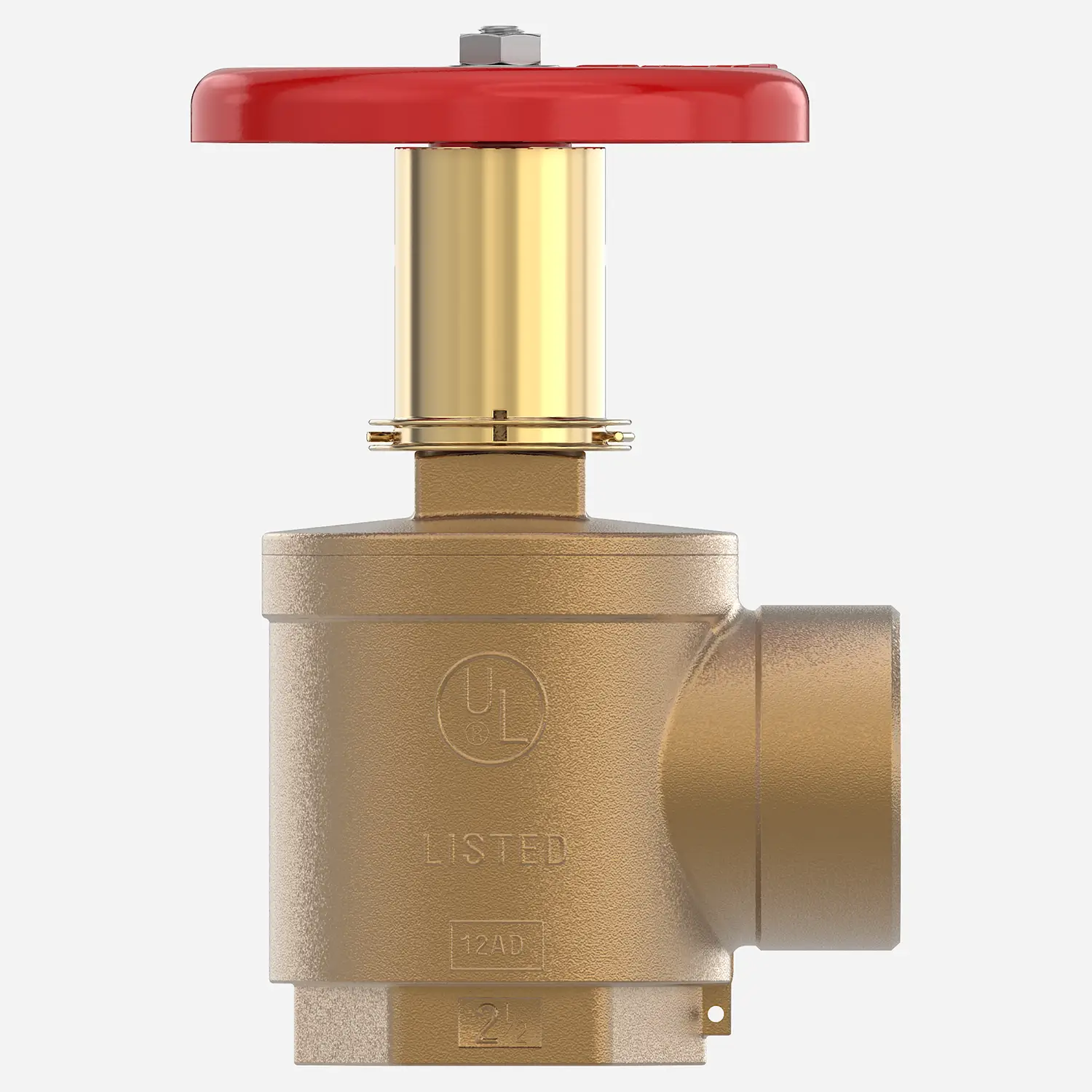

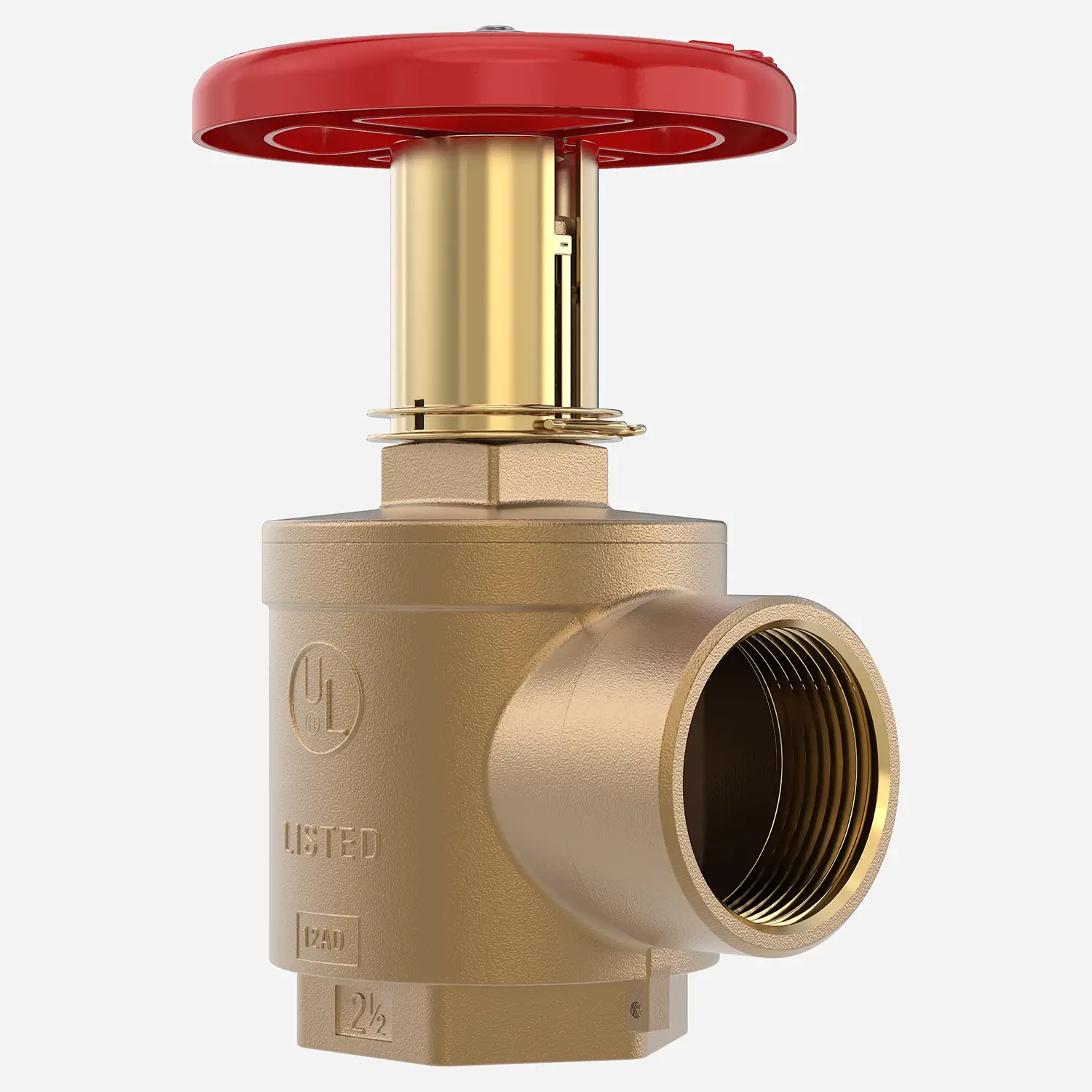

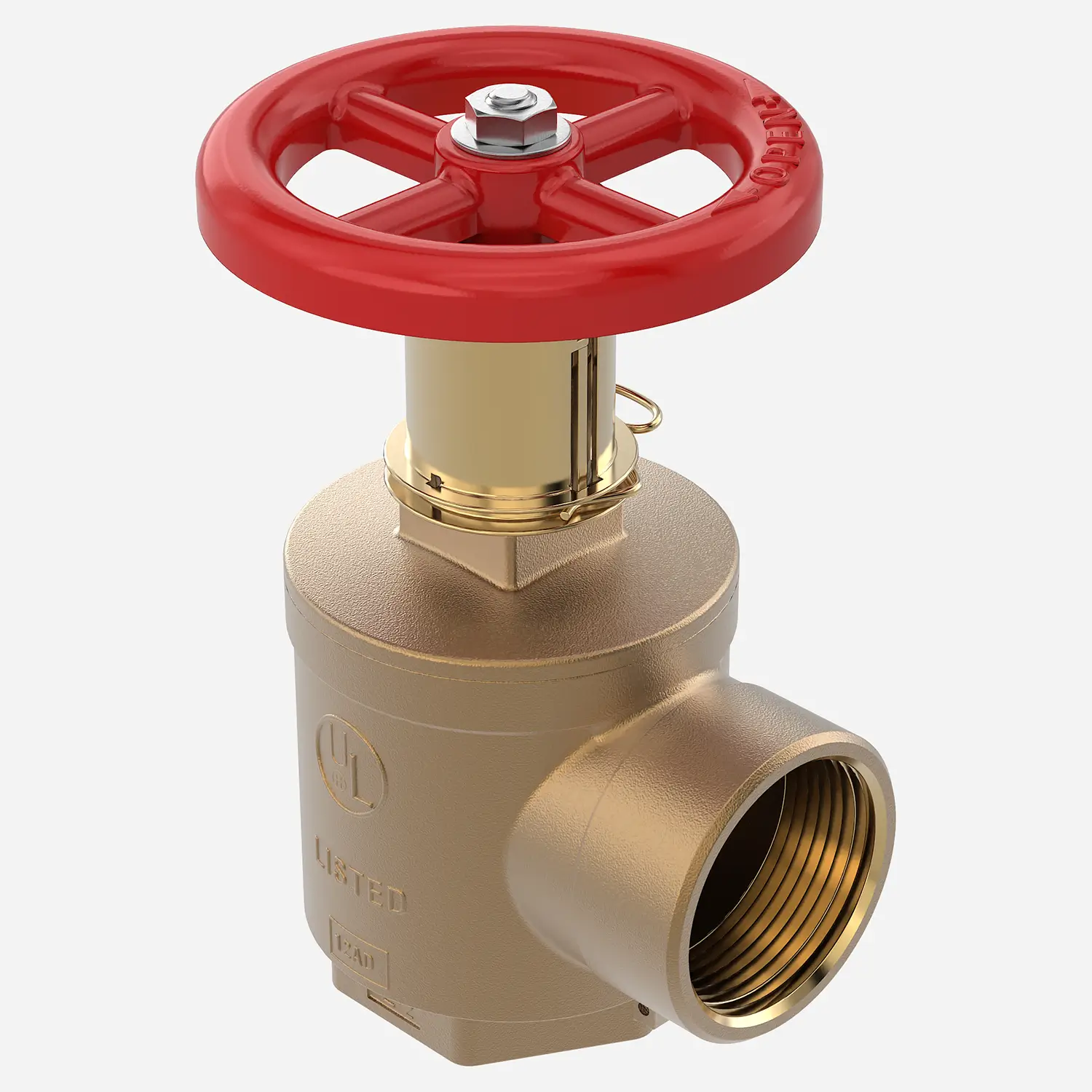

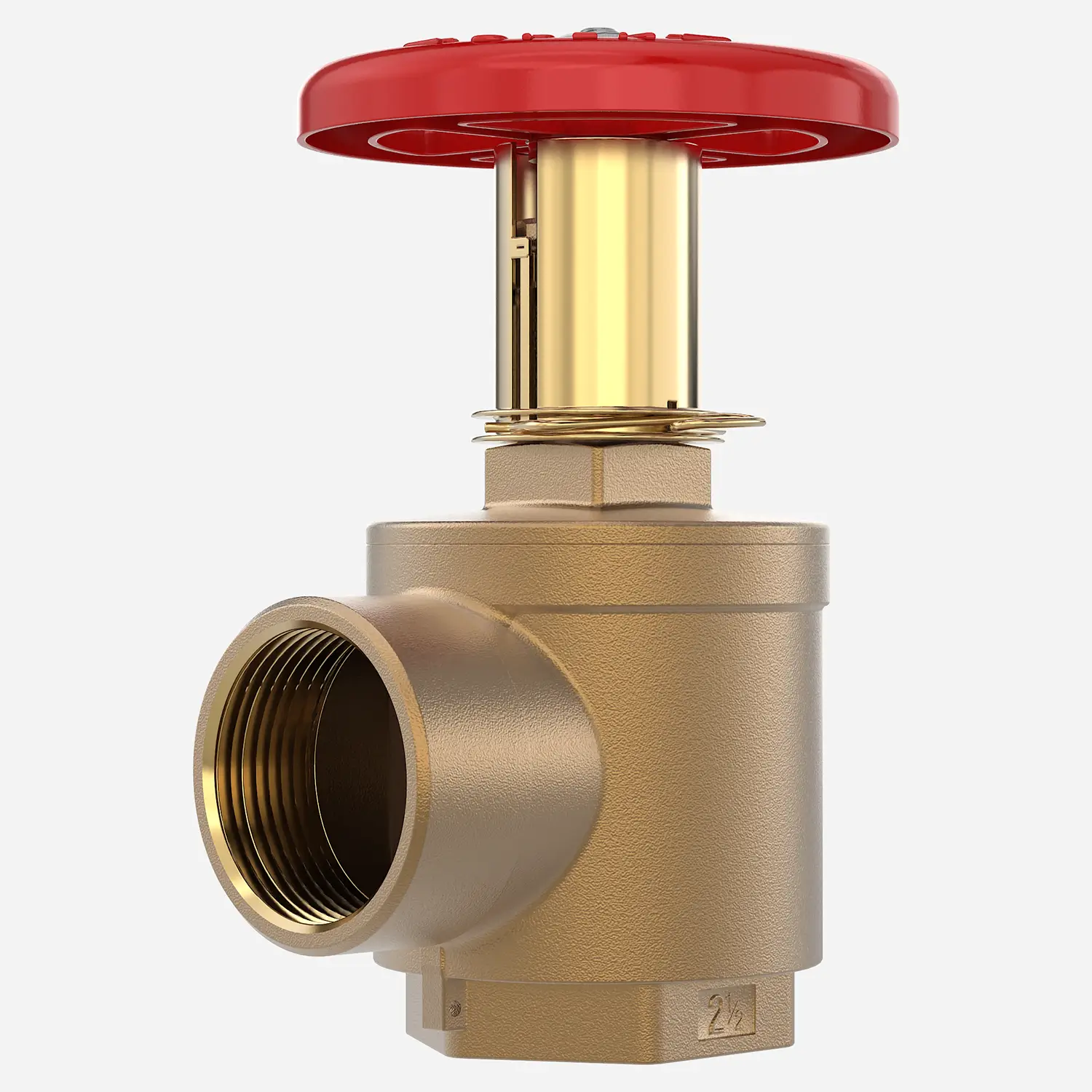

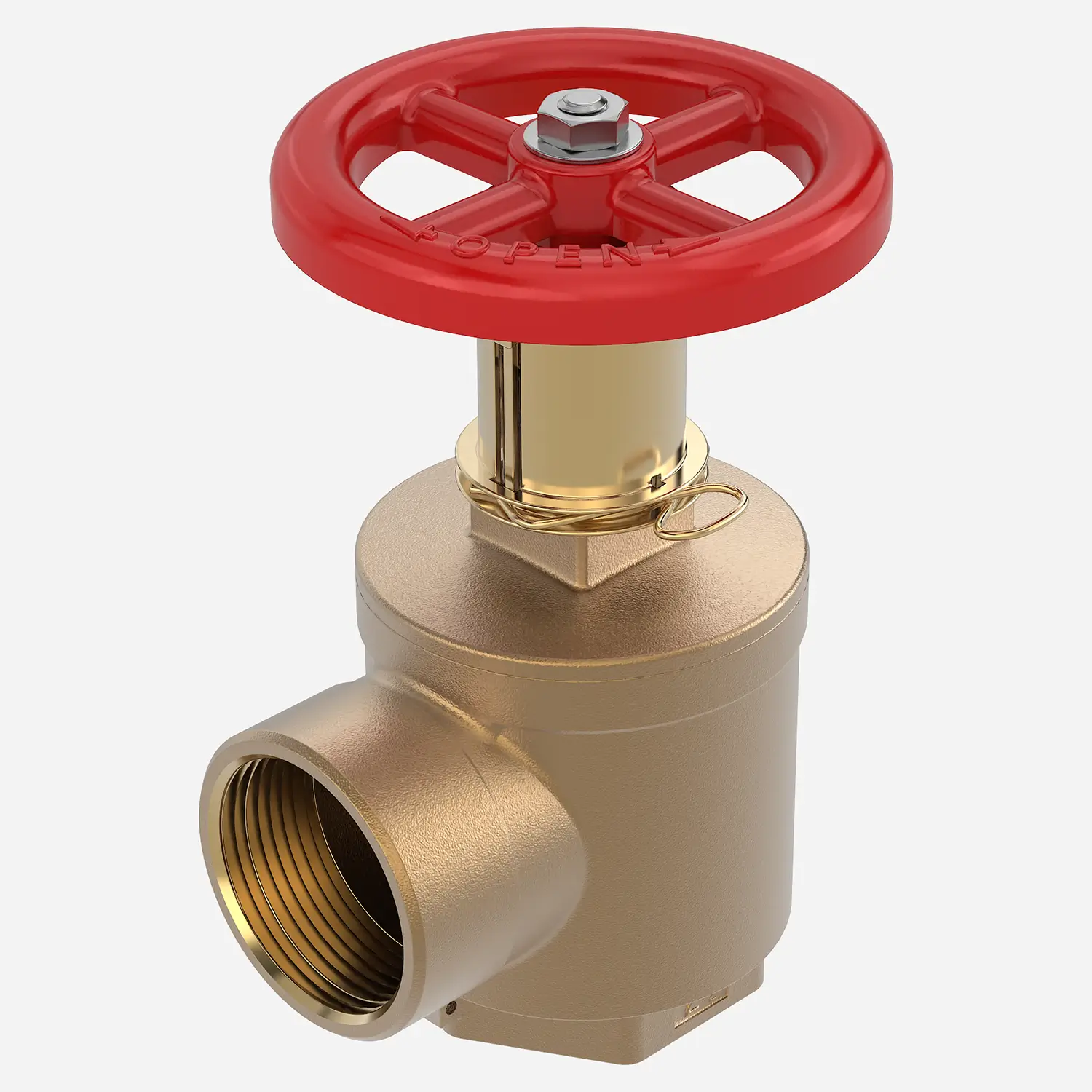

Angle Hose Valve - Pressure Restricting, Adjustable, Female x Female
For Use with a Fire Hose Rack Assembly or as a Fire Department Outlet Connection - Female x Female
This Adjustable Pressure Restricting Angle Hose Valve is used with a fire hose rack assembly. Water pressure is controlled by adjustable flow restriction. If full flow is required the restriction may be overridden. The valve is constructed from cast brass and features a red handwheel with a pressure restricting feature. The valve has a 1.5” (Model 4090) or 2.5" (Model 4095) female NPT inlet and outlet and is rated for 175 PSI/12 bars.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Adjustable Pressure Restricting Hose Valve [1-1/2" Inlet, 1-1/2" Male Outlet 4080, 4080-P, 4080-PR; 2-1/2" Inlet, 2-1/2" Male Outlet 4085, 4085-PR; 1-1/2" Female Inlet/Outlet 4090, 4090-P, 4090-PR; 2-1/2" Female Inlet/Outlet 4095, 4095-P, 4095-PR] | 0 | 800 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Body Type | Angle |
| Pressure | 175 PSI |
| UL Models | All models in this series |
| Thread | Must be specified by customer |
| Inlet | 1.5" Female NPT, 2.5" Female NPT |
| Outlet | 1.5" Female NPT, 2.5" Female NPT |
| Handle Type | Wheel Handle |
| UL | UL Listed |
Models
4090 | 1-1/2" Female NPT x 1-1/2" Female NPT, Buy American 4090-P | 1-1/2" Female NPT x 1-1/2" Female NPT, Domestic Manufactured 4090-PR | 1-1/2" Female NPT x 1-1/2" Female NPT
4095 | 2-1/2" Female NPT x 2-1/2" Female NPT, Buy American 4095-P | 2-1/2" Female NPT x 2-1/2" Female NPT, Domestic Manufactured 4095-PR | 2-1/2" Female NPT x 2-1/2" Female NPT
OPTIONAL VALVE FLANGES 4711 | 1-1/2" Flange 3" Overall Diameter 4712 | 2-1/2" Flange 6-1/2" Overall Diameter
