Model 4119 thru 4125

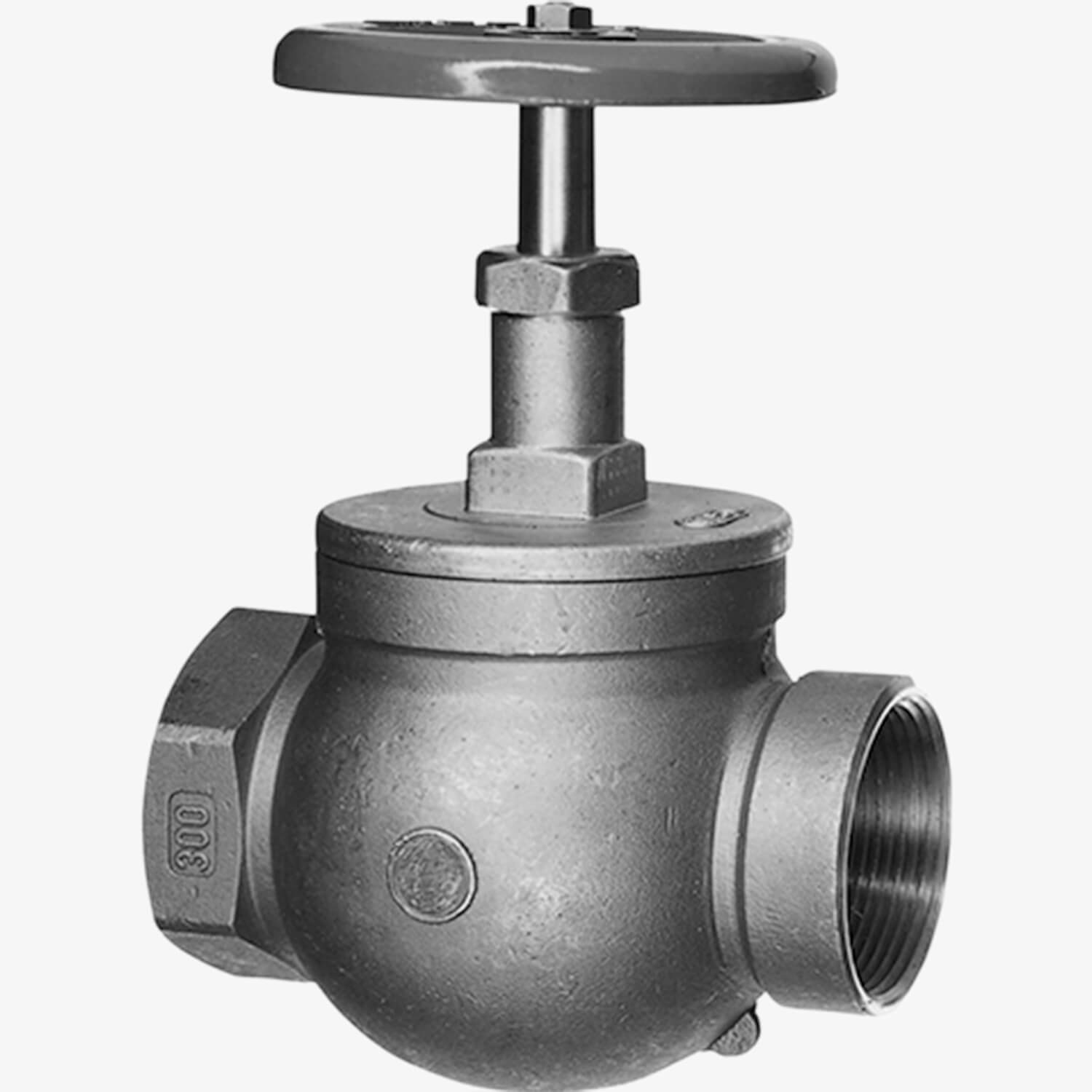

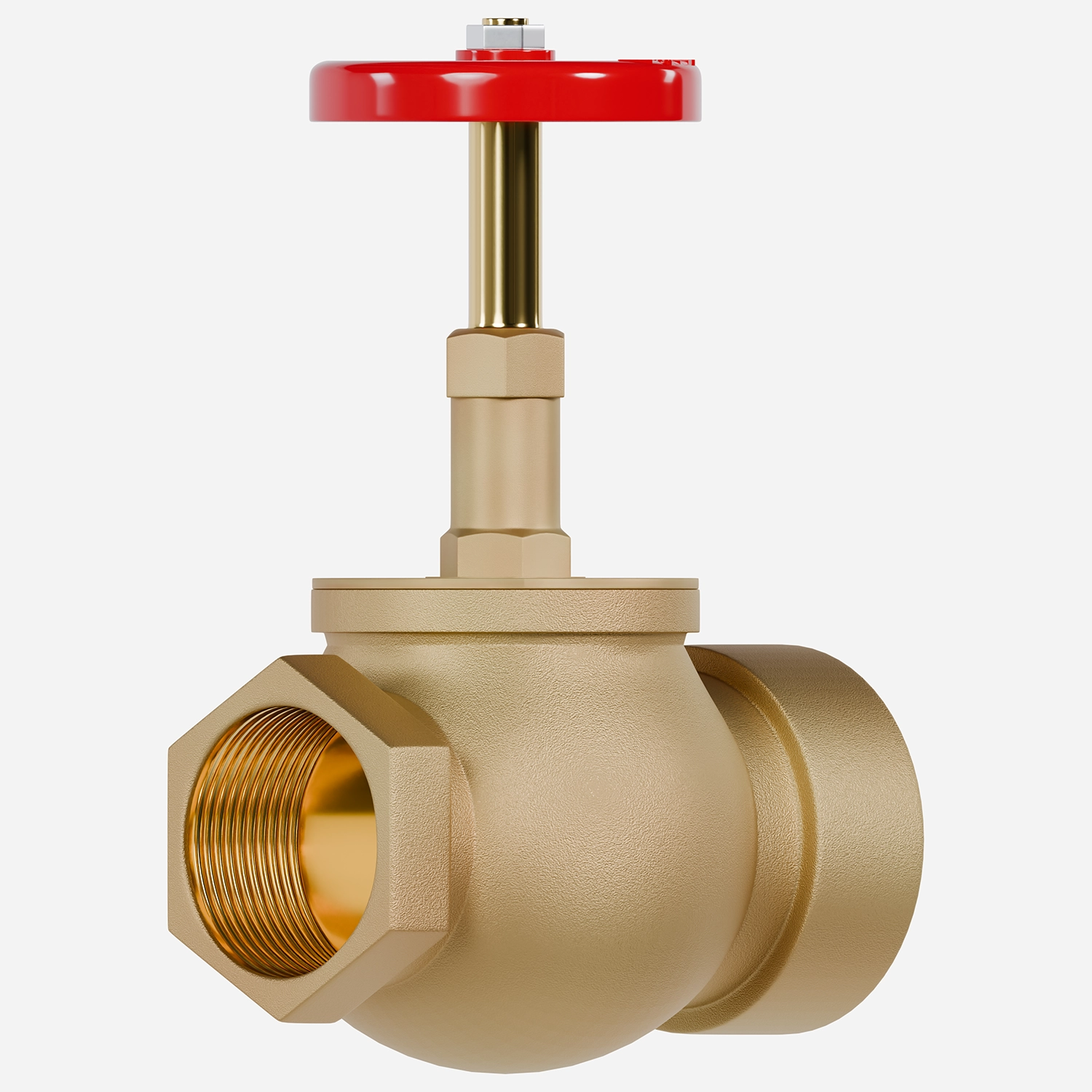

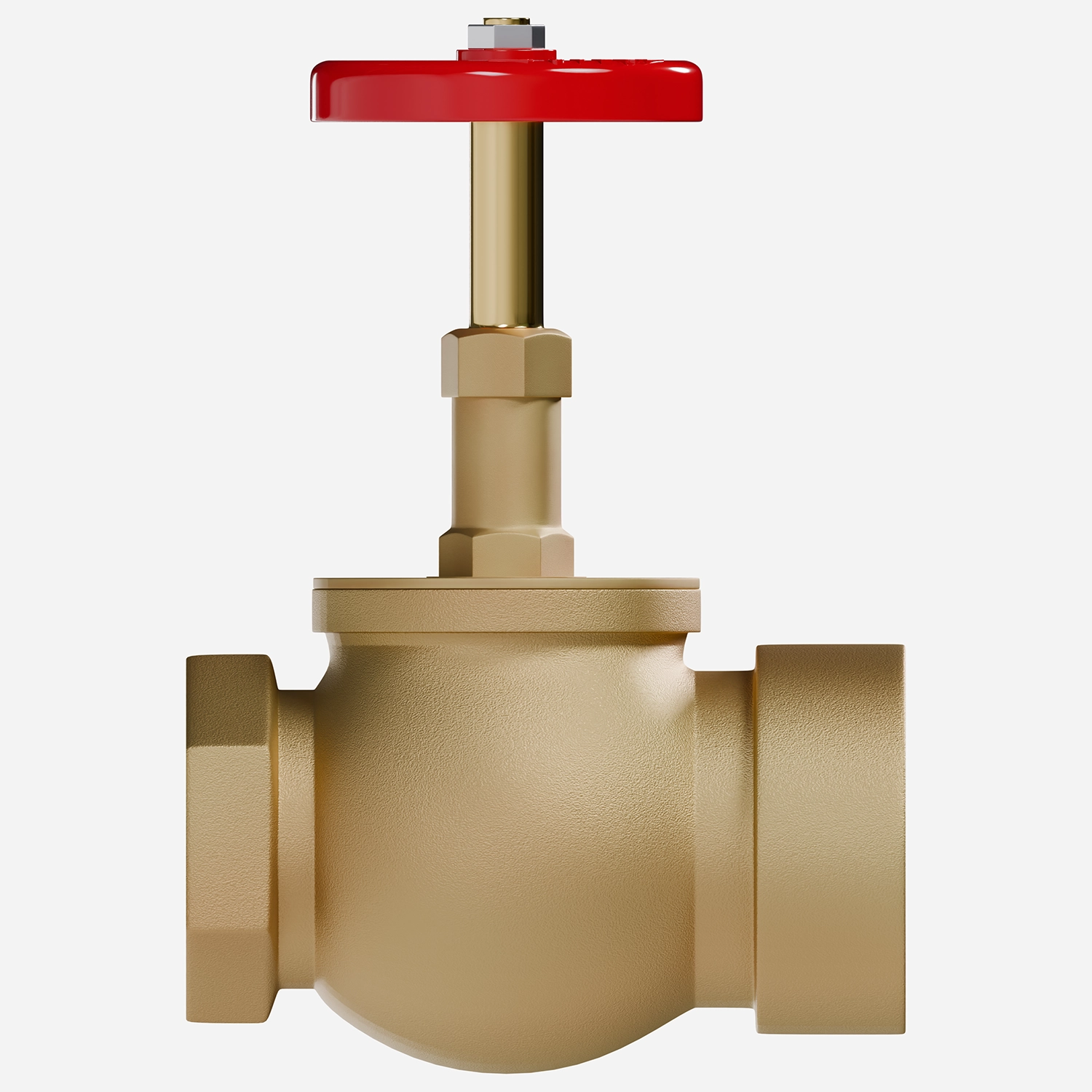

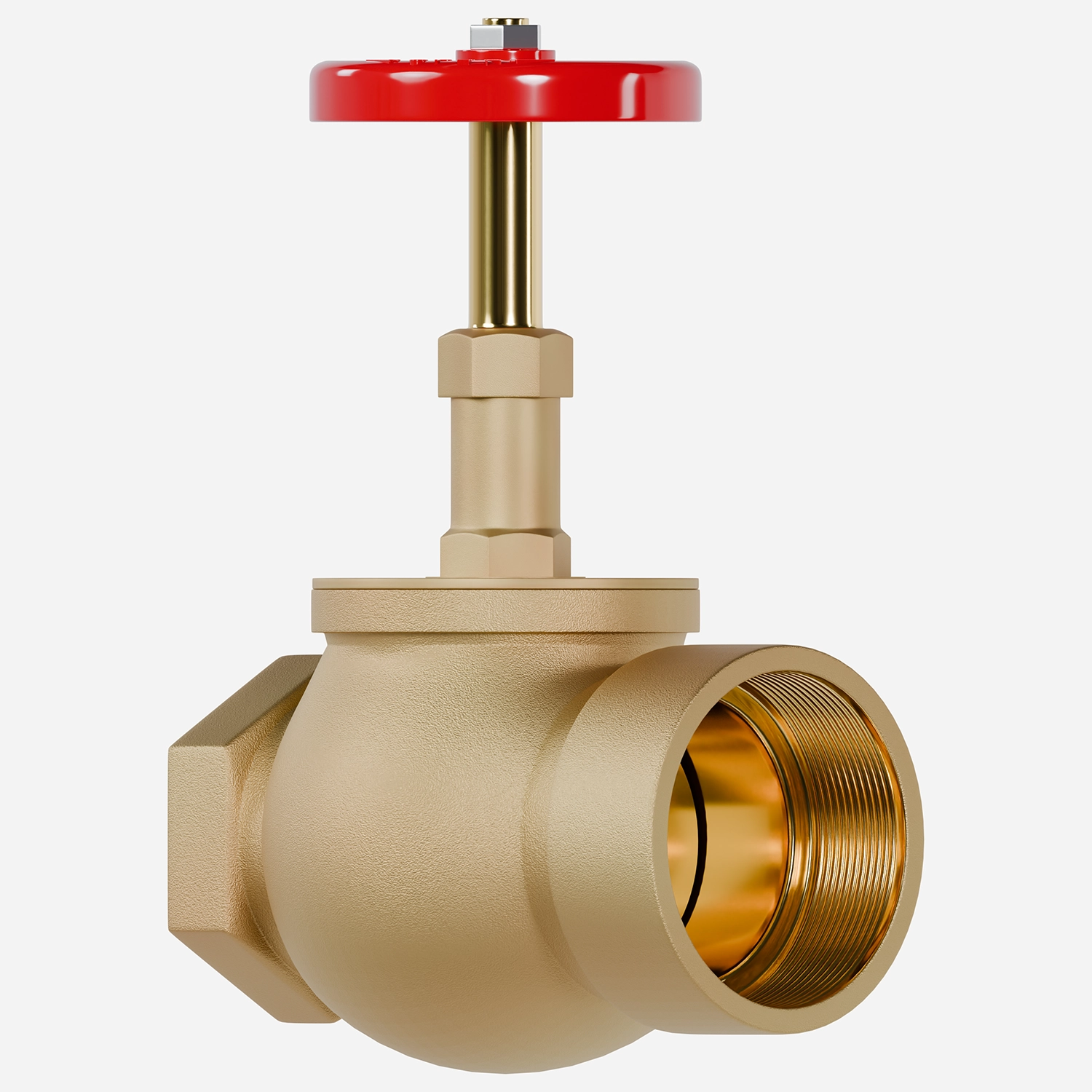

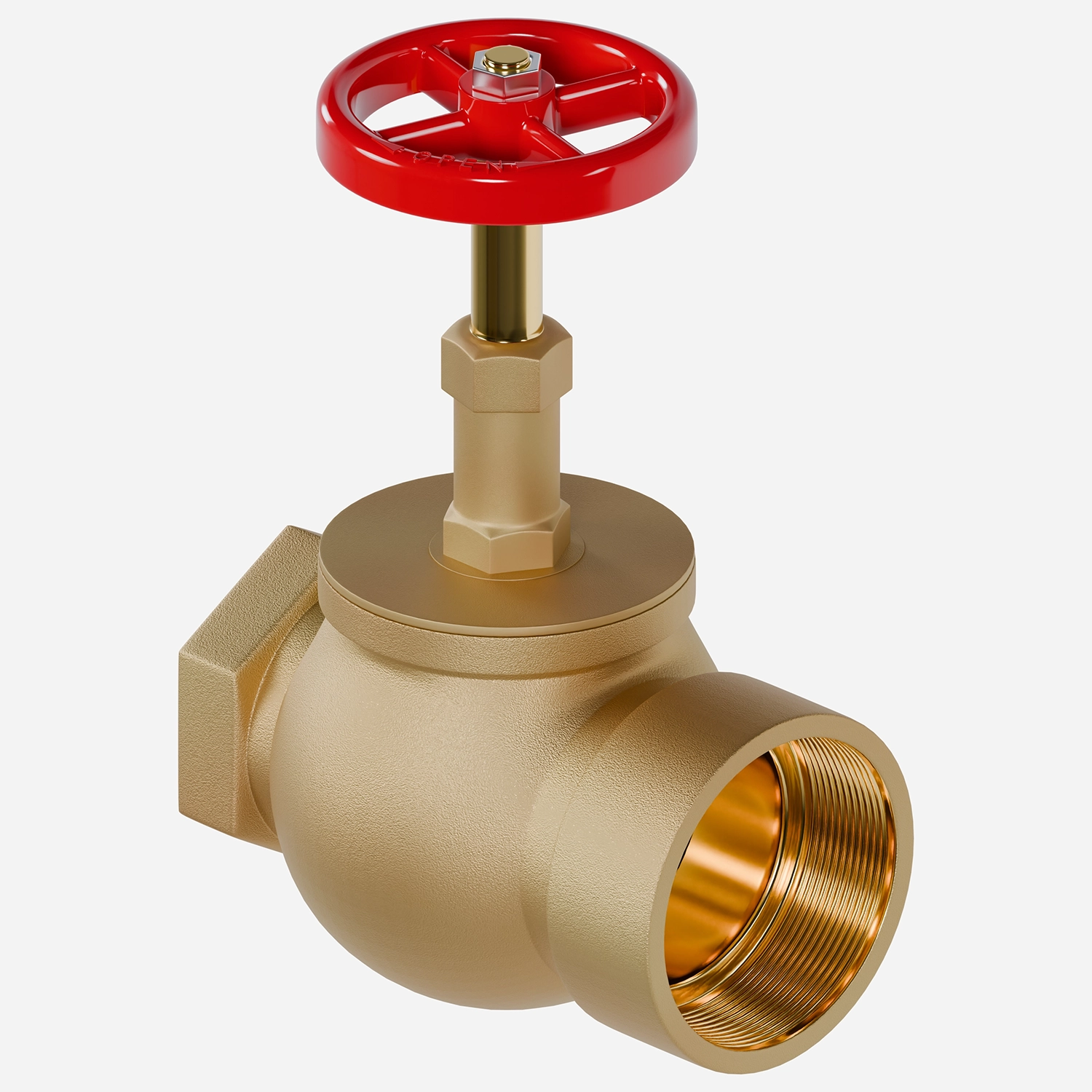

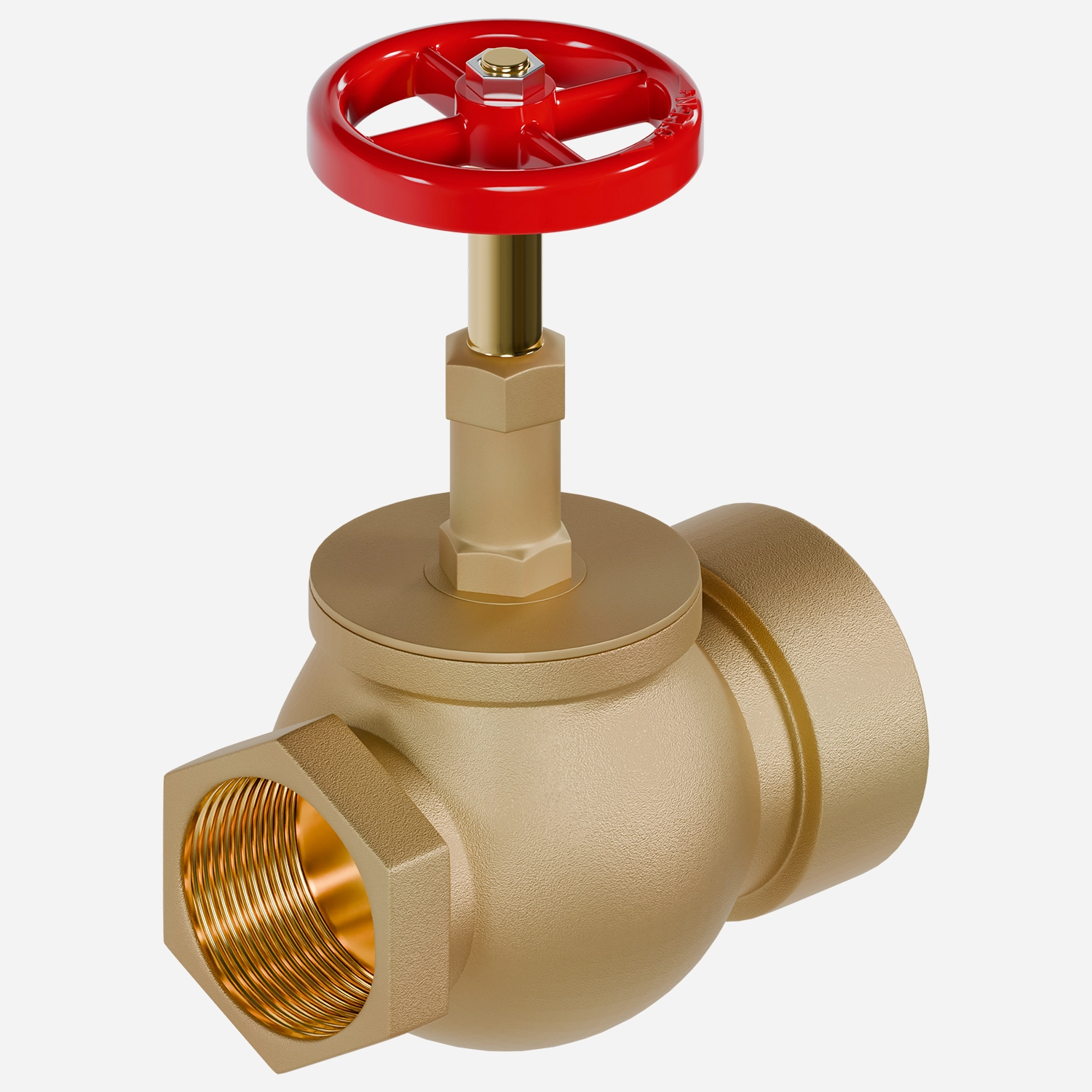

Straight Globe Hose Valve - Female x Female
This Straight Globe Hose Valve is used with a fire hose rack assembly or as a drain valve. The valve is constructed from cast brass and features a red handwheel. The valve has a 0.5" (Model 4119) 1.5” (Model 4120) or 2.5” (Model 4125) female NPT inlet and outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Globe Type Valve [Female x Male 4110, 4115; Female x Female 4119, 4120, 4125; 1-1/2" Male NPTx Male NST Chicago Pattern 4130] | 0 | 828 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Body Type | Straight |
| Thread | Must be specified by customer |
| Inlet | 0.5" Female NPT, 1.5" Female NPT, 2.5" Female NPT |
| Outlet | 0.5" Male Hose Thread, 1.5" Male Hose Thread, 2.5" Male Hose Thread |
| Handle Type | Wheel Handle |
