Fire Rated Fire Extinguisher Cabinet - Bubble Door

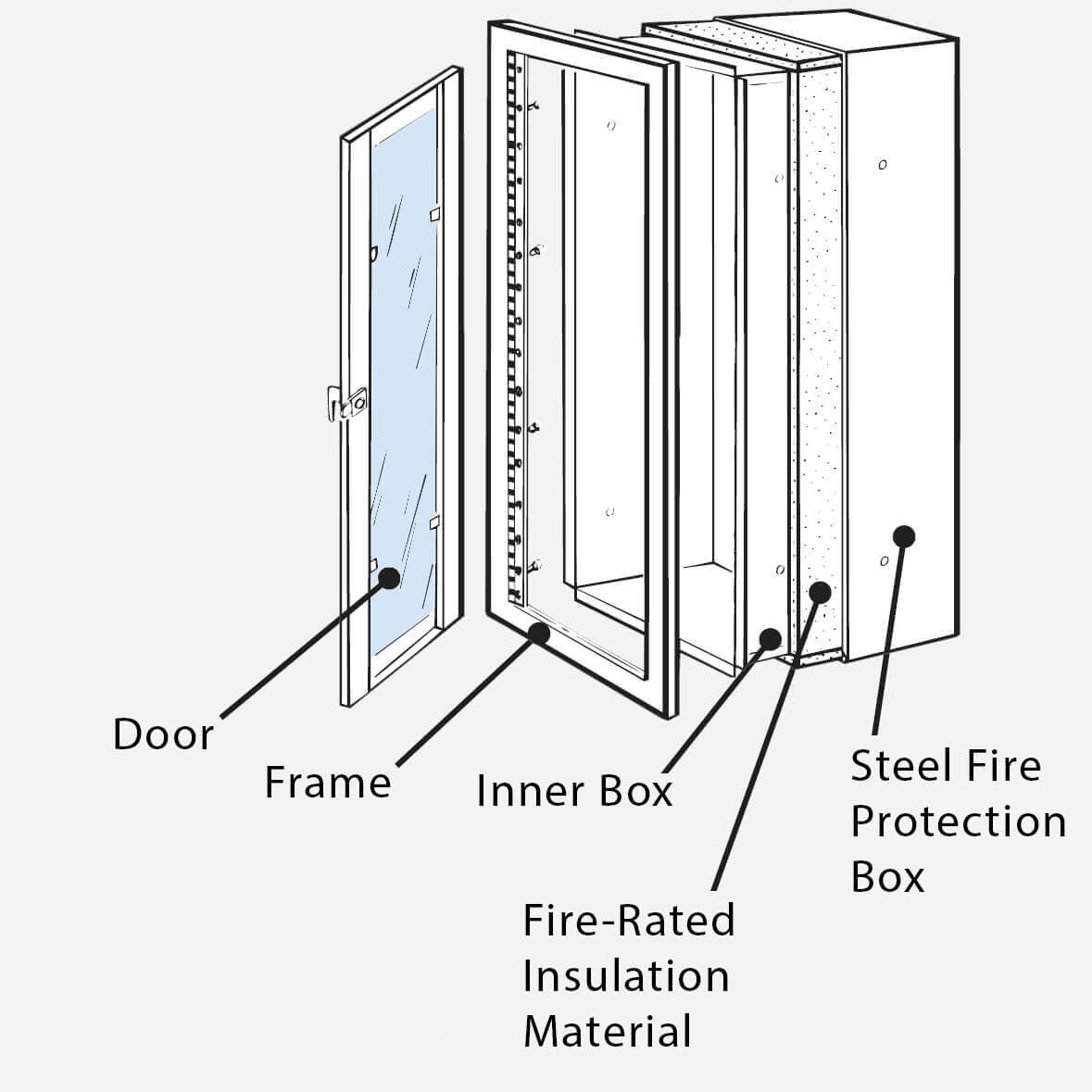

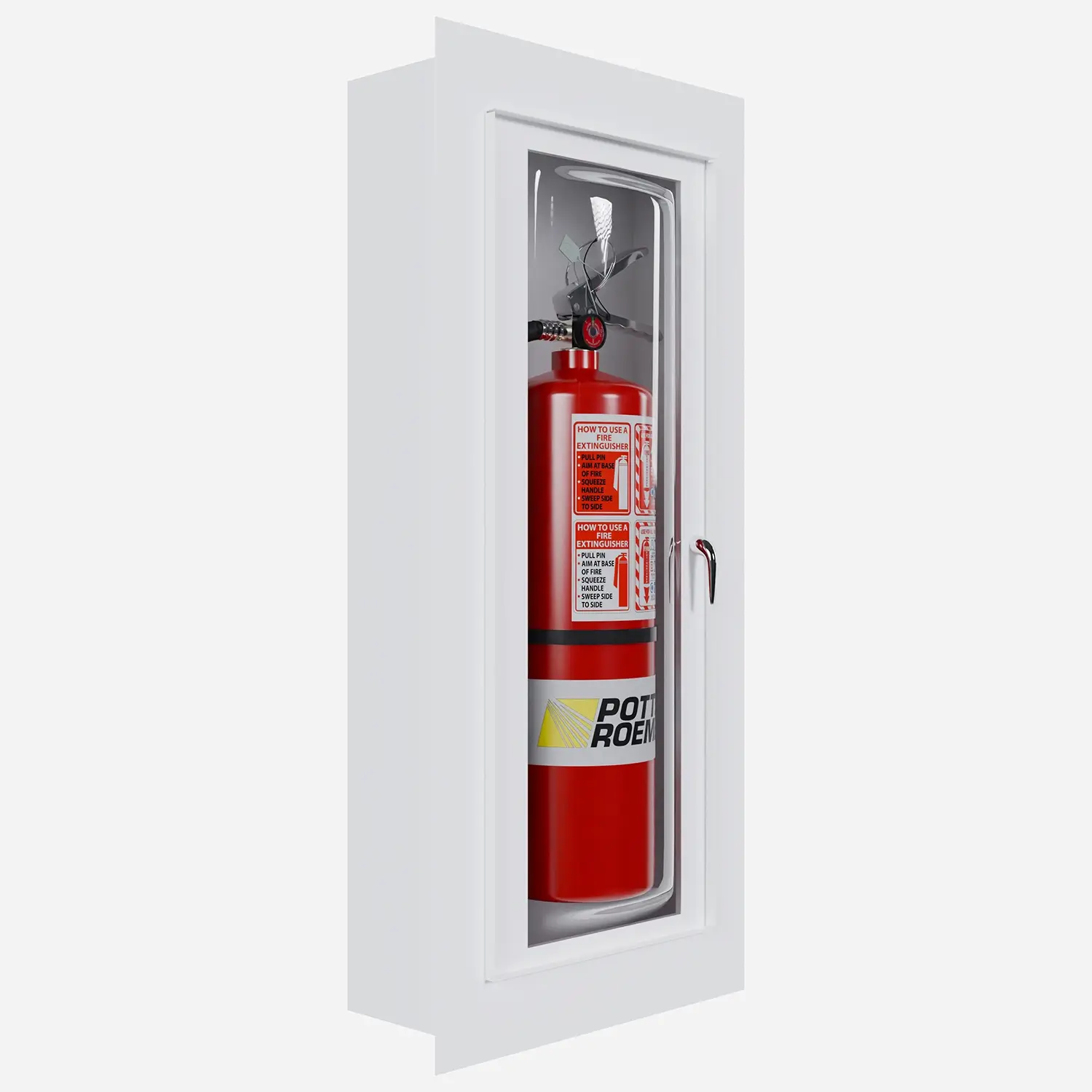

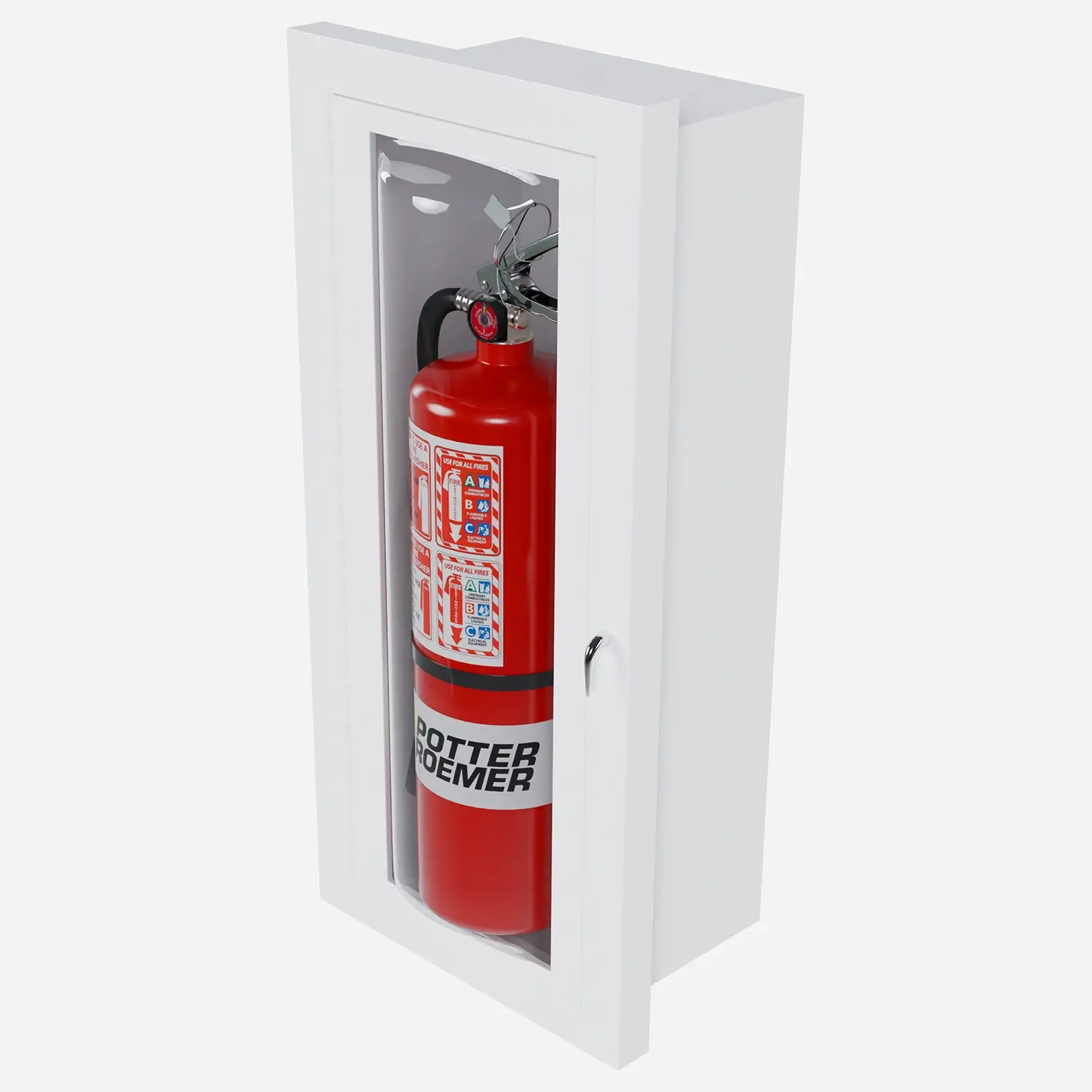

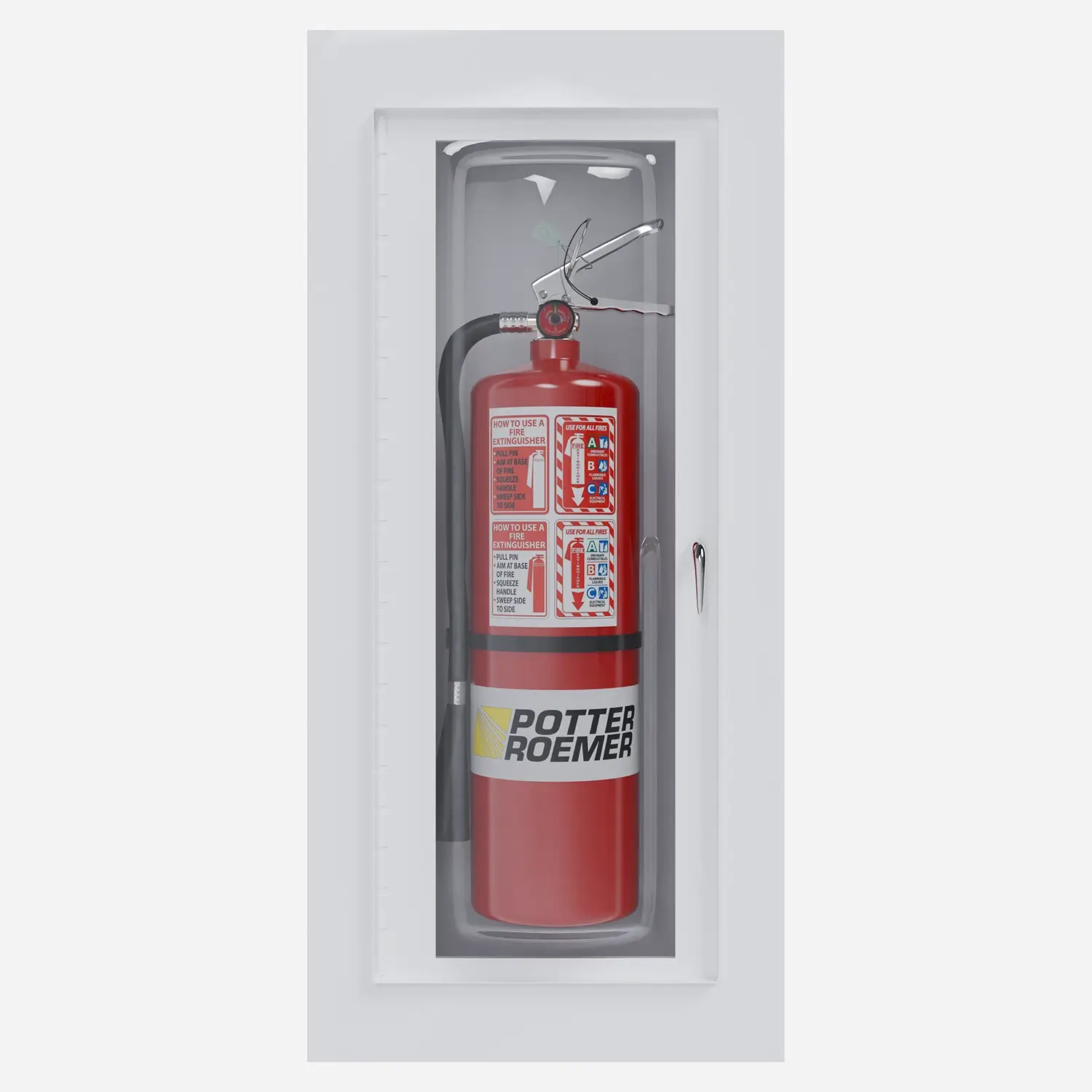

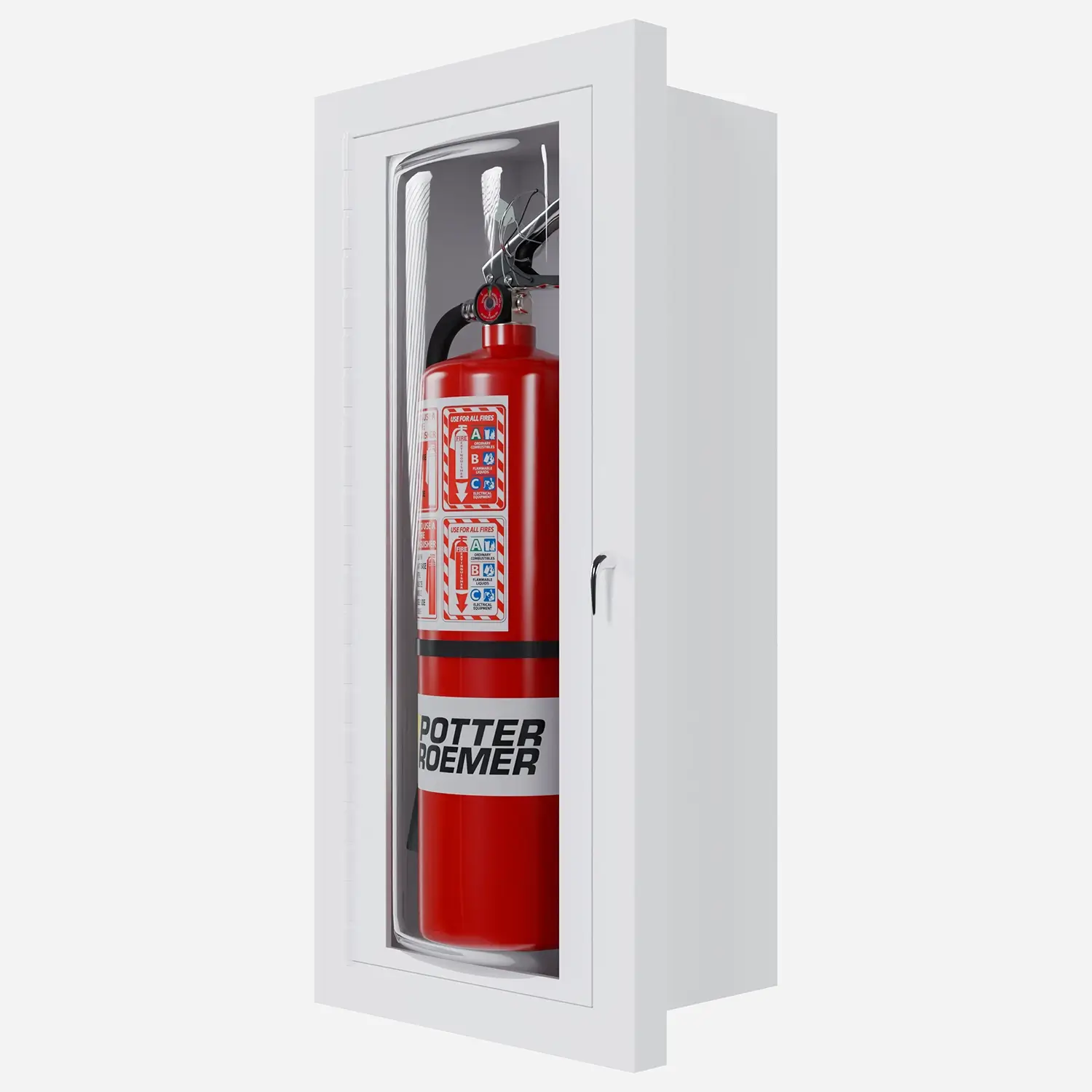

1770 series fire-rated cabinets are designed to accommodate 5 or 10 lbs. portable fire extinguishers with a bubble compartment in the door. All bubble door styles have a projecting convex polycarbonate panel enclosing the extinguisher. The cabinet box is constructed from 22 gauge steel. The door and frame, fabricated of 20 gauge steel feature fire-insulating material and has a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Recessed semi-recessed cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. FRC Cabinets are UL Classified per the standard for UL 1479 - Penetration Firestop Systems UL File no. R15411; Fire Rating: 2 Hours.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Fire Extinguisher Cabinet - Bubble Door [FRC1770, FRC1771, FRC1772, FRC1780, FRC1781] | 0 | 599 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Door, Fire Insulation Material, 22 Gauge Steel Box, 20 Gauge Frame |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 24 x 4", 12 x 27 x 4.75", 12 x 27 x 5.75" |
| Capacity | 5 Lbs Dry Chemical Extinguisher, 10 Lbs Dry Chemical Extinguisher, 20 Lbs Dry Chemical Extinguisher, 2.5 Gallon Pressurized Water Fire Extinguisher, See submittal for recommended PR Fire Extinguishers |
| Mounting | Recessed, Trimless, Semi-Recessed |
| Door Style | -BA | Full Bubble with Glass, -BB | Break Bubble with Glass, -BF | Full Bubble with Flush Solid Metal, -B | Bubble Color - Bronze, -S | Bubble Color - Smoke Grey |
| Options | -DANA | Frameless Concealed Hinge & Handle |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1770 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

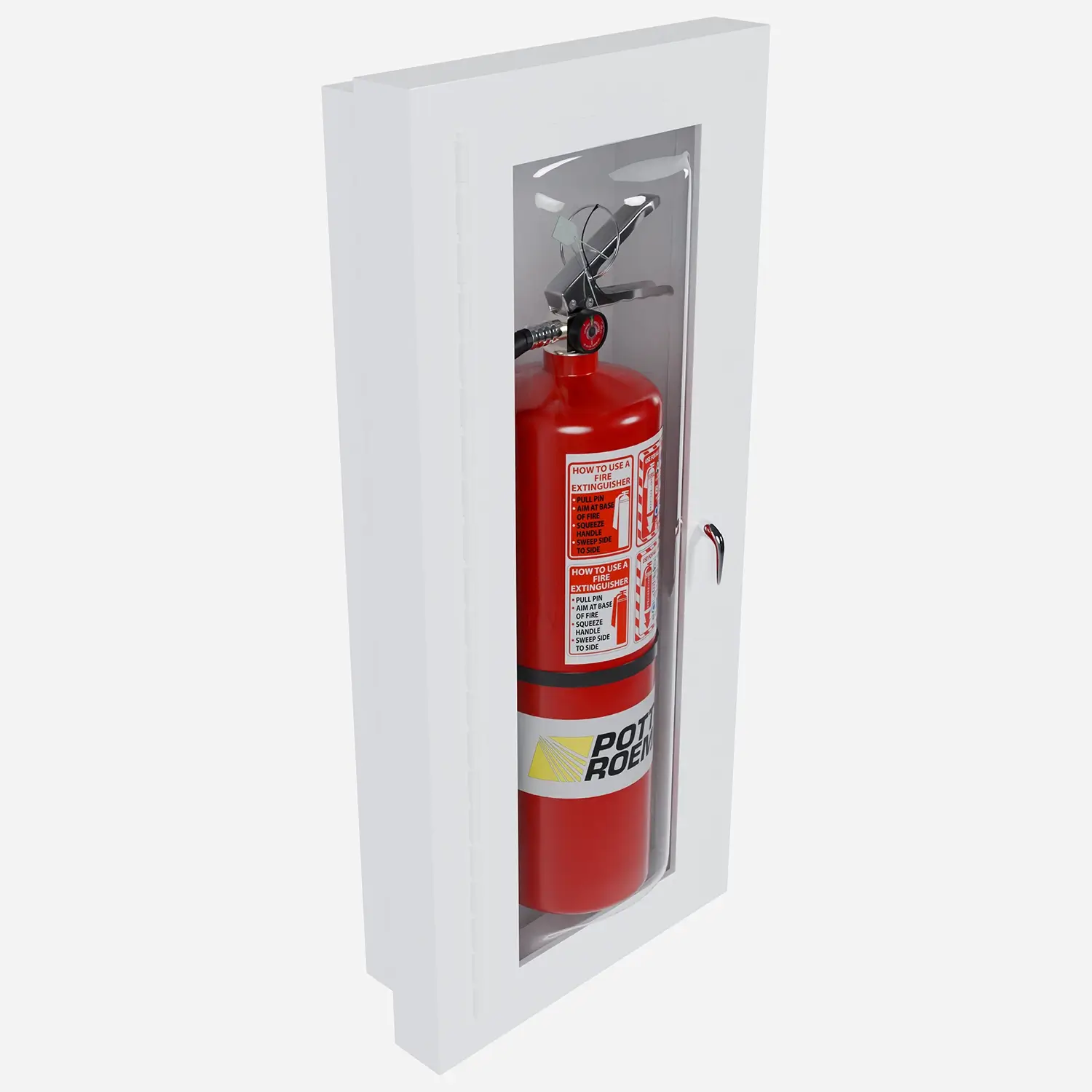

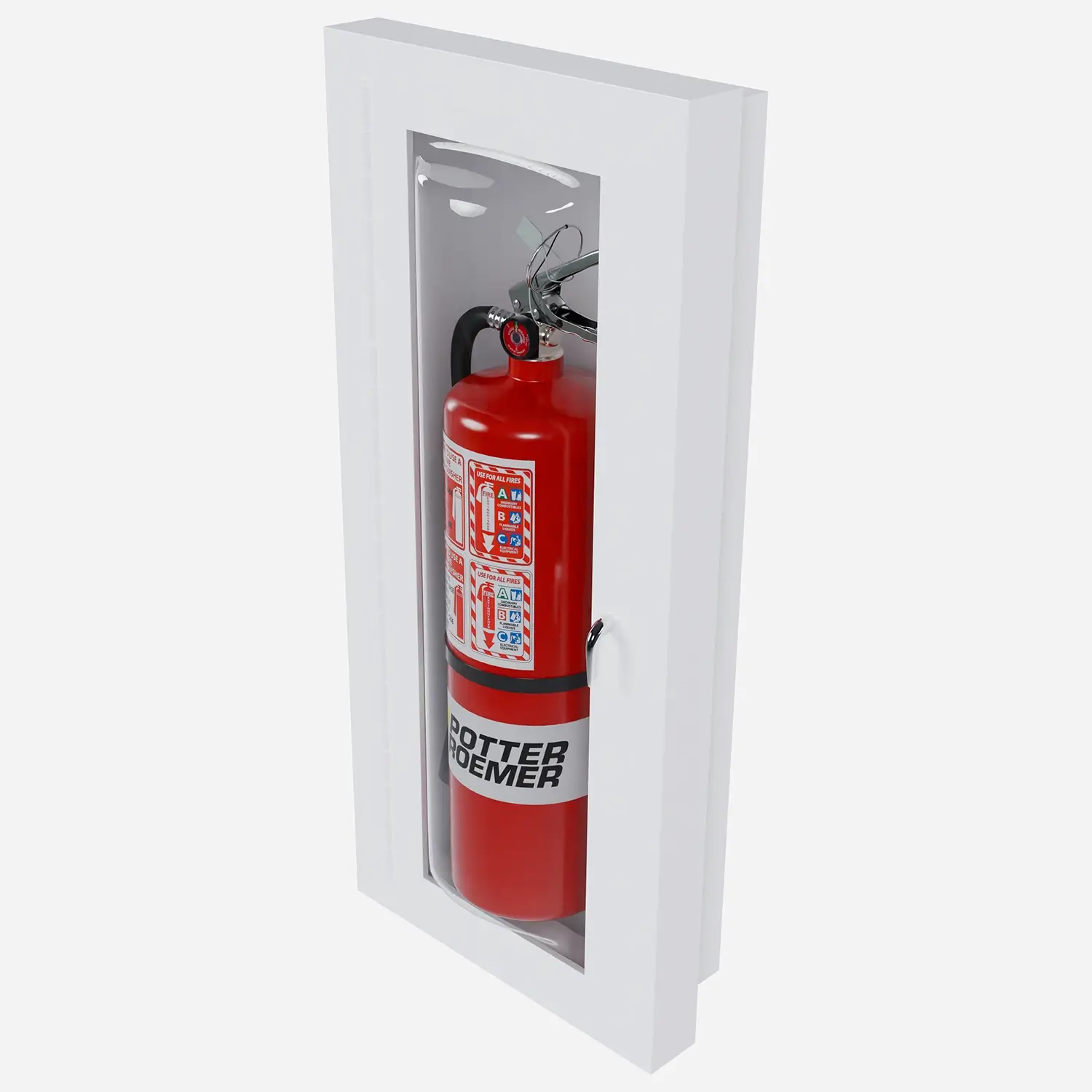

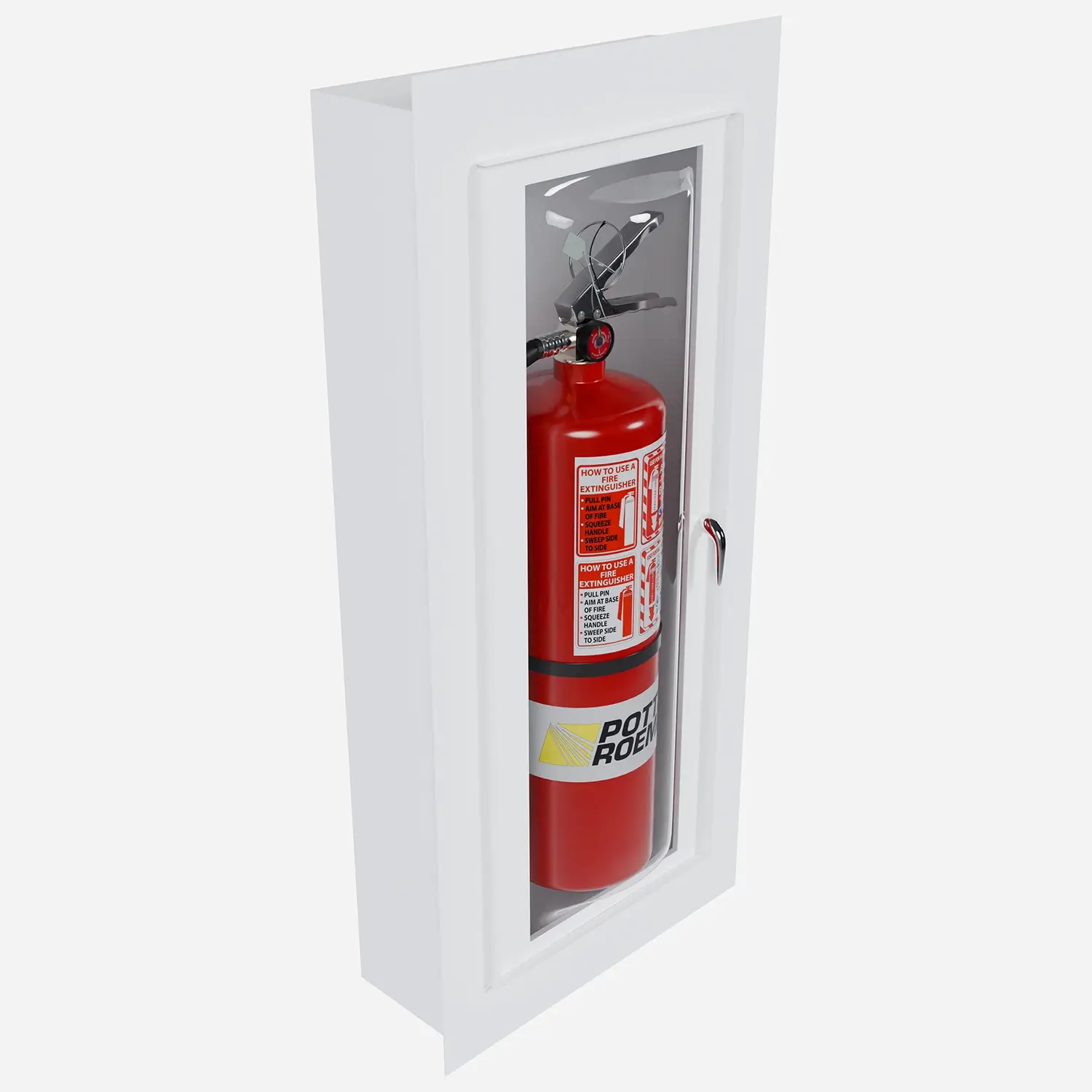

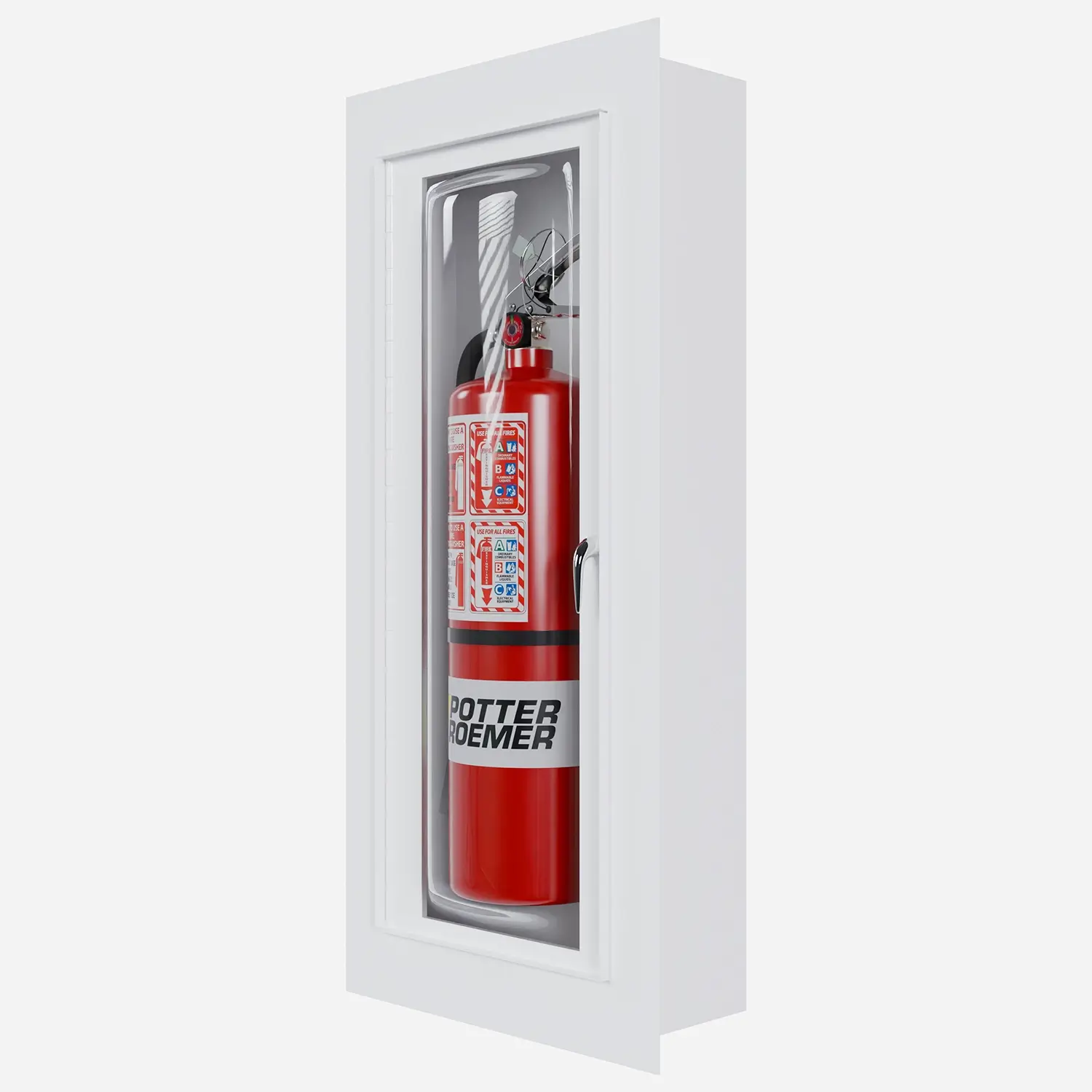

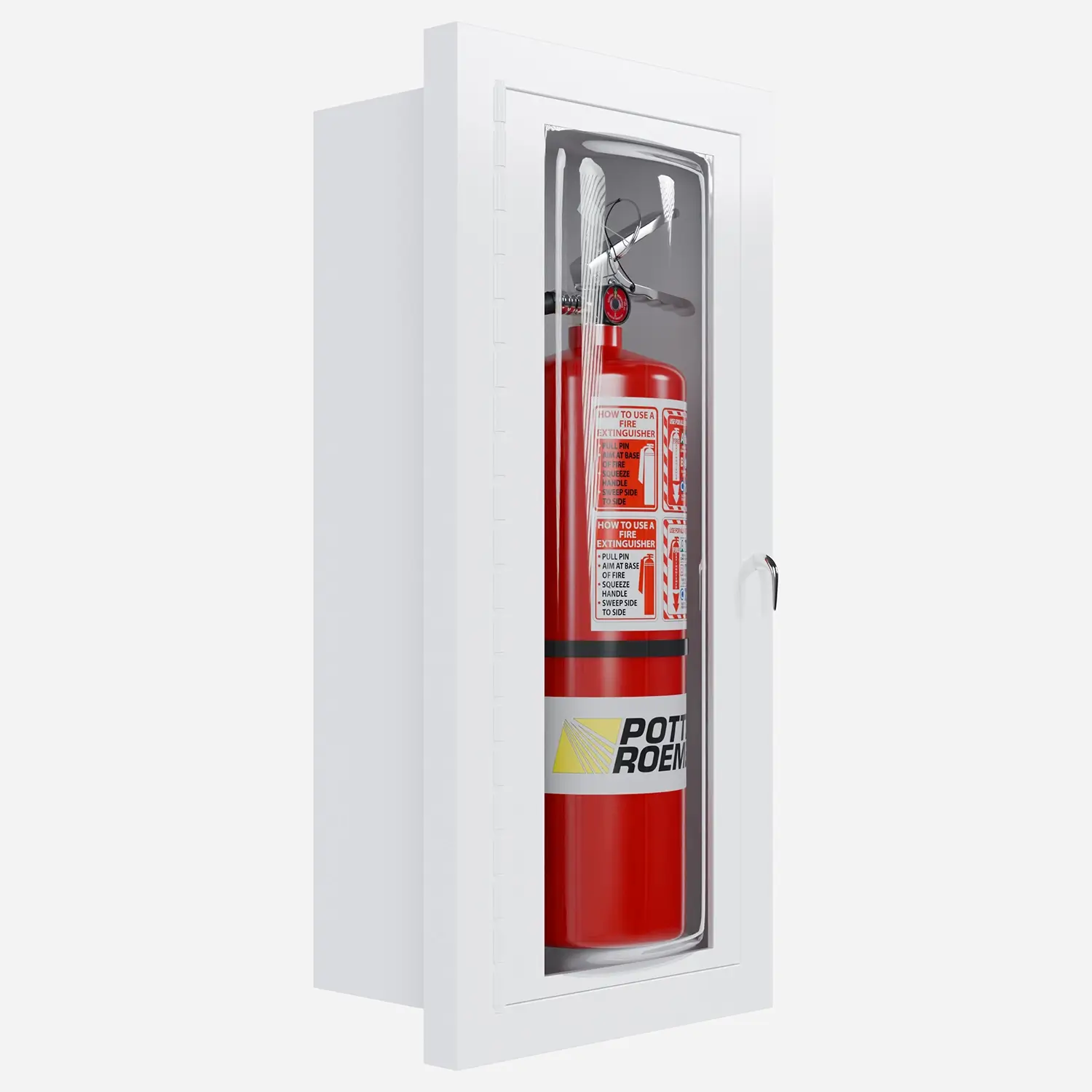

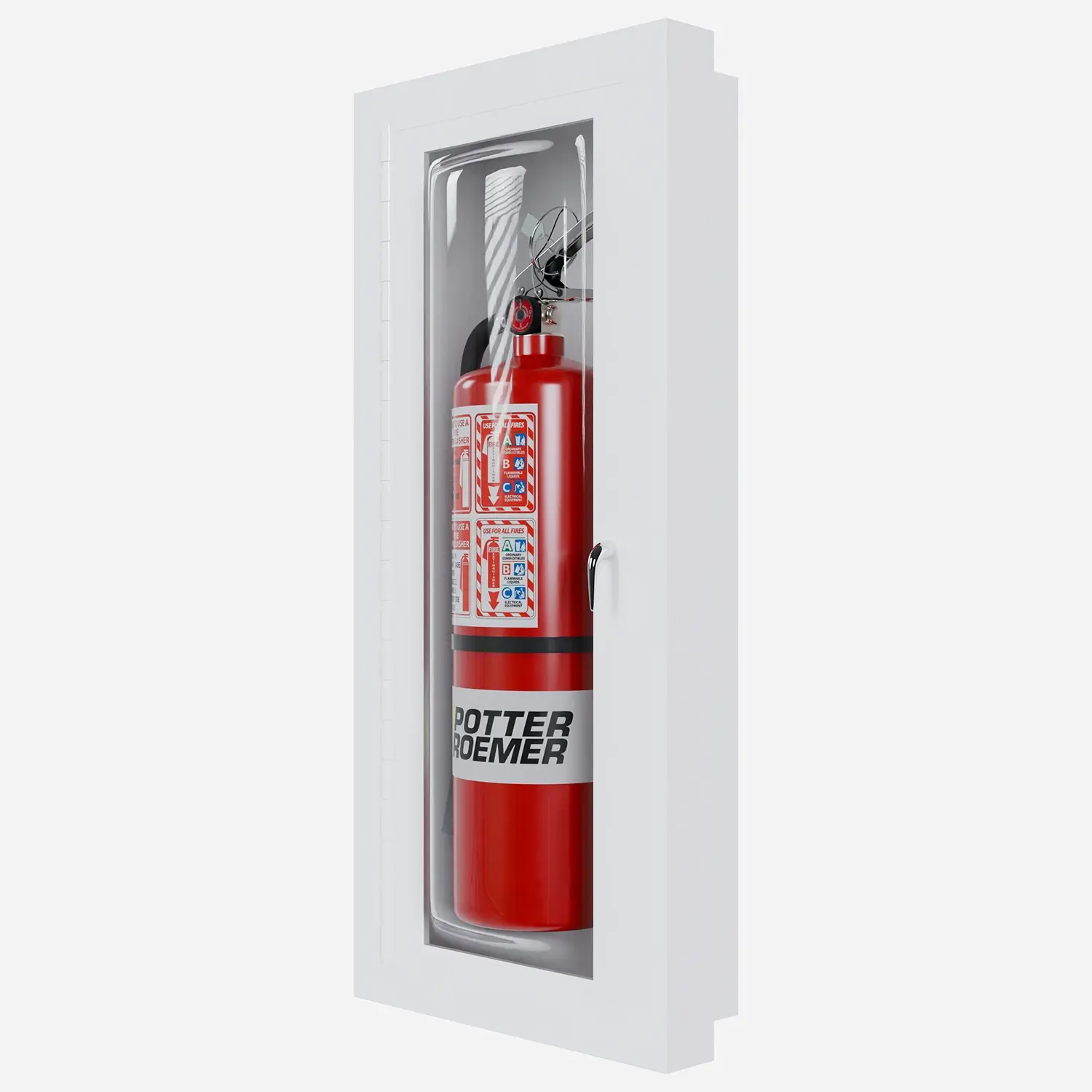

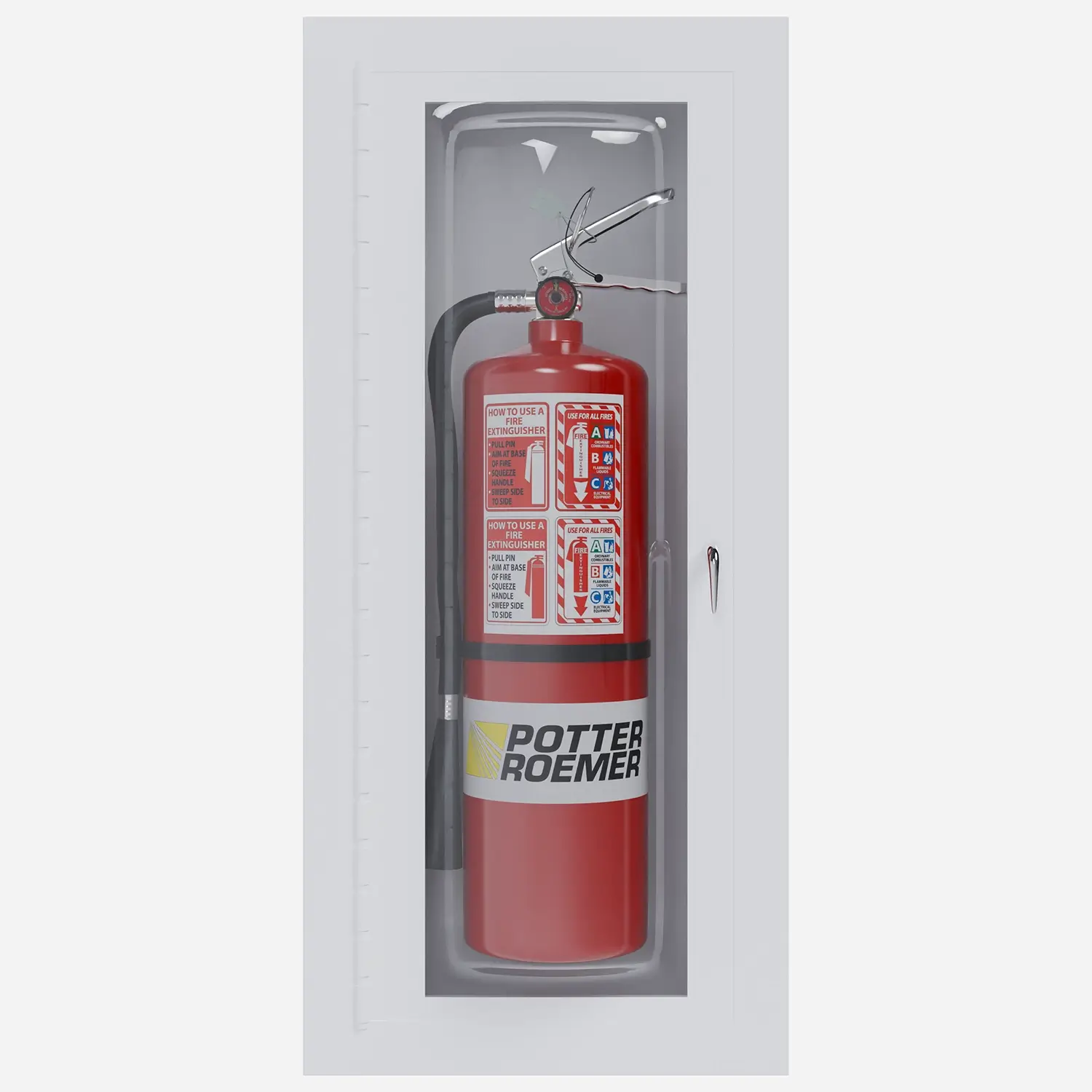

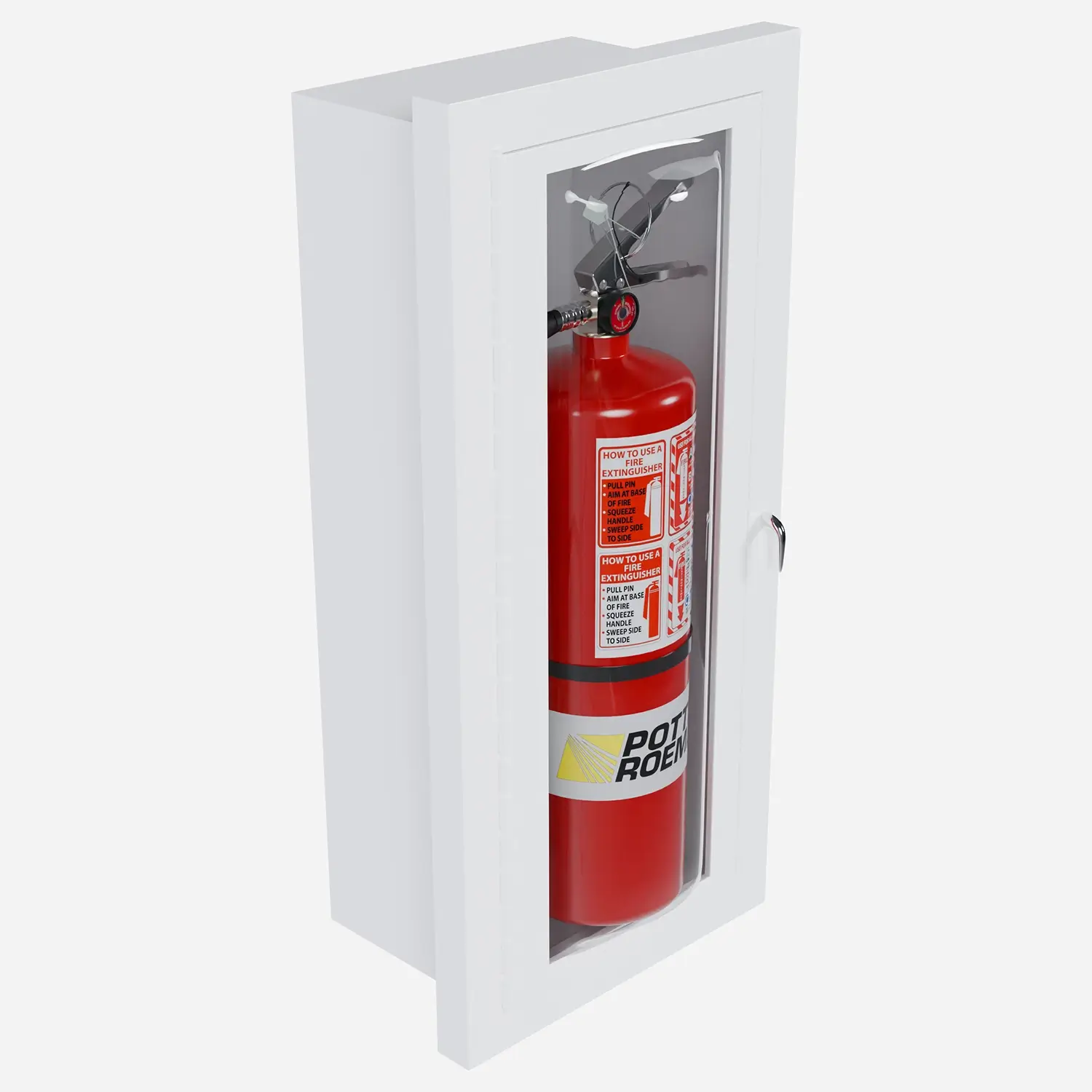

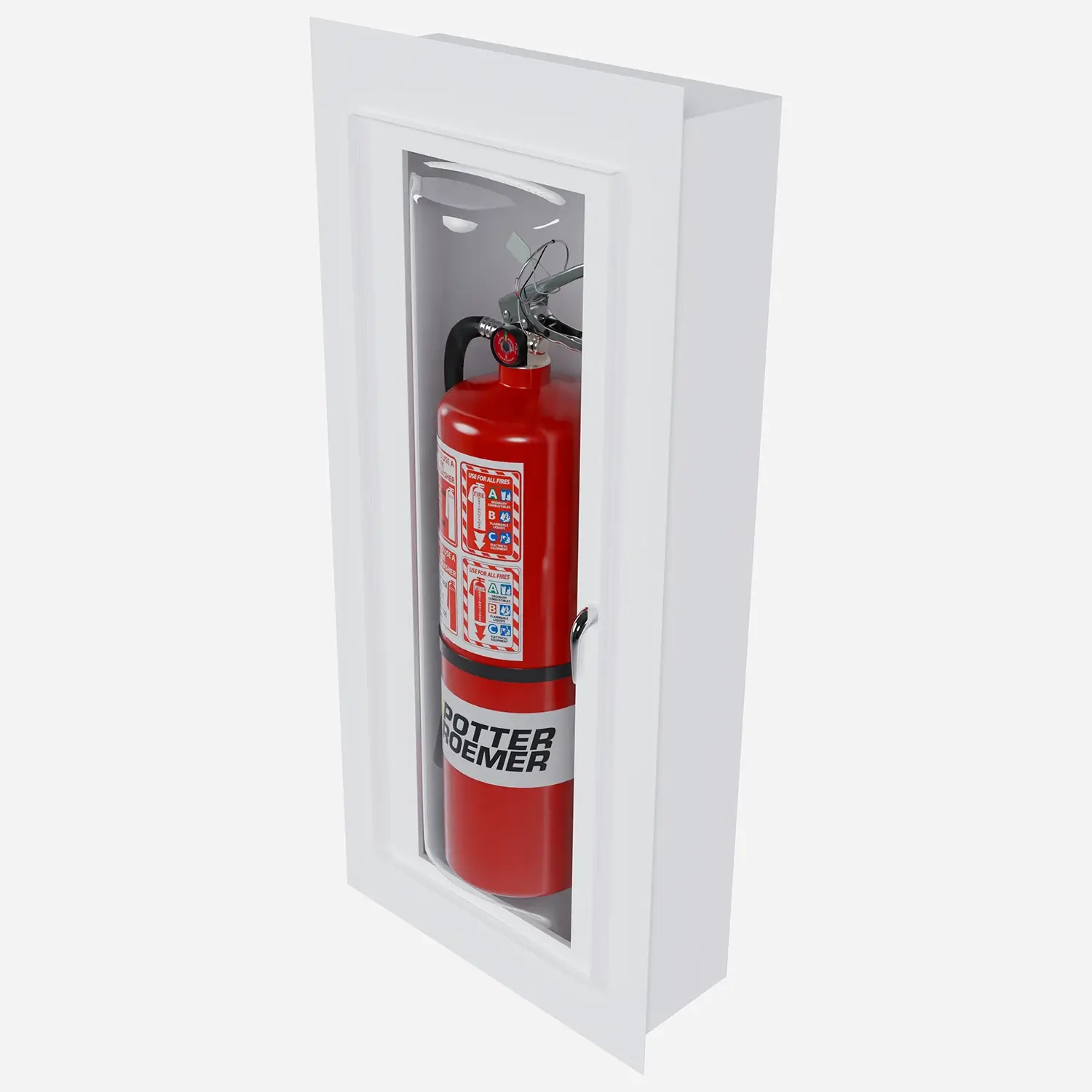

FRC1770 | Recessed 9 x 24 x 4", 1/2" Trim FRC1771 | Trimless 9 x 24 x 4" FRC1772 | Semi-Recessed 9 x 24 x 4", 2" Trim FRC1780 | Recessed 12 x 27 x 4 3/4", 1/2" Trim FRC1781 | Trimless 12 x 27 x 4 3/4"
