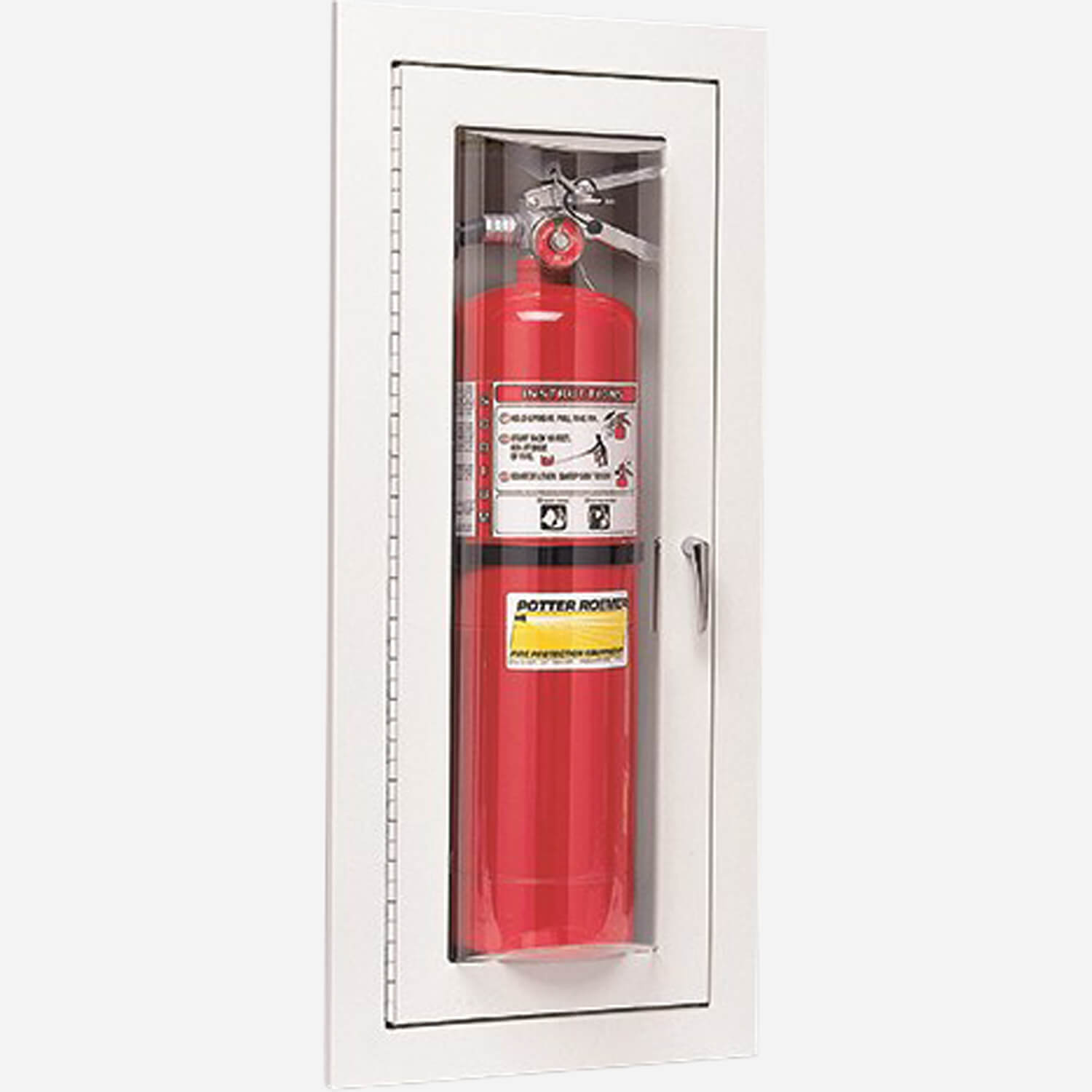

Fire Extinguisher (Bubble Door) Cabinet
1770 series cabinets are designed to accommodate 5 or 10 lbs. portable fire extinguishers with a bubble compartment in the door. All bubble door styles have a projecting convex polycarbonate panel enclosing the extinguisher. The cabinet box is constructed from 22 gauge steel. The door and frame fabricated of 20 gauge steel have a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Recessed semi-recessed and surface-mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION: 1770 Series and 1780 Series cabinets accommodate a portable fire extinguisher. All bubble door styles have a projecting convex polycarbonate panel enclosing the extinguisher.
REGULARLY FURNISHED: 20 gauge box, 20 gauge tubular steel door with 20 gauge frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. Wall mounting and size of cabinet as selected by model number. Clear, vacuum-formed, polycarbonate bubble. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Extinguisher (Bubble Door) Cabinet [1770, 1771, 1772, 1775, 1780, 1781, 1785] | 0 | 606 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Door, 22 Gauge Steel Box, 20 Gauge Frame |
| ADA Models | 1770, 1771, 1772, 1780, 1781 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 24 x 4", 11.5 x 26.5 x 4", 12 x 27 x 4.75", 14.5 x 29.5 x 4.75", 12 x 27 x 5.75", 14.5 x 29.5 x 5.75" |
| Capacity | 20 Lbs Dry Chemical Extinguisher, See submittal for recommended PR Fire Extinguishers, 2.5 Gallon Pressurized Water Fire Extinguisher |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |
| Door Style | -BA | Full Bubble with Glass, -BB | Break Bubble with Glass, -BF | Full Bubble with Flush Solid Metal, -B | Bubble Color - Bronze, -S | Bubble Color - Smoke Grey |
| Options | -DANA | Frameless Concealed Hinge & Handle, -DP | Duplex Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1770 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1770 | Recessed 9 x 24 x 4", 1/2" Trim, ADA compliant 1771 | Trimless 9 x 24 x 4", ADA compliant 1772 | Semi-Recessed 9 x 24 x 4", 2" Trim, ADA compliant 1775 | Surface 11 1/2 x 26 1/2 x 4", 4” Trim 1780 | Recessed 12 x 27 x 4 3/4", 1/2" Trim, ADA compliant 1781 | Trimless 12 x 27 x 4 ¾”, ADA compliant 1785 | Surface 14 1/2 x 29 1/2 x 4 3/4", 4 ¾” Trim
