Fire Dept. Valve Cabinet

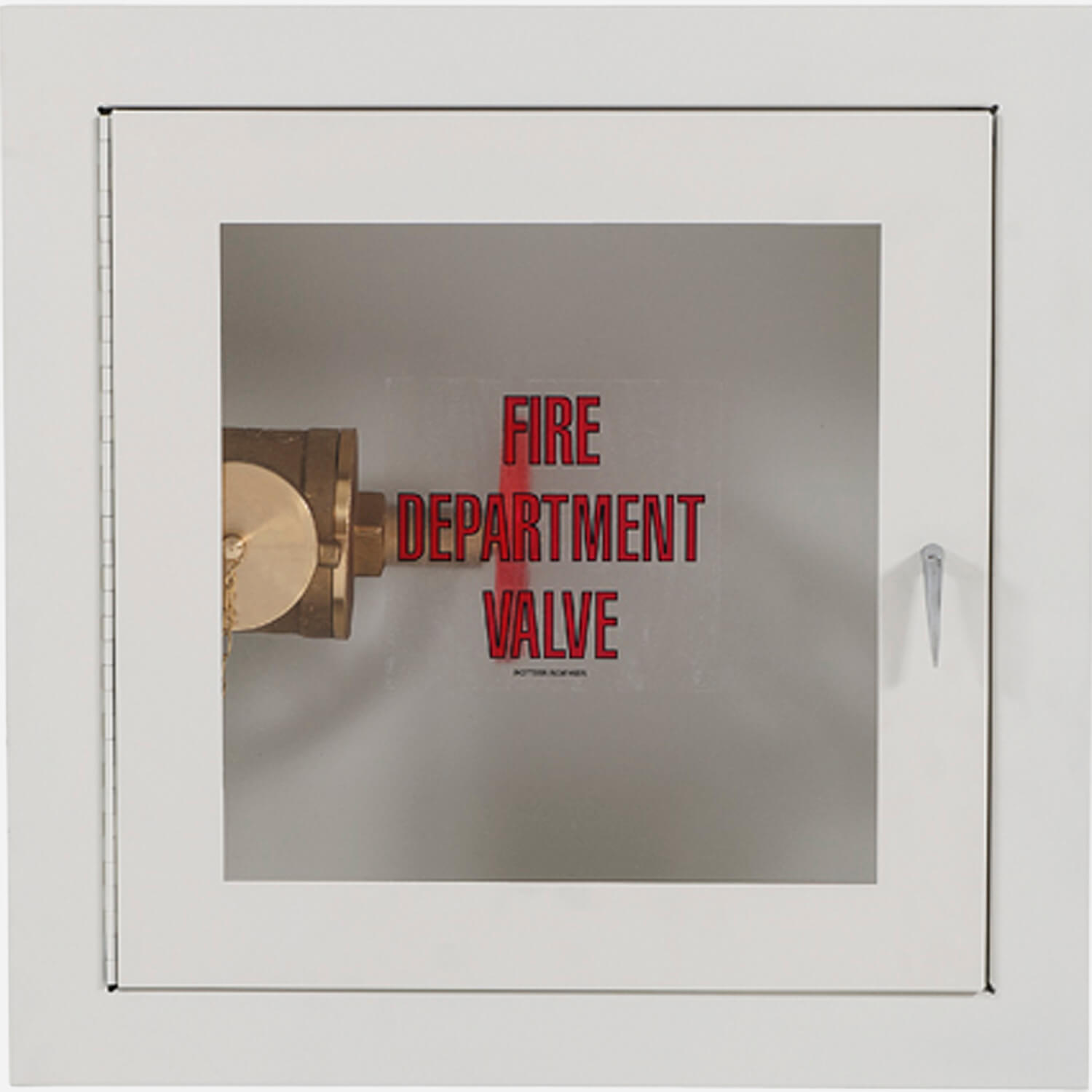

This cabinet is designed to hold a 2-1/2" (6.4 cm) fire dept valve with cap and chain. Models with the -10 suffix also include a 2-1/2" x 1-1/2" Reducer and 1-1/2" Cap. The cabinet is constructed from a 18 gauge (surface-mounted models) or 20 gauge (recessed models) steel box 22 gauge tubular steel door and 20 gauge steel frame with continuous steel hinge. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. All glass door styles provided with clear tempered safety glass.
FUNCTION: 1810 Series cabinets accommodate a single 2-1/2" (6.4 cm) fire dept valve with cap and chain; 1810-10 Series cabinets accommodate a single 2-1/2" (6.4 cm) fire dept valve, 2-1/2" x 1-1/2" Reducer and 1-1/2" Cap.
REGULARLY FURNISHED: Manufactured of Galvannealed Steel, 20gauge recessed box (18 gauge surface mounted box); 22 gauge tubular steel door with 20 gauge frame and continuous steel hinge. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. All glass door styles provided with clear tempered safety glass
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Dept. Valve Cabinet [1810, 1810-10, 1811, 1811-10, 1812, 1812-10, 1815, 1830, 1831, 1832, 1835] | 0 | 606 KB | ||
| | Dana Style Cabinets [1302-DANA | for Hose Rack Assembly and Extinguisher; 1704-DANA | for Extinguisher; 1706-DANA | for Extinguisher; 1810-DANA | for Valve; 1870-DANA | for Valve and Extinguisher] | 0 | 622 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Galvannealed Steel |
| ADA Models | 1810-10, 1811-10, 1812-10, 1810, 1811, 1812 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 18 x 18 x 10.75", 18 x 18 x 8.75", 20 x 20 x 9.25", 18 x 18 x 8", 18 x 18 x 10" |
| Capacity | 2.5" Fire Dept Valve, 2.5" Fire Dept Valve with Reducer |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |

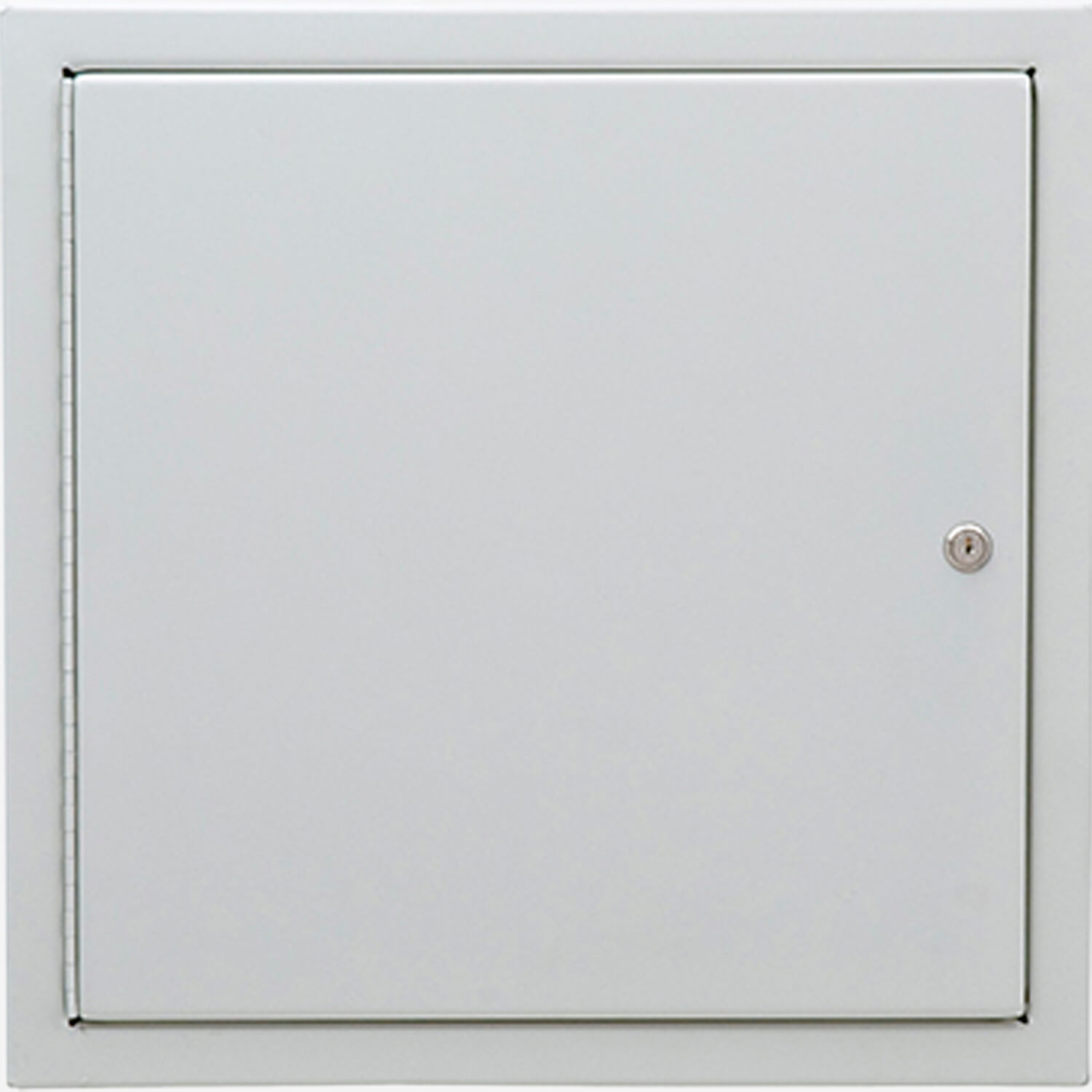

| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -12 | 12" deep box, -DP | Duplex Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1810 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1810 | Recessed 18 x 18 x 8", 5/8” Trim, ADA compliant (available in Dana Style Cabinet, see submittal) 1811 | Trimless 18 x 18 x 8 3/4", ADA compliant 1812 | Semi-Recessed 18 x 18 x 8", 2" Trim, ADA compliant 1810-10 | Recessed 18 x 18 x 10", 5/8” Trim, ADA compliant 1811-10 | Trimless 18 x 18 x 10", ADA compliant 1812-10 | Semi-Recessed 18 x 18 x 10", 2” Trim, ADA compliant 1815 | Surface 20 x 20 x 9 1/4"
