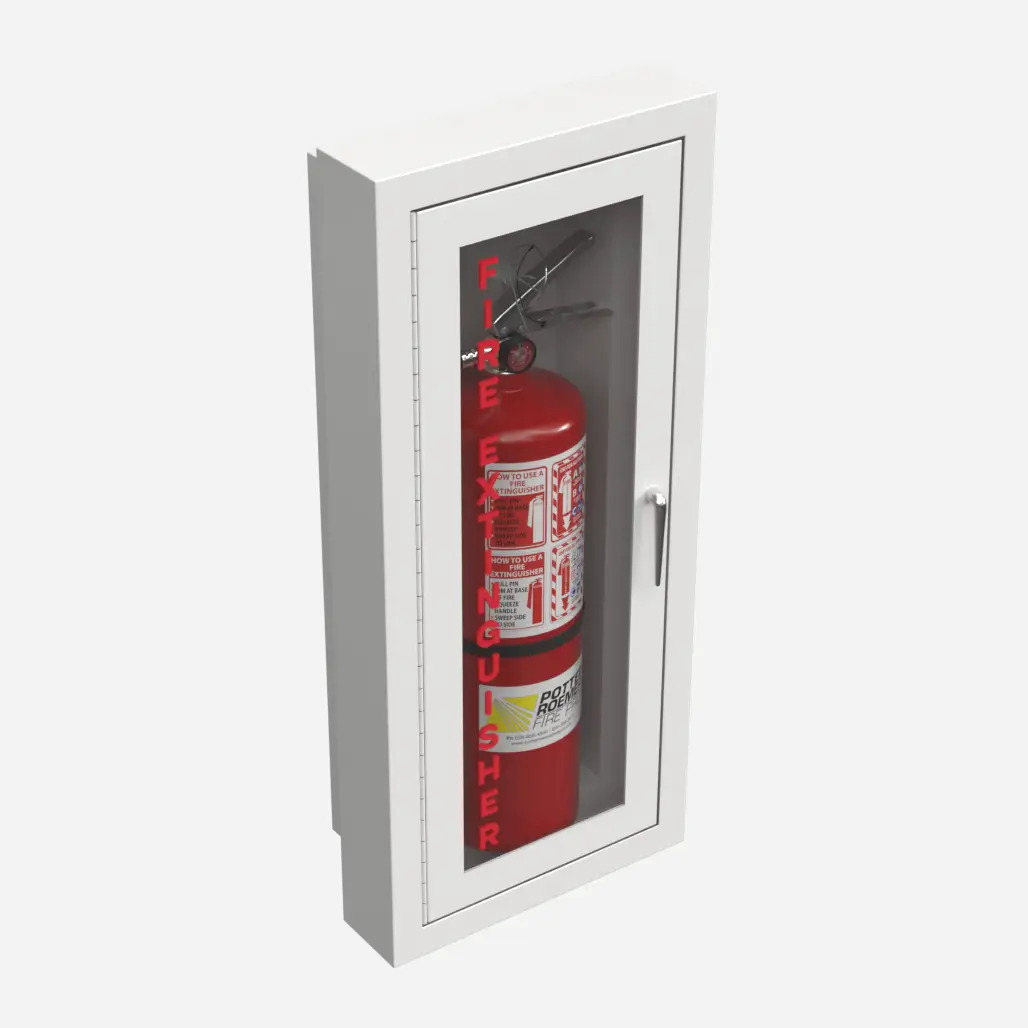

Fire Rated 1700 Series Fire Extinguisher Cabinet

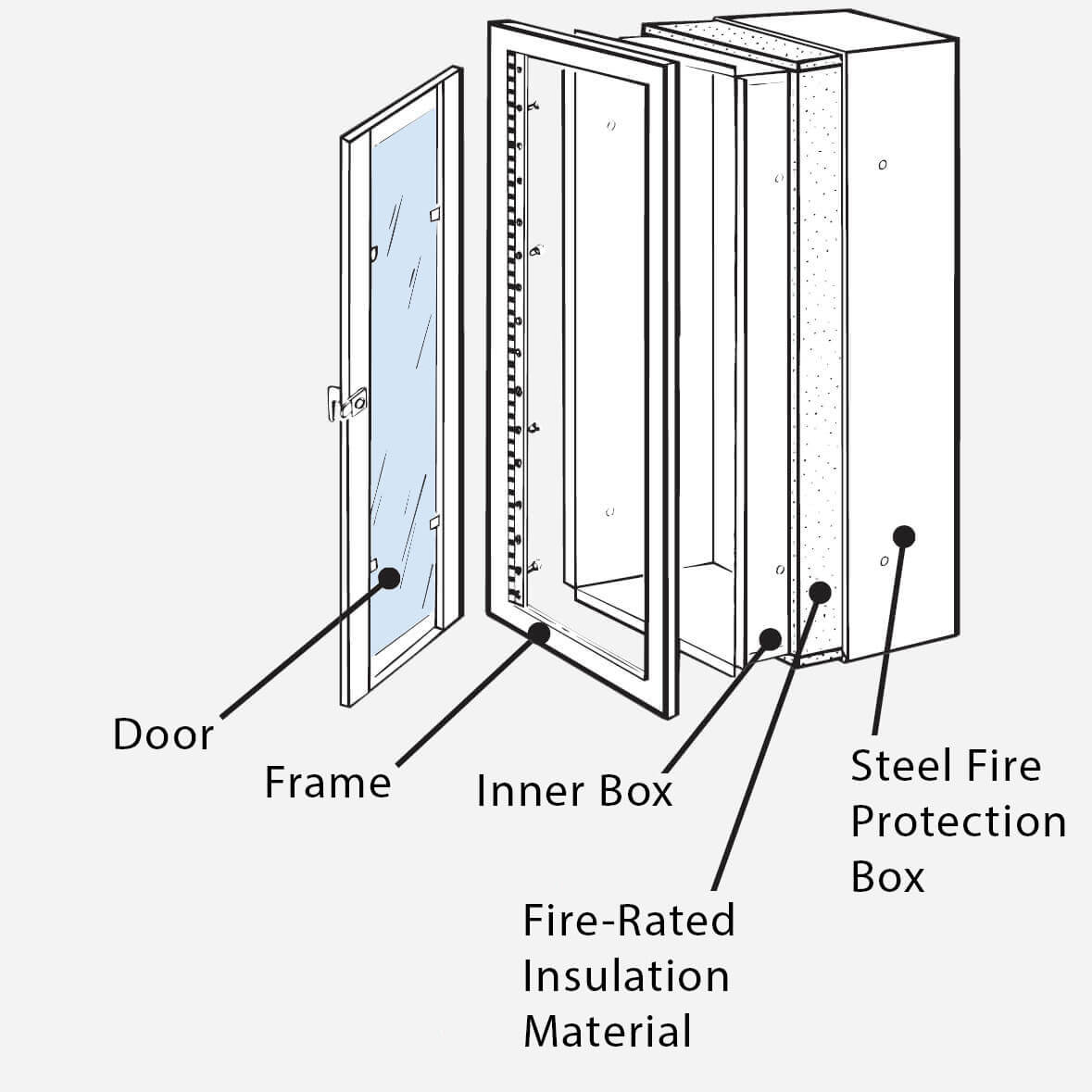

1700 Series fire-rated cabinets accommodate a single portable fire extinguisher. The box is fabricated of 22 gauge steel. The cabinets box door and frame are constructed from 20 gauge steel with fire insulation material and the door has a continuous steel hinge (brass pin). The steel corner seams are welded and ground smooth. Recessed semi-recessed are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. FRC Cabinets are UL Classified per the standard for UL 1479 - Penetration Firestop Systems UL File no. R15411; Fire Rating: 2 Hours.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 1700 Series Fire Extinguisher Cabinet [FRC1702, FRC1704, FRC1706, FRC1708, FRC1712, FRC1714, FRC1718, FRC1724, FRC1734, FRC1736, FRC1738, FRC1746, FRC1748] | 0 | 592 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Door, Fire Insulation Material, 22 Gauge Steel Box, 20 Gauge Frame |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 24 x 5", 9 x 24 x 5.75", 12 x 36 x 8", 12 x 27 x 8", 12 x 36 x 8.75" |
| Capacity | See submittal for recommended PR Fire Extinguishers |
| Mounting | Recessed, Trimless, Semi-Recessed |

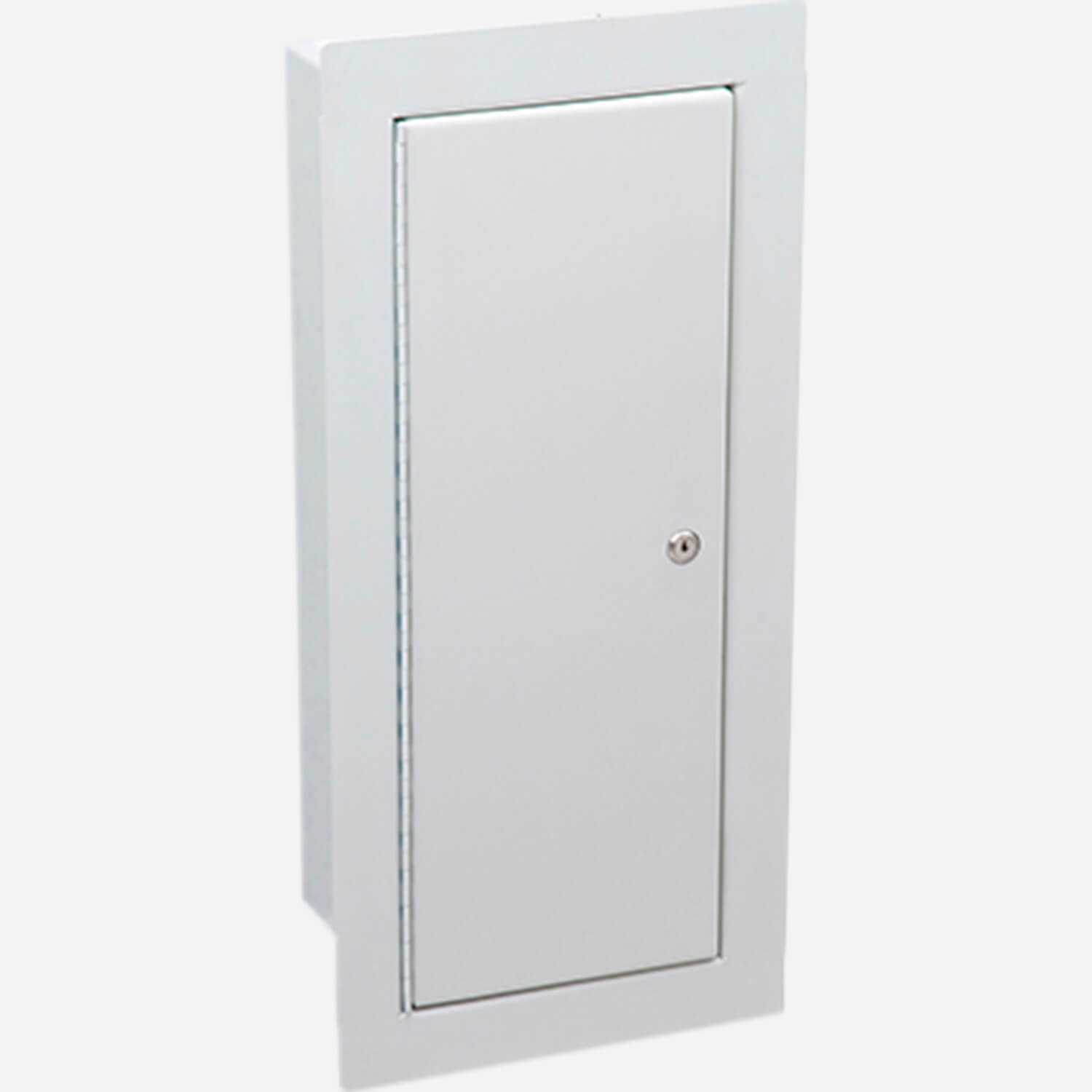

| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1700 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

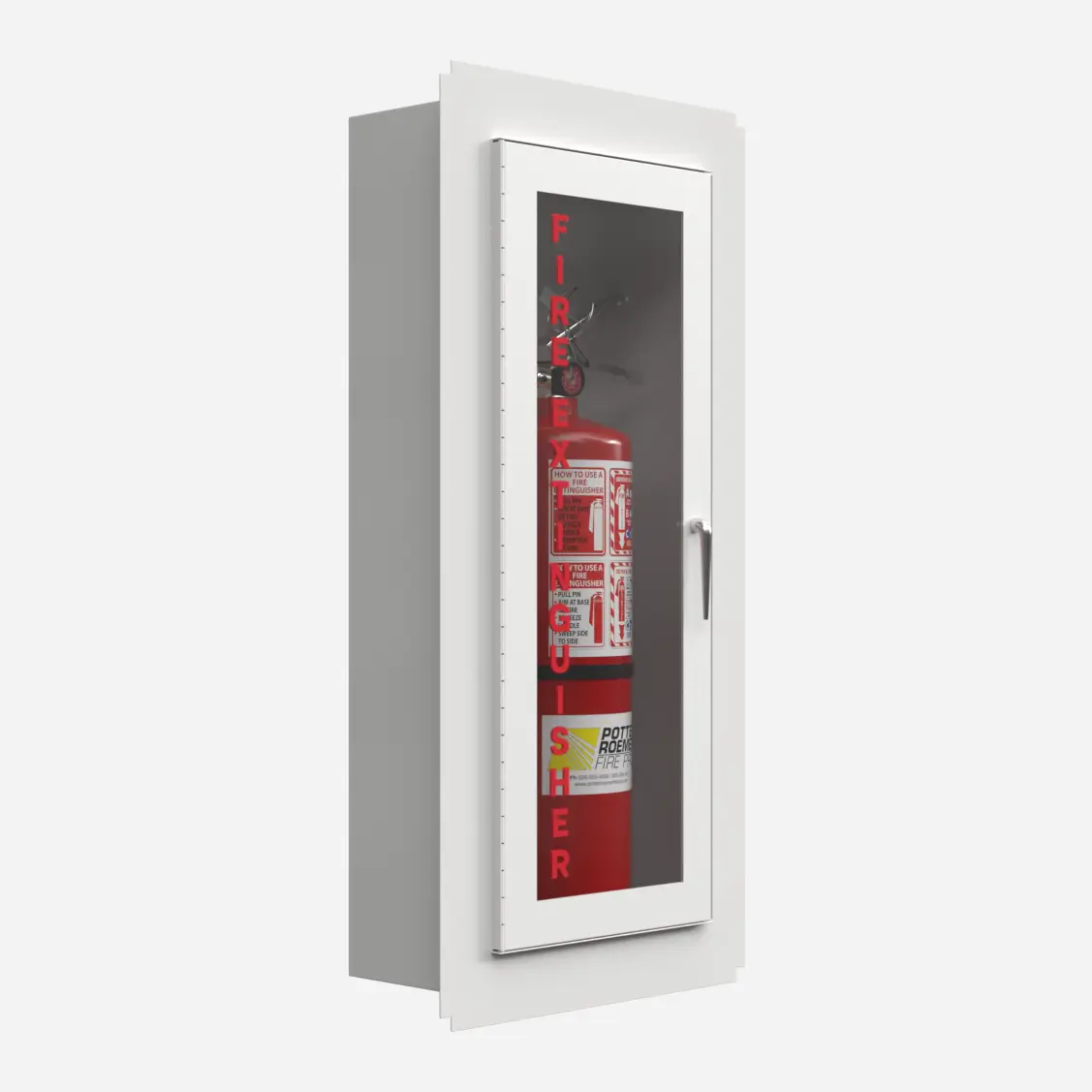

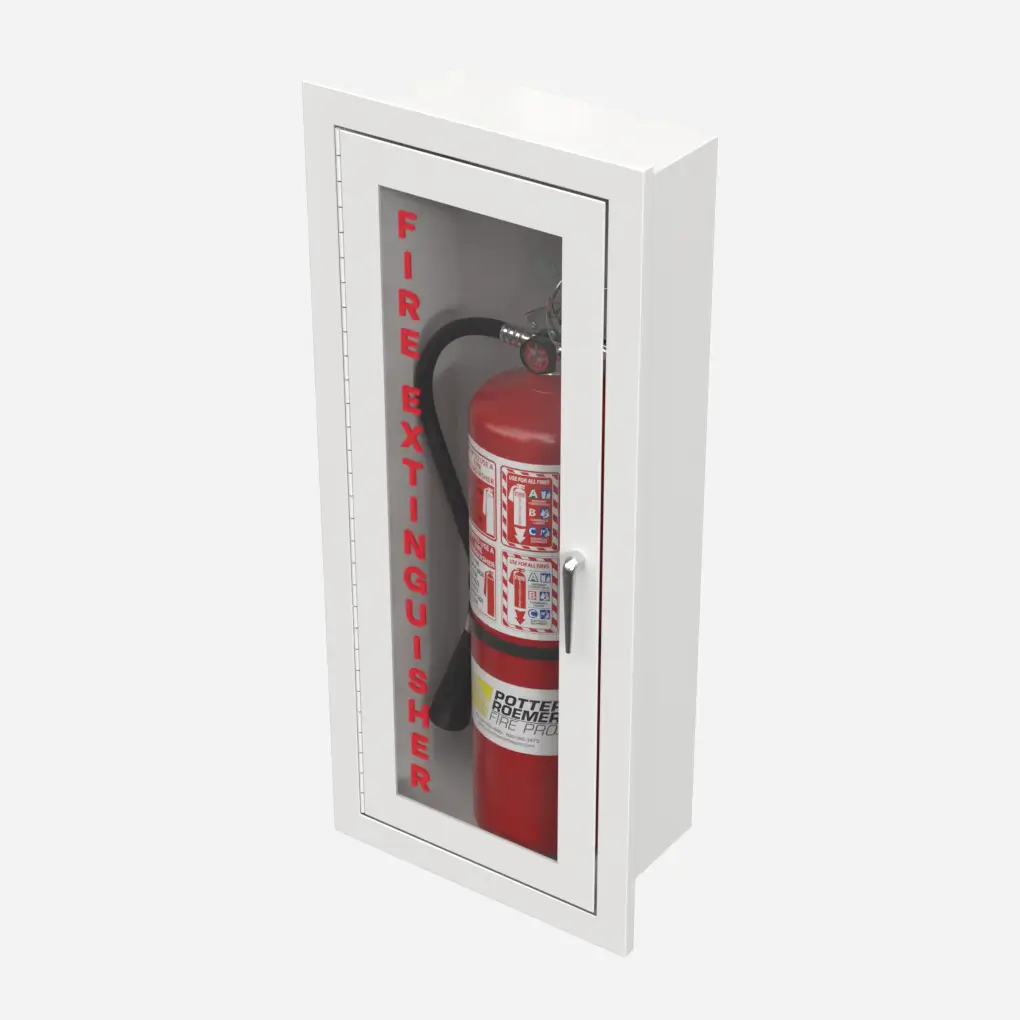

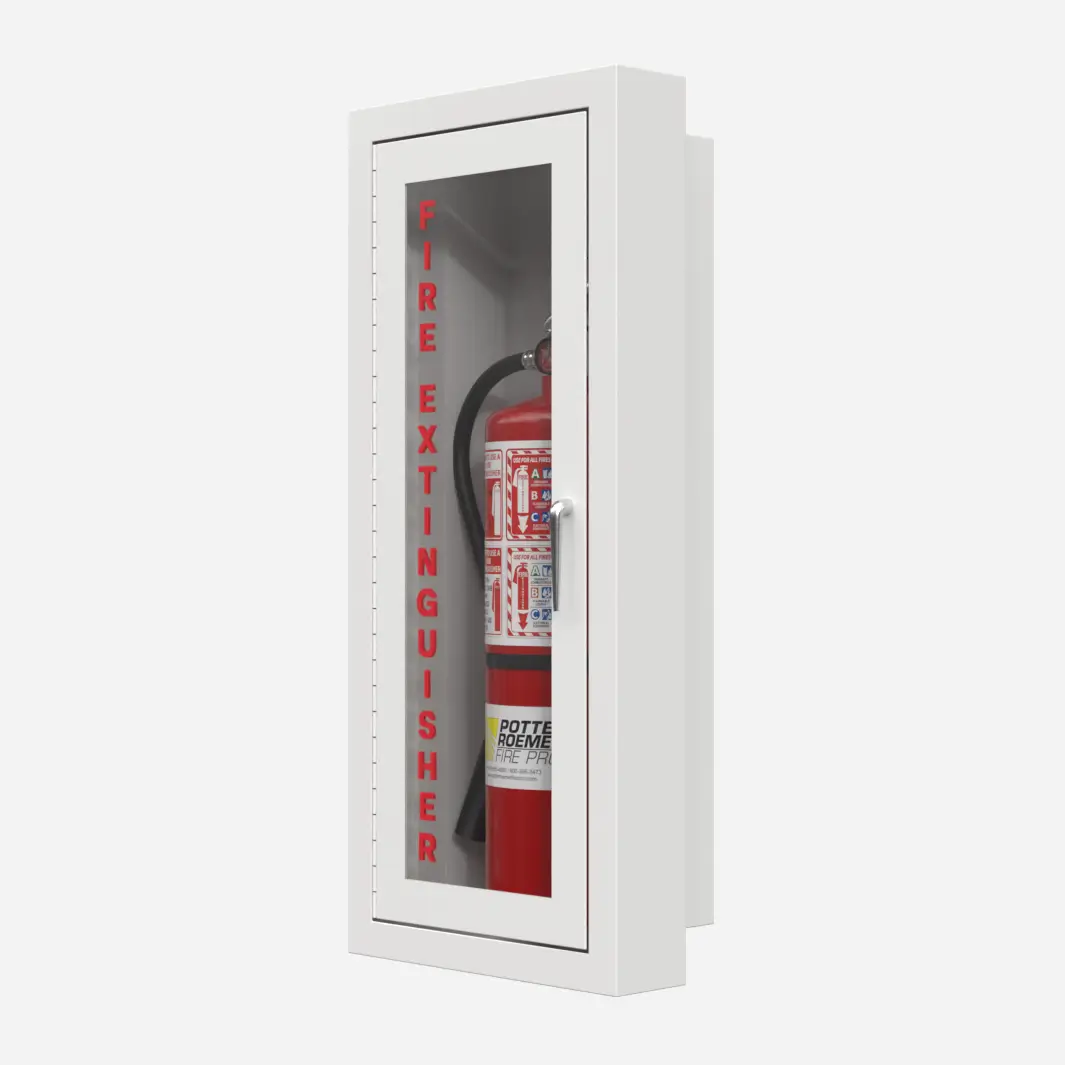

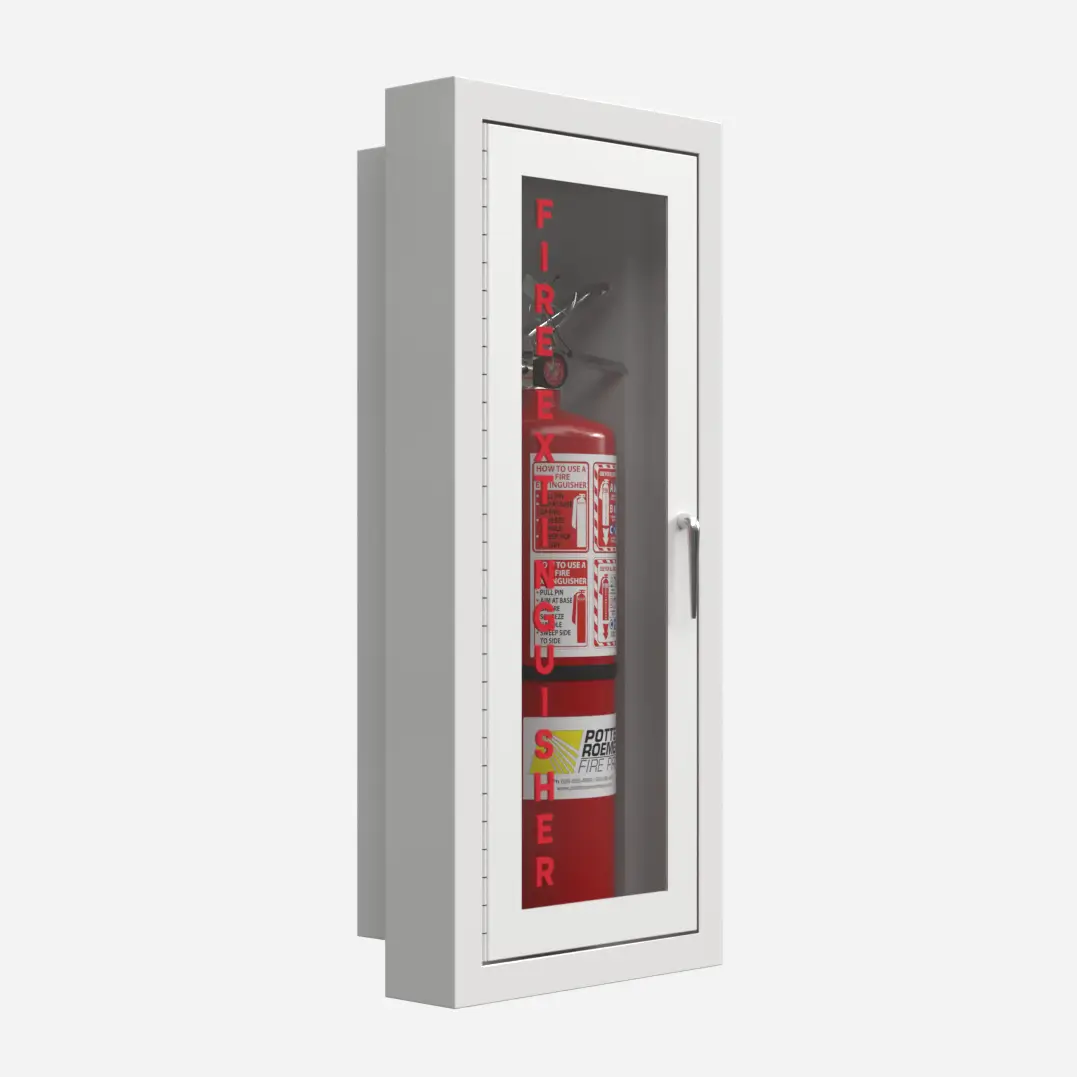

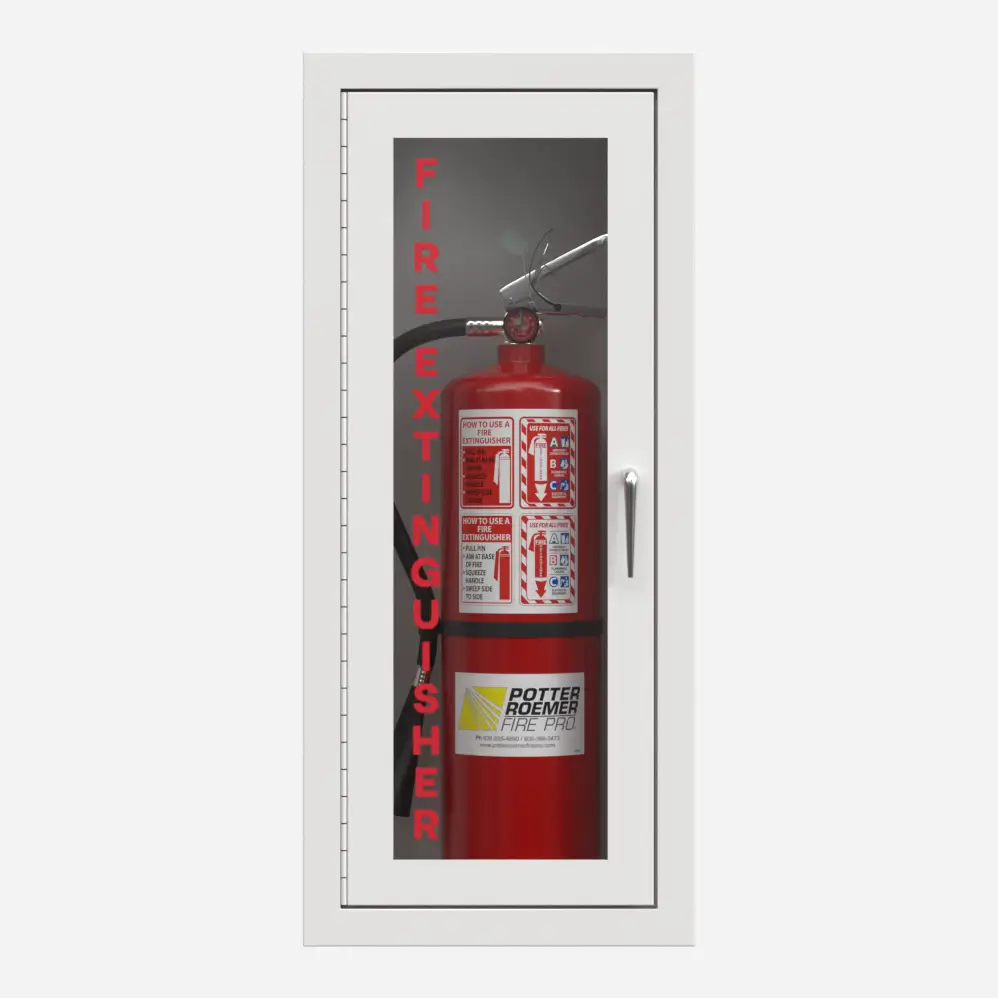

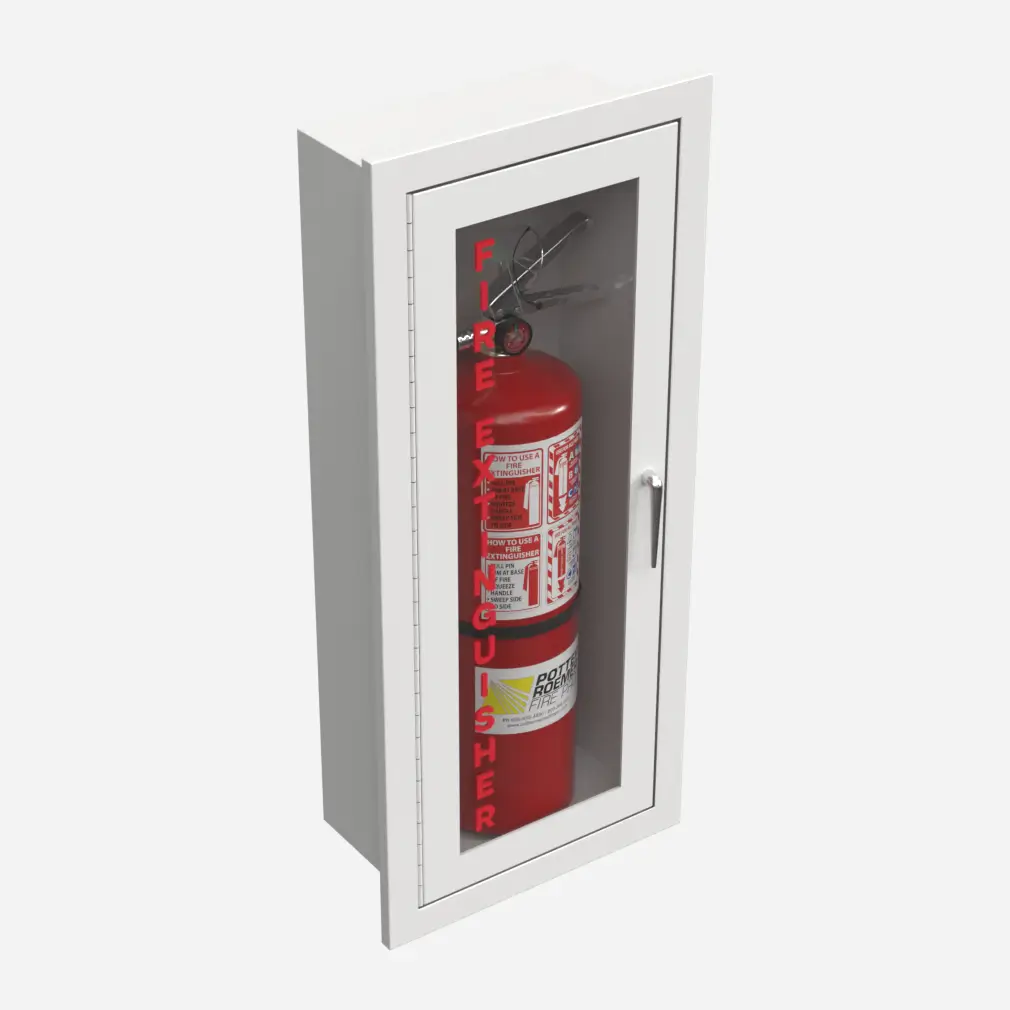

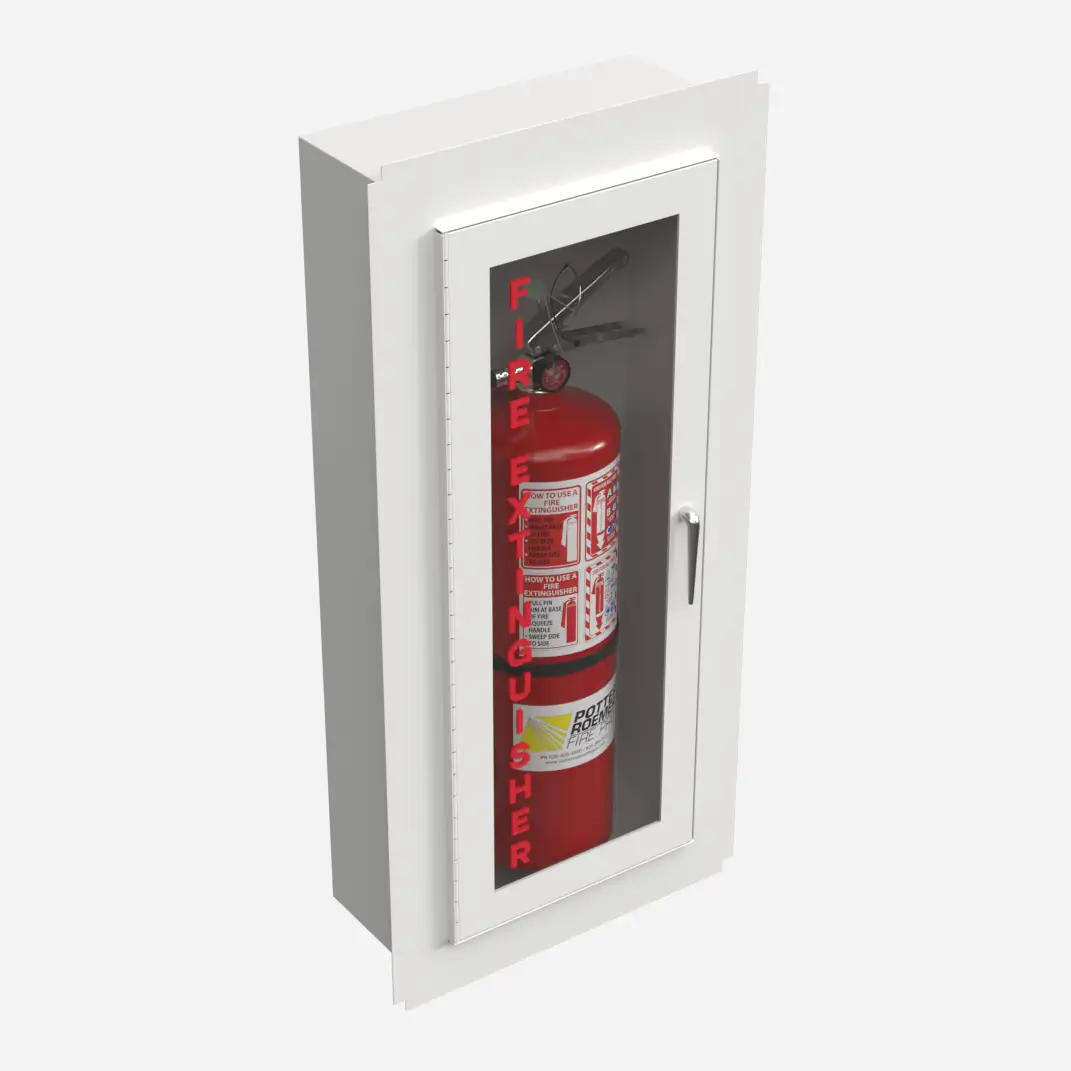

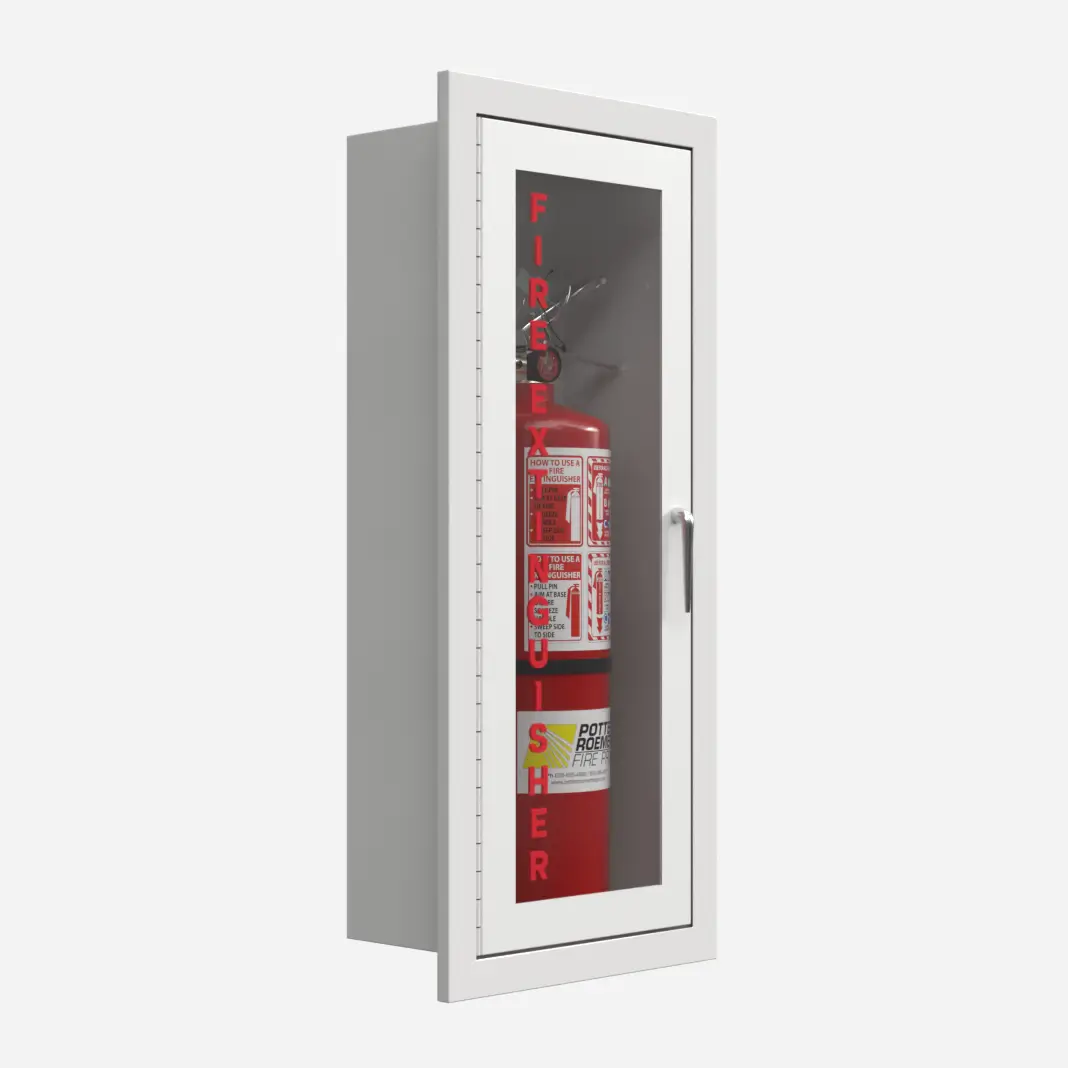

FRC1702 | Recessed 9 x 24 x 5”, 1/2” Trim FRC1704 | Recessed 9 x 24 x 5 3/4", 1/2” Trim FRC1706 | Recessed 12 x 27 x 8", 1/2" Trim FRC1708 | Recessed 12 x 36 x 8", 1/2" Trim FRC1712 | Trimless 9 x 24 x 5" FRC1714 | Trimless 9 x 24 x 5 3/4" FRC1716 | Trimless 12 x 27 x 8" FRC1718 | Trimless 12 x 36 x 8 3/4" FRC1724 | Semi-Recessed 9 x 24 x 5 3/4", 2" Trim FRC1734 | Semi-Recessed 9 x 24 x 5 3/4", 3” Trim FRC1736 | Semi-Recessed 12 x 27 x 8", 3” Trim FRC1738 | Semi-Recessed 12 x 36 x 8", 2 ¾" Trim FRC1746 | Semi-Recessed 12 x 27 x 8", 5” Trim FRC1748 | Semi-Recessed 12 x 27 x 8", 4 ¾” Trim
