Fire Extinguisher Cabinet

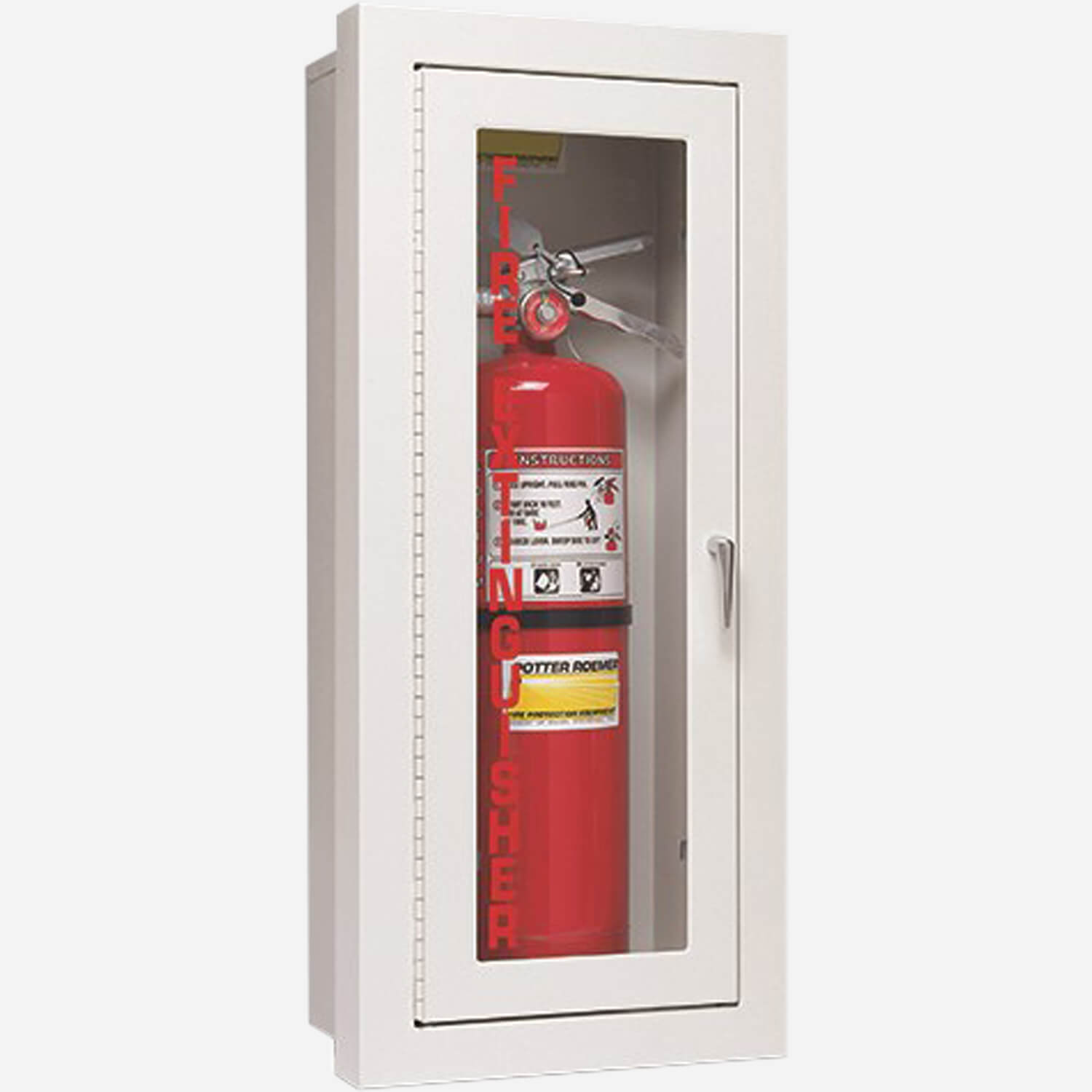

1700 Series cabinets accommodate a single portable fire extinguisher. The cabinet box is 22 gauge steel. The door and frame are 20 gauge steel. The door has a continuous steel hinge (brass pin). The steel corner seams are welded and ground smooth. Recessed semi-recessed and surface-mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION: 1700 Series cabinets accommodate a single portable fire extinguisher.
REGULARLY FURNISHED: 20 gauge box, 20 gauge tubular steel door with 20 gauage frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 1700 Series Fire Extinguisher Cabinet [1702, 1704, 1706, 1708, 1712, 1714, 1716, 1718, 1724, 1734, 1736, 1738, 1746, 1748, 1754, 1756, 1758] | 0 | 2 MB | ||
| | Dana Style Cabinets [1302-DANA | for Hose Rack Assembly and Extinguisher; 1704-DANA | for Extinguisher; 1706-DANA | for Extinguisher; 1810-DANA | for Valve; 1870-DANA | for Valve and Extinguisher] | 0 | 622 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Door, 22 Gauge Steel Box, 20 Gauge Frame |
| ADA Models | 1702, 1704, 1706, 1708, 1712, 1714, 1716, 1718, 1724, 1734, 1736, 1738, 1746, 1748 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 24 x 5", 9 x 24 x 5.75", 12 x 36 x 8", 12 x 27 x 8", 12 x 36 x 8.75", 11.5 x 26.5 x 5.75", 14.5 x 29.5 x 8", 14 x 38 x 9.75" |
| Capacity | See submittal for recommended PR Fire Extinguishers |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |

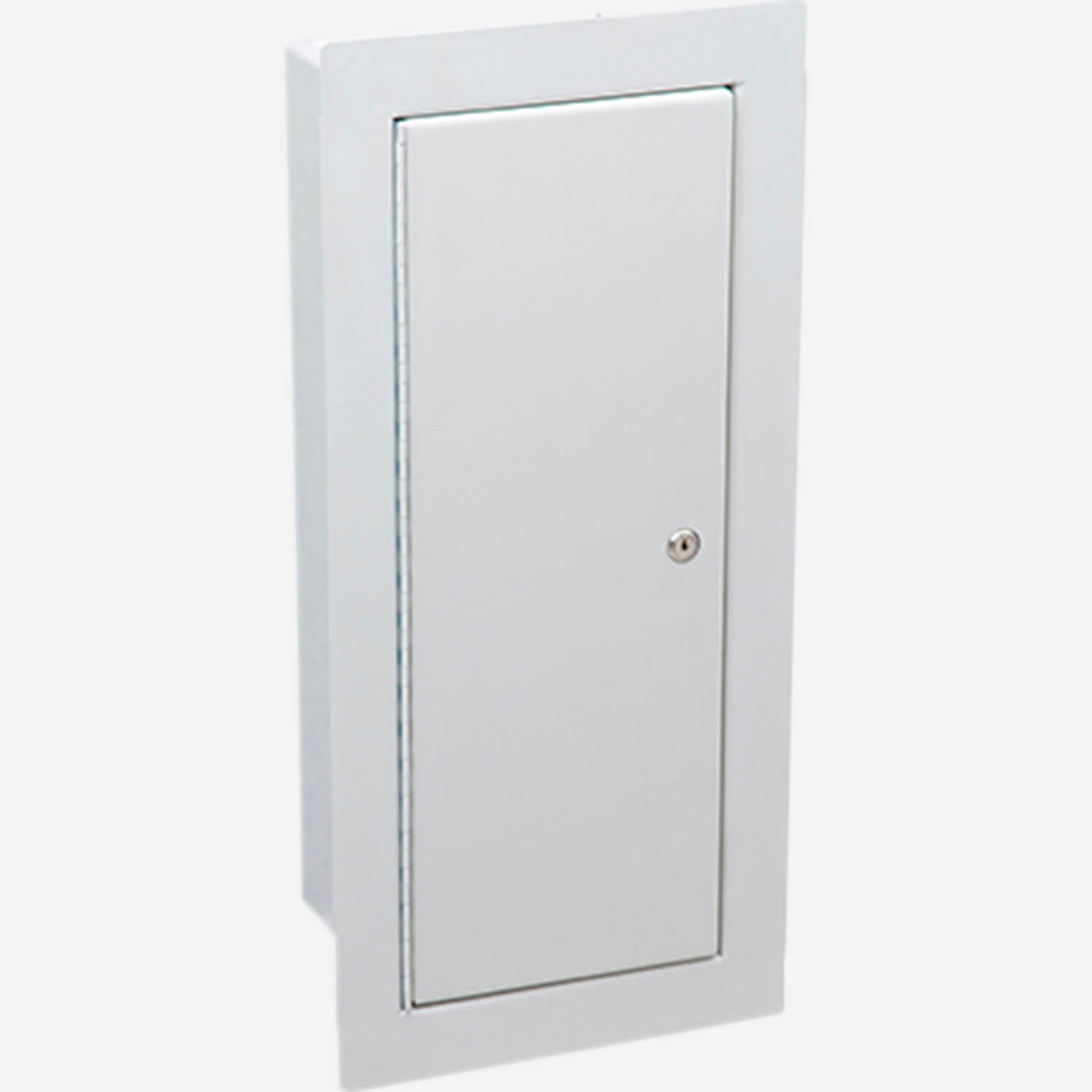

| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -DP | Duplex Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1700 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1702 | Recessed 9 x 24 x 5”, 1/2” Trim, ADA compliant 1704 | Recessed 9 x 24 x 5 3/4", 1/2” Trim, ADA compliant (available in Dana Style Cabinet, see submittal) 1706 | Recessed 12 x 27 x 8", 1/2" Trim, ADA compliant (available in Dana Style Cabinet, see submittal) 1708 | Recessed 12 x 36 x 8", 1/2" Trim, ADA compliant 1712 | Trimless 9 x 24 x 5", ADA compliant 1714 | Trimless 9 x 24 x 5 3/4", ADA compliant 1716 | Trimless 12 x 27 x 8", ADA compliant 1718 | Trimless 12 x 36 x 8", ADA compliant 1724 | Semi-Recessed 9 x 24 x 5 3/4", 2" Trim, ADA compliant 1734 | Semi-Recessed 9 x 24 x 5 3/4", 3” Trim, ADA compliant 1736 | Semi-Recessed 12 x 27 x 8", 3” Trim, ADA compliant 1738 | Semi-Recessed 12 x 36 x 8", 2 ¾" Trim, ADA compliant 1746 | Semi-Recessed 12 x 27 x 8", 5” Trim 1748 | Semi-Recessed 12 x 36 x 8", 4 ¾” Trim 1754 | Surface 11 ½” x 26 ½” x 5 3/4”, 5 3/4” Trim 1756 | Surface 14 ½” x 29 ¼” x 8”, 8” Trim 1758 | Surface 14 x 38 x 9 ¼”, 9 1/4” Trim
