Fire Rated 1.5" Fire Hose Rack Cabinet
This fire-rated cabinet holds a 1-1/2" (3.8 cm) fire hose rack assembly with either poly-flex or PR-super flex hose. 1000 Series cabinets will also accommodate a portable 5 lbs. (2.2 kg) ABC fire extinguisher when required. The cabinet is constructed from a 20 gauge steel box and door with 18 gauge frame and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Semi-recessed and surface mounted cabinets are furnished with 0.125" (0.31 cm) radiused frame. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 1.5" Fire Hose Rack Cabinet [FRC1002, FRC1004, FRC1006, FRC1012, FRC1014, FRC1016, FRC1022, FRC1024, FRC1026] | 0 | 610 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications

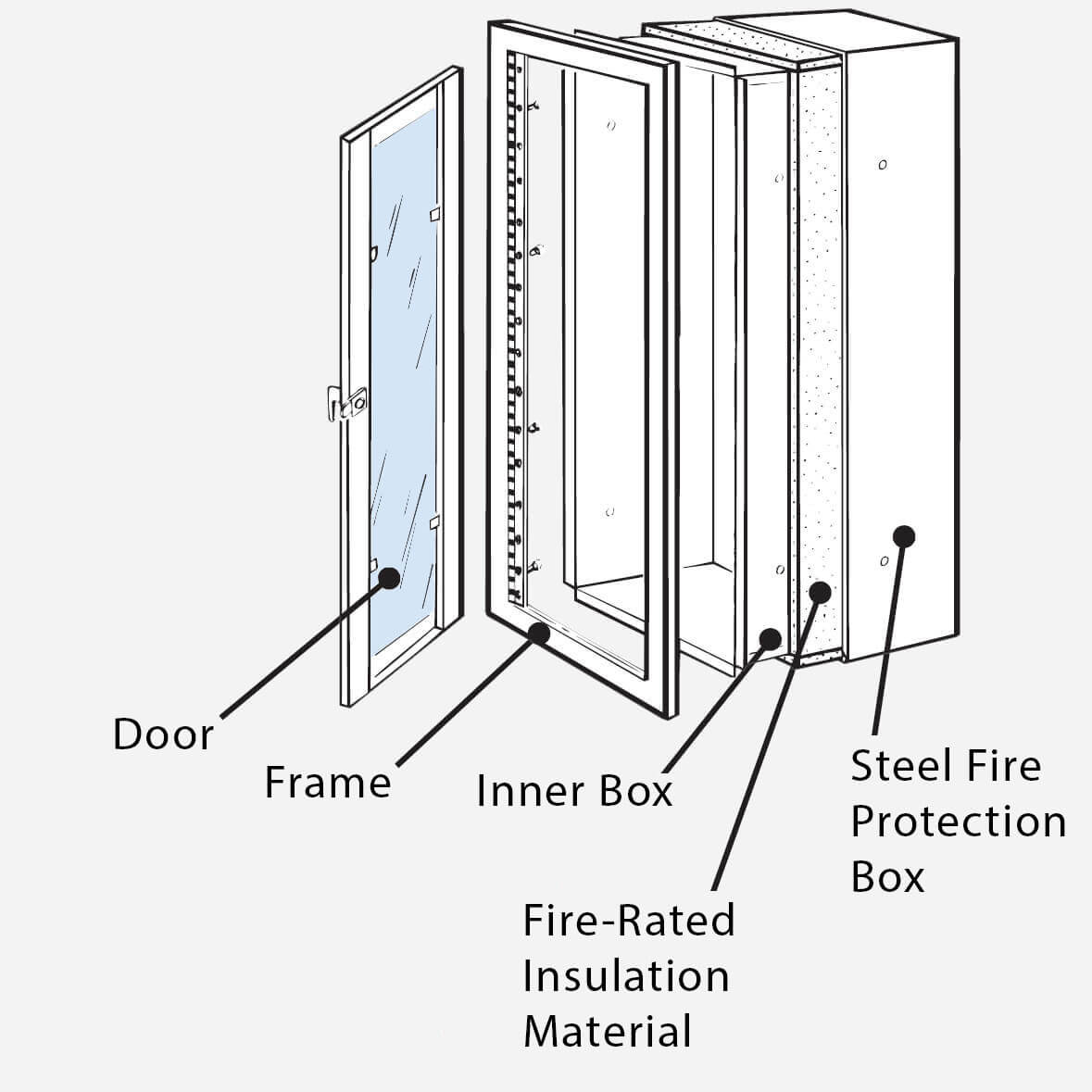

| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 24 x 30 x 5.5", 24 x 36 x 5.5", 24 x 40 x 5.5" |
| Capacity | 5 Lbs ABC Extinguisher (if required), 1.5" Hose Rack Assembly, 75' of Poly Flex Hose, 100' of Poly Flex Hose, 50' of Super Flex Hose, 75' of Super Flex Hose, 100' of Super Flex Hose |
| Mounting | Semi-Recessed, Recessed, Trimless |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -HF | Horizontal Fold Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1000 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
FRC1002 | Recessed 24 x 30 x 5-1/2", 5/8" Trim FRC1004 | Recessed 24 x 36 x 5-1/2", 5/8" Trim FRC1006 | Recessed 24 x 40 x 5-1/2", 5/8" Trim FRC1012 | Trimless 24 x 30 x 5-1/2" FRC1014 | Trimless 24 x 36 x 5-1/2" FRC1016 | Trimless 24 x 40 x 5-1/2" FRC1022 | Semi-Recessed 24 x 30 x 5-1/2", 2" Trim FRC1024 | Semi-Recessed 24 x 36 x 5-1/2", 2" Trim FRC1026 | Semi-Recessed 24 x 40 x 5-1/2", 2" Trim
