Fire Rated 1.5" Fire Hose Rack and Extinguisher Cabinet

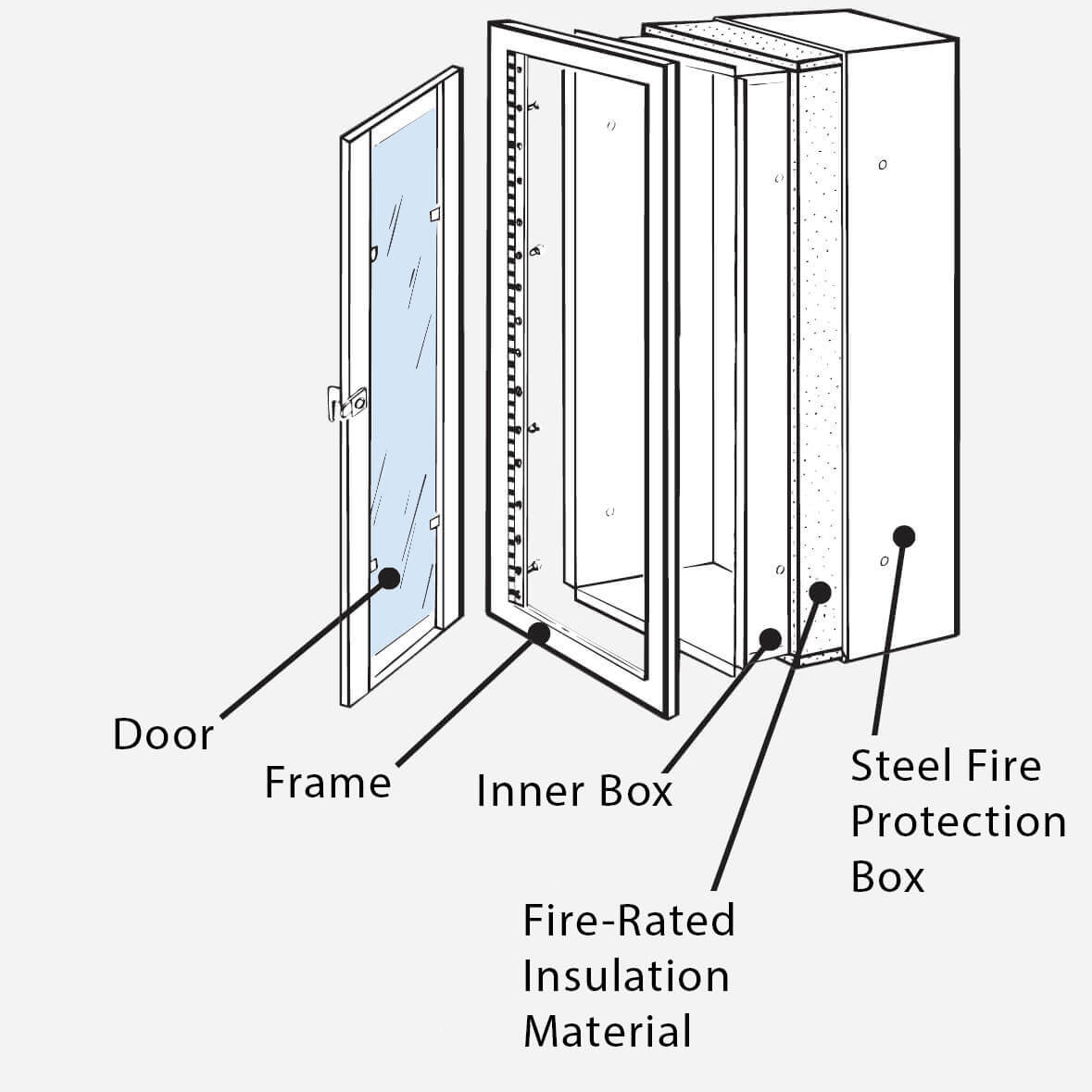

This fire-rated cabinet holds a 1-1/2" (3.8 cm) fire hose rack assembly with either Poly-Flex or PR-Super Flex hose. 1300 Series cabinets will also accommodate a portable fire extinguisher when required. The cabinet is constructed from a 20 gauge steel box and door with 18 gauge frame fire insulation material and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Semi-recessed and surface mounted cabinets are furnished with 0.125" (0.31 cm) radiused frame. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 1.5" Fire Hose Rack and Extinguisher Cabinet [FRC1302, FRC1304, FRC1306, FRC1312, FRC1314, FRC1316, FRC1332, FRC1334, FRC1336, FRC1342, FRC1344, FRC1346] | 0 | 631 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 30 x 30 x 8", 30 x 36 x 8", 30 x 40 x 8" |
| Capacity | 75' of Poly Flex Hose, 100' of Poly Flex Hose, 50' of Super Flex Hose, 75' of Super Flex Hose, 100' of Super Flex Hose, 2.5 Gallon Pressurized Water Fire Extinguisher, Up to 20 Lbs Dry Chemical Extinguisher, Up to 10 Lbs Carbon Dioxide Extinguisher, 1.5" Hose Rack Assembly |
| Mounting | Semi-Recessed, Recessed, Trimless |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -HF | Horizontal Fold Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1300 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
FRC1302 | Recessed 30 x 30 x 8", 5/8" Trim FRC1304 | Recessed 30 x 36 x 8", 5/8" Trim FRC1306 | Recessed 30 x 40 x 8", 5/8" Trim FRC1312 | Trimless 30 x 30 x 8" FRC1314 | Trimless 30 x 36 x 8" FRC1316 | Trimless 30 x 40 x 8" FRC1332 | Semi-Recessed 30 x 30 x 8", 2 ¾" Trim FRC1334 | Semi-Recessed 30 x 36 x 8", 2 ¾” Trim FRC1336 | Semi-Recessed 30 x 40 x 8", 2 ¾” Trim FRC1342 | Semi-Recessed 30 x 30 x 8", 4 3/4" Trim FRC1344 | Semi-Recessed 30 x 36 x 8", 4 3/4" Trim FRC1346 | Semi-Recessed 30 x 40 x 8", 4 3/4" Trim
