Fire Rated 1.5" Fire Hose Rack and 2.5" Fire Dept. Valve Cabinet

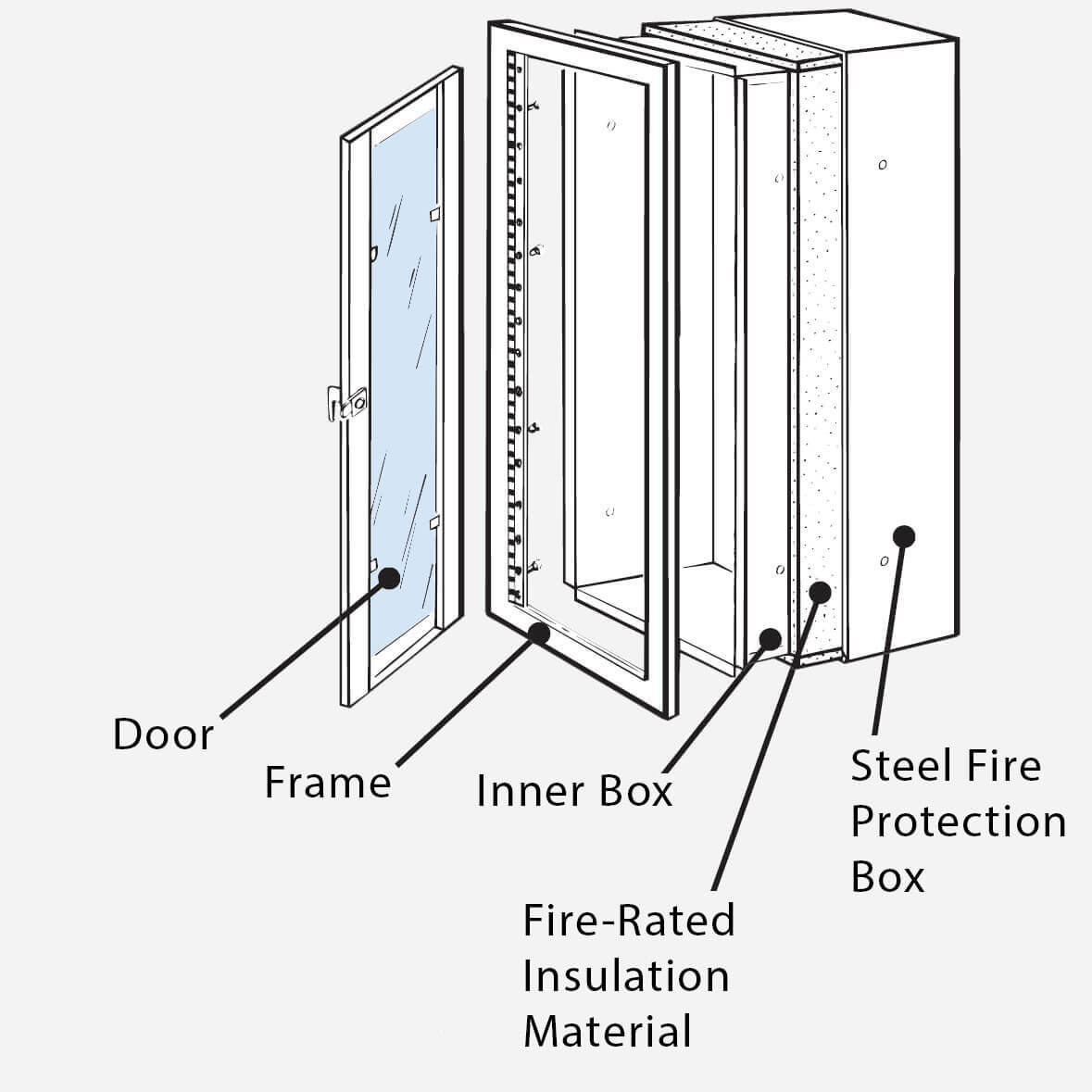

This fire-rated cabinet holds a 1-1/2" (3.8 cm) fire hose rack assembly with either Poly-Flex or PR-Super Flex hose and a fire department valve with cap and chain. 1200 Series cabinets will also accommodate a portable 5 lbs. (2.2 kg) ABC fire extinguisher when required. The cabinet is constructed from a 20 gauge steel box and tubular steel door with 18 gauge frame and a continuous steel hinge. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. Glass door styles provided with clear tempered safety glass.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 1.5" Fire Hose Rack and 2.5" Fire Dept. Valve Cabinet [FRDC1204, FRC1206, FRC1208, FRC1214, FRC1216, FRC1218, FRC1224, FRC1226, FRC1228] | 0 | 632 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 24 x 36 x 8", 24 x 40 x 8", 24 x 44 x 8" |
| Capacity | 75' of Poly Flex Hose, 100' of Poly Flex Hose, 2.5" Fire Dept Valve, 5 Lbs ABC Extinguisher (if required), 1.5" Hose Rack Assembly, 50' of Super Flex Hose, 75' of Super Flex Hose |
| Mounting | Semi-Recessed, Recessed, Trimless |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -HF | Horizontal Fold Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1200 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
FRC1204 | Recessed 24 x 36 x 8", 5/8" Trim FRC1206 | Recessed 24 x 40 x 8", 5/8" Trim FRC1208 | Recessed 24 x 44 x 8", 5/8" Trim FRC1214 | Trimless 24 x 36 x 8" FRC1216 | Trimless 24 x 40 x 8" FRC1218 | Trimless 24 x 44 x 8" FRC1224 | Semi-Recessed 24 x 36 x 8", 2" Trim FRC1226 | Semi-Recessed 24 x 40 x 8", 2" Trim FRC1228 | Semi-Recessed 24 x 44 x 8", 2" Trim
