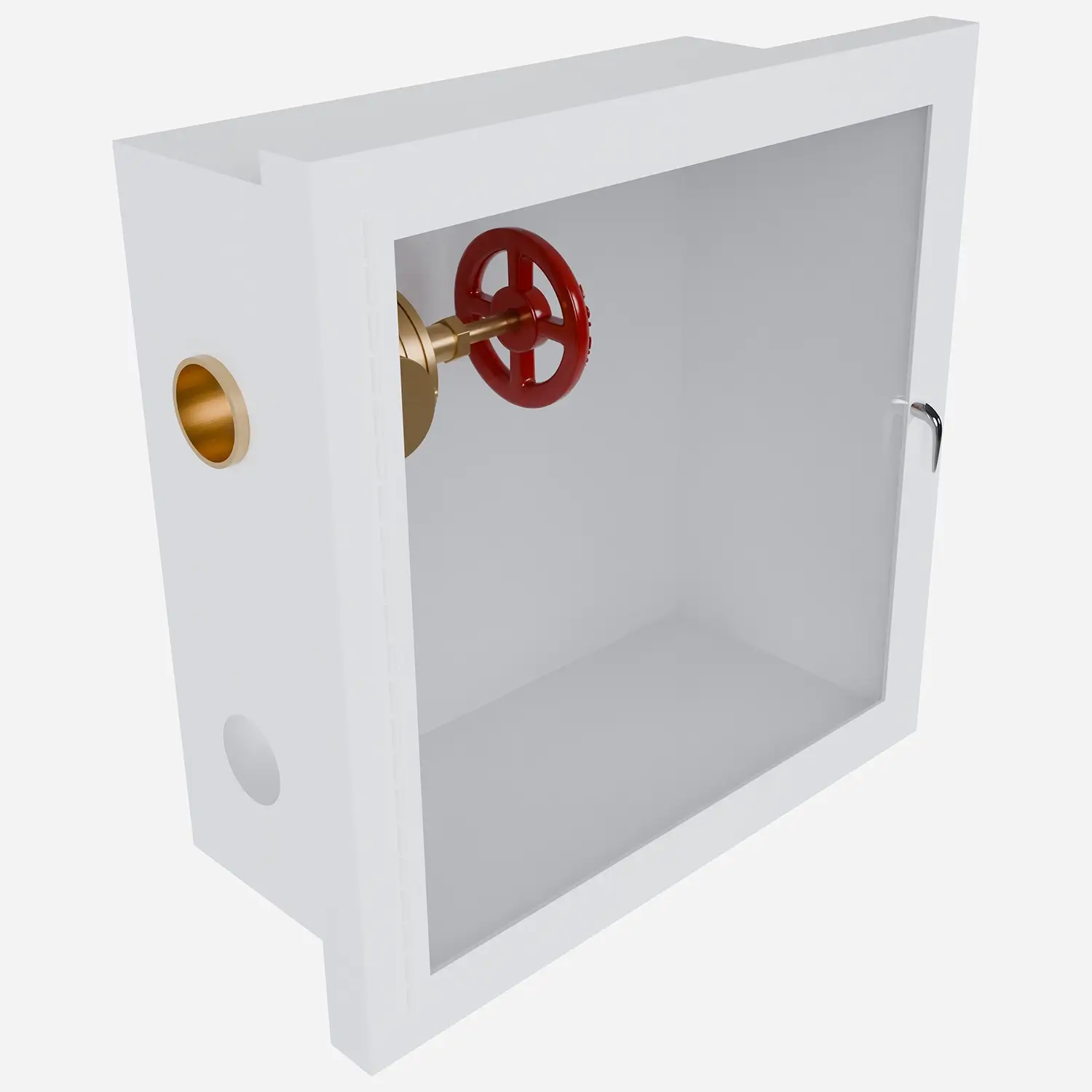

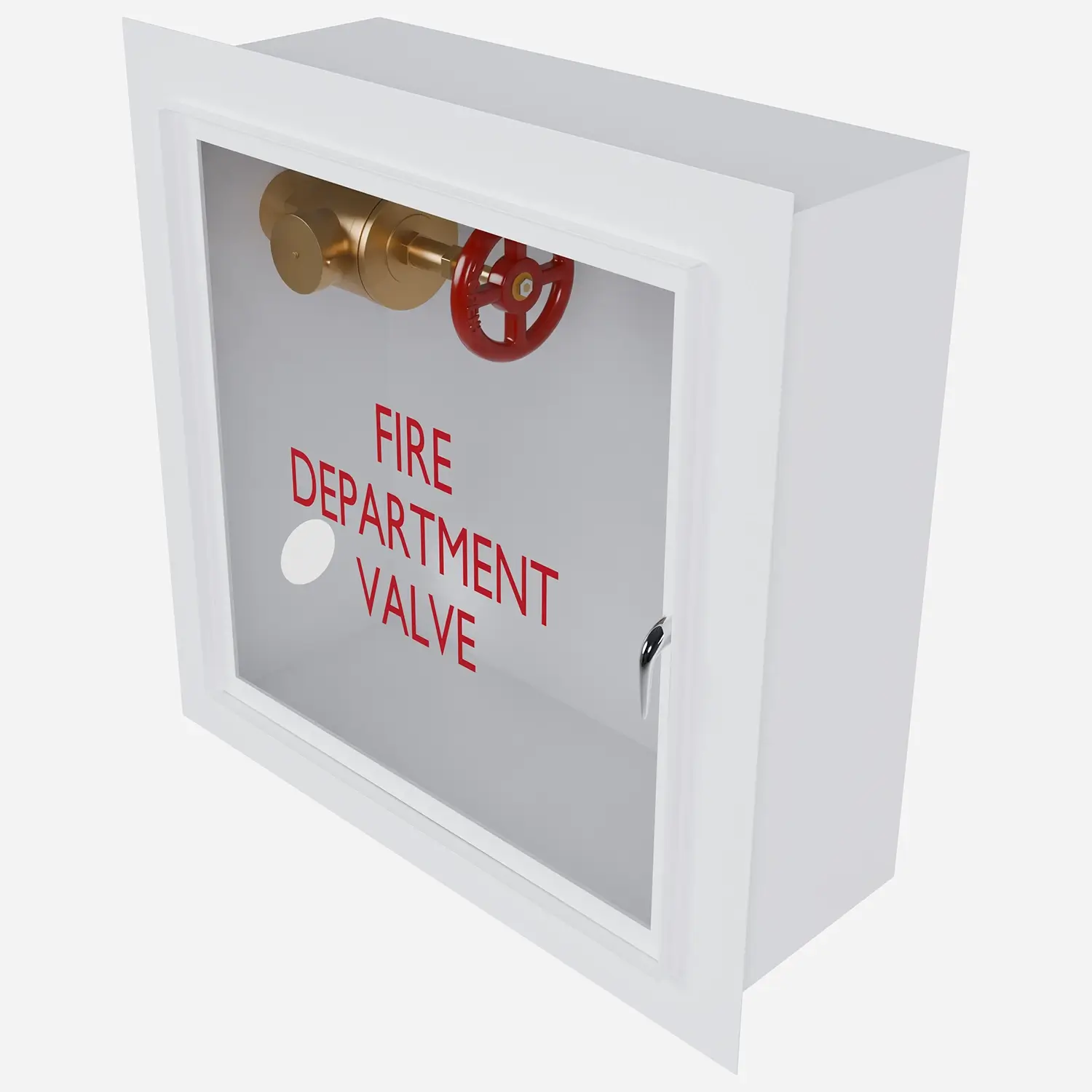

Fire Rated Fire Dept. Pressure Regulating Valve Cabinet

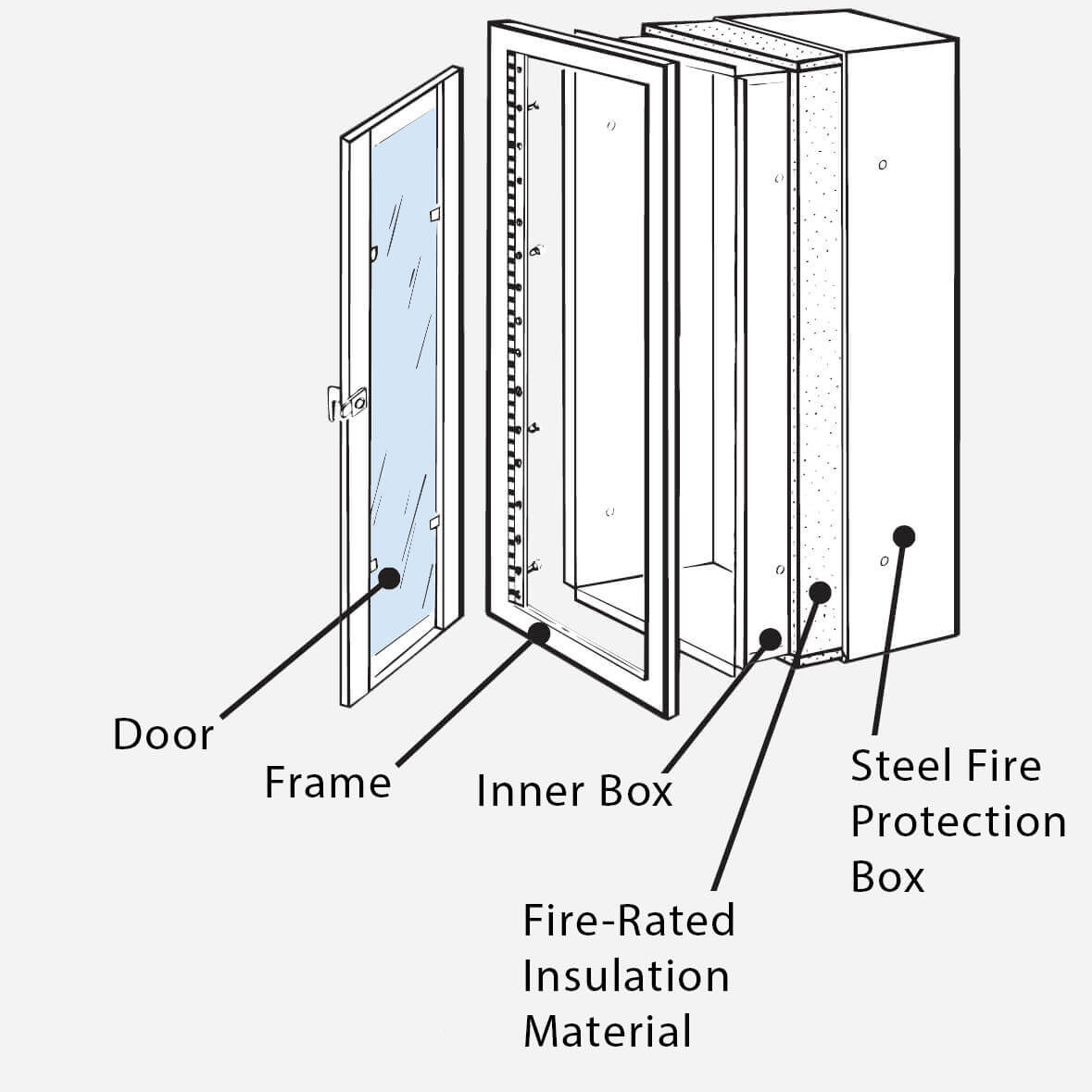

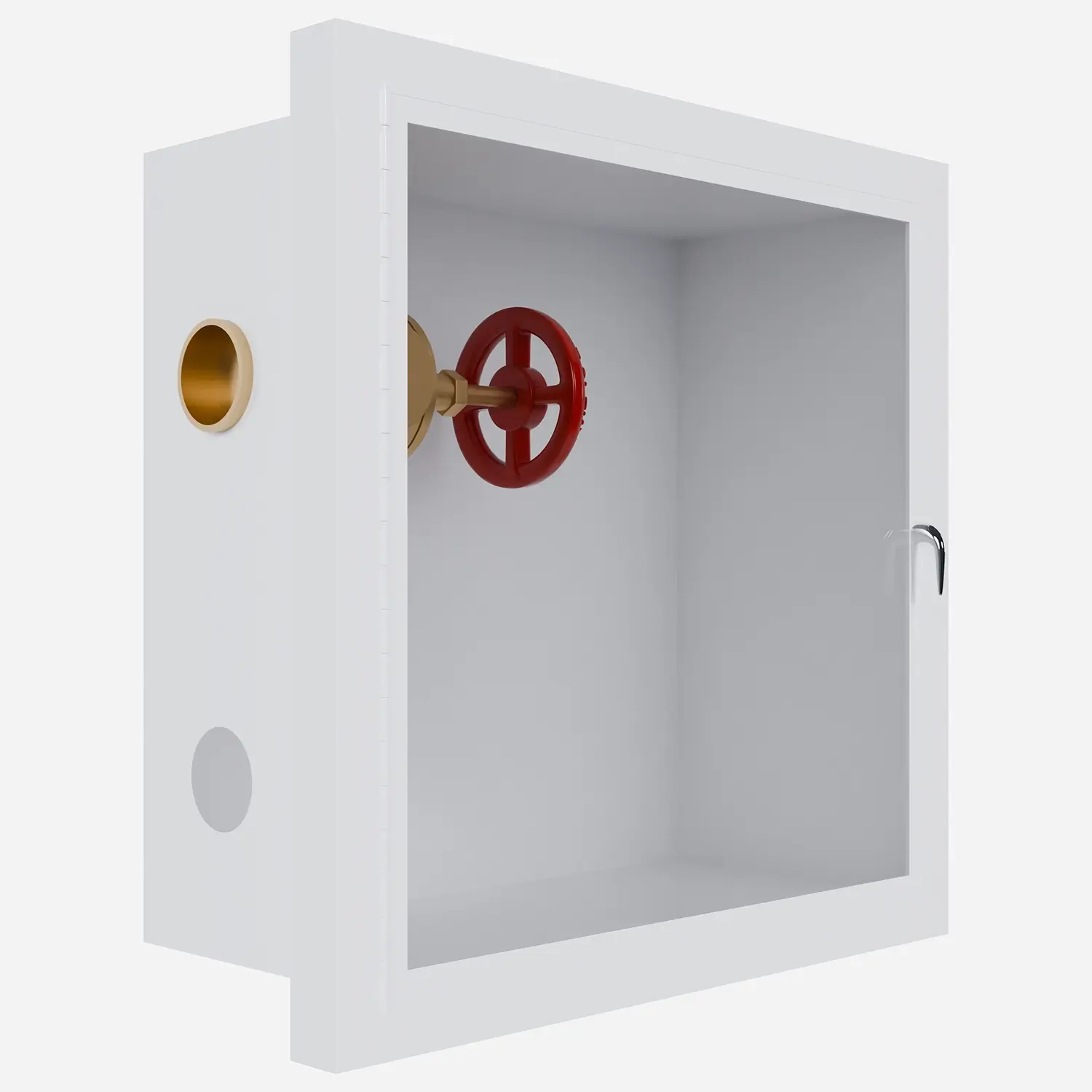

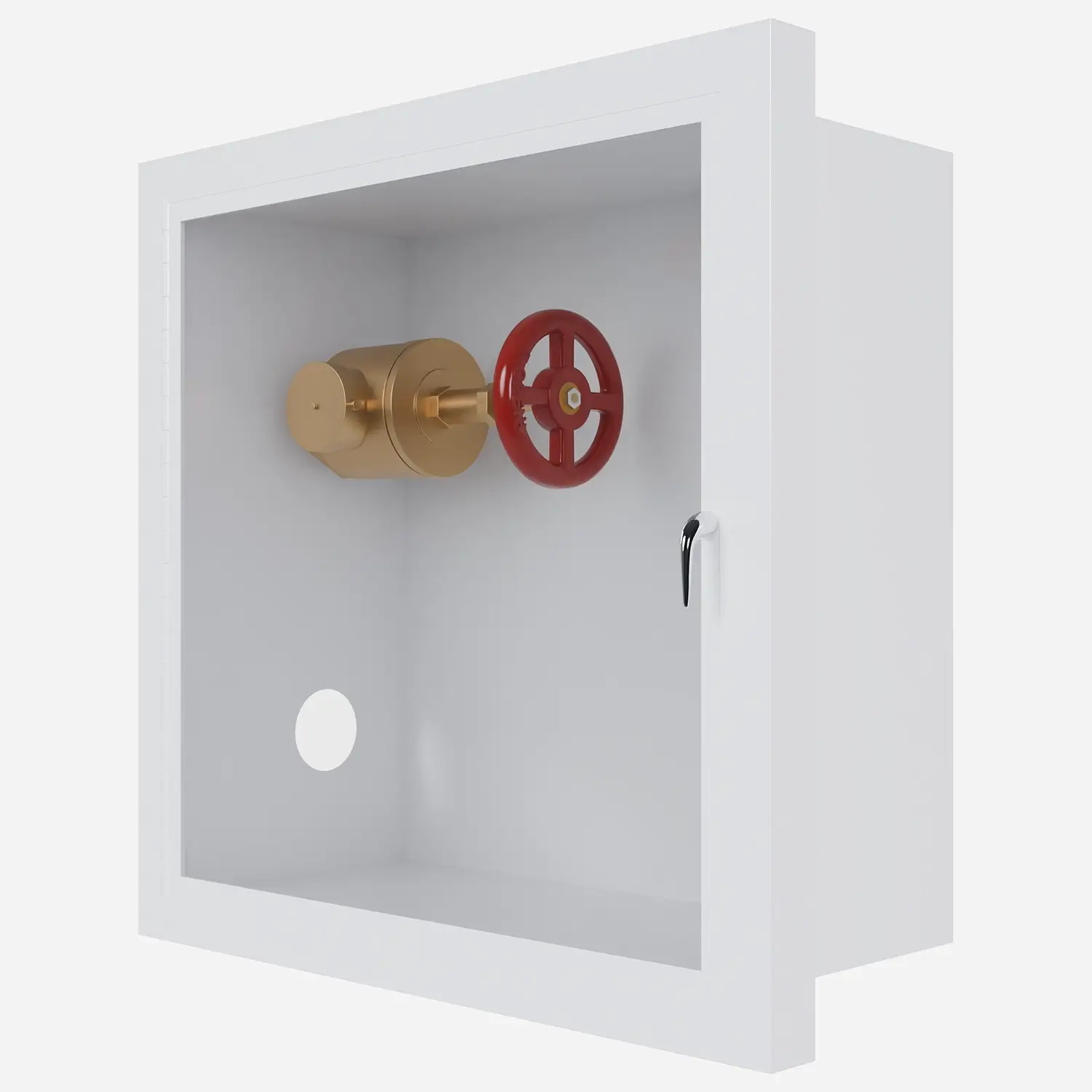

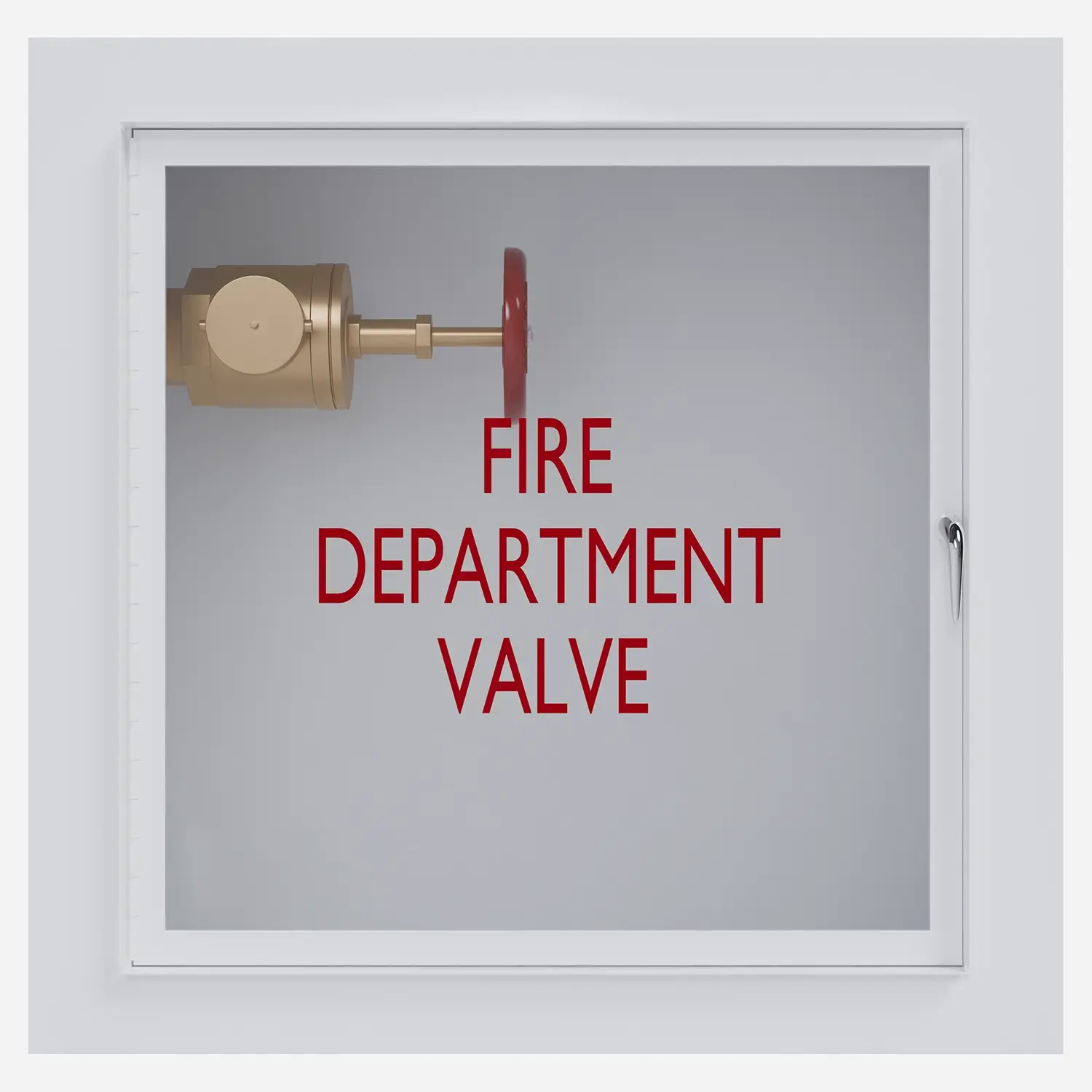

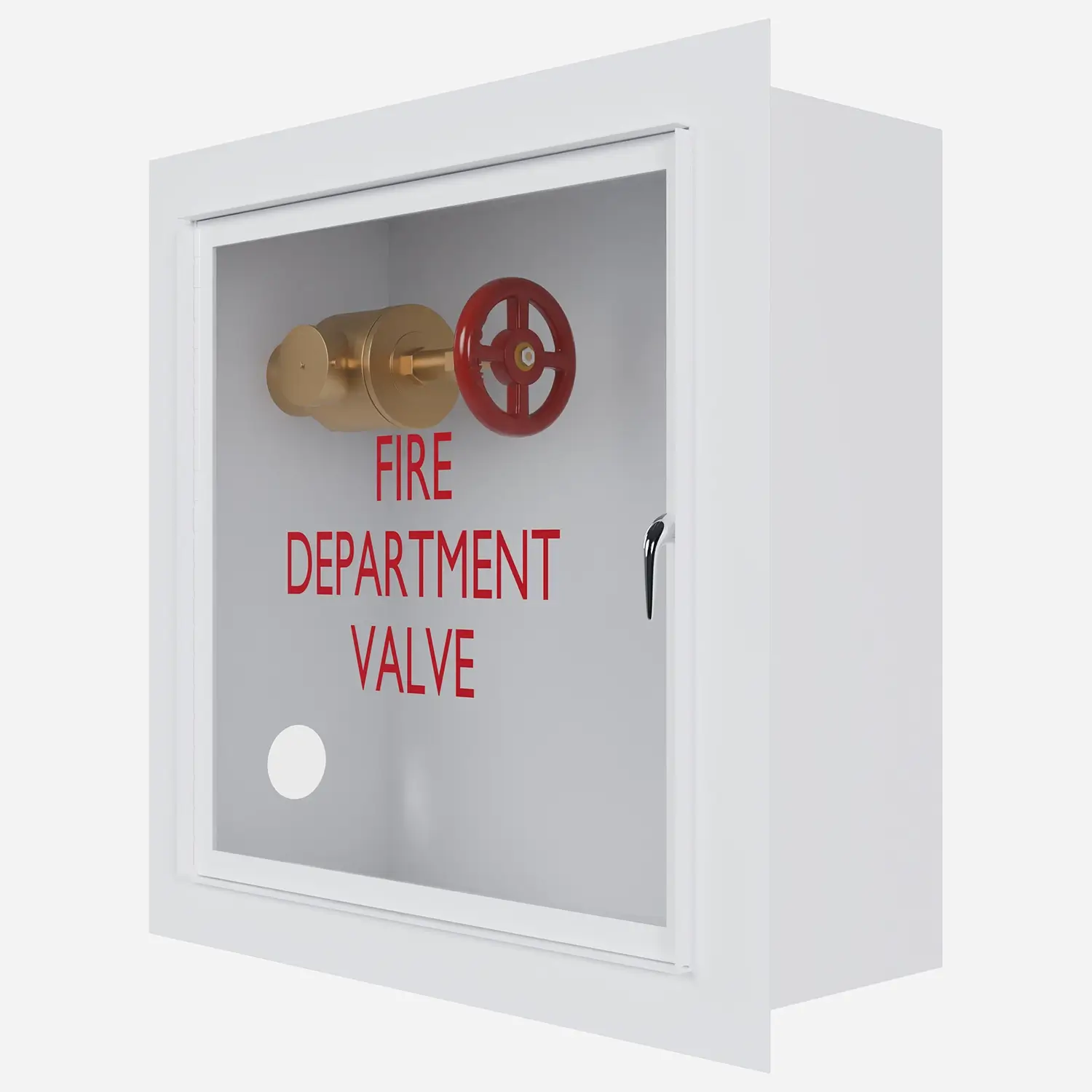

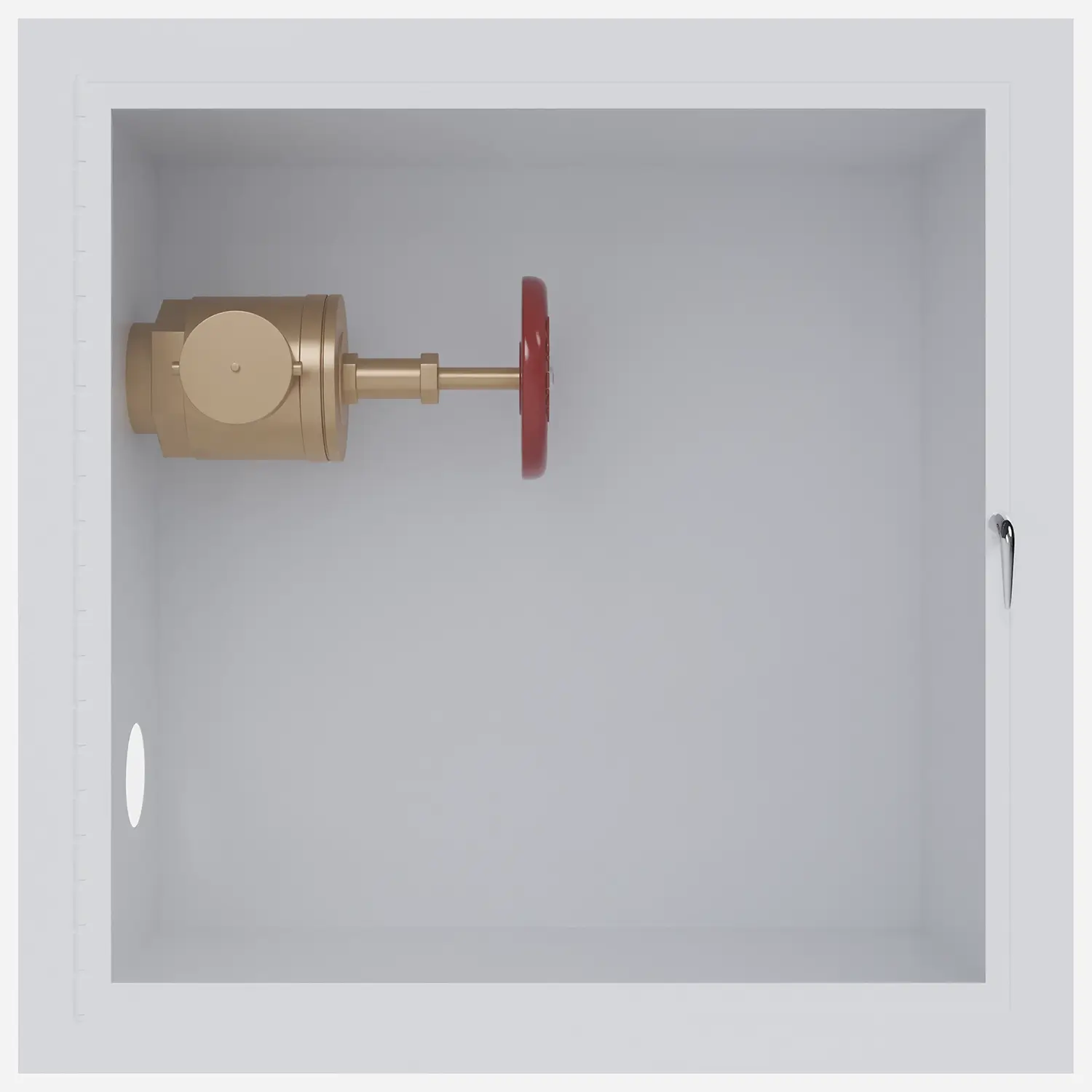

This fire-rated cabinet is designed to hold a 2-1/2" (6.4 cm) pressure regulating valve with cap and chain. This cabinet may be used with other valves when spanner clearance is a factor or when a 2-1/2" x 1-1/2" (6.4 x 3.8 cm) adapter is required. This cabinet has a 21 gauge steel box with fire insulation material, 20 gauge tubular steel door with 20 gauge steel frame and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Recessed semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
COMPLIANCE SPECIFICATIONS:Fire Rated: System No. W-L-7004, F Rating - 2 Hours, T Rating - 2 Hours UL: ANSI/UL 1479 (ASTM E814)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Fire Dept. Valve Cabinet [FRC1813, FRC1810-10, FRC1811, FRC1811-10, FRC1812, FRC1812-10, FRC1830, FRC1831, FRC1832] | 0 | 605 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | System No. W-L-7004, F Rating - 2 Hours, T Rating - 2 Hours |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified, ANSI/UL 1479 (ASTM E814) |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 24 x 24 x 10", 18 x 18 x 8.25" |
| Capacity | 2.5" Pressure Regulating Valve |
| Mounting | Recessed, Semi-Recessed, Trimless |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1830 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

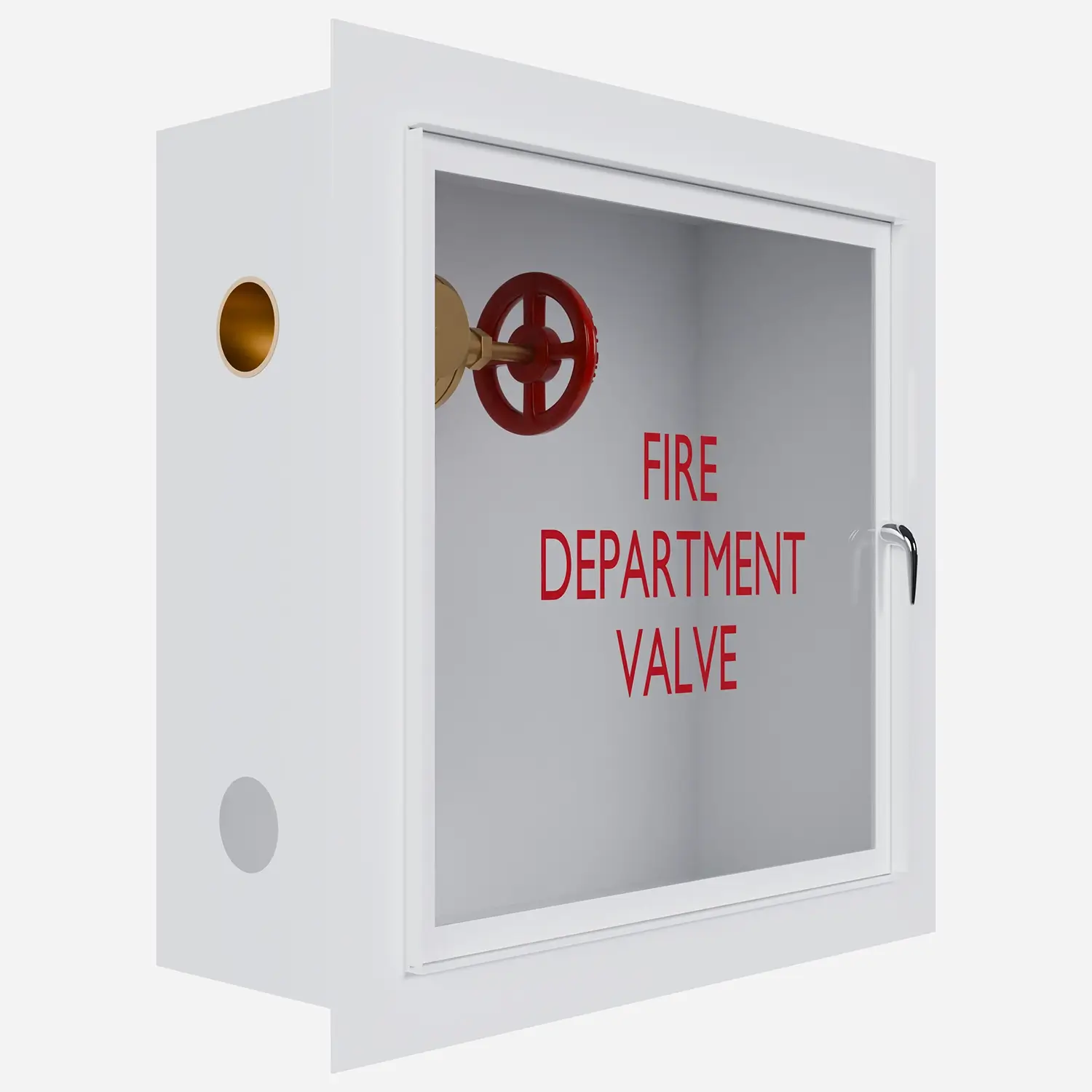

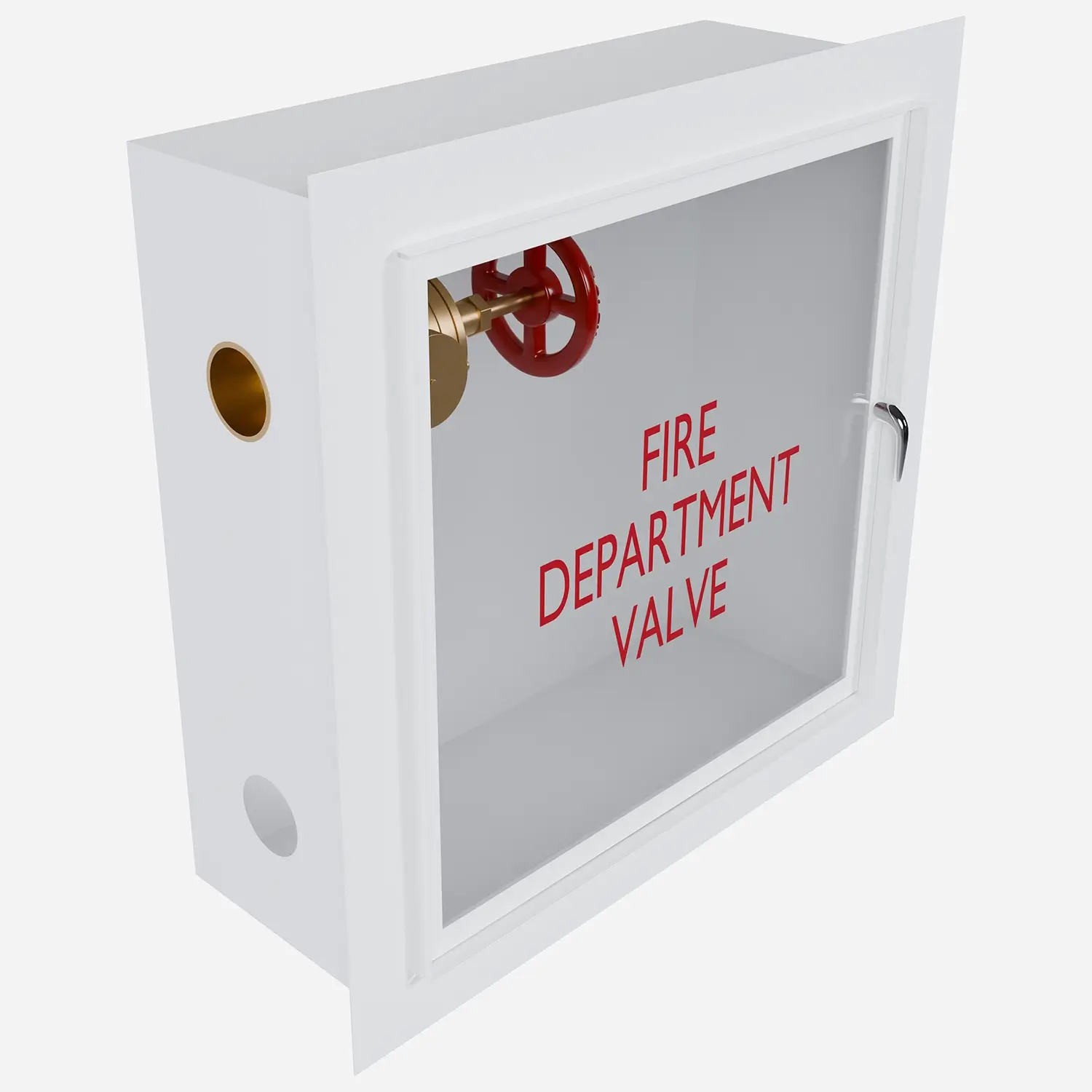

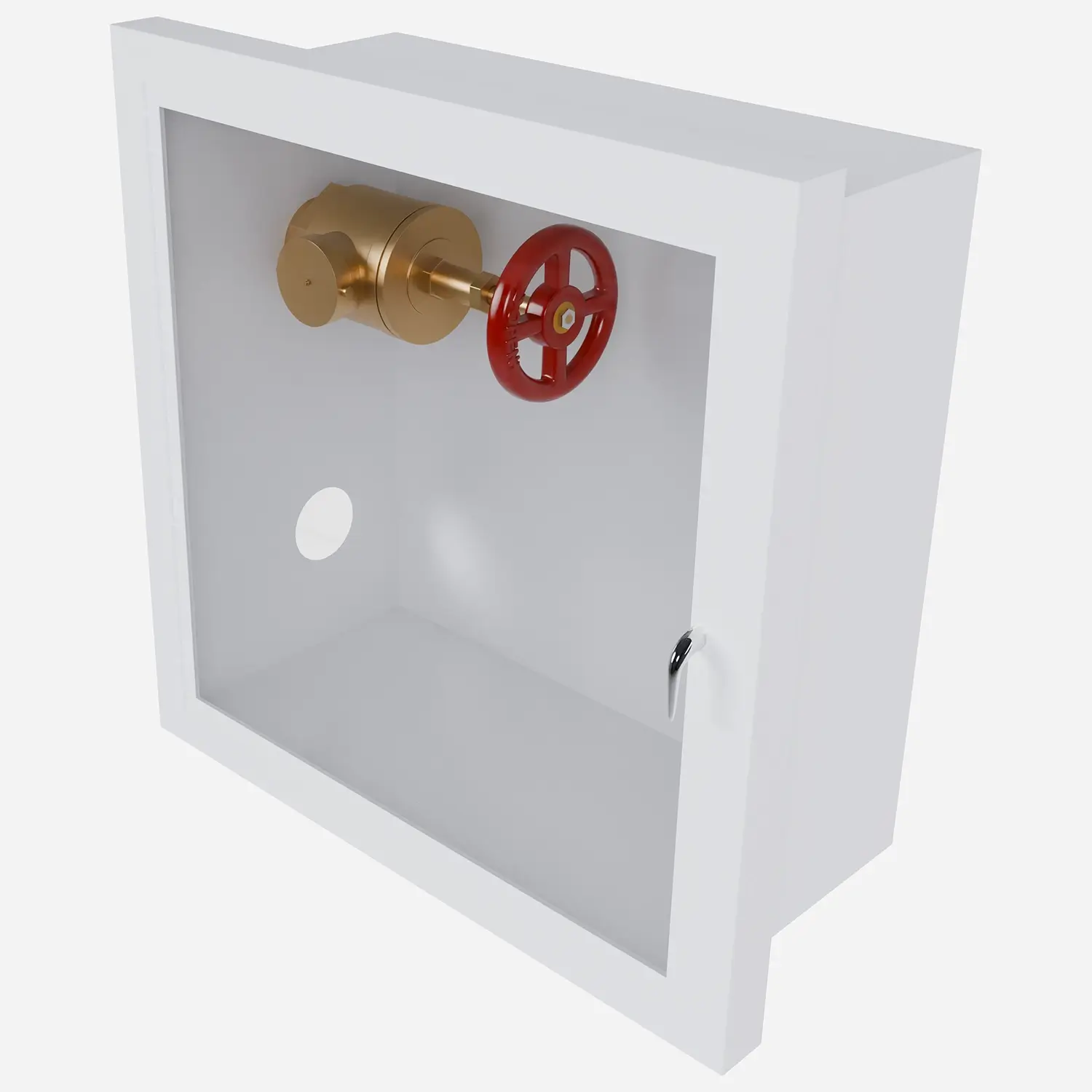

FRC1830 | Recessed 24 x 24 x 10", 5/8” Trim FRC1831 | Trimless 24 x 24 x 10" FRC1832 | Semi-Recessed 24 x 24 x 10", 2" Trim
