Fire Rated 2.5 Inch Fire Dept. Valve and Extinguisher Cabinet

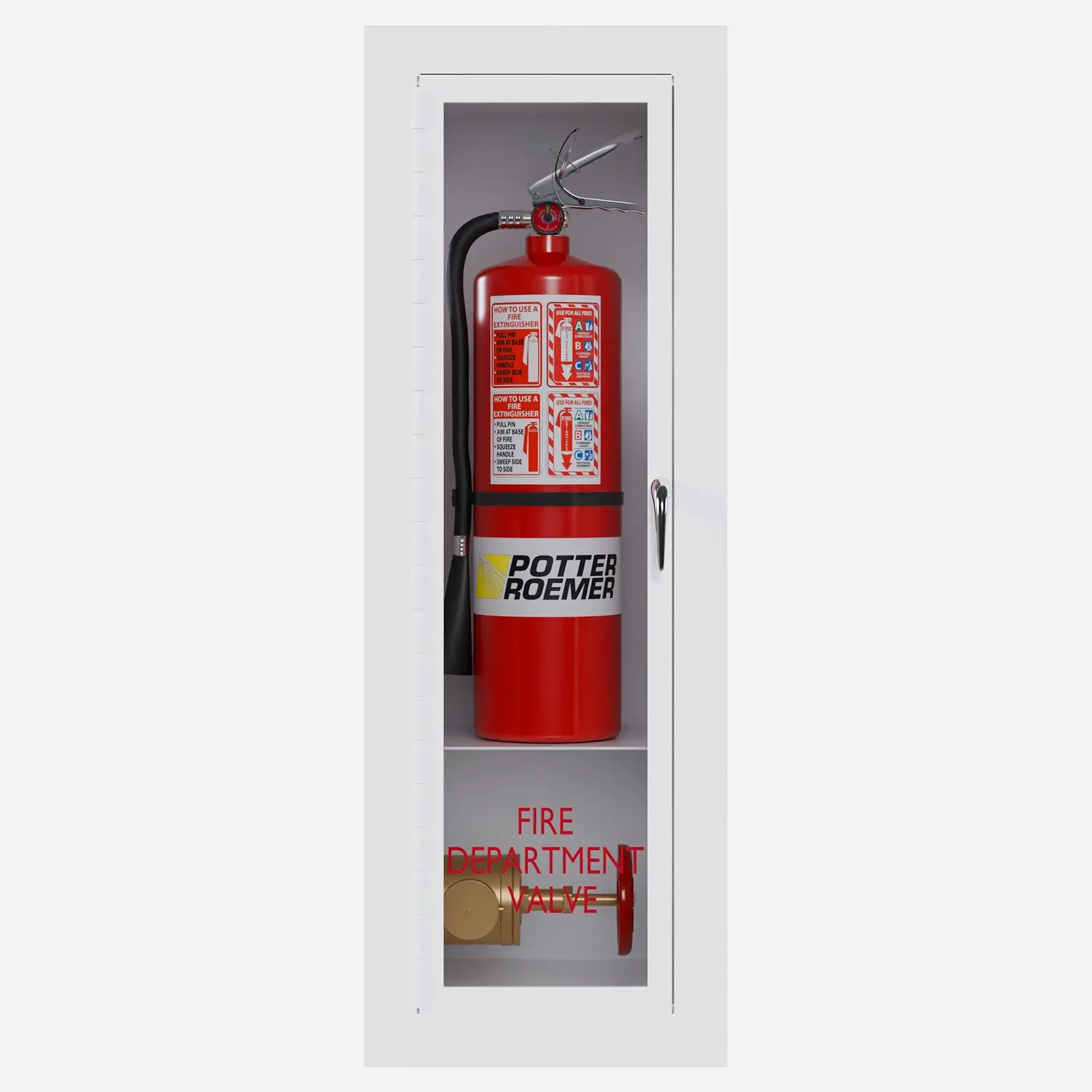

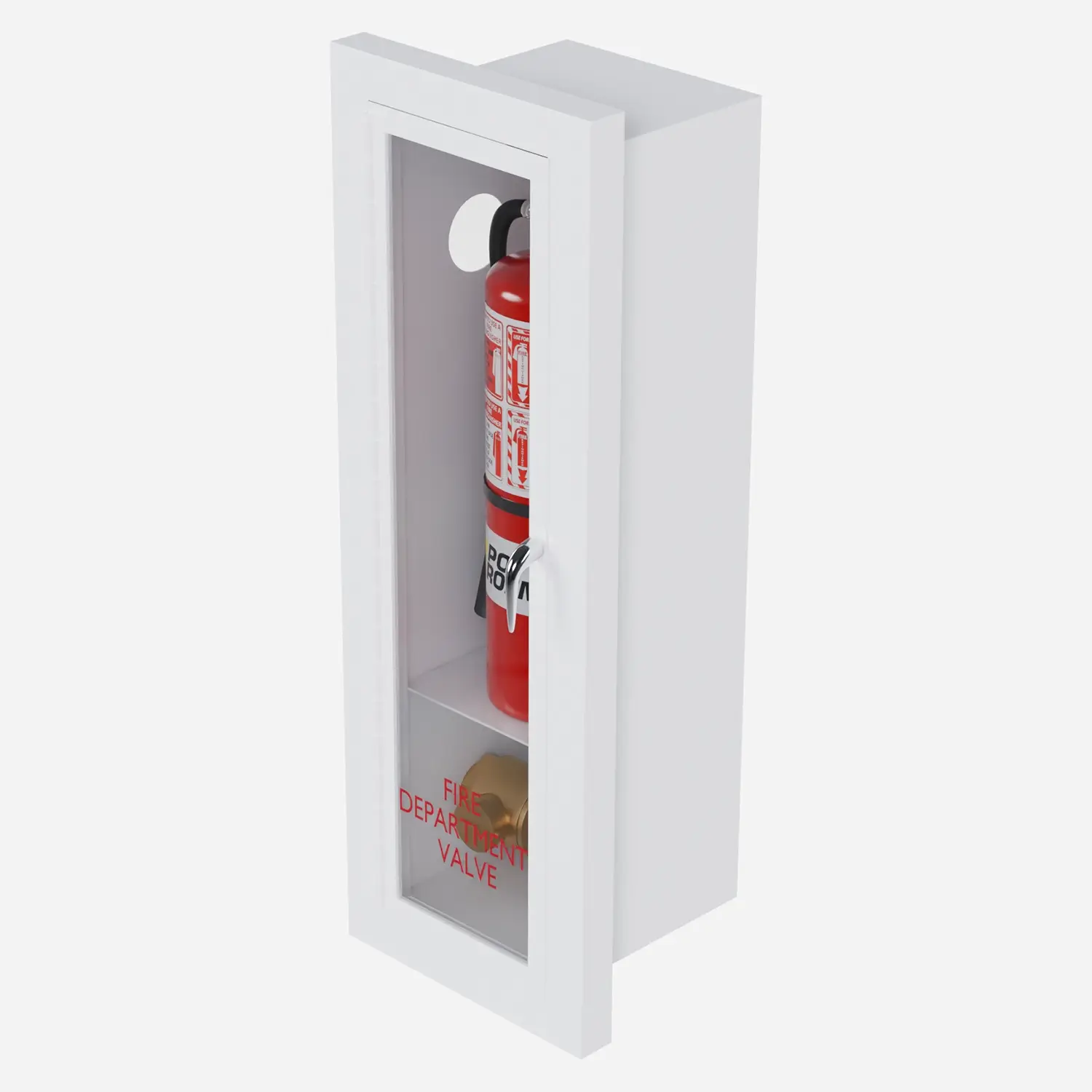

FRC1870 Series fire-rated cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap chain and a portable fire extinguisher on the shelf above the valve; cabinet is 8" (20.3 cm) deep. FRC1870-10 Series cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap chain and a portable fire extinguisher on the shelf above the valve; cabinet is 10" ( 25.4 cm) deep to provide more depth in the cabinet. These cabinets are constructed from 22 gauge steel box; 20 gauge tubular steel door with 20 gauge frame; and a continuous steel hinge. The cabinet is provided with an outer steel fire protection box; a fire-rated insulation material covers the inner cabinet. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. All glass door styles provided with clear tempered safety glass.
FUNCTION:
FRC1870 Series cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher on the shelf above the valve; cabinet is 8" (20.3 cm) deep.
FRC1870-10 Series cabinets accomodate a 2.5 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher on the shelf above the valve; cabinet is 10" ( 25.4 cm) deep to provide more depth in the cabinet.
REGULARLY FURNISHED: 22 gauge. box; 20 gauge tubular steel door with 20 gauge frame and a continuous steel hinge. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. All glass door styles provided with clear tempered safety glass. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 2.5 Inch Fire Dept. Valve and Extinguisher Cabinet [FRC1870, FRC1870-10, FRC1871, FRC1871-10, FRC1872, FRC1872-10, FRC1880, FRC1880-10, FRC1881, FRC1881-10, FRC1882, FRC1882-10] | 0 | 614 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 14 x 40 x 8", 14 x 40 x 8.75", 14 x 40 x 10", 14 x 40 x 10.875" |
| Capacity | Up to 20 Lbs Dry Chemical Extinguisher, See submittal for recommended PR Fire Extinguishers, 2.5" Fire Dept Valve |
| Mounting | Recessed, Semi-Recessed, Trimless |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -12 | 12" deep box |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1870 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

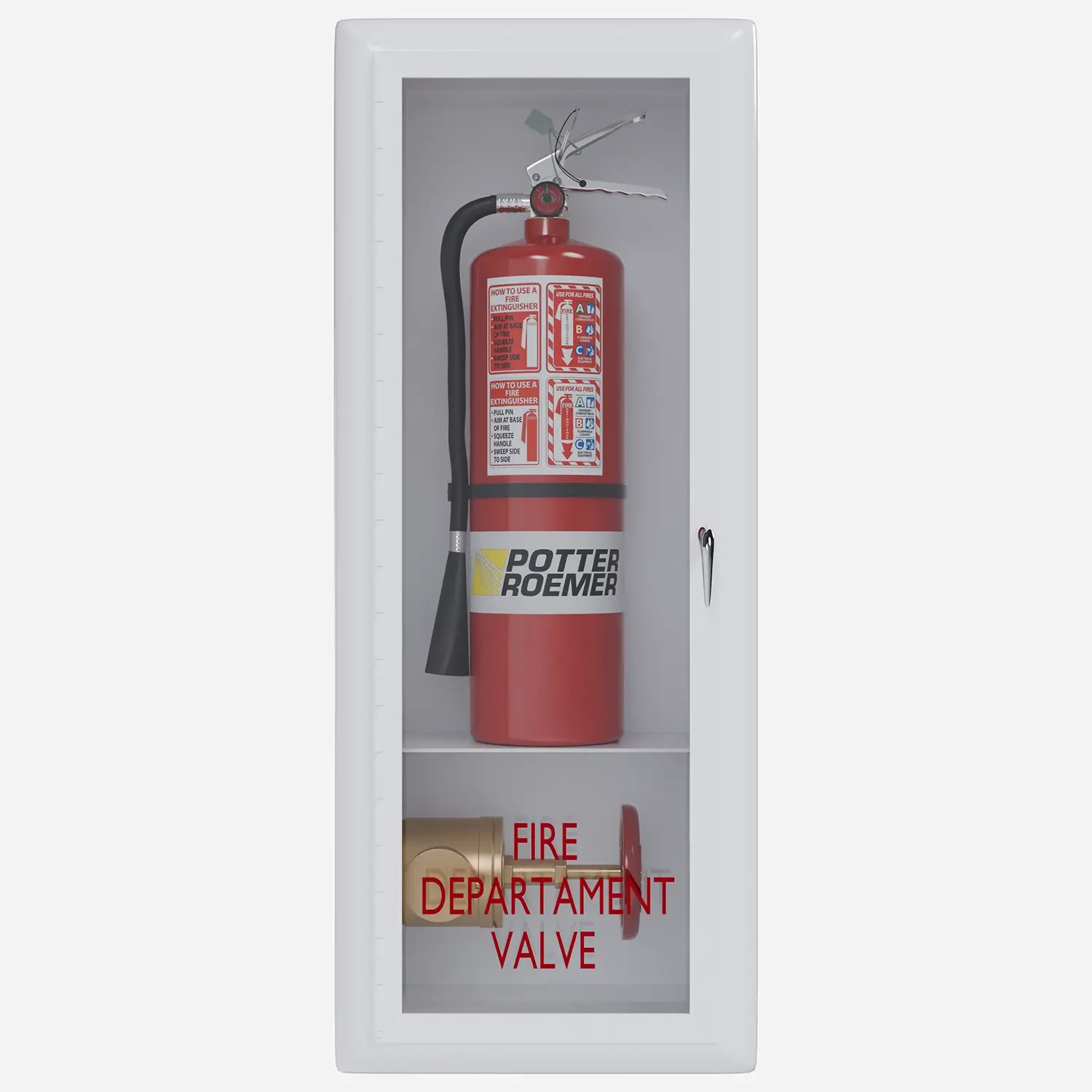

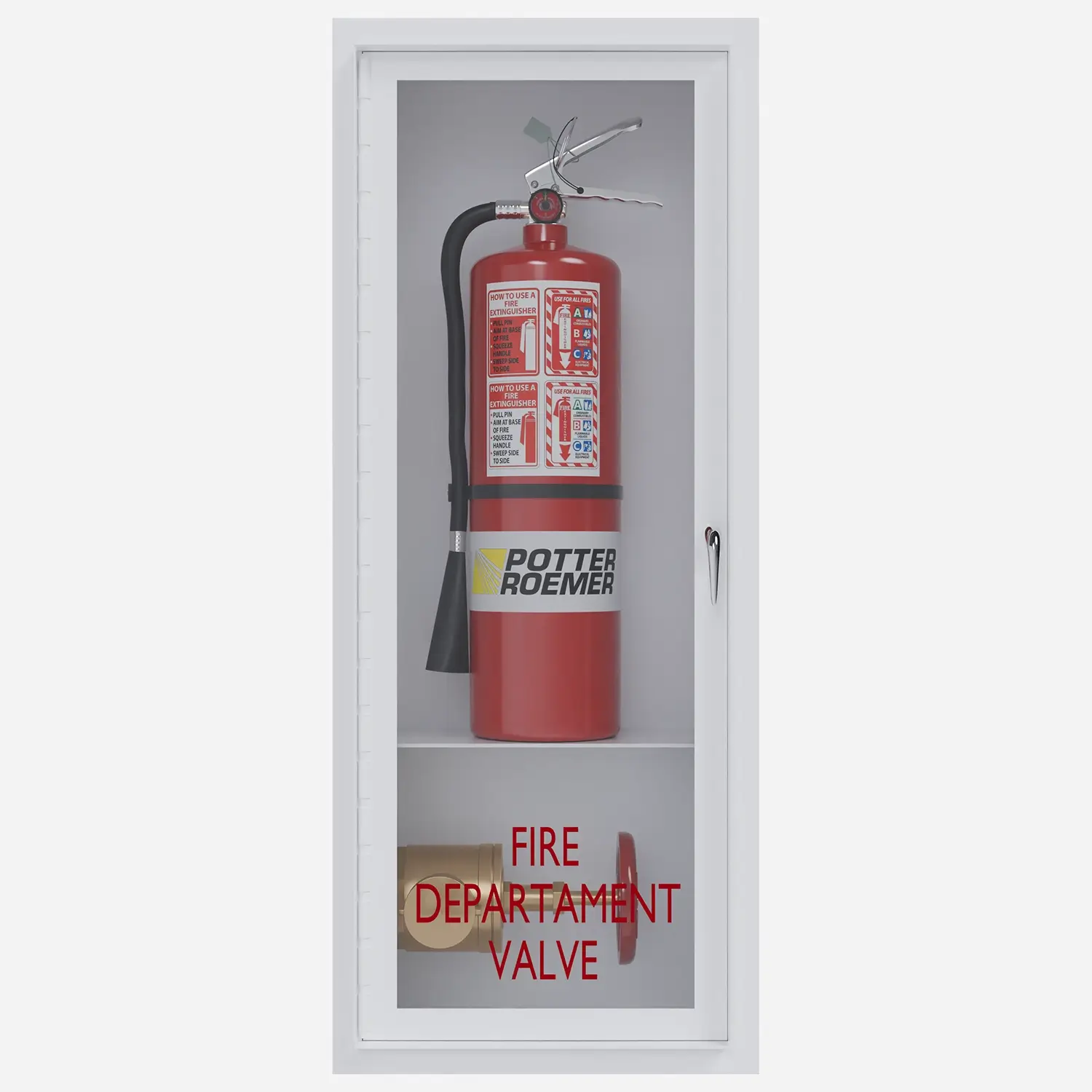

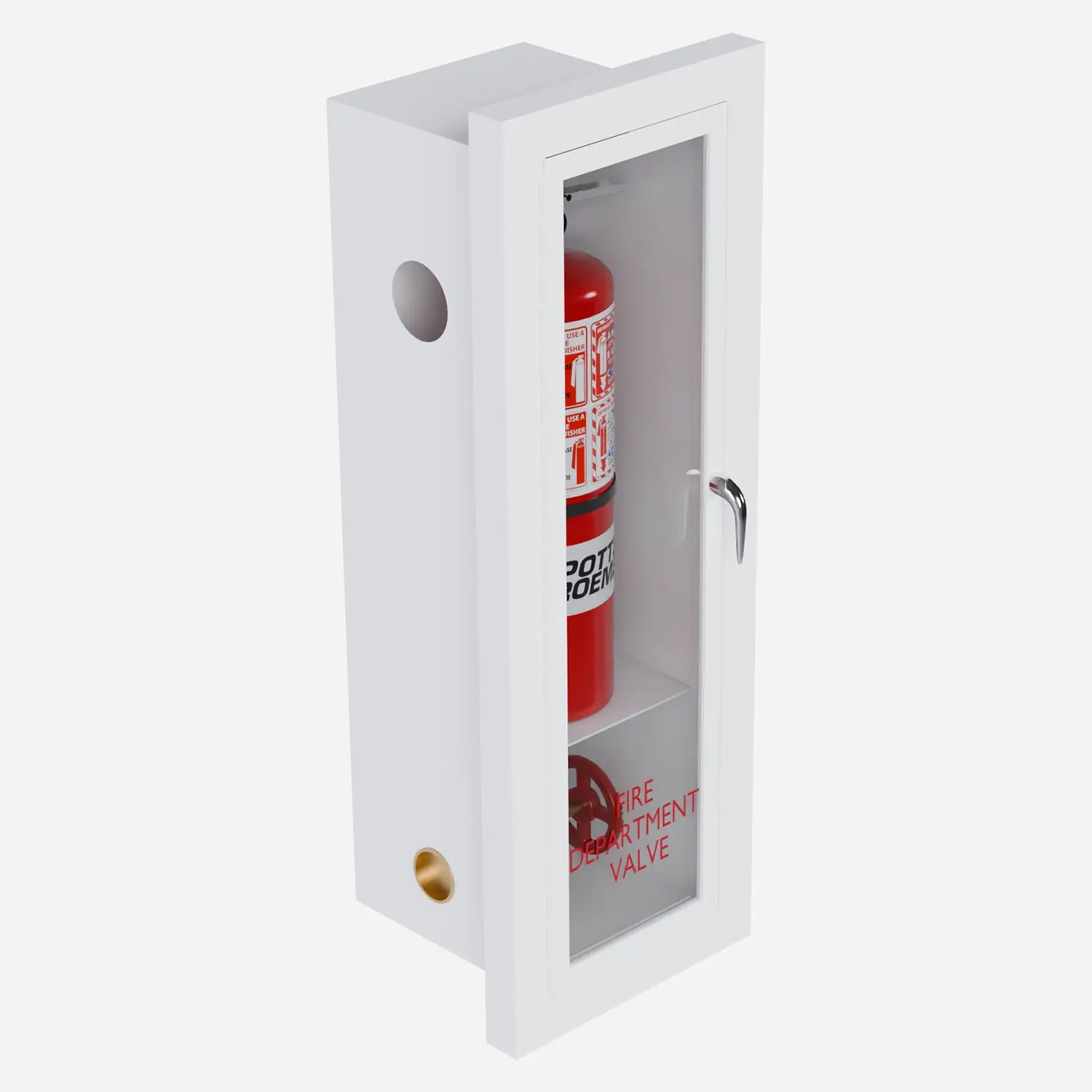

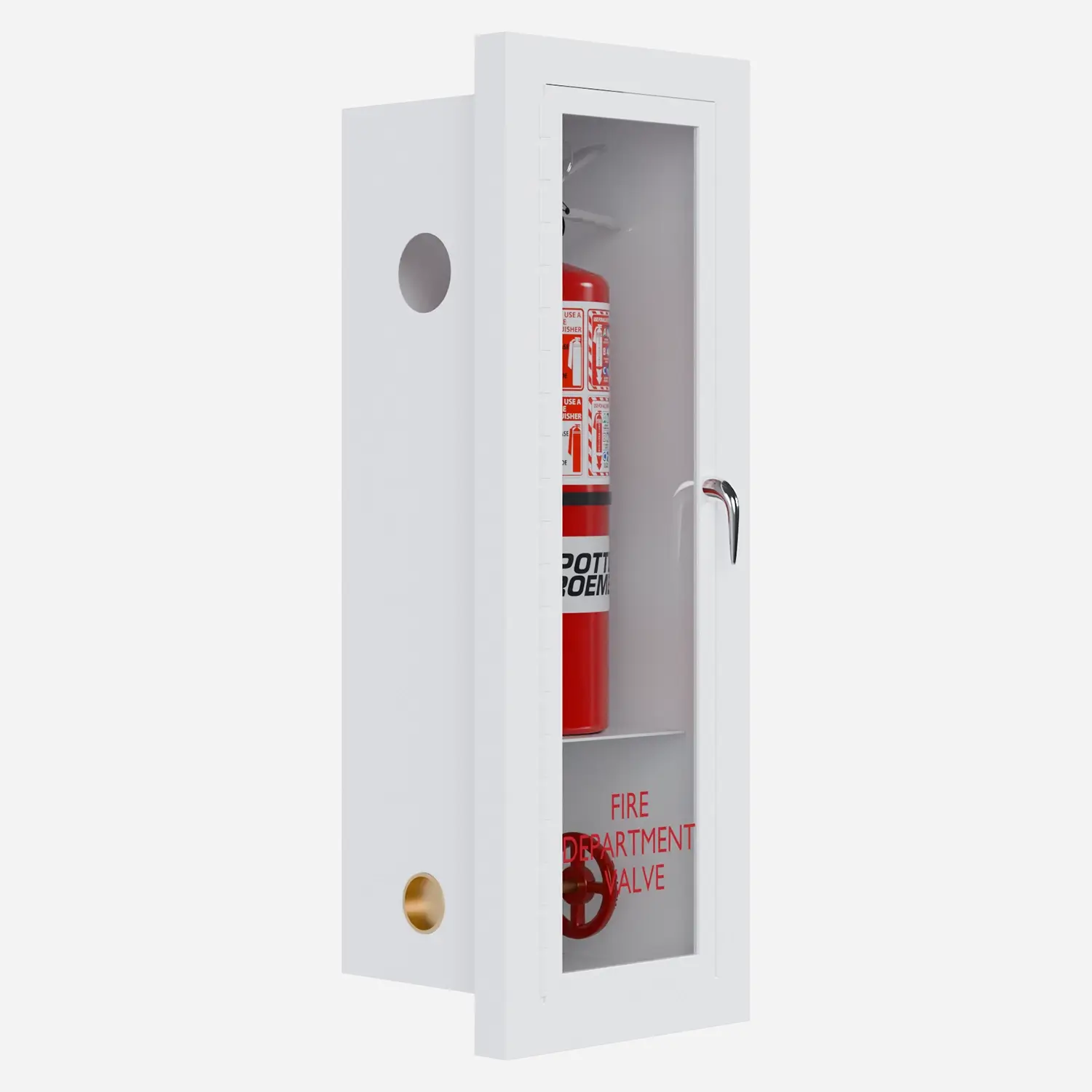

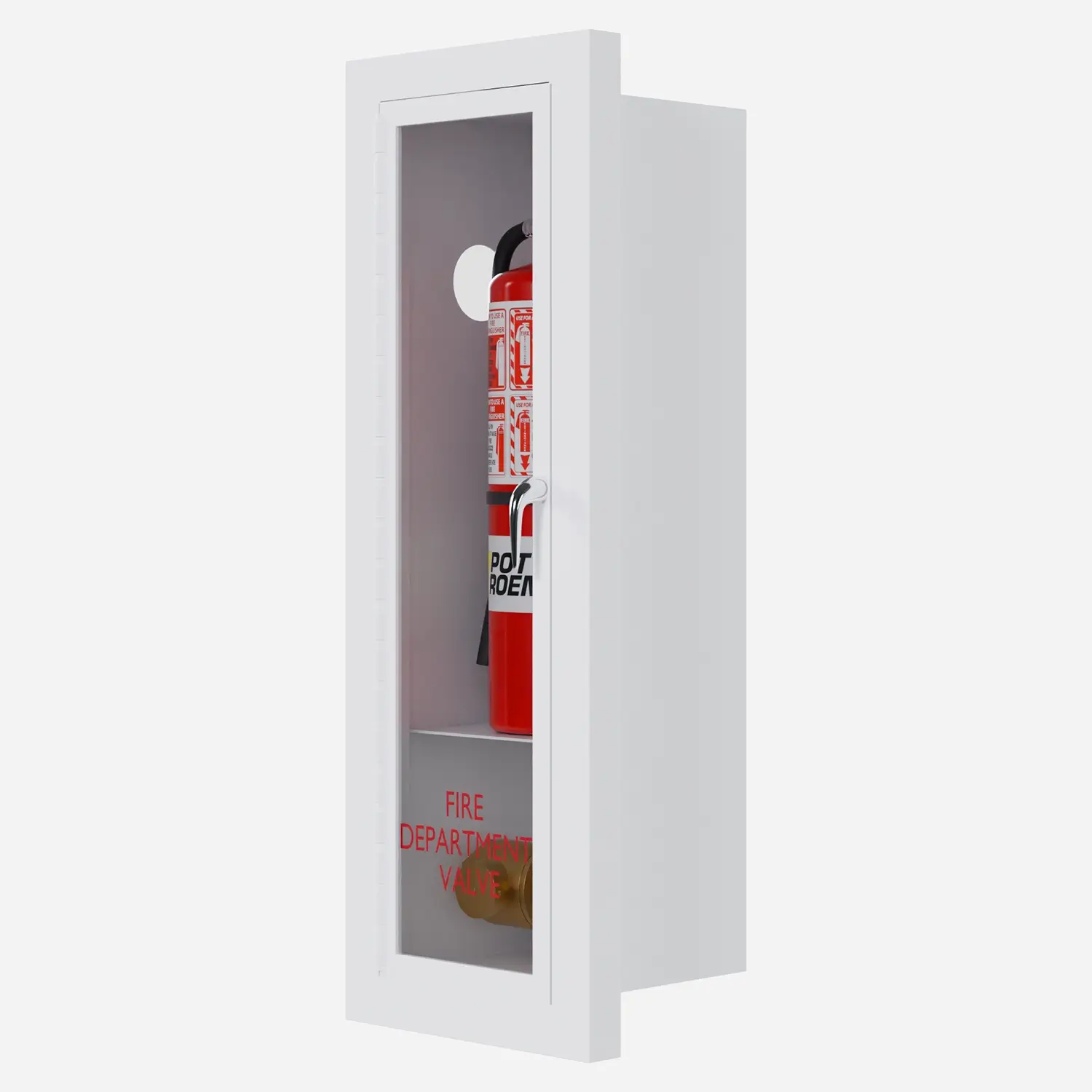

FRC1870 | Recessed 14 x 40 x 8", 5/8” Trim FRC1871 | Trimless 14 x 40 x 8" FRC1872 | Semi-Recessed 14 x 40 x 8", 2” Trim FRC1870-10 | Recessed 14 x 40 x 10", 5/8” Trim FRC1871-10 | Trimless 14 x 40 x 10" FRC1872-10 | Semi-Recessed 14 x 40 x 10", 2” Trim
