1.5" Fire Hose Rack 2.5" Fire Dept. Valve and Extinguisher Cabinet

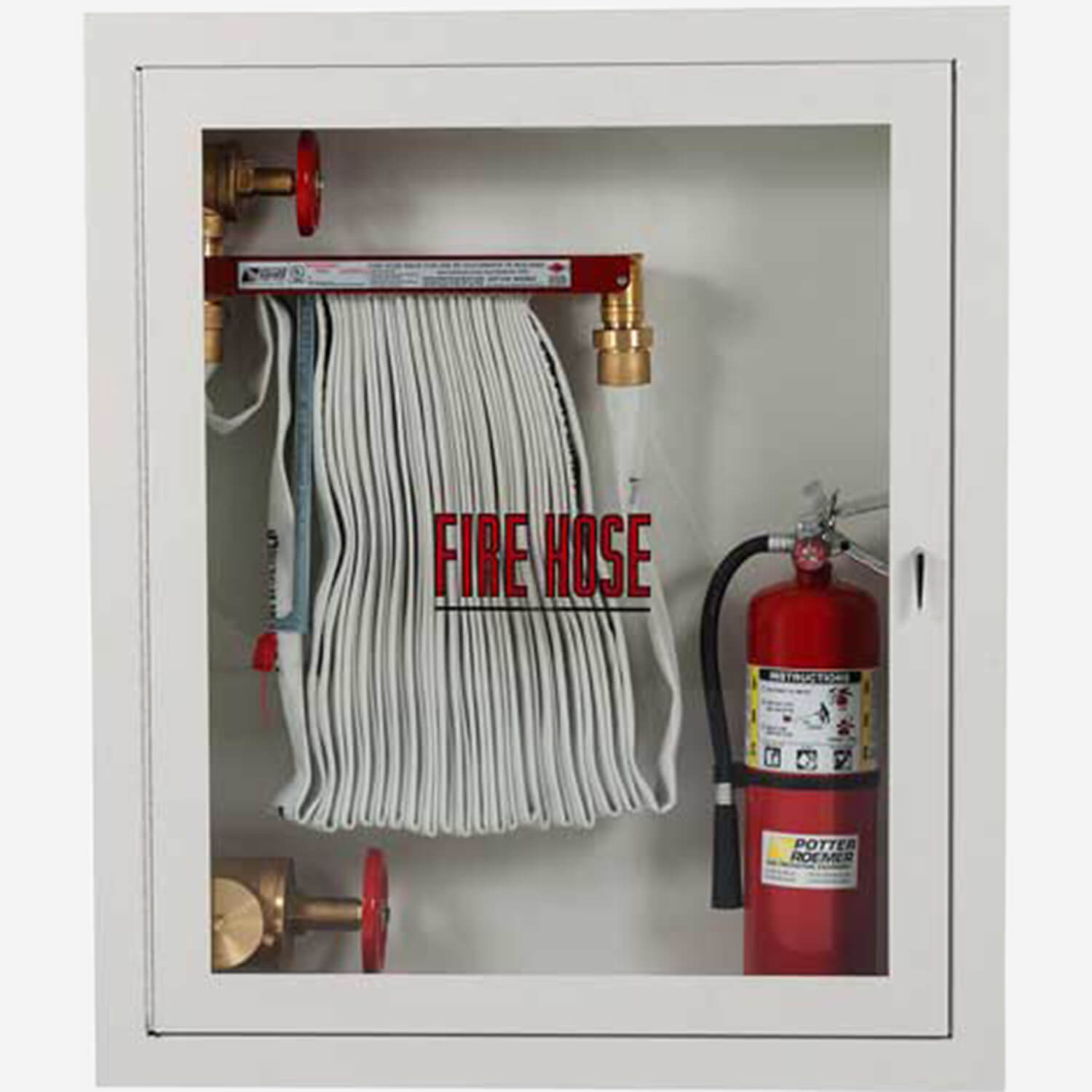

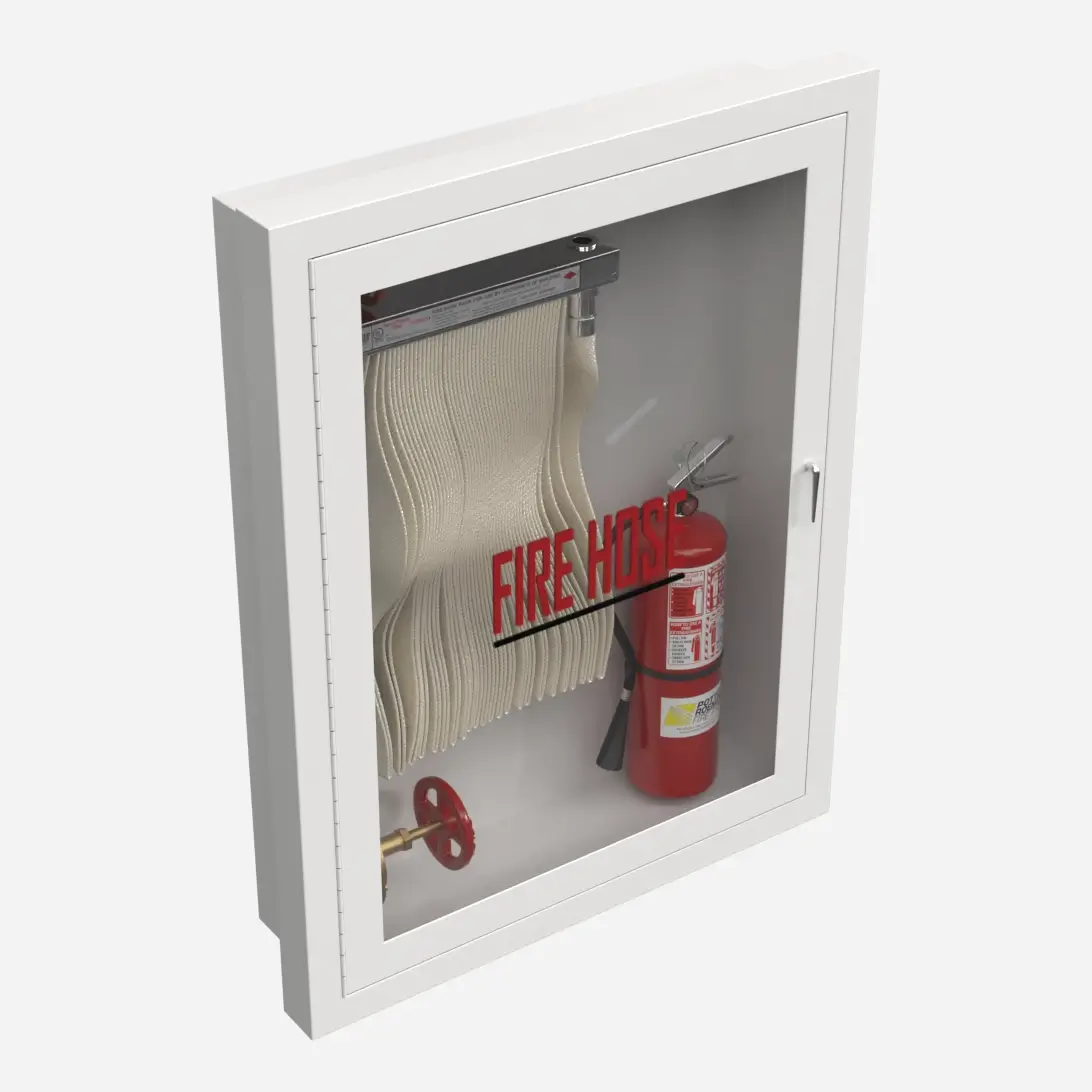

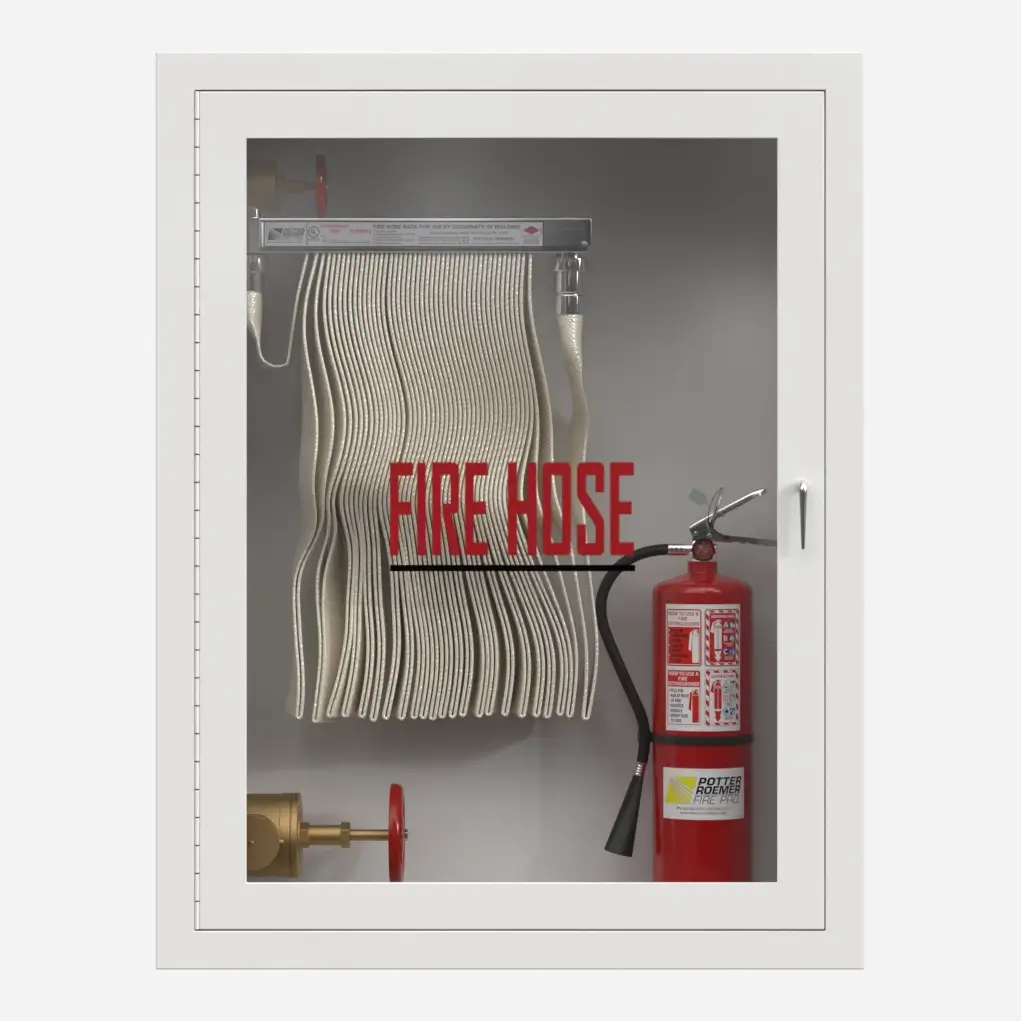

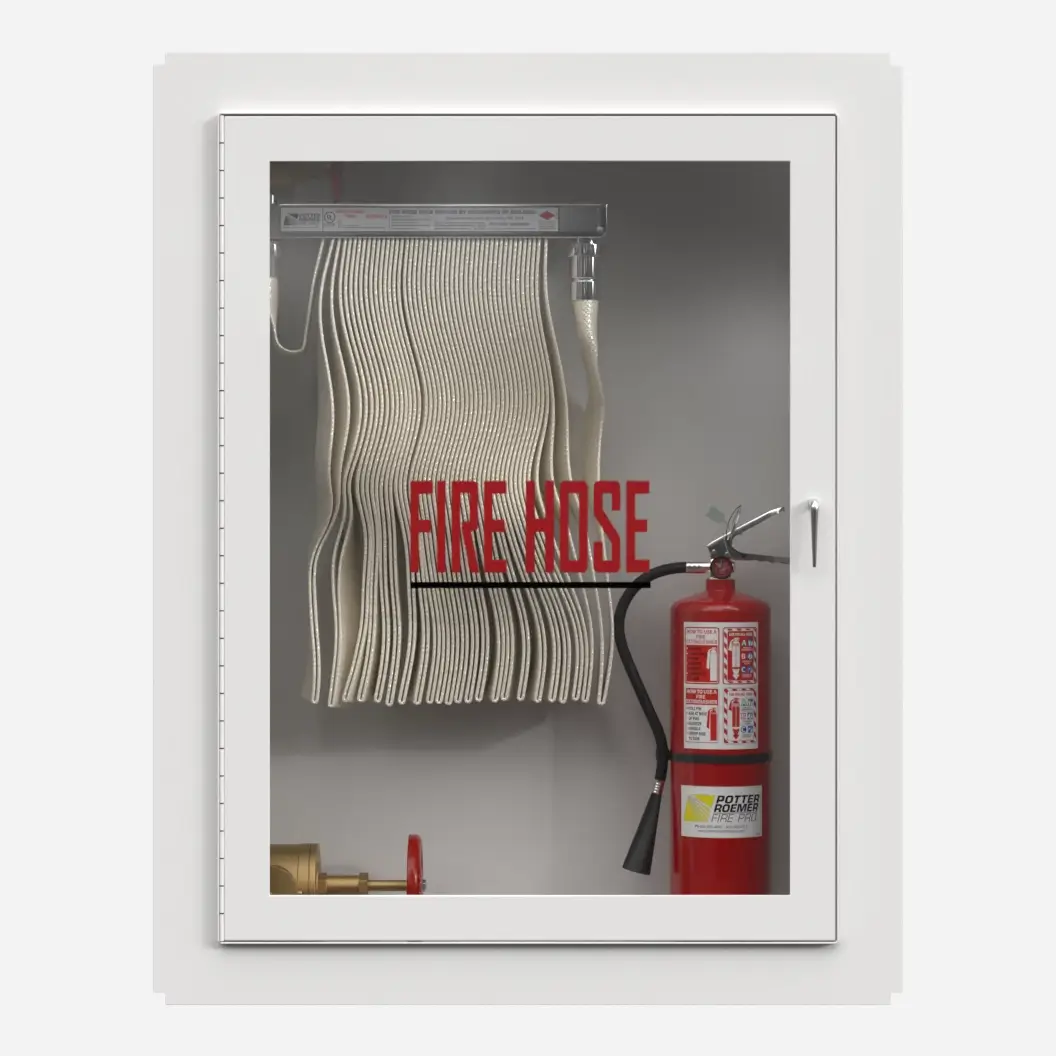

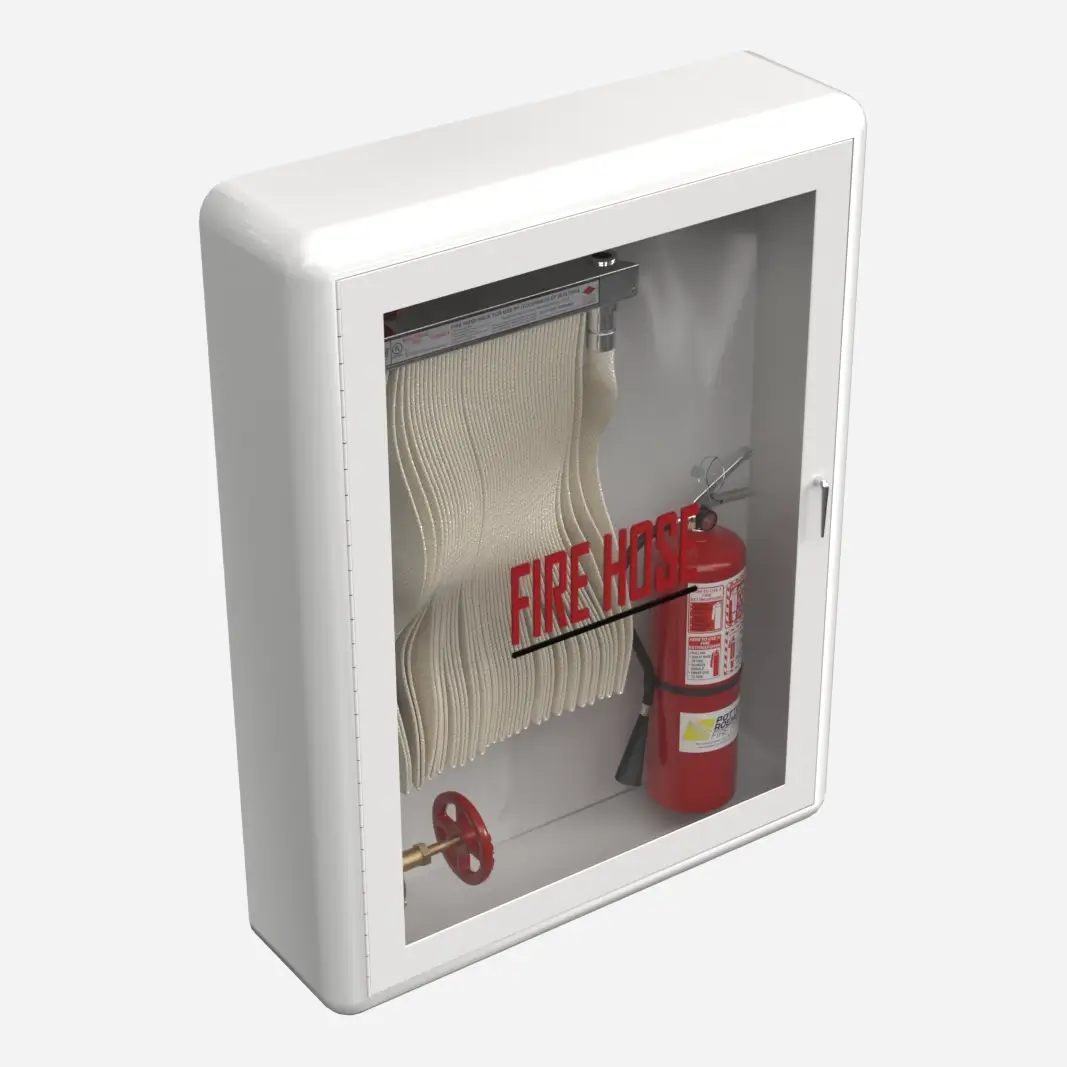

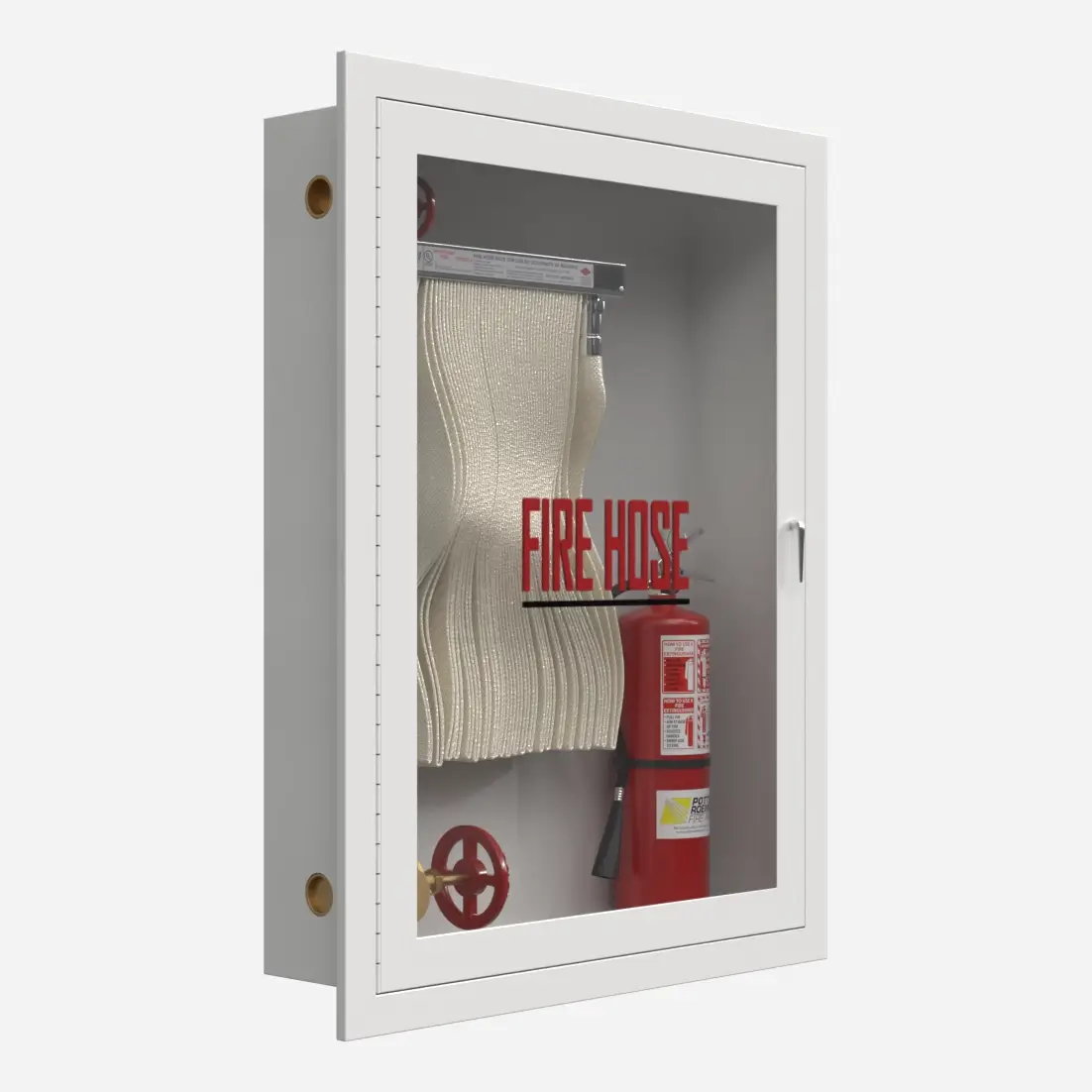

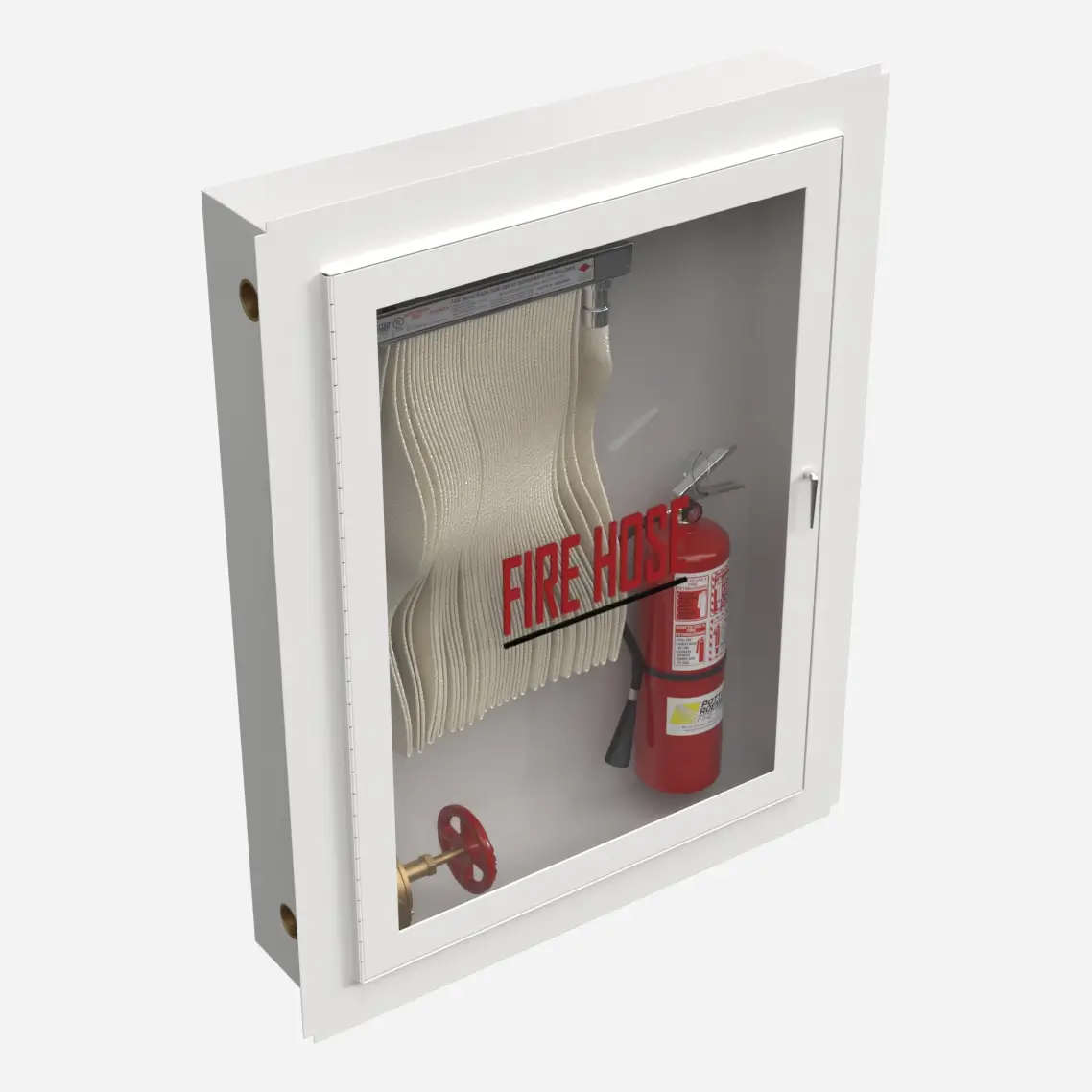

This cabinet holds a 1-1/2" (3.8 cm) fire hose rack assembly with either Polyflex or PR-Superflex hose; a 2-1/2" (6.4 cm) fire dept valve with cap and chain; and a portable fire extinguisher. 1500 series cabinets are constructed from a 20 ga. steel box and door with 18 gauge frame and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Semi-recessed and surface mounted cabinets are furnished with rolled radius. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION: 1500 Series cabinets accommodate a single 1-1/2" (3.8 cm) fire hose rack assembly with either Polyflex or PR-Superflex hose and a portable fire extinguisher and a 2-1/2" (6.4 cm) fire dept valve with cap and chain.
REGULARLY FURNISHED: 20 gauge box, 20 gauge tubular steel door with 18 gauge frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with 0.125" (0.31 cm) radiused frame. Semi-recessed and surface mounted cabinets are furnished with rolled radius. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 1.5" Fire Hose Rack 2.5" Fire Dept. Valve and Extinguisher Cabinet [1504, 1506, 1508, 1514, 1516, 1518, 1534, 1536, 1538, 1554, 1556, 1558] | 0 | 641 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame |
| ADA Models | 1504, 1506, 1508, 1514, 1516, 1518, 1534, 1536, 1538 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 30 x 36 x 8.75", 30 x 40 x 8.75", 30 x 44 x 8.75", 30 x 36 x 8", 30 x 40 x 8", 30 x 44 x 8", 32 x 38 x 9.25", 32 x 42 x 9.25", 32 x 46 x 9.25" |
| Capacity | 75' of Poly Flex Hose, 100' of Poly Flex Hose, 50' of Super Flex Hose, 75' of Super Flex Hose, 100' of Super Flex Hose, 2.5 Gallon Pressurized Water Fire Extinguisher, Up to 20 Lbs Dry Chemical Extinguisher, Up to 10 Lbs Carbon Dioxide Extinguisher, 1.5" Hose Rack Assembly |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -HF | Horizontal Fold Cabinet, -DP | Duplex Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1500 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

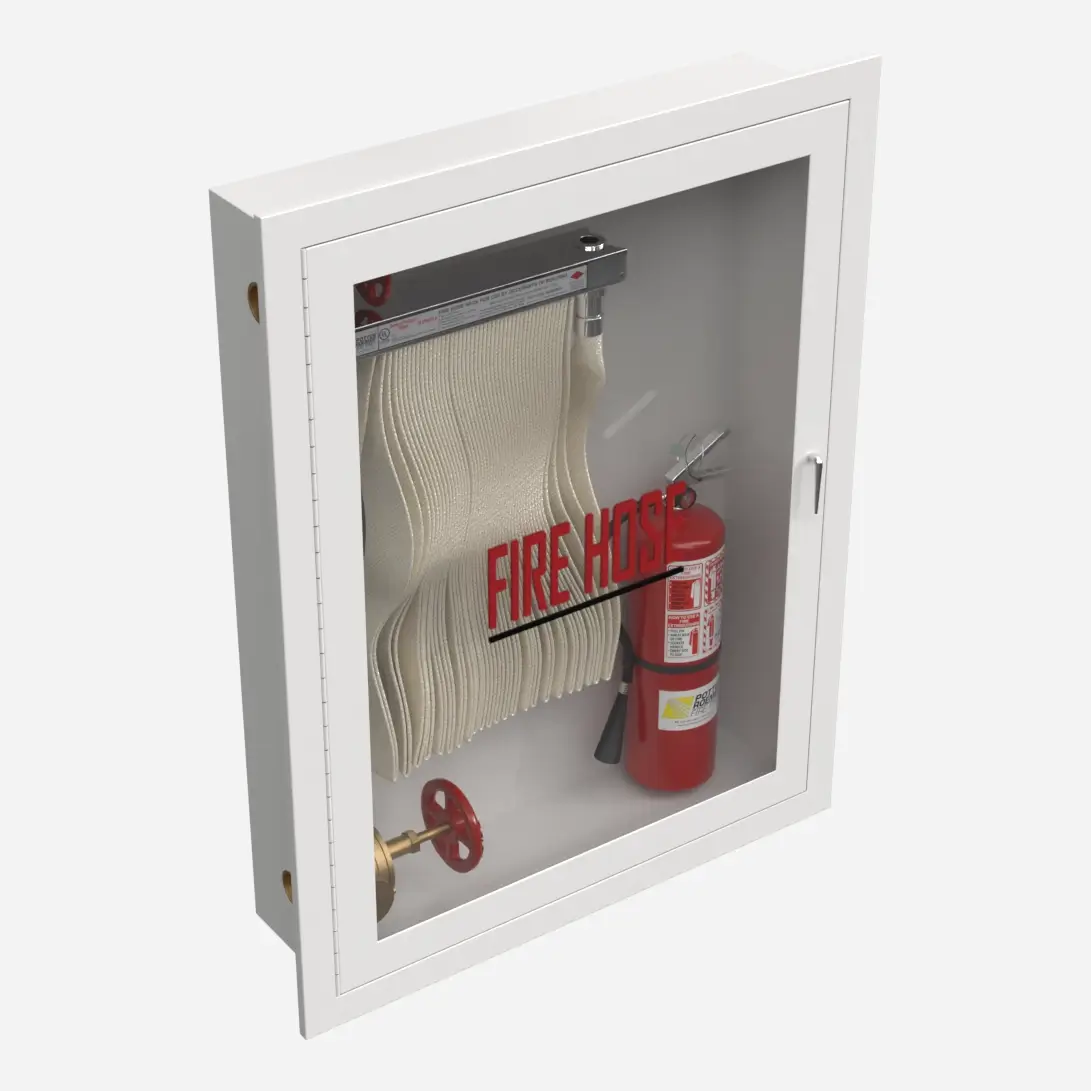

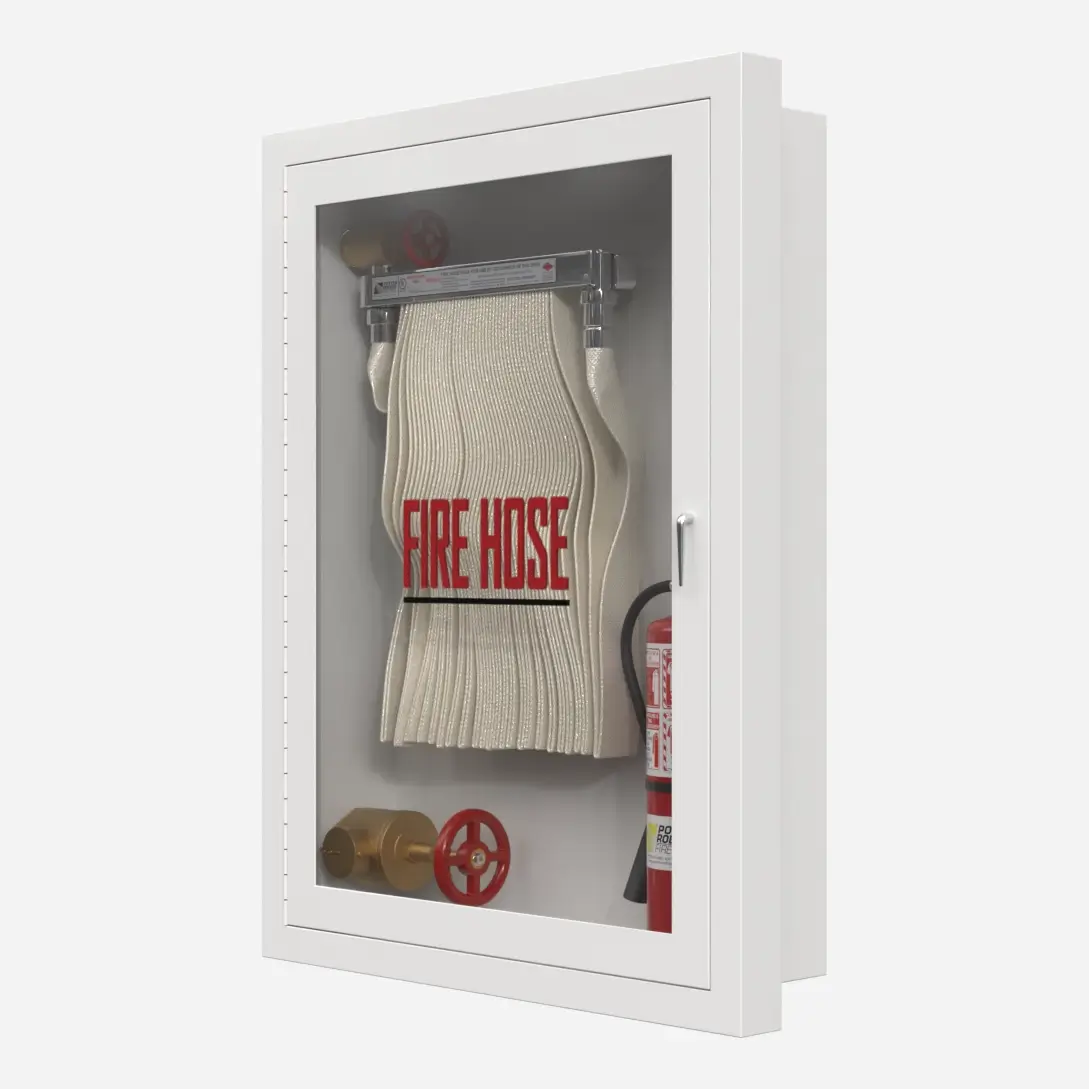

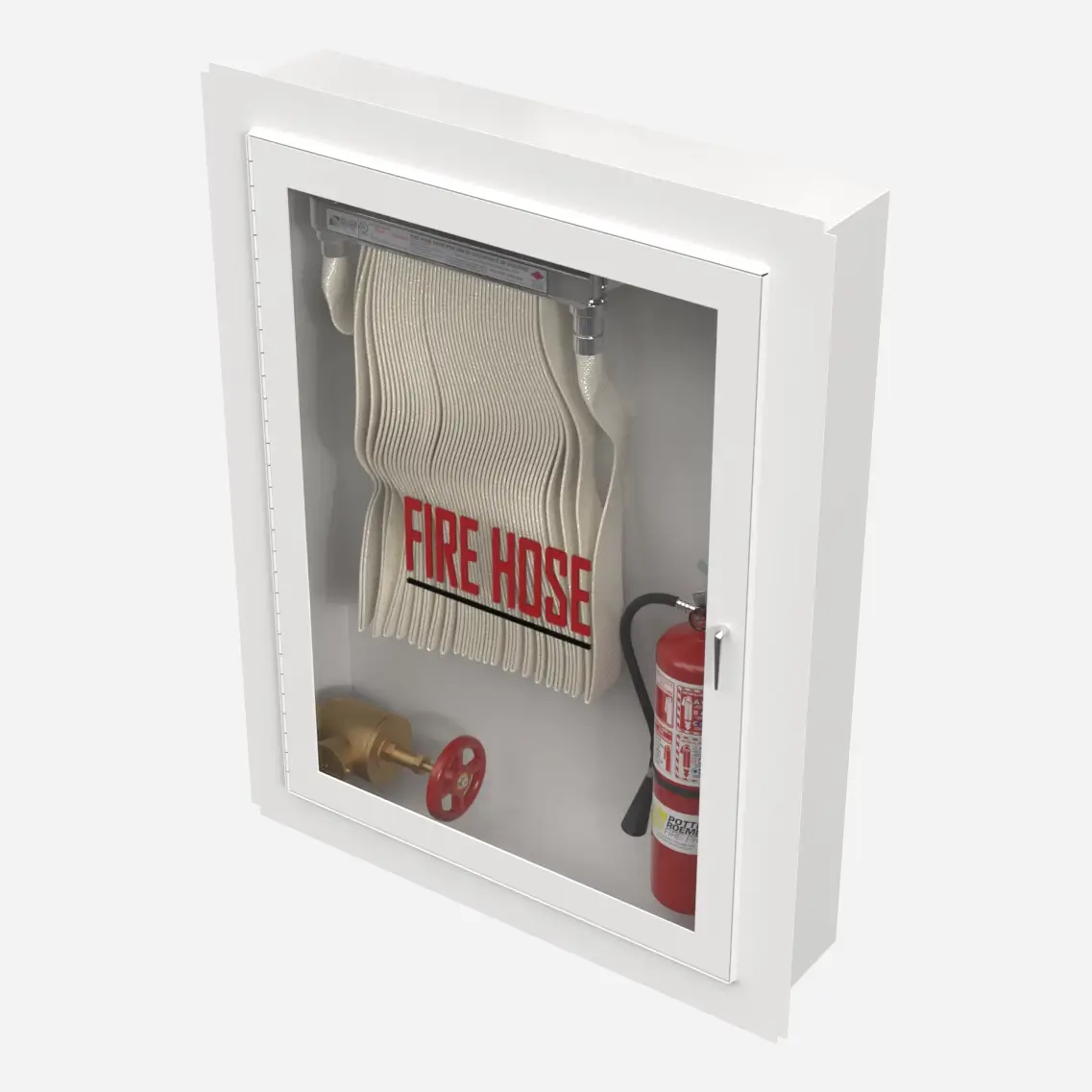

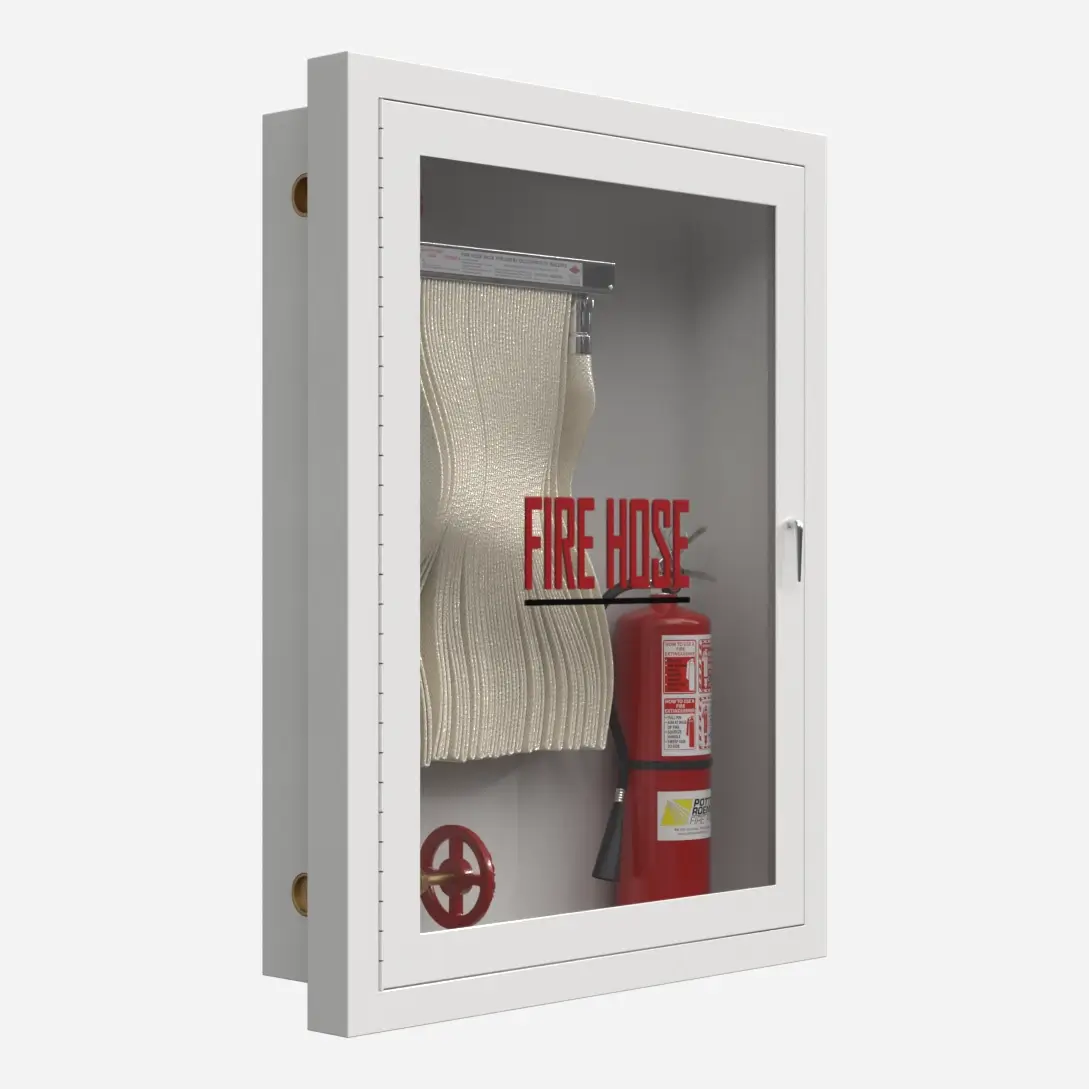

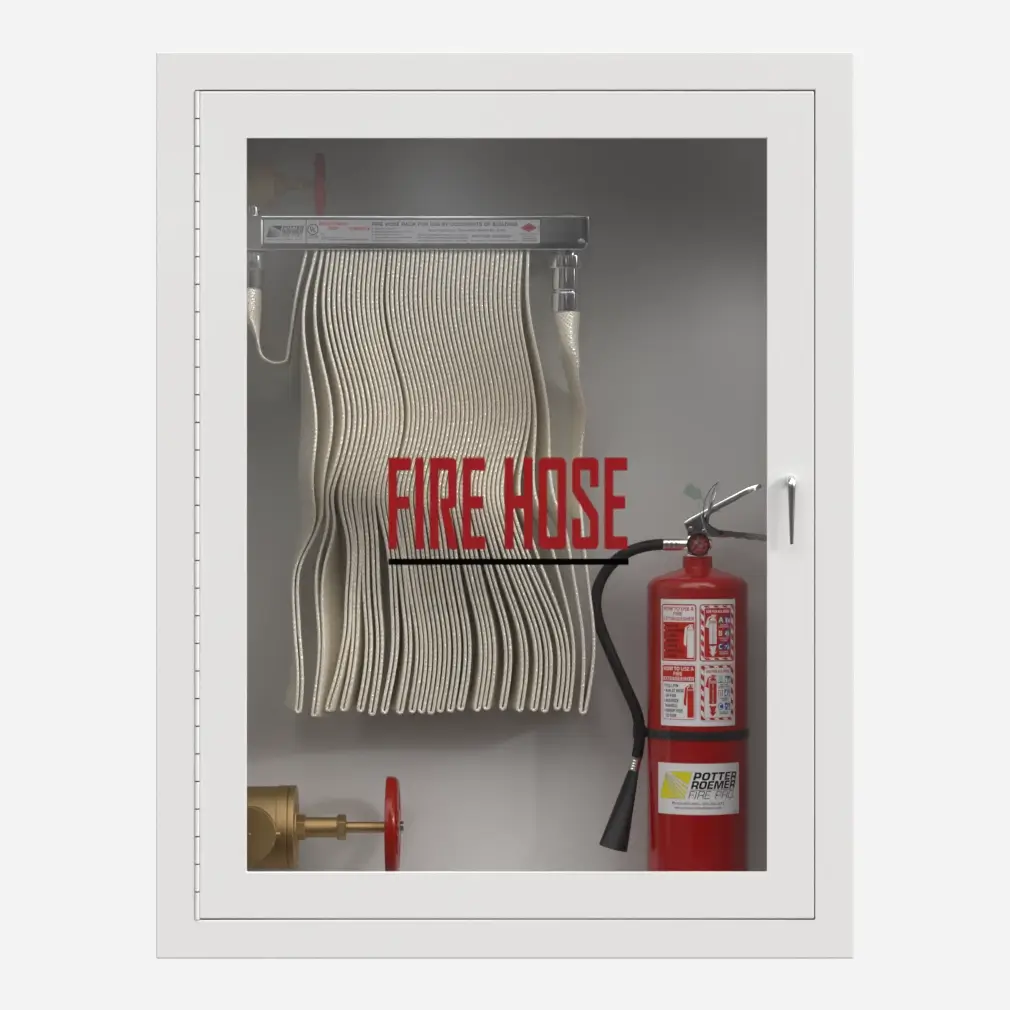

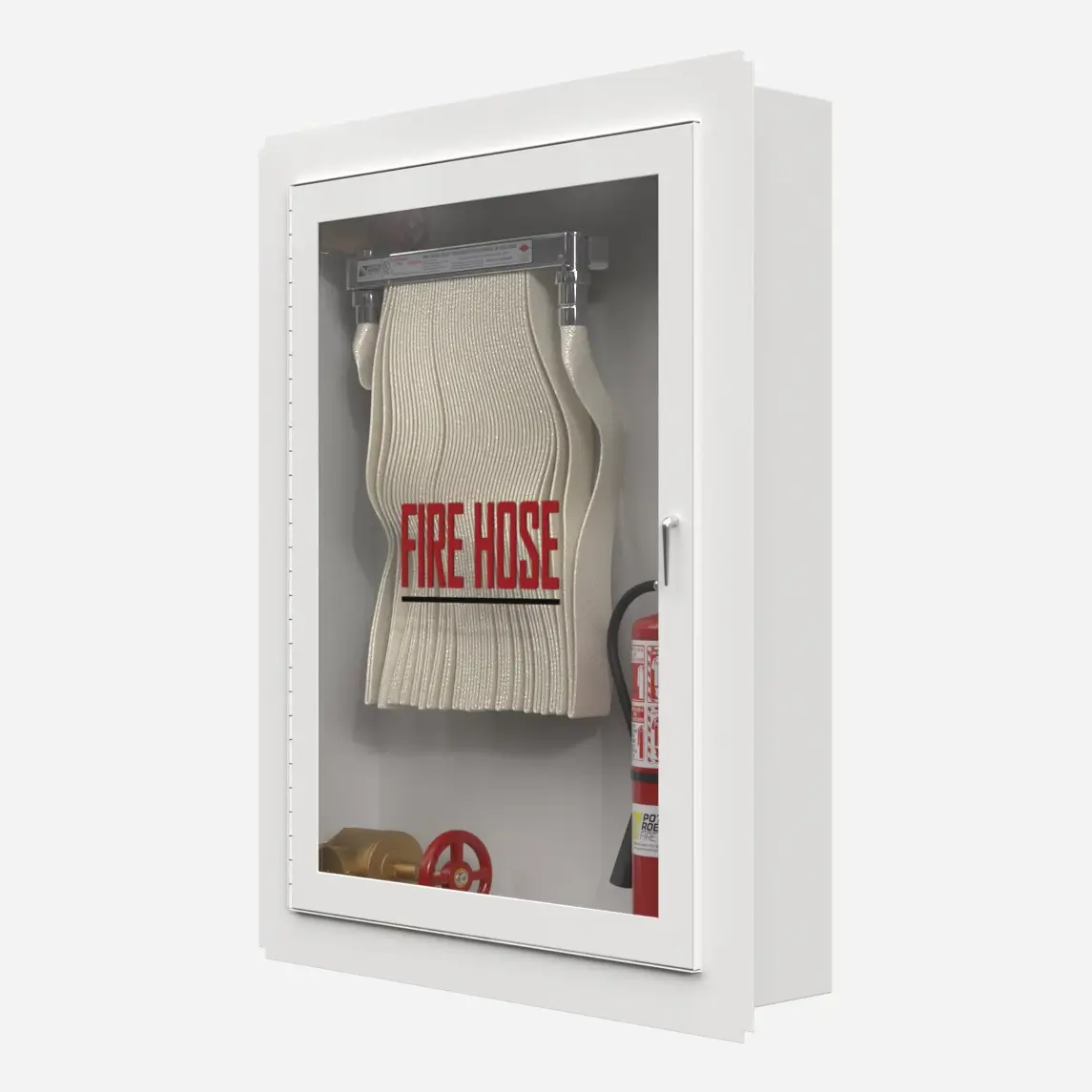

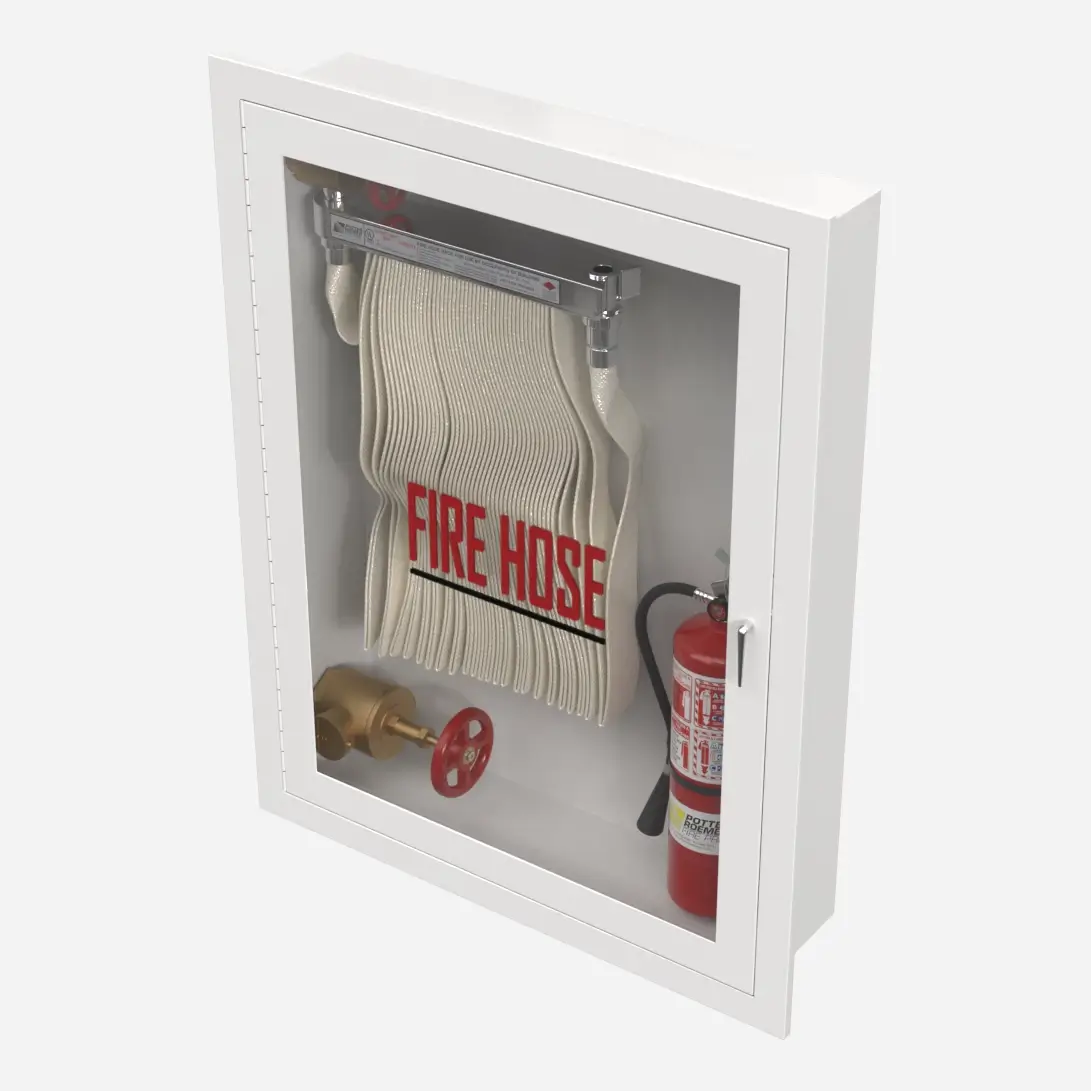

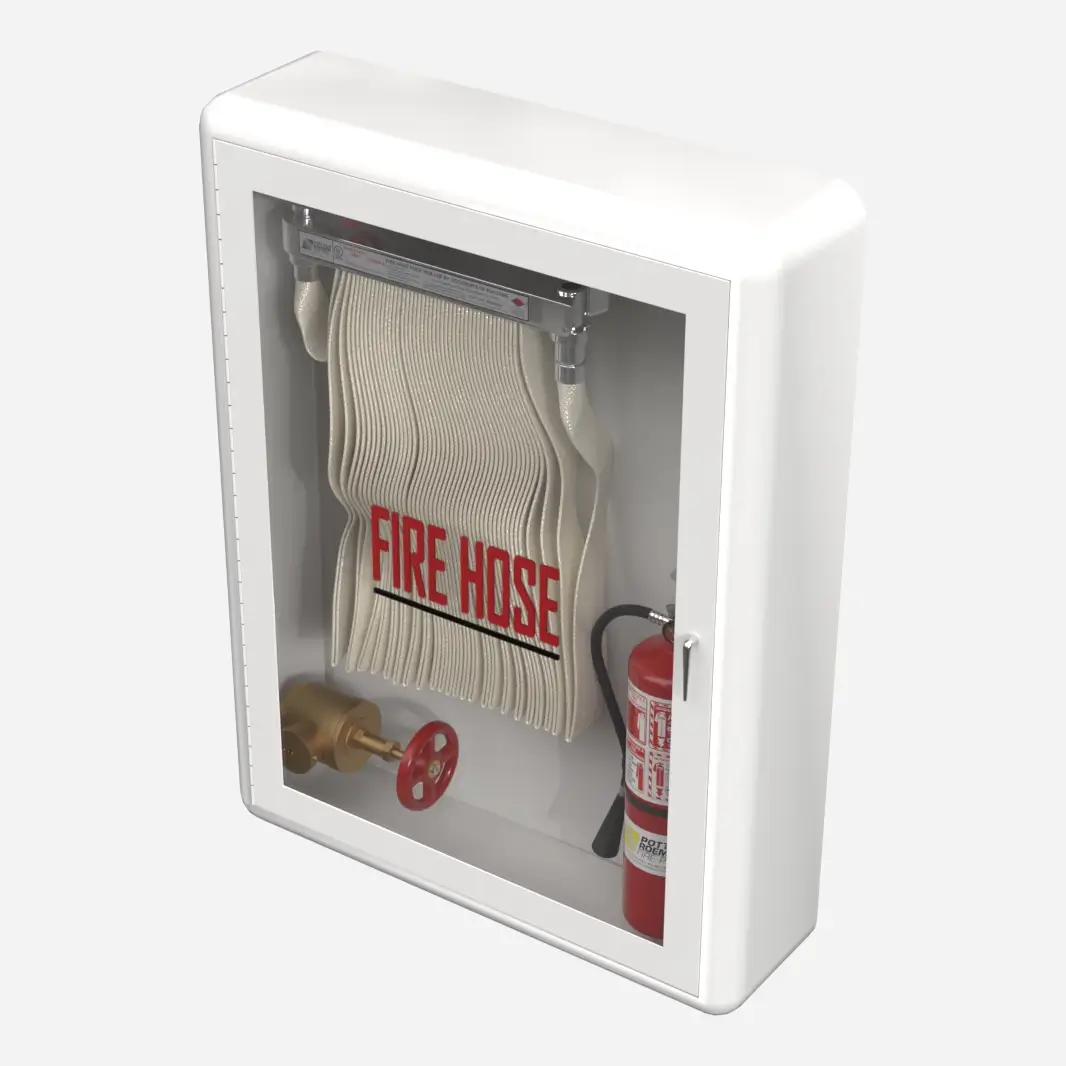

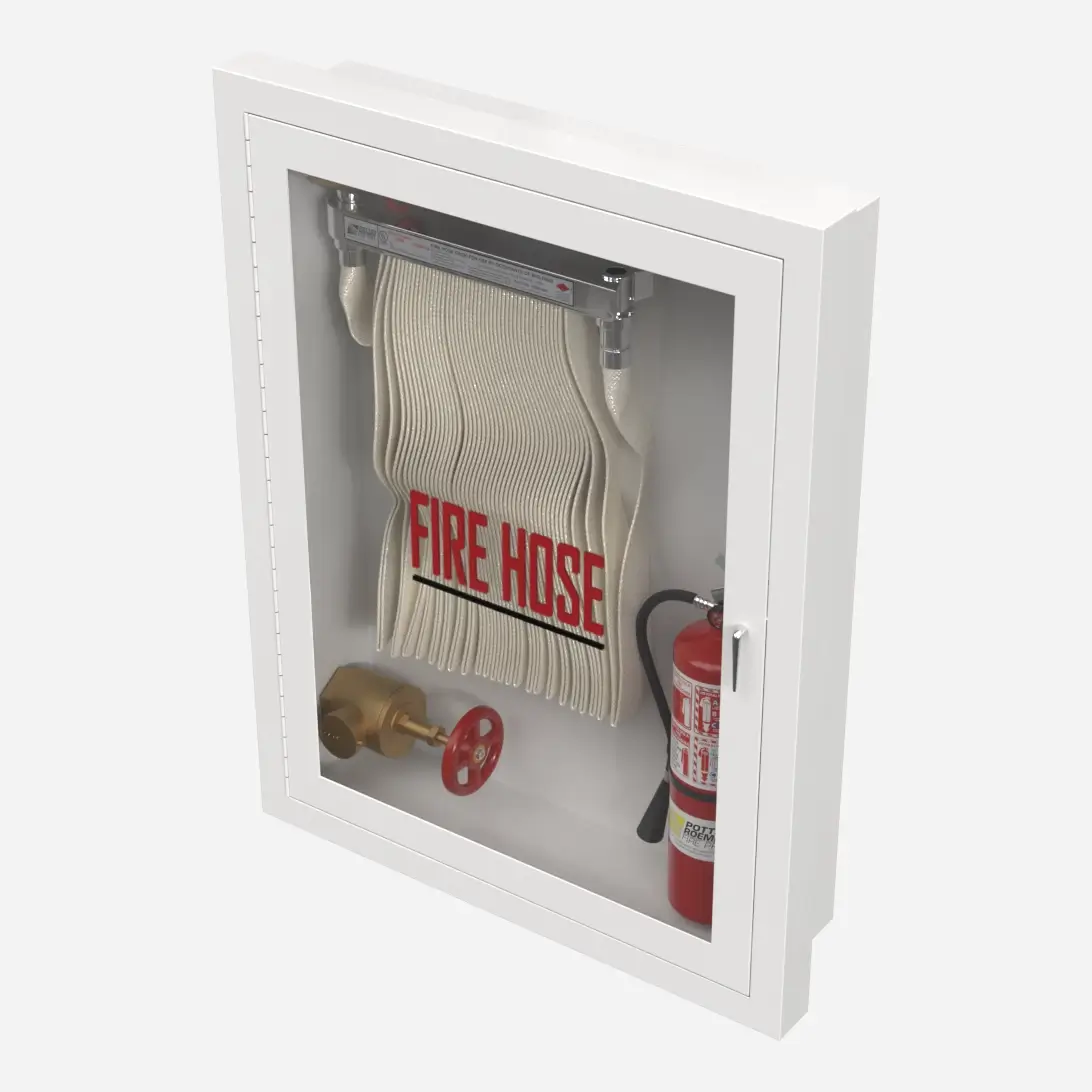

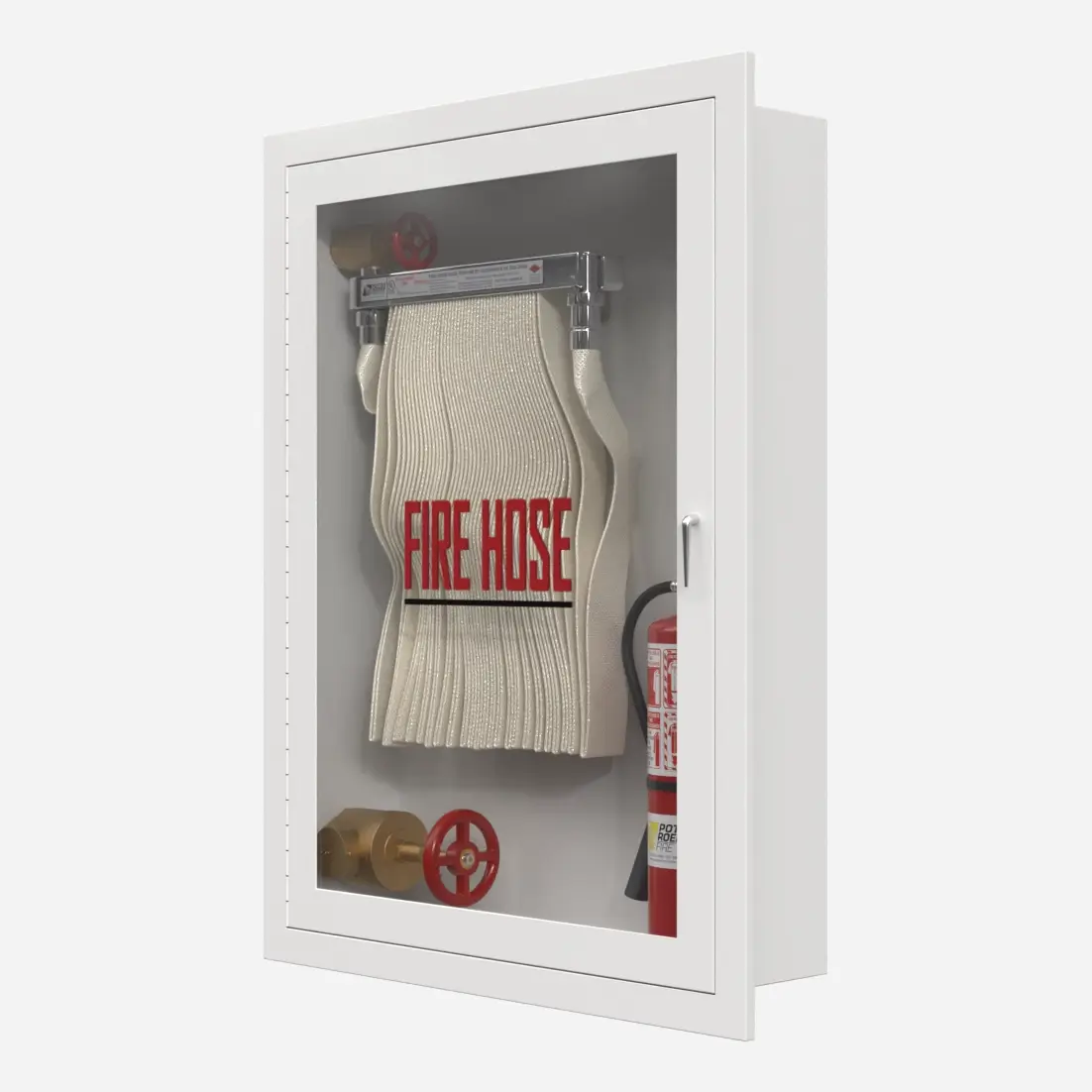

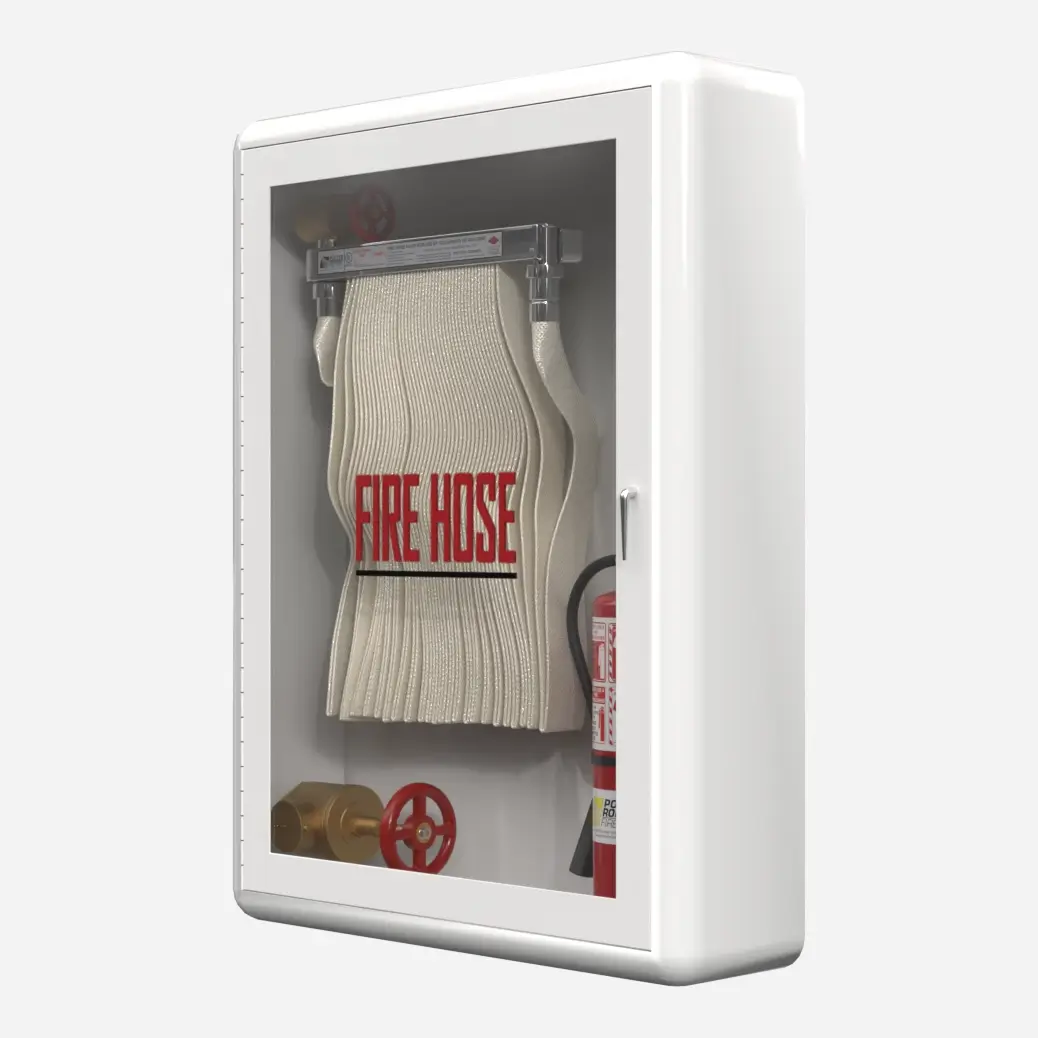

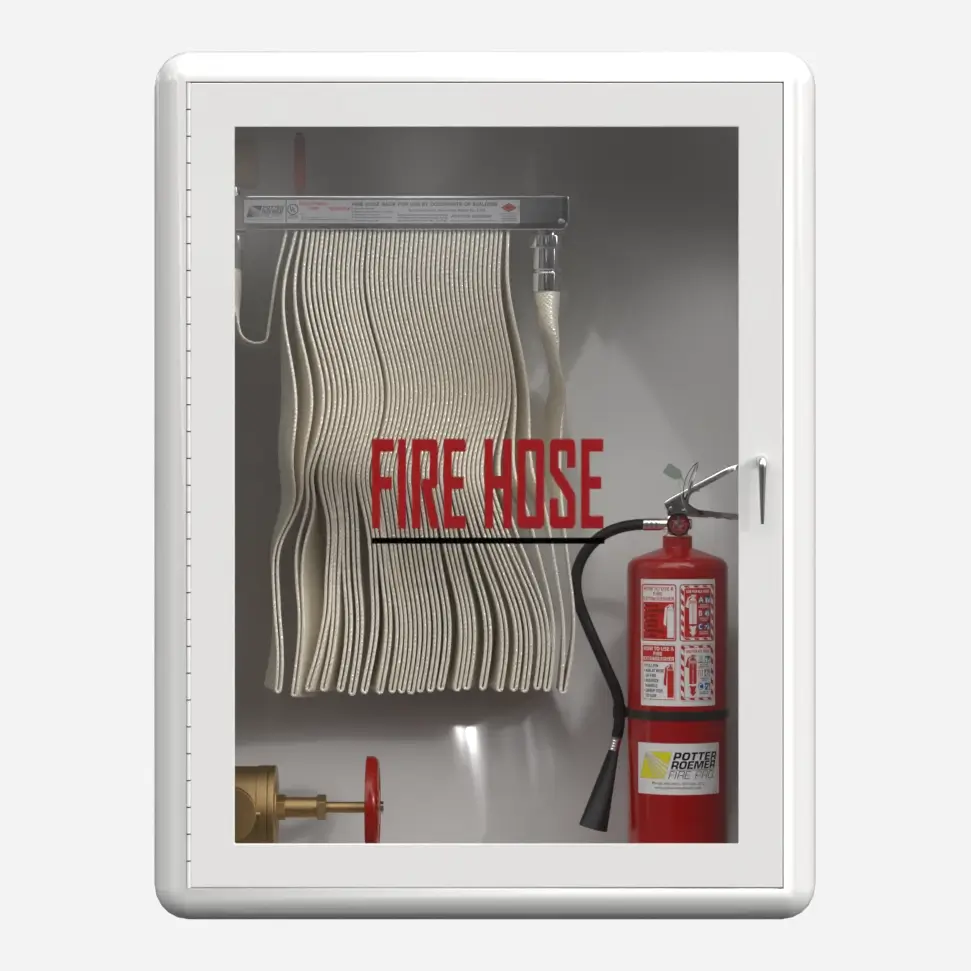

1504 | Recessed 30 x 36 x 8”, 5/8” Trim, ADA compliant 1506 | Recessed 30 x 40 x 8", 5/8” Trim, ADA compliant 1508 | Recessed 30 x 44 x 8", 5/8" Trim, ADA compliant 1514 | Trimless 30 x 36 x 8", ADA compliant 1516 | Trimless 30 x 40 x 8", ADA compliant 1518 | Trimless 30 x 44 x 8", ADA compliant 1534 | Semi-Recessed 30 x 36 x 8", 2 ¾" Trim, ADA compliant 1536 | Semi-Recessed 30 x 40 x 8", 2 ¾” Trim, ADA compliant 1538 | Semi-Recessed 30 x 44 x 8", 2 ¾” Trim, ADA compliant 1554 | Surface 32 x 38 x 9 1/4”, 9 ¼” Trim 1556 | Surface 32 x 42 x 9 ¼”, 9 ¼” Trim 1558 | Surface 32 x 46 x 9 ¼”, 9 ¼” Trim
