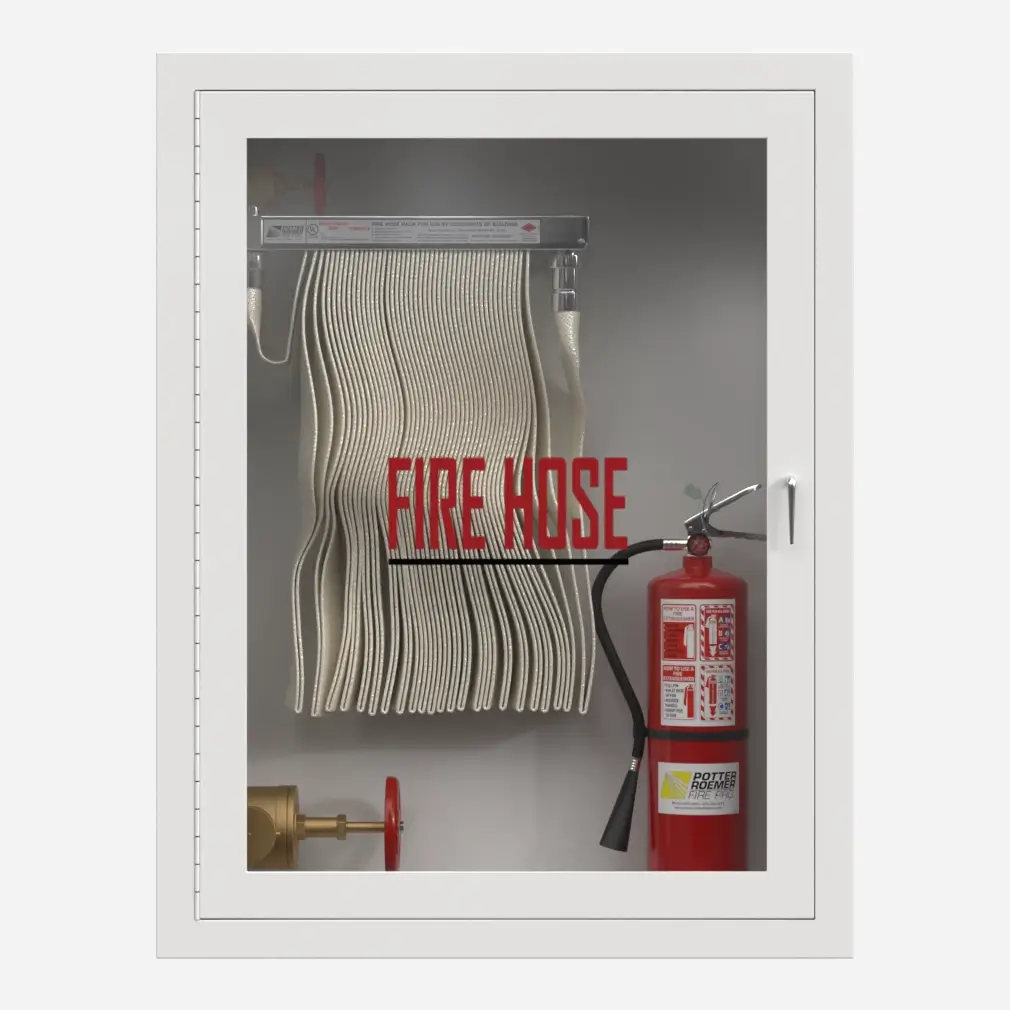

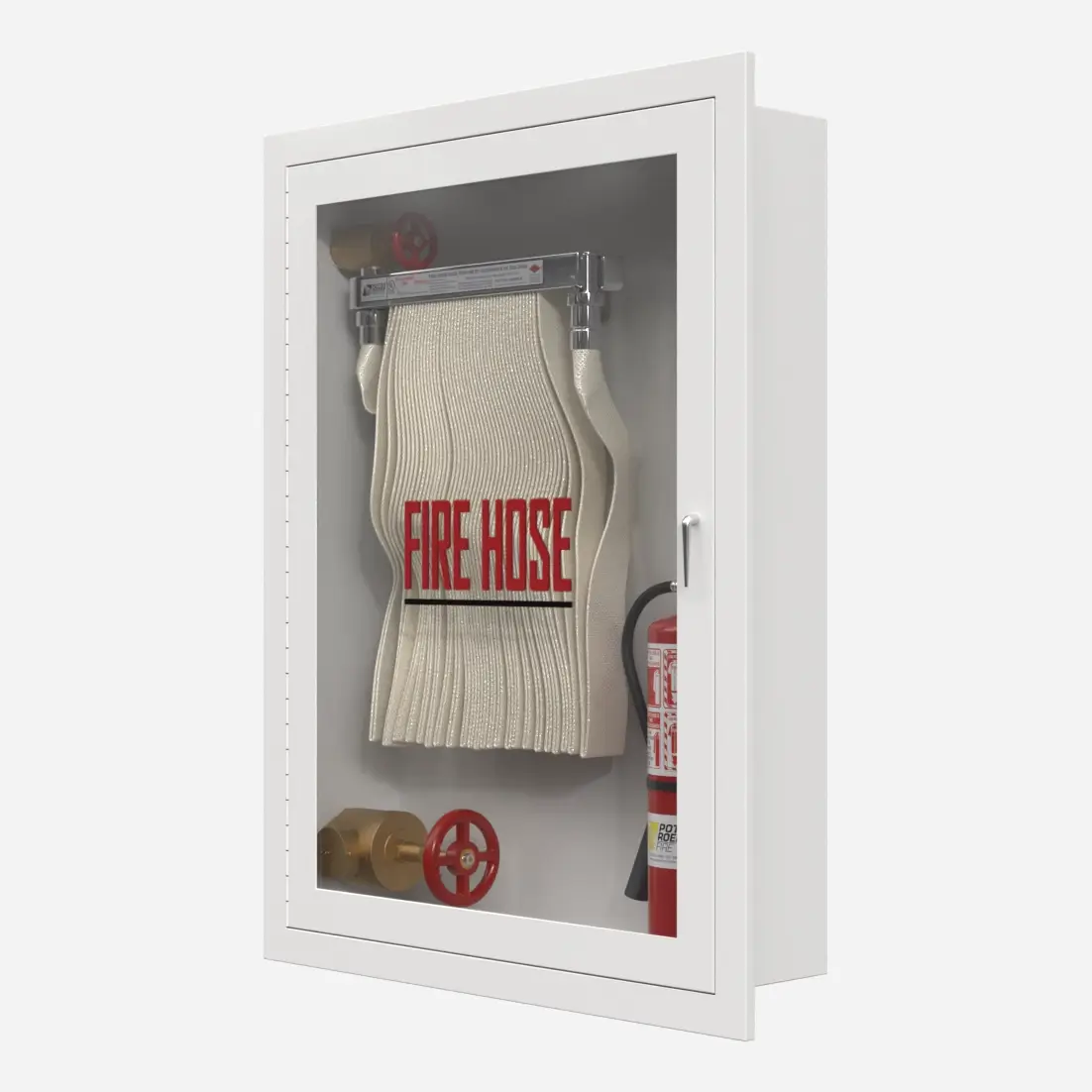

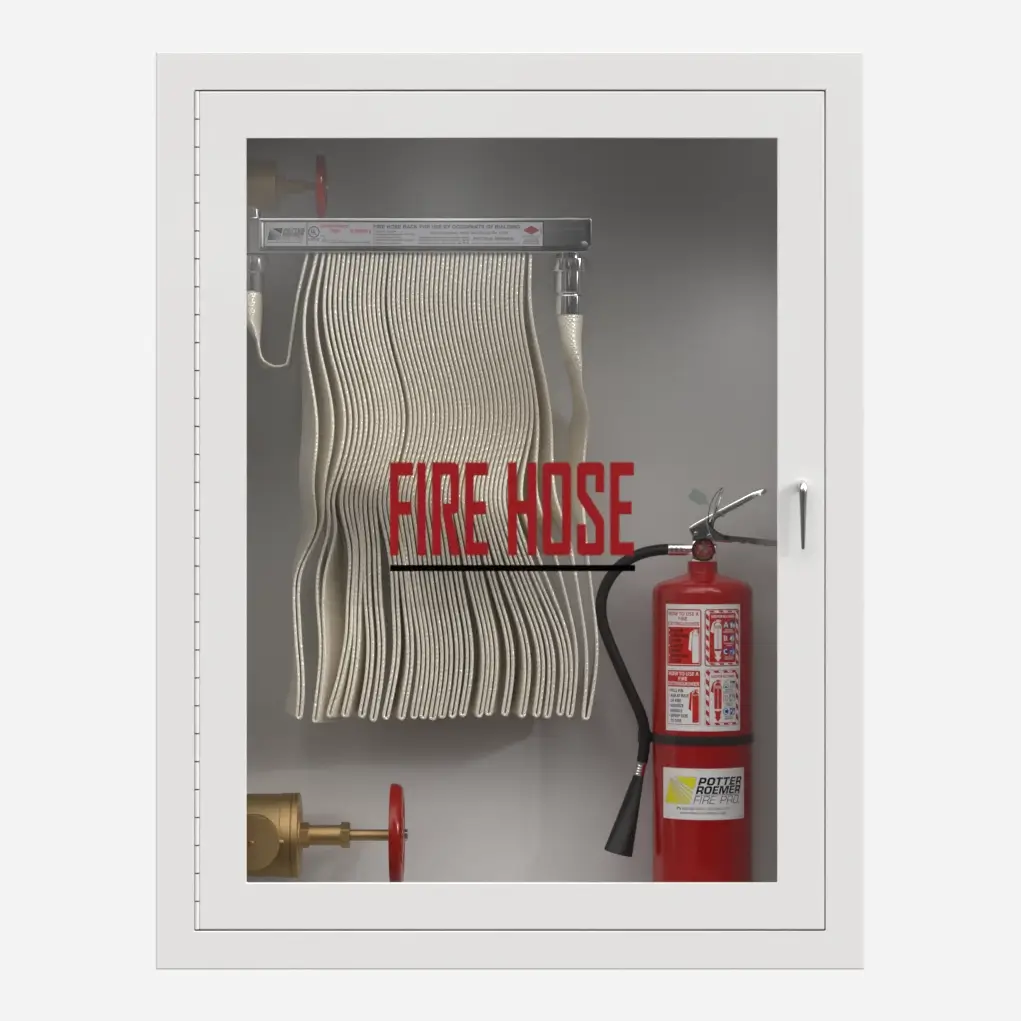

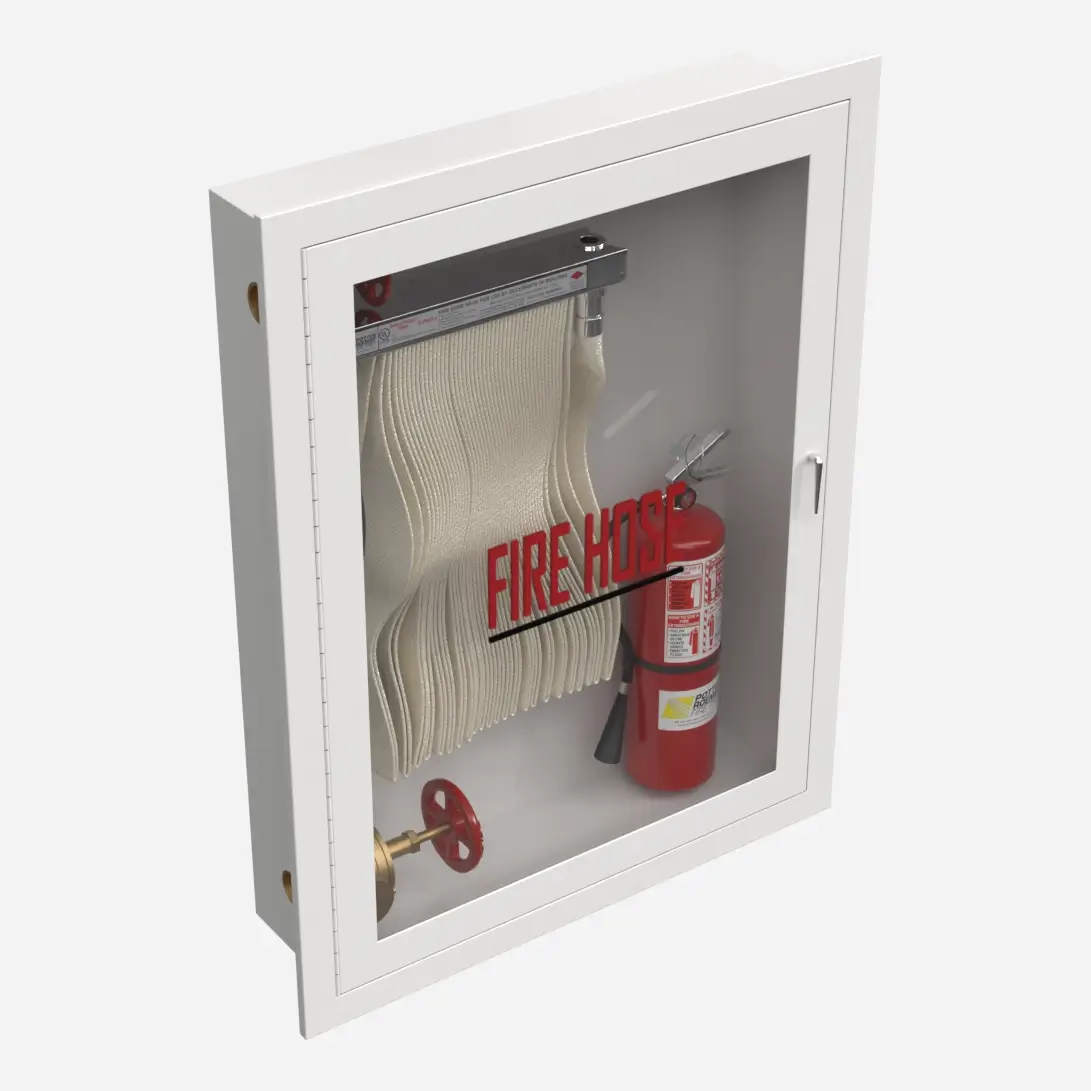

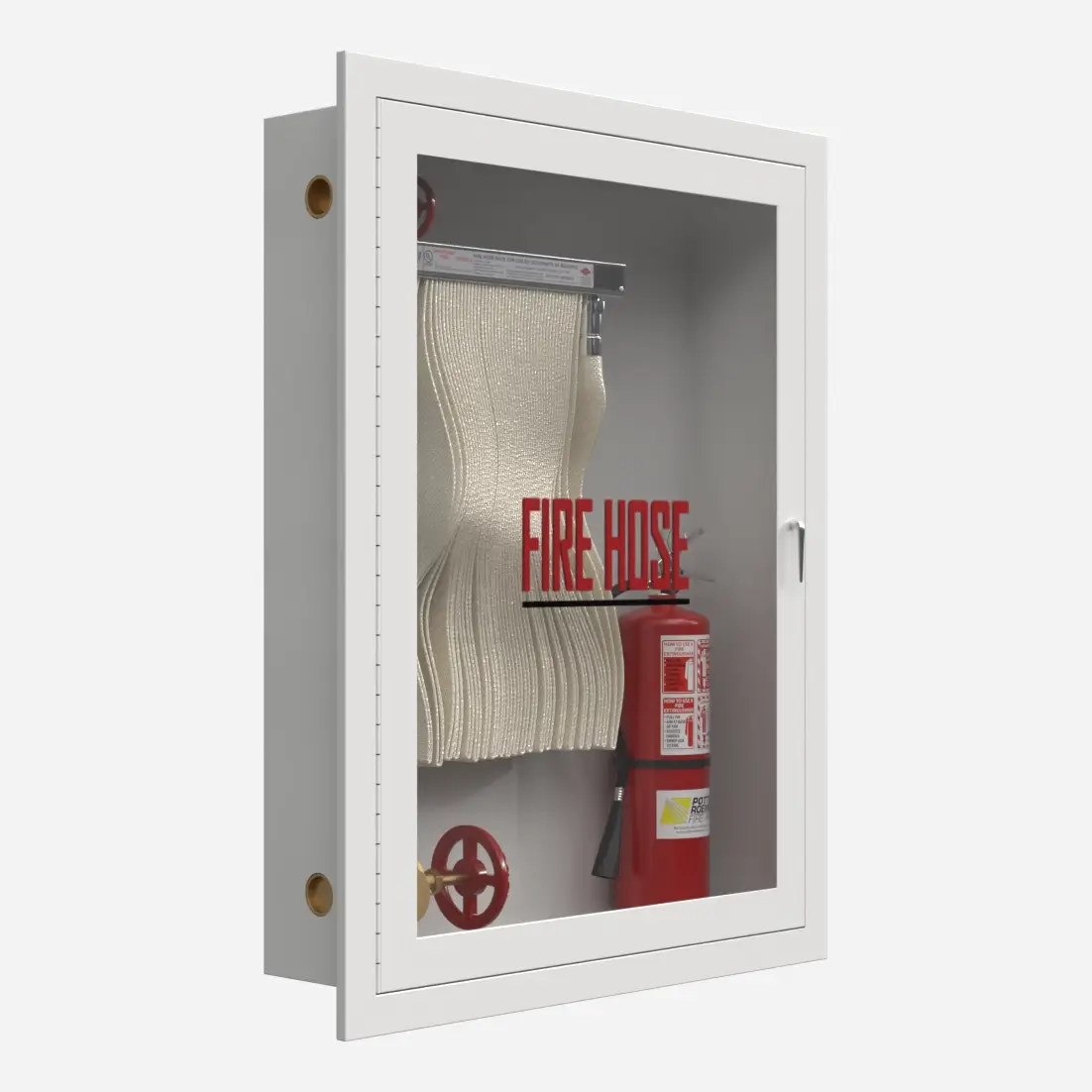

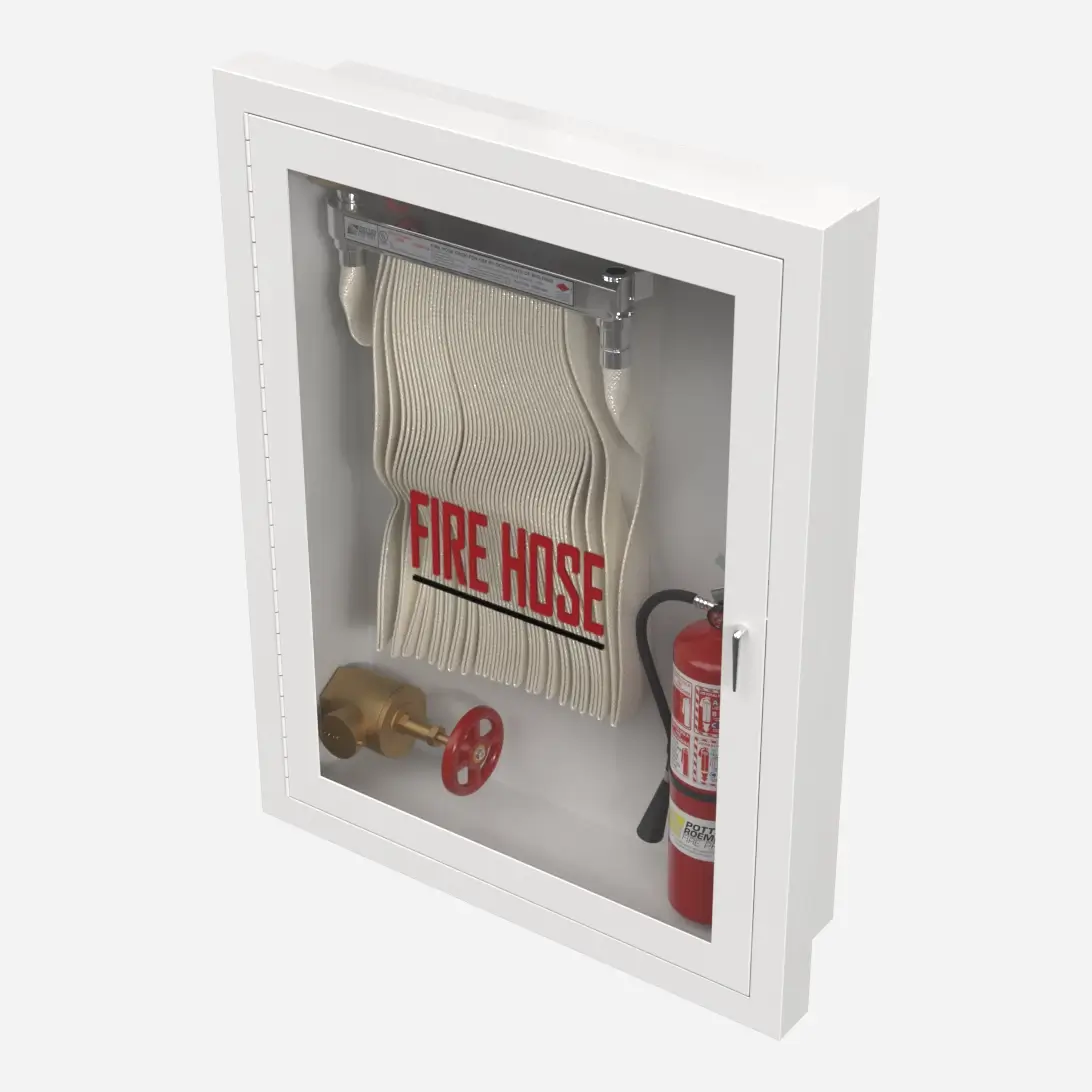

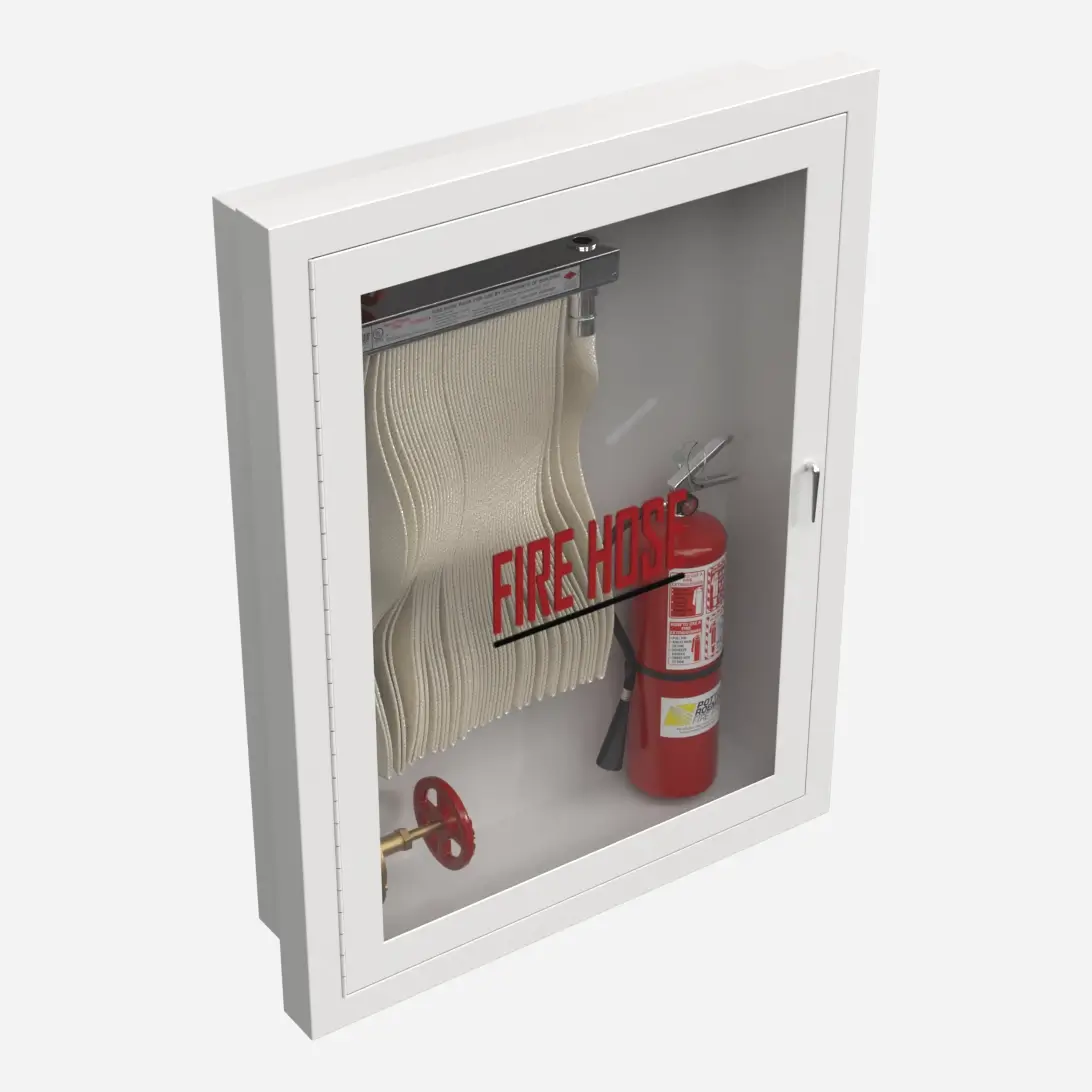

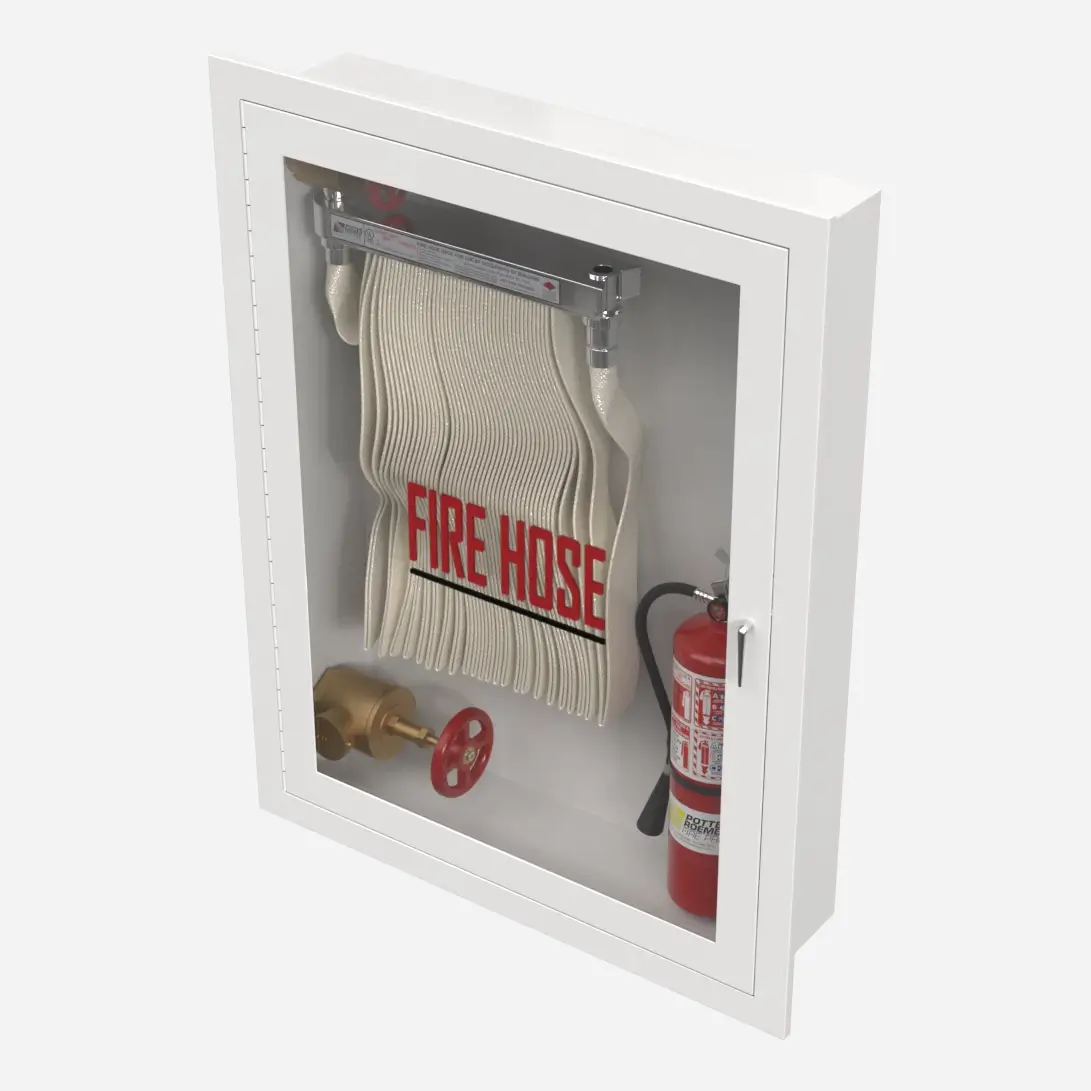

Fire Rated 1.5" Fire Hose Rack 2.5" Fire Dept. Valve and Extinguisher Cabinet

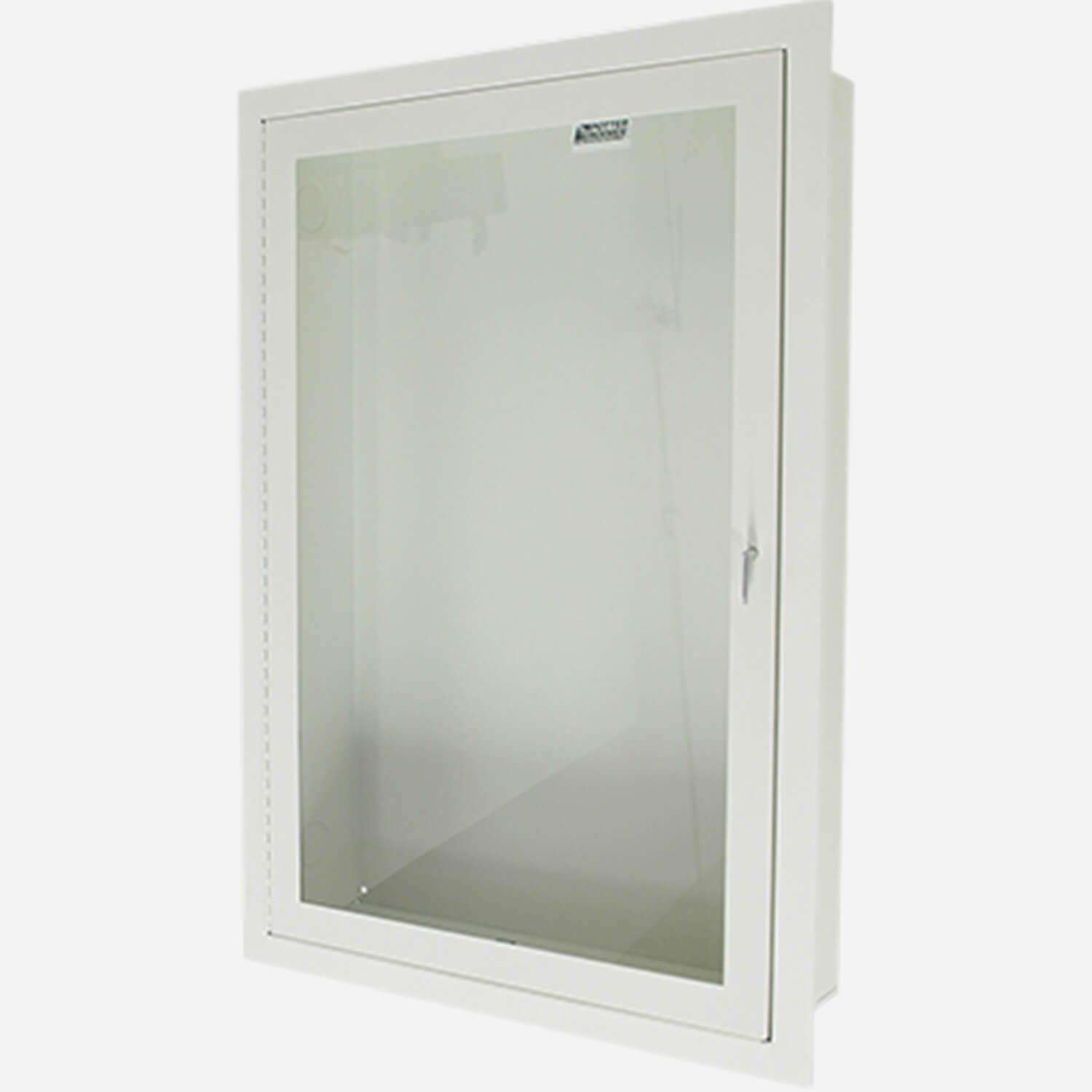

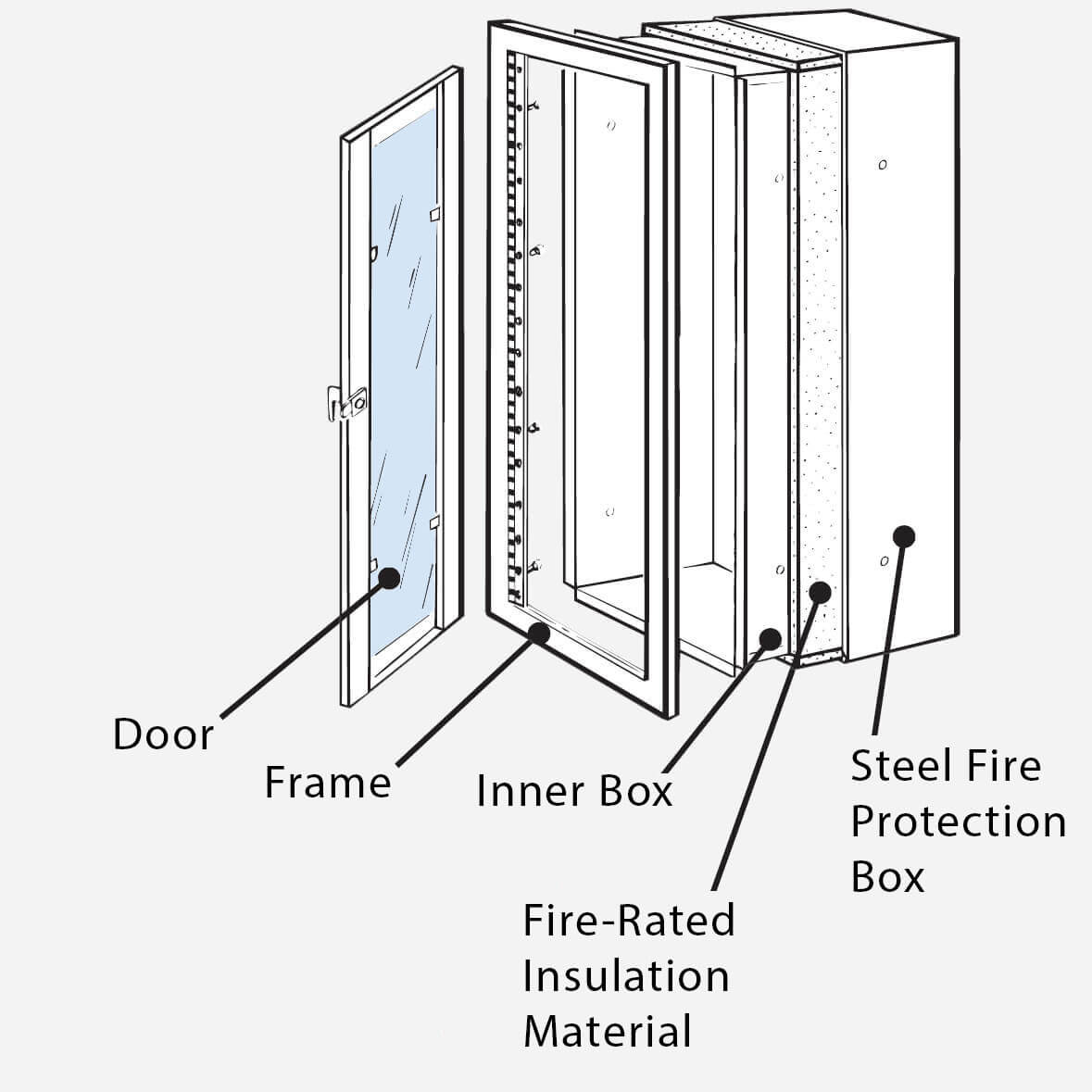

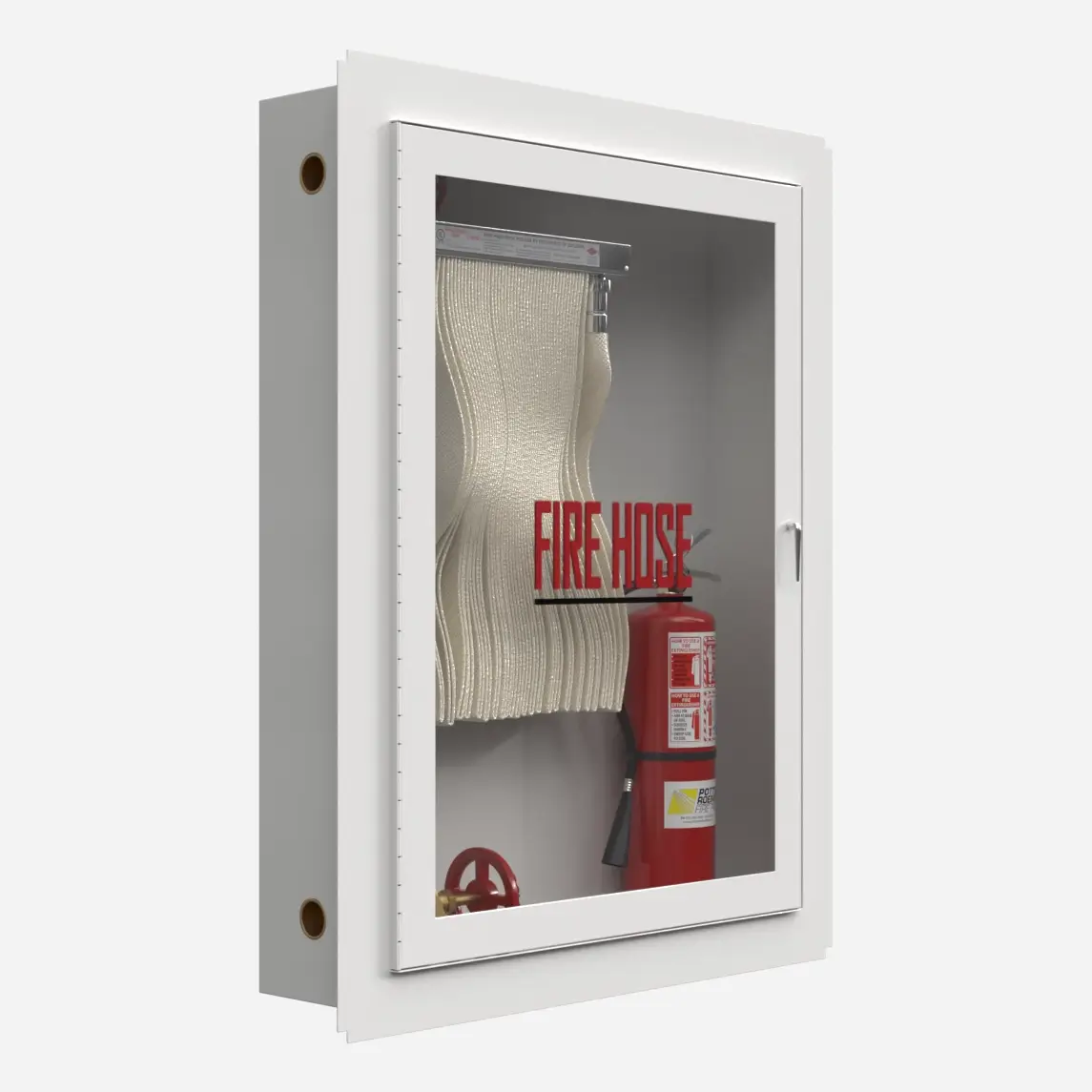

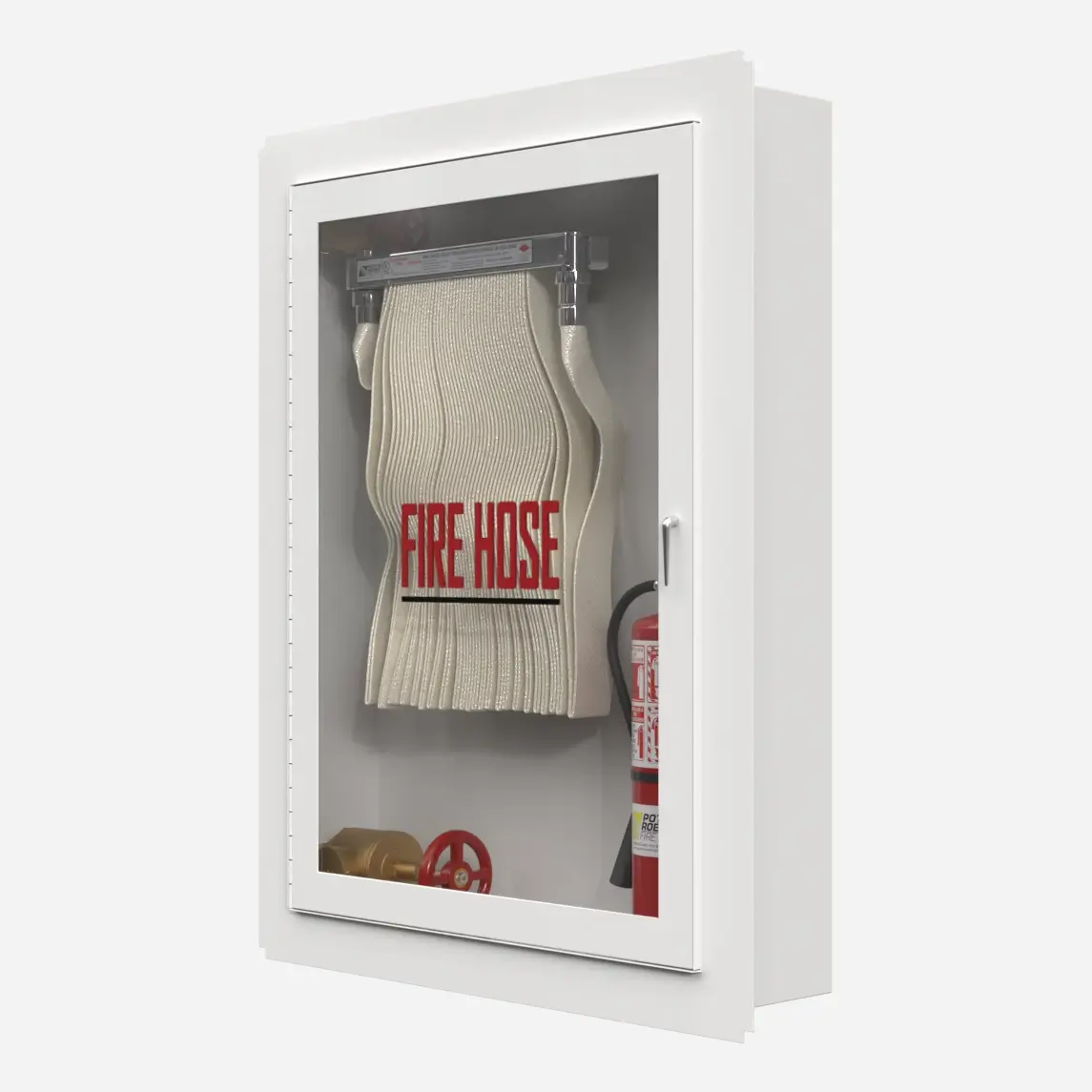

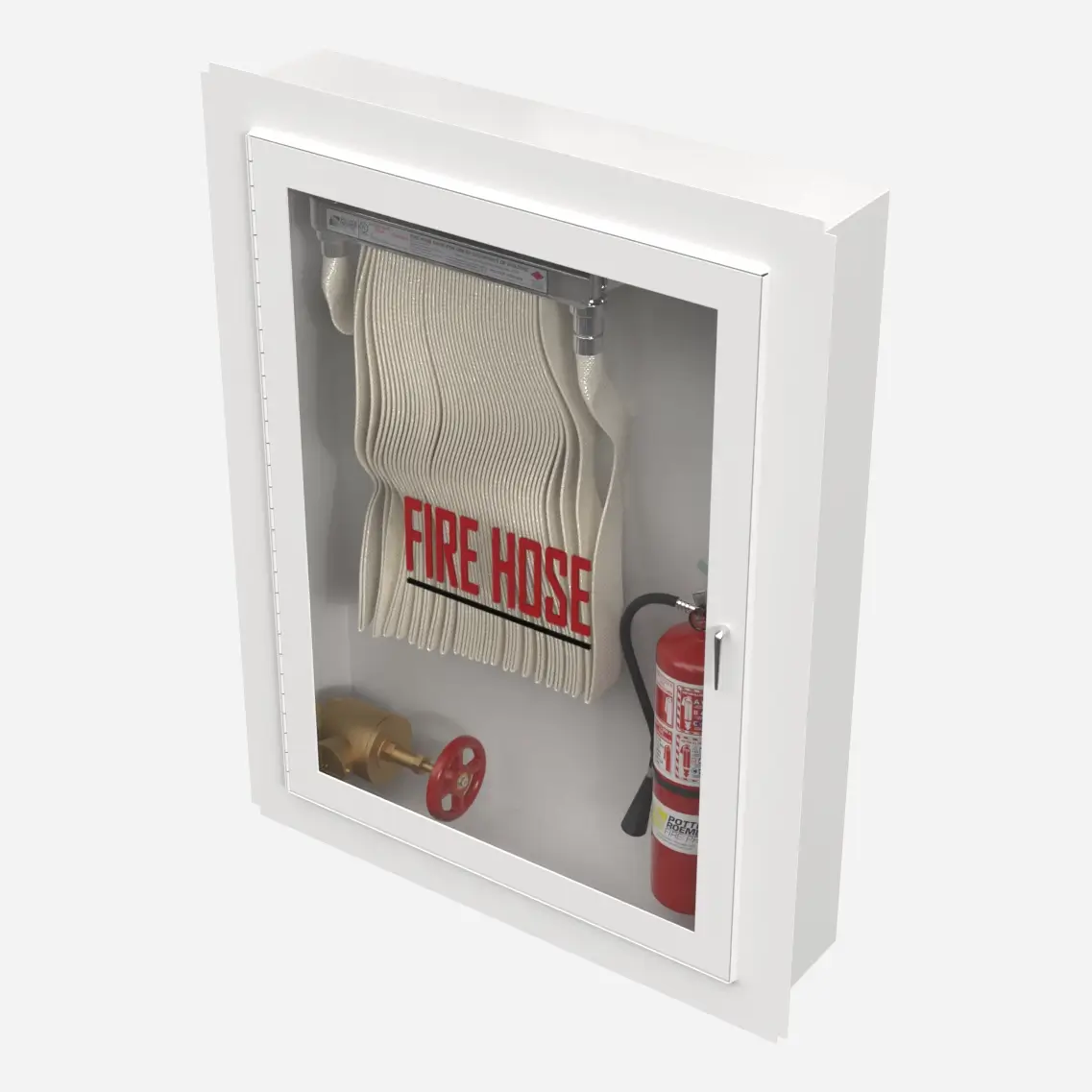

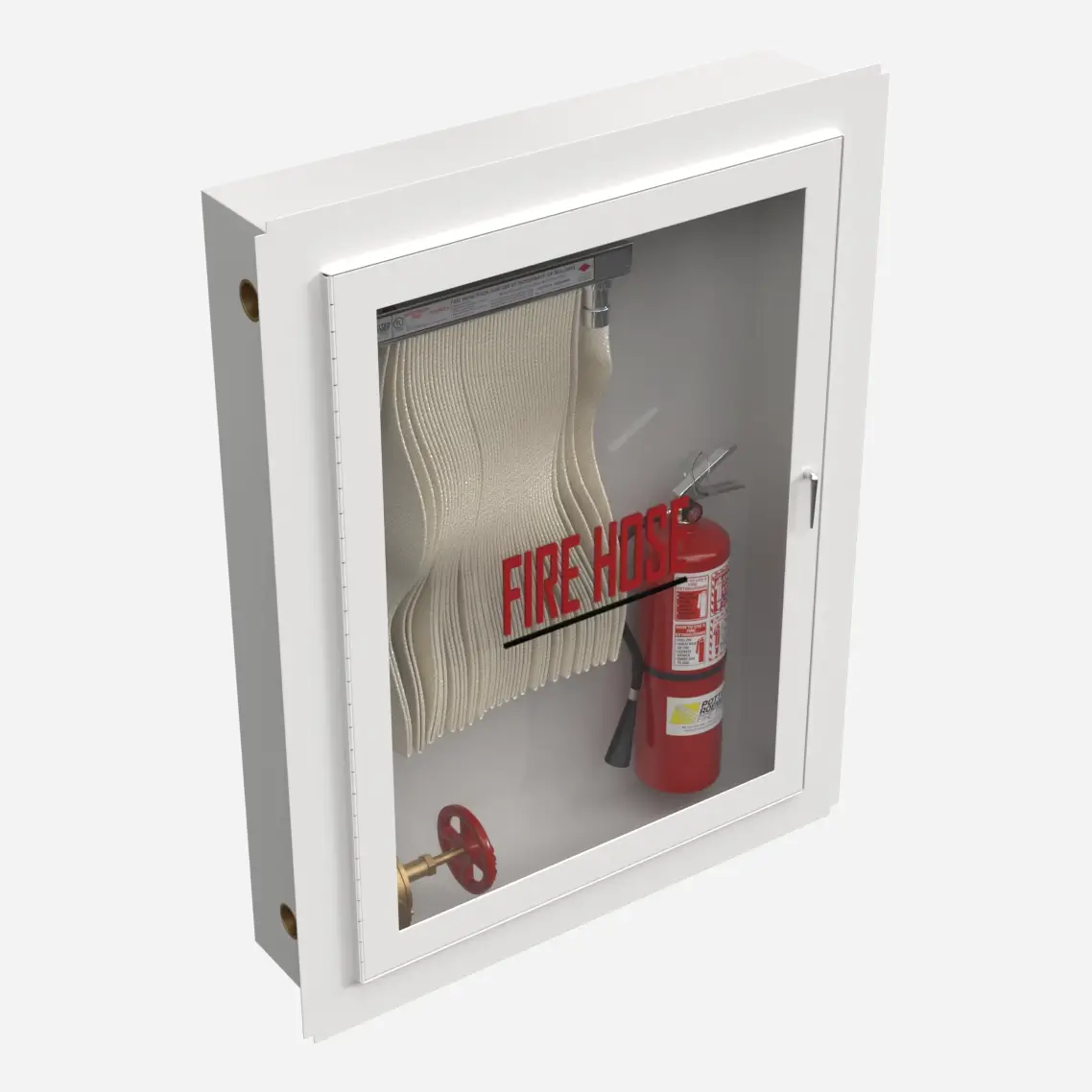

This fire-rated cabinet holds a 1-1/2" (3.8 cm) fire hose rack assembly with either Polyflex or PR-Superflex hose; a 2-1/2" (6.4 cm) fire dept valve with cap and chain; and a portable fire extinguisher. It is constructed from a 20 gauge steel box and door and 18 gauge frame with fire insulation material and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Semi-recessed and surface mounted cabinets are furnished with rolled radius. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION: 1600 Series cabinets accommodate a single 1-1/2" (3.8 cm) fire hose rack assembly with either Polyflex or PR-Superflex hose and a portable fire extinguisher. All bubble door styles have a projecting convex polycarbonate panel enclosing the extinguisher area of the cabinet.
REGULARLY FURNISHED: 20 gauge box, 20 gauge tubular steel door with 18 gauge frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with 0.125" (0.31 cm) radius frame. Semi-recessed and surface mounted cabinets are furnished with rolled radius. Door and frame finished with a powder-coated, electrostatically-applied, thermally-fused, recoatable white polyester finish. Clear, vacuum-formed, polycarbonate bubble. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated 1.5" Fire Hose Rack 2.5" Fire Dept. Valve and Extinguisher Cabinet [FRC1504, FRC1506, FRC1508, FRC1514, FRC1516, FRC1518, FRC1534, FRC1536, FRC1538] | 0 | 625 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame, Fire Insulation Material |
| Fire Rated | Fire Rated |
| UL Models | All models in this series |
| ADA Models | All models in this series |
| UL | UL Classified |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 30 x 36 x 8", 30 x 40 x 8", 30 x 36 x 8.75", 30 x 40 x 8.75", 30 x 44 x 8.75" |
| Capacity | 75' of Poly Flex Hose, 100' of Poly Flex Hose, 50' of Super Flex Hose, 75' of Super Flex Hose, 100' of Super Flex Hose, 2.5 Gallon Pressurized Water Fire Extinguisher, Up to 20 Lbs Dry Chemical Extinguisher, Up to 10 Lbs Carbon Dioxide Extinguisher, 1.5" Hose Rack Assembly |
| Mounting | Recessed, Trimless, Semi-Recessed |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -HF | Horizontal Fold Cabinet |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
FRC1500 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)

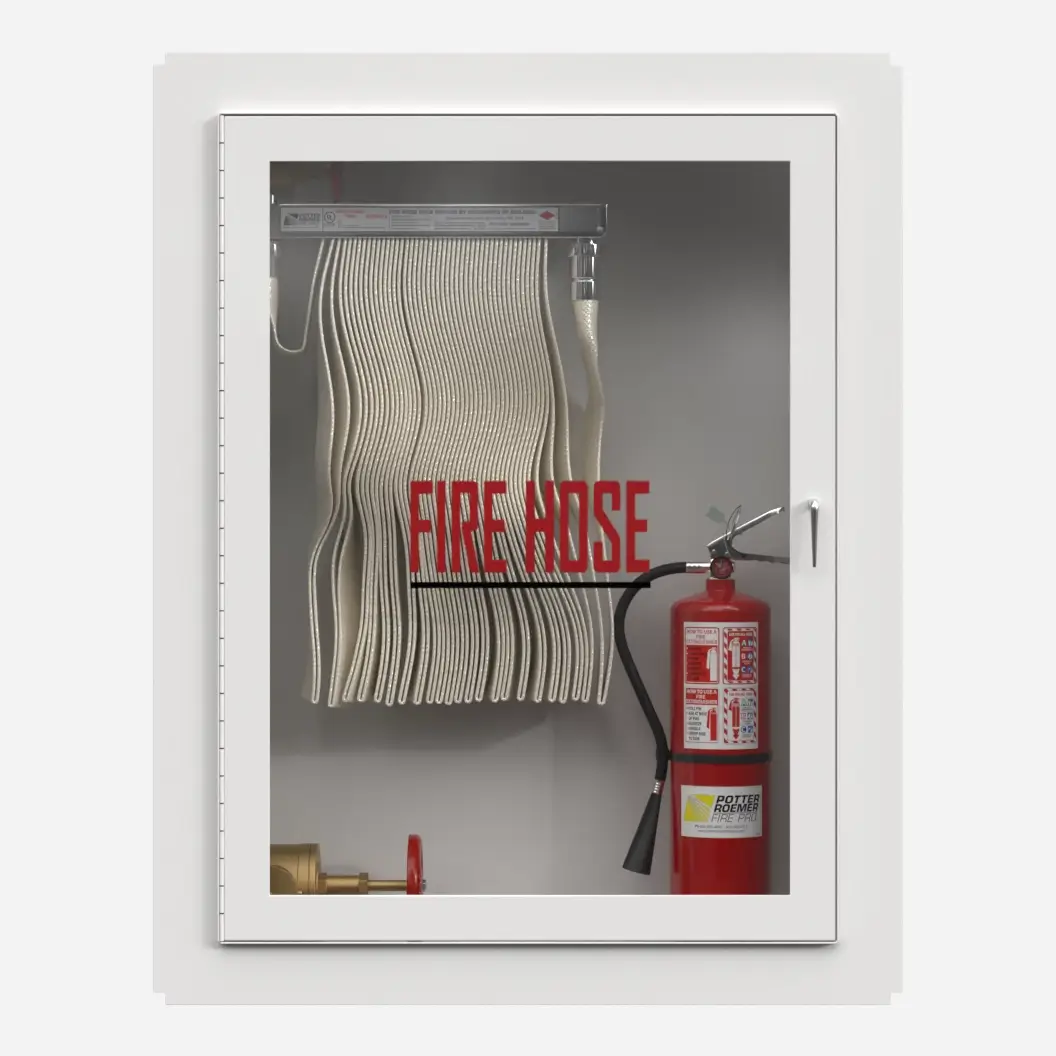

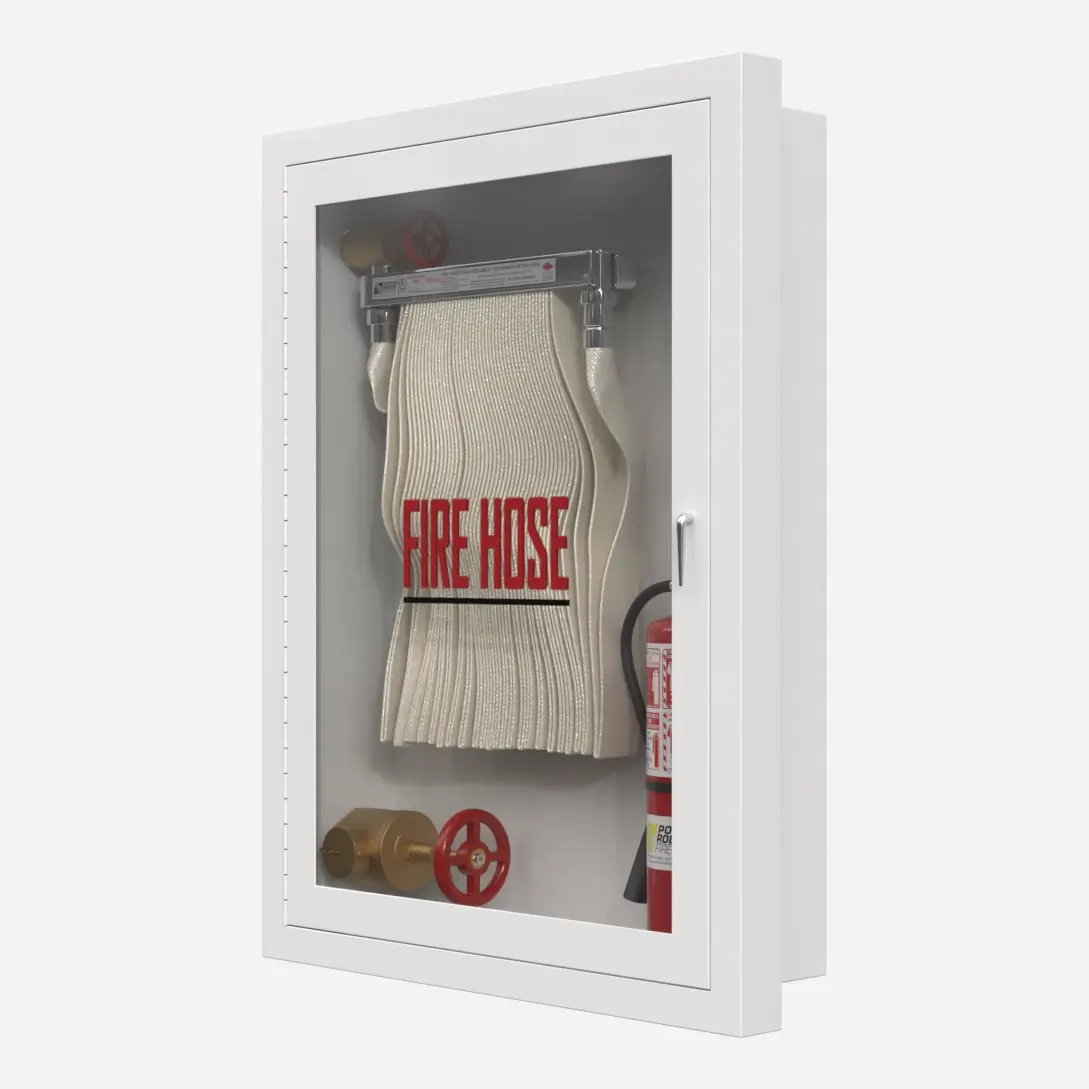

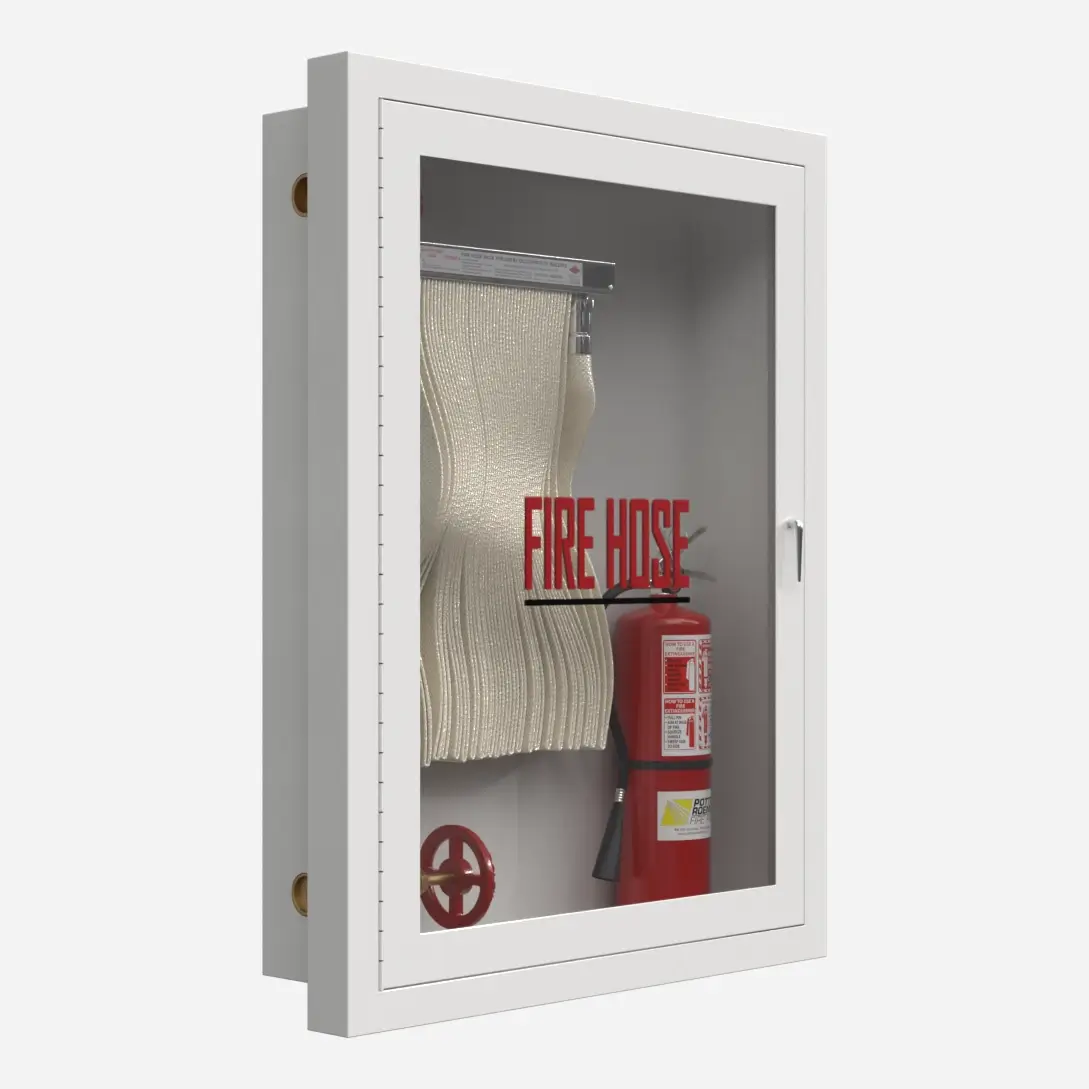

FRC1504 | Recessed 30 x 36 x 8”, 5/8” Trim FRC1506 | Recessed 30 x 40 x 8", 5/8” Trim FRD1508 | Recessed 30 x 44 x 8", 5/8" Trim FRC1514 | Trimless 30 x 36 x 8" FRC1516 | Trimless 30 x 40 x 8" FRC1518 | Trimless 30 x 44 x 8" FRC1534 | Semi-Recessed 30 x 36 x 8", 2 ¾" Trim FRC1536 | Semi-Recessed 30 x 40 x 8", 2 ¾” Trim FRC1538 | Semi-Recessed 30 x 44 x 8", 2 ¾” Trim
