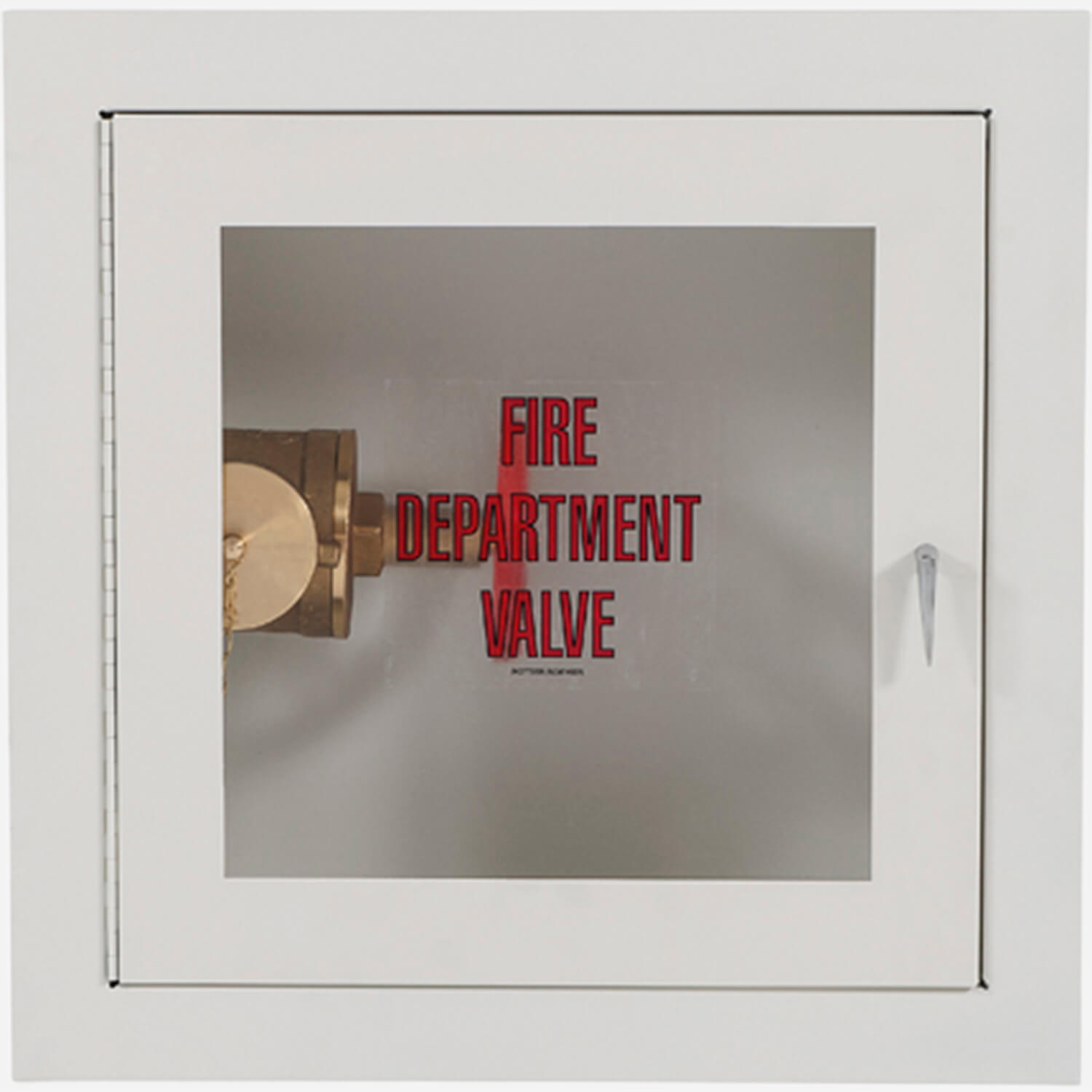

Fire Dept. Pressure Regulating Valve Cabinet
This cabinet is designed to hold a 2-1/2" (6.4 cm) pressure regulating valve with cap and chain. This cabinet may be used with other valves when spanner clearance is a factor or when a 2-1/2 x 1-1/2" (6.4 x 3.8 cm) adapter is required. This cabinet has a 21 gauge steel box 20 gauge tubular steel door with 20 gauge steel frame and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Recessed semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION: 1830 Series cabinets accommodate a single 2-1/2" (6.4 cm) typically Model 4005-4038 pressure regulating valve with cap and chain. This cabinet may be used with other valves when spanner clearance is a factor, or when a 2-1/2" x 1-1/2" (6.4 x 3.8 cm) adapter is required
REGULARLY FURNISHED: 21 gauge box, 20 gauge tubular steel door with 20 gauge frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Dept. Valve Cabinet [1810, 1810-10, 1811, 1811-10, 1812, 1812-10, 1815, 1830, 1831, 1832, 1835] | 0 | 606 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame |
| ADA Models | 1830, 1831, 1832 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 24 x 24 x 10", 24 x 24 x 10.75", 26 x 26 x 11.25" |
| Capacity | 2.5" Pressure Regulating Valve |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -DANA | Frameless Concealed Hinge & Handle, -DP | Duplex Cabinet, -10 | 10" deep box to accomodate reducer for valve |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1830 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1830 | Recessed 24 x 24 x 10", 5/8” Trim, ADA compliant 1831 | Trimless 24 x 24 x 10 3/4", ADA compliant 1832 | Semi-Recessed 24 x 24 x 10", 2” Trim, ADA compliant 1835 | Surface 26 x 26 x 11 1/4"
