1.5 and 2.5" Fire Dept. Valve and Extinguisher Cabinet
Cabinet for 1-1/2" (3.8 cm) 2-1/2" (6.4 cm) fire dept valves and extinguisher. 1880 Series cabinets are inches (20.3 cm) deep and 1880-10 Series cabinets are 10 inches (25.4 cm) deep to provide more depth in the cabinet. The cabinet has a 21 ga. steel box 20 gauge tubular steel door with 20 gauge frame and a continuous steel hinge (brass pin). Steel corner seams are welded and ground smooth. Recessed semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish.
FUNCTION:

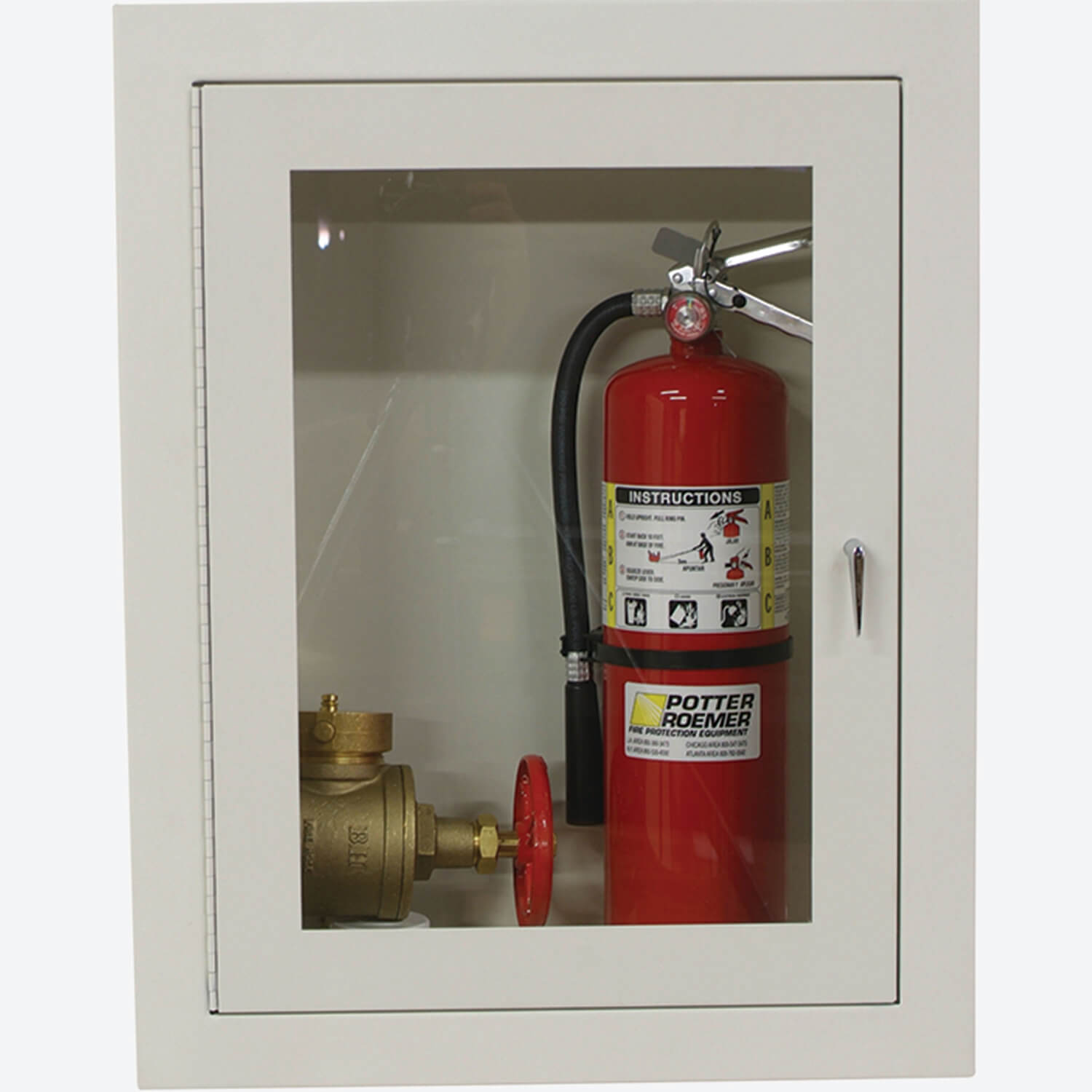

1880 Series cabinets accommodate a 1-1/2 inch (3.8 cm) and/or 2-1/2 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher; cabinet is 8 inches (20.3 cm) deep.
1880-10 Series cabinets accommodate a 1-1/2 inch (3.8 cm) and/or 2-1/2 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher; cabinet is 10 inches (25.4 cm) deep to provide more depth in the cabinet.
REGULARLY FURNISHED: 21 gauge box, 20 gauge tubular steel door with 20 gauge frame and a continuous steel hinge (brass pin). Steel corner seams welded and ground smooth. Recessed, semi-recessed and surface mounted cabinets are furnished with square edges. All components are powder-ted with an electrostatically-applied, thermally-fused, recoatable white polyester finish. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 2.5 Inch Fire Dept. Valve and Extinguisher Cabinet - Vertical [1870, 1870-10, 1871, 1871-10, 1872, 1872-10, 1875, 1880, 1880-10, 1881, 1881-10, 1882, 1882-10, 1885] | 0 | 619 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Door, 20 Gauge Frame |
| ADA Models | 1880, 1881, 1882 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 18 x 24 x 8", 20 x 26 x 9.5" |
| Capacity | 1.5" Fire Dept Valve, 2.5" Fire Dept Valve, Up to 10 Lbs Dry Chemical Valve, See submittal for recommended PR Fire Extinguishers |
| Mounting | Recessed, Semi-Recessed, Trimless, Surface |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -12 | 12" deep box |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1880 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1880 | Recessed 18 x 24 x 8", 5/8” Trim, ADA compliant 1881 | Trimless 18 x 24 x 8", ADA compliant 1882 | Semi-Recessed 18 x 24 x 8", 2” Trim, ADA aompliant 1885 | Surface 20 x 26 x 9 1/2"
