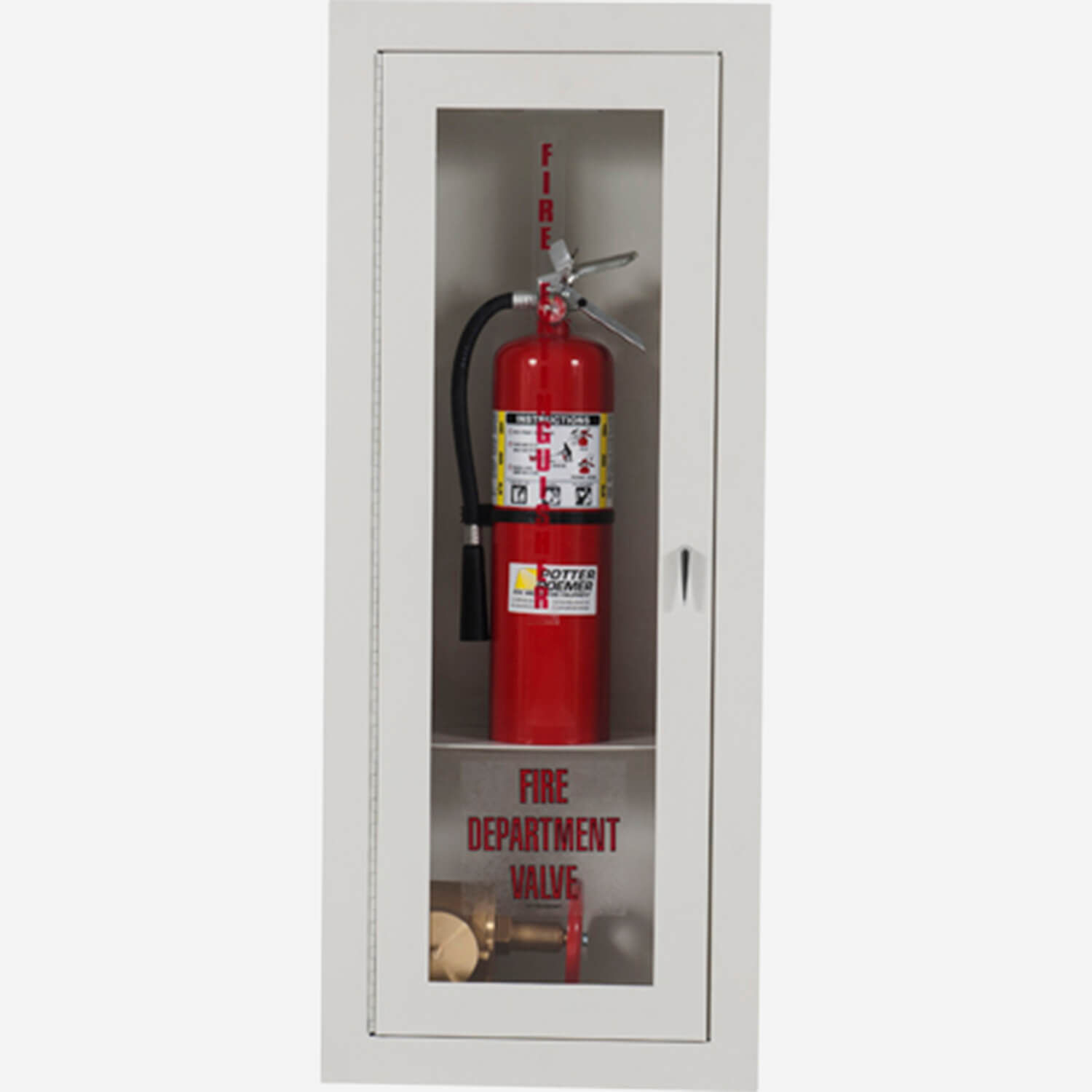

2.5 Inch Fire Dept. Valve and Extinguisher Cabinet - Vertical
1870 Series cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap chain and a portable fire extinguisher on the shelf above the valve; cabinet is 8" (20.3 cm) deep. 1870-10 Series cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap chain and a portable fire extinguisher on the shelf above the valve; cabinet is 10" ( 25.4 cm) deep to provide more depth in the cabinet. These cabinets are constructed from 22 gauge steel box; 20 gauge tubular steel door with 20 gauge frame; and a continuous steel hinge. All components are powder-coated with an electrostatically-applied thermally-fused recoatable white polyester finish. All glass door styles provided with clear tempered safety glass.
FUNCTION:
1870 Series cabinets accommodate a 2.5 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher on the shelf above the valve; cabinet is 8" (20.3 cm) deep.
1870-10 Series cabinets accomodate a 2.5 inch (6.4 cm) fire dept valve with cap, chain and a portable fire extinguisher on the shelf above the valve; cabinet is 10" ( 25.4 cm) deep to provide more depth in the cabinet.
REGULARLY FURNISHED: 22 gage. box; 20 gage tubular steel door with 20 gage frame and a continuous steel hinge. All components are powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. All glass door styles provided with clear tempered safety glass. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 2.5 Inch Fire Dept. Valve and Extinguisher Cabinet - Vertical [1870, 1870-10, 1871, 1871-10, 1872, 1872-10, 1875, 1880, 1880-10, 1881, 1881-10, 1882, 1882-10, 1885] | 0 | 619 KB | ||
 | | MasterSpec: 104413, Fire Protection Cabinets (doc) | 0 | 151 KB | ||
| | MasterSpec: 104413, Fire Protection Cabinets (pdf) | 0 | 180 KB | ||
| | Dana Style Cabinets [1302-DANA | for Hose Rack Assembly and Extinguisher; 1704-DANA | for Extinguisher; 1706-DANA | for Extinguisher; 1810-DANA | for Valve; 1870-DANA | for Valve and Extinguisher] | 0 | 622 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | 20 Gauge Steel Box, 20 Gauge Steel Door, 18 Gauge Steel Frame |
| ADA Models | 1870, 1871, 1872 |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 14 x 40 x 8", 16 x 42 x 9.5", 14 x 40 x 10" |
| Capacity | Up to 20 Lbs Dry Chemical Extinguisher, 2.5" Fire Dept Valve, 2.5" Fire Dept Valve with Reducer, See submittal for recommended PR Fire Extinguishers |
| Mounting | Recessed, Trimless, Semi-Recessed, Surface |
| Door Style | -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock, -J | Insert Panel |
| Options | -12 | 12" deep box |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
Models
1870 Series - Inside Box Dimensions (Width x Height x Depth in inches), Trim (in inches)
1870 | Recessed 14 x 40 x 8", 5/8” Trim, ADA compliant (avaialble in Dana Style Cabinet, see submittal) 1871 | Trimless 14 x 40 x 8", ADA compliant 1872 | Semi-Recessed 14 x 40 x 8", 2” Trim, ADA compliant 1875 | Surface 16 x 42 x 9 1/2"
