Member of Morris Group International
Model 2705 thru 2710

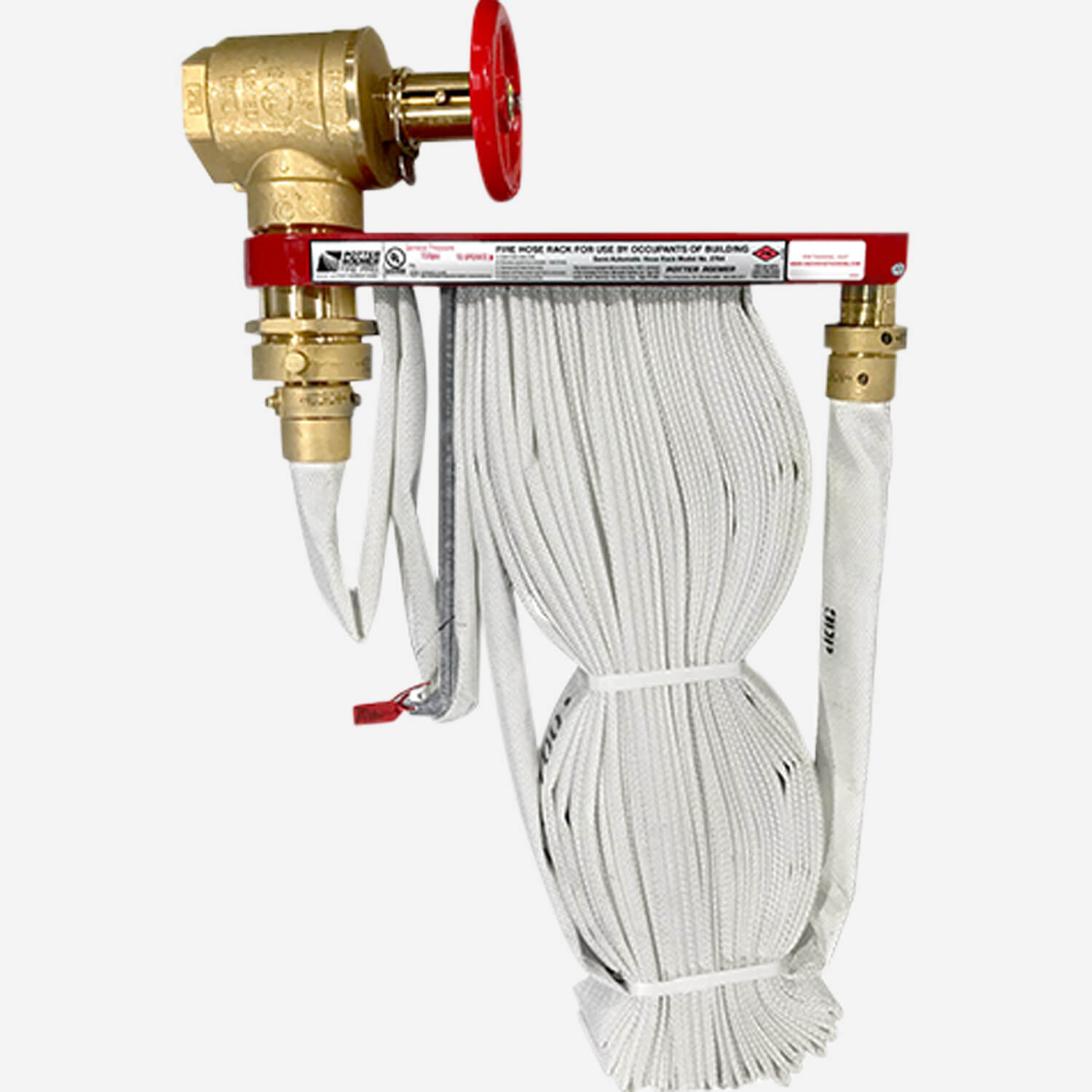

2.5 x 1.5" Fire Hose Rack Assembly
This 2-1/2” x 1-1/2” fire hose rack assembly is intended for Class III Service and can be used to provide an immediate and more efficient means of fire control. The assembly is capable of one-person operation and meets the nationally recognized standard of 500 GPM (1892.6 lpm) at 100 PSI (6.9 bars) at the outlet of the valve. The assembly includes a 2.5” Escutcheon 2.5 x 1.5” Satin Brass Reducer 1.5” Satin Brass Pin Lug Coupling 1.5” Lined 500 lb. Polyflex Hose for Interior Standpipe 1.5” U/L Satin Brass Fog Nozzle and 2.5 x 1.5” Red Polyester Coated Steel U/L and Hose Rack.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Hose Rack Assembly featuring 2-1/2" Restricting Angle Valve [2705 | Accommodates 50-Foot 1-1/2" Polyflex Hose; 2707 | Accommodates 75-Foot Hose; 2710 | Accommodates 100-Foot Hose] | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Optional Finish | -A | Red Enamel Rack with Rough Brass Valve & Polished Brass Trim, -B | Red Enamel Rack with Polished Brass Valve & Polished Brass Trim, -C | Polished Chrome Rack with Rough Chrome Valve & Rough Chrome Trim, -D | Polished Chrome Rack |
| UL Models | All models in this series |
| GPM | 500 |
| UL | UL Listed |
| Meets Other Specifications | NFPA/FEMA Class (of Service) III - Fire Service or Occupant Use |
Models
2.5 Inch Escutcheon [ Model 2751] 2.5 x 1.5 Inch Satin Brass Reducer [ Model 2810] 1.5 Inch Satin Brass Pin Lug Coupling [ Model 2930] 1.5 Inch Lined 500 lb. Polyflex Hose for Interior Standpipe [ Model 2915] 1.5 Inch U/L Satin Brass Fog Nozzle [ Model 2962] 2.5 x 1.5 Inch Red Polyester Coated Steel U/L and Hose Rack [ Model 2794] Instructional Decal [ Model 1985] Nipple Mounted: 2.5 Inch Double Female Rough Brass U/L Adjustable Pressure Restricting (175 lbs) Angle Valve [ Model 4095] 2.5 Inch Satin Brass Hose Rack Nipple [ Model 2756]
